Digitus 100G QSFP28 DAC Cable — 2 m
100 GbpsQSFP28 to QSFP28100GBASE-CR42 m copper

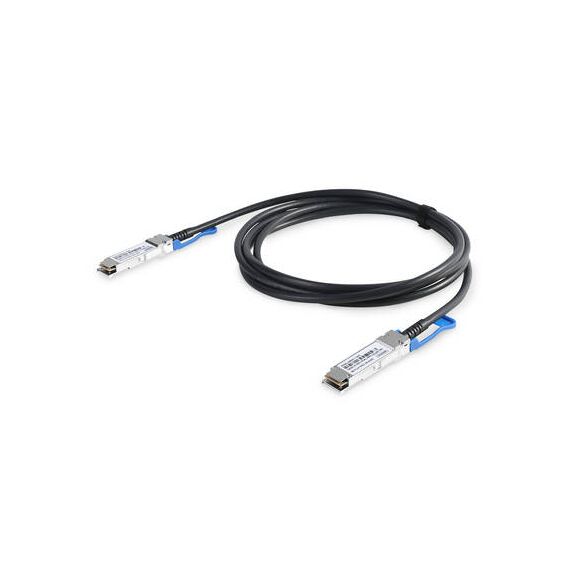

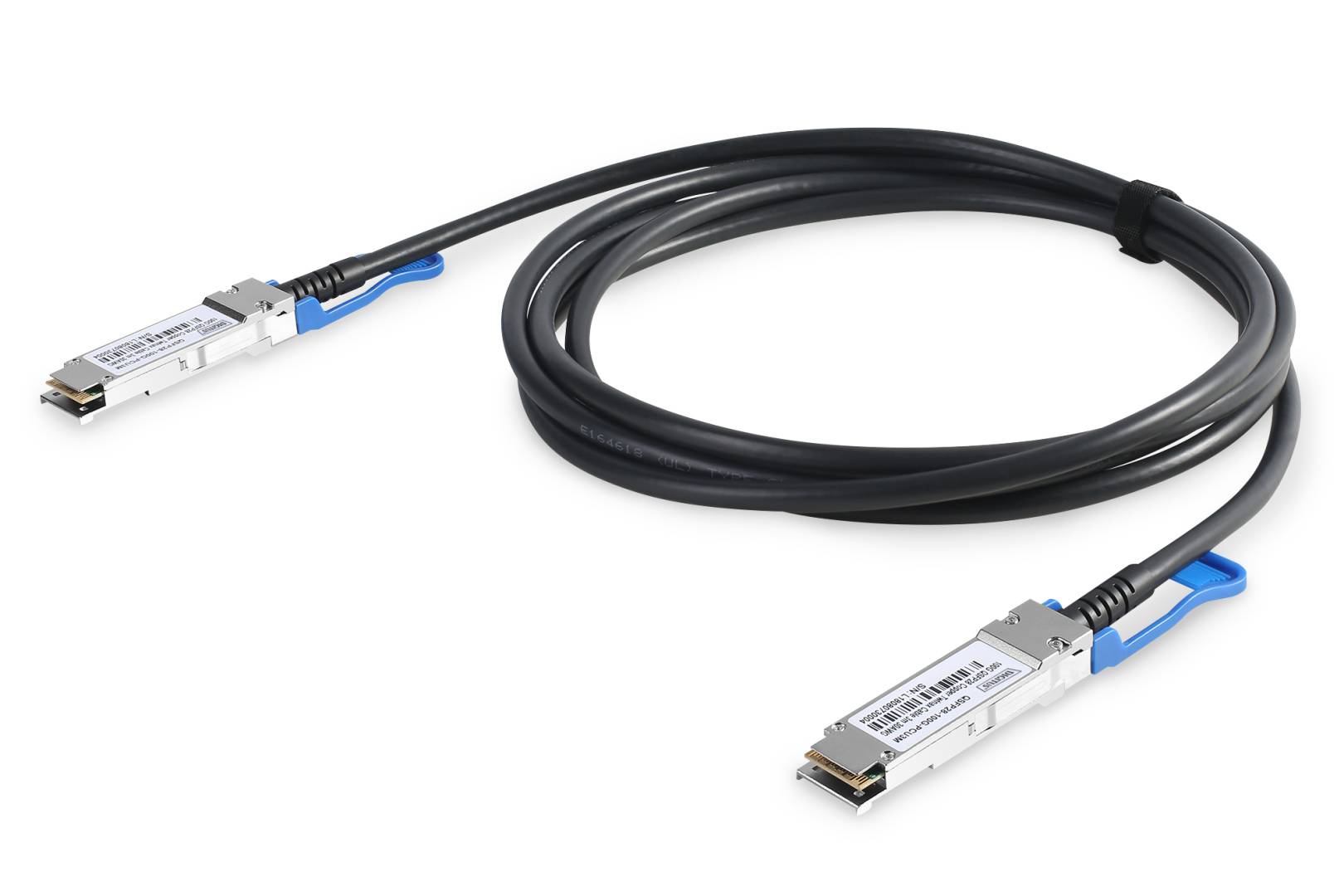

The Digitus DN-81602 is a 2 m direct attach copper (DAC) cable with a QSFP28 connector on each end, compliant with 100GBASE-CR4, for 100 Gigabit Ethernet links between switches, servers and storage in the same or the neighbouring rack.
Inside are four lanes of up to 28.3125 Gbps each, which together carry 100 Gbps. Because the QSFP28 connectors are fixed to a copper twinax cable, you do not buy two optical transceivers and a fibre patch cord for every short link — one cable, plugged in at both ends, makes the connection. Digitus lists Cisco as manufacturer compatibility and names a long list of compatible switch brands.
Before you order: Switch vendors such as Cisco, HPE Aruba, Juniper and Dell may only accept their own coded cables by default and can show an unsupported-transceiver warning or keep the port down. Send us the exact switch and NIC models before you order and we will check compatibility.
What's in the Box
- 1 × Digitus QSFP28 100G DAC cable, 2 m (DN-81602)
- The QSFP28 connectors are part of the cable — no separate transceivers are needed or included
What It Means in Practice
- Plug one end into a 100G QSFP28 port on the switch and the other into a QSFP28 port on the second switch, server NIC or storage system — that is the whole link.
- At 2 m it covers top-of-rack to servers in the same rack and adjacent switch-to-switch uplinks.
- No optics means nothing to clean and no transceiver heat in the port; DDM (digital diagnostics) is not provided.
- Both ends draw 3.3 V from the port, as standard for QSFP28 modules.
What Will Not Work
- It will not fit SFP28 (25G) or SFP+ (10G) ports.
- It is not a breakout cable: it cannot split 100G into 4 × 25G.
- 40G-only QSFP+ ports cannot run it at 100G — check that both ports support 100GBASE-CR4.
- It does not report DDM/optical diagnostics to the switch.
- Not for long distances: beyond a few metres use QSFP28 optical transceivers with fibre.
Key Features
100GBASE-CR4
Four 25G-class lanes (up to 28.3125 Gbps each) for 100 Gbps total.
SFF-8665 QSFP28
Standard QSFP28 connector on both ends.
AWG 30 twinax
Copper twinax conductors, factory-terminated.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
For 100GbE inside a rack a QSFP28 DAC is the simplest link: one part, no fibre handling. Choose the shortest length that reaches cleanly and confirm the switch accepts third-party cables. Planning the rest of the rack? See our switches and network cards.
✓ Buy it if both devices have 100G QSFP28 ports within 2 m and the switch accepts third-party cables.
✕ Skip it if one side is SFP28/SFP+ or 40G-only QSFP+, or you need 4 × 25G breakout.
→ Also consider the Digitus QSFP28 DAC in 3 m (DN-81603) if the run is longer.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Digitus - DN-81602
Length
2m
More Details
Product Code
04:411757
EAN Code
4016032481065
Manufacturer
Digitus
