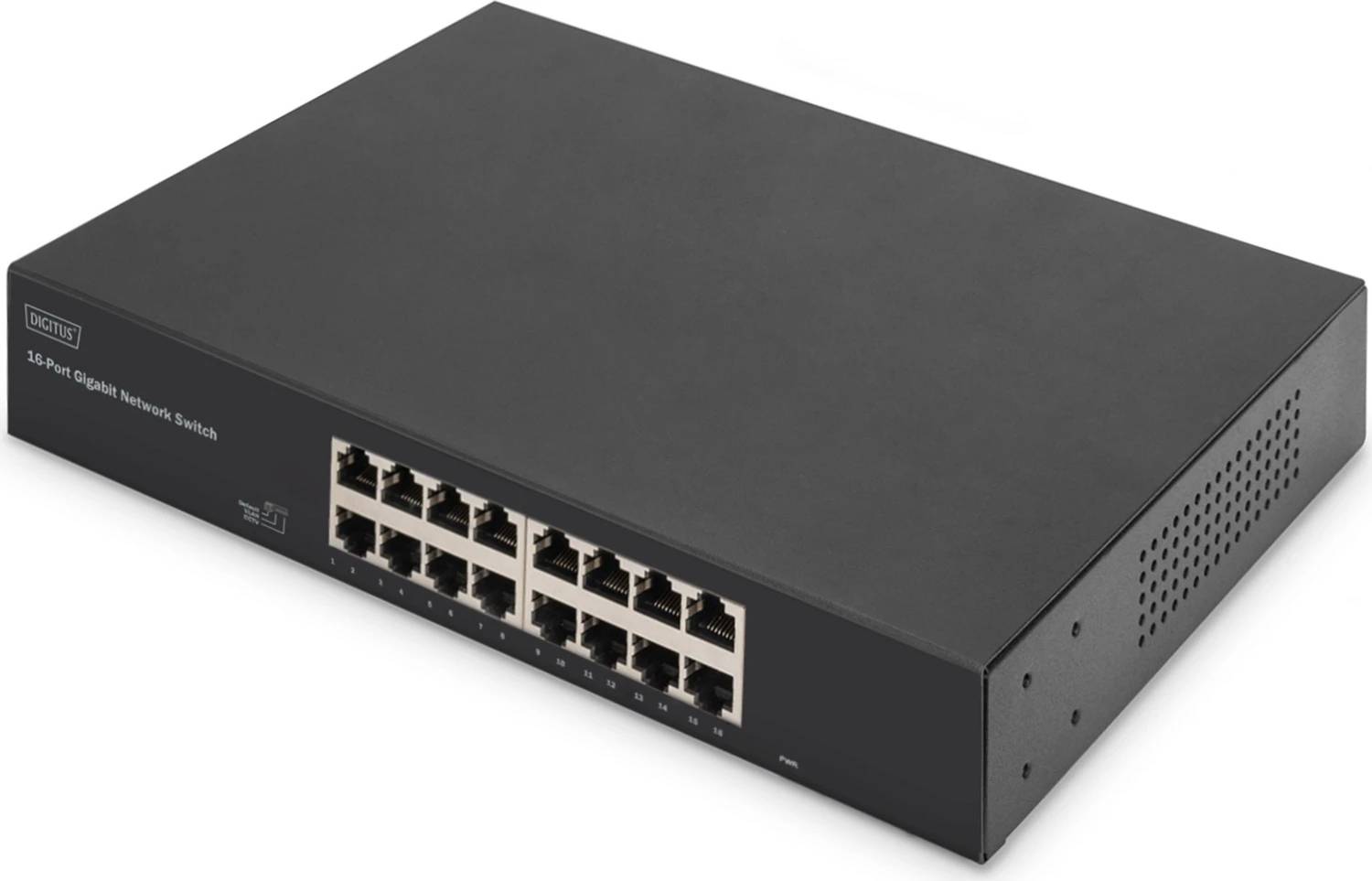

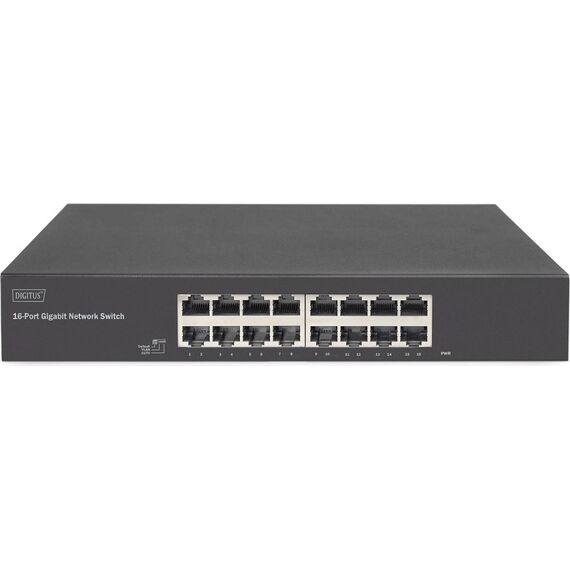

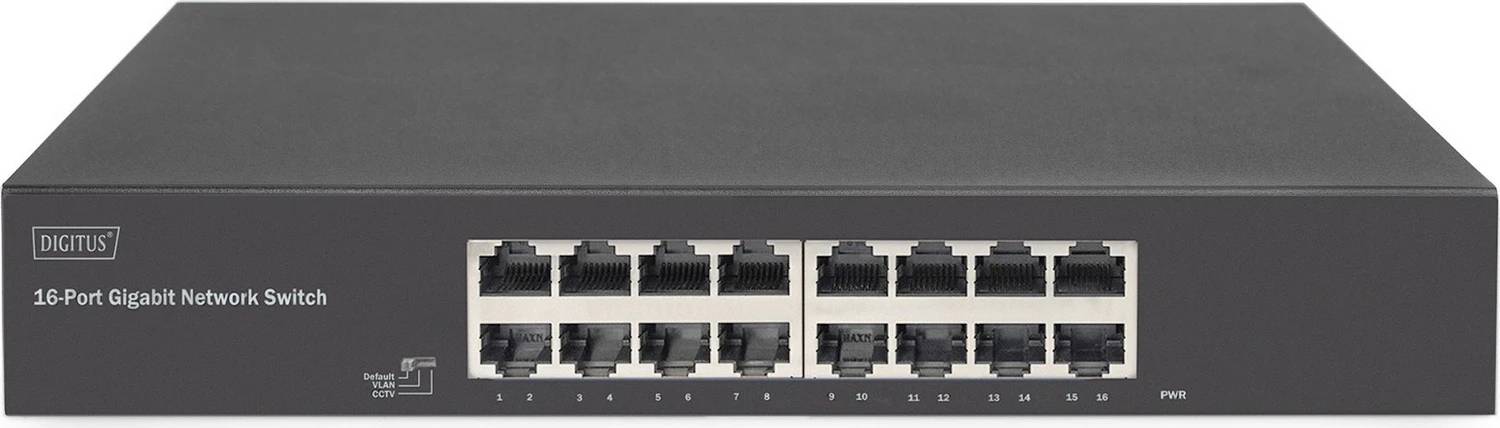

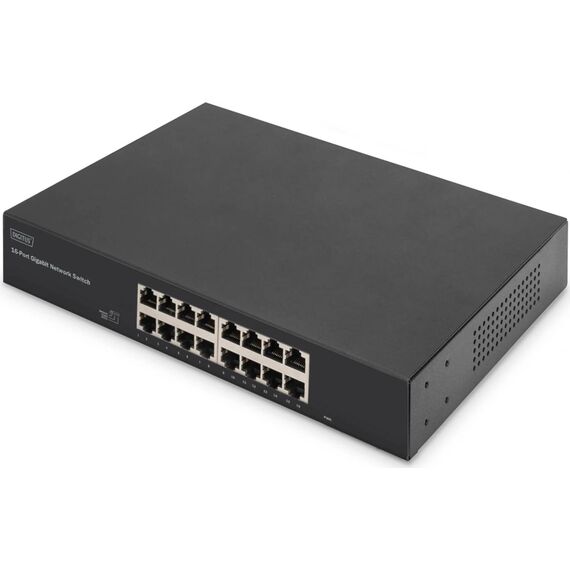

DIGITUS DN-80112-2 16-Port Gigabit Switch - Unmanaged 19" Rack
The DIGITUS DN-80112-2 is a 16-port unmanaged Gigabit switch for rack installation. It is designed for Ethernet networks that need straightforward RJ-45 connectivity, 1 Gbps port speed and easy deployment without management complexity.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Switch |
| Switch Type | Unmanaged |
| Ports | 16 |
| Port Type | RJ-45 | Gigabit Ethernet (10/100/1000) |
| Data Transfer Rate | 1 Gbps |
| Network Standards | Ethernet | IEEE 802.3 | IEEE 802.3ab | IEEE 802.3i | IEEE 802.3u | IEEE 802.3x |
| Transmission Mode | Full duplex | Half duplex |
| MDI Port Detection | Yes |
| MAC Address Table | 8000 entries |
| Switching Capacity | 32 Gbit/s |
| Forwarding Rate | 23.81 Mpps |
| Store-and-forward | Yes |
| Jumbo Frames Support | Yes |
| Jumbo Frames | 15000 |
| Packet Buffer Memory | 4 MB |
| 10G Support | No |
| Stackable | No |
| Product Colour | Black |
| Housing Material | Metal |
| LED Indicators | Yes |
| Power Source | AC |
| Power Supply Included | Yes |
| AC Input Voltage | 100 - 240 V |
| AC Input Frequency | 50/60 Hz |
| Power Protection Features | Over voltage |
| Power Connector | AC-in jack |
| Power Over Ethernet (PoE) | No |
| Fanless | Yes |
| Rack Mounting | Yes |
| Rack Height Units | 3 U |
| Build Type | Rack module |
| Width | 180 mm |
| Depth | 280 mm |
| Height | 44 mm |
| Package Weight | 1.4 kg |
| Package Width | 230 mm |
| Package Depth | 80 mm |
| Package Height | 370 mm |
| Operating Temperature | 0 - 40 °C |
| Storage Temperature | -40 - 70 °C |
| Operating Humidity | 10 - 90 % |
| Storage Humidity | 5 - 90 % |
| SKU / EAN | DN-80112-2 | 4016032498490 |
SINGULAR RECOMMENDS
For who
Suitable for small offices, business networks and rack-based installations that need a simple 16-port Gigabit switch with no configuration overhead.
Real reason to buy it
A practical unmanaged Gigabit switch with 16 RJ-45 ports, rack mounting, fanless operation and straightforward 1 Gbps connectivity.
Know before
This is an unmanaged switch, so it does not offer PoE or 10G support. It is a 3U rack module and includes AC power support.
