Digitus 19" Modular LCD KVM Console, 1-port VGA KVM Switch, 1920×1080, 1U Rack, German QWERTZ Keyboard, Black
Brand:
Digitus
Digitus 19" Modular LCD KVM Console, 1-port VGA KVM Switch, 1920×1080, 1U Rack, German QWERTZ Keyboard, Black
€2035.53 inc. VAT
DS-72221-1GE
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Digitus 19" Modular LCD KVM Console with 1-port VGA KVM Switch
1U rack console19" · 1920 × 10801-port VGADE keyboard + touchpad

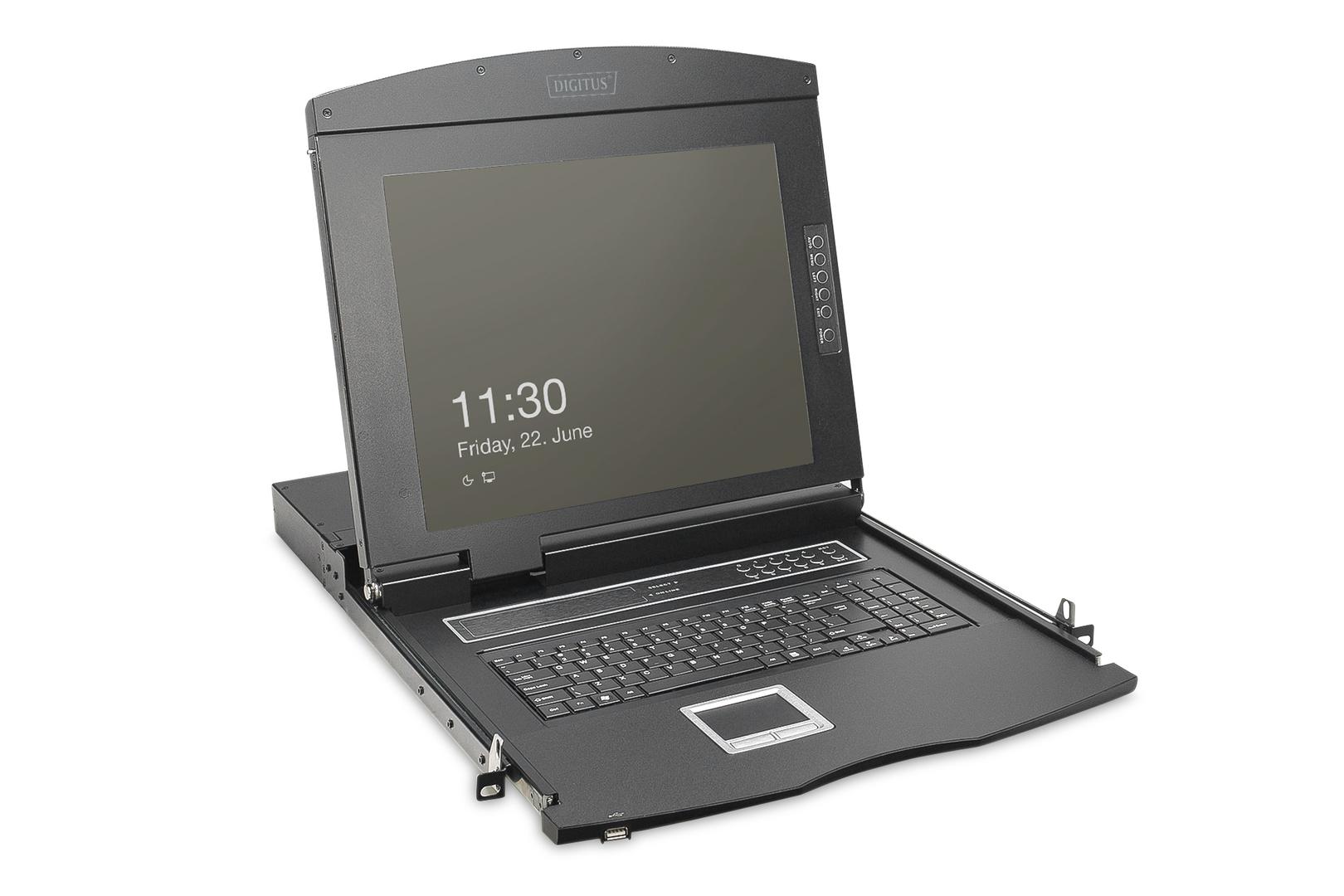

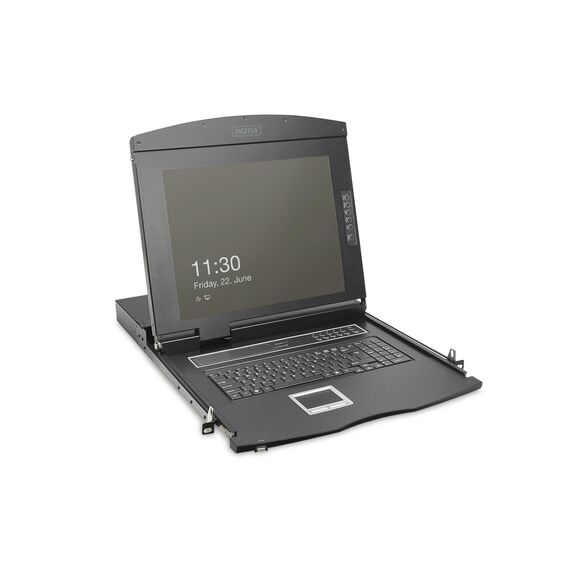

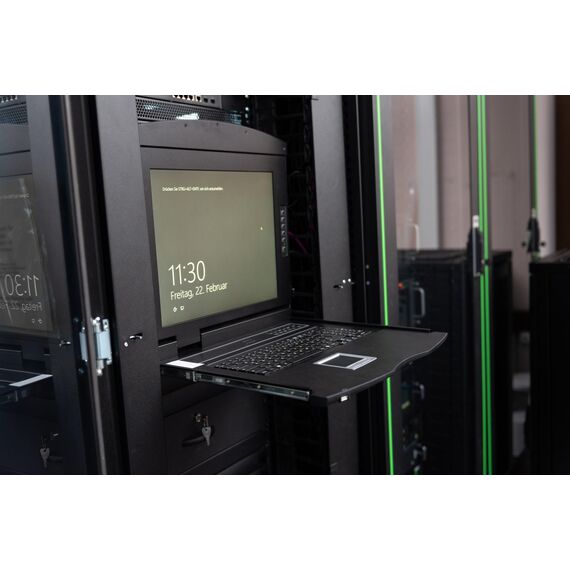

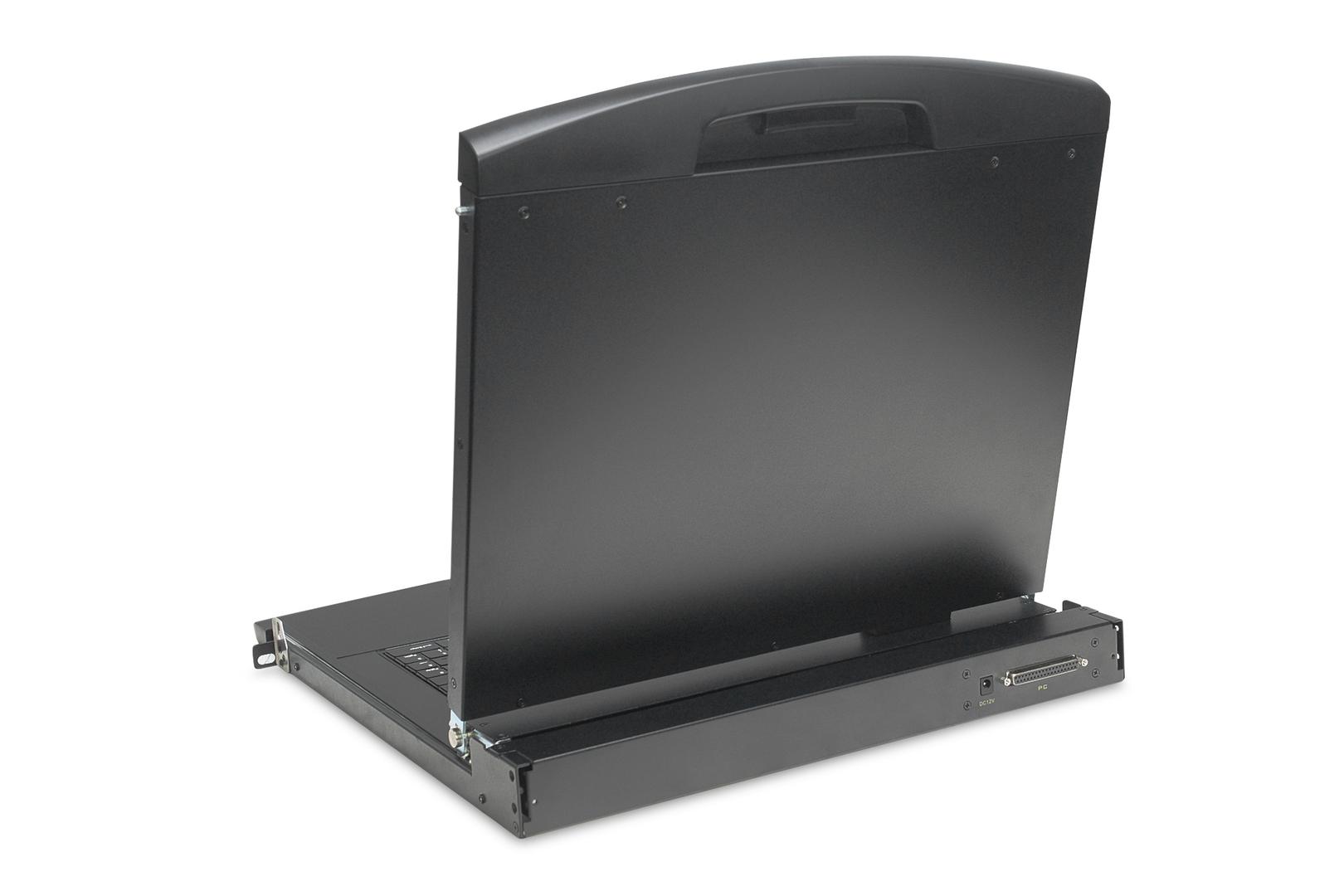

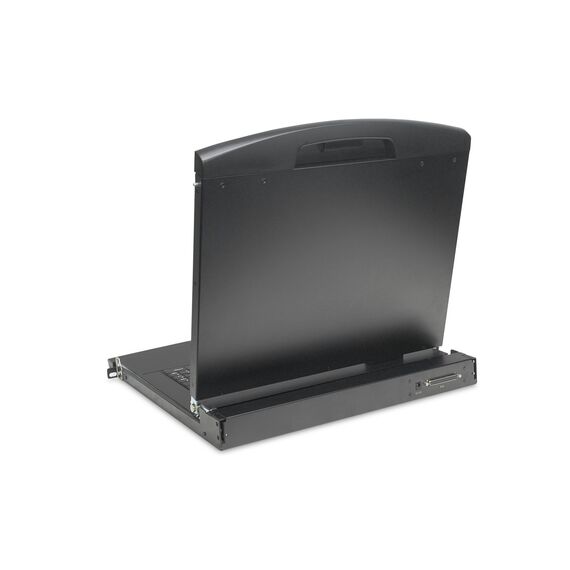

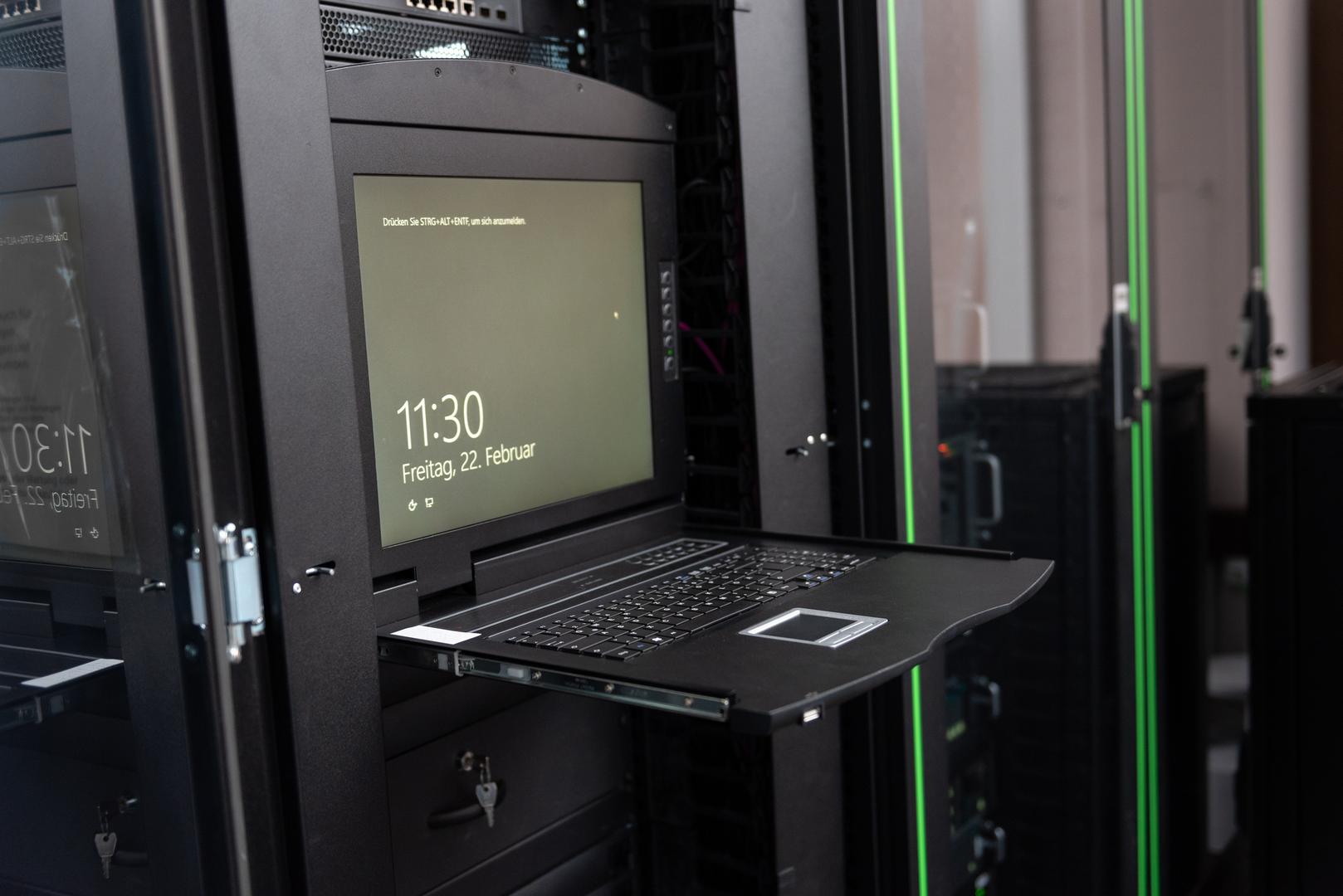

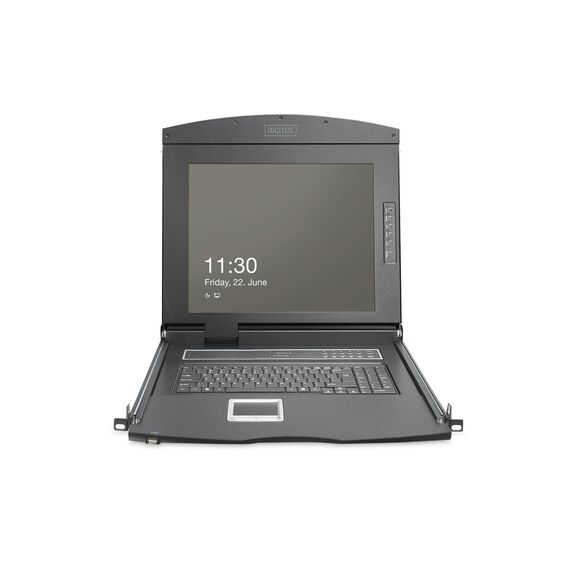

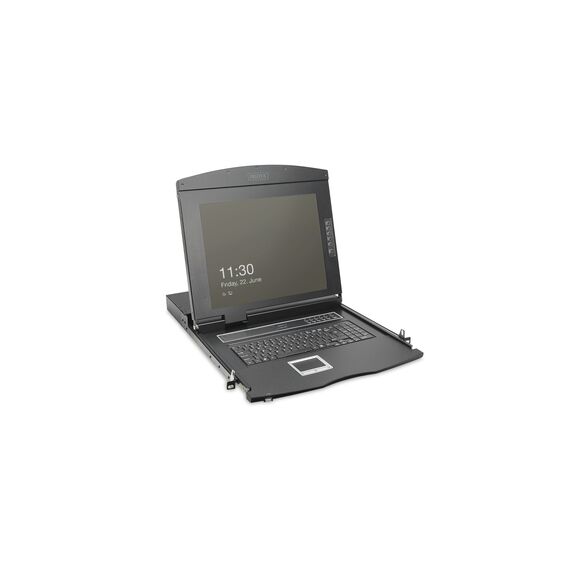

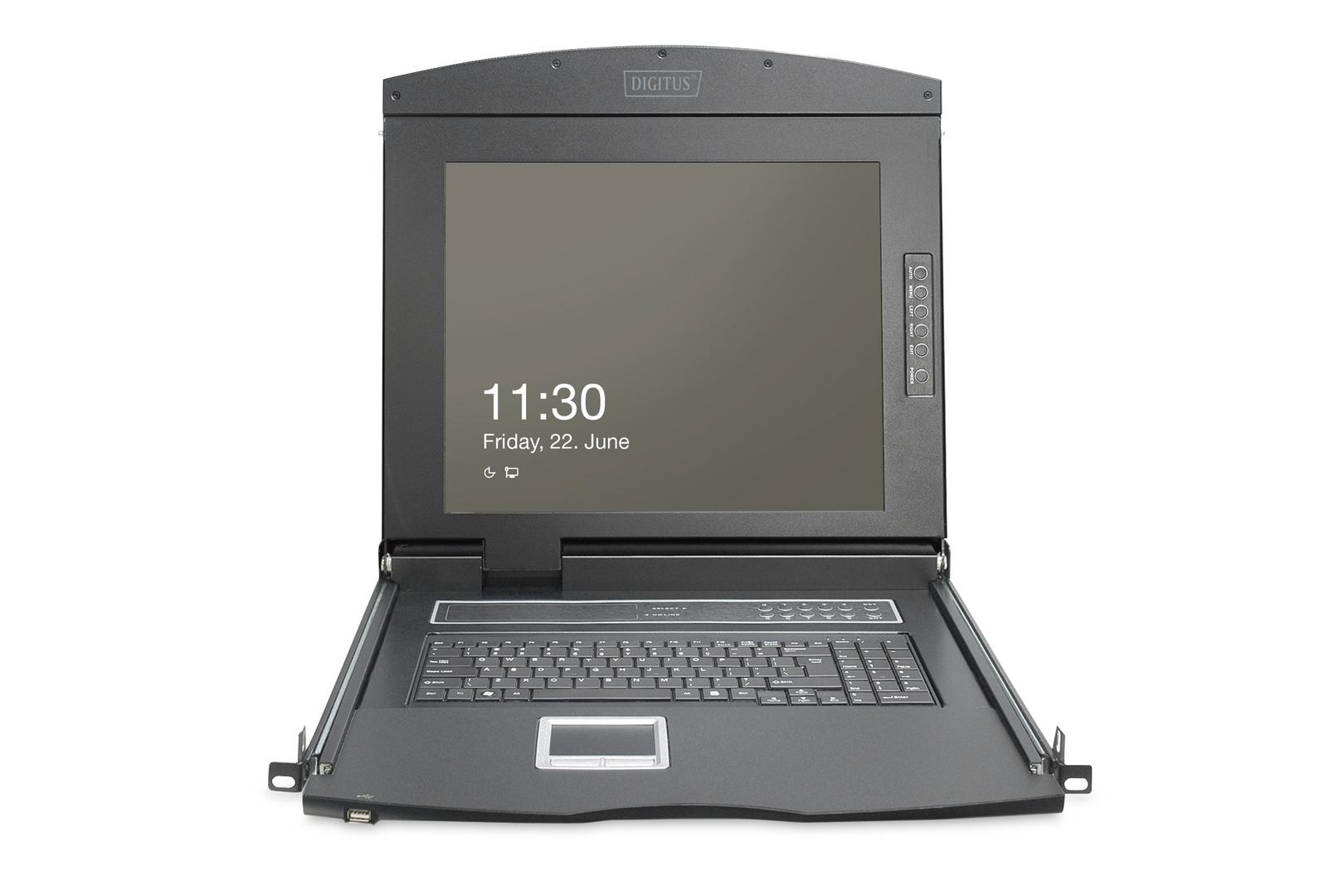

The Digitus DS-72221-1GE is a 1U pull-out LCD KVM console with a 19" TFT (1920 × 1080), German keyboard, touchpad and a single-port VGA KVM module, for server rooms that need local screen-and-keyboard access to one server in a 19" rack.

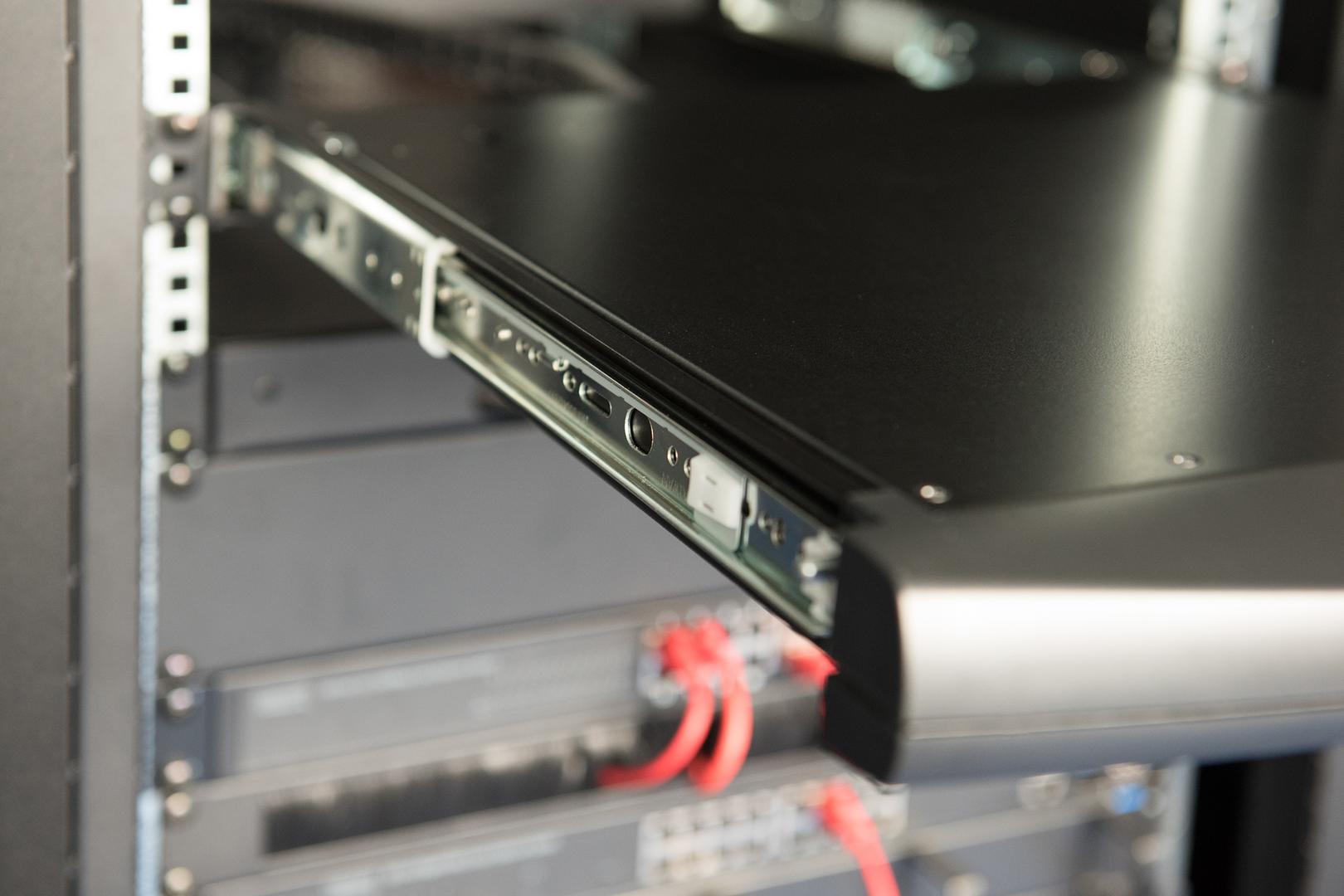

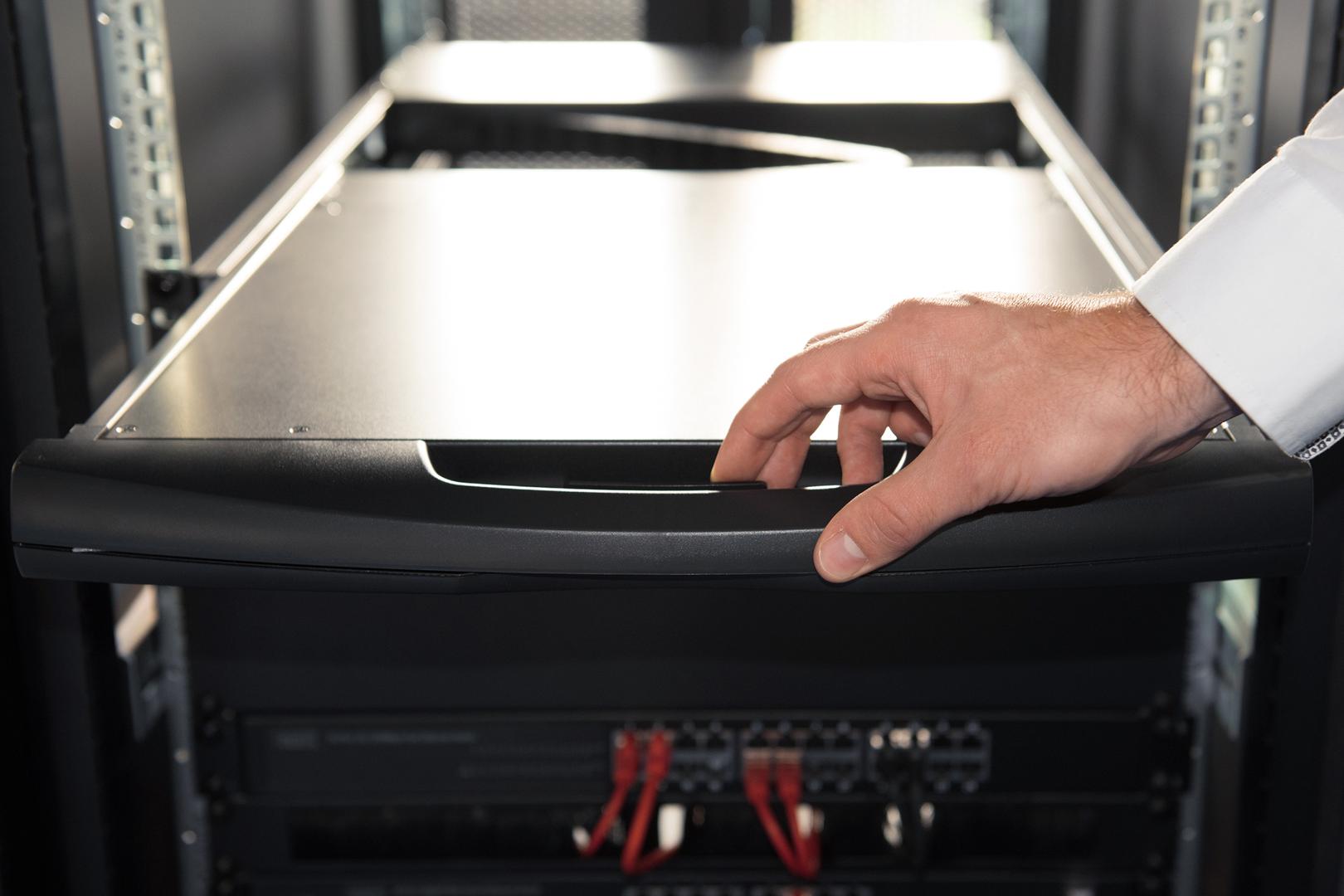

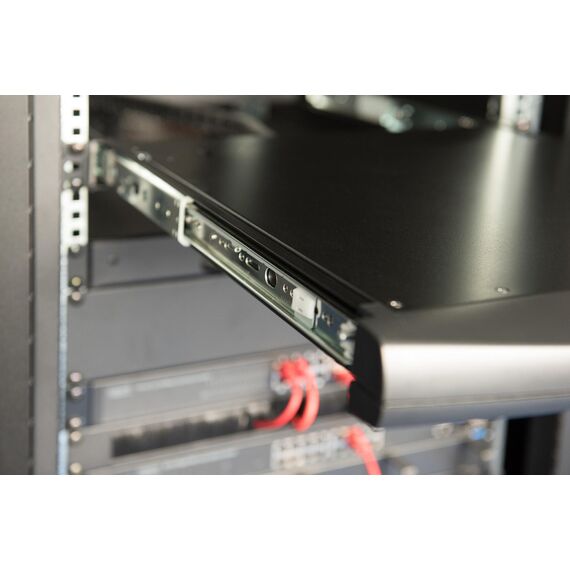

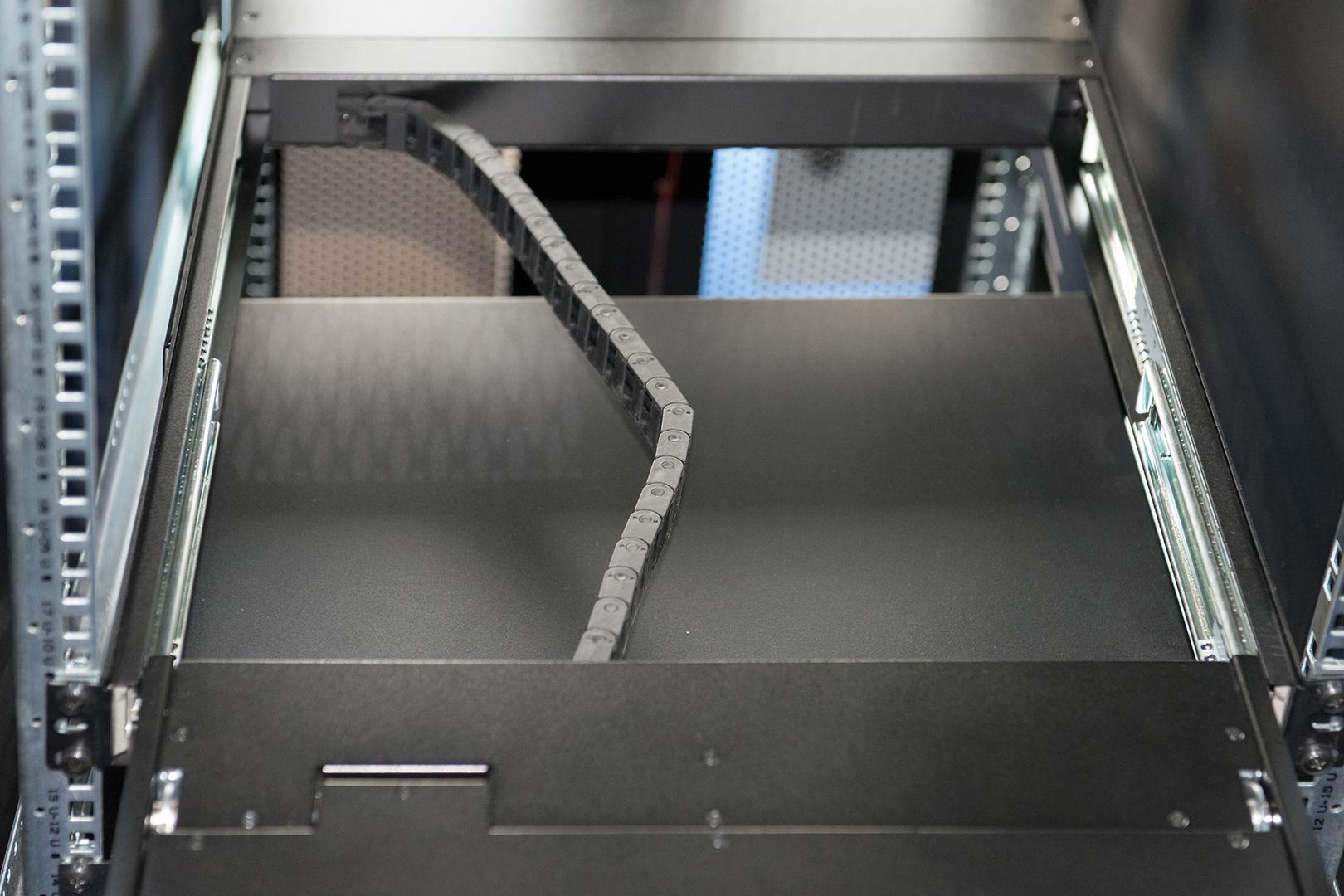

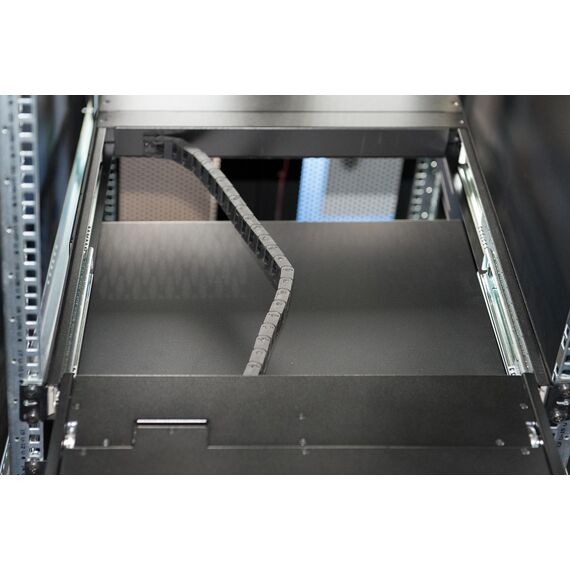

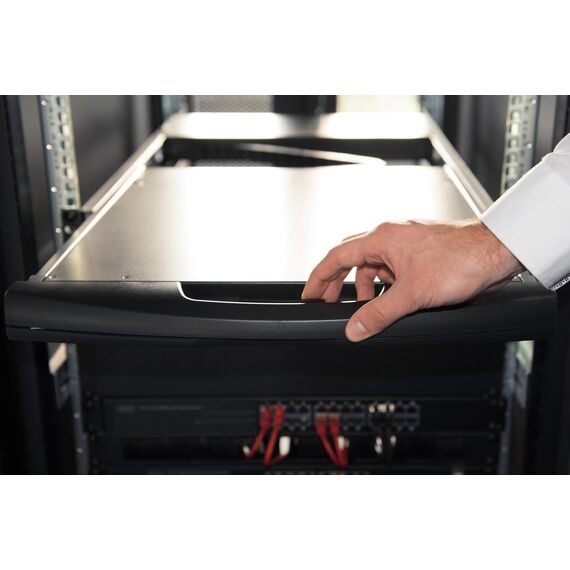

The drawer slides out, the screen tilts up to 120° and a safety lock holds it closed when stowed. The modular design lets the KVM module be swapped, and Digitus states the console saves up to 85% of rack space compared with a separate monitor, keyboard and mouse.
Before you order: The keyboard is the German (DE, QWERTZ) layout — Y and Z are swapped and special characters sit in different places. It is not a UK or US keyboard.
What's in the Box
- 1 × Digitus 19" modular LCD console (1U) with 1-port VGA KVM module installed
- German keyboard with touchpad (integrated)
- Power supply (100–240 V AC in, 12 V DC 4 A out)
- Rack mounting material
- Quick start guide / user manual
What It Means in Practice

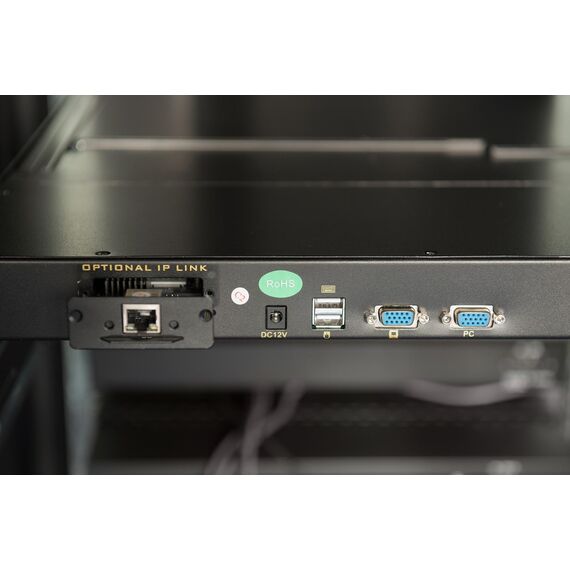

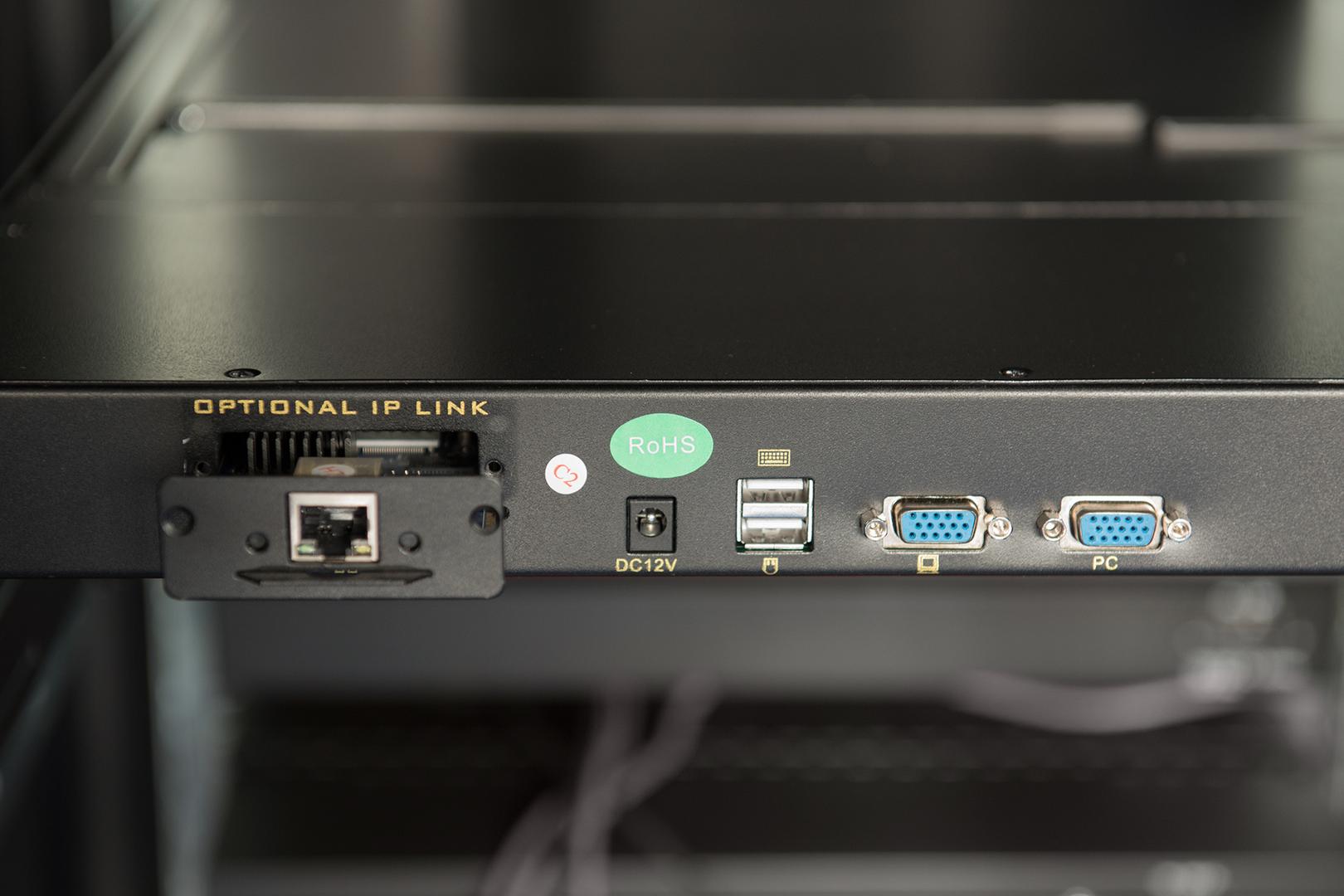

- Connection per server: VGA + USB combo KVM cable per server.
- With one port it is a rack-mounted monitor, keyboard and touchpad for a single server or for an external KVM switch you already own.
- Screen: 19", 1920 × 1080 at 60 Hz, 1000:1 contrast, anti-reflective break-proof glass. Set server output to 1920 × 1080 for the sharpest picture.
- The unit is 55.0 cm deep, 8.32 kg, 1U high in black RAL 9005 — plan rack depth before ordering.
What Will Not Work
- UK or US keyboard users expecting their own layout — this is German QWERTZ.
- Servers with only HDMI or DisplayPort outputs without an active adapter — the KVM is VGA.
- Remote access over the network (KVM over IP) — this is a local console.
- More than one server directly — add an external KVM switch for that.
- Shallow wall cabinets — check usable depth for a 55.0 cm unit.
Key Features
Pull-out 1U drawer

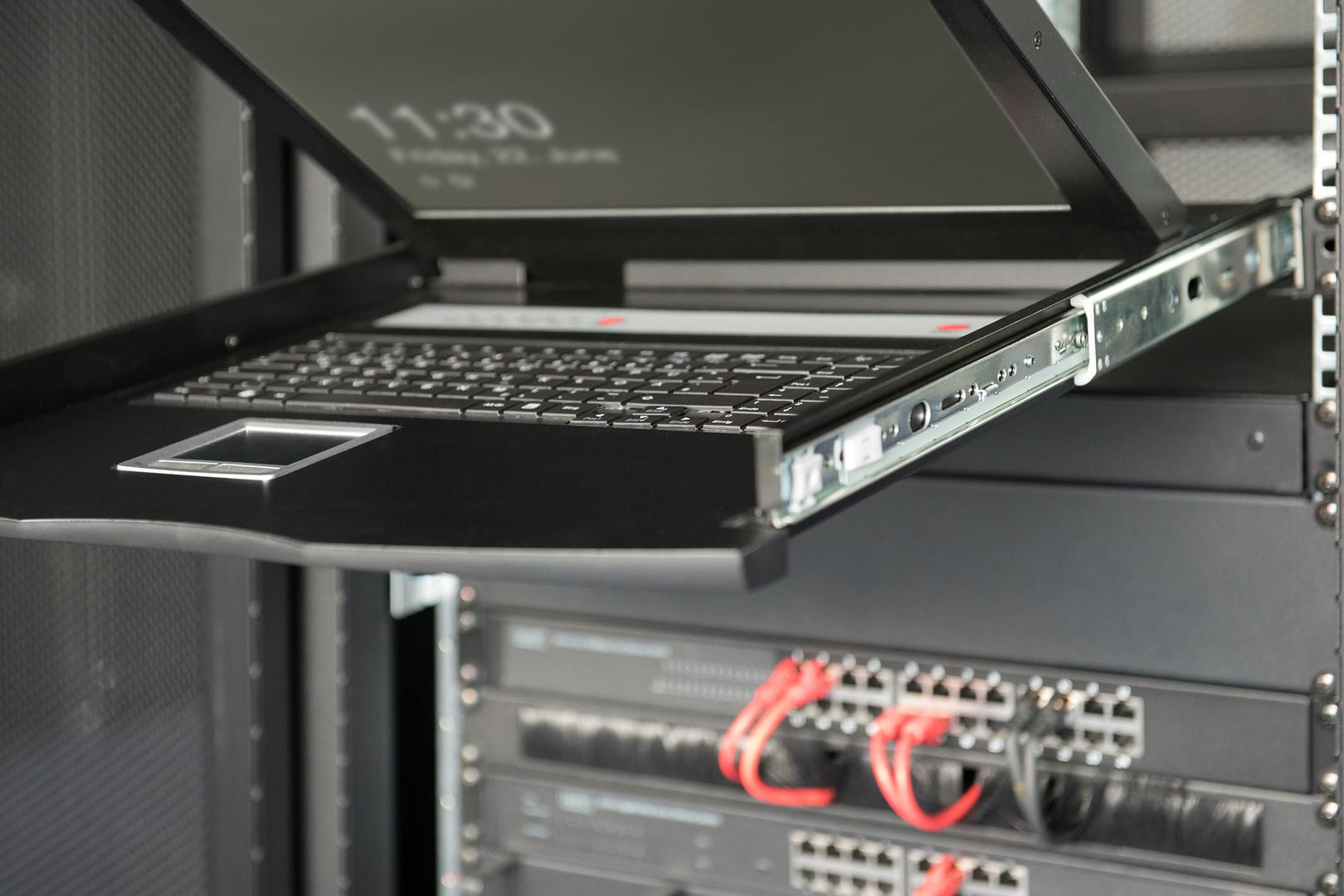

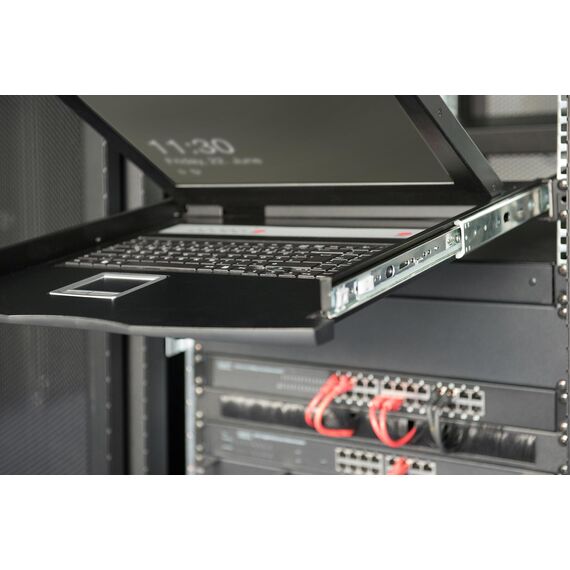

Slides out of the rack, 19" screen tilts up to 120°, safety lock when closed.
Keyboard + touchpad
Integrated German keyboard and touchpad with two buttons.
Modular KVM
Single-port module, swappable within the modular console range.
Tough display
Anti-reflective, break-proof glass, 16.7M colours.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A 1U LCD console replaces a separate monitor, keyboard and mouse shelf and keeps the rack tidy. The key checks are the keyboard layout (German QWERTZ here), the server video output (VGA) and rack depth. Complete the installation with our rack accessories such as shelves, blanking panels and cable managers.
✓ Buy it if you need local screen and keyboard access to a server in a 19" rack and are fine with a German QWERTZ keyboard.
✕ Skip it if you need a UK/US keyboard, remote IP access, or your servers only output HDMI/DisplayPort.
→ Also consider the 8- or 16-port versions of the same console.
Not sure it fits your rack? Send us your rack model and server video outputs and we will check compatibility before you order.
Features - Digitus - DS-72221-1GE
Colour
black
More Details
Product Code
04:485412
EAN Code
4016032492207
Manufacturer
Digitus
