DIGITUS DN-19 TRAY-2-800SW — 1U Extendible Shelf for 800 mm Cabinets
1U · 19"Pull-out with handle25 kg loadBlack RAL 9005

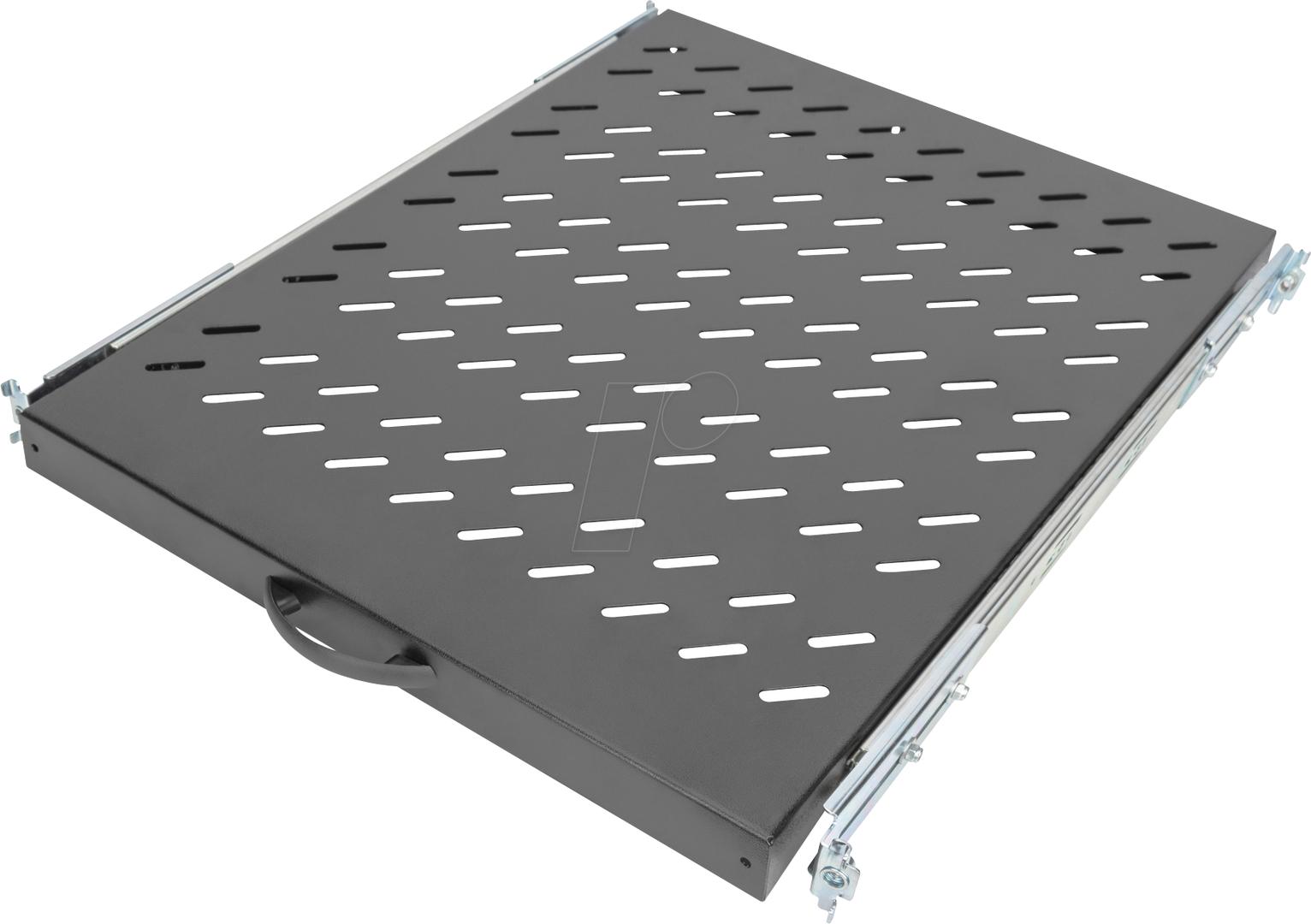

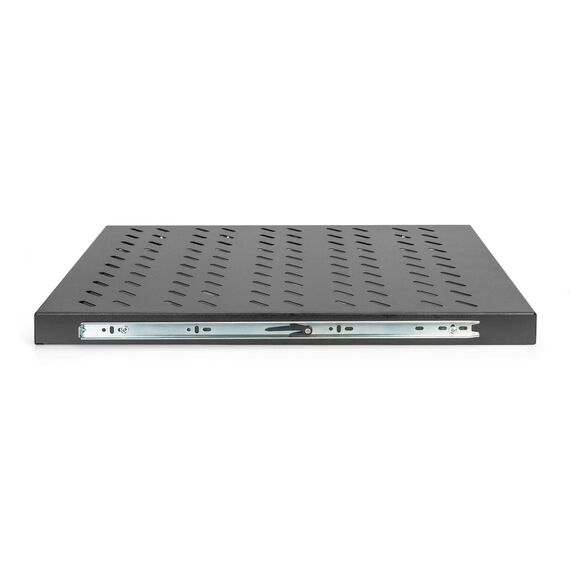

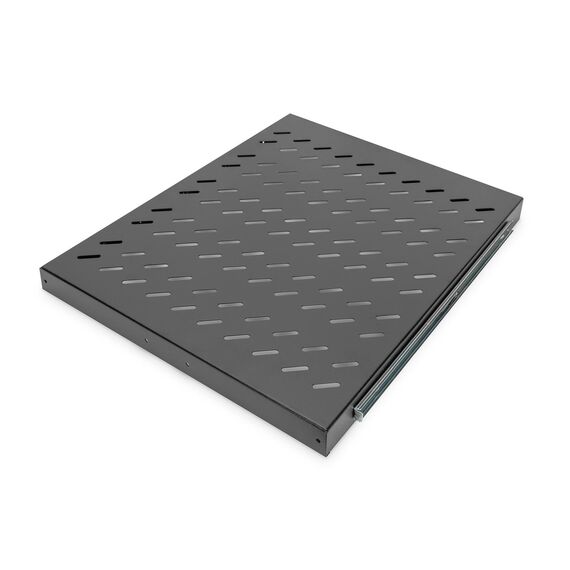

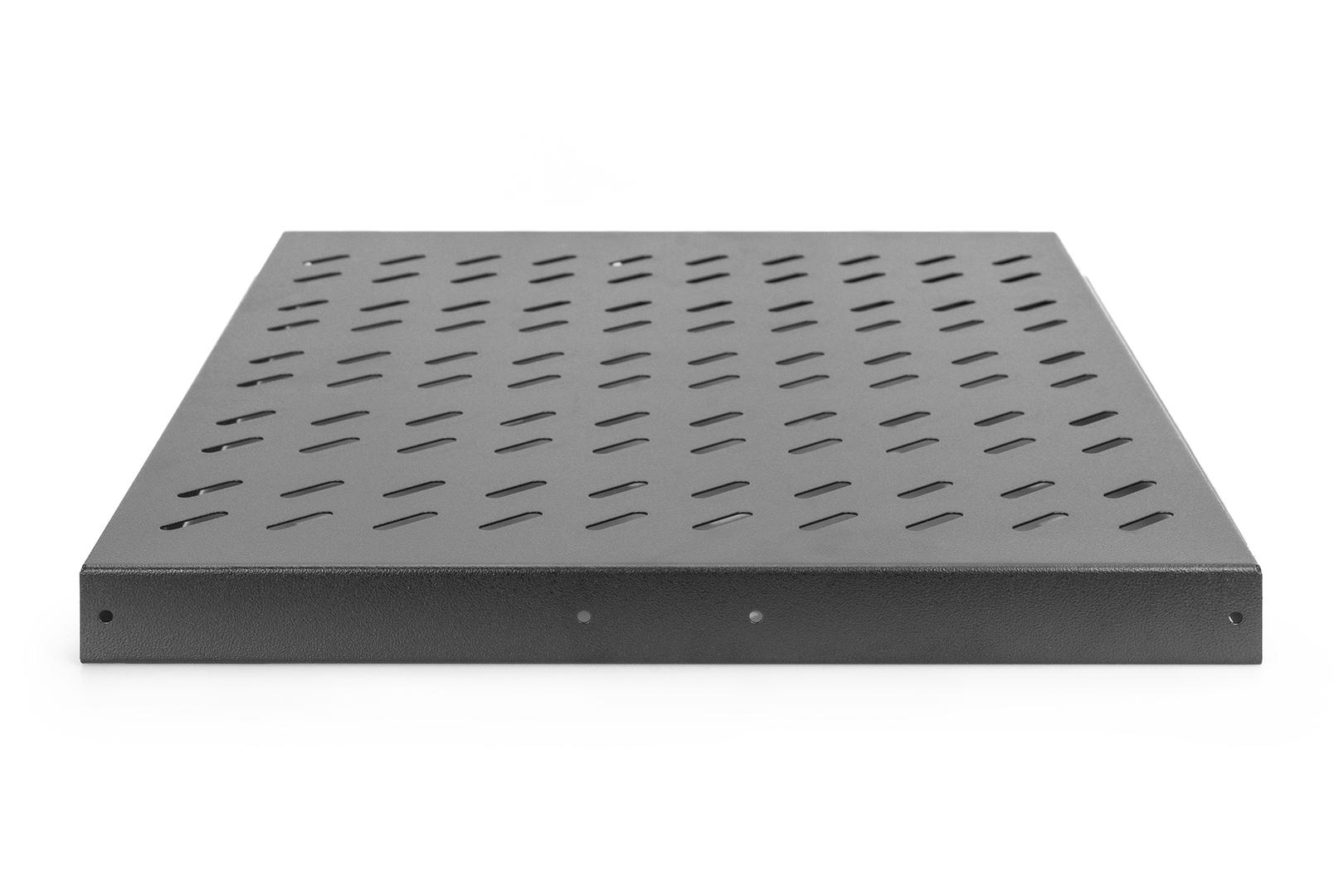

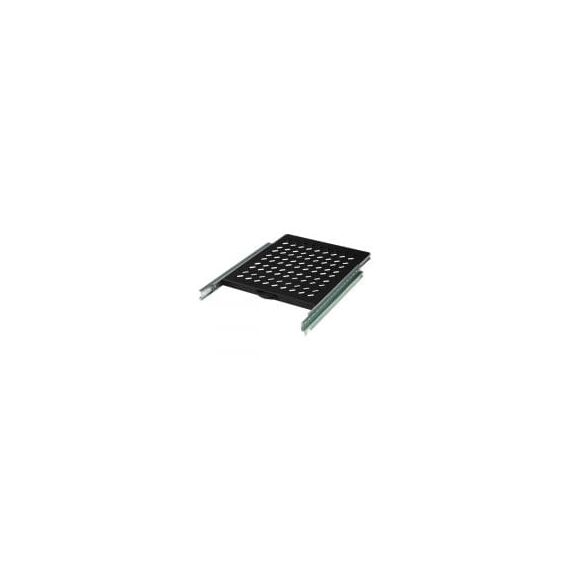

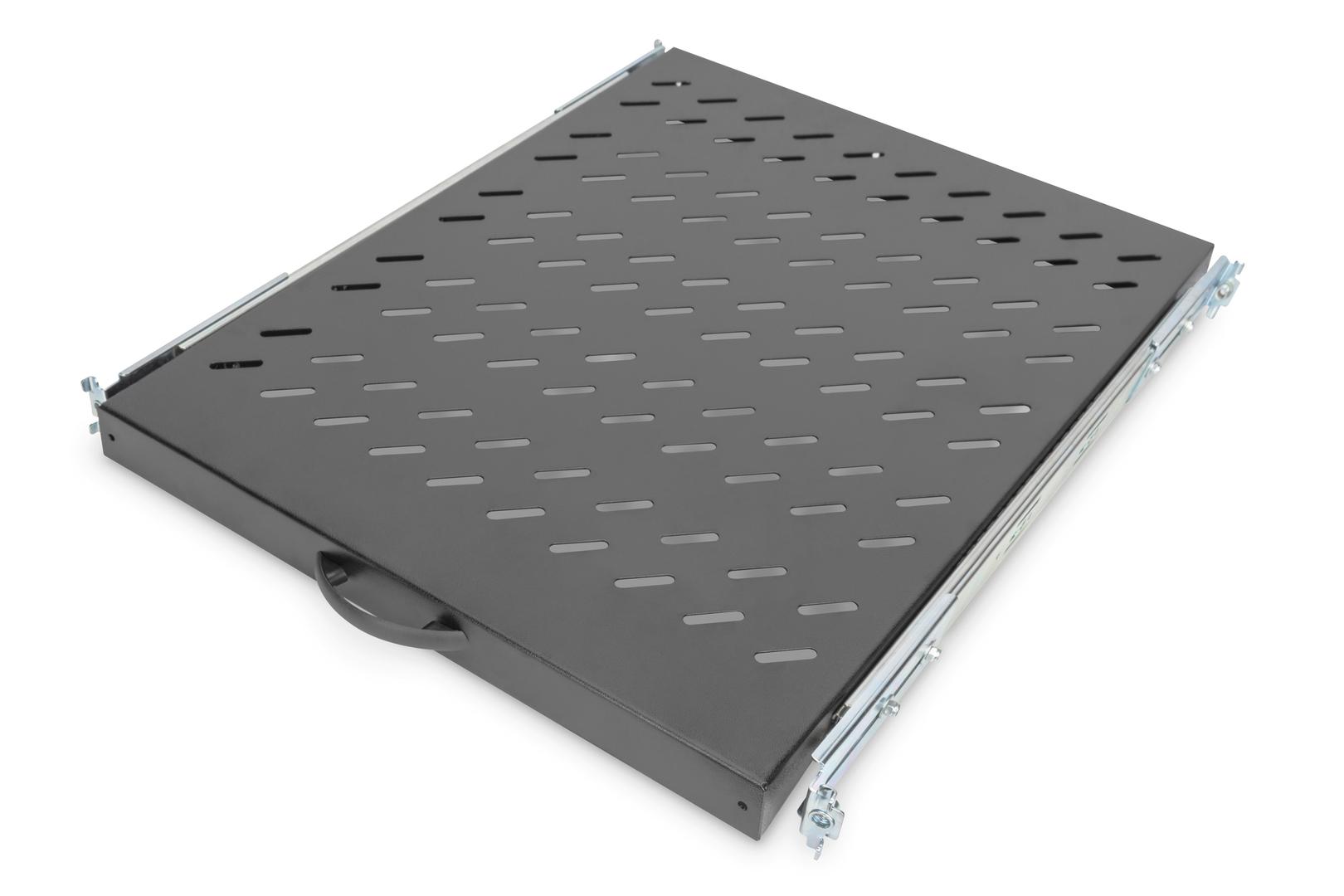

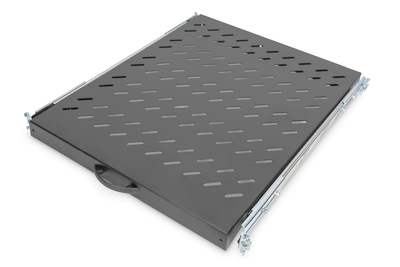

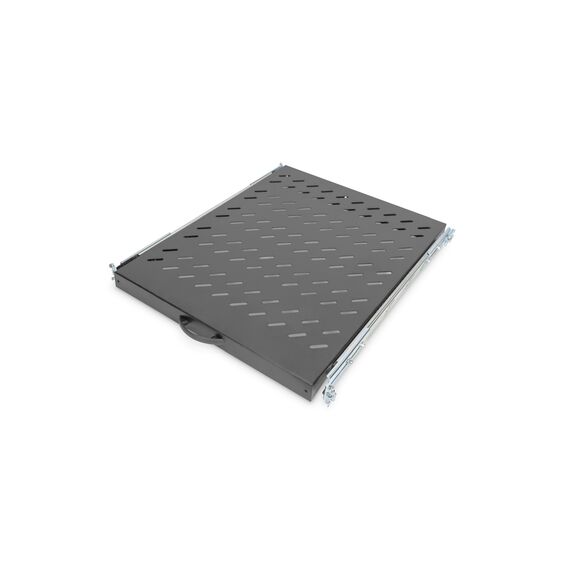

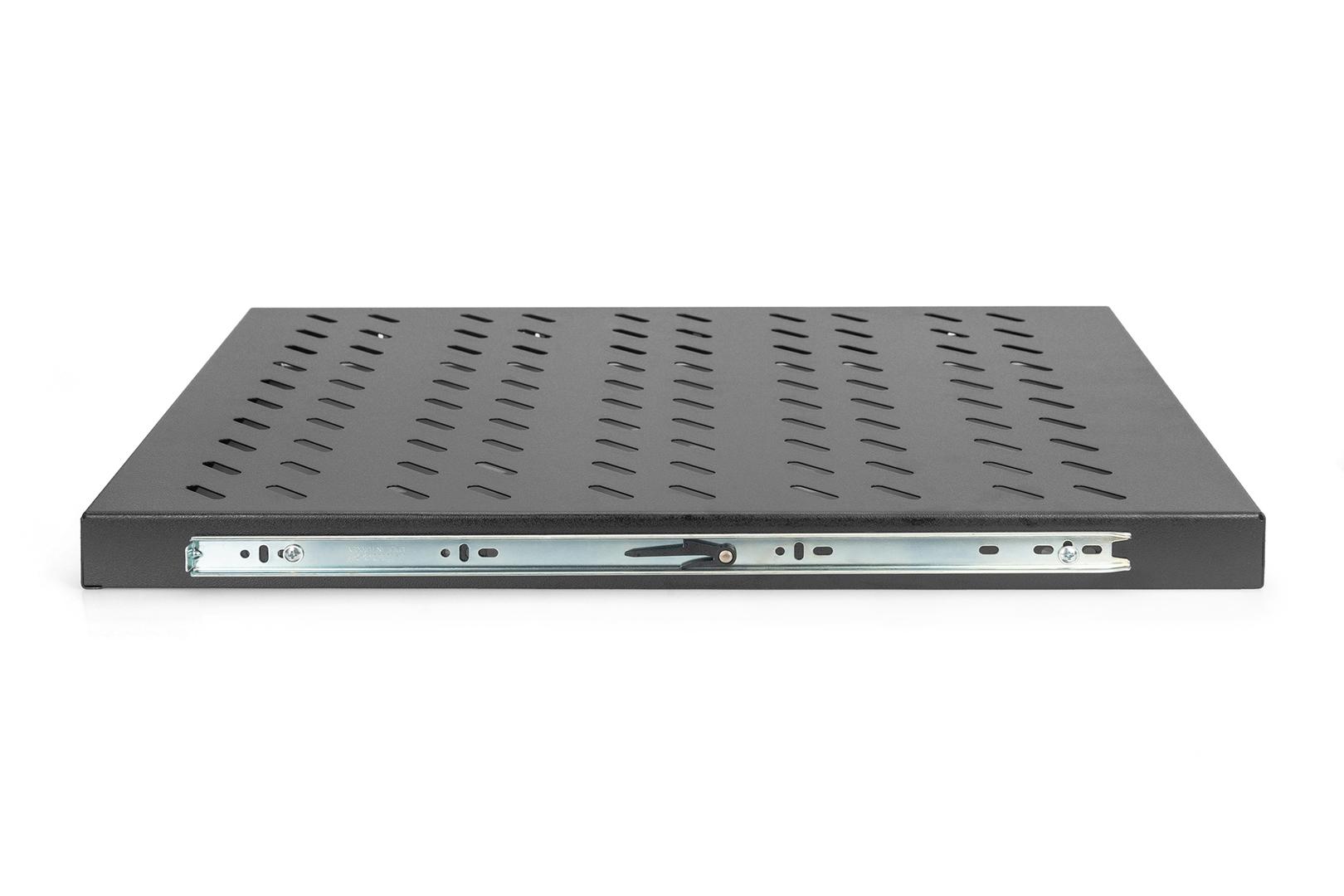

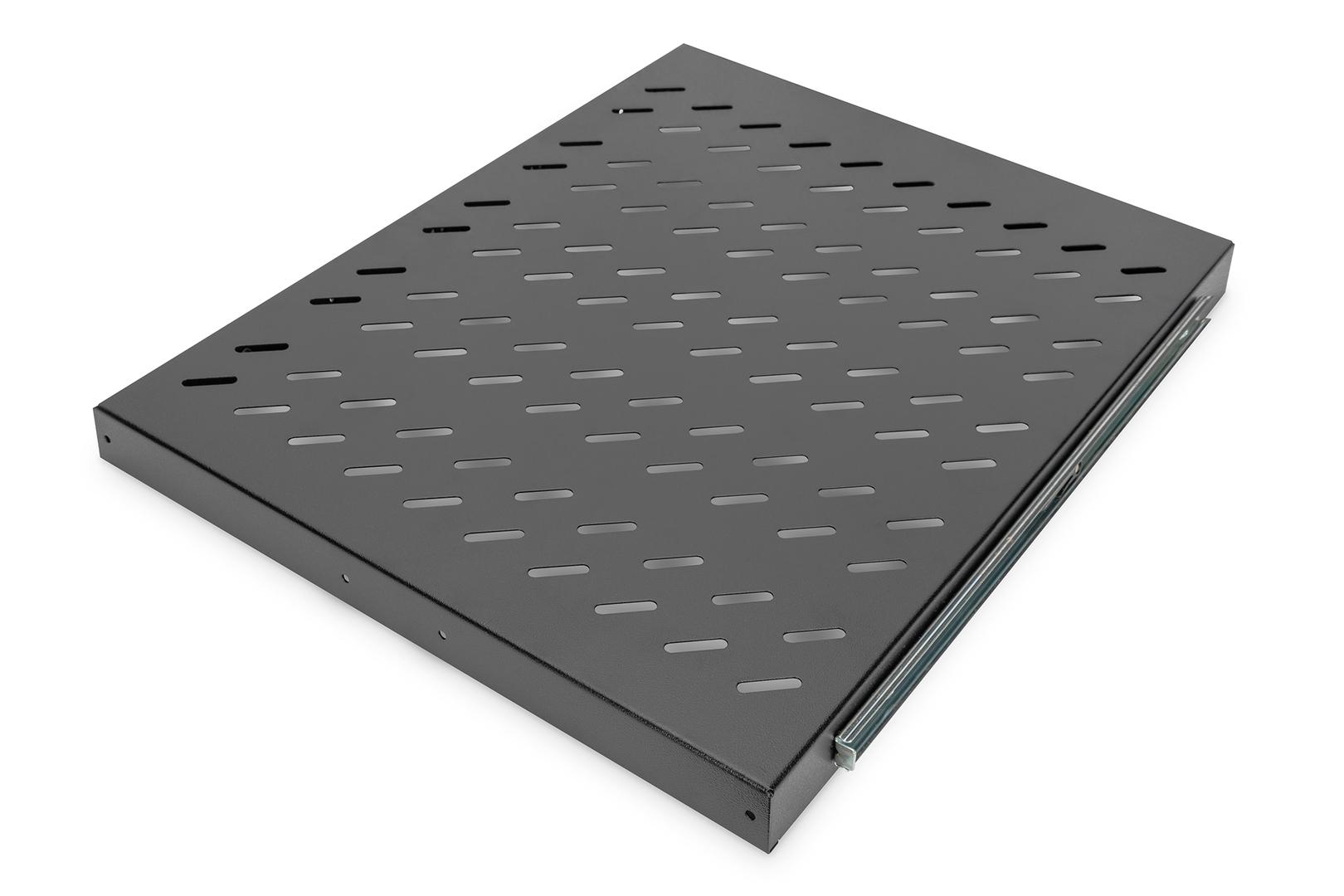

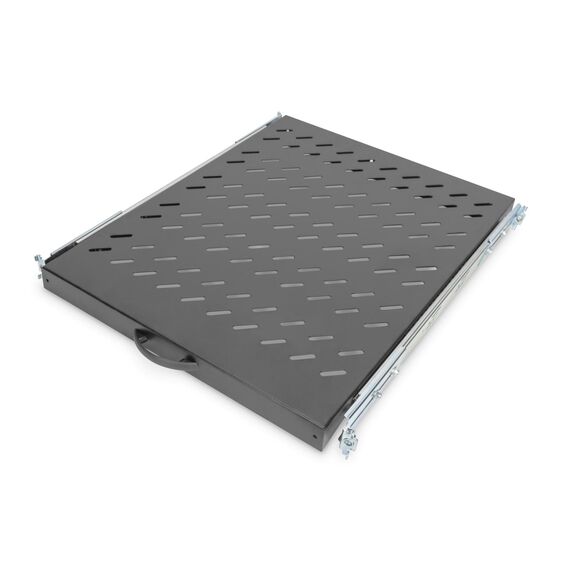

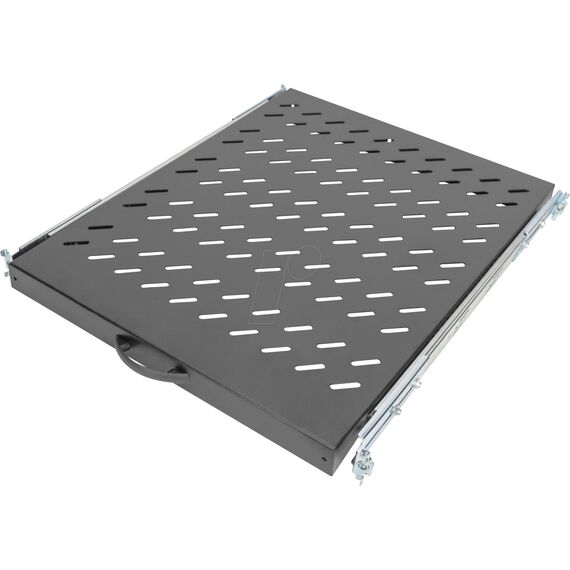

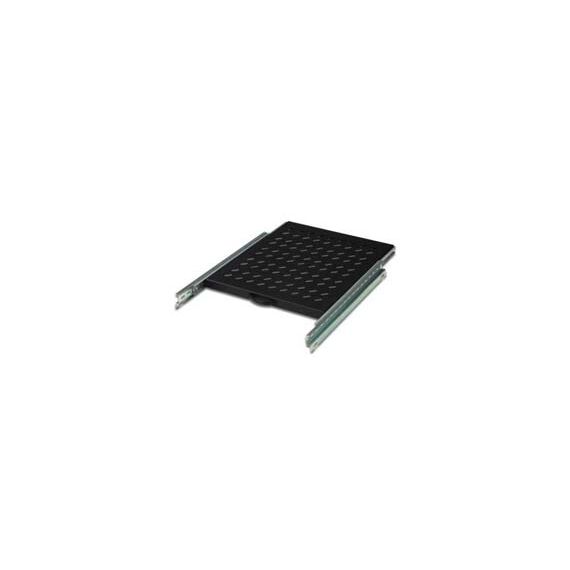

The DIGITUS DN-19 TRAY-2-800SW is a 1U extendible shelf for 19-inch cabinets with a depth of 800 mm. It pulls out on its handle bar so you can reach equipment and cables, and it carries up to 25 kg on sturdy perforated sheet steel in black RAL 9005.
It fixes at four points to the front and rear 19-inch profile rails, using mounting brackets that adjust from 355 to 680 mm. The shelf measures 40 x 484 x 568 mm (H x W x D), and DIGITUS supplies the complete set of fixing material.
Before you order: DIGITUS makes this shelf for 800 mm deep cabinets, with bracket adjustment of 355–680 mm between front and rear rails. A light grey version also exists, so check that black RAL 9005 matches your cabinet.

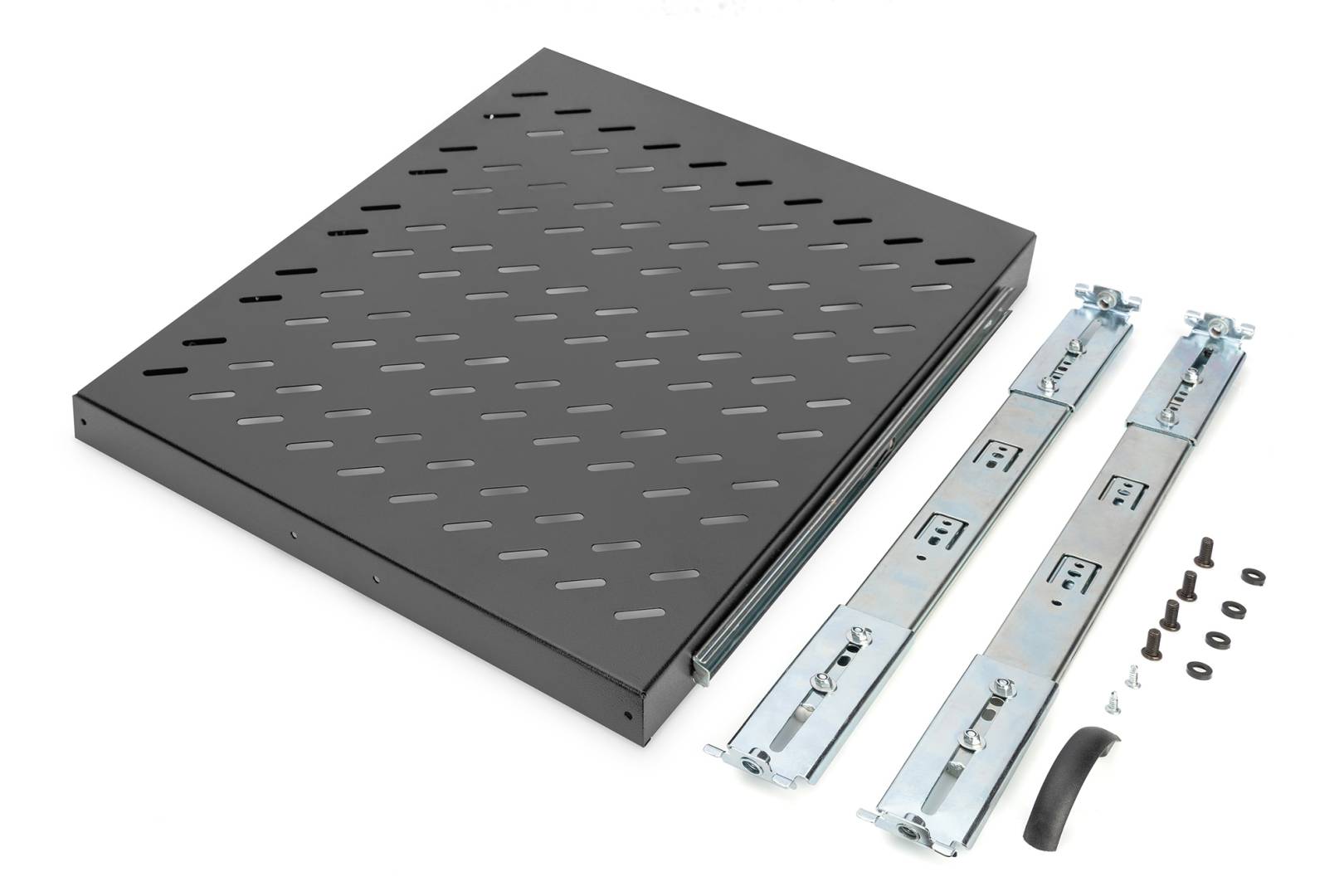

What's in the Box
- 1x DIGITUS 1U extendible shelf, black RAL 9005
- 1x handle
- Installation set: screws, cage nuts and washers
What It Means in Practice
- Pull the shelf forward to reach the back of a router, KVM or small PC without removing it.
- 4-point fixing keeps the shelf stable while it slides.
- Keep the load within 25 kg, and lighter if you pull it out often.
- Perforated steel helps airflow around the equipment on the shelf.
What Will Not Work
- It is not designed for 600 mm or 1000 mm cabinets.
- It will not mount on 2-post open racks, because it needs rear rails.
- It will not carry more than 25 kg.
- It does not match grey cabinets.
Key Features
Extendible
Pulls out with a handle bar for easy access.
4-point fixing
Mounts on front and rear rails with brackets adjustable from 355 to 680 mm.
Perforated steel
Sturdy perforated sheet steel supporting airflow.
Complete fixing set
Screws, cage nuts, washers and handle included.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
An extendible shelf is worth the extra cost when you often need to reach the back of the device on it. In an 800 mm cabinet it gives access without unscrewing anything; for heavier loads choose a fixed 4-point shelf from our rack accessories range.
✓ Buy it if you have a black 800 mm deep cabinet and want a pull-out shelf for devices up to 25 kg.
✕ Skip it if your cabinet is 600 or 1000 mm deep, grey, or the load is over 25 kg.
→ Also consider a fixed 1U 4-point shelf for heavier loads, or a front-fixed shelf for light devices.
Not sure it fits your setup? Send us the model and depth of your cabinet and we will check before you order.
Features - Digitus - DN-19 TRAY-2-800SW
Colour
black
More Details
Product Code
04:61374
EAN Code
4016032183495
Manufacturer
Digitus
