DIGITUS DN-81242 2 m SFP28 to SFP28 Passive 25G Shielded Twinax DAC, 30AWG

Brand:
Digitus
DIGITUS DN-81242 2 m SFP28 Passive 25G DAC Cable
DIGITUS DN-81242 2 m SFP28 to SFP28 Passive 25G Shielded Twinax DAC, 30AWG
€49.69 inc. VAT
Buy
DN-81242
€41.76
€49.69 inc. VAT
Ships from EU stock: 20 item(s)
+ −
Add to wish list Ask a question
Product Code
04:403676
EAN Code
4016032479499
Manufacturer
Digitus

Quick Specs

Link speed
25 Gigabit Ethernet
Connectors
SFP28 to SFP28
Cable
2 m shielded copper twinax, 30AWG
Design
Passive DAC; no DDM
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

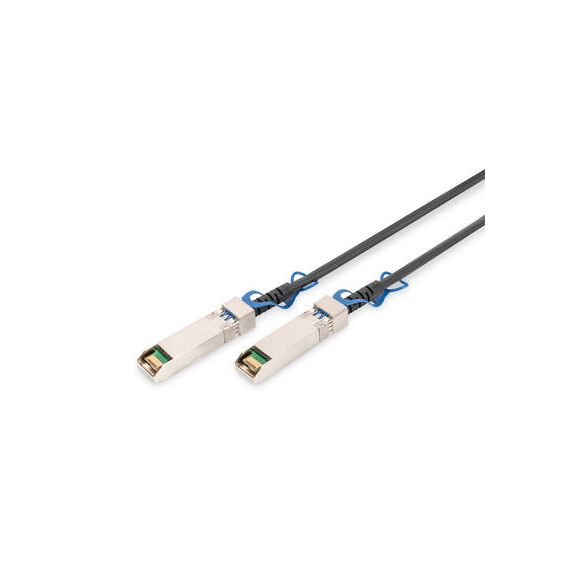

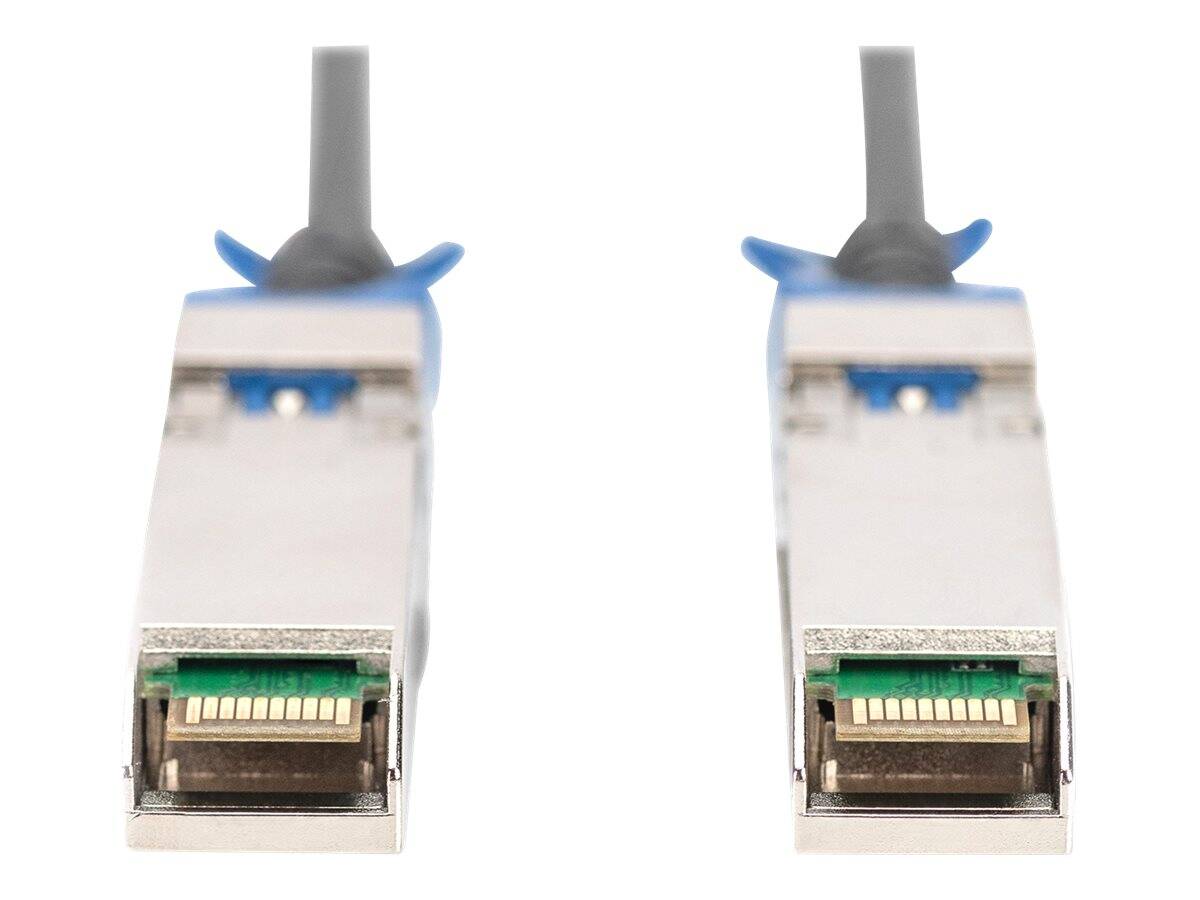

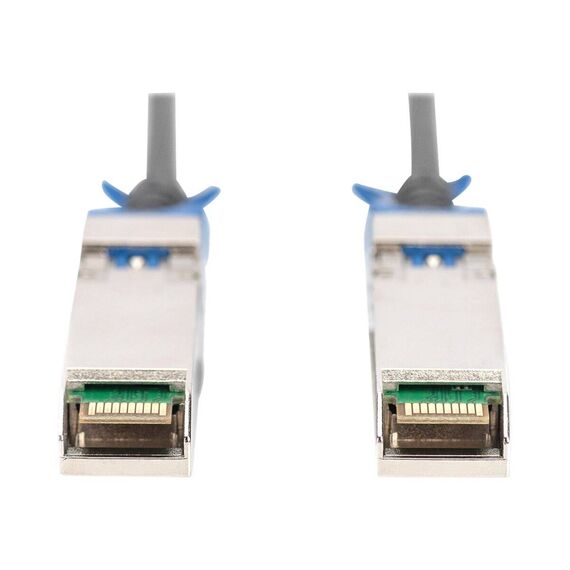

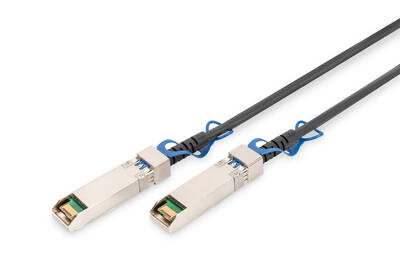

A short passive copper link between two 25G ports

Passive twinax2 m25G SFP28

The DN-81242 is a fixed 2 m passive direct attach cable with an SFP28 connector at each end. Its shielded copper twinax construction suits short connections between compatible 25G switch, server or storage ports. Confirm that both devices accept the DAC and its vendor coding before ordering.

Compatibility — check before buying:
Exact device and vendor coding support must be confirmed; general manufacturer compatibility is not universal port support.

Key Features


Integrated short link
The cable and two SFP28 ends form one assembly, avoiding separate optical modules for this compatible 2 m copper connection.

Shielded 30AWG twinax
Shielded copper twinax provides the specified cable construction. Leave sufficient routing room and handle the connectors rather than pulling the cable.

Documented electrical limits
DIGITUS specifies a 25.88243 Gbps channel data rate, nominal 3.3 V supply and power consumption below 0.5 W. DDM is not supported.

Technical Specifications

Connection and cable
Model DN-81242
EAN 4016032479499
Ethernet speed 25 Gigabit
Connector type SFP28 to SFP28
Cable construction Passive shielded copper twinax
Length 2 m
Wire gauge 30AWG
Lanes Tx and Rx
Electrical and environment
Channel data rate 25.88243 Gbps
Supply voltage 3.3 V nominal
Power consumption Less than 0.5 W
Electrical interface 20-pin edge connector
Management interface Serial I2C
Compliance MSA SFP28; SFF-8432 connector
DDM Not supported
Operating temperature 0 to +70°C
Storage temperature −40 to +85°C
Package dimensions 26 × 26 × 4 cm

What's in the Box

One DIGITUS DN-81242 2 m SFP28 25G DAC cable

Frequently Asked Questions

Can I assume it works in any SFP+ port?
No. This is specified as an SFP28 25G DAC. Check the supported port speed, DAC type and coding on both devices.
Is it an optical cable?
No. It is a passive shielded copper twinax direct attach cable.
Does it include DDM monitoring?
No. The manufacturer explicitly states that DDM is not supported.
Singular Expert Insight
Match the cable to two compatible SFP28 25G ports. A physically similar SFP+ socket or a vendor name on a general compatibility list does not establish that the exact device supports this 25G DAC. Confirm both 25G device ports with Singular

Buyer’s Guide

Buy it if

You need a 2 m connection between two compatible 25G SFP28 ports.

Skip it if

You need optical reach, a breakout cable or ports that do not accept this DAC.

Also consider

Verify both device models and available cable routing space before choosing the fixed 2 m length.

Features - Digitus - DN-81242

Interface
  • Ethernet
Length
2m
Port Speed
  • 25 Gbps
More Details
Product Code
04:403676
EAN Code
4016032479499
Manufacturer
Digitus
