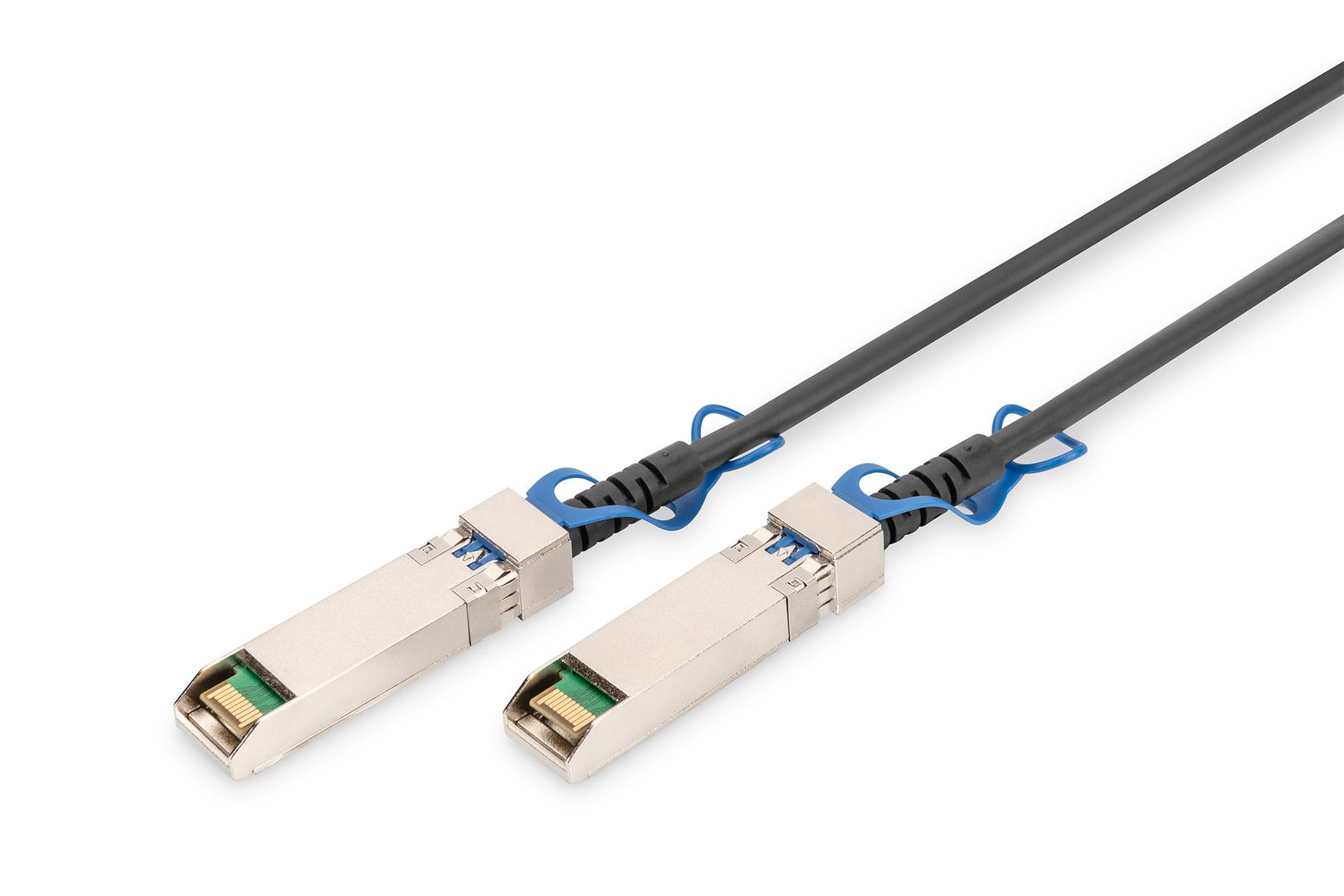

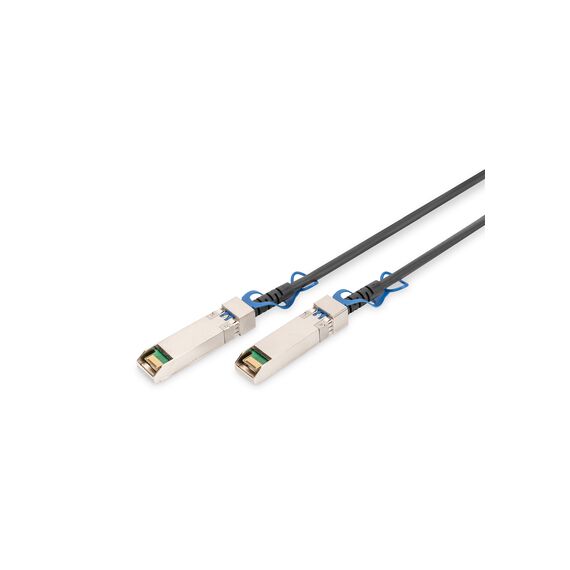

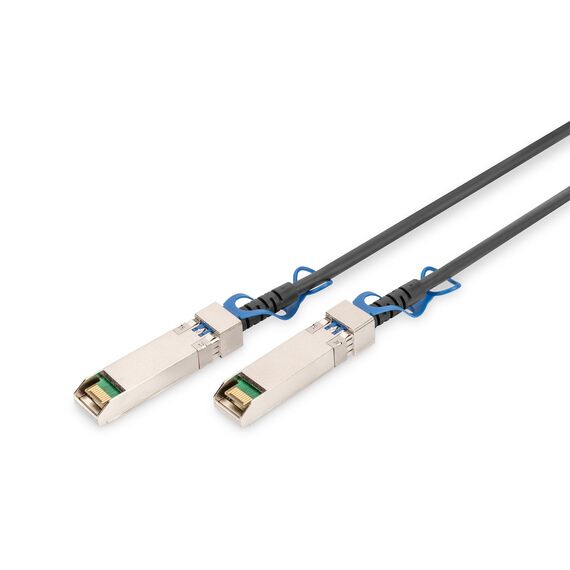

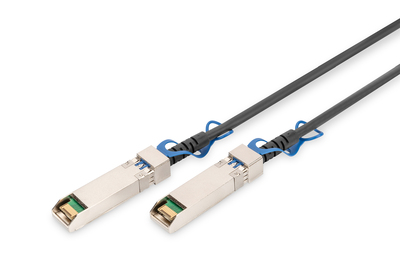

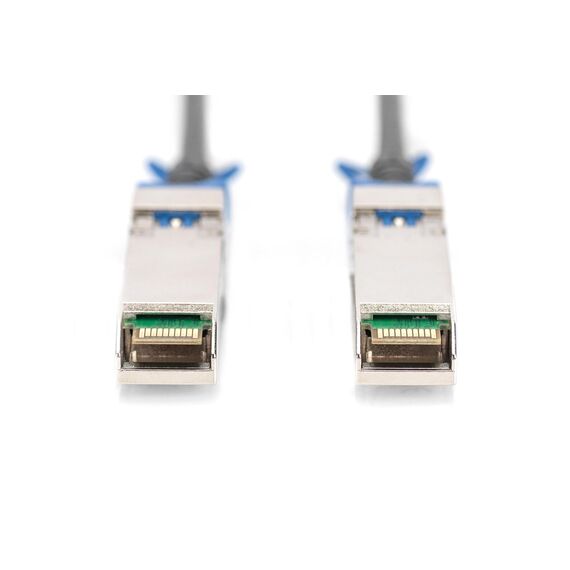

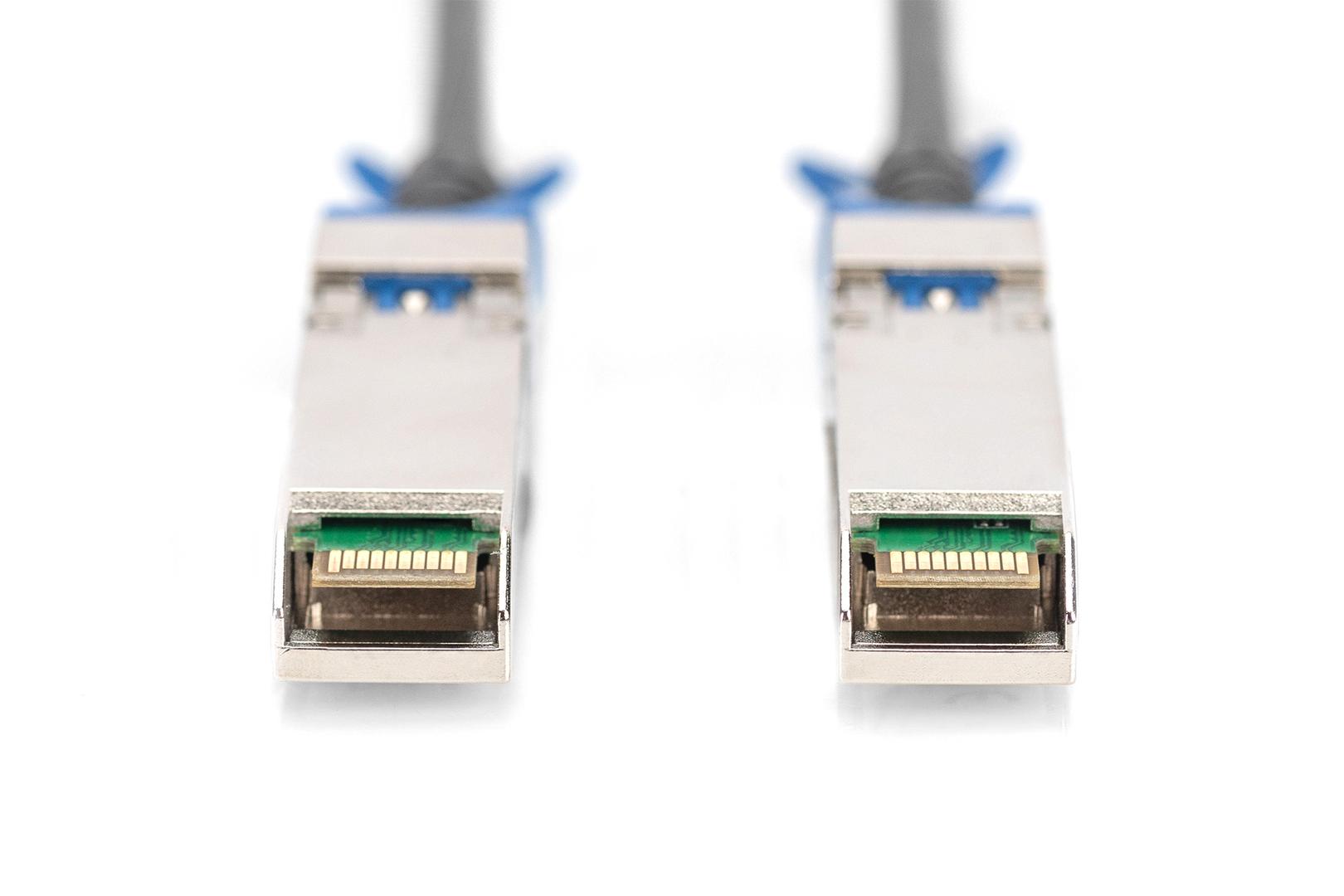

DIGITUS DN-81245 Passive SFP28 Direct Attach Copper Cable, 25Gbps, 5m, Shielded Twinax

Brand:
Digitus
DIGITUS DN-81245 5m Passive SFP28 DAC Cable
DIGITUS DN-81245 Passive SFP28 Direct Attach Copper Cable, 25Gbps, 5m, Shielded Twinax
€106.56 inc. VAT
Buy
DN-81245
€89.55
€106.56 inc. VAT
Ships from EU stock: 3 item(s)
+ −
Add to wish list Ask a question
Product Code
04:403673
EAN Code
4016032478836
Manufacturer
Digitus

Quick Specs

Link type
25G Ethernet, passive DAC
Connectors
SFP28 to SFP28
Length
5m
Cable construction
Shielded copper twinax
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

DN-81245 — A 5m Copper Link Between SFP28 Ports

25G Ethernet5m reachPassive twinaxNo DDM

Connect nearby switches, servers or storage equipment with a single 5m cable assembly. The DN-81245 combines shielded twinax copper and an SFP28 connector at each end for a short 25G Ethernet link, avoiding separate optical modules and fibre leads.

Key Features


One complete link
Both SFP28 ends are part of the cable assembly. The 5m length suits equipment within the same rack or nearby racks when the routed distance fits.

Passive copper construction
The manufacturer specifies a passive shielded twinax assembly, a nominal 3.3V supply and consumption below 0.5W. It is intended for short-distance links.

Check the host before ordering
MSA SFP28 and SFF-8432 support describe the interface. Confirm that both host models and firmware accept this DAC; a matching socket alone does not establish compatibility.

Technical Specifications

Link and cable
Model / EAN DN-81245 / 4016032478836
Application 25 Gigabit Ethernet short-reach interconnection
Construction Passive shielded copper twinax
Connectors SFP28 to SFP28
Length 5m
Channel data rate 25.88243Gbps, manufacturer-stated channel rate
Signal lanes Tx and Rx
Interfaces
Compliance MSA SFP28; connector compatible with SFF-8432
Electrical interface 20-pin edge connector
Management interface Serial, I²C
DDM support No
Manufacturer compatibility guidance Cisco attribute; brand guidance includes Allnet, Cisco, 3Com, D-Link, Dell, Edimax, Etherwan, Enterasys, Extreme, Finisar, Force10, Fortinet, Huawei, IBM, Juniper, Linksys, Netgear, Nortel, Riverstone, ZTE and Zyxel; exact host acceptance must be checked
Power and environment
Nominal supply 3.3V
Power consumption Less than 0.5W
Operating temperature 0°C to +70°C
Storage temperature −40°C to +85°C
Single-package dimensions (D × W × H) 32 × 32 × 4cm

What's in the Box

1 × 5m SFP28 25G DAC cable

What Will Not Work

Links requiring more than 5m of routed cable
Hosts that do not accept this SFP28 DAC or require optical transceivers

Frequently Asked Questions

Do I need two separate transceivers?
No. This DAC already includes an SFP28 connector at each end. It plugs into compatible host ports as one assembly.
Can I monitor optical power with DDM?
No. The manufacturer specifies no DDM support, and this is a copper cable rather than an optical link.
Will it work in every Cisco or other SFP28 switch?
The datasheet lists several brands, but it does not verify every model and firmware combination. Check both hosts for acceptance of DN-81245 before ordering.
Singular Expert Insight
Measure the routed distance, including vertical rack runs and service slack, rather than the straight-line gap. For an exact switch-to-switch compatibility check, send Singular the two model numbers and firmware versions. Ask Singular to check your two host models

Buyer’s Guide

Buy it if

Both hosts accept passive SFP28 DAC and your routed link fits within 5m.

Skip it if

You require a longer reach, optical media or confirmed DDM monitoring.

Also consider

A shorter compatible DAC for less excess cable, or matched optical modules and fibre for longer links.

Features - Digitus - DN-81245

Colour
black
Length
5m
Port Speed
  • 25 Gbps
More Details
Product Code
04:403673
EAN Code
4016032478836
Manufacturer
Digitus
