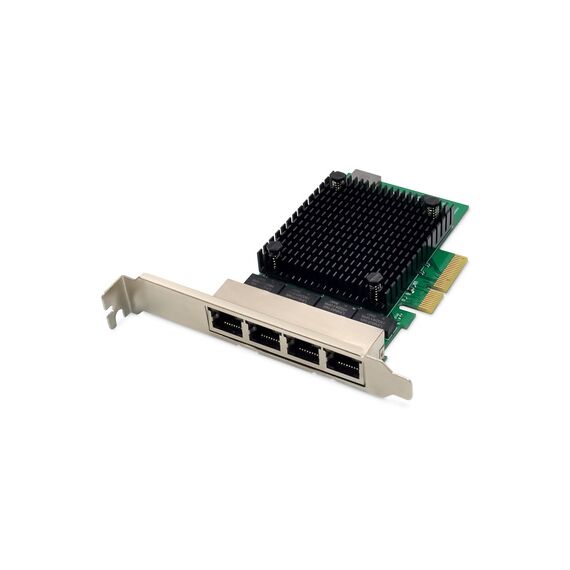

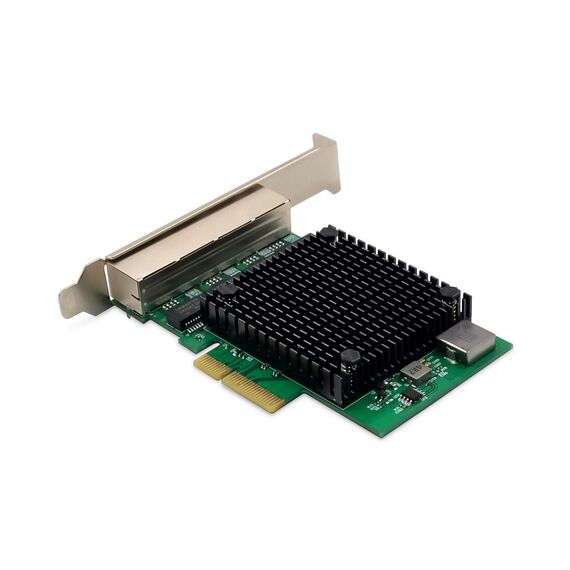

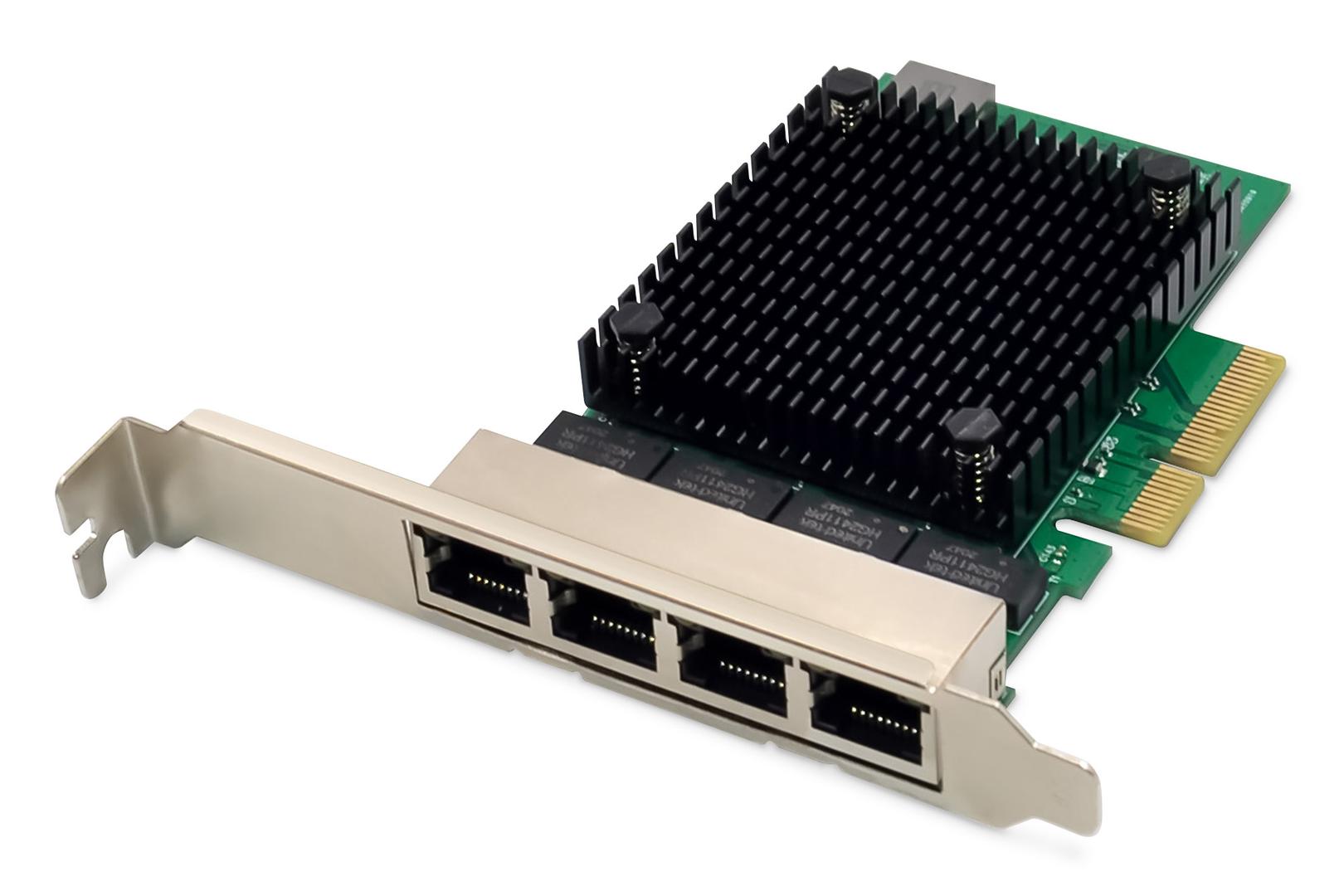

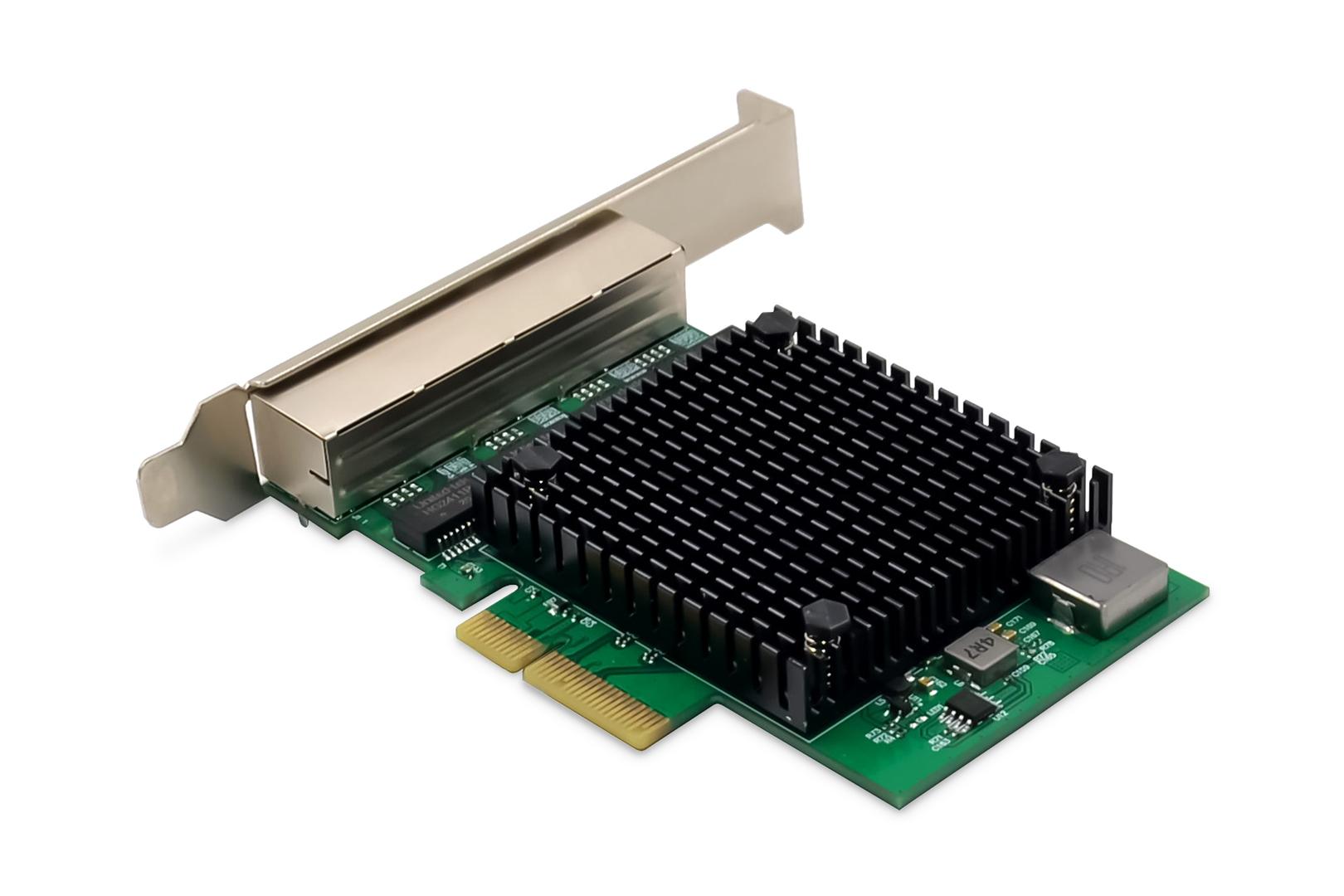

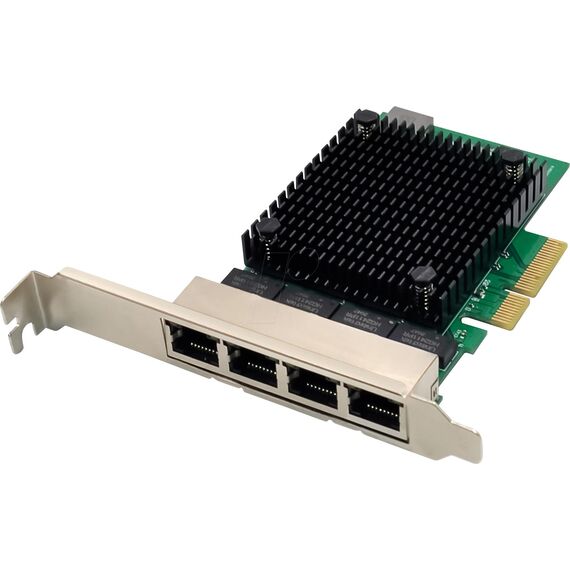

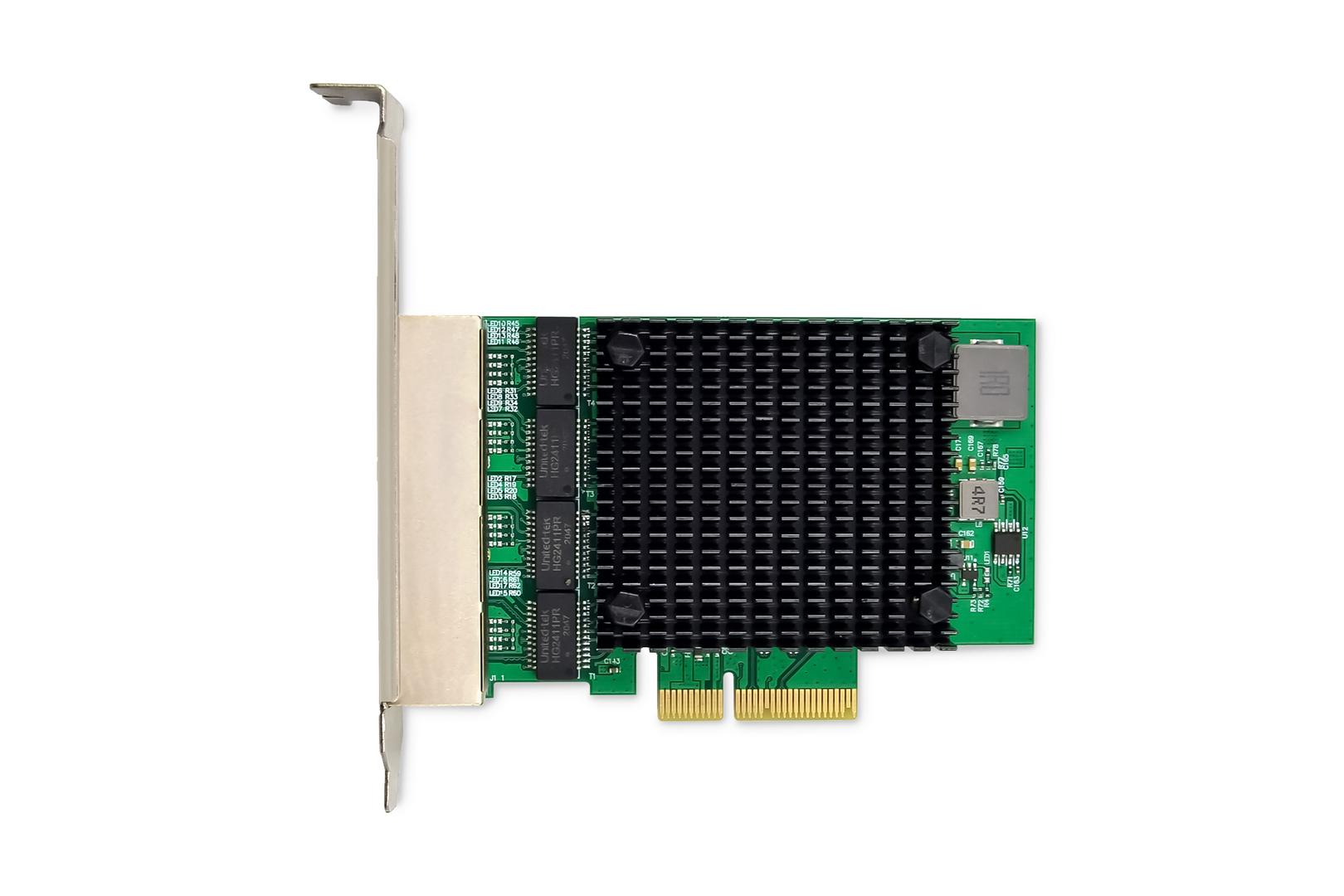

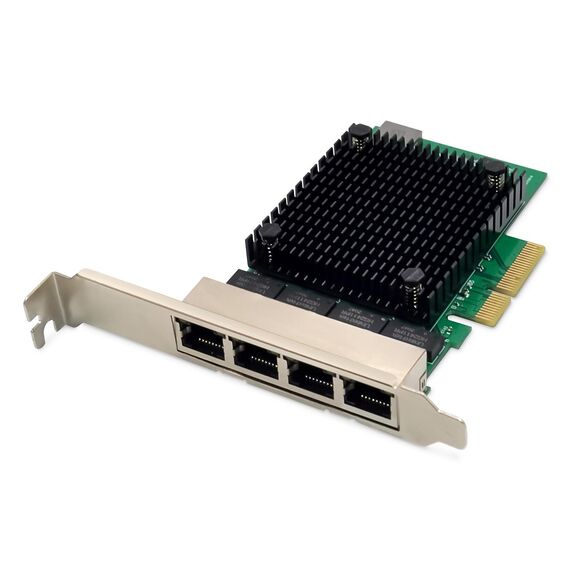

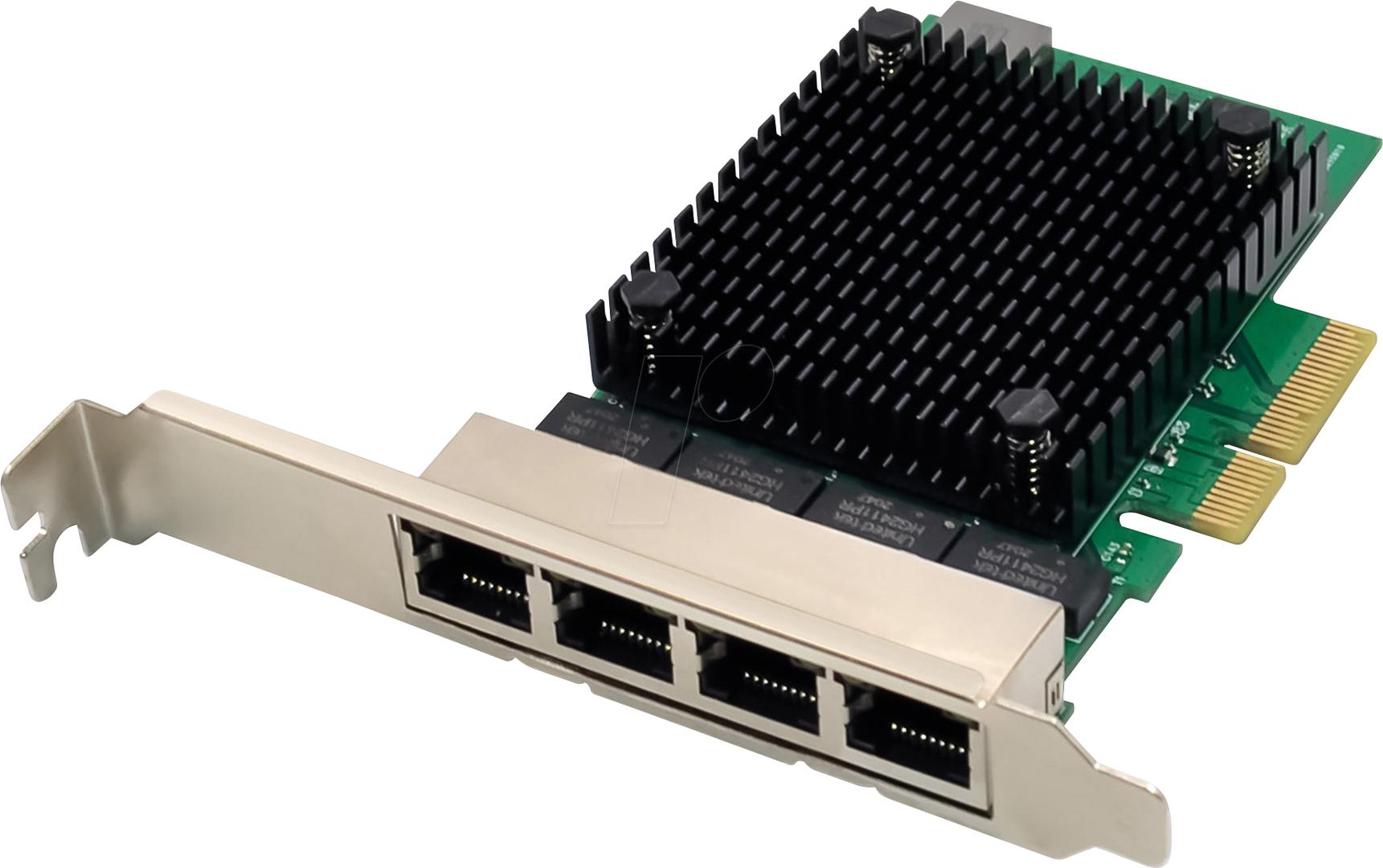

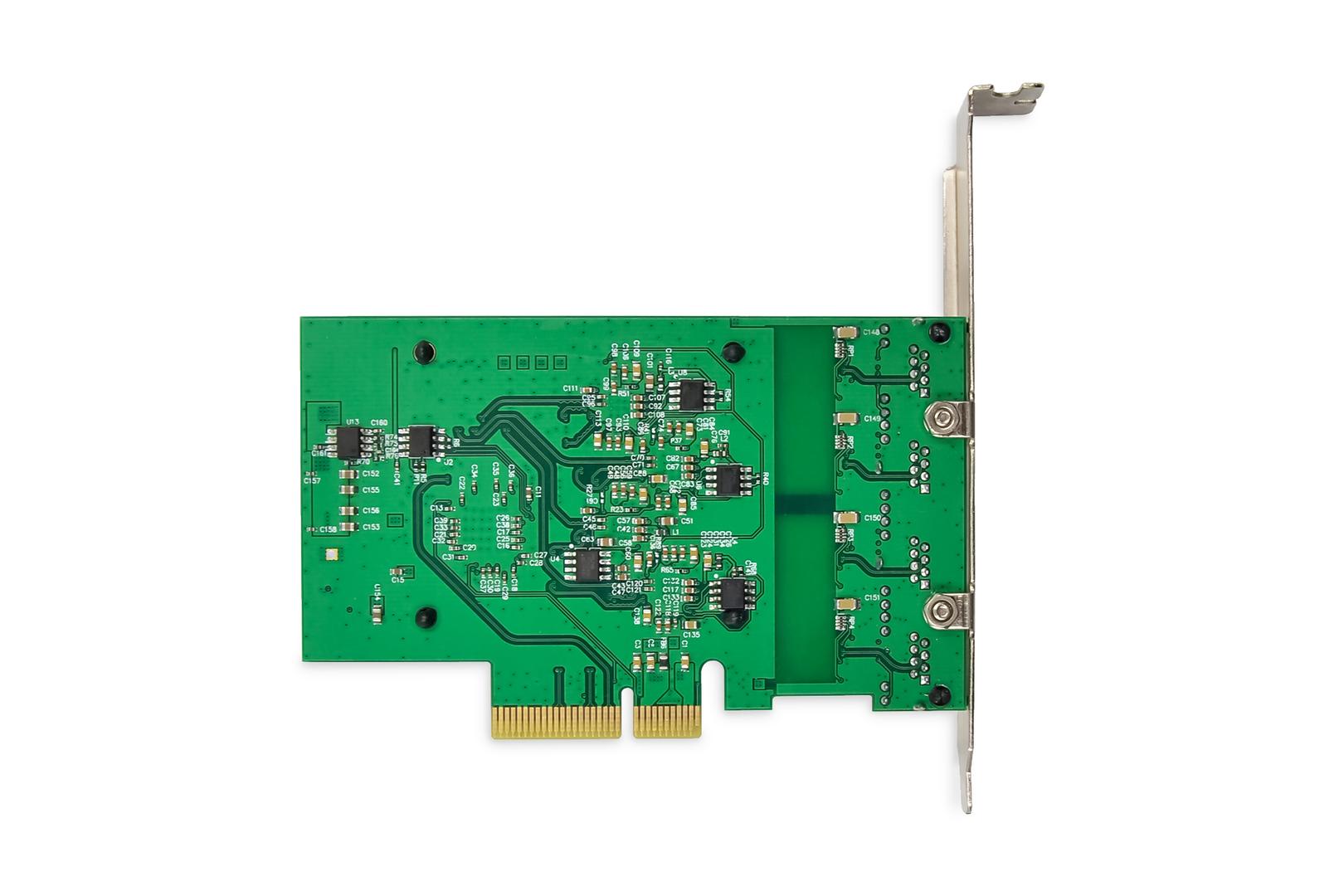

DIGITUS DN-10136 4-Port 2.5 Gigabit Ethernet PCIe Network Card 4x RJ45 Realtek RTL8125B PCIe x4 Low Profile

Brand:
Digitus
DIGITUS DN-10136 4-Port 2.5G PCIe Network Card
DIGITUS DN-10136 4-Port 2.5 Gigabit Ethernet PCIe Network Card 4x RJ45 Realtek RTL8125B PCIe x4 Low Profile
€98.18 inc. VAT
Buy
DN-10136
€82.50 €91.67
€98.18 inc. VAT
Ships from EU stock: 50 item(s)
+ −
Add to wish list Ask a question
Product Code
04:439819
EAN Code
4016032487968
Manufacturer
Digitus

Quick Specs

Interface
PCIe 2.1 x4
Ports
4× RJ45 2.5 Gbps
Controller
Realtek RTL8125B + ASMedia ASM1806
Slot
PCIe x4 or longer
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

DIGITUS DN-10136 — 4-Port 2.5 Gigabit PCI Express Network Card

4× 2.5 GigabitPCIe 2.1 x4Realtek RTL8125BLow profile

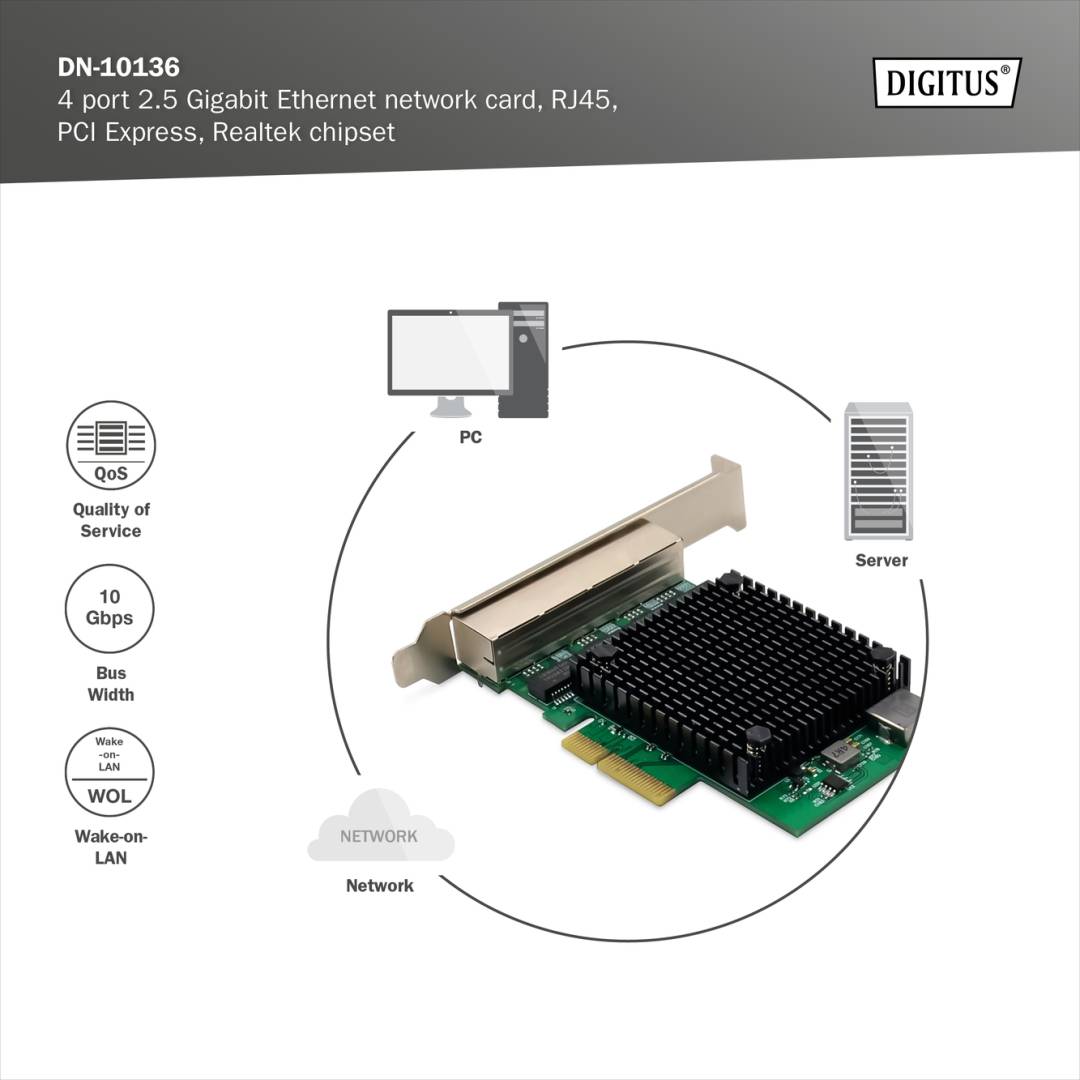

The DIGITUS DN-10136 is a 4-port 2.5 Gigabit PCIe network card that adds 4 2.5 Gigabit RJ45 ports to a desktop PC, workstation or server through a PCIe 2.1 x4 slot. Four 2.5G ports on one card make it a natural fit for OPNsense/pfSense routers and multi-gig home labs. It uses the Realtek RTL8125B + ASMedia ASM1806 controller and connects at 10/100/1000/2500 Mbps. Low-profile bracket included. Several ports on one card are the usual building block for firewalls, virtualisation hosts and servers that need separate networks for users, storage and management.

Compatibility — check before buying:
Check the slot: the card needs a free PCIe slot that is physically x4 or longer (x8/x16); it will not fit an x1 slot. Brackets: Low-profile bracket included. 2.5 Gbps needs a 2.5G partner: the switch or router port must support 2.5GBASE-T, otherwise the link runs at 1 Gbps. Cat5e cable is enough. Operating systems listed by DIGITUS: Windows Vista–11, Windows Server 2008/2012, Linux, DOS. Send us the PC or server model and we confirm the fit.

Best For

✓ Firewall and router builds (pfSense, OPNsense)
✓ Virtualisation hosts
✓ Separate storage or management networks
✓ Link aggregation to a switch
✓ Small servers and NAS builds
✓ Lab and test benches

Key Features


4× 2.5 Gigabit (NBASE-T)
Up to 2.5 Gbps over ordinary Cat5e cabling, backwards compatible with 1 Gbps and 100 Mbps.

PCI Express PCIe 2.1 x4
Low-profile bracket included. Installs in a free PCIe slot of a desktop, workstation or server.

Network features
Supports Wake-on-LAN, 16K jumbo frames, 802.1Q / 802.1ad VLAN, IEEE 802.3az EEE, VMQ, RSS.

Four 2.5G ports
Four independent 2.5G interfaces from one x4 slot.

Technical Specifications

Identification
Brand DIGITUS

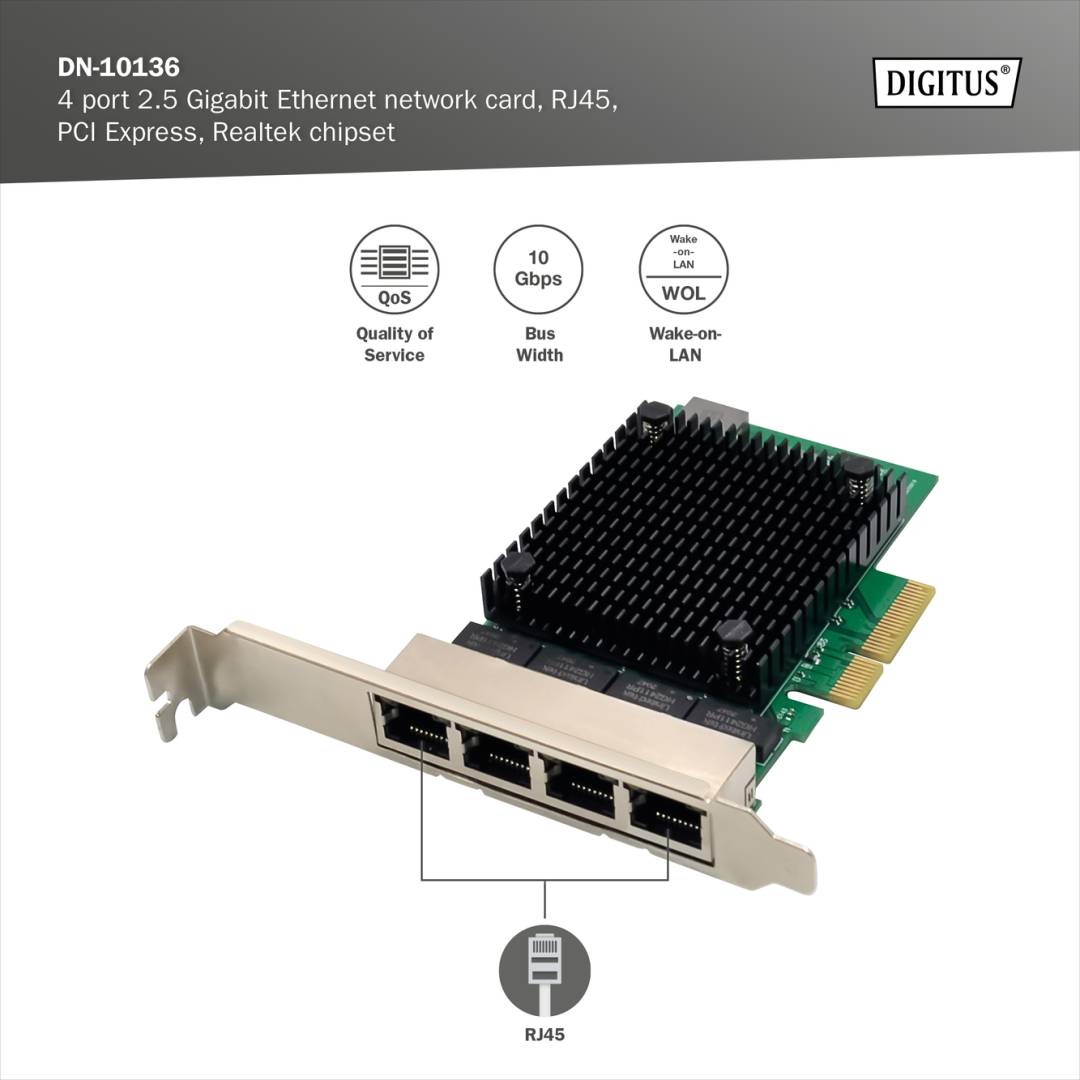

Product 4 port 2.5 Gigabit Ethernet network card, RJ45, PCI Express, Realtek chipset
Part Number DN-10136
EAN / GTIN 4016032487968
Network
Ports 4× RJ45 2.5 Gigabit Ethernet
Speeds 10/100/1000/2500 Mbps
Controller Realtek RTL8125B + ASMedia ASM1806
Features Wake-on-LAN, 16K jumbo frames, 802.1Q / 802.1ad VLAN, IEEE 802.3az EEE, VMQ, RSS
Host Interface
Bus PCIe 2.1 x4
Brackets Low-profile bracket included
Compatibility
Operating Systems Windows Vista–11, Windows Server 2008/2012, Linux, DOS
Physical
Weight 100 g
In the Box
Included Network card, manual, CD, low-profile bracket
Not Included Network cable
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term DIGITUS does not publish a warranty term for this model on its official product pages. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Will it fit my computer?
It needs a free PCIe slot that is physically x4 or longer (x8/x16); it will not fit an x1 slot. Low-profile bracket included
Will I get 2.5 Gbps?
Only when the switch or router port supports 2.5GBASE-T. Connected to a normal Gigabit port it runs at 1 Gbps.
Which operating systems are supported?
DIGITUS lists: Windows Vista–11, Windows Server 2008/2012, Linux, DOS.
Can I keep using the onboard network port?
Yes. The card adds its own ports; the onboard port keeps working, so you can run separate networks or keep one as a backup.
Singular Expert Insight
We suggest the DN-10136 for firewall and router builds, home labs and small servers that need several 2.5G ports. Single-port version: DN-10135; four Intel Gigabit ports: DN-10114. Browse more network cards or network switches. Local support in Cyprus comes with every order.

Buyer’s Guide

Buy it if

You need four 2.5G ports and have an x4 slot.

Skip it if

Your switch is Gigabit only — the DN-10114 costs less.

Also consider

DIGITUS DN-10114 — 4× Gigabit, Intel I350.
