DIGITUS 40G QSFP+ Active Optical Cable (AOC), 5 m, QSFP+ to QSFP+, 4 × 10G Lanes, 850 nm Multimode, MSA
Brand:
Digitus
DIGITUS 40G QSFP+ Active Optical Cable (AOC), 5 m, QSFP+ to QSFP+, 4 × 10G Lanes, 850 nm Multimode, MSA
€258.58 inc. VAT
DN-81312
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
DIGITUS DN-81312 — QSFP+ 40G Active Optical Cable, 5 m
QSFP+ ↔ QSFP+40 Gigabit Ethernet5 m850 nm · < 1.5 W

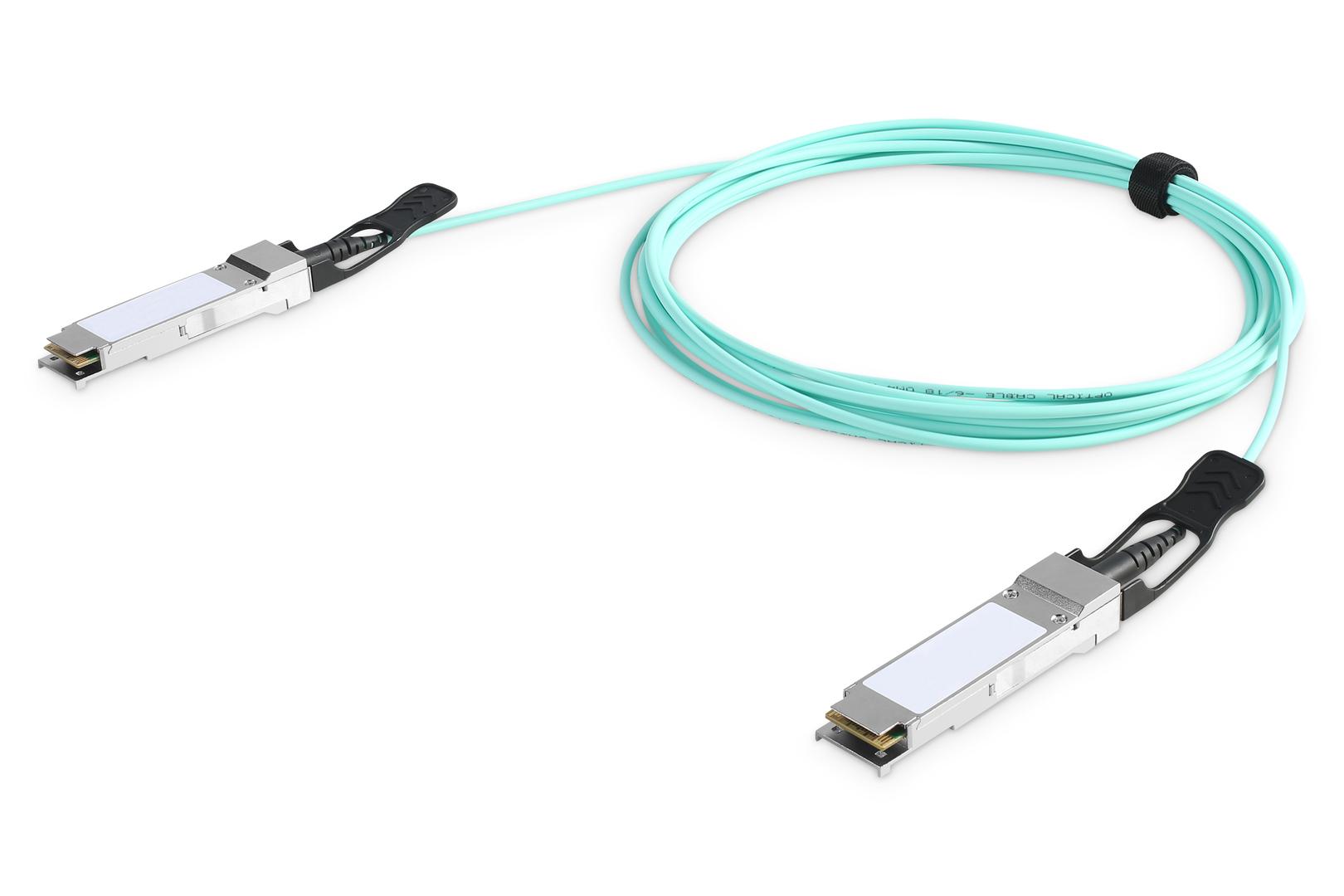

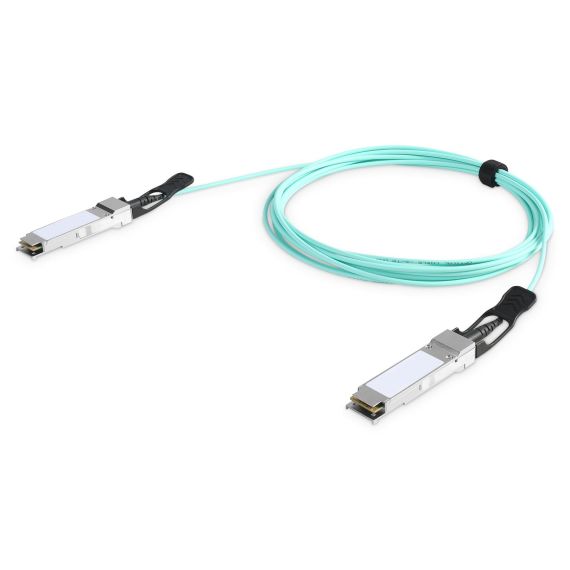

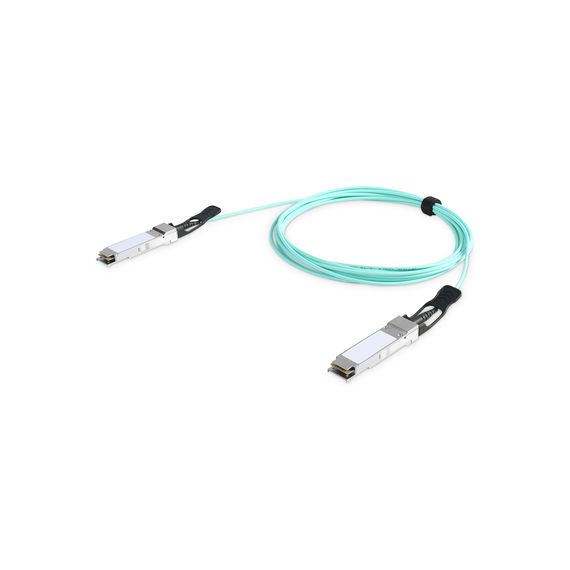

The DIGITUS DN-81312 is a 5 m, 40 Gigabit active optical cable (AOC) with a QSFP+ module fixed at each end. It connects two QSFP+ ports — switch to switch, switch to server or storage — without separate transceivers or a loose MPO patch cord, and is light and thin enough to route across a rack row.
The cable carries four full-duplex channels of up to 11.3 Gbps each (45.2 Gbps aggregate) over 850 nm multimode optics, covering data rates from 2.125 to 41.2 Gbps. Besides 40G Ethernet it is listed for InfiniBand, Fibre Channel (2G to 12.5G), PCIe and SAS applications. It follows the QSFP MSA and IEEE P802.3ba, runs on 3.3 V and draws less than 1.5 W.
Before you order: Both ends must be QSFP+ (40G) ports that accept MSA-compliant third-party optics. DIGITUS lists compatibility with brands including Cisco, Dell, 3Com, Juniper, Huawei, Netgear, Fortinet and Zyxel, but switches that enforce vendor-coded optics may still reject it — send us your switch model and we will check.
What's in the Box
- 1 × DIGITUS DN-81312 QSFP+ 40G AOC cable, 5 m
- 1 × quick start guide
What It Means in Practice
- One assembly replaces two 40G transceivers and a patch cord — nothing to clean, nothing to mismatch.
- 5 m reaches across a rack or into the neighbouring rack.
- Optical construction keeps it thin and immune to electromagnetic interference, unlike a 40G copper DAC of the same length.
- Under 1.5 W per end keeps power and heat in dense switches low.
What Will Not Work
- It is not a breakout cable — it will not split into 4 × 10G SFP+ ports.
- It will not fit SFP+, SFP28 or QSFP28-only (100G) ports.
- It cannot be shortened, re-terminated or patched through a panel.
- Switches locked to vendor-coded optics may refuse it.
Key Features
40G in one cable
QSFP+ to QSFP+, 4 channels × up to 11.3 Gbps, 45.2 Gbps aggregate.
Multi-protocol
40G Ethernet plus InfiniBand, Fibre Channel 2G–12.5G, PCIe and SAS.
Low power
3.3 V supply, under 1.5 W, 0 °C to 70 °C operating range.
Wide compatibility
QSFP MSA and IEEE P802.3ba; DIGITUS lists over 20 compatible switch brands.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A 5 m QSFP+ AOC is the straightforward way to join 40G switches with QSFP+ ports across a rack or into the next one. As with any third-party optic, the switch's acceptance policy is the one thing to confirm before ordering.
✓ Buy it if you need a 40G QSFP+ link of up to 5 m between switches, servers or storage.
✕ Skip it if you need 100G, a 4 × 10G breakout, or a link longer than 5 m.
→ Also consider LevelOne AOC-0501 (100G QSFP28 AOC, 1 m) for 100G ports.
Send us both device models and we will confirm compatibility before you order.
Features - Digitus - DN-81312
Length
5m
More Details
Product Code
04:365399
EAN Code
4016032460138
Manufacturer
Digitus
