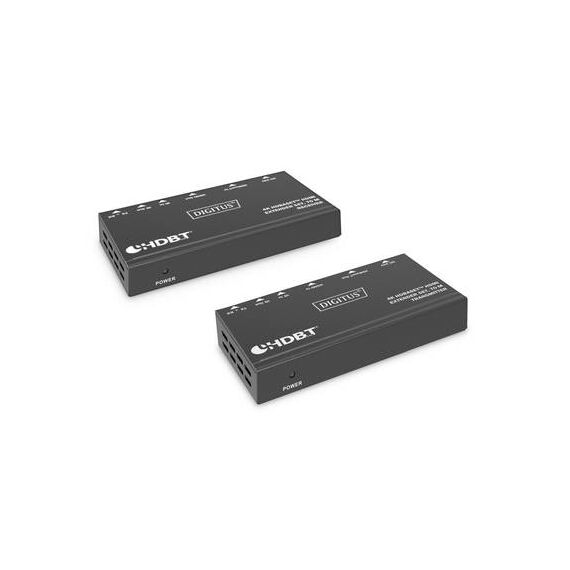

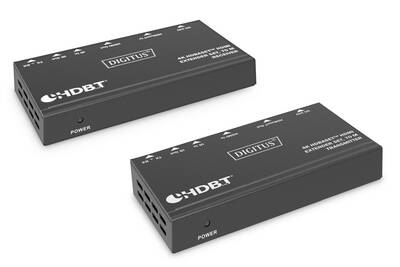

DIGITUS 4K HDBaseT DS-55520 / Transmitter and receiver RS-232, HDMI, HDBaseT / over CAT 6/7/8 / up to 70 m | DS-55520

Product Features

· Supports HDBaseT 1.0 via CAT6/7/8 cable up to 70 m
· Supports 4K2K/30Hz (24 bit)
· Maximum transmission distance (UHD 4K/30Hz, CAT6 or higher): 40 m
· Maximum transmission distance (Full HD, 1080p, CAT6 or higher): 70 m
· PoC (Power over Cable) - Only the unit requires an external power adapter
· Bi-directional IR signal transmission
· Bi-directional RS232 signal transmission
· HDCP 2.2 / 1.4
· Video bandwidth: 10.2 Gbps
· Transmitter unit connections:
· 1x HDMI input (4K/30Hz) - Connection signal source
· 1x RJ45 (HDBaseT) output - Connection CAT transmission cable
· 1x IR input to receive remote control signals
· 1x IR output for control of the source device
· 1x RS232 (3-pin Phoenix) for RS232 command transmission
· 1x Power adapter input (DC 24V/1A), screw connector - Connection for external power adapter
· Receiver unit connections:
· 1x HDMI output (4K/30Hz) - Connection output device
· 1x RJ45 input (HDBaseT) - Connection CAT transmission cable
· 1x IR input to receive remote control signals
· 1x IR output for control of the source device
· 1x RS232 (3-pin Phoenix) for RS232 command transmission
· 1x Power adapter input (DC 24V/1A), screw connector - Connection for external power adapter
· Suitable for wall mounting
· ESD protection
· Operating temperature: 0-40°
· Power consumption: approx. 20W max.
· Housing: Metal
· Dimensions (1 unit): L 6.5 x W 11.5 x H 1.7 cm
· Weight (1 unit): 200 g
· Color: black

Special Features

· Supports HDBaseT 1.0 via CAT6/7/8 cable up to 70 m
· Supports 4K2K/30Hz (24 bit)
· Maximum transmission distance (UHD 4K/30Hz, CAT6 or higher): 40 m
· Maximum transmission distance (Full HD, 1080p, CAT6 or higher): 70 m
· PoC (Power over Cable) - Only the unit requires an external power adapter
· Bi-directional IR signal transmission
· Bi-directional RS232 signal transmission
· HDCP 2.2 / 1.4
· Video bandwidth: 10.2 Gbps

Product Specification

Device Type	Video/audio/infrared/serial/network extender
Form Factor	External
Colour	Black
Networking	Networking
Connectivity Technology	Wired
Data Link Protocol	RS-232, HDMI, HDBaseT
Data Transfer Rate	10.2 Gbps
Max Transfer Distance	70 m
Status Indicators	Power
Features	Wall mountable, 4K resolution support, 2K resolution support, metal housing, power over cable (PoC), 24-bit Deep Colour support, 1080p resolution support, bidirectional RS-232, ESD Protector
Compliant Standards	HDCP 1.4, HDCP 2.2
Expansion / Connectivity	Expansion / Connectivity
Interfaces	1 x HDMI input (transmitter) - 19 pin HDMI Type A ¦ 1 x HDMI output (receiver) ¦ 1 x IR input (transmitter) ¦ 1 x IR input (receiver) ¦ 1 x IR output (receiver) ¦ 1 x IR output (transmitter) ¦ 1 x HDBaseT (transmitter output) - RJ-45 ¦ 1 x HDBaseT (receiver input) - RJ-45 ¦ 1 x RS-232 (receiver) - 3 pin Phoenix ¦ 1 x RS-232 (transmitter) - 3 pin Phoenix
Miscellaneous	Miscellaneous
Cables Included	1 x IR receiver cable - 1.5 m ¦ 1 x IR transmitter cable - 1.5 m
Power	Power
Power Device	External power adapter
Power Consumption Operational	20 Watt
Dimensions & Weight	Dimensions & Weight
Dimensions (WxDxH) / Weight Details	Receiver: 11.5 cm x 6.5 cm x 1.7 cm / 200 g ¦ Transmitter: 11.5 cm x 6.5 cm x 1.7 cm / 200 g
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
