Digitus Fiber Optic Patch Cable OM3 50/125µm Multimode ST to ST Duplex 5m LSOH Aqua
Brand:
Digitus
Digitus Fiber Optic Patch Cable OM3 50/125µm Multimode ST to ST Duplex 5m LSOH Aqua
€8.93 inc. VAT
DK-2511-05/3
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Digitus OM3 Multimode Fiber Patch Cable, ST to ST, Duplex, 5 m
OM3 · 50/125 µmST ↔ STDuplex5 m

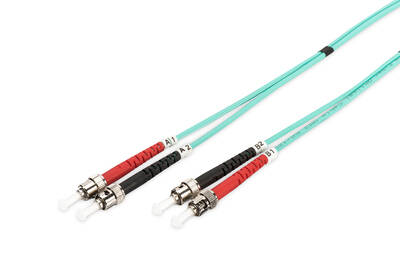

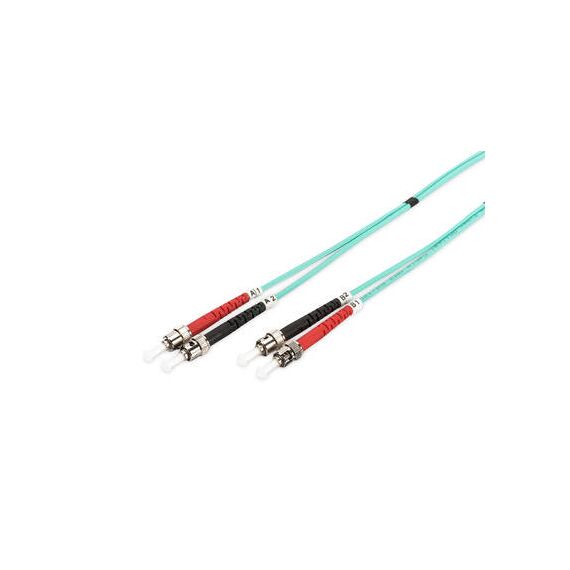

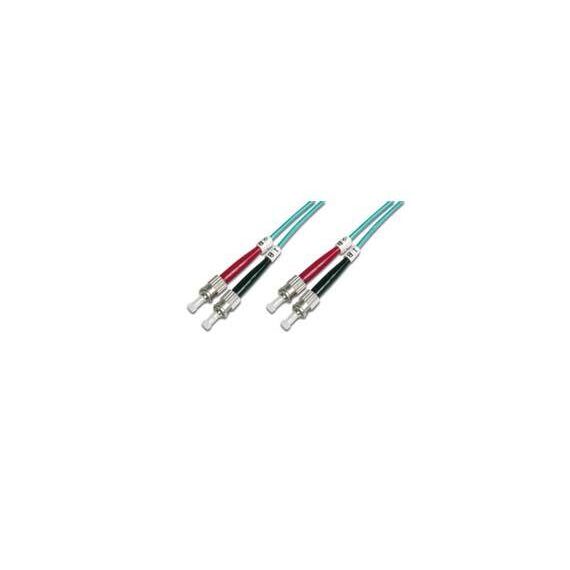

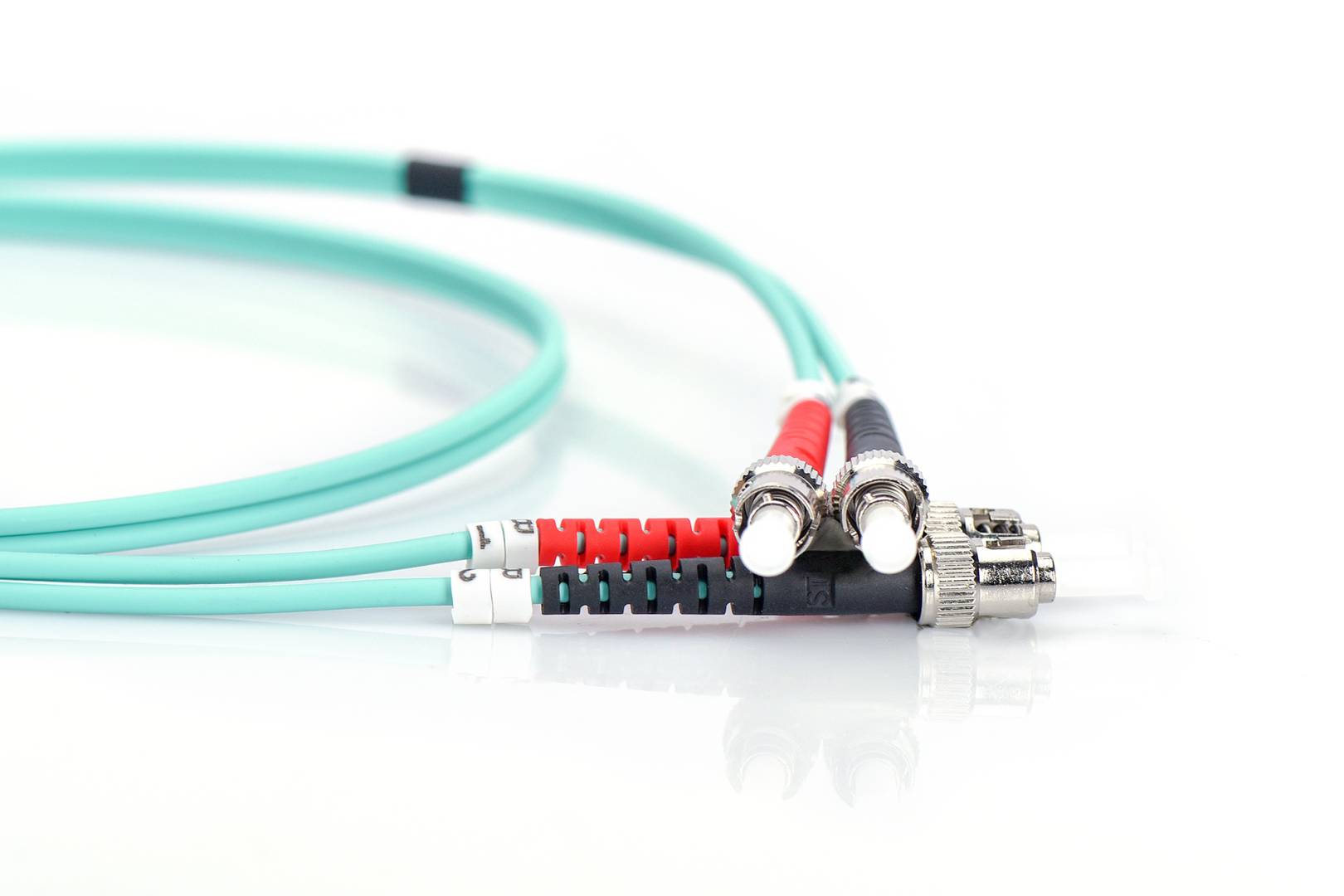

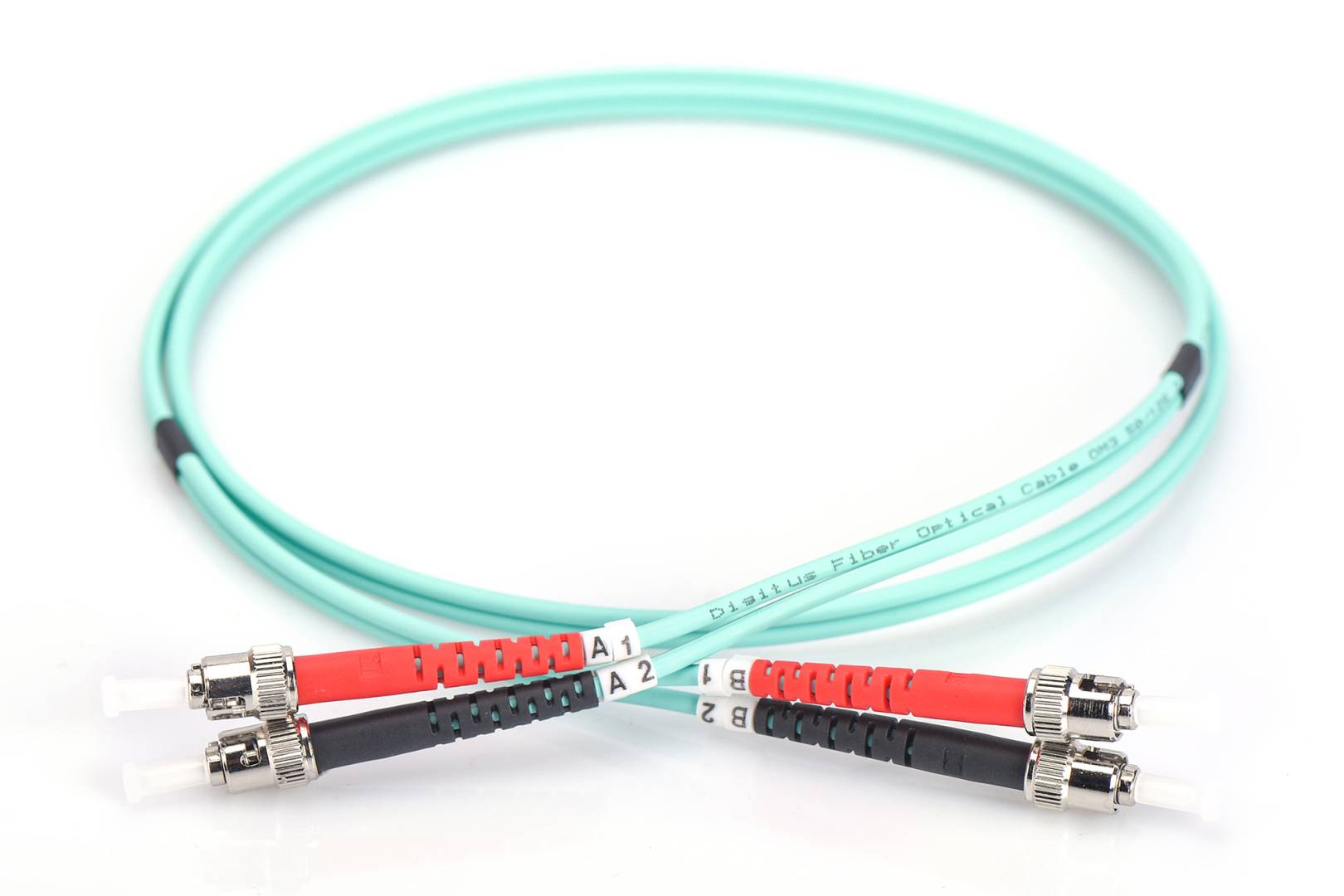

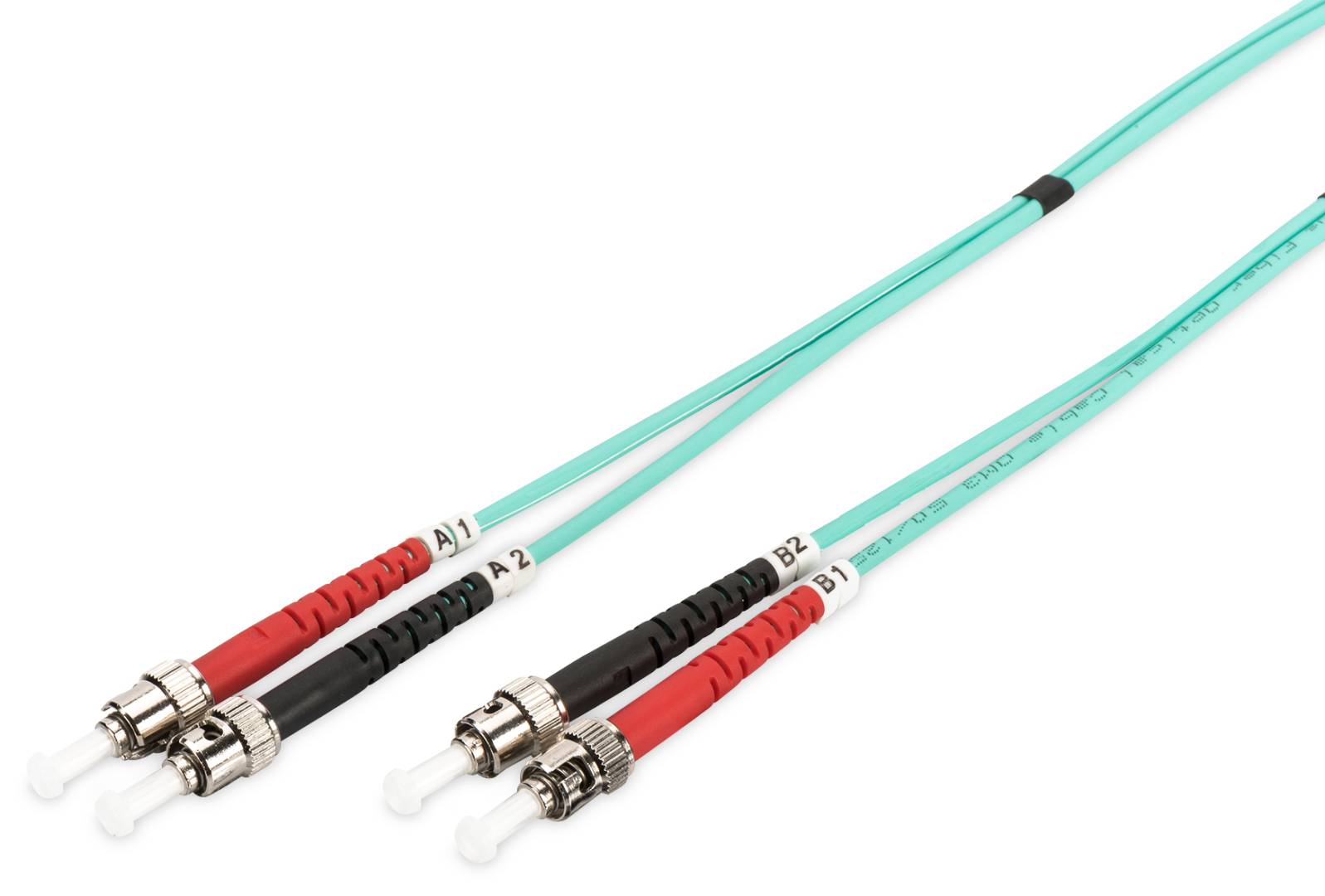

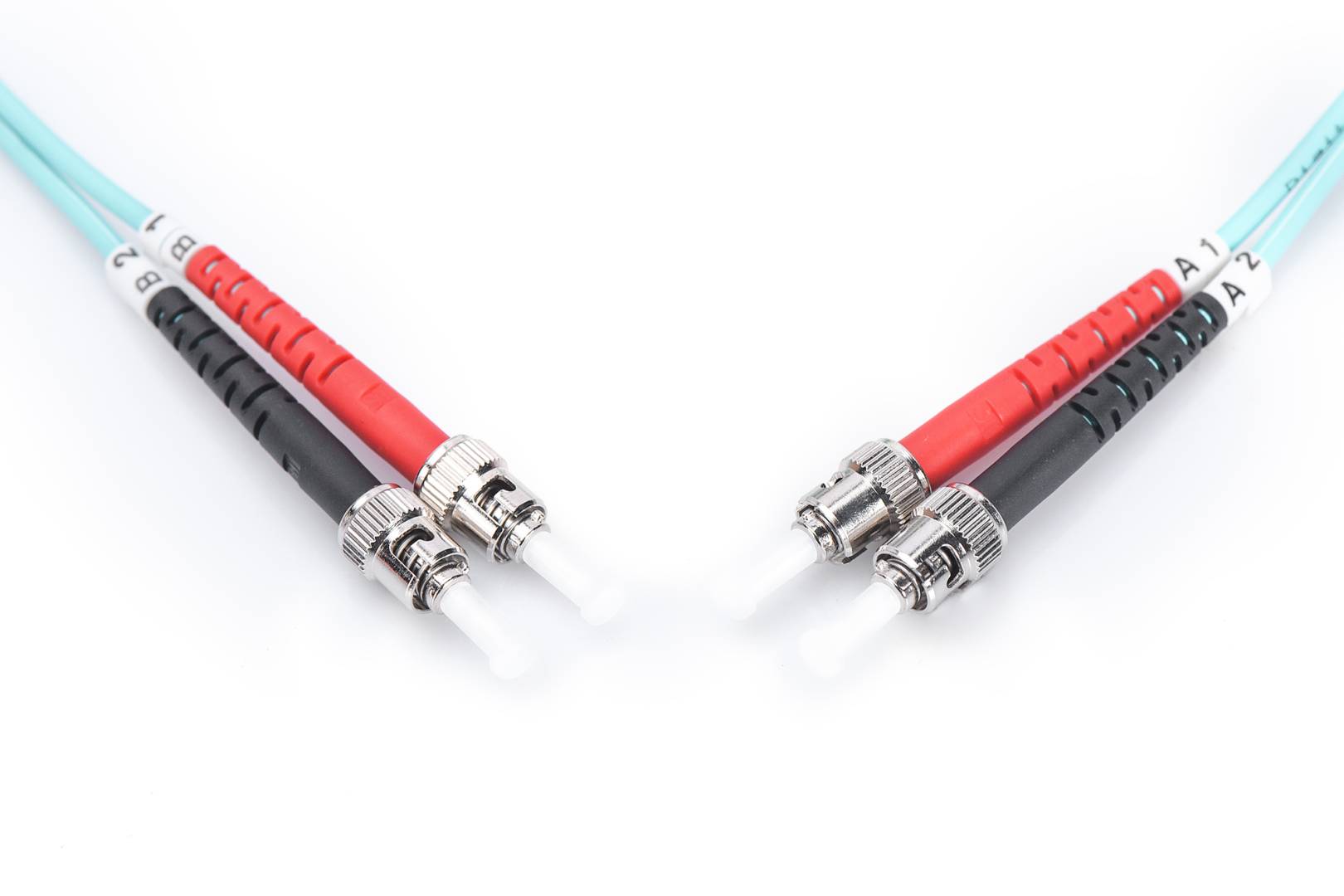

The Digitus DK-2511-05/3 is a 5 m duplex OM3 multimode fibre patch cable with ST connectors on both ends, made for short-reach 850 nm links between switches, servers, storage and patch panels.
The cable uses an LSOH jacket with a 2.0 mm outer diameter in aqua, the usual colour for OM3, so it is easy to tell apart in a busy rack.
Before you order: OM3 multimode works with 850 nm short-reach (SR/SX) multimode optics only. Singlemode LR/LX transceivers will not work on this cable. Check that both ports are ST (bayonet).
What's in the Box
- 1 × Digitus OM3 duplex fibre patch cable, 5 m, ST – ST
- Individual test report (single-packed)
- Transceivers, couplers and patch panels are not included
What It Means in Practice
- Two fibres in one cable: one transmits, one receives — the normal setup for SFP, SFP+, SFP28 and most media converters.
- At 5 m it reaches between neighbouring racks or across a server room; for building backbones use installation cable and patch panels instead.
- OM3 is laser-optimised 50/125 µm multimode for 850 nm SR optics (10GBASE-SR, 25GBASE-SR, 8/16/32G FC SW).
- Keep the connectors covered until the moment of connection and clean the end-faces if a link shows high loss — dirt is the most common cause.
What Will Not Work
- Singlemode LR/LX/ER transceivers (1310/1550 nm) — they need OS2 singlemode cable.
- Ports of another connector type (LC, SC, MPO/MTP, E2000) without the right hybrid cable or adapter.
- Permanent in-wall or outdoor installation — this is a patch cable for racks, desks and equipment rooms.
Key Features
OM3 50/125 µm
Laser-optimised multimode for 850 nm SR optics.
ST – ST
Same connector on both ends.
LSOH jacket
Low-smoke, halogen-free jacket, 2.0 mm — suitable for offices and server rooms.
Clear colour coding
Aqua jacket identifies OM3 at a glance.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
OM3 is fine for 10G SR inside a room; for new multimode installations OM4 gives more headroom at a similar price. Match three things before ordering: fibre type (OM3), connector at each end (ST / ST) and polish. Typical partners are switches with SFP/SFP+ ports and the matching transceivers.
✓ Buy it if your ports are ST on both sides and the link is OM3.
✕ Skip it if your transceivers are singlemode LR/LX — order OS2 instead.
→ Also consider the same cable in other lengths.
Not sure which fibre or connector you have? Send us the model of your switch, transceiver or patch panel and we will check it before you order.
Features - Digitus - DK-2511-05/3
Colour
Cyan
Length
5m
More Details
Product Code
04:352509
EAN Code
4016032248309
Manufacturer
Digitus
