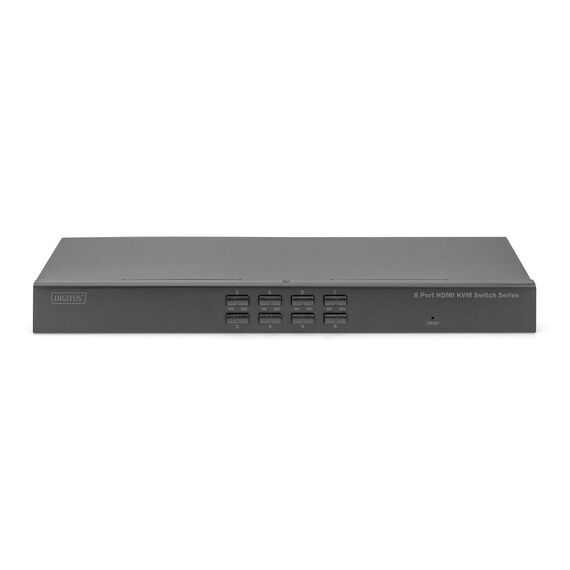

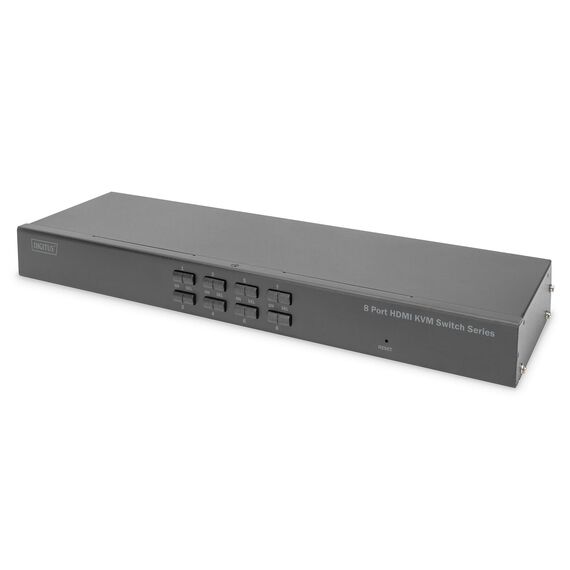

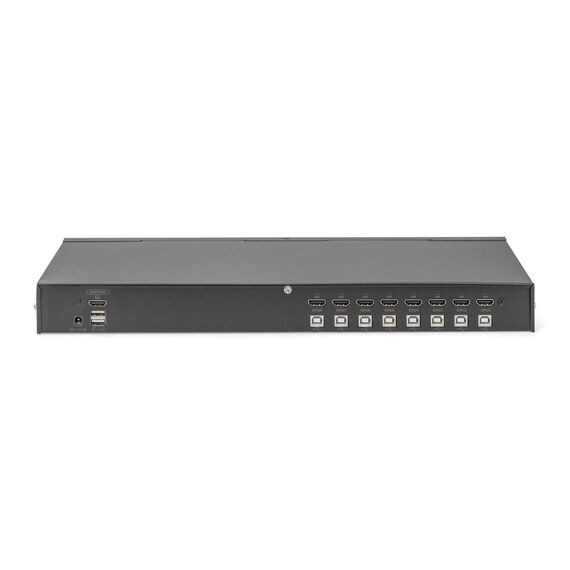

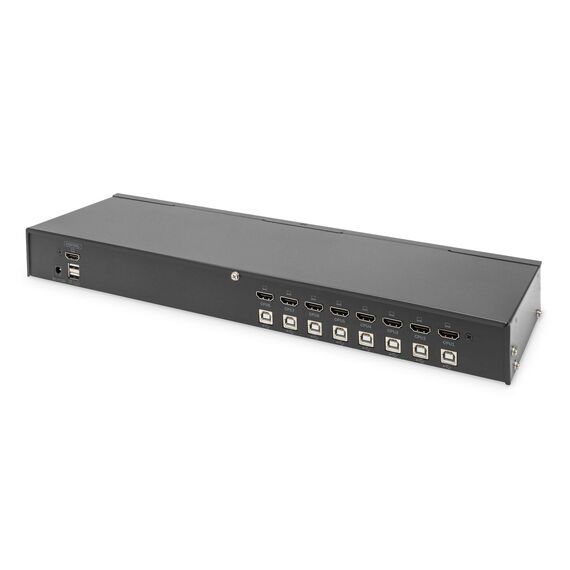

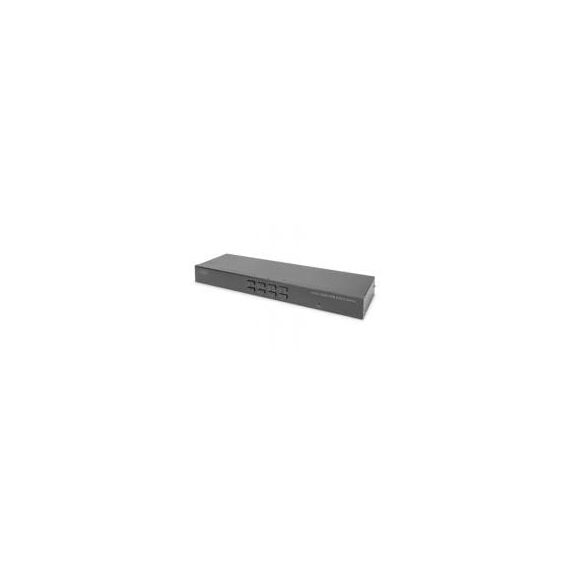

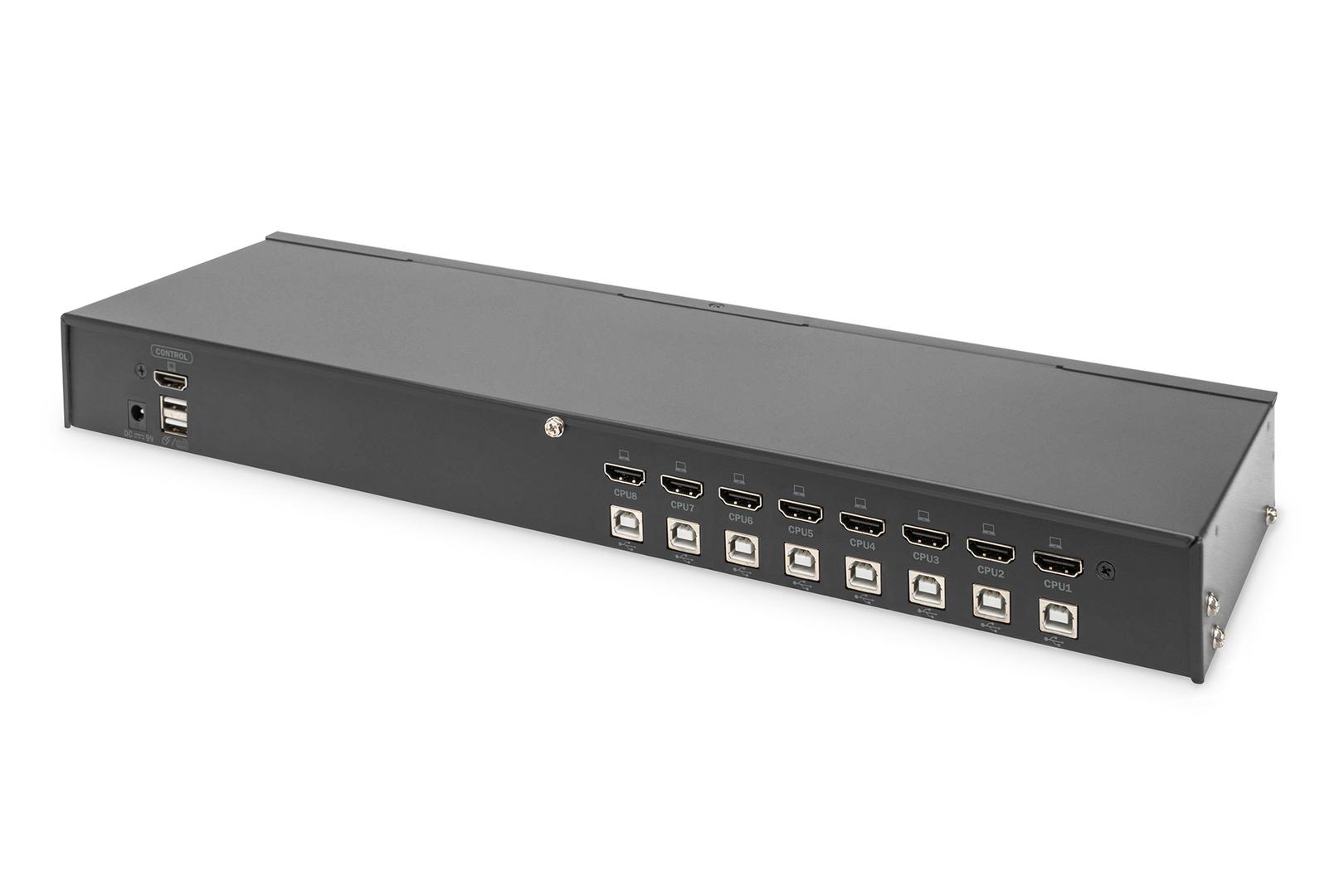

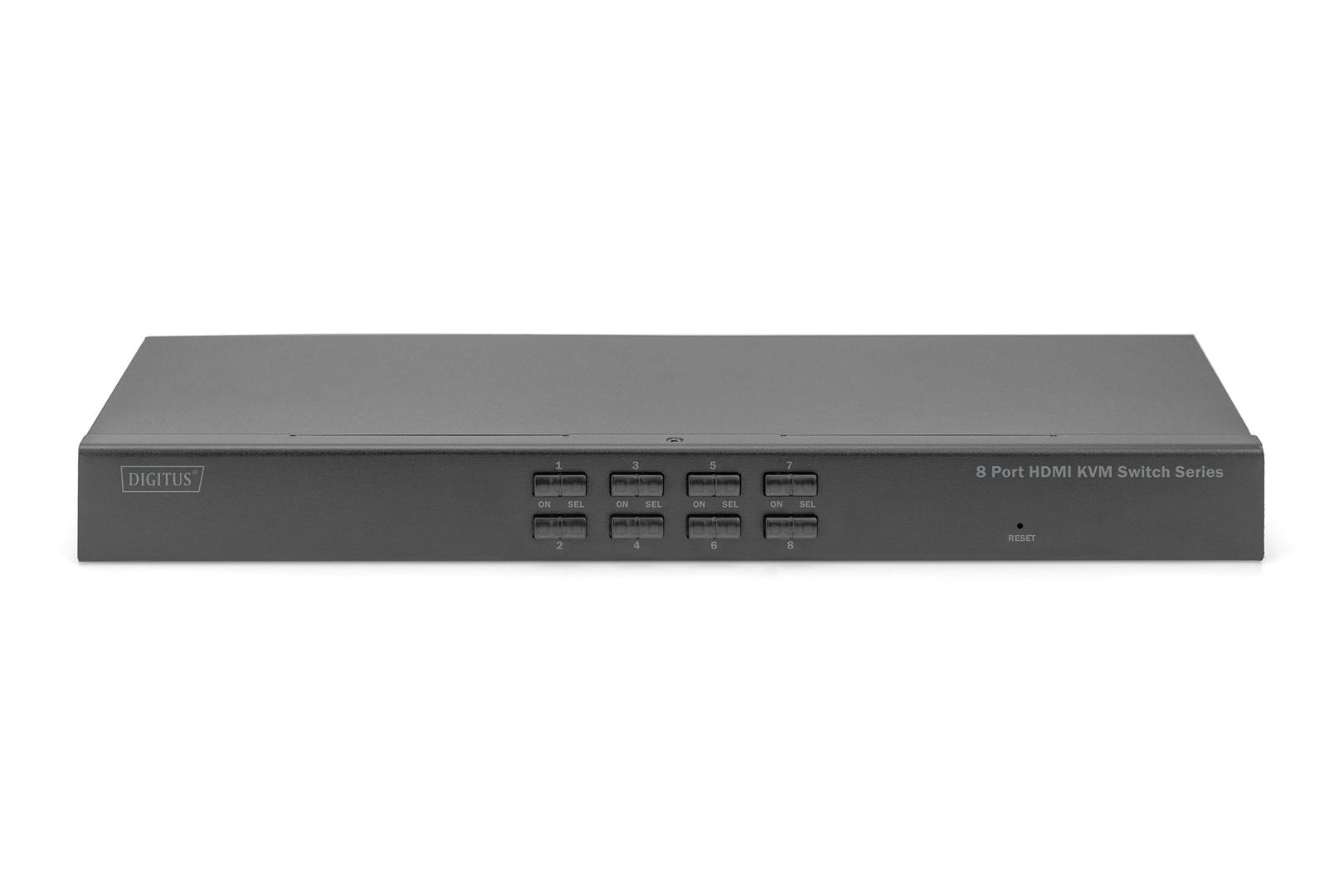

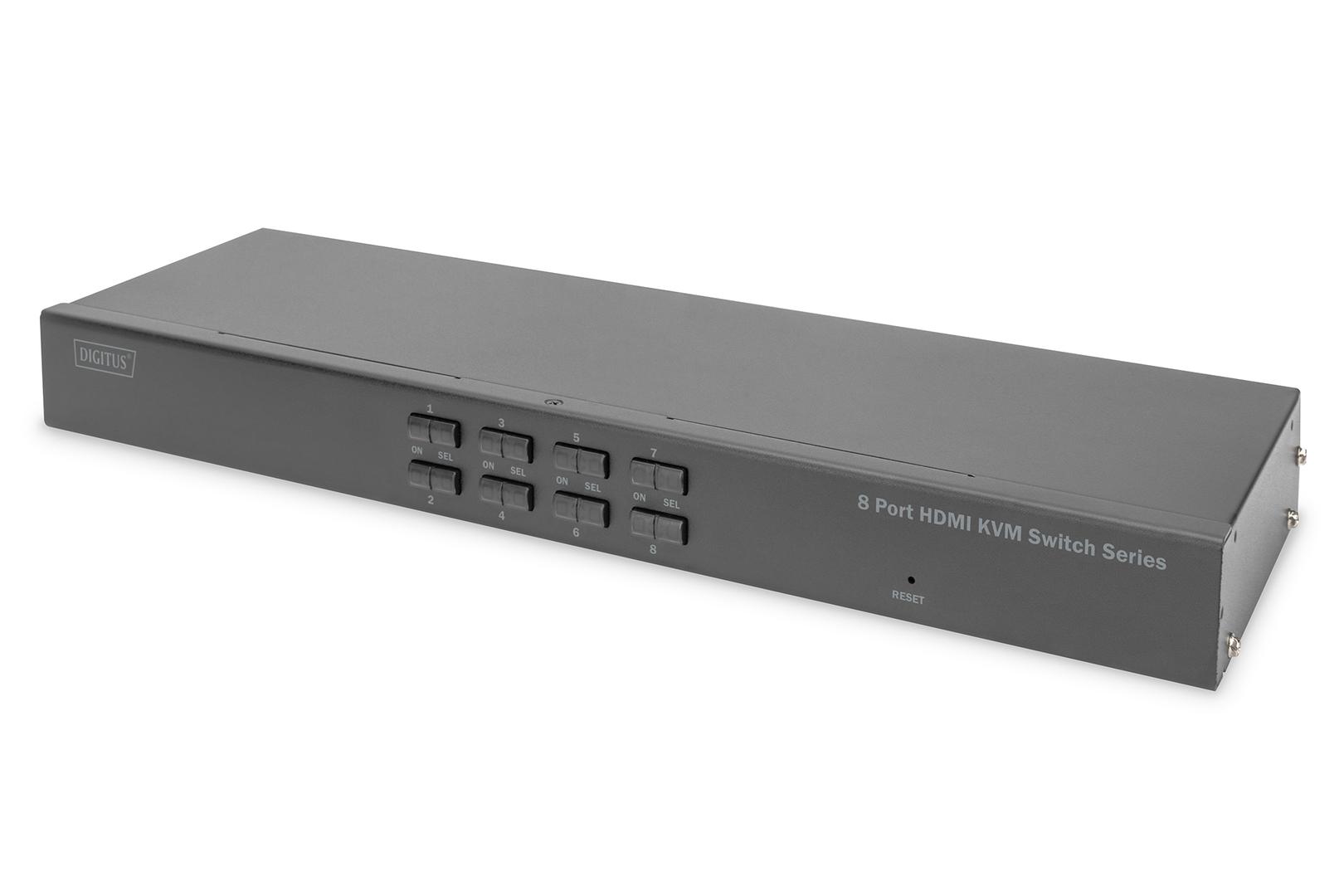

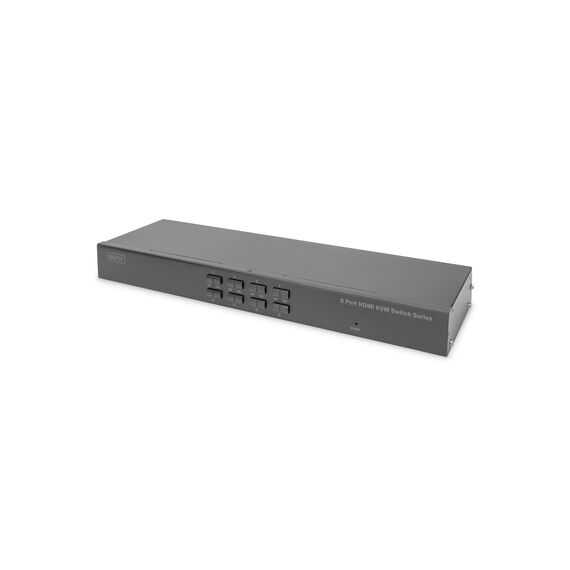

Digitus 8 Port HDMI KVM Switch Series / USB / USB / HD

Product Features

· The console supports USB TYPE A interface type keyboard and mouse devices
· The maximum resolution of rack type KVM is 4K @30HZ (users need to match 4K cable by themselves)
· It can switch the computer through the front panel buttons, keyboard hot keys and the OSD menu
· Connects to the server device for BIOS-level access without worrying about the risk of viruses and Trojans invasion.
· The server computer does not need to install any software and drivers, and the server computer directly recognizes KVM.
· Supports OSD to set user login mode and increases the security requirements of KVM login.
· Supports wide-screen resolution.
· Supports DDC communication and adapts to a variety of graphic card devices.
· Auto Scan function can monitor all computer operations.
· Supports cross-platform operation - Windows, Linux, Mac* and Sun*
· The keyboard and mouse connection port of the server computer adopts Keep Online technology to simulate the keyboard and mouse.
· Therefore, the device is safe and stable, and the switching is fast without delay.
· Supported Windows OS: Windows 2000/XP/2003/2008/Vista/7/10
· Supported Linux OS: RedHat, 9.0 or higher, SuSE, 10/11.1 or higher, Debian 3.1/4.0, Ubuntu 7.04/7.10
· Supported UNIX OS:AIX 4.3 or higher, FreeBSD 5.5 or higher, Sun Solaris, 8 or higher
· Power Spec: AC 100-240V
· Power Consmption: 9W
· DC plug Size: 5.5*2.1mm

Special Fetures

· The console supports USB TYPE A interface type keyboard and mouse devices
· The maximum resolution of rack type KVM is 4K @30HZ (users need to match 4K cable by themselves)
· It can switch the computer through the front panel buttons, keyboard hot keys and the OSD menu
· Connects to the server device for BIOS-level access without worrying about the risk of viruses and Trojans invasion.
· The server computer does not need to install any software and drivers, and the server computer directly recognizes KVM.
· Supports OSD to set user login mode and increase the security requirements of KVM login.
· Supports wide-screen resolution.
· Supports DDC communication and adapts to a variety of graphic card devices.

Product Specification

Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Video bandwidth	30 Hz
Product colour	Black
Housing material	Metal
Power source	DC
Other operating systems supported	FreeBSD, Solaris 10, Solaris 11, Solaris 8, Solaris 9, UnixWare
