DIGITUS / Barcode scanner / handheld / 2D imager / 200 scan / sec / decoded / USB | DA-81002

Product Features

· 2D & 1D Scan Barcodes & QR codes on paper or displays
· Power consumption: 3.3 - 5 V DC, 120 mA
· Power supply: USB
· Scan type: Image capture
· Sensor: CMOS
· CPU: ARM 32-Bit Cortex
· Interface: USB
· Light source: LED (CMOS)
· Trigger: Pushbutton, automatic
· Number of scans: 200 per second
· Error rate in bits: 1/5 million, 1/20 million
· Resolution: 1D: 5mil, 2D: 10mil
· Scan width: 10 cm
· Depth of field: 3.3 mil @ 2 mm-100 mm, 10 mil @2 mm-350 m; 15.6 mil @ 5 mm - 600 mm; 35 mil @ 10 mm-1000 mm
· Scan angle: Angle of rotation ±360°, angle of inclination ± 60°, angle of declination ± 60°
· Anti-interference: External light sources have no influence on the scan
· 1D decoding: GS1 Data Bar, GS1-128, ISSN, MSI, Industrial 2 of 5, JAN-8, JAN-13, EAN-128, Code 32, IATA, ITF, ITF-14, Matrix 2 of 5, ITF-6, Rss limited, Rss Expanded, Deutsche 12, Industrial 25, Code 128, Codabar, UPC, CODA BAR, Code 39, Code 93, BIGCODE, EAN 8, EAN 13
· 2D decoding: PDF417, QR code, Datamatrix.
· Compatible with Windows / Vista / Android / iOS / Mac / Linux systems

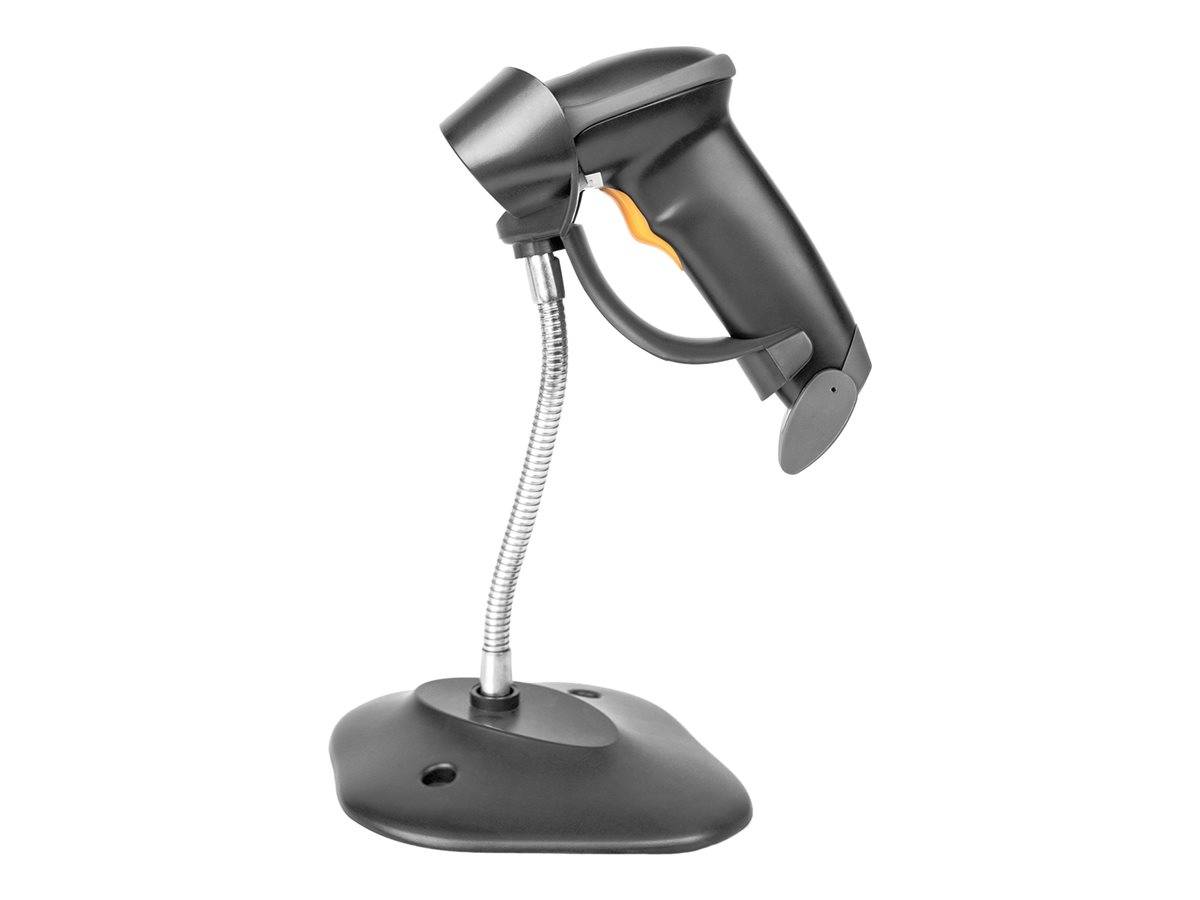

· Includes scanner holder
· Material: ABS + PC
· Protection type: IP54
· Operating temperature: -20 °C to +50 °C
· Storage temperature: -40 °C to +70 °C
· Cable: 2 m (USB - RJ45)
· Dimensions (HxWxD): 16.5 x 6.3 x 8.7 cm
· Weight: 120 g
· Color: Black

Special Features

· Precise scanning of 1D & 2D barcodes (barcodes / QR codes)
· High resolution: Scans high-resolution barcodes
· 200 scans per minute, bidirectional for reliable detection
· Suitable for one- and two-dimensional barcodes
· Reads barcodes on screens ideal for payment via smartphone/QR code
· Dust-protected and water-resistant (IP54)
· Ideal for retail, logistics, and commerce of all kinds
· Plug and Play no additional driver necessary
· Silicon cover absorbs impacts and protects against damage
· Anti-inference: External light sources have no influence on the scan.

Product Specification

Type	Barcode scanner - handheld
Colour	Black
Barcode	Barcode
Interface Type	USB
Minimum Bar Width	5 mil
Scan Field Width	10 cm
Scan Element Type	2D imager - LED
Scan Mode	Single-pass
Scan Speed	200 scan / sec
Max Working Distance	100 cm
Skew (Degrees)	60
Pitch (Degrees)	60
Print Contrast Signal (PCS)	25%
Decode Capability	Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, IATA, GS1 DataBar, QR code, Code 32, EAN/JAN-8, EAN/JAN-13, Codabar, Code 128, UPC, PDF417, Data Matrix, ITF, ISSN, ITF-14, EAN-128, MSI, GS1-128, ITF-6, RSS Expended, RSS
TTL Decoding	Decoded
Connectivity Technology	Wired
OK Notification	Beeper, LED indicator
Features	Triggered, waterproof, dustproof, continuous mode scanning
Processor	Processor
CPU	ARM
Expansion / Connectivity	Expansion / Connectivity
Interfaces	USB - Type A
Miscellaneous	Miscellaneous
Included Accessories	Holder
Cables Included	1 x USB cable - external - 2 m
Compliant Standards	Plug and Play, IP54
Power	Power
Electric Current Required	120 mA (operating)
System Requirements	System Requirements
OS Required	Apple MacOS, Linux, Microsoft Windows, Android, Apple iOS
Dimensions & Weight	Dimensions & Weight
Width	6.3 cm
Depth	8.7 cm
Height	16.5 cm
Weight	120 g
Dimensions & Weight (Shipping)	Dimensions & Weight (Shipping)
Shipping Width	20 cm
Shipping Depth	14 cm
Shipping Height	8 cm
Shipping Weight	1.06 kg
Environmental Parameters	Environmental Parameters
Min Operating Temperature	-20 °C
Max Operating Temperature	50 °C
Humidity Range Operating	5 - 95% (non-condensing)
