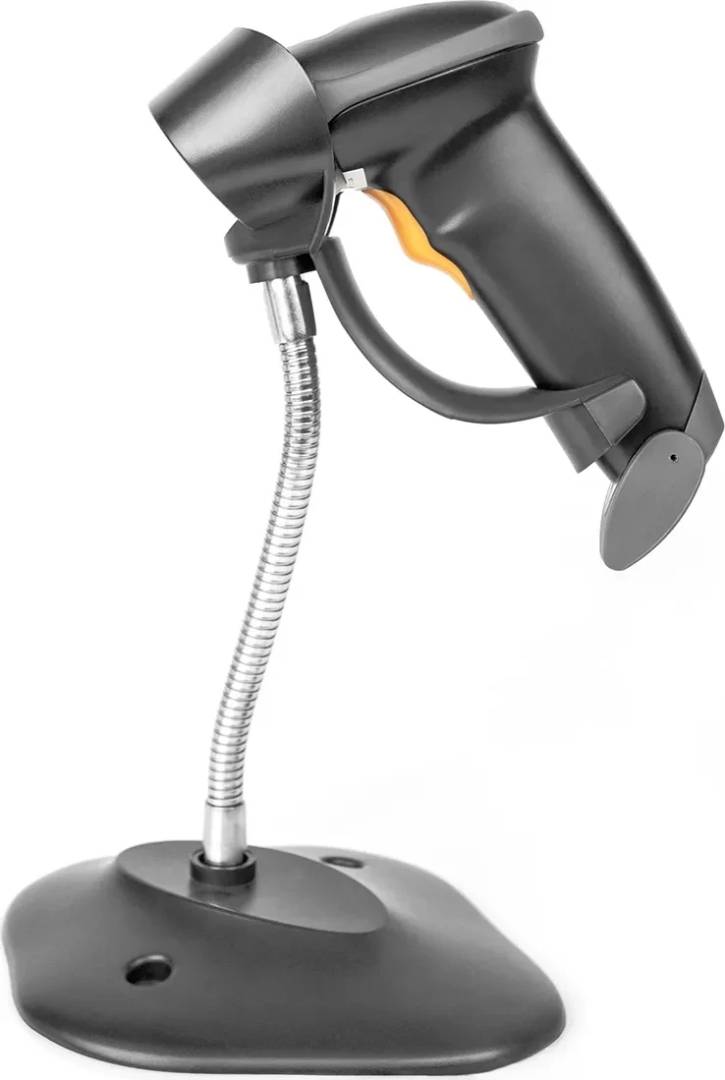

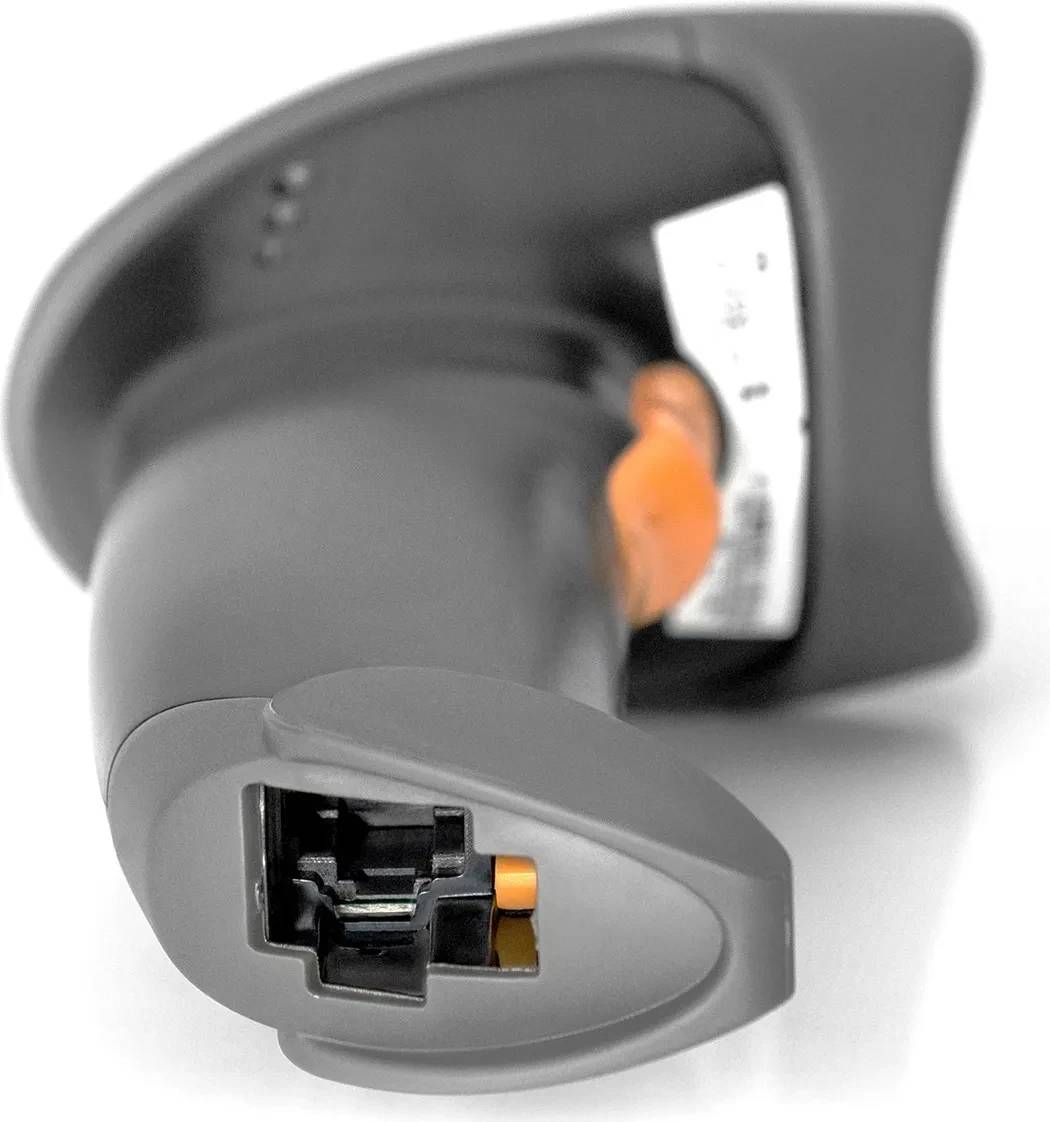

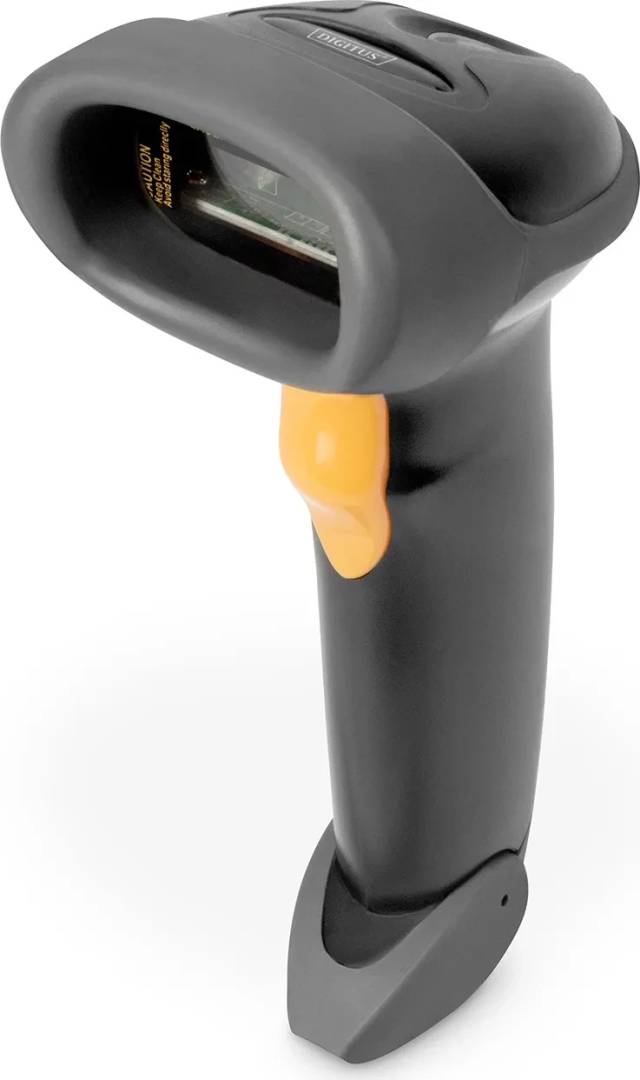

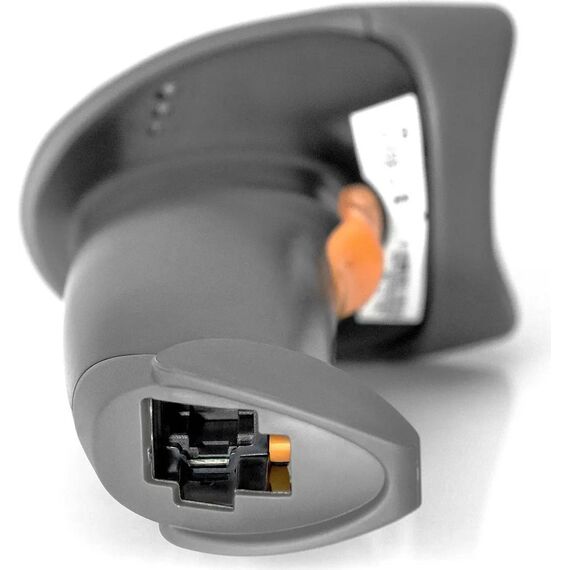

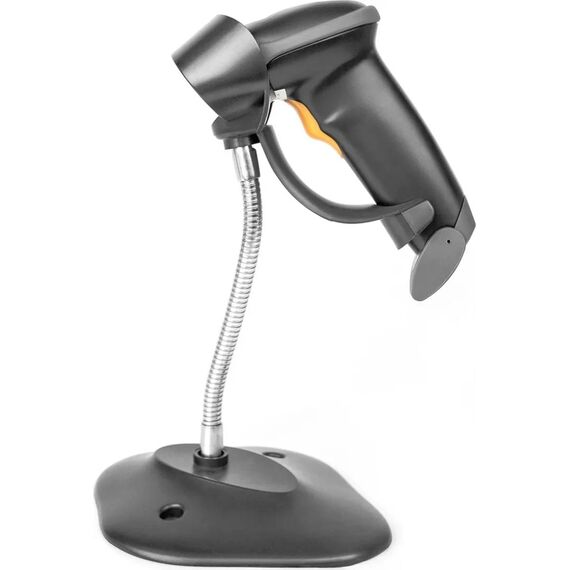

DIGITUS - Barcode scanner - handheld - linear imager - 200 scan / sec - decoded - USB | DA-81001

Product Features

· 1D Scan
· Power consumption: 3.3 -5 V DC, 100 mA (1 µA while idle)
· Power supply: USB
· Scan type: bidirectional
· Sensor: Linear
· CPU: ARM 32-Bit Cortex
· Interface: USB
· Light source: 650 nm visual laser diode
· Trigger: Pushbutton
· Number of scans: 200 per second
· Error rate in bits: 1/5 million, 1/20 million
· Resolution: 3.3mil
· Scan width: 30 cm
· Depth of field: 3.3 mil @ 2 mm-100 mm, 10 mil @2 mm-350 m; 15.6 mil @ 5 mm - 600 mm; 35 mil @ 10 mm-1000 mm
· Scan angle: Angle of rotation ±30°, angle of inclination ± 45°, angle of declination ± 60°
· Decoding types: EAN-8, EAN-13, EAN-128, Code 39, Code 93, UPC, GS1 Databar, GS1-128, ISSN, MSI, Industrial 2 of 5, JAN-8, JAN-13, Code 32, IATA, ITF, ITF-14, Matrix 2 of 5, ITF-6, Rss limited, Rss extended, Industrial 25, Code 128, Codabar, Big Code
· Button cycle: 500,000 times
· Laser cycle: 10,000 times
· Compatible with Windows/Android/iOS/Mac/Linux systems
· Material: ABS + PC
· Protection type: IP54
· Operating temperature: -20 °C to +50 °C
· Storage temperature: -40 °C to +70 °C
· Cable: 2 m (USB - RJ45)
· Dimensions (HxWxD): 16.5 x 6.3 x 8.7 cm
· Weight: 110 g
· Color: Black/gray

Special Fetures

· Precise scanning of 1D barcodes (barcodes)
· High resolution: Scans high-resolution barcodes
· 200 scans per second, bidirectional for reliable detection
· Suitable for barcodes of up to 90 characters
· Dust-protected and water-resistant (IP54)
· Ideal for retail, logistics, and commerce of all kinds
· Plug and Play no additional driver necessary
· Silicon cover absorbs impacts and protects against damage
· Auditory and visual scan confirmation

Product Specification

Type	Barcode scanner - handheld
Colour	Grey, black
Barcode
Interface Type	USB
Minimum Bar Width	3.3 mil
Scan Field Width	30 cm
Scan Element Type	Linear imager - laser diode
Light Source Wave Length	650 nm
Scan Mode	Single-pass
Scan Speed	200 scan / sec
Max Working Distance	100 cm
Skew (Degrees)	60
Pitch (Degrees)	45
Print Contrast Signal (PCS)	25%
Decode Capability	Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, IATA, GS1 DataBar, Code 32, EAN/JAN-8, EAN/JAN-13, Codabar, Code 128, UPC, ITF, ISSN, ITF-14, EAN-128, EAN-8, EAN-13, MSI, GS1-128, ITF-6, RSS Expended, RSS
TTL Decoding	Decoded
Connectivity Technology	Wired
OK Notification	Beeper, LED indicator
Features	Triggered, waterproof, dustproof, continuous mode scanning
Processor
CPU	ARM
Expansion / Connectivity
Interfaces	USB - Type A
Miscellaneous

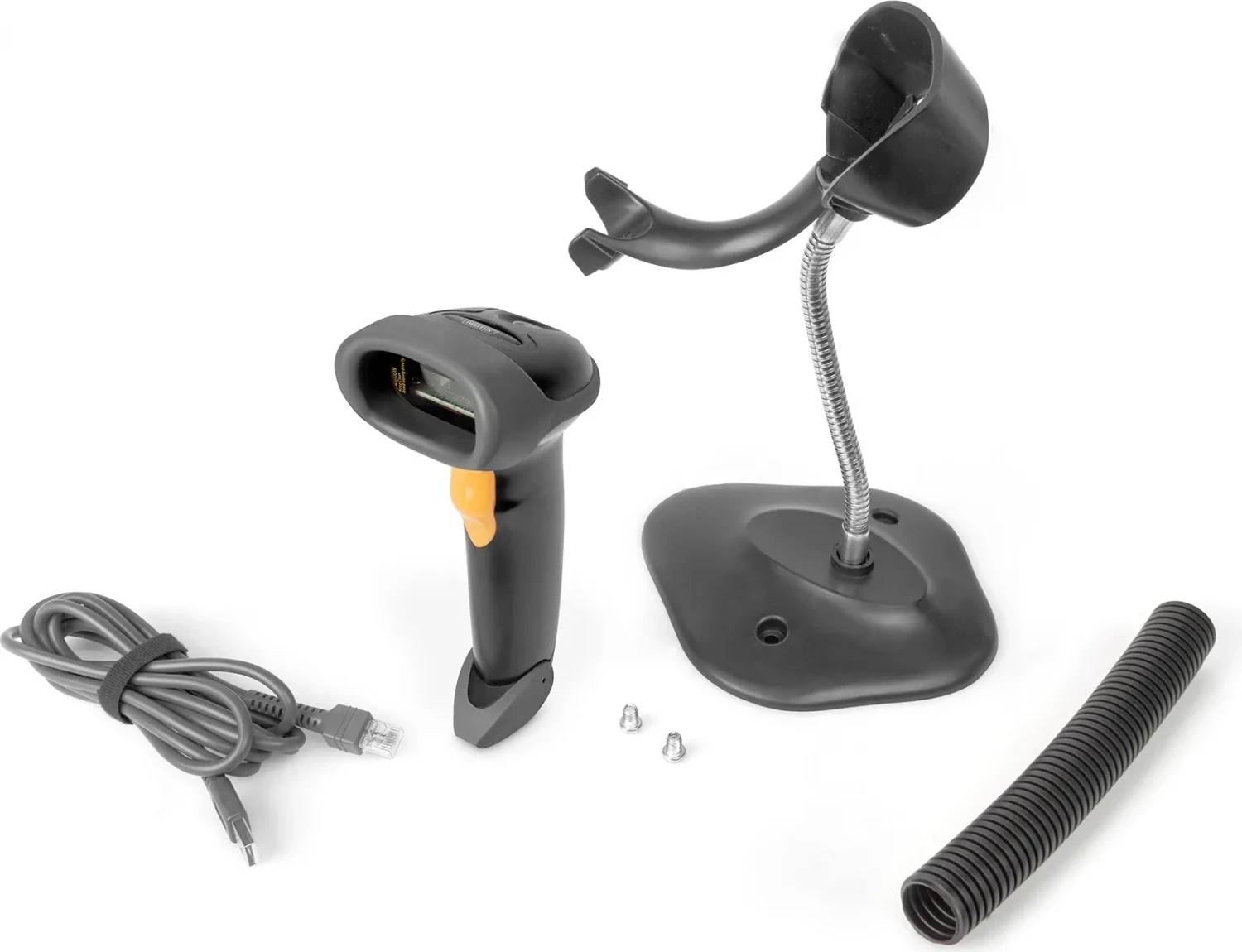

Included Accessories	Holder
Cables Included	1 x USB cable - external - 2 m
Compliant Standards	Plug and Play, IP54
Power
Electric Current Required	100 mA (operating)
System Requirements
OS Required	Apple MacOS, Linux, Microsoft Windows, Android, Apple iOS
Dimensions & Weight
Width	6.3 cm
Depth	8.7 cm
Height	16.5 cm
Weight	110 g
Dimensions & Weight (Shipping)
Shipping Width	18.5 cm
Shipping Depth	10 cm
Shipping Height	8 cm
Shipping Weight	280 g
Environmental Parameters
Min Operating Temperature	-20 °C
Max Operating Temperature	50 °C
Humidity Range Operating	5 - 95% (non-condensing)
