DIGITUS 2U 19" Blank Panel with Ventilation Grille and Hinge · Steel Blanking Plate for Network Cabinets · Grey RAL 7035
Brand:
Digitus
DIGITUS 2U 19" Blank Panel with Ventilation Grille and Hinge · Steel Blanking Plate for Network Cabinets · Grey RAL 7035
€21.42 inc. VAT
DN-97694
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

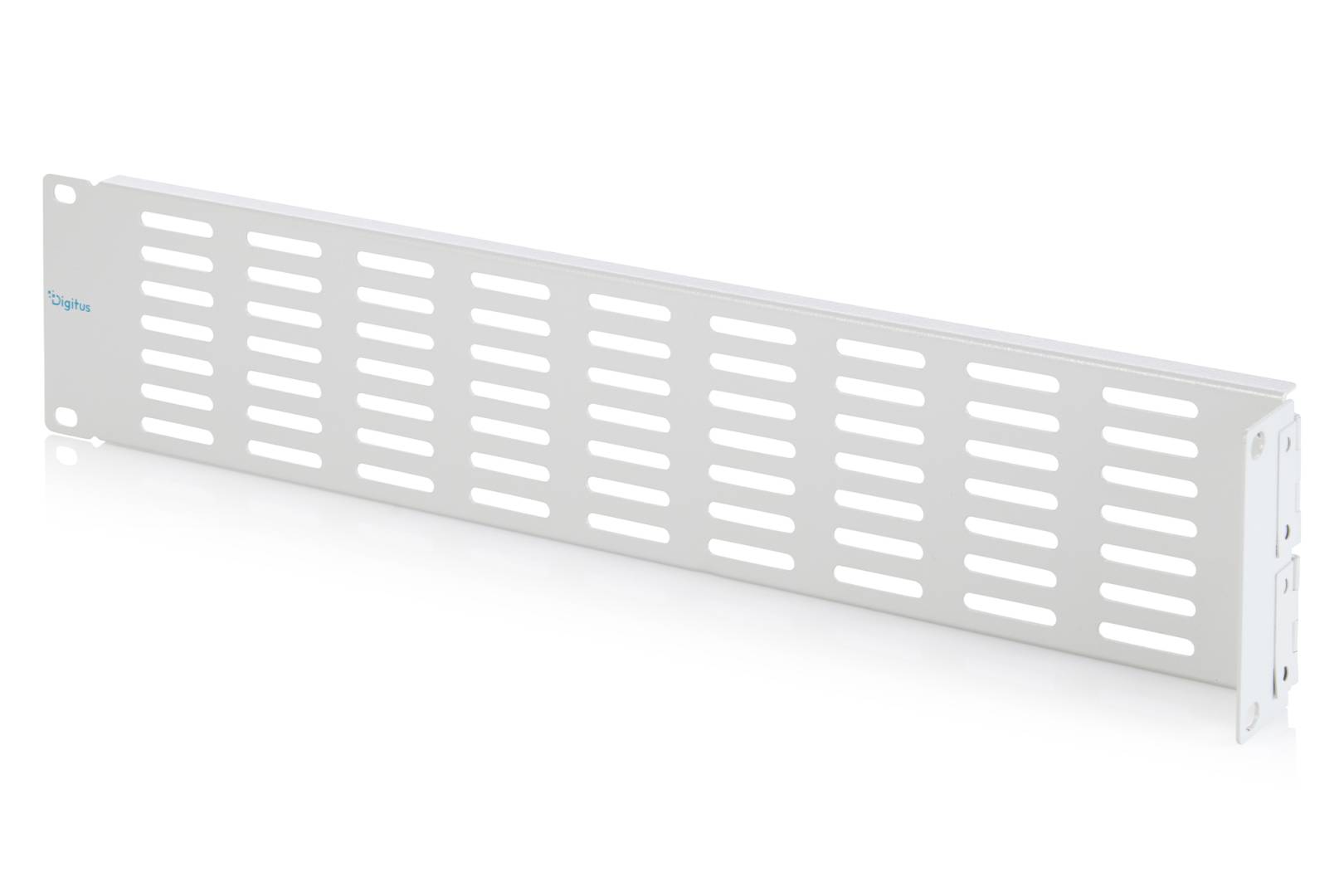

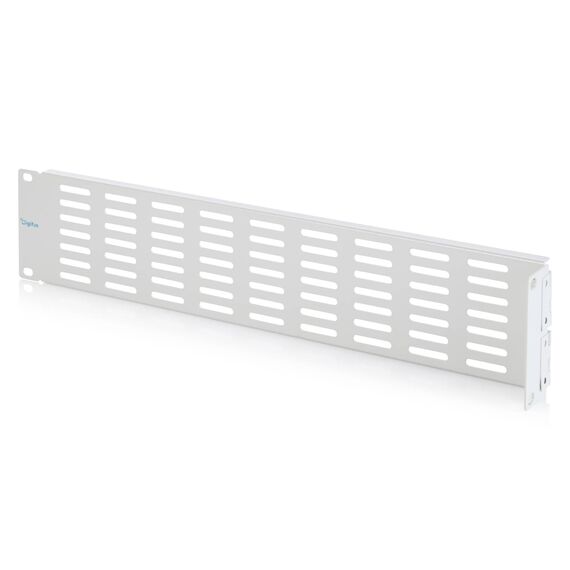

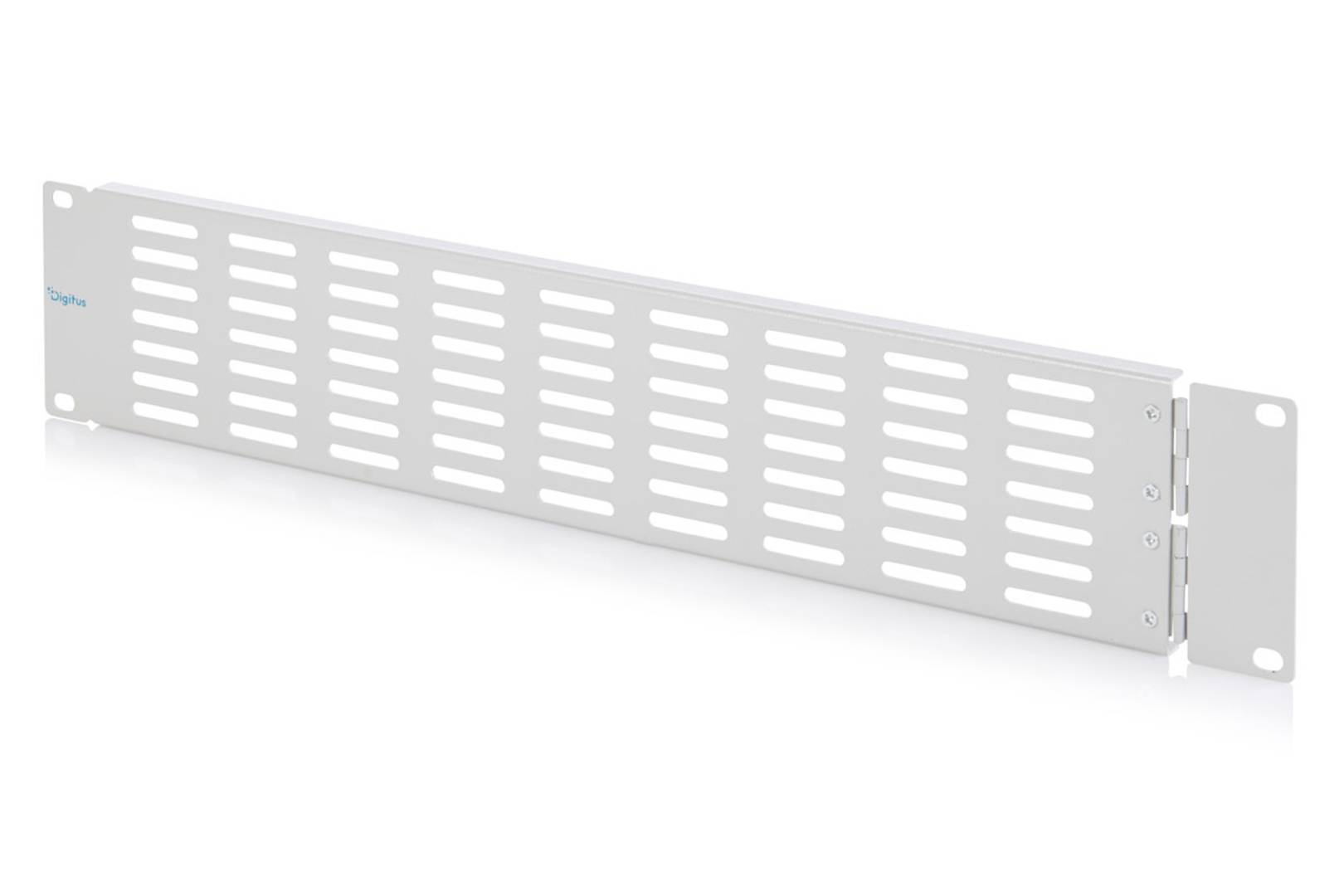

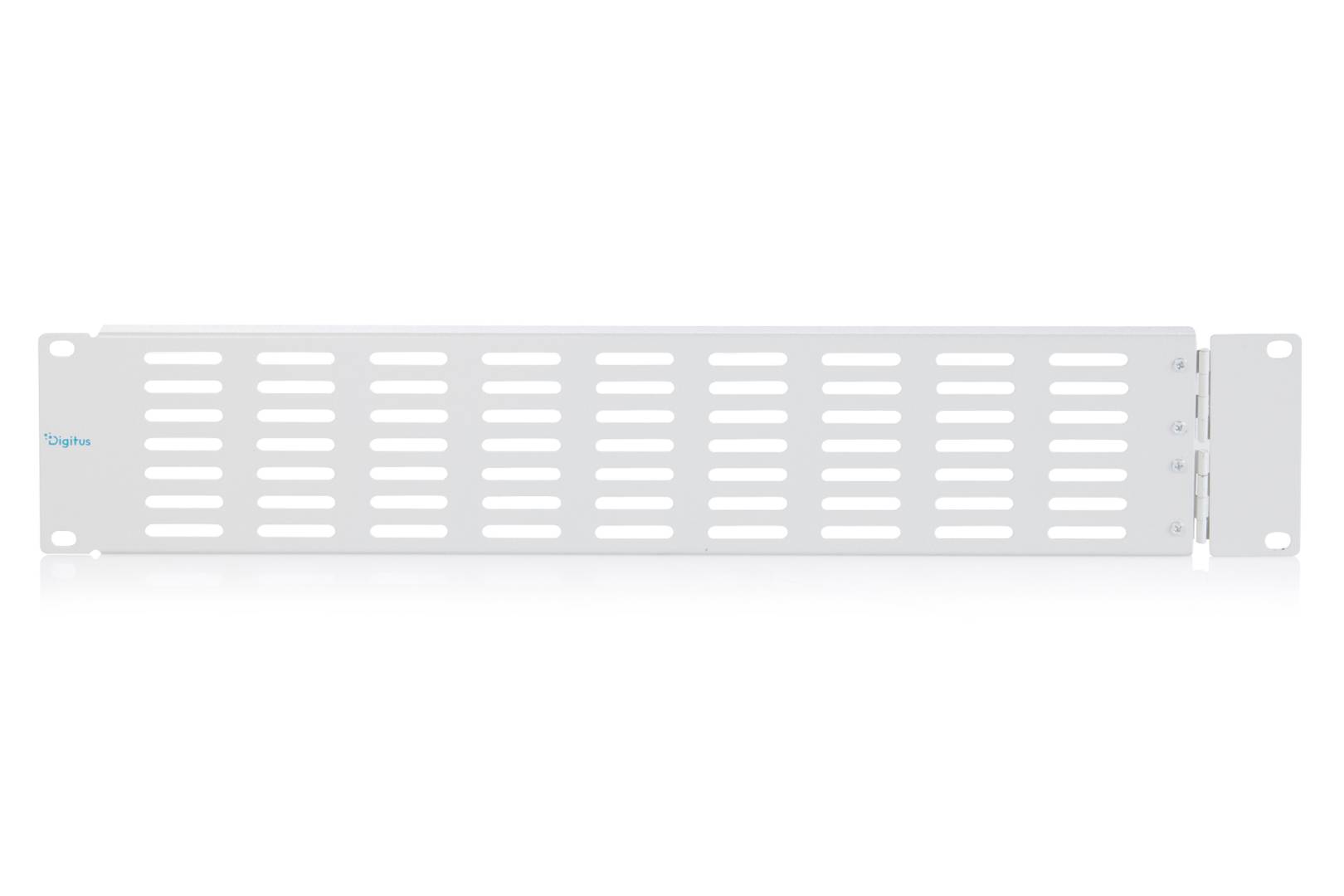

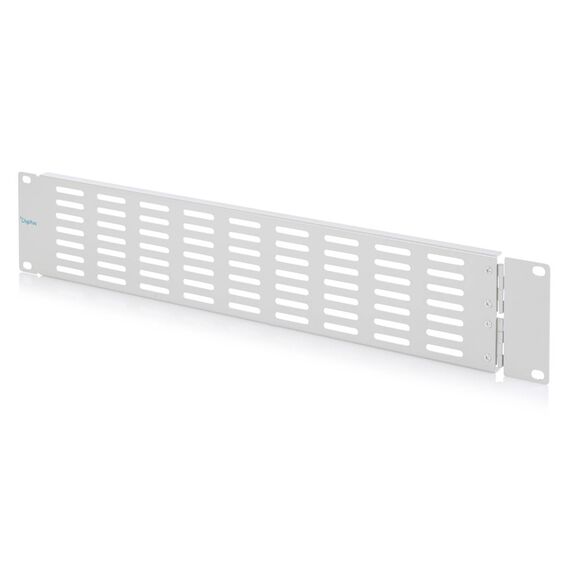

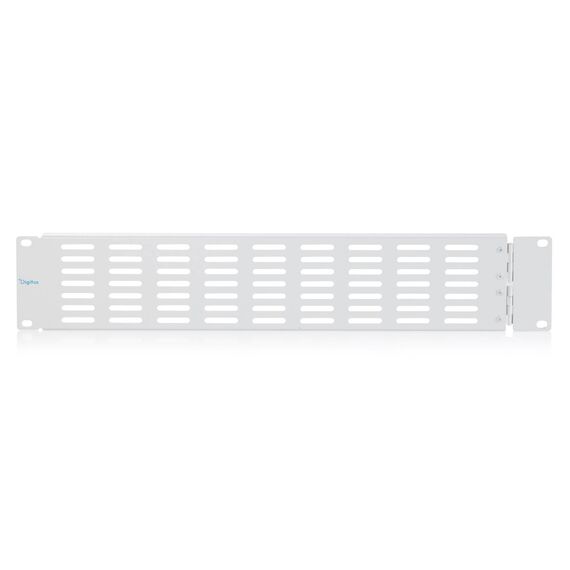

DIGITUS DN-97694 — 2U 19" Blank Panel with Ventilation Grille and Hinge
2U blank panelVentilation grilleHinged front accessLight grey RAL 7035
The DIGITUS DN-97694 is a 2U 19-inch blanking panel in light grey ral 7035 sheet steel with a ventilation grille, used to close unused height units in network and server cabinets. Closing the gaps gives the cabinet a clean front, keeps loose cables and fingers out, and lets air pass through the grille instead of through open holes. Its hinge lets you swing the panel open for maintenance without unscrewing it from the rack.
It mounts on standard 19" (482.6 mm, IEC 60297) profile rails, and DIGITUS supplies the cage nuts, screws and washers in the box. The light grey RAL 7035 finish matches grey cabinets; a black twin is available.
Before you order: DIGITUS states that the hinge allows front access without removing the panel, but does not publish the opening direction or angle. Allow free space in front of the panel for it to open.
What's in the Box
- 1 × DIGITUS 2U blank panel with ventilation grille and hinge (DN-97694)
- Installation set: screws, cage nuts and washers
What It Means in Practice
- Covers exactly 2U (88 mm) of rack height — count the empty units and combine 1U and 2U panels as needed.
- The vented design is meant for passive airflow; for a clear front-to-back cooling path in a hot-aisle layout, solid panels are the usual choice.
- Use the hinged panel in front of cable spaces or equipment you access often, so you do not lose cage nuts and screws at every visit.
- Steel panel, 0.45 kg — sturdy enough to stay straight on wide 19" rails.
What Will Not Work
- It is not a shelf and must not carry equipment.
- It does not fit 10" racks or wall boxes narrower than 19".
- The ventilation grille does not include a fan or a dust filter.
- It will not match a black cabinet — choose the black twin.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Blank panels are the cheapest way to make a rack look finished and keep loose patch leads where they belong. Choose vented panels for passively cooled cabinets and match the colour to the cabinet. For shelves, cable managers and other parts, see our rack accessories.
✓ Buy it if you want to close 2U of empty space in a grey 19" cabinet with a vented, openable panel.
✕ Skip it if you need a solid airflow-blocking panel, a shelf, or a different colour.
→ Also consider DIGITUS DN-97692, the 1U vented panel in grey without hinge.
Send us the model of your cabinet or rack and we will confirm the fit and colour match before you order.
Features - Digitus - DN-97694
Colour
grey
More Details
Product Code
04:601096
EAN Code
4016032510604
Manufacturer
Digitus
