DIGITUS 1U 19" Blank Panel with Ventilation Grille · Steel Blanking Plate for Network Cabinets · Grey RAL 7035

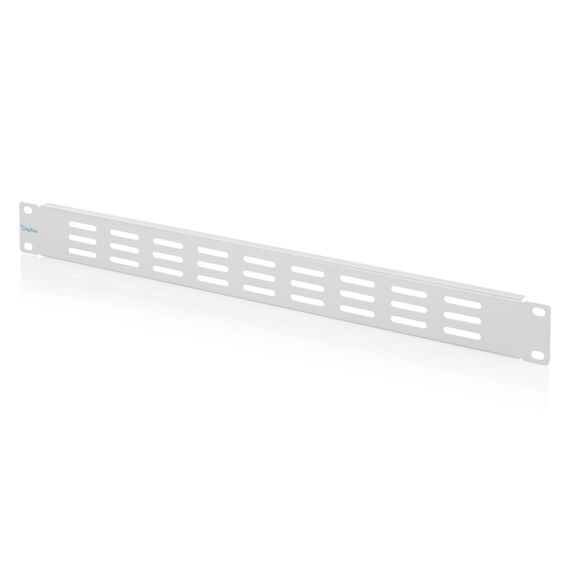

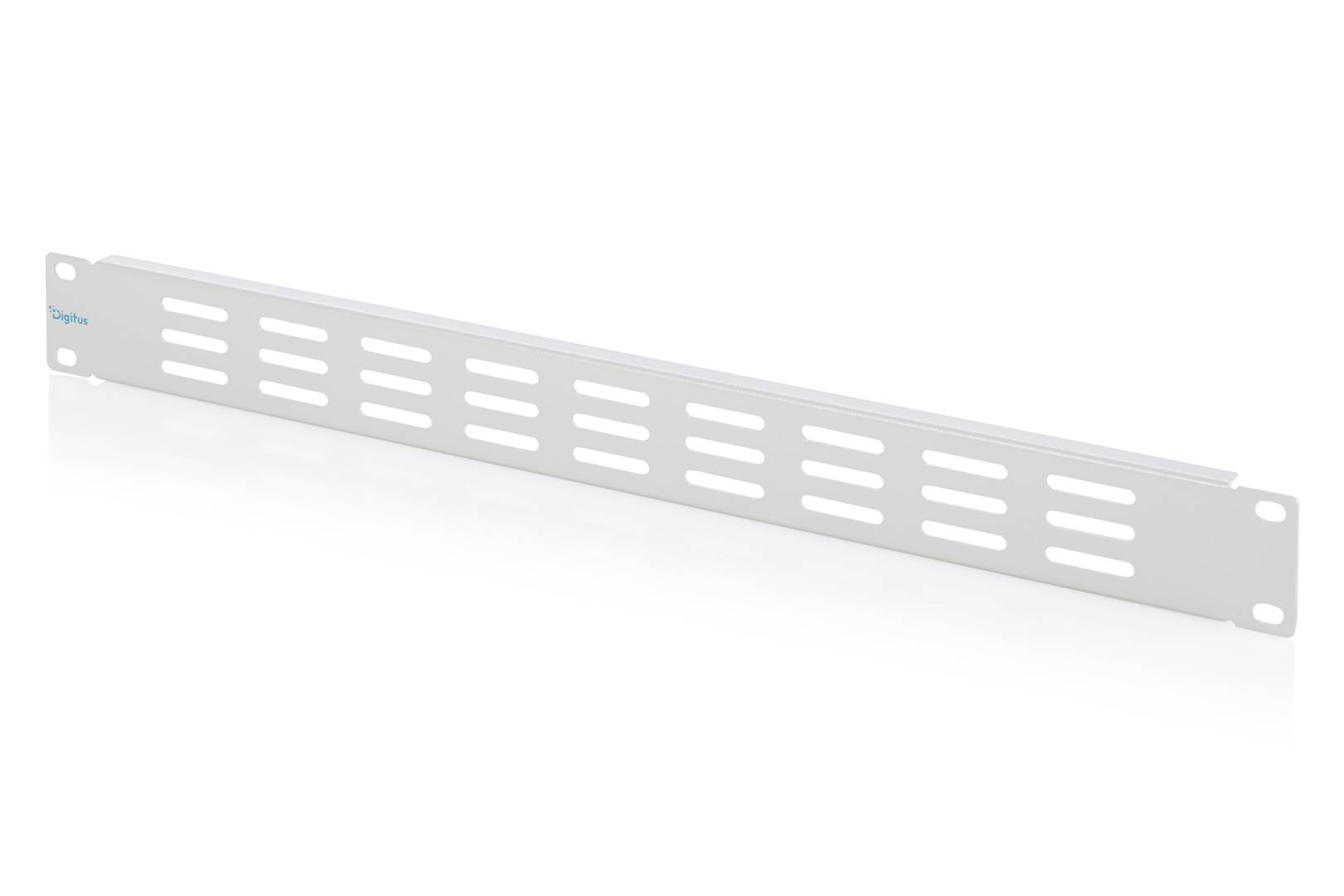

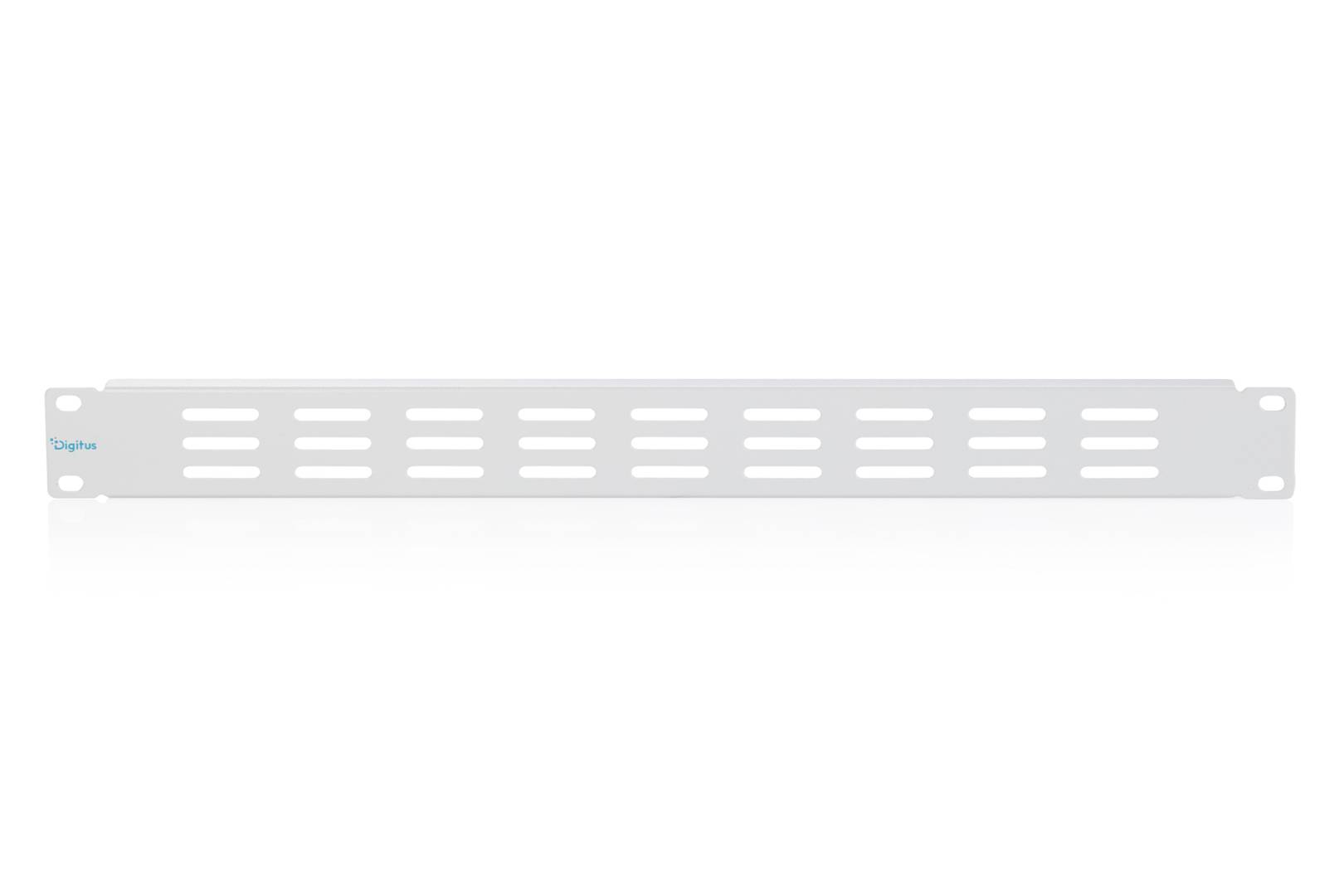

The DIGITUS DN-97692 is a 1U 19-inch blanking panel in light grey ral 7035 sheet steel with a ventilation grille, used to close unused height units in network and server cabinets. Closing the gaps gives the cabinet a clean front, keeps loose cables and fingers out, and lets air pass through the grille instead of through open holes.

It mounts on standard 19" (482.6 mm, IEC 60297) profile rails, and DIGITUS supplies the cage nuts, screws and washers in the box. The light grey RAL 7035 finish matches grey cabinets; a black twin is available.

• 1 × DIGITUS 1U blank panel with ventilation grille (DN-97692)
• Installation set: screws, cage nuts and washers

• Covers exactly 1U (44 mm) of rack height — count the empty units and combine 1U and 2U panels as needed.
• The vented design is meant for passive airflow; for a clear front-to-back cooling path in a hot-aisle layout, solid panels are the usual choice.
• For spaces you need to open often, the 2U hinged version saves unscrewing the panel each time.
• Steel panel, 0.28 kg — sturdy enough to stay straight on wide 19" rails.

• It is not a shelf and must not carry equipment.
• It does not fit 10" racks or wall boxes narrower than 19".
• The ventilation grille does not include a fan or a dust filter.
• It will not match a black cabinet — choose the black twin.
