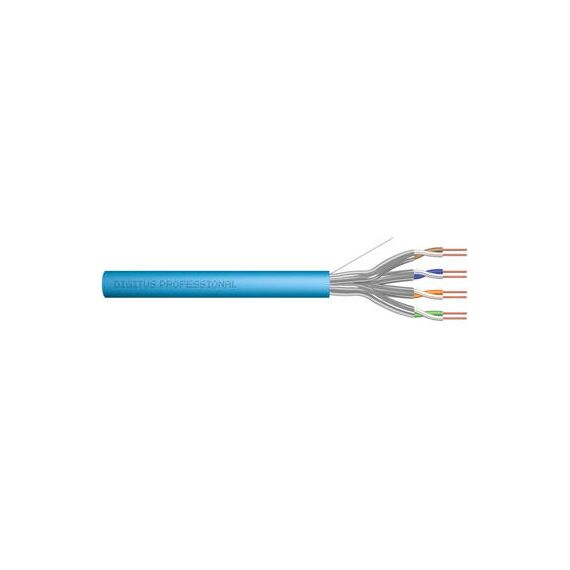

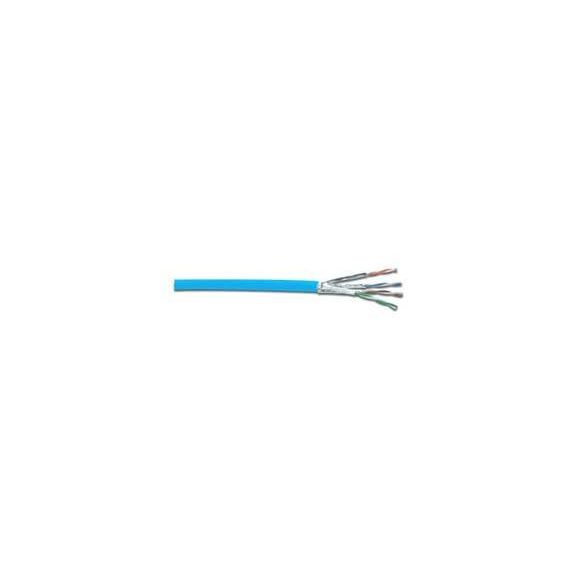

DIGITUS - Bulk cable - 100 m - foiled unshielded twisted pair (F/UTP) - CAT 6a - light blue | DK-1623-A-VH-1

Product Features

· Physical properties:
· Conductor: Bare annealed copper, solid AWG 23/1
· System/s of AVCP: AVCP 3
· Total number of insulated conductors: 8, twisted in 4 pairs
· Color code: Blue-white, orange-white, green-white, brown-white
· Individual pair shielding: Aluminum foil, providing 100 % coverage
· Overall shielding: None, with drain wire
· Outer sheath: Eca to B2ca acc. to EN 50575; LSZH
· Outer sheath color: Light blue (RAL 5012)
· Mechanical properties:
· Tensile loading: 150N max.
· Dynamic bending radius: 8x AD mm min.
· Static bending radius: 4x AD mm min.
· Shipping- and storage temperature range: -20 °C up to +60 °C
· Operating temperature range: -20 °C up to +75 °C
· Installation temperature range: 0 °C up to +50 °C
· Overall diameter Simplex (nominal): 7.0 (Eca); 7,2 mm (Dca); 7,6 mm (Cca); 7,6 mm (B2ca)
· Weight (kg/km): 56 kg (Eca); 57 kg (Dca); 58 kg (Cca); 58 kg (B2ca)
· Electrical properties:
· Impedance: 100±15 Ohm @ 4 - 100MHz; 100±25 Ohm @100-500 MHz
· Capacitance: 45 pF/m nominal @ 1 KHz
· Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
· Insulation resistance: 5 GOhm x km min.
· DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance)
· Voltage resistance: 72 Vdc max.
· Coupling attenuation: CA-Type 2
· Signal propagation delay: 450 nS/100 m max.
· Propagation delay: 15 nS/100 m max.
· Separating class: c acc. to EN 50174-2
· NVP: 70%

Special Fetures

· 10GBit Ethernet
· 500 MHz transmission frequency
· PoE Power over Ethernet support
· CPR class Eca

Product Specification

Network Cable Type	Bulk cable - CAT 6a
Technology	Foiled unshielded twisted pair (F/UTP)
Jacket Material	Low Smoke Zero Halogen (LSZH)
American Wire Gauge (AWG)	23/1
Wires per Cable	8 wires
Pairs per Cable	4 pairs
Length	100 m
Colour	Light blue
Miscellaneous
Compliant Standards	IEC 60332-1, ISO/IEC 11801, TIA/EIA-568-C.2, IEC 60332-1-2 - up to 250 MHz
Manufacturer Warranty
Service & Support	25 years warranty
