DIGITUS DN-93903-10 Cat.6 Shielded Cable Connection Modules, LSA+, AWG 22–26, 10 Pack

Brand:
Digitus
DIGITUS DN-93903-10 Cat6 Shielded LSA Cable Connection Modules 10 Pack
DIGITUS DN-93903-10 Cat.6 Shielded Cable Connection Modules, LSA+, AWG 22–26, 10 Pack
€40.79 inc. VAT
Buy
DN-93903-10
€34.28
€40.79 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
04:514865
EAN Code
4016032494836
Manufacturer
Digitus

Quick Specs

Pack
10 modules
Category
Cat.6 / up to 250 MHz
Termination
LSA+ / IDC
Wire range
AWG 22–26
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Join installation cables with shielded Cat.6 modules

10 modulesLSA+ terminationCat.6 / 250 MHz

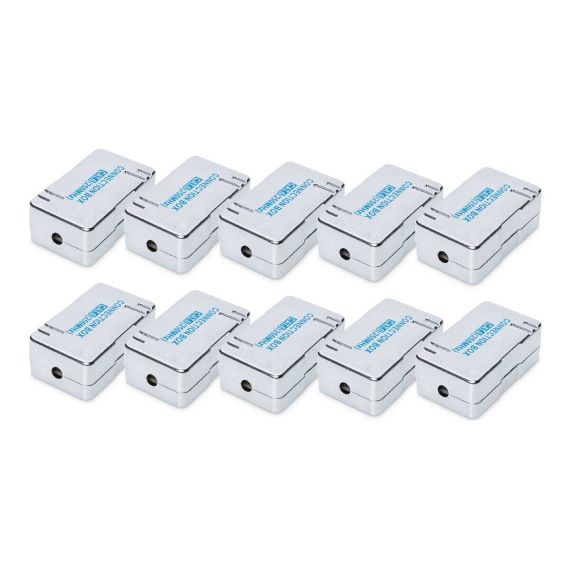

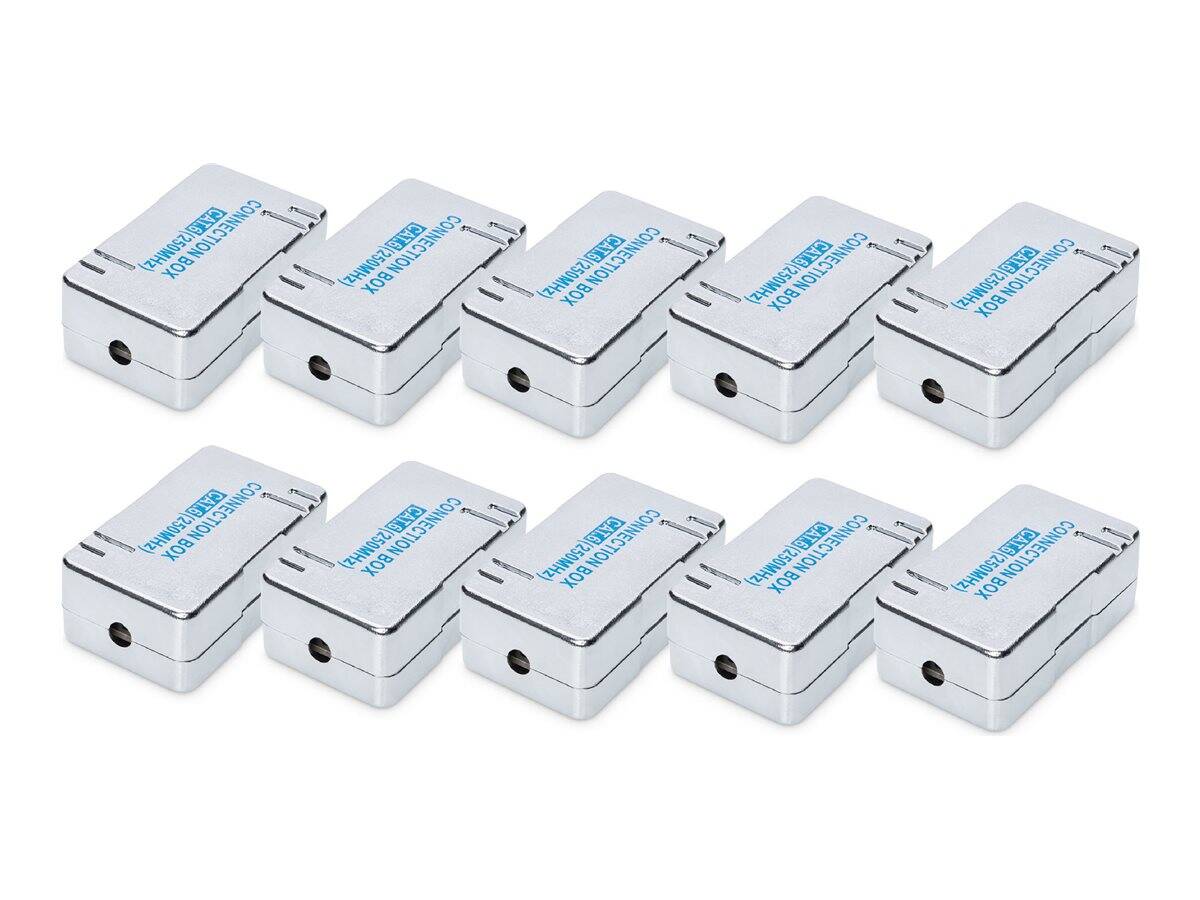

The DIGITUS DN-93903-10 pack contains ten shielded connection modules for joining or extending twisted-pair installation cables. LSA+ termination accepts AWG 22–26 solid or stranded conductors, with colour coding for EIA/TIA 568 A and B and integrated strain relief.

Key Features


Cable-to-cable connection
Designed for extending installation cable runs or replacing defective cable sections using LSA termination.

Cat.6 transmission
The manufacturer specifies up to 250 MHz and 1GBase-T applications, with shielding for the cable connection.

Flexible installation position
Suitable for trunking, surface and flush installation. Follow the raw cable manufacturer’s installation specifications.

Technical Specifications

Identity
Brand / model DIGITUS DN-93903-10
EAN 4016032494836
Quantity 10 modules
Connection / installation
Type Shielded twisted-pair cable connection module
Category Cat.6
Frequency Up to 250 MHz
Application 1GBase-T
Termination Krone LSA+ / IDC
Colour coding EIA/TIA 568 A & B
Wire size AWG 22–26, solid and stranded
Strain relief Integrated
Mounting options Trunking, surface or flush installation
Standards ISO/IEC 11801 3rd Ed.; EN 50173-1; EIA/TIA 568-C
Technical properties
LSA terminal material Zinc-plated phosphor bronze
Conductor board FR4 / UL94 V-0
Operating temperature −20 to +70 °C
Insulation resistance More than 500 MΩ
Contact resistance Less than 20 mΩ
Dielectric strength, contact/contact 1000 V DC
Dielectric strength, contact/ground 1500 V DC
Module dimensions, manufacturer D × W × H 25 × 40 × 65 mm

What's in the Box

10 × Cat.6 shielded connection modules

What Will Not Work

This is an LSA cable termination module, not a plug-in RJ45 female-to-female adapter.
Protect from moisture and avoid electrostatic charging during installation.

Frequently Asked Questions

How many connection modules are supplied?
DN-93903-10 is the ten-piece pack.
Which conductors can be terminated?
The manufacturer specifies AWG 22–26 solid and stranded conductors using the LSA+ / IDC terminals.
Can I insert a finished RJ45 plug?
No. Cable conductors terminate on the LSA strips; this is not a socket-to-socket patch-cable coupler.
Singular Expert Insight
Match the conductor gauge and use the same wiring scheme on both cable sections. Tell us your cable specification so we can check the termination requirements. Check installation cable termination

Buyer’s Guide

Buy it if

You need ten shielded Cat.6 joining modules for AWG 22–26 installation cables.

Skip it if

You need a ready-made RJ45 plug coupler or a higher-category connection.

Also consider

Check access to the joining point and the cable installation requirements before fitting.
