DIGITUS CAT 6A Compact Keystone Module, Shielded, Tool-Free — 4-Pack
CAT 6A · 10GBASE-TCompact short bodyTool-freePack of 4

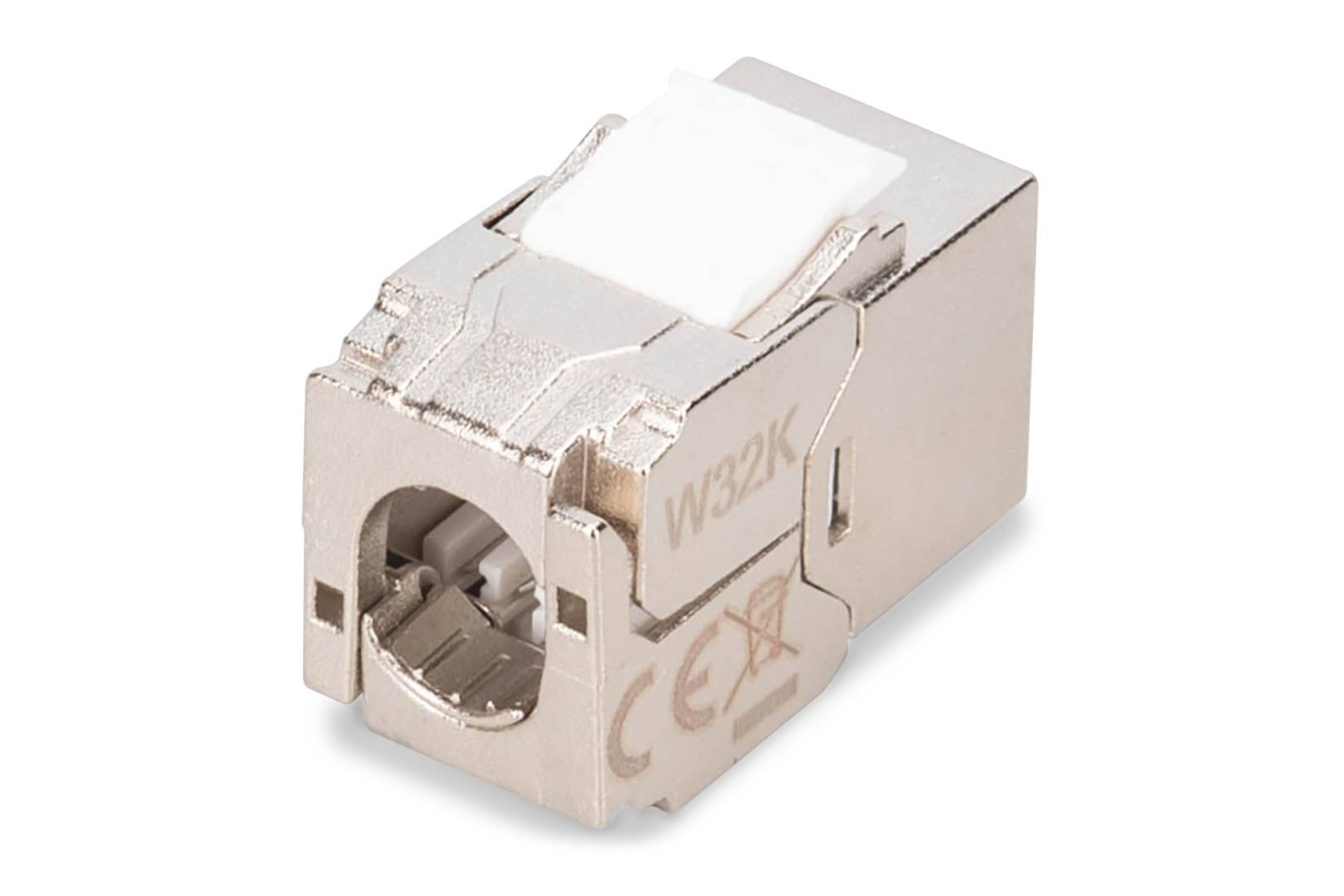

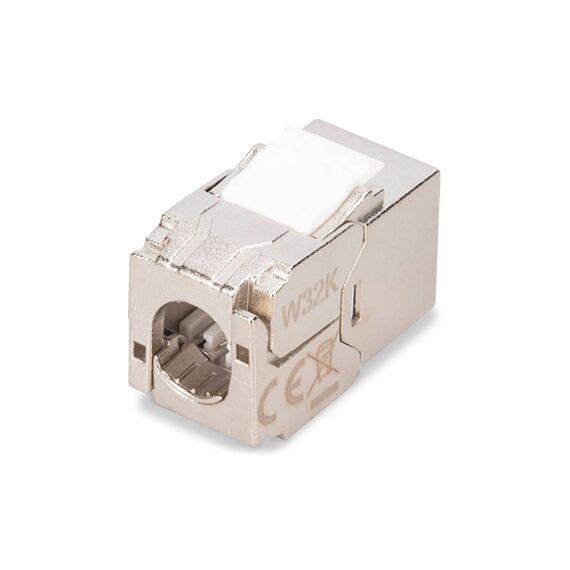

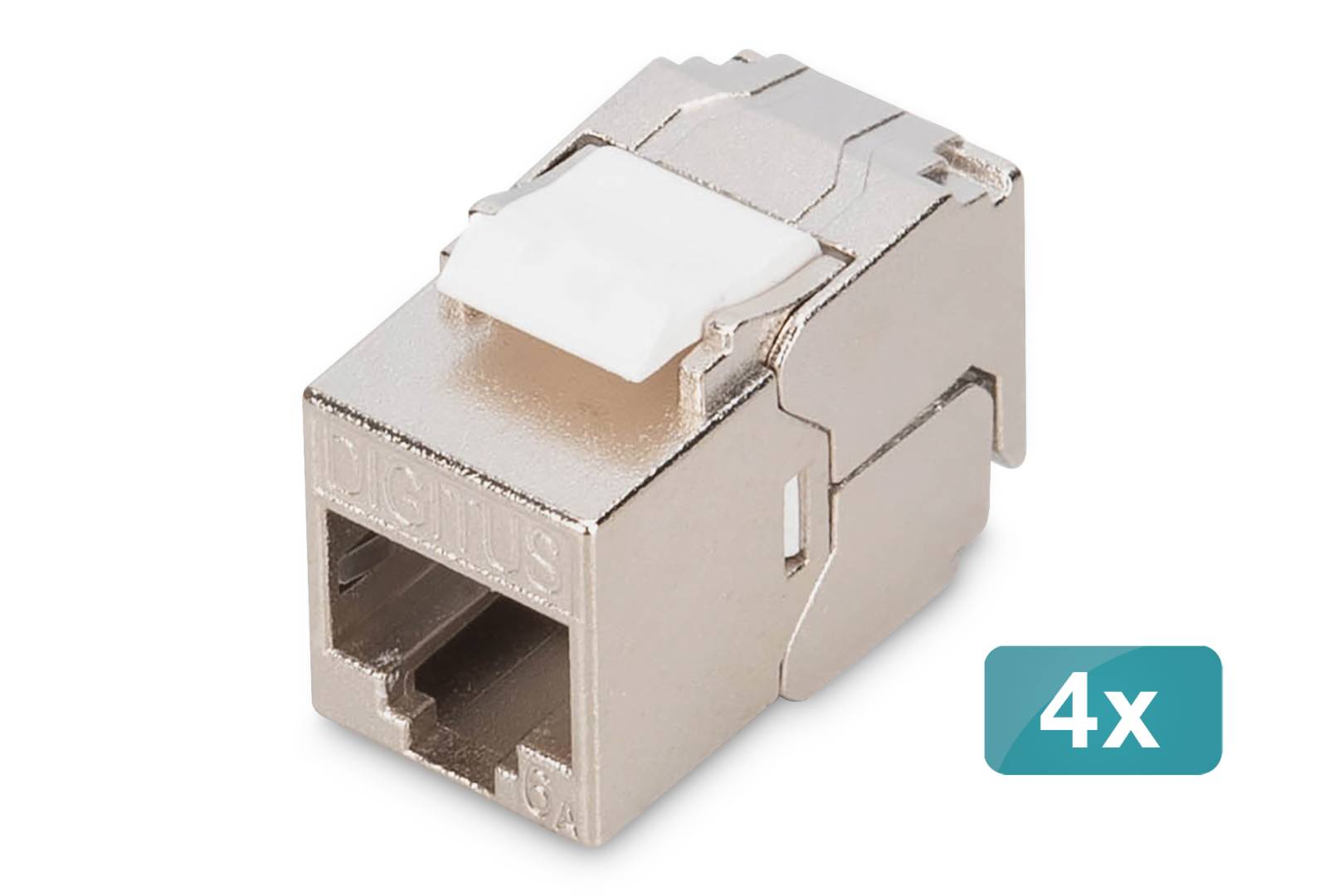

The DIGITUS DN-93615-S-4 is a pack of 4 shielded CAT 6A compact (short-body) RJ45 keystone modules with tool-free termination, rated to 500 MHz for 10GBASE-T. It is for installers who need CAT 6A in shallow wall boxes, junction boxes or panels where a standard-length keystone is too deep.
DIGITUS describes it as a short keystone module whose compact design fits design-compatible modular junction boxes and allows a full row in 19-inch 1U panels. The housing is nickel-plated zinc die-cast with 360° shield contact.
What's in the Box

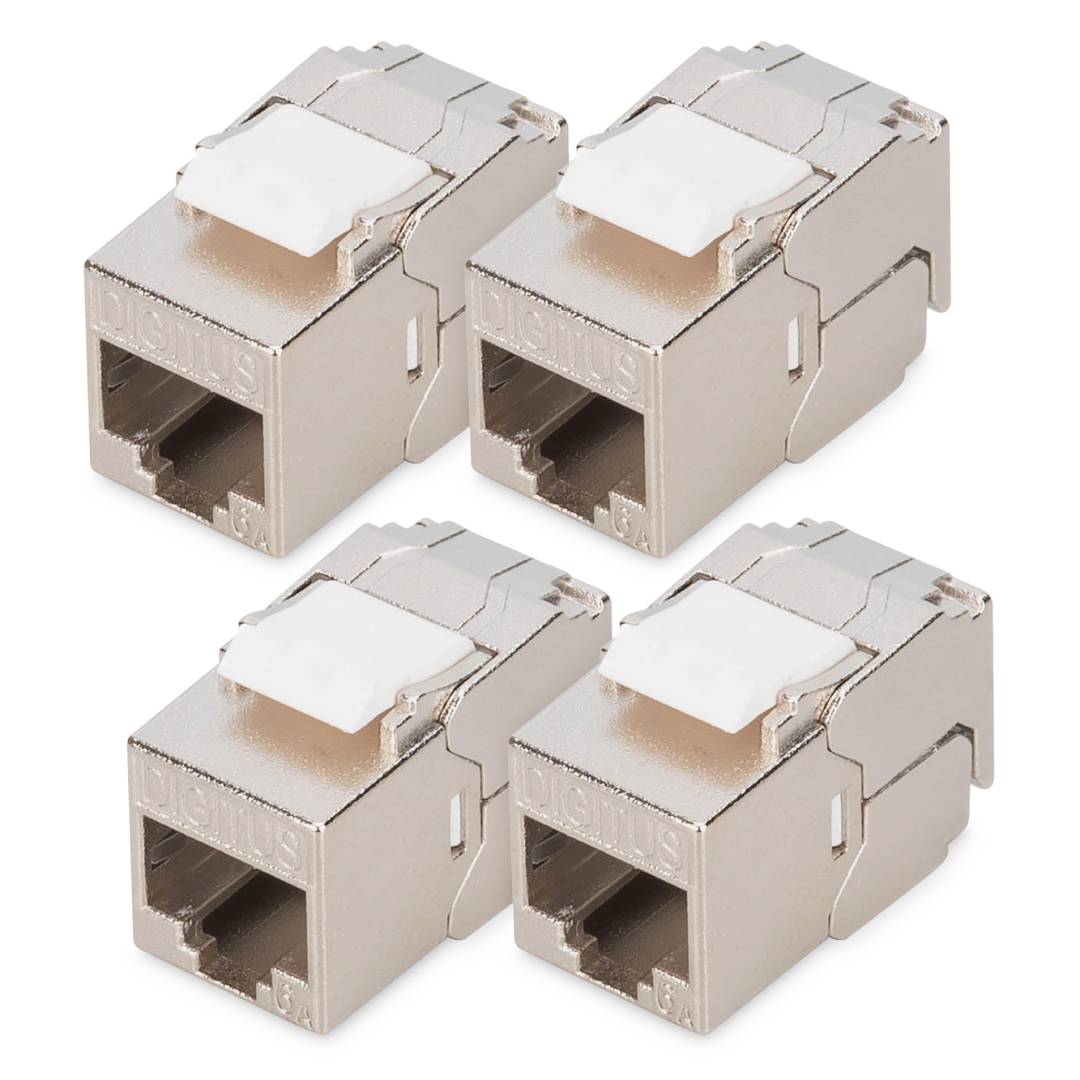

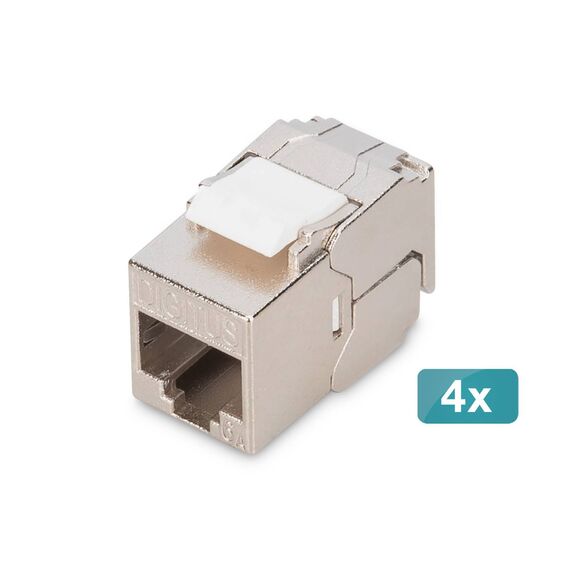

- 4x DIGITUS CAT 6A compact keystone module, shielded, tool-free
- Dust protection cap for each RJ45 socket
- No patch panel, face plate or cable included
What It Means in Practice
- 10GBASE-T to 100 m channel when the full link is shielded CAT 6A — the usual standard for new office and building cabling.

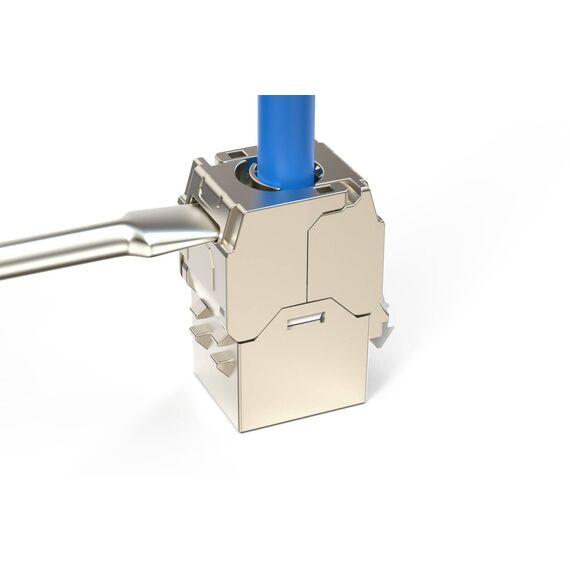

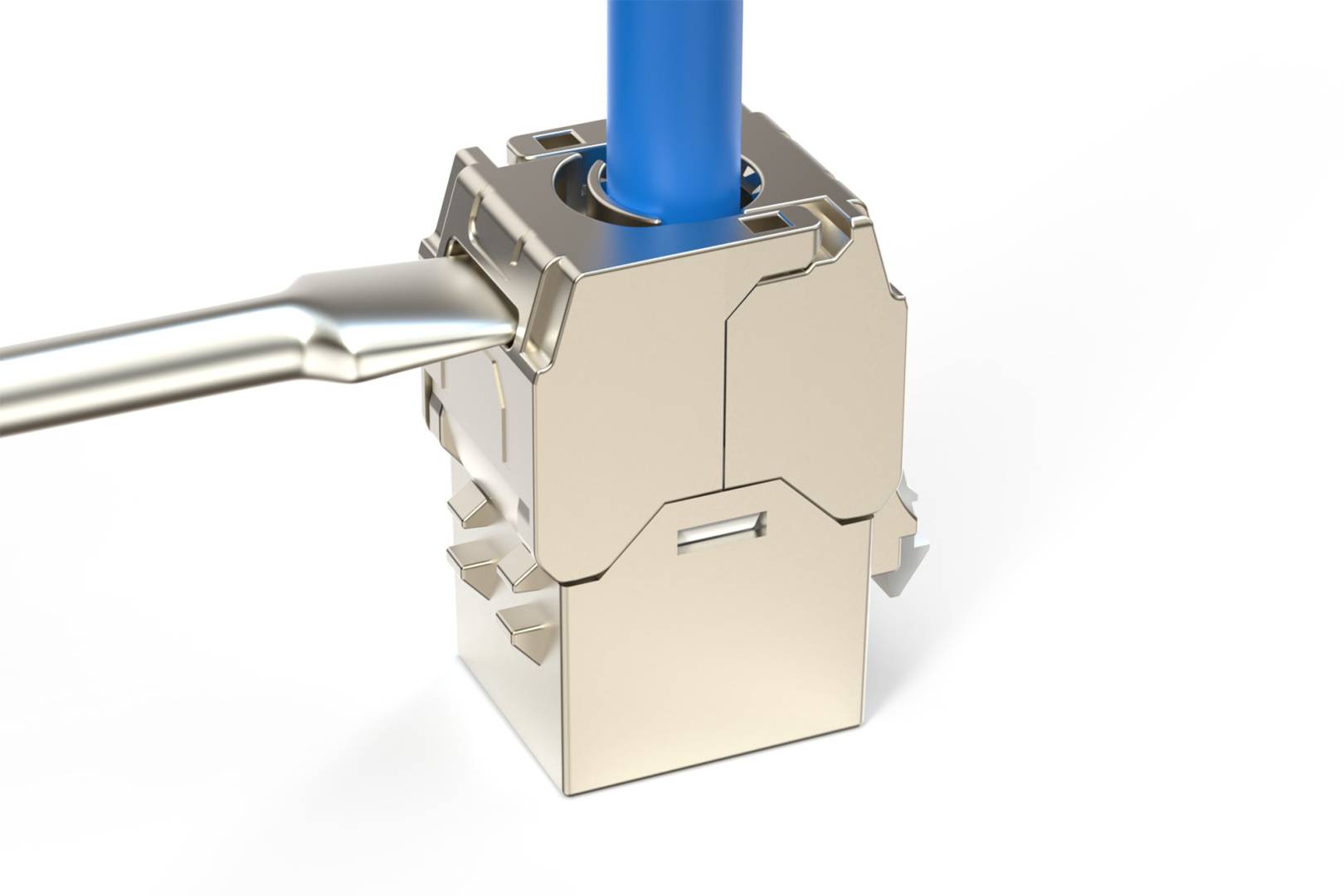

- Tool-free LSA termination: lay the pairs in the colour-coded T568A or T568B slots and close the module, no punch-down tool needed.

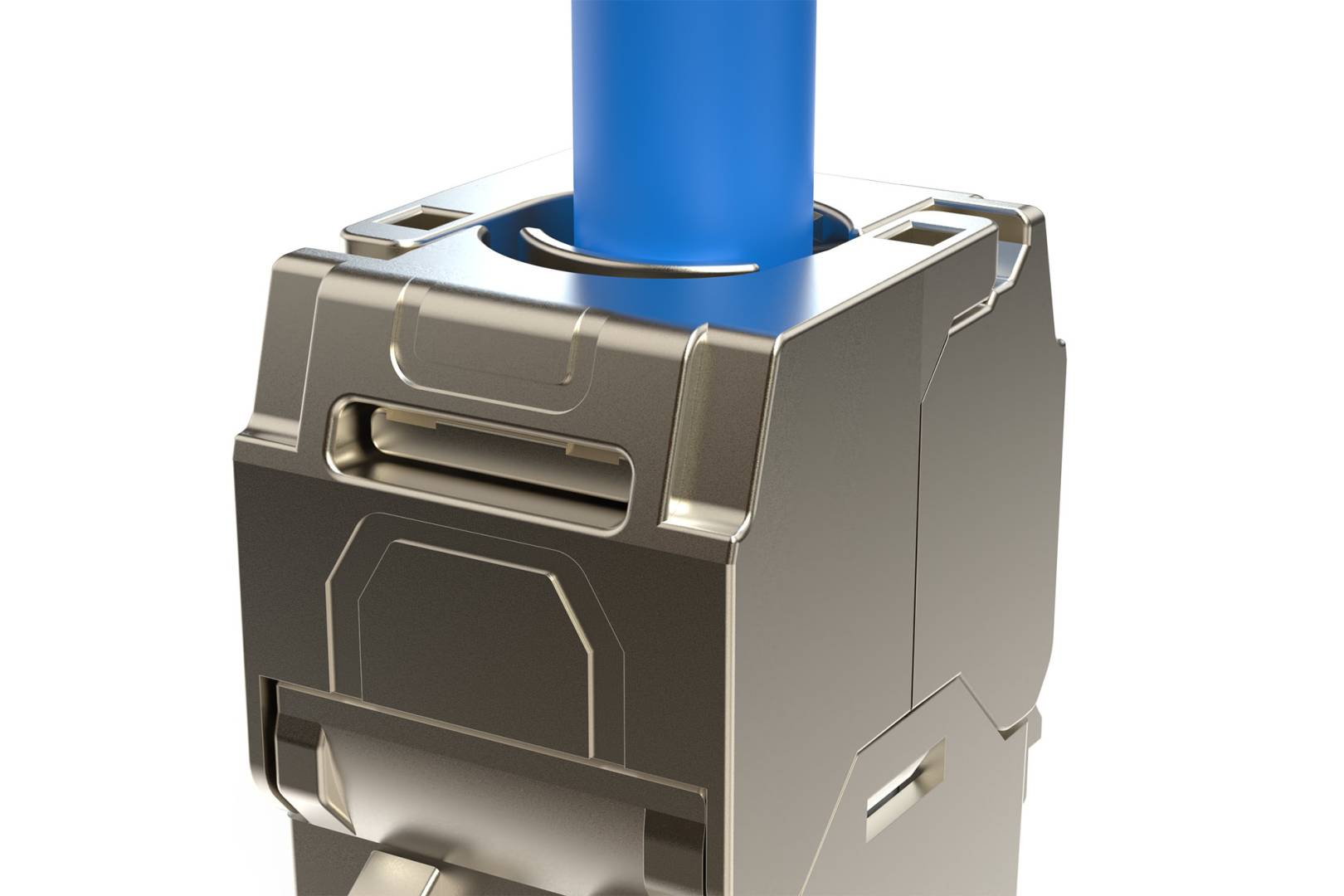

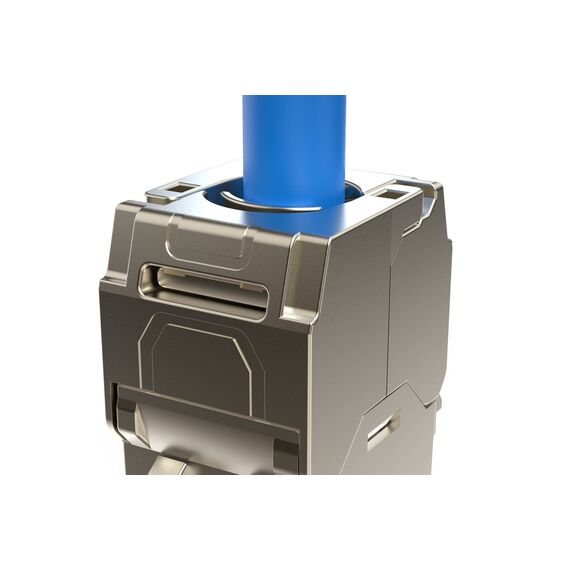

- 360° shield contact carries the cable screen into the panel, so earthing works the way shielded cabling requires.
- PoE, PoE+ and 4PPoE (802.3af/at/bt) are supported, so access points and cameras can be powered over the same link.
- The shorter body leaves more room for the cable bend behind the module, which helps in shallow flush boxes and surface-mount outlets.
What Will Not Work
- CAT 6A performance needs shielded CAT 6A cable and patch cords end to end; with lower-category parts the link drops to that category.
- It is a keystone jack, not a cable plug — it needs a keystone patch panel, outlet or box.
- Conductors outside AWG 26–22 are not specified.
Key Features
Compact short body
Fits shallow, design-compatible modular junction boxes.
10GBASE-T, 500 MHz
CAT 6A per ISO/IEC 11801 3rd Ed. and EN 50173-1.
Tool-free LSA
Colour-coded T568A/B strips, no punch-down tool.
PoE up to 802.3bt
PoE, PoE+ and 4PPoE in the permanent link.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Shielded CAT 6A is the safe default for new copper cabling: 10G to 100 m, full PoE support and room for Wi-Fi 6/7 access points. The module is only one part of the channel — keep cable, panel and patch cords at the same category and earth the rack and panel properly.
✓ Buy it if you need CAT 6A in shallow wall or junction boxes where depth is tight.
✕ Skip it if depth is not an issue and you want the cable-manager version for extra strain relief.
→ Also consider the 12-pack for larger panel jobs.
Not sure it fits your panel or outlet? Send us its model and we will check compatibility before you order.
Features - Digitus - DN-93615-S-4
More Details
Product Code
CQ45525
EAN Code
4016032505198
Manufacturer
Digitus
