DIGITUS DN-91608S-SL-EA CAT 6A Slim Shielded Patch Panel 8-Port 10 Inch 0.5U LSA 500 MHz 10GBase-T PoE+ Black RAL 9005

Brand:
Digitus
DIGITUS DN-91608S-SL-EA CAT 6A Slim Patch Panel 8-Port
DIGITUS DN-91608S-SL-EA CAT 6A Slim Shielded Patch Panel 8-Port 10 Inch 0.5U LSA 500 MHz 10GBase-T PoE+ Black RAL 9005
€32.64 inc. VAT
Buy
DN-91608S-SL-EA
€27.43
€32.64 inc. VAT
Ships from EU stock: 4 item(s)
+ −
Add to wish list Ask a question
Product Code
03:187115
EAN Code
4016032473169
Manufacturer
Digitus

Quick Specs

Ports
8 × RJ45 CAT 6A
Format
10″ rack panel, 0.5U
Termination
LSA
Shielding
Shielded
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

DIGITUS DN-91608S-SL-EA — CAT 6A Slim Shielded Patch Panel, 8-Port, 10″ 0.5U, Black

8 × RJ45 CAT 6A10″ rack, 0.5UPoE / PoE+Shielded

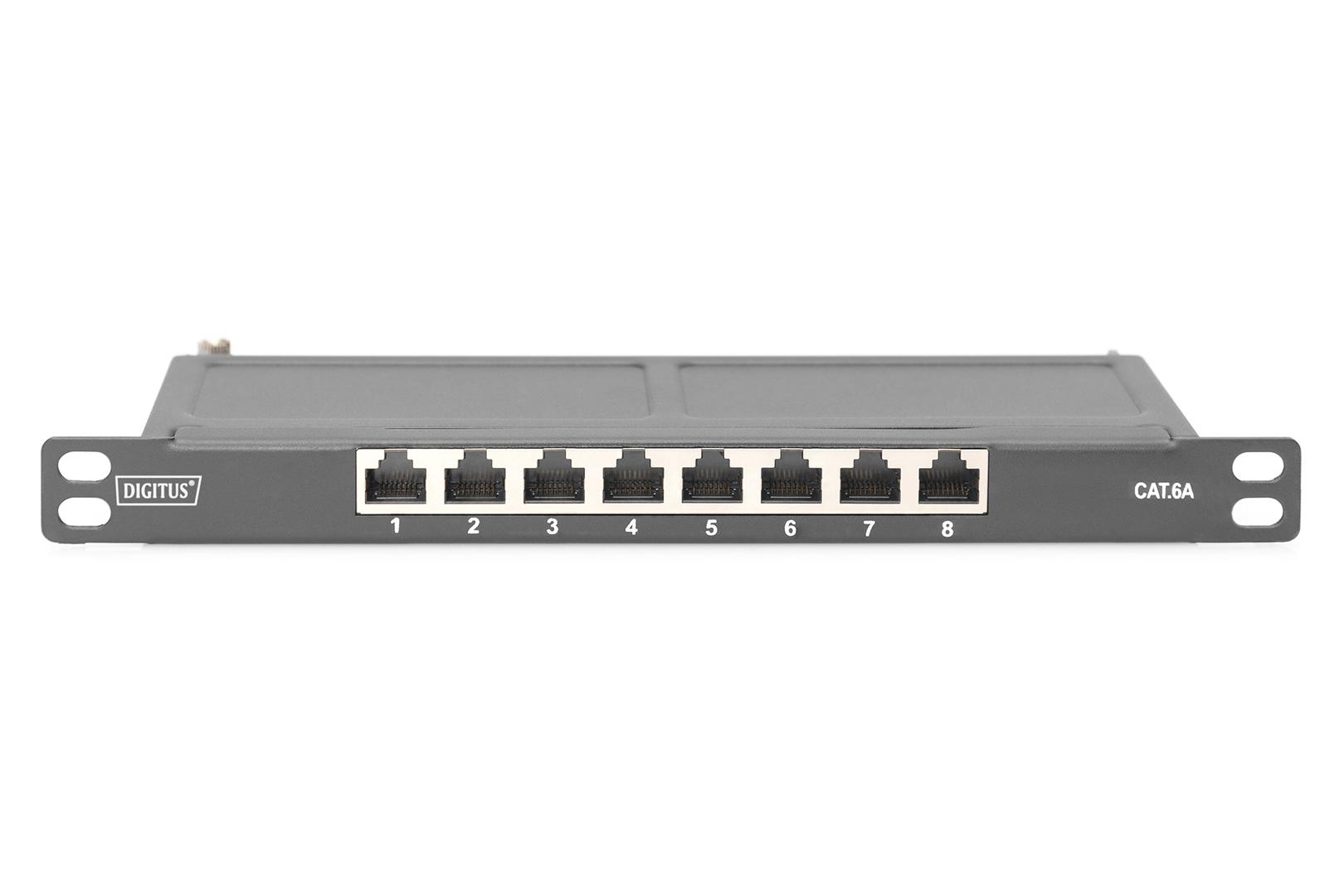

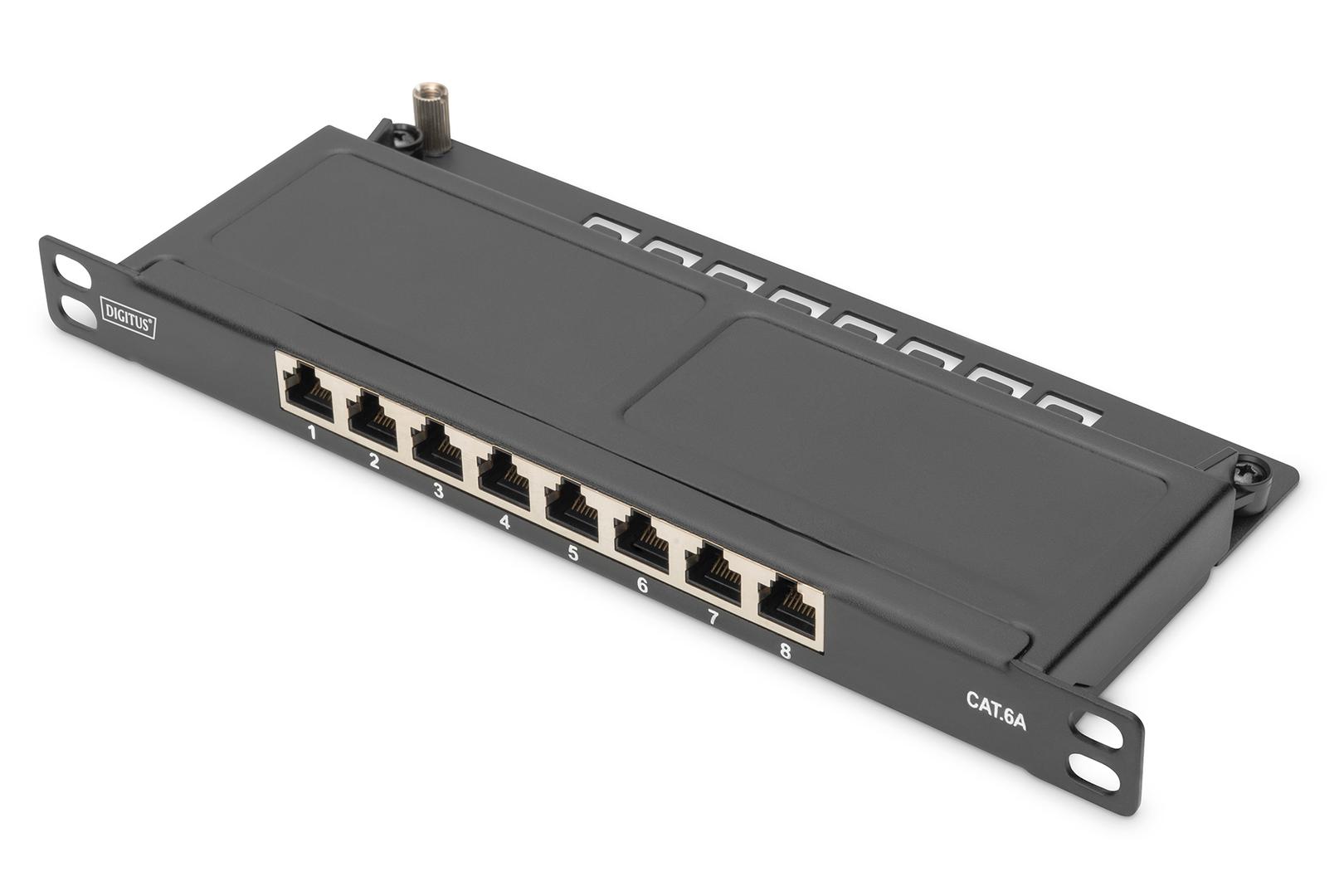

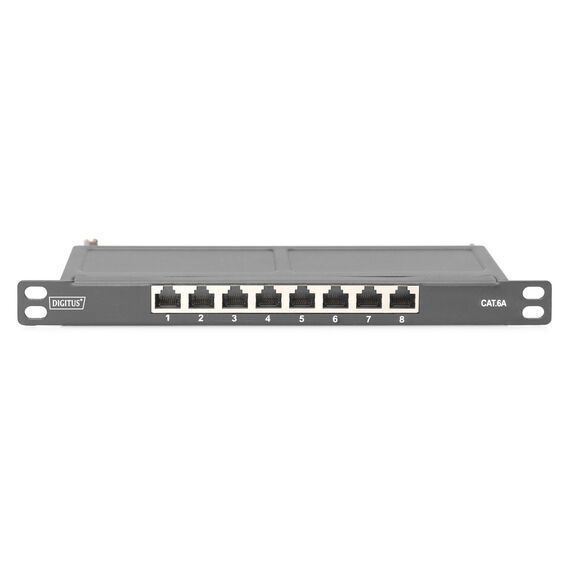

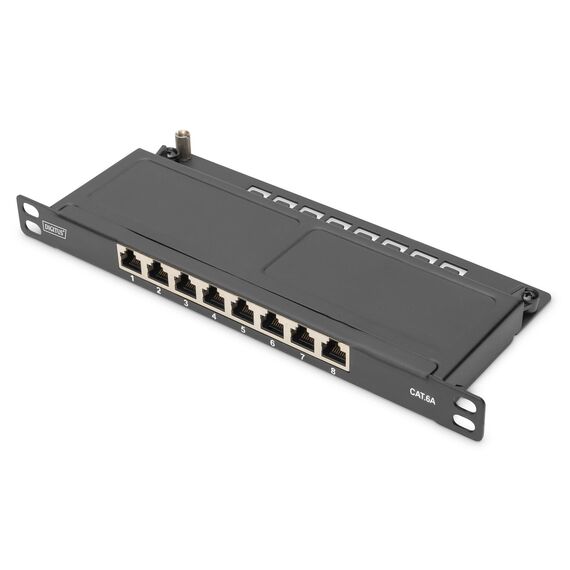

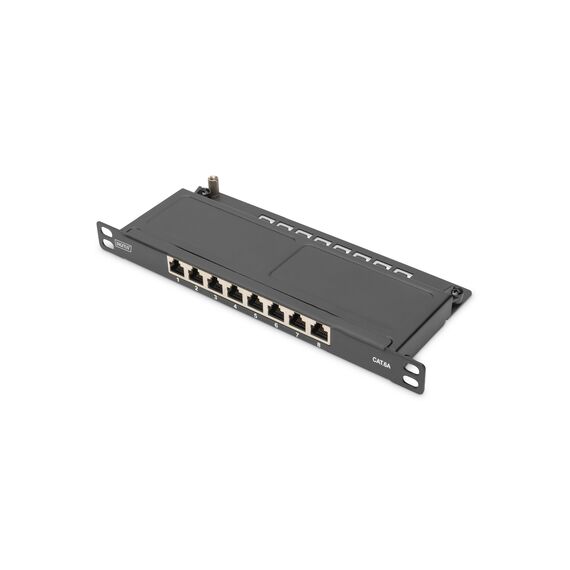

The DIGITUS DN-91608S-SL-EA is a 8-port CAT 6A shielded patch panel for a 10-inch mini rack in just half a unit (0.5U), or on a wall. It carries 8 shielded RJ45 ports rated CAT 6A Class EA up to 500 MHz for 10 Gigabit and listed for PoE and PoE+, with colour-coded LSA terminations, in a slim black steel housing only half a rack unit high. In practice every cable from the wall outlets is terminated once at the back and stays put, while short patch cords at the front connect the ports to your switch — so moving a desk or a phone is a one-cable change at the panel, not new cabling.

Compatibility — check before buying:
Check before buying: It is a 10″ panel: it fits 10″ mini racks and will not fill a 19″ rack slot without a 10″-to-19″ adapter. Shielding only helps with shielded cable (F/UTP, S/FTP) whose shield is terminated and the panel earthed; with UTP cable it works as a normal panel. The DN-91608S looks similar but is CAT 6, 1U, 250 MHz — this one is CAT 6A, 0.5U, 500 MHz. Not sure it suits your cabinet or cable? Send us the rack or cable type and we check it.

Best For

✓ 10″ mini racks short of space
✓ Home and SOHO network cabinets
✓ Wall-mounted cable termination
✓ Small offices and shops
✓ 10G-ready small installations
✓ Patching to a compact switch

Key Features

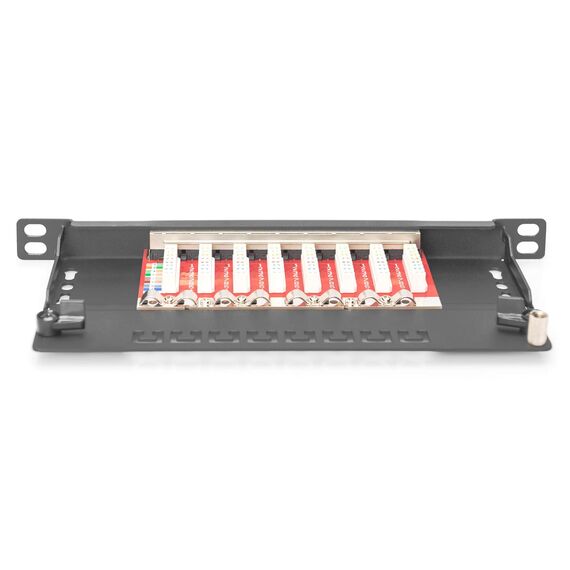

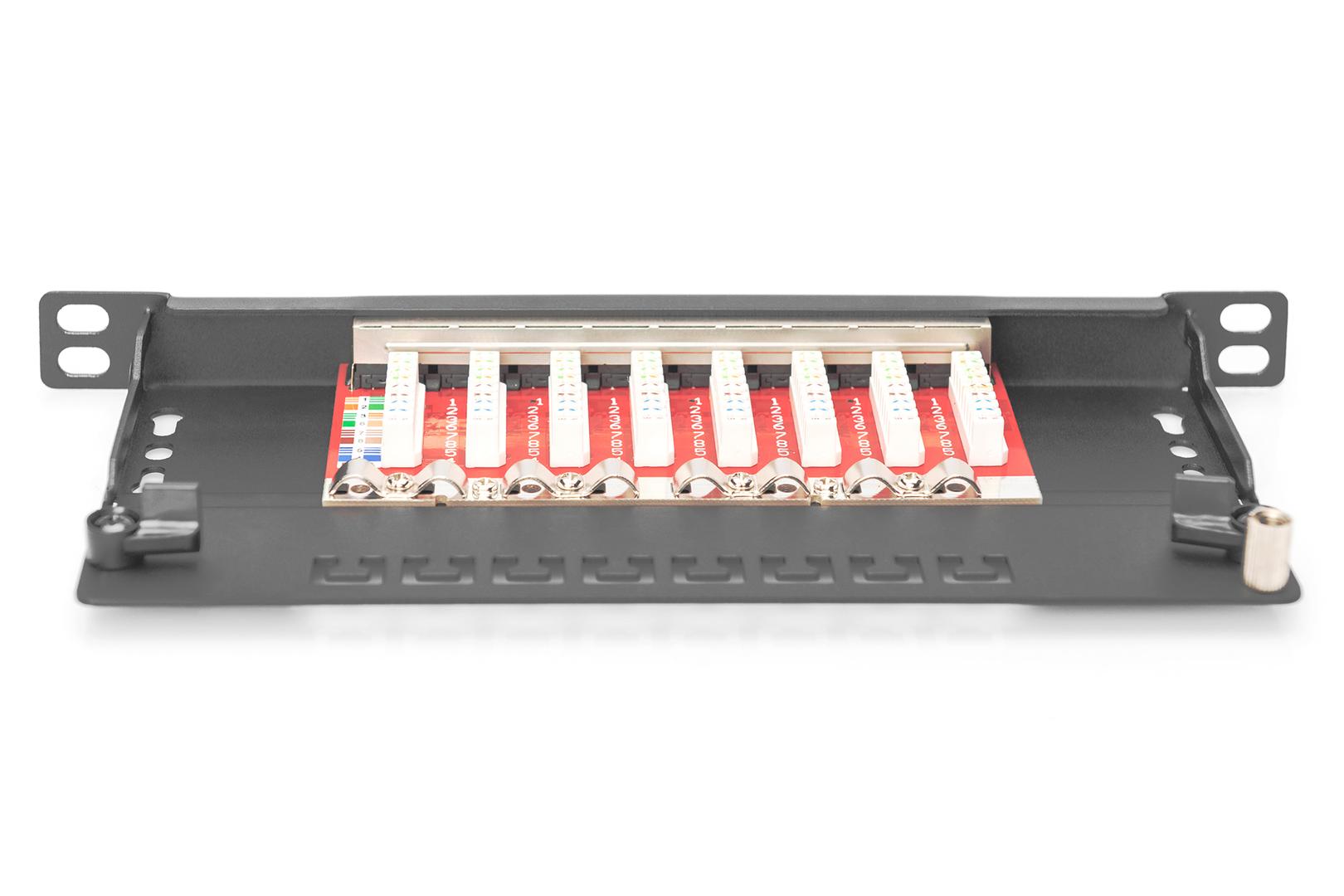

LSA termination
Colour-coded LSA terminations take 22–26 AWG solid or stranded conductors with an LSA (Krone) tool; a quick-release cover gives access.

T568A / T568B colour coding
Each connector is colour-coded for both wiring schemes, so the installer terminates to the standard already used in the building.

Shielded design

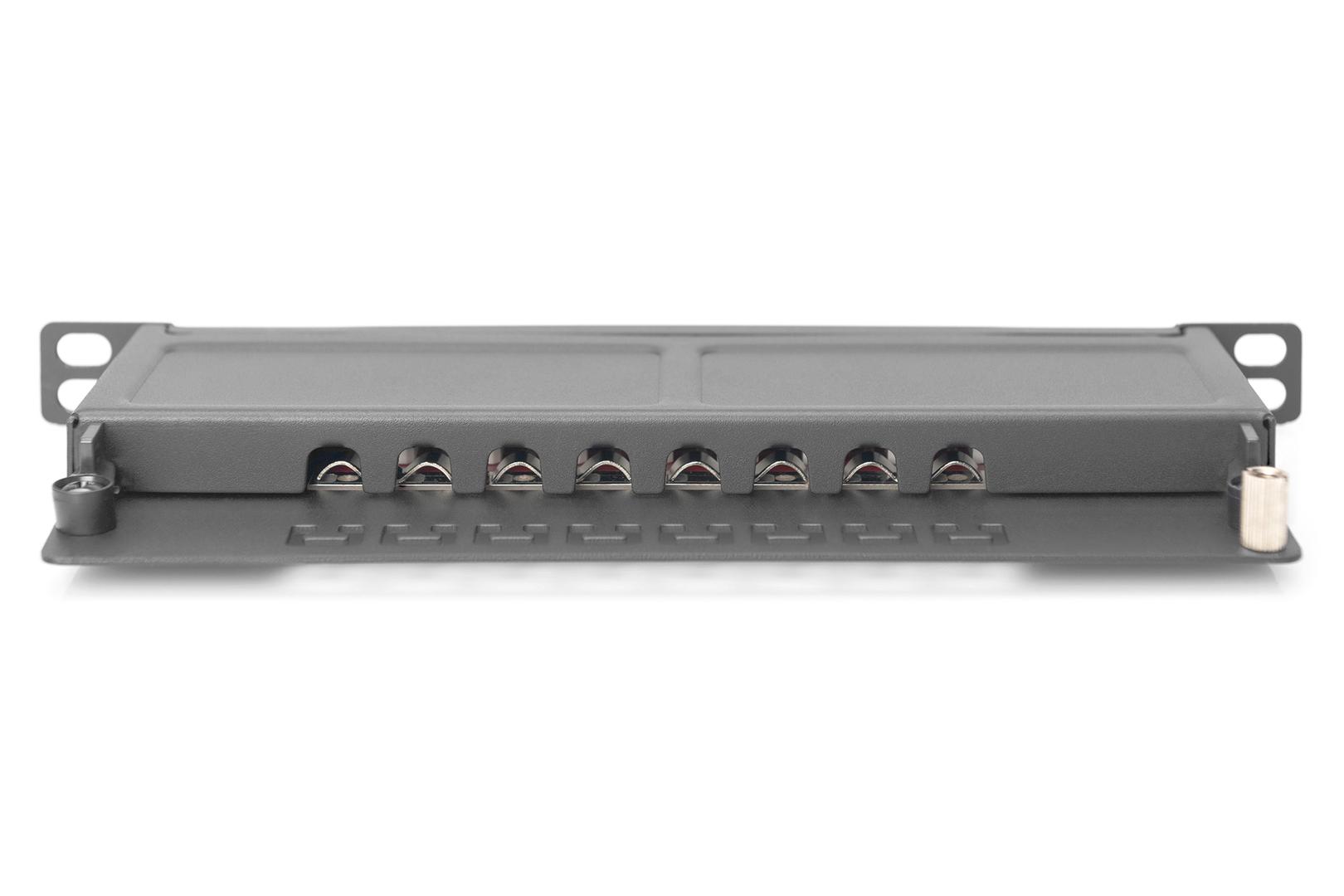

A fully shielded galvanised steel housing with 360° shield contact, cable clamps and a central earthing point keeps screening continuous from cable to switch when shielded cable and earthing are used.

Half-unit slim design
At 0.5U, two panels give 16 ports in one unit of a 10″ rack, and DIGITUS states wall mounting is possible too.

Technical Specifications

Identification
Brand DIGITUS
Product CAT 6A Slim Patch Panel, shielded, 8-port, 0.5 U, 10″, black
Part Number DN-91608S-SL-EA
EAN / GTIN 4016032473169
Colour Black (RAL 9005)
Connectivity
Ports 8 × RJ45
Category CAT 6A — Class EA, up to 500 MHz
Speed 10GBase-T (10 Gigabit)
Shielding Shielded
Termination LSA, colour-coded
Wiring EIA/TIA 568 A/B colour-coded
Cable 22–26 AWG solid or stranded
PoE IEEE 802.3af PoE and 802.3at PoE+
Grounding Central earthing connection
Durability >750 mating cycles, >200 termination cycles
Mechanical
Format 10″ rack panel, 0.5U — wall mounting possible
Material 1.5 mm galvanised steel
Cover Quick-release fastener
Standards & Compliance
Standards ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
Compliance Not published by DIGITUS
Operating Temperature −20 to +70 °C
Installation Notes
Planning Match the number of panel ports to your switch ports and allow one short patch cord per port; leave spare ports for future outlets.
Terminating Strip only as much jacket as needed, keep the pairs twisted up to the contacts and follow one wiring scheme (T568A or T568B) throughout the building.
Testing Test every run with a cable tester before patching it into the switch — it finds swapped pairs and poor terminations before users do.
In the Box
Included Patch panel; DIGITUS does not publish a contents list
Not Included LSA punch-down tool, patch cords, rack or wall screws, earthing cable
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term DIGITUS does not publish a product warranty term for this panel; ASSMANN’s 25-year system warranty applies only to certified cabling systems installed by its partners. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Will it fit my rack?
This is a 10″ rack panel, 0.5U. It fits 10-inch mini racks and small cabinets; for a 19-inch rack you need a 10-to-19-inch adapter, or choose a 19-inch panel instead. Send us your cabinet model and we check the fit.
What tool do I need to terminate it?
An LSA (Krone) punch-down tool for the LSA terminations. No tool is included.
Do I need shielded cable?
To benefit from the shielding, yes: use shielded cable (F/UTP or S/FTP), terminate the shield properly and earth the panel. With ordinary UTP cable it still works, but the shielding adds nothing.
Is it fast enough for my network?
It is rated Class EA, up to 500 MHz for 10GBase-T (10 Gigabit). The whole link — cable, outlets, patch cords — must be at least the same category to reach that speed. For 10 Gigabit over longer runs, the full link must be Cat6A.
Singular Expert Insight
We suggest the DN-91608S-SL-EA for 10-inch cabinets where space is tight and 10 Gigabit matters: two of them give 16 ports in one unit. Use shielded Cat6A cable and earth the panel. For Gigabit only, the DN-91608S is the CAT 6 1U version. If you are planning a new cabinet, tell us the number of outlets and the switch you use and we suggest the panel, patch cords and tools together. Every order comes with Singular’s local support in Cyprus. See our patch panels for other formats and port counts, and the network cables to patch it with.

Buyer’s Guide

Buy it if

You have a 10″ cabinet with little space and shielded Cat6A runs for 10 Gigabit.

Skip it if

Your rack is 19″, or your cabling is UTP.

Also consider

DIGITUS DN-91608S, the CAT 6 1U version.
