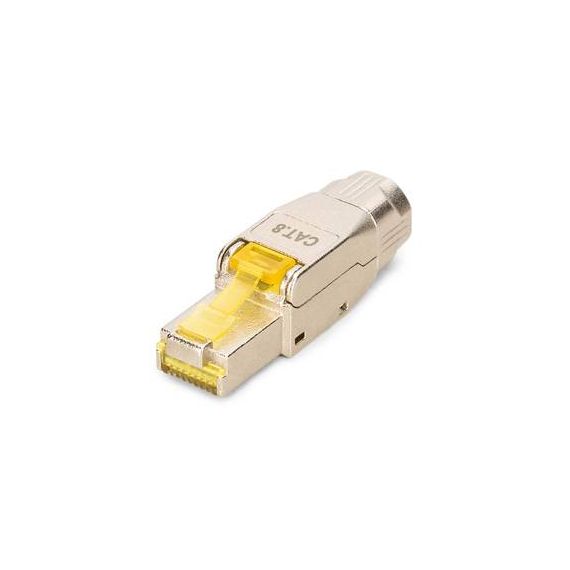

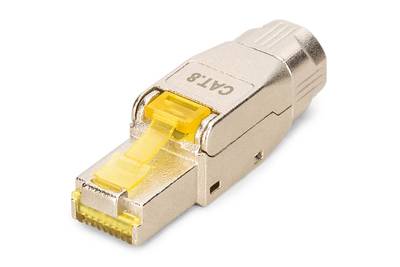

DIGITUS CAT 8.1 field connector, shielded, tool-free mounting connection / CAT 8 | DN-93838

Product Features

· Transmission characteristics:
· Category 8.1 - 25/40 GBase-T, 2000 MHz
· ISO/IEC 11801 3rd Edition, EN 50173-1
· Suitable for PoE/PoE+/4PPoE (IEEE 802.3af, 3at, 3bt)
· General specifications:
· Tool-free cable installation via LSA cutting terminals, color-coded according to EIA/TIA 568 A&B
· Strain relief and cable fixation with screw cap
· RJ45 plug, 8P8C
· 360° shield contacting
· Technical specifications:
· Housing material: die-cast zinc
· Contact material: Phosphor bronze
· Coating of the contacts: Nickel, gold-plated 0.5 µ
· Physical specifications:
· Insertion force: Max. 30N (according to IEC 60603-7-81)
· Operating temperature: -20°C up to +70°C (ISO/IEC 11801, ANSI/TIA 568 C.2)
· Mating cycles: > 1500 (ISO/IEC 11801, IEC 60603-7-81)
· Copper conductor diameter: AWG (26/7 - 22/1), stranded and solid wire
· Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)

Special Features

· High-speed transmission - Supports 25/40GBase-T with a bandwidth of 2000 MHz for ultra-fast networks
· Excellent shielding - The 360° shield contact minimizes interference and guarantees a stable connection
· Tool-free installation - field connector enables quick and easy installation without special tools
· Application area - Ideal for data centers, industry, building cabling and telecommunications

Product Specification

Connector(s)	RJ-45
Product colour	Silver, Yellow
Connector gender	Male
Quantity per pack	1 pc(s)
Package width	20 mm
Package depth	40 mm
