Digitus Cat 6 U/UTP Slim RJ45 Patch Cable, 0.3 m, Red, LSZH, AWG 32/7 Copper

Brand:
Digitus
Digitus DK-1618-003S-R Cat 6 Slim RJ45 Cable 0.3 m Red
Digitus Cat 6 U/UTP Slim RJ45 Patch Cable, 0.3 m, Red, LSZH, AWG 32/7 Copper
€4.52 inc. VAT
Buy
DK-1618-003S-R
€3.80
€4.52 inc. VAT
Ships from EU stock: 15 item(s)
+ −
Add to wish list Ask a question
Product Code
CR86157
EAN Code
4016032506621
Manufacturer
Digitus

Quick Specs

Length / Quantity
0.3 m × 1
Network Standard
Cat 6 • up to 1 Gbps
Slim Construction
2.7 mm • LSZH
Connectors / Shielding
RJ45 male ↔ male • U/UTP
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

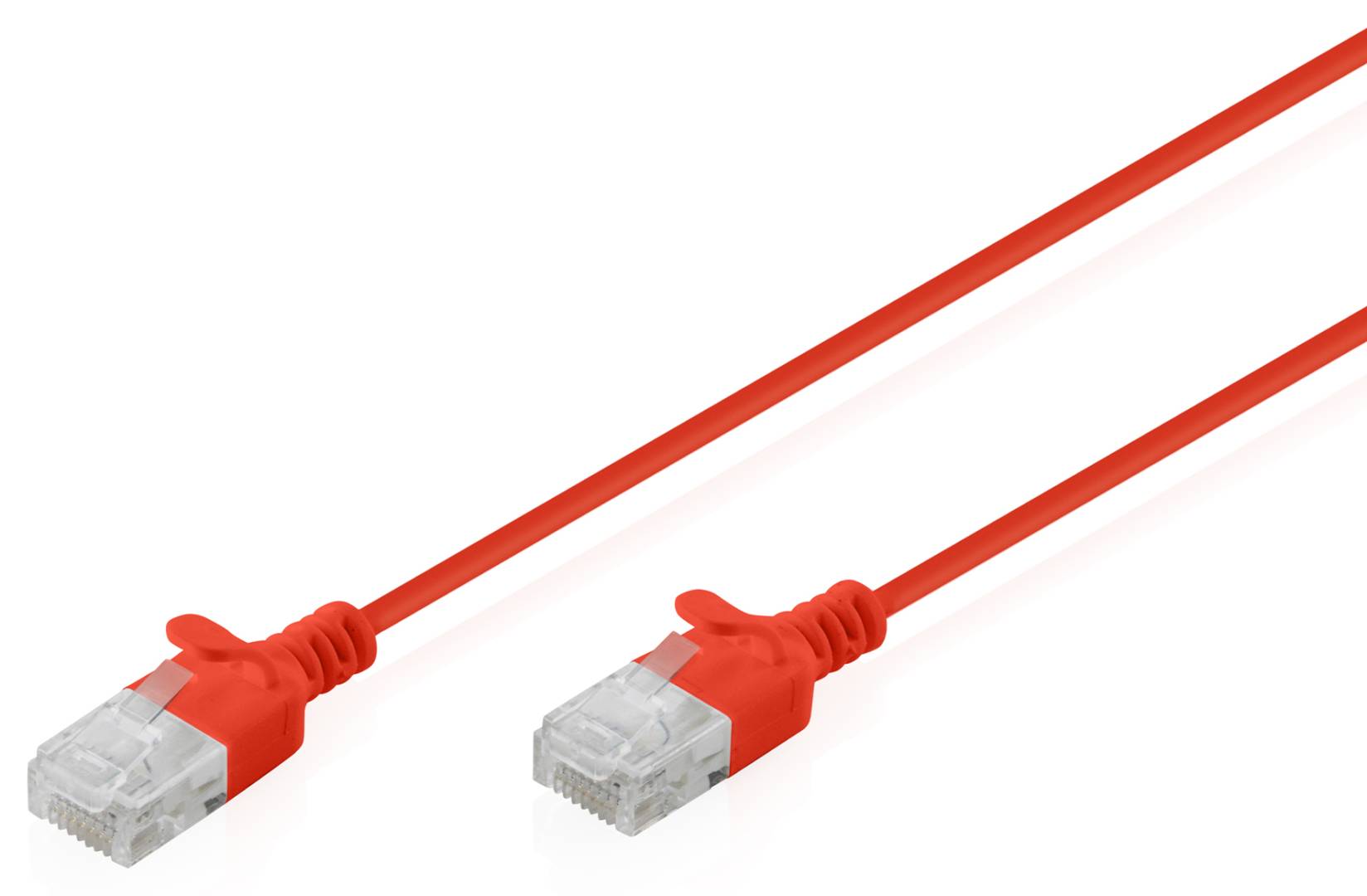

Digitus Cat6 Slim RJ45 0.3m Red

0.3 m × 1Cat 6 • up to 1 Gbps2.7 mm • LSZH

This 0.3 m red patch cable suits short connections between adjacent patch-panel and switch ports. Its 2.7 mm round jacket takes up less routing space, while flexible stranded copper makes it easier to arrange closely spaced connections. This version supplies one cable for a single link.

Compatibility — check before buying:
Check the routed distance before choosing 0.3 m: allow slack instead of pulling the cable tight. Both ends are RJ45 male. U/UTP means unshielded; choose a shielded cable if your installation requires screening.

Key Features

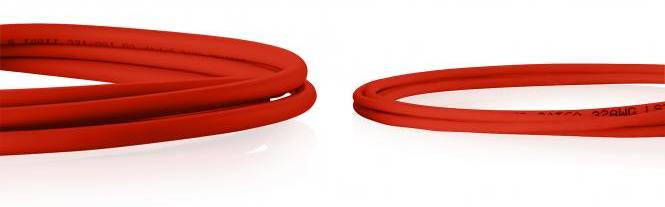

Less bulk at crowded ports
The 2.7 mm LSZH jacket is useful where many patch cords share a routing path. Keep bends gentle: the specified bend radius is 15 times the cable diameter.

Copper for data and PoE
AWG 32/7 bare copper conductors support the manufacturer-listed Gigabit Ethernet, PoE and PoE+ applications. Network speed also depends on the connected equipment.

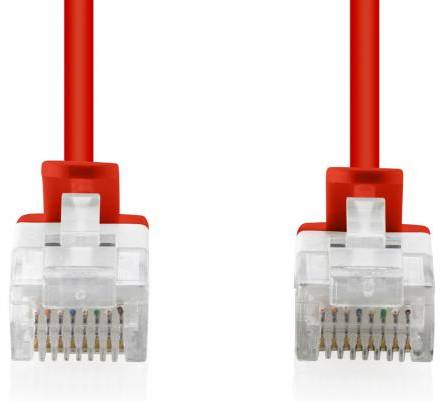

Protected RJ45 termination
Moulded anti-kink sleeves, strain relief and latch protection help protect the connector area during routing and handling. Wiring is straight-through 1:1 using T568B.

Technical Specifications

Identification
Brand Digitus
Model / MPN DK-1618-003S-R
EAN / GTIN 4016032506621
Colour Red
Connectivity & Performance
Cable category Cat 6
Shielding U/UTP, unshielded
Connectors 2 × RJ45 male
Wiring / pin assignment T568B (EIA/TIA 568B), straight-through 1:1
Transmission frequency Up to 250 MHz
Data rate Up to 1 Gbit/s; equipment-dependent
Ethernet applications IEEE 802.3: 10BASE-T, 100BASE-T, 1000BASE-T
Power over Ethernet PoE and PoE+ supported
Construction & Dimensions
Cable length 0.3 m
Cable shape Round, slim; not flat
Outer diameter 2.7 mm ± 0.15 mm
Jacket LSZH / LSOH (Low Smoke Zero Halogen)
Conductor AWG 32/7 stranded bare copper, 0.08 ± 0.005 mm
Insulation HD-PE (high-density polyethylene)
Pair colour code Orange/white, green/white, blue/white, brown/white
Bend radius 15 × outer diameter
Connector protection Moulded anti-kink sleeve, strain relief, latch protection
Electrical & Environmental
Contact resistance Maximum 376.96 Ω/km at 20 °C
Resistance imbalance Maximum 3%
Dielectric strength test 500 V AC for 1 minute without breakdown (TIA/EIA-364-21)
Operating temperature -20 °C to +60 °C
Connector service life 750 mating cycles
Flame retardancy / smoke IEC 60332-1 / IEC 61034
Cabling standards ISO/IEC 11801-1; EN 50173; ANSI/TIA 568-C; EN 60603-7-4
Package
Quantity 1 cable
Packaging DIGITUS hangtag

What's in the Box

1 × 0.3 m red Cat 6 U/UTP Slim RJ45 cable

What Will Not Work

This unshielded U/UTP cable does not provide cable screening.
A passive patch cable does not upgrade the speed of the connected switch or network adapter.

Frequently Asked Questions

Can I use it to power a PoE device?
The manufacturer lists PoE and PoE+ support. Use compatible power-sourcing equipment and a compatible powered device; this cable is not a PoE injector.
Is the slim cable intended for a 10 Gigabit link?
This exact model is specified for up to 1 Gbit/s and 250 MHz. Choose a cable with a verified rating for your required link speed rather than assuming 10 Gbit/s from the Cat 6 label.
How tightly can I bend it behind a patch panel?
Keep a bend radius of 15 times the outer diameter. Avoid sharp folds and tension, and disconnect by holding the plug rather than pulling the jacket.
Singular Expert Insight
Choose 0.3 m only when the routed connection fits comfortably. The slim jacket helps with crowded patching, while red can identify a chosen group of links. Compare shielded cables or another length in our network cable range when the installation calls for them. Compare network cable lengths and shielding

Buyer’s Guide

Buy it if

You need 1 short, flexible 0.3 m RJ45 link.

Skip it if

You require shielding, a longer routed reach or a verified higher-speed cable.

Also consider

Other lengths, colours and shielded network cables for your routing plan.
