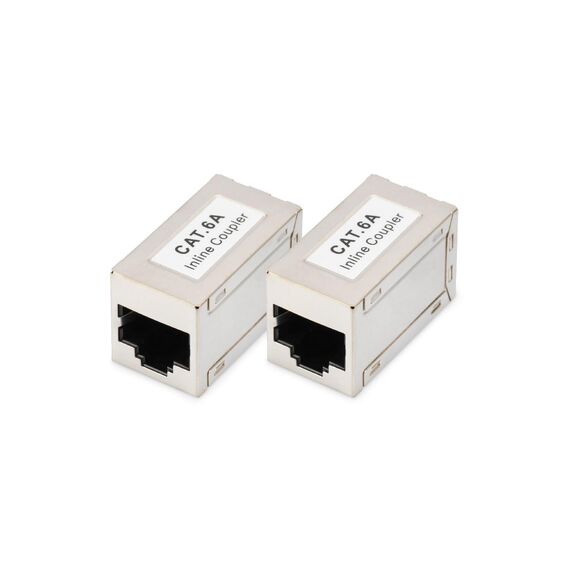

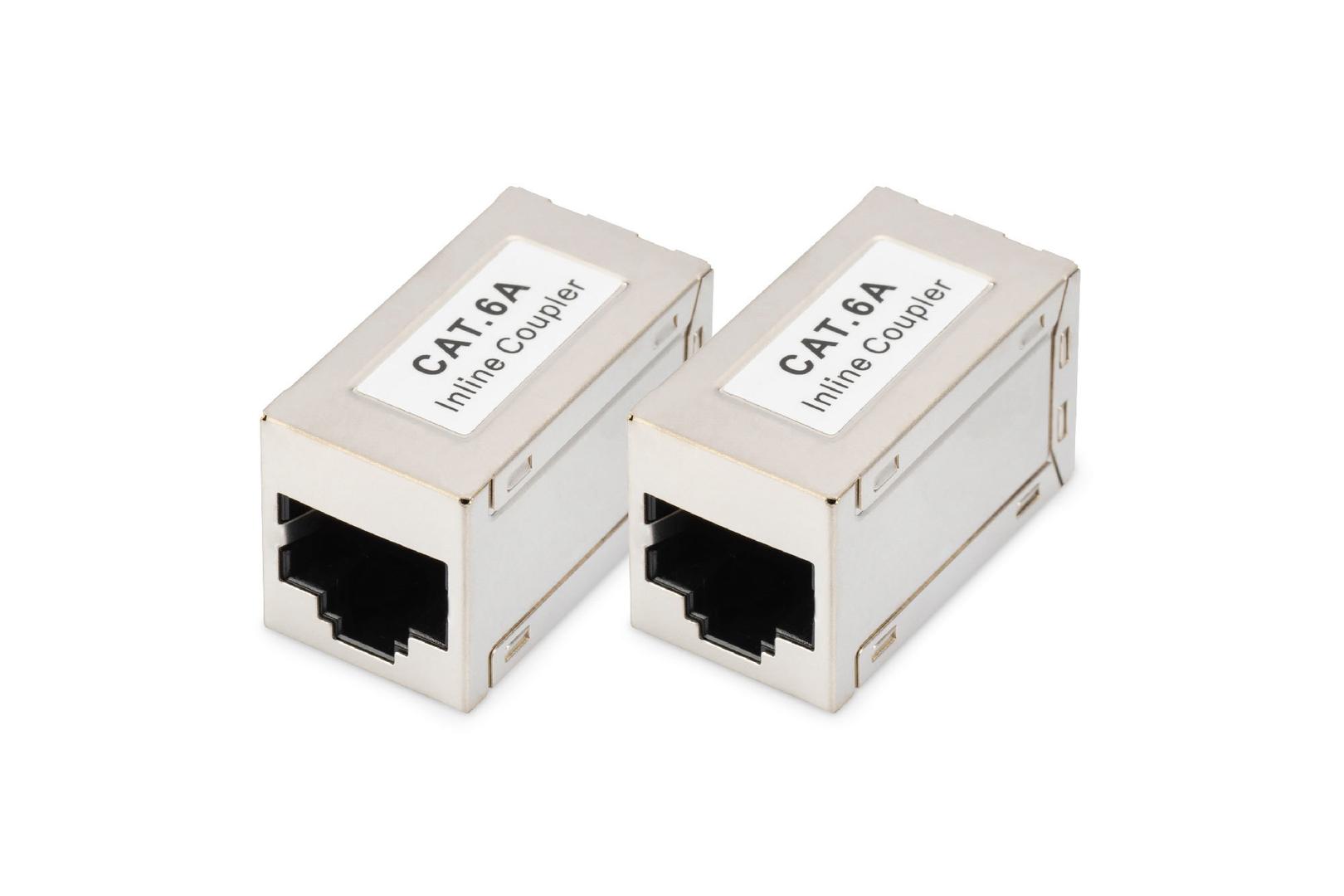

DIGITUS DN-93905-2 Cat 6A Class EA Shielded RJ45 Female-to-Female Couplers, 500MHz, 2-Pack

Brand:
Digitus
DIGITUS DN-93905-2 Shielded Cat 6A RJ45 Female Couplers, 2-Pack
DIGITUS DN-93905-2 Cat 6A Class EA Shielded RJ45 Female-to-Female Couplers, 500MHz, 2-Pack
€11.07 inc. VAT
Buy
DN-93905-2
€9.30
€11.07 inc. VAT
Ships from EU stock: 10 item(s)
+ −
Add to wish list Ask a question
Product Code
04:514868
EAN Code
4016032495062
Manufacturer
Digitus

Quick Specs

Performance
Cat 6A, Class EA, up to 500MHz
Connections
2 × RJ45 female per coupler; 1:1
PoE standards
IEEE 802.3af/at/bt
Pack size
2 couplers
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Two shielded joins for Cat 6A cable runs

Cat 6A500MHz1:12-pack

DIGITUS DN-93905-2 provides two fully shielded RJ45 female-to-female couplers with straight-through 1:1 wiring. Each coupler is specified to Class EA channel requirements under ISO/IEC 11801 up to 500MHz. The current manufacturer page also lists IEEE 802.3af/at/bt support for PoE applications.

Key Features


Class EA specification
Designed to meet Cat 6A channel requirements up to 500MHz when used within a suitable complete cabling system.

Fully shielded housing
Polished nickel-plated brass sheet forms the housing, with phosphor-bronze contacts and 0.6µm gold plating.

PoE-compatible connection
The manufacturer lists PoE, PoE+ and PoE++ under IEEE 802.3af/at/bt; the coupler remains a passive join.

Technical Specifications

Model / EAN DN-93905-2 / 4016032495062
Category / channel requirement Cat 6A; Class EA to ISO/IEC 11801, up to 500MHz
Ports / assignment 2 × RJ45 female per coupler; 1:1
Shielding Fully shielded
PoE support IEEE 802.3af/at/bt; PoE, PoE+, PoE++
Housing Polished nickel-plated brass sheet
PCB FR4, 1.2mm thick
Contacts / coating Phosphor bronze / nickel and 0.6µm gold plating
Mating cycles At least 750
Operating temperature −10°C to +50°C
Quantity 2 couplers

Frequently Asked Questions

Does PoE support mean it supplies power?
No. It supports a compatible PoE connection through the cable path. It is not a PoE injector, switch or power supply.
Will it turn lower-category cables into a Class EA link?
No. Class EA performance depends on the complete channel, including both cables and their terminations. The coupler alone cannot establish that performance.
Are there two ports or two separate couplers?
The pack contains two separate couplers. Each coupler has two female RJ45 sockets with 1:1 pin assignment.
Singular Expert Insight
Use compatible shielded patch leads and keep the join accessible. Preserve the complete channel specification and protect the coupler from moisture; its metal shell is not evidence of weather protection. Check your Cat 6A cable channel

Buyer’s Guide

Buy it if

You need two shielded passive RJ45 joins for a compatible Cat 6A channel, including supported PoE applications.

Skip it if

You require an active repeater, a PoE source or a weatherproof connector.

Also consider

Check the full channel length and category of both cables before adding another joint.
