DIGITUS DN-CSP-150 Fiber-Optic Crimp Splice Protectors, Pack of 150, 30mm, TS 0338/96

Brand:
Digitus

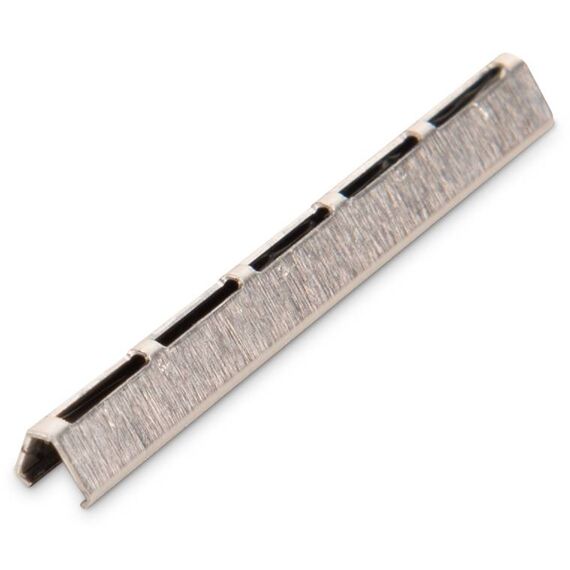

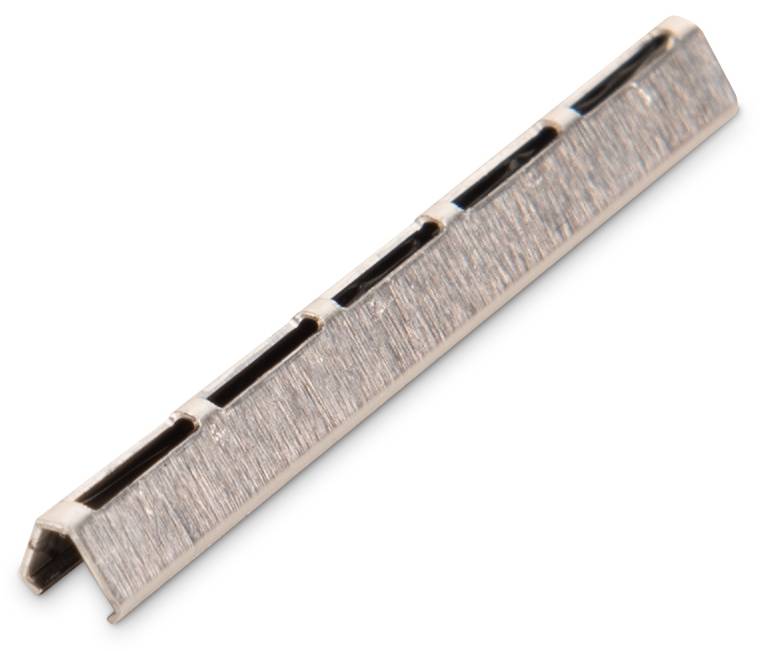

DIGITUS DN-CSP-150 Fiber-Optic Mechanical Crimp Splice Protector Pack of 150
DIGITUS DN-CSP-150 Fiber-Optic Crimp Splice Protectors, Pack of 150, 30mm, TS 0338/96
€84.97 inc. VAT
Buy
DN-CSP-150
€71.40
€84.97 inc. VAT
Ships from EU stock: 8 item(s)
+ −
Add to wish list Ask a question
Product Code
04:568876
EAN Code
4016032504948
Manufacturer
Digitus

Quick Specs

Package quantity
150 protectors
Closure
Mechanical crimp / clamp
Protector size
30 × 1.2 × 3.3mm (L × W × H)
Conformity
TS 0338/96
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Mechanical protection for 150 fibre splices

150 piecesCrimp closure30mmTS 0338/96

The DN-CSP-150 is a pack of 150 mechanical crimp protectors for optical-fibre splice points. After the fibre has been spliced using suitable equipment, a protector closes around the sensitive joint and fixes the 900µm secondary coating. It protects an existing splice; it does not make the optical connection. The package contains protectors only. Suitable fibre-splicing equipment, a compatible crimping tool and an appropriate splice cassette or enclosure are required separately.

Before you order:
Check the crimping tool, 900µm coating arrangement, cassette geometry and 30 × 1.2 × 3.3mm protector dimensions. Mechanical closure is the specified method; this is not a heat-shrink sleeve. No IP rating or waterproof sealing is claimed.

What It Means in Practice

  • In a distribution panel, complete and inspect the fibre splice, fit one protector using the appropriate crimping process, then snap or slide it into a compatible splice cassette. The 150-piece pack serves up to 150 individual protected splice points.

What Will Not Work

  • It does not replace a splicer, crimping tool, fibre connector, cable or protective enclosure. A protector does not repair an incorrectly made splice.

Key Features


Purely mechanical closure
The clamp is secured by a crimping process rather than heat shrinking.

Compact cassette installation
The 30mm protector is designed to snap or slide into standard splice cassettes; actual holder fit must be checked.

Protection after splicing
Mechanical support limits stress from tension, vibration and micro-movements at the sensitive joint.

Technical Specifications

Identity and application
Brand / model / EAN DIGITUS / DN-CSP-150 / 4016032504948
Type Fiber-optic crimp splice protection
Package content 1 pack of 150 protectors
Fastening Mechanical clamp closure; secured by crimping
Fiber coating fixation 900µm secondary coating
Mounting Snaps into place or slides into standard splice cassettes; check cassette fit
Conformity / approval TS 0338/96; manufacturer identifies Telekom approval
Performance and dimensions
Insertion loss No additional insertion loss stated for the protector; not a splice-loss guarantee
Dimensions (L × W × H) 30 × 1.2 × 3.3mm
Opening angle before crimping 52°
Temperature range −20°C to +60°C
Protection purpose Mechanical protection against tension, vibration, micro-movements, crushing and puncture
Typical installations Splice trays, distribution frames, FTTH/building cabling, data centres, 19-inch distribution panels and splice enclosures
Single sales pack logistics
Pack dimensions / gross weight 10.5 × 5 × 4cm / 0.06kg

Frequently Asked Questions

Does the pack contain one or 150 protectors?
It contains one sales pack with 150 individual protectors.
Is a splicer or crimping tool included?
No. The official package list contains the pack of protectors only.
Does “no additional insertion loss” guarantee the splice?
No. It describes the protector; the optical splice still needs to be made and checked correctly.
Singular Expert Insight
Select the protection method to match the installation tooling and cassette. This mechanical crimp format differs from heat-shrink splice sleeves even when both protect a fibre joint. Check crimp-tool and splice-cassette fit

Buyer’s Guide

✓

Buy it if

 Your fibre installation uses compatible mechanical crimp protection and needs a 150-piece pack.
✕

Skip it if

 Your process requires heat-shrink sleeves or an incompatible cassette or tool.
→

Also consider

 The protector format specified by your splice cassette and installation process.
Check crimp-tool and splice-cassette fit
