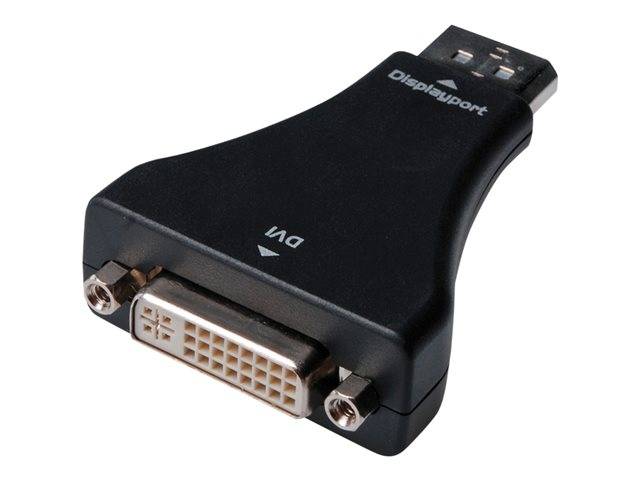

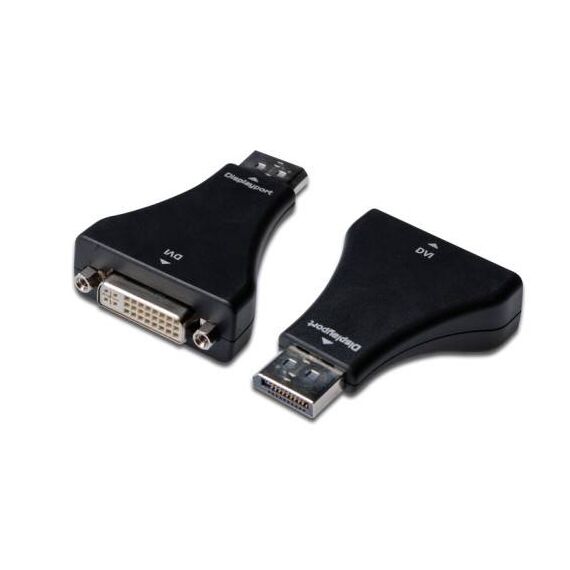

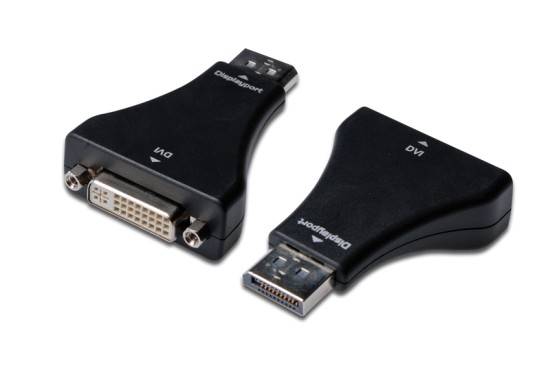

Assmann AK-340603-000-S DisplayPort to DVI-I Adapter Full HD Black

Brand:
Digitus
ASSMANN adapter DisplayPort (M) to DVI-I (F) AK-340603-000-S
Assmann AK-340603-000-S DisplayPort to DVI-I Adapter Full HD Black
€9.67 inc. VAT
Buy
AK-340603-000-S
€8.13
€9.67 inc. VAT
Ships from EU stock: 29 item(s)
+ −
Add to wish list Ask a question
Product Code
04:252249
EAN Code
4016032289722
Manufacturer
Digitus
Type
DisplayPort - DVI
Quick Specs
Type
DP to DVI adapter (M/F)
Connectors
DP male · DVI-I 24+5 female
Max resolution
1920 × 1080 (Full HD)
Length
Approx. 10 cm · black
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Assmann DisplayPort to DVI-I Adapter — Full HD, Latching Pigtail

DP → DVI-I (F)Full HD 1080p10 cm · Black

The Assmann AK-340603-000-S is a short DisplayPort-to-DVI adapter that plugs into a full-size DisplayPort output and provides a DVI-I (24+5) socket, so an existing DVI cable can connect a PC or graphics card to a DVI monitor at Full HD.

It is a passive DisplayPort 1.2 design on a 10 cm pigtail with a snap-latch DP plug, nickel-plated contacts and a black moulded housing.

Compatibility note: Passive adapter: the DisplayPort output must support DP++ (dual-mode). It carries a digital single-link DVI signal only — no analogue VGA through the DVI-I socket and no dual-link resolutions such as 2560 × 1600.

Technical Specifications

Identification
Part Number AK-340603-000-S
EAN / GTIN 4016032289722
MPN AK-340603-000-S
Brand ASSMANN (Digitus)
Connection
Input DisplayPort male, snap latch
Output DVI-I female (24+5) — accepts DVI-D and DVI-I cables; digital signal only
Standard DisplayPort 1.2
Signal type Passive (DP++), DisplayPort → DVI only
Performance
Max resolution 1920 × 1080 (Full HD)
DVI mode Single-link digital
Physical
Design Pigtail adapter, approx. 0.1 m
Contacts Nickel-plated
Housing Moulded
Colour Black
Weight 0.02 kg

Frequently Asked Questions

Can I use the AK-340603-000-S with my existing DVI-D cable?
Yes. The DVI-I socket accepts both DVI-D (24+1) and DVI-I (24+5) plugs, so any standard DVI cable can run from the adapter to the monitor.
Will this adapter connect a DisplayPort PC to a VGA monitor via a DVI-to-VGA adapter?
No. The adapter outputs digital DVI only; the analogue pins are not active, so a DVI-to-VGA dongle will not work. Use a DisplayPort to VGA adapter such as Techly IADAP-DSP-230T instead.
Singular Expert Insight

A tidy, low-stress way to keep a DVI monitor on a newer graphics card, especially when you already own a DVI cable of the right length. For 1440p or 1600p dual-link DVI monitors you need an active dual-link converter instead.

✓ Buy it if you want to reuse a DVI cable to connect a Full HD DVI monitor to a DisplayPort PC.
✕ Skip it if you need analogue VGA via DVI or dual-link DVI resolutions.
→ Also consider Lanberg CA-DPDV-10CU-0018-BK (1.8 m DP to DVI-D cable) or Equip 133431.
