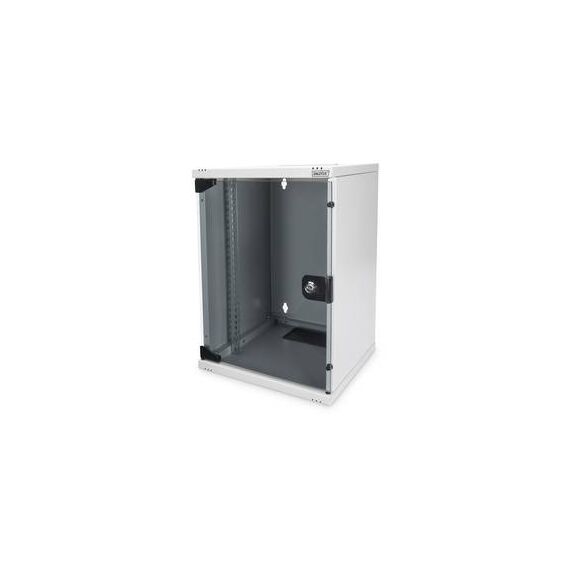

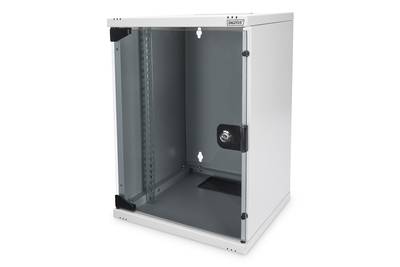

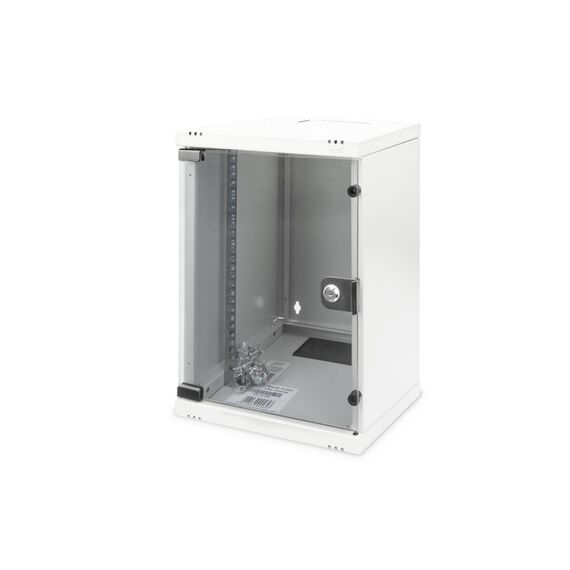

DIGITUS DN-10-09U 10 Inch Wall Mounting Cabinet 9U 464x312x300 mm Lockable Glass Door Assembled 30 kg IP20 Light grey RAL 7035

Brand:
Digitus

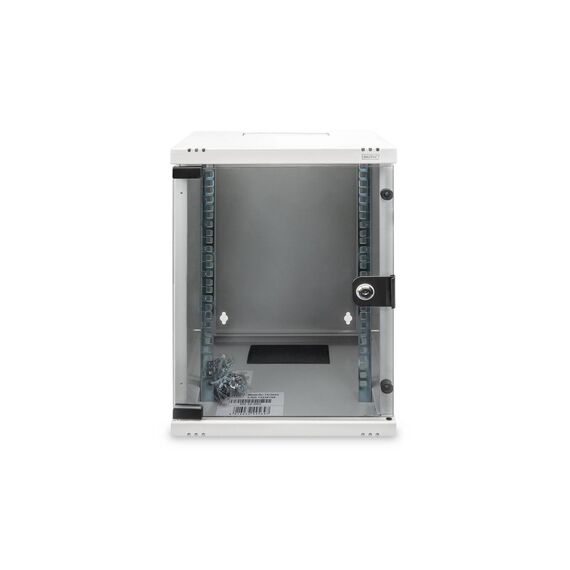

DIGITUS DN-10-09U 10" Wall Cabinet 9U Glass Door Grey
DIGITUS DN-10-09U 10 Inch Wall Mounting Cabinet 9U 464x312x300 mm Lockable Glass Door Assembled 30 kg IP20 Light grey RAL 7035
€160.82 inc. VAT
Buy
DN-10-09U
€135.14
€160.82 inc. VAT
Ships from EU stock: 47 item(s)
+ −
Add to wish list Ask a question
Product Code
04:255931
EAN Code
4016032445647
Manufacturer
Digitus

Quick Specs

Rack Size
9U · 10″
External Size
464 × 312 × 300 mm
Usable Depth
Up to 240 mm
Door & Load
Glass door · 30 kg
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

DIGITUS DN-10-09U — 10″ Wall Mounting Cabinet, 9U, Light grey

9U · 10″312 × 300 mmLockable glass doorDelivered assembled

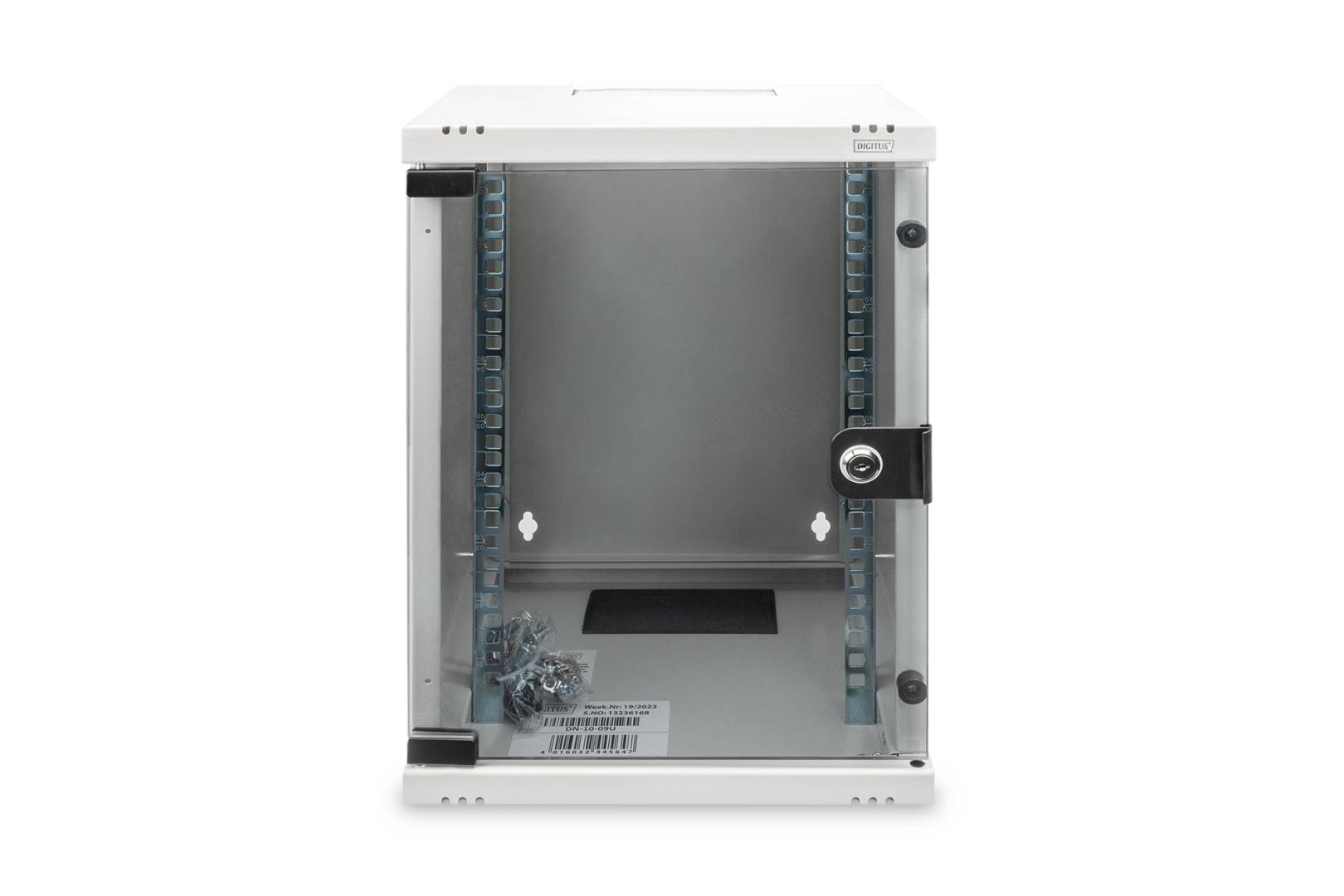

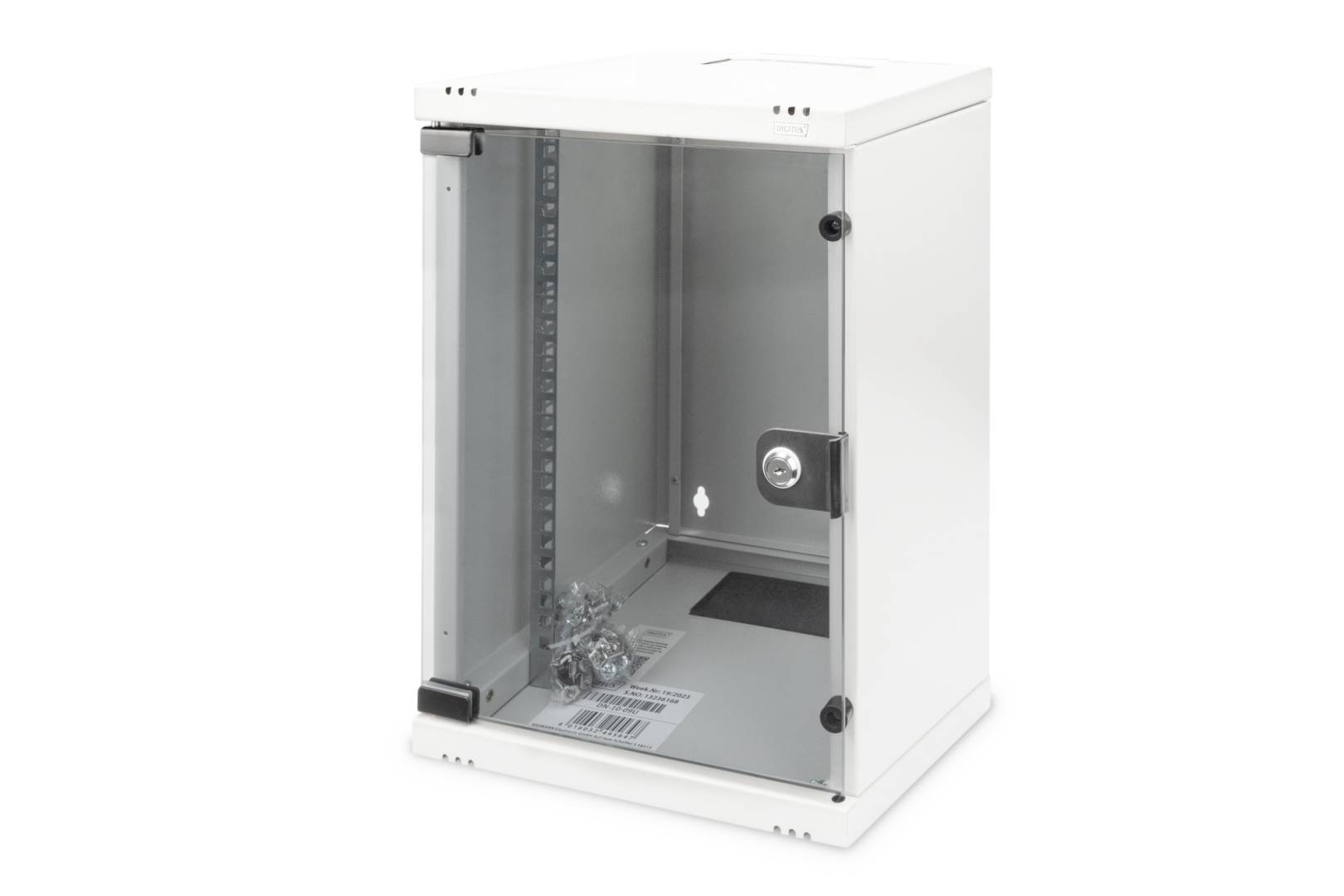

The DIGITUS DN-10-09U is a 9U wall mounting cabinet for 10″ (254 mm) equipment, in light grey (RAL 7035), 464 mm high, 312 mm wide and 300 mm deep. It arrives assembled, so it goes on the wall as soon as the fixings are in. A lockable safety-glass door opens 200° and keeps the equipment out of reach while the status LEDs stay visible. Inside, galvanised 10″ rails adjust in depth for up to 240 mm of usable depth, and DIGITUS includes an installation set with screws, cage nuts and washers plus two keys. The load rating is 30 kg, protection is IP20, a brush strip in the roof lets cables in without an open gap, and an earthing point in the base lets the installer bond the cabinet. In practice it is a neat, compact home for a 10″ patch panel, a small switch and a router in homes, shops and small offices.

Compatibility — check before buying:
This is a 10″ cabinet. Standard 19″ switches, patch panels and shelves will not fit — use 10″ equipment, or choose a 19″ wall cabinet. Usable depth is up to 240 mm: measure each device including its cables and power plug at the back. The installation set covers mounting your equipment; wall plugs and screws are not listed, so choose fixings for your wall and the loaded weight (up to 30 kg plus the cabinet). This is the 9U light grey model; DN-10-09U-B is the same cabinet in black, and DN-10-12U is the 12U version. Not sure your equipment is 10″? Send us the models and we check it.

Best For

✓ Home and apartment networks
✓ Small shops and kiosks
✓ Branch offices with few users
✓ 10″ patch panel plus switch
✓ Compact CCTV or alarm setups
✓ Installers who want no assembly

Key Features


Delivered assembled
No flat-pack assembly on site: fix it to the wall and start installing equipment.

Lockable glass door
Safety-glass door with a one-point lock opens 200°; LEDs stay visible, hands stay out.

Adjustable 10″ rails

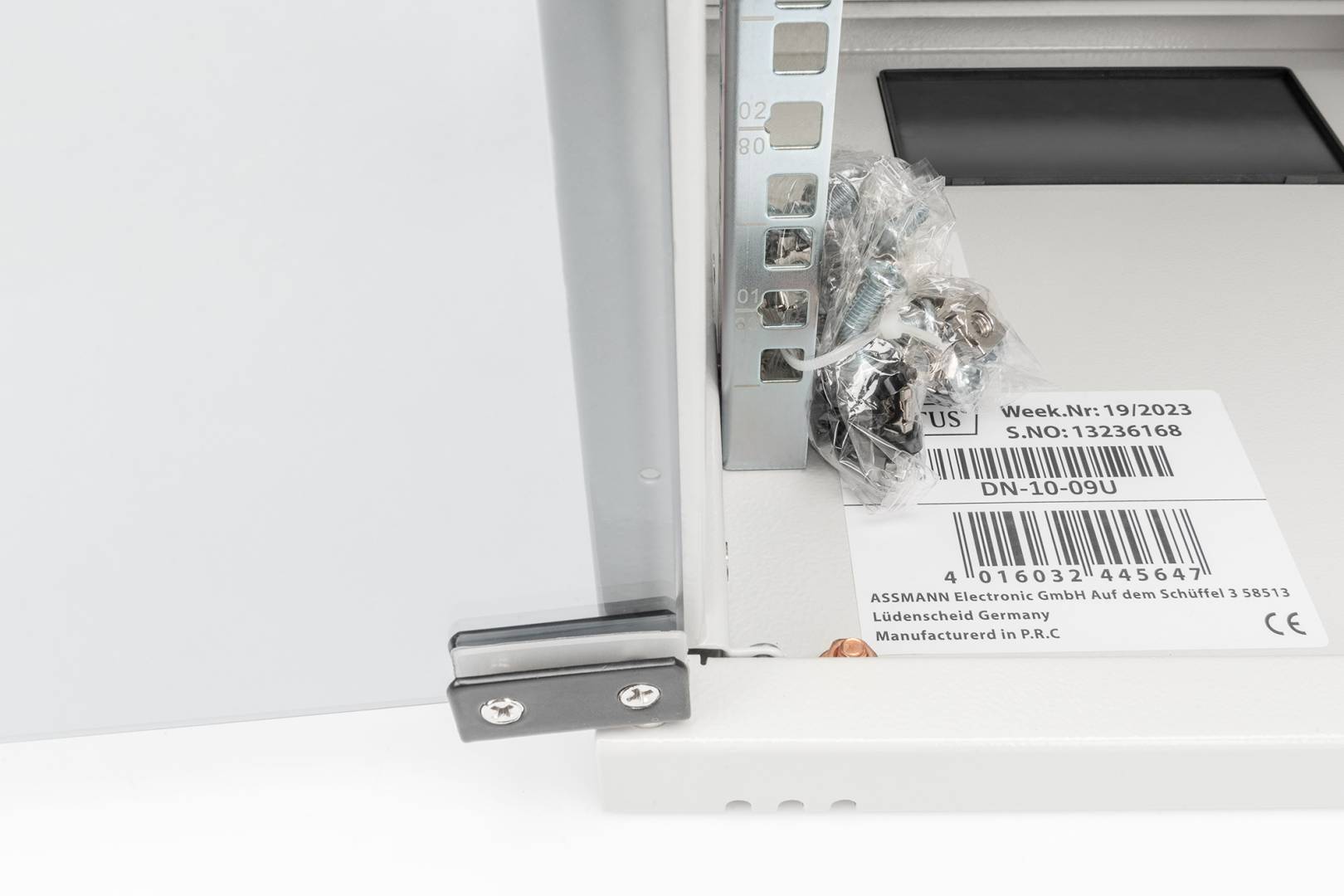

Galvanised rails move in depth for up to 240 mm of usable depth; an installation set is included.

Tidy cable entry
A brush strip in the roof and a covered opening in the floor bring cables in neatly and keep dust out.

Technical Specifications

Identification
Brand DIGITUS
Product DIGITUS wall-mounted housing, 254 mm (10″), 312 × 300 mm (W × D), 9U, light grey
Part Number DN-10-09U
EAN / GTIN 4016032445647
Colour Light grey (RAL 7035)
Dimensions & Capacity
Rack Size 9U, 10″ (254 mm)
External Size (H × W × D) 464 × 312 × 300 mm
Usable Depth Up to 240 mm, rails adjustable
Max. Load 30 kg
Net Weight 8.70 kg
Door & Housing

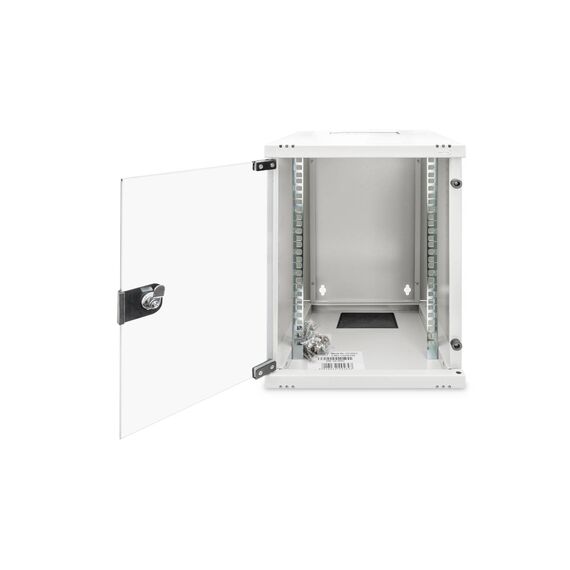

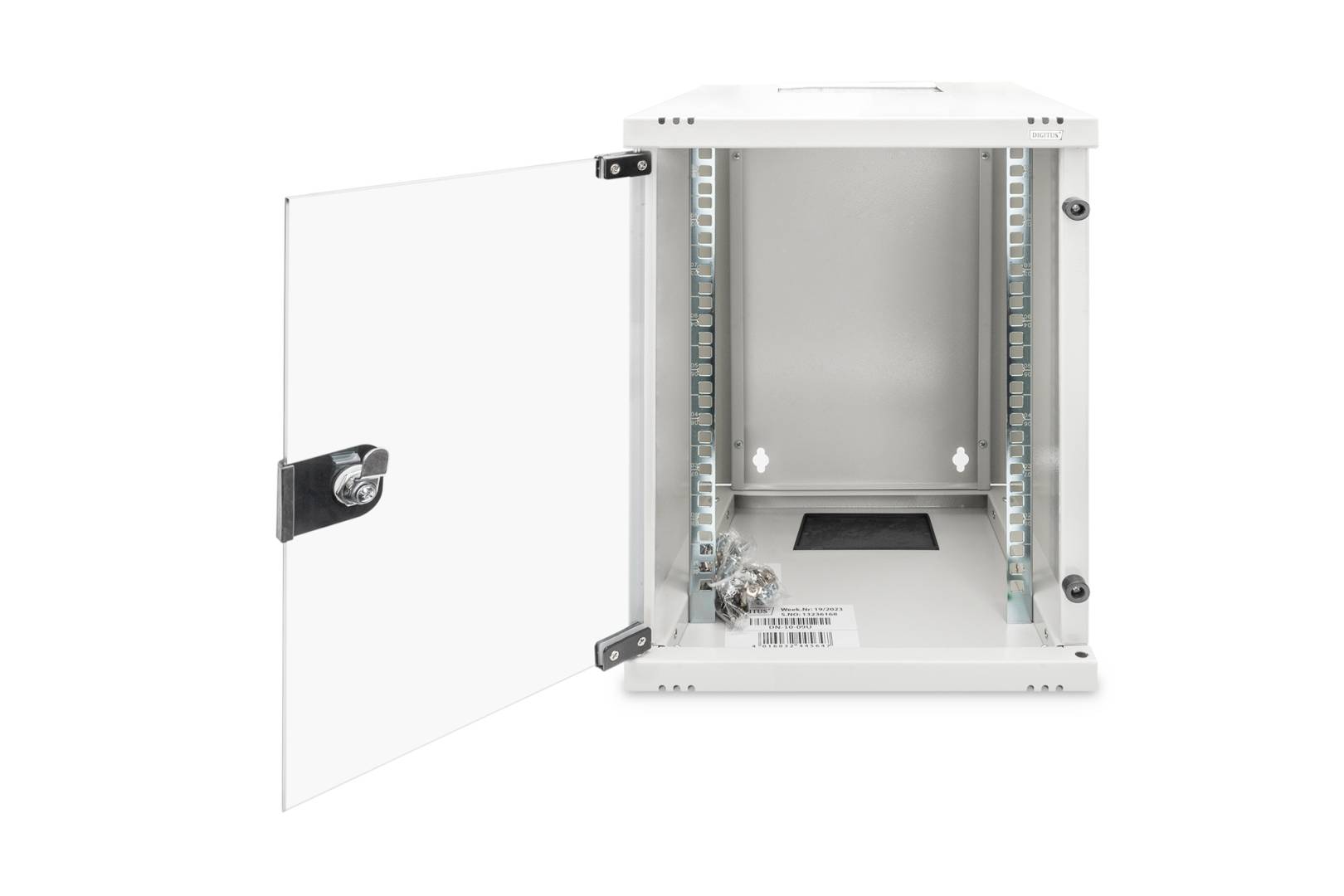

Front Door Safety-glass door, one-point lock, 200° opening
Keys 2 keys supplied
Side Panels Fitted on both sides
Material Sheet steel 1.1–1.5 mm, powder-coated
Colour Light grey (RAL 7035)
Protection Class IP20, for indoor use
Mounting & Assembly
Installation Wall mounting
Delivery Assembled

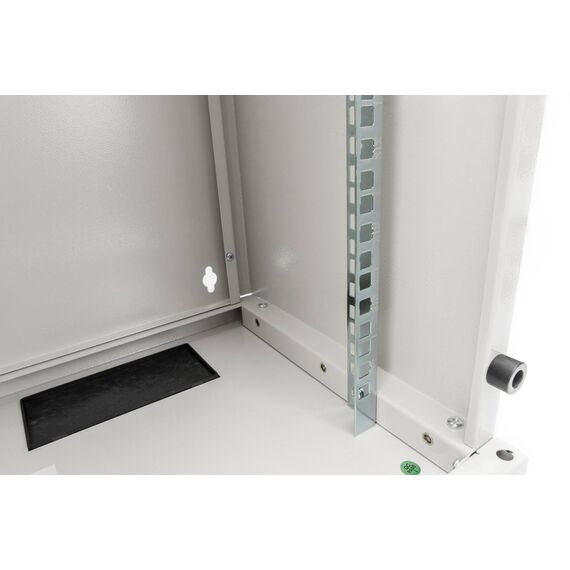

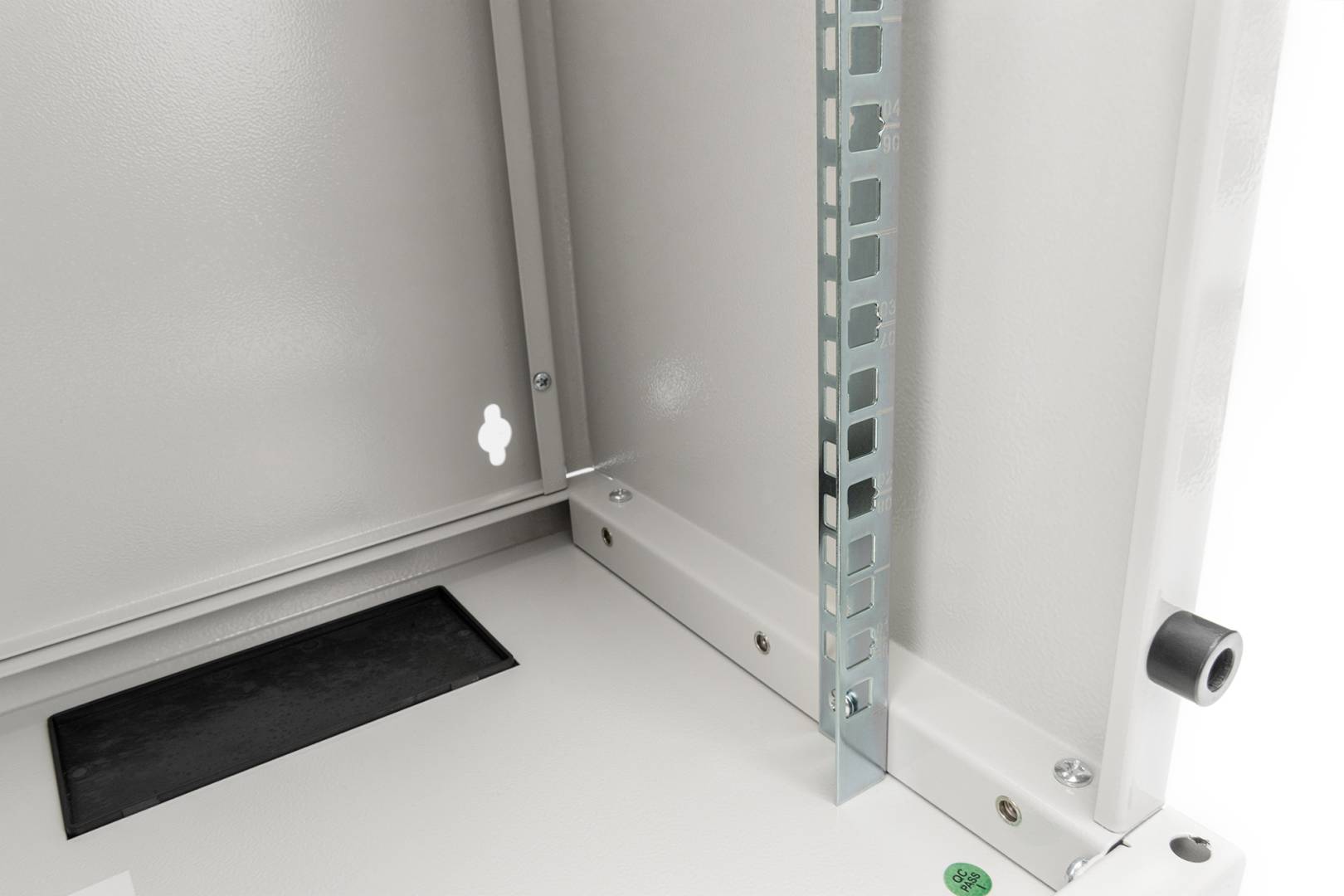

Rails 10″, galvanised, depth-adjustable
Earthing Earthing point in the base
Cable Management & Cooling
Cable Entry Brush strip in the roof, covered opening in the floor
Ventilation Slots for passive and active ventilation
Fan Not included
In the Box

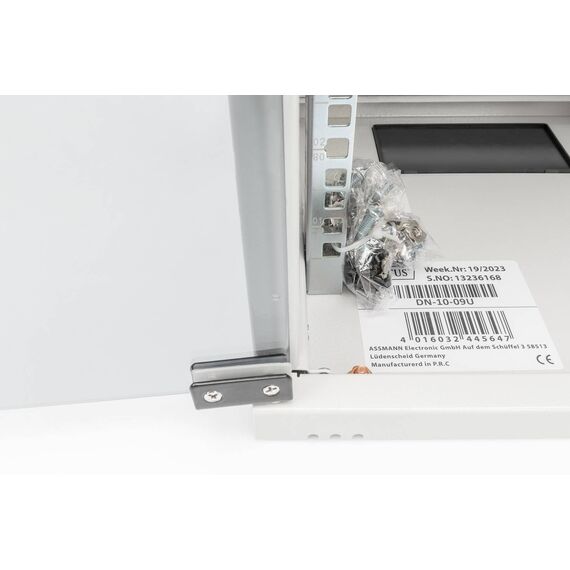

Included Installation set (screws, cage nuts, washers), 2 keys
Not Included Wall plugs and wall screws (not listed), shelves, fan, patch panel
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term DIGITUS does not publish a warranty term for this product on its product page or data sheet. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Will my 19-inch switch fit?
No. This is a 10″ cabinet. Choose a 10″ switch or patch panel, or a 19″ wall cabinet if your equipment is 19″. Tell us what you have and we suggest the right one.
Is it assembled?
Yes. DIGITUS delivers it mounted, with an installation set (screws, cage nuts, washers) and two keys, so it goes straight on the wall.
How deep can my equipment be?
Up to about 240 mm between the rails, depending on where you set them. Allow room for cables and plugs at the back.
What wall fixings do I need?
Wall plugs and screws are not listed in the box. Choose fixings for your wall type (concrete, brick, plasterboard) and the loaded weight, up to 30 kg plus the cabinet. We can add suitable fixings to your order.
Singular Expert Insight
We suggest the DN-10-09U when you want a small, lockable 10″ cabinet that goes on the wall without flat-pack assembly. Nine units hold a patch panel, a switch, a cable manager and a router shelf. Match it with 10″ patch panels and switches, and order wall fixings with it. Every order comes with Singular’s local support in Cyprus. See our patch panels and network switches, or browse all racks and cabinets.

Buyer’s Guide

Buy it if

You have 10″ equipment and want a lockable, ready-assembled 9U wall cabinet.

Skip it if

Your equipment is 19″ or deeper than 240 mm.

Also consider

DIGITUS DN-10-12U, the 12U version for more equipment.
