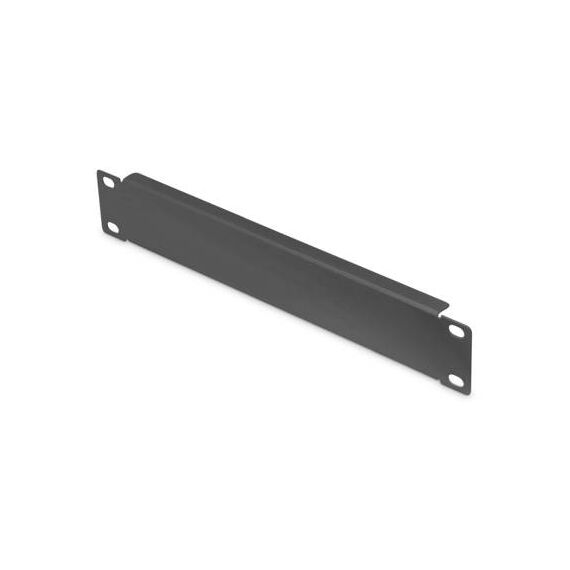

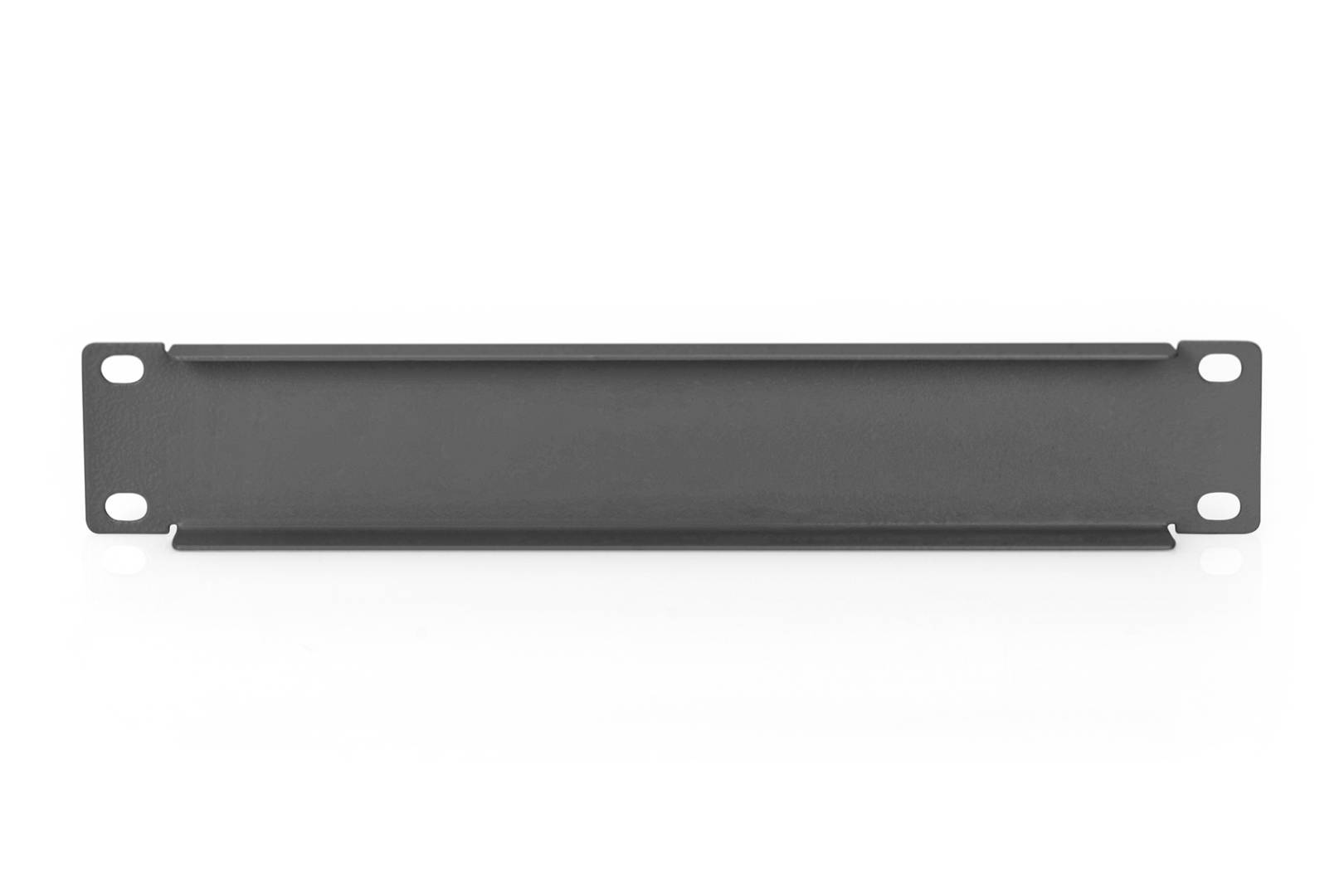

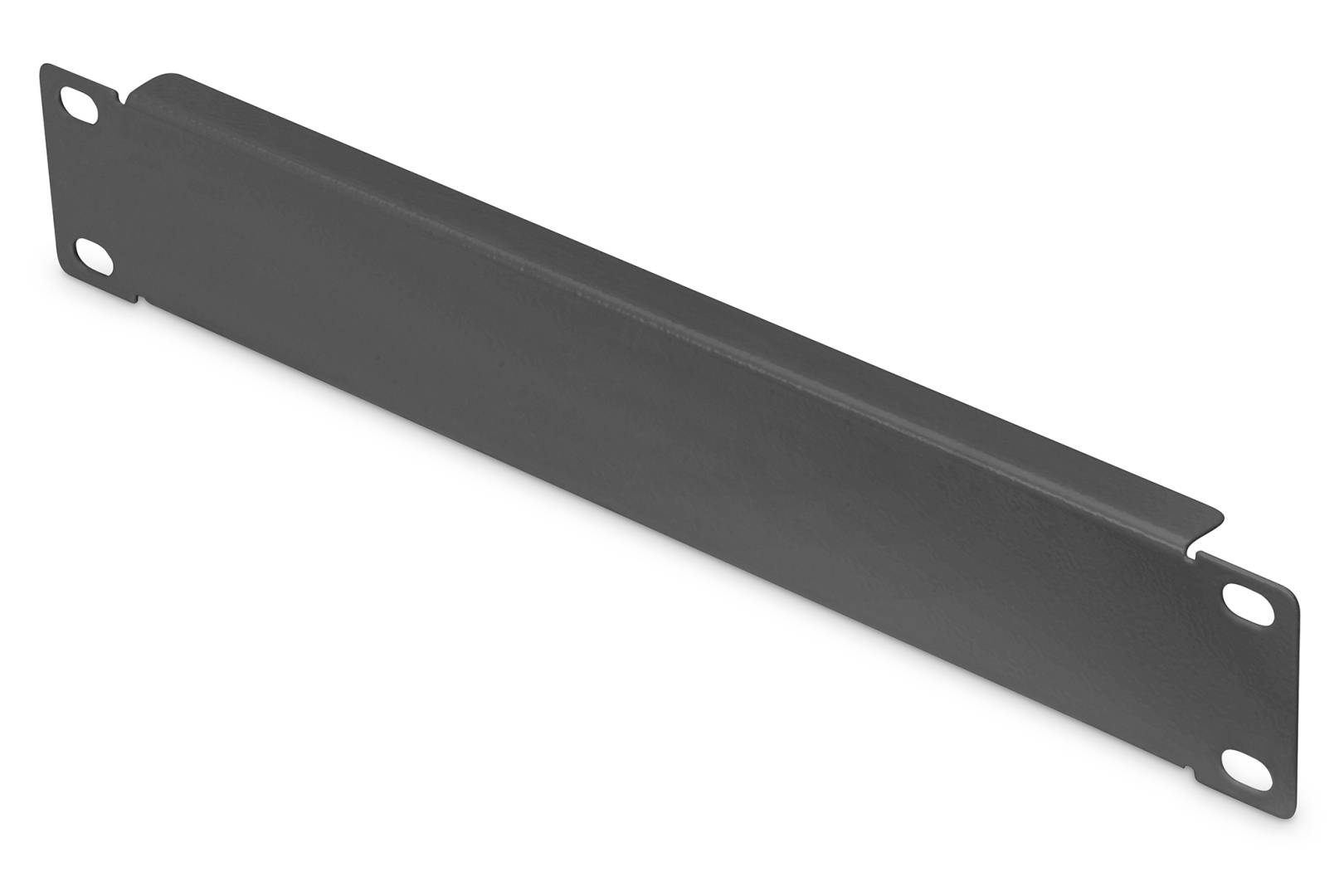

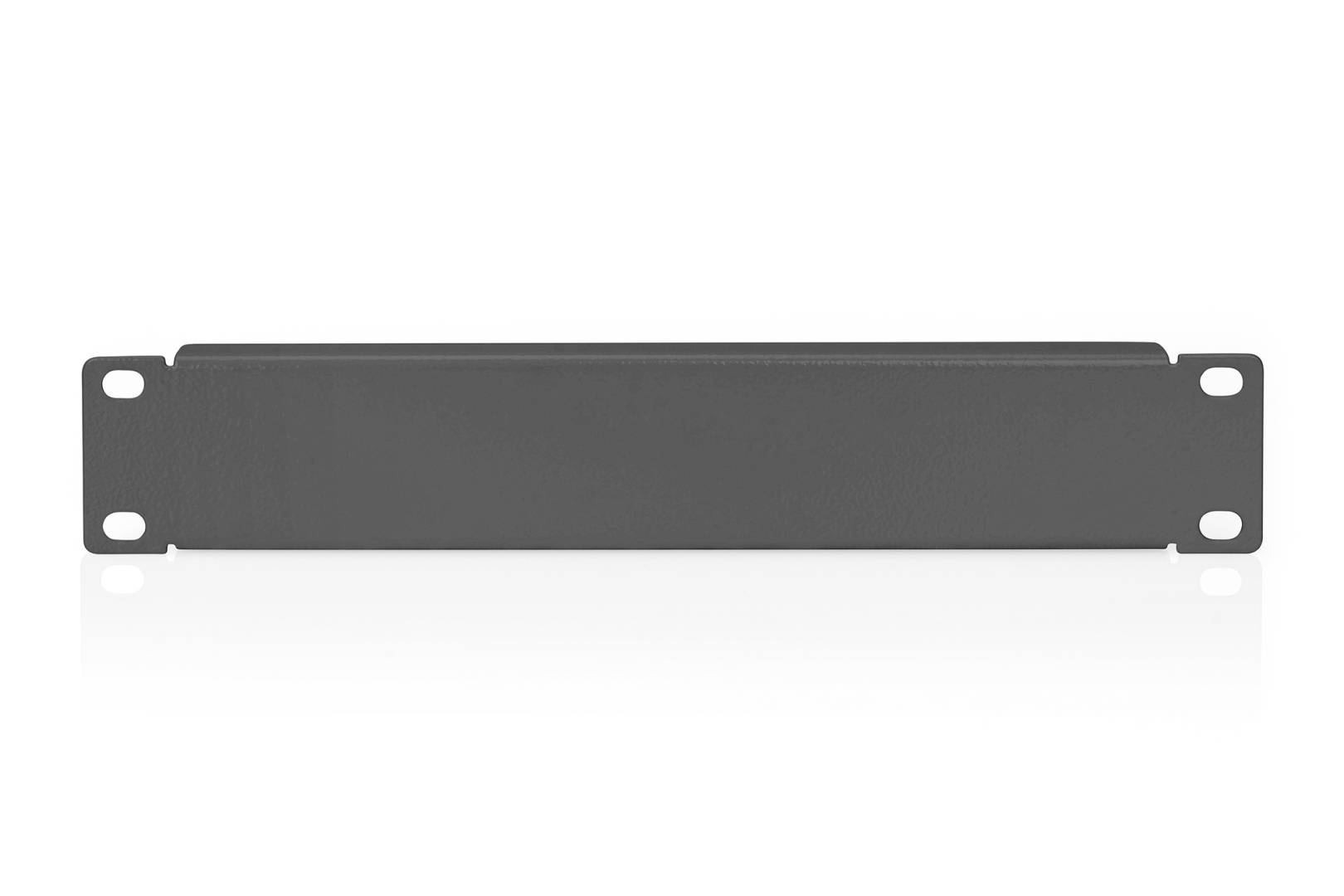

Digitus DN-10-BPN-01-B — Black 1U Blank Panel for 10-inch Enclosures
10" · 1USheet steelBlack RAL 9005Mounting kit included
The Digitus DN-10-BPN-01-B is a 1U blank cover for 254 mm (10-inch) network enclosures, made of sheet steel in black RAL 9005, for anyone who wants to close empty rack units in a black 10-inch wall or desktop cabinet.
Small 10-inch cabinets are common in offices, shops and home labs, and they rarely end up completely full. Every open unit lets warm exhaust air circle back to the front of the switch, lets dust in and shows the cabling behind. A blank panel fills that gap with a flat steel plate in the same black as the cabinet, so the front looks finished and the air moves the way the enclosure was designed for. The mounting hardware is in the box.
Before you order: This panel fits 10-inch (254 mm) rails only. For 19-inch racks use the Digitus DN-19 BPN-01-SW (black) instead; do not order the grey DN-10-BPN-01 by mistake if your cabinet is black.

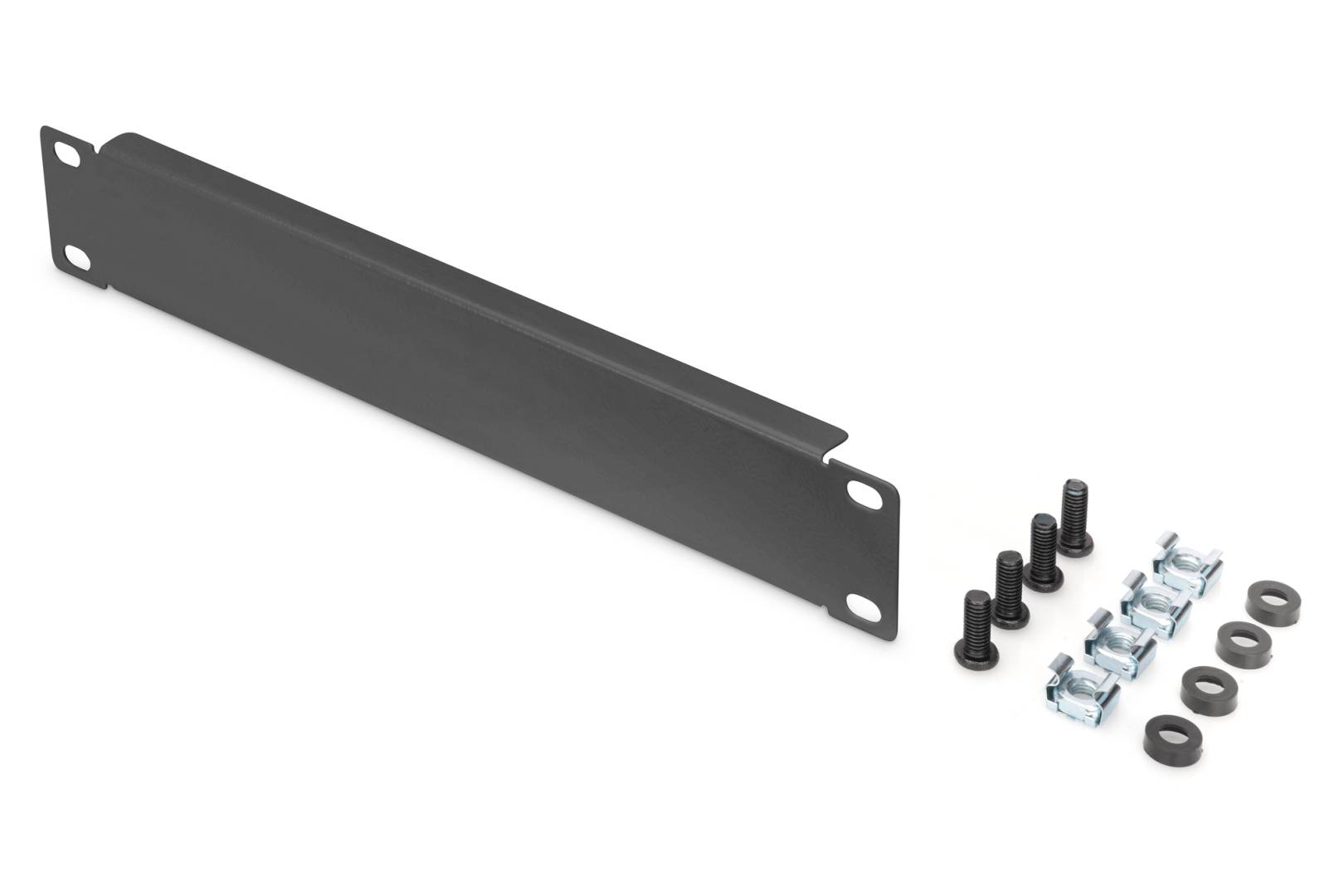

What's in the Box
- 1 × Digitus 10-inch 1U blank cover, black RAL 9005
- 4 × cage nuts
- 4 × mounting screws
- 4 × washers
What It Means in Practice
- Covers exactly one height unit (1U) in a 10-inch cabinet. For two empty units order two panels.
- Fits with cage nuts and screws on the front profile rails, like any 10-inch patch panel.
- Black RAL 9005 is the standard black used on most black network cabinets, so it blends in with the frame.
- At 12 mm deep it sits flat on the rails and does not take space from the devices above or below.
What Will Not Work
- 19-inch racks: at 255 mm wide it only reaches across 10-inch rails.
- Tool-less or snap-in fitting: the panel is screwed in.
- Passing cables: it is a solid plate. Use a brush panel where cables must go through.
- Grey cabinets: for a grey RAL 7035 enclosure the matching part is the DN-10-BPN-01.
Key Features
Finished black front
Closes empty units in the same black as the cabinet, so the rack looks complete.
Supports cabinet airflow
Stops warm air from the back of the cabinet recirculating through open units to the front.
Complete mounting kit
Four cage nuts, four screws and four washers come with each panel.
IEC 60297 10-inch format
Built to the 254 mm (10-inch) standard used by Digitus and other 10-inch enclosures.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
In a black 10-inch cabinet, a black blank panel is the difference between a half-finished install and a tidy one. Count your empty units and order one panel per unit; each one brings its own cage nuts and screws. Brush panels, shelves and cable managers for the same cabinet are in our rack accessories range.
✓ Buy it if you have a black 10-inch (254 mm) cabinet with empty height units you want to close.
✕ Skip it if your rack is 19-inch, your cabinet is grey, or cables have to pass through the gap.
→ Also consider the grey DN-10-BPN-01 for RAL 7035 cabinets, or a 10-inch brush panel for cable entry.
Not sure your cabinet is 10-inch? Send us the cabinet model or a photo of the rails and we will confirm the right panel before you order.
Features - Digitus - DN-10-BPN-01-B
Colour
black
More Details
Product Code
04:380083
EAN Code
4016032475910
Manufacturer
Digitus
