Digitus DN-10-BPN-01 10-inch 1U Blank Panel for 254 mm Network Enclosures, Sheet Steel, Light Grey RAL 7035
Brand:
Digitus
Digitus DN-10-BPN-01 10-inch 1U Blank Panel for 254 mm Network Enclosures, Sheet Steel, Light Grey RAL 7035
€8.26 inc. VAT
DN-10-BPN-01
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

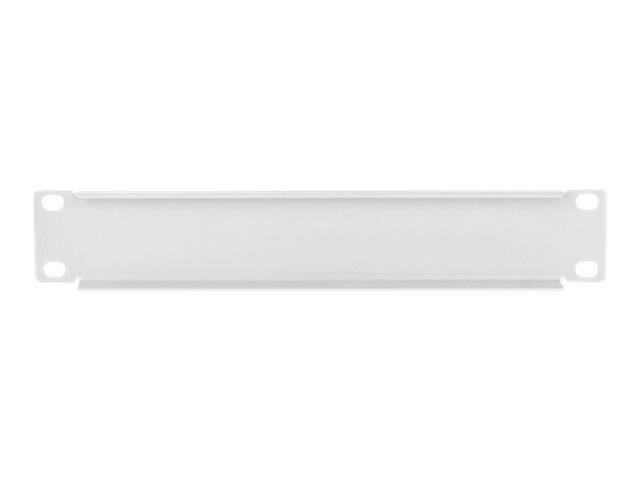

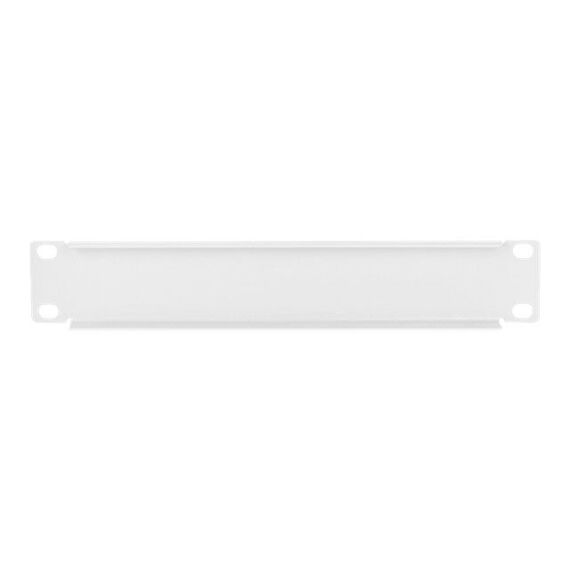

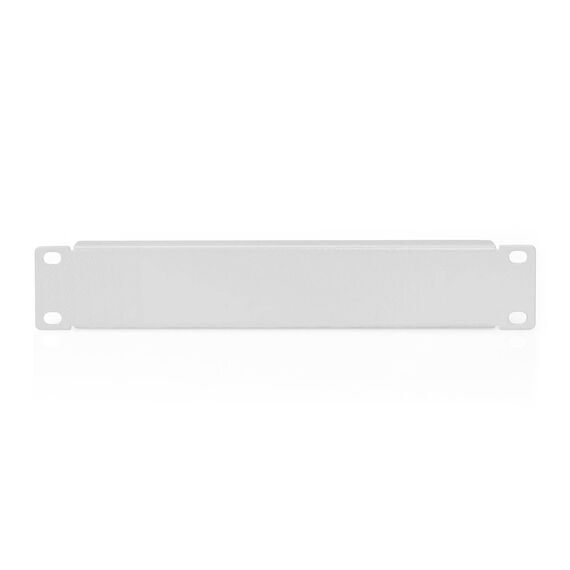

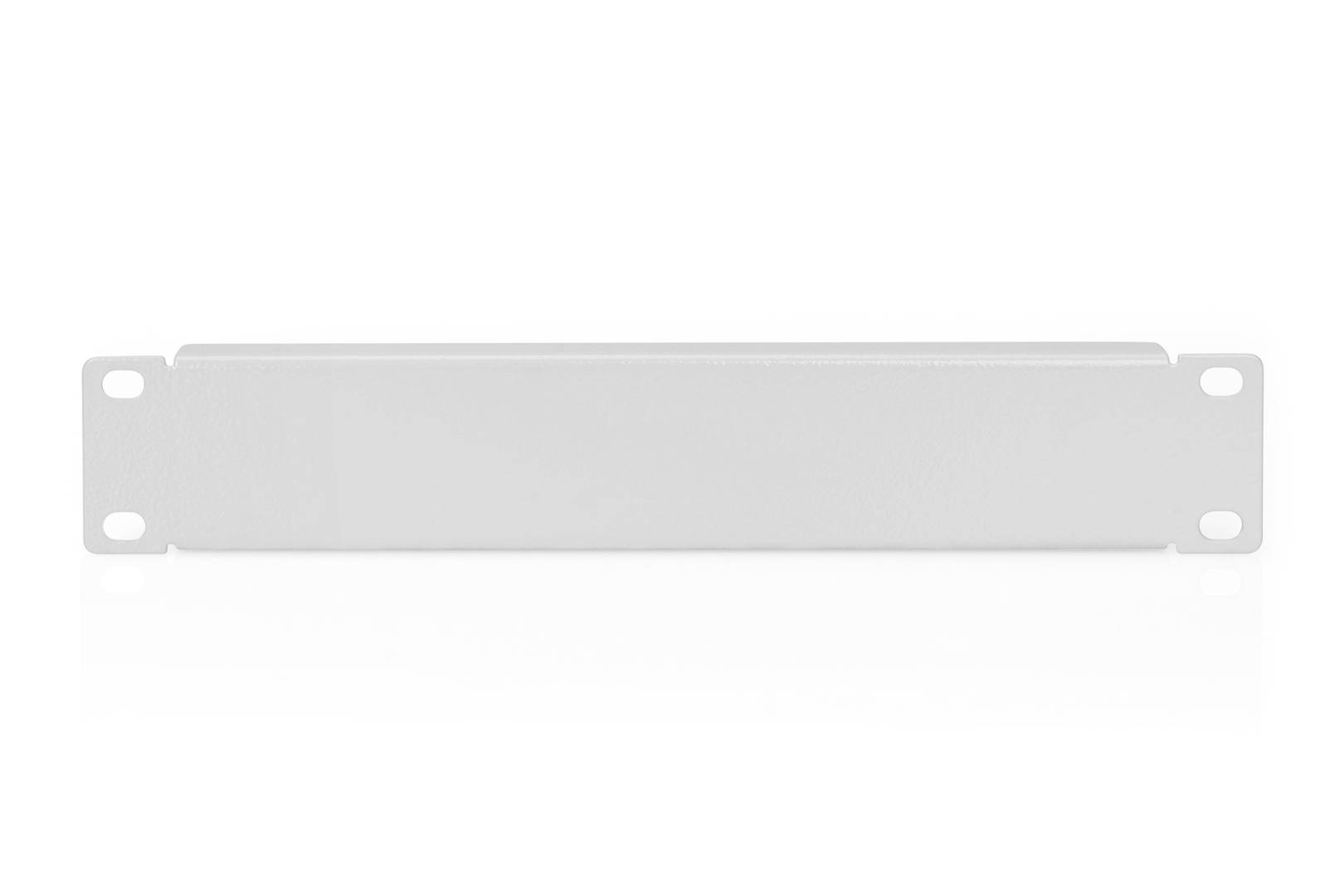

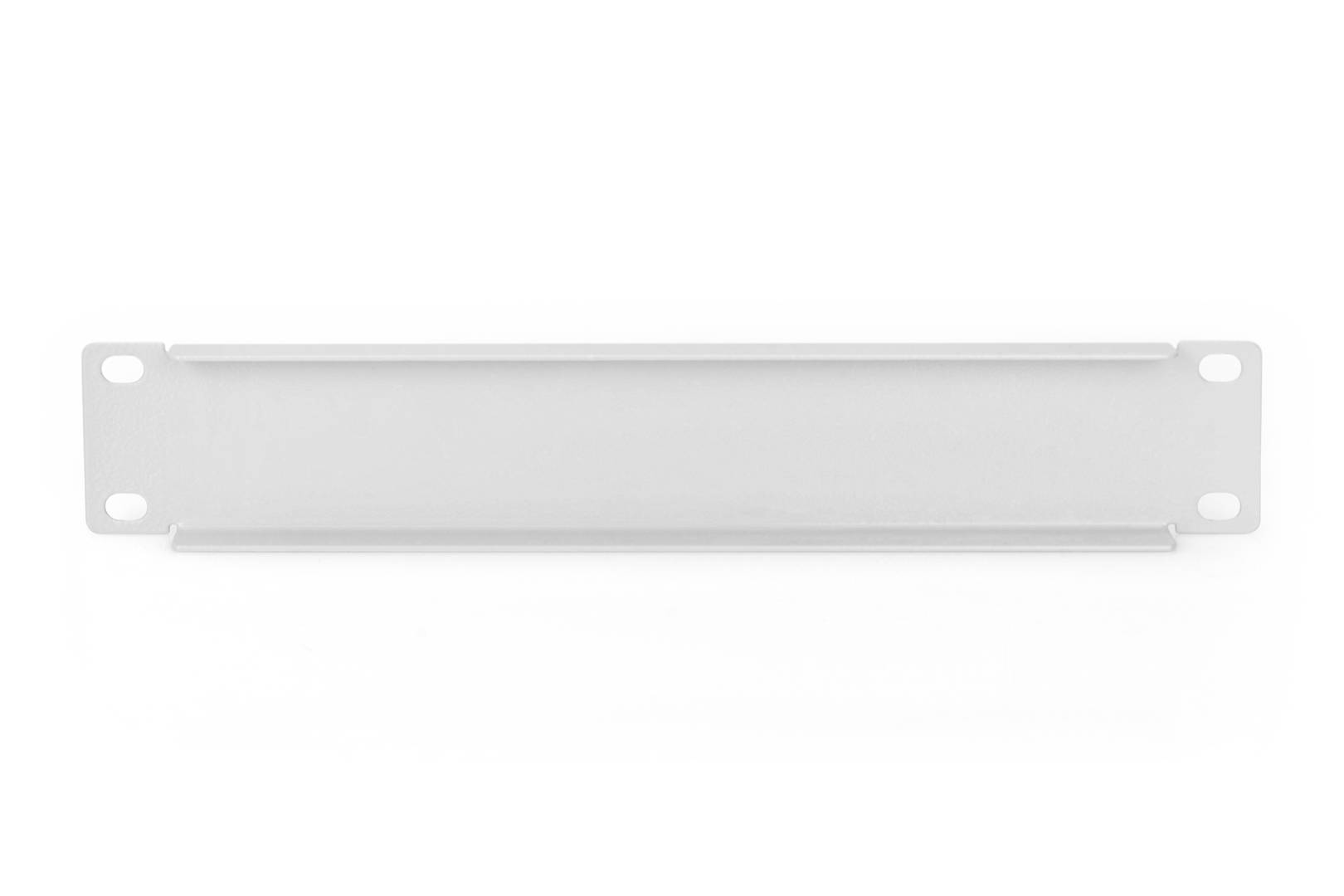

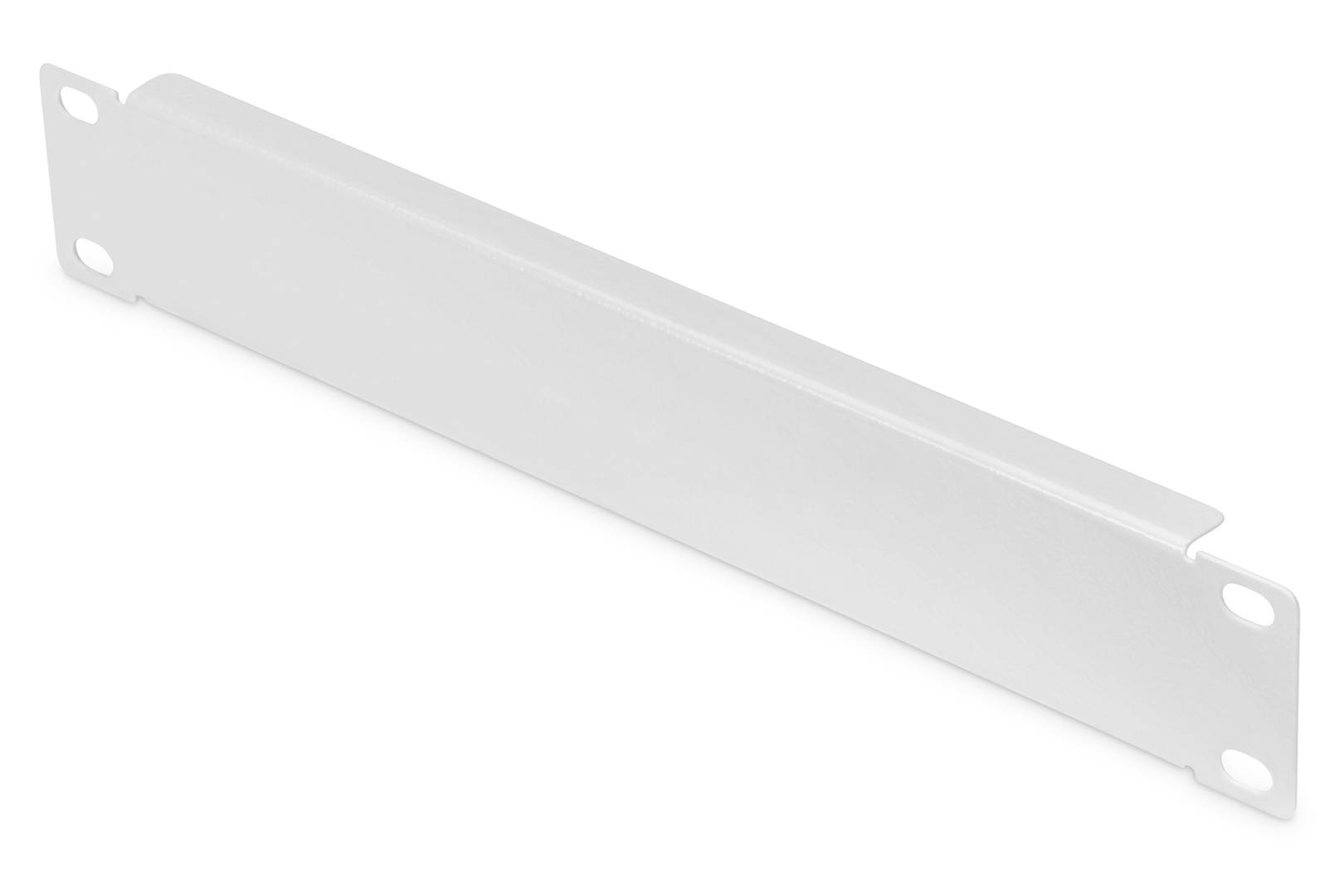

Digitus DN-10-BPN-01 — 1U Blank Panel for 10-inch Network Enclosures
10" · 1USheet steelGrey RAL 7035Mounting kit included
The Digitus DN-10-BPN-01 is a 1U blank cover for 254 mm (10-inch) network enclosures, made of sheet steel in light grey RAL 7035, for anyone closing empty rack units in a compact 10-inch wall or desktop cabinet.
Empty height units leave the front of a cabinet open: warm air from switches and patch panels loops back to the front instead of leaving through the rear or top, dust gets in, and loose cables are in plain view. A blank panel closes each gap with a flat steel plate, so the cabinet looks finished and the airflow follows the path the enclosure was designed for. Digitus supplies the mounting hardware with the panel, so it goes in with a screwdriver and nothing else.
Before you order: This panel is for 10-inch (254 mm) rails only. It will not span a 19-inch rack. For 19-inch cabinets choose the Digitus DN-19 BPN-01 (grey) or DN-19 BPN-01-SW (black) instead.

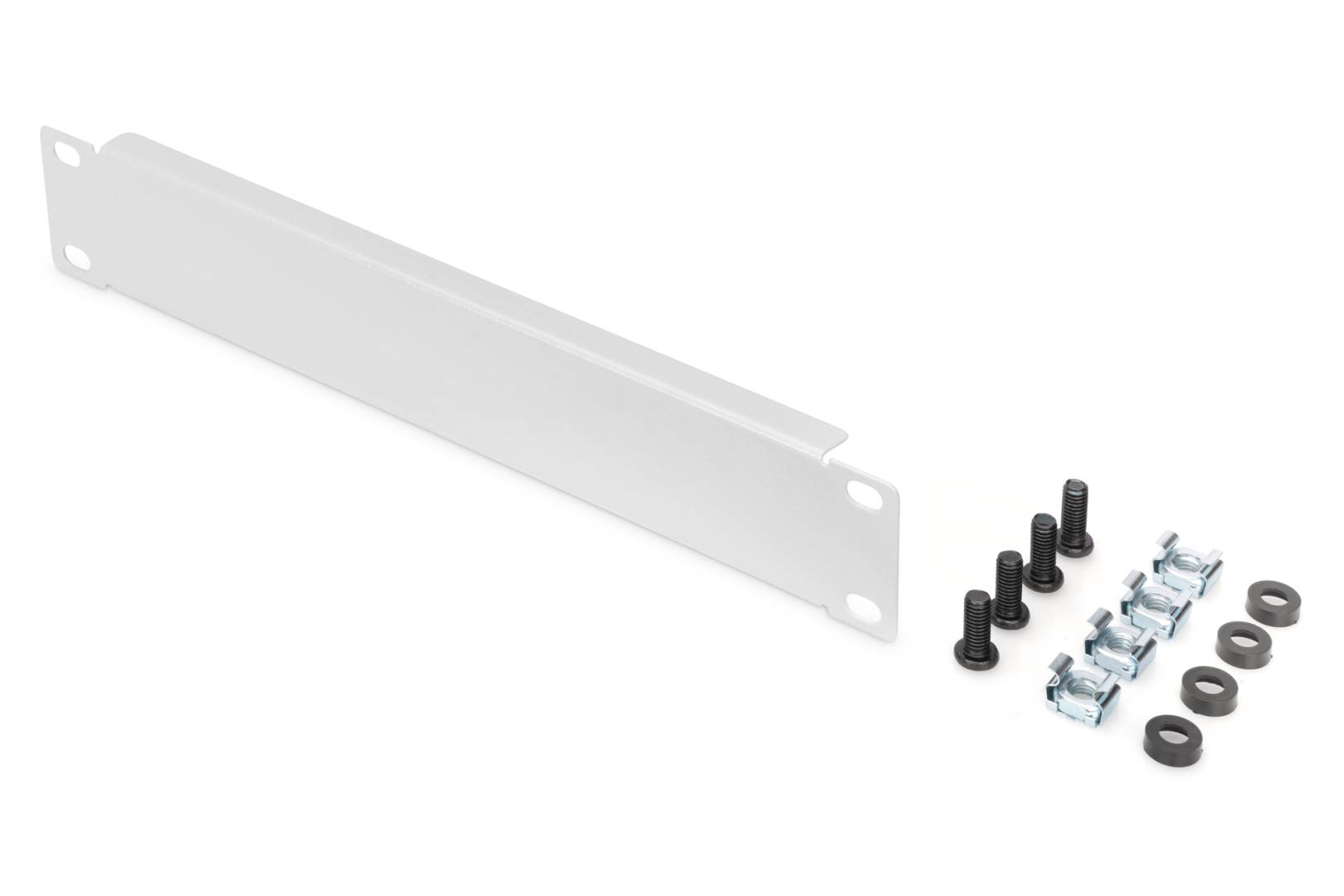

What's in the Box
- 1 × Digitus 10-inch 1U blank cover, grey RAL 7035
- 4 × cage nuts
- 4 × mounting screws
- 4 × washers
What It Means in Practice
- Covers exactly one height unit (1U, 44.45 mm) in a 10-inch cabinet. Two empty units need two panels.
- Screws into cage nuts on the front profile rails, the same way a 10-inch patch panel or shelf is fitted.
- Light grey RAL 7035 matches the most common grey 10-inch enclosures, including Digitus grey cabinets.
- The plate is only 12 mm deep, so it does not take space behind the rails away from the equipment above and below.
What Will Not Work
- 19-inch racks and cabinets: the panel is 255 mm wide and only reaches across 10-inch rails.
- Tool-less mounting: this panel is screwed in; there are no snap-in clips.
- Cable pass-through: it is a solid plate. For cables use a brush or cable-entry panel instead.
- Black cabinets: the colour is light grey. For a black enclosure order the DN-10-BPN-01-B.
Key Features
Closes empty height units
One solid steel plate per unit keeps the front of the cabinet closed and tidy.
Supports cabinet airflow
Blocking open units stops hot exhaust air from recirculating to the front of the equipment.
Complete mounting kit
Four cage nuts, four screws and four washers are in the pack, so no extra hardware is needed.
IEC 60297 10-inch format
Built to the 254 mm (10-inch) rack standard used by Digitus and other 10-inch enclosures.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Blank panels are the cheapest way to make a 10-inch cabinet look finished and behave as designed. Count the empty units first, then order one DN-10-BPN-01 per unit; the kit in the box is enough for each panel. You can find matching shelves, brush panels and cable managers in our rack accessories range.
✓ Buy it if you have a grey 10-inch (254 mm) cabinet with one or more empty height units to close.
✕ Skip it if your cabinet is 19-inch, black, or you need cables to pass through the opening.
→ Also consider the black DN-10-BPN-01-B for black enclosures, or a 10-inch brush panel where cables must pass.
Not sure which size your cabinet is? Send us the cabinet model or a photo of the rails and we will confirm the right panel before you order.
Features - Digitus - DN-10-BPN-01
Colour
grey
More Details
Product Code
04:380084
EAN Code
4016032475903
Manufacturer
Digitus
