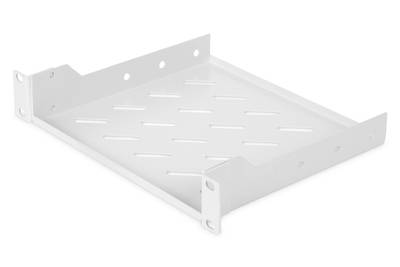

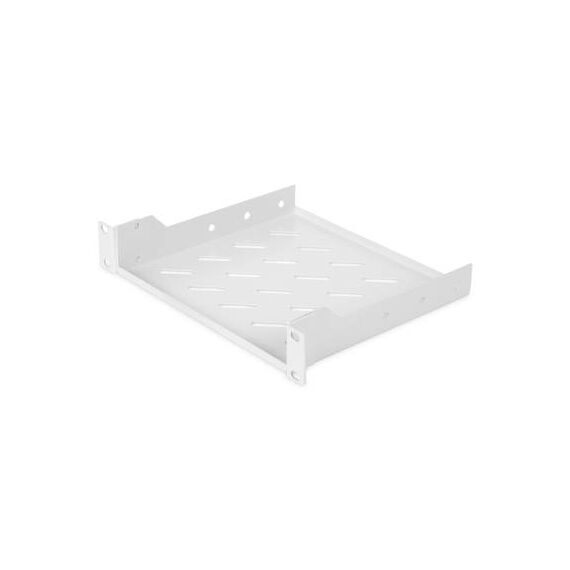

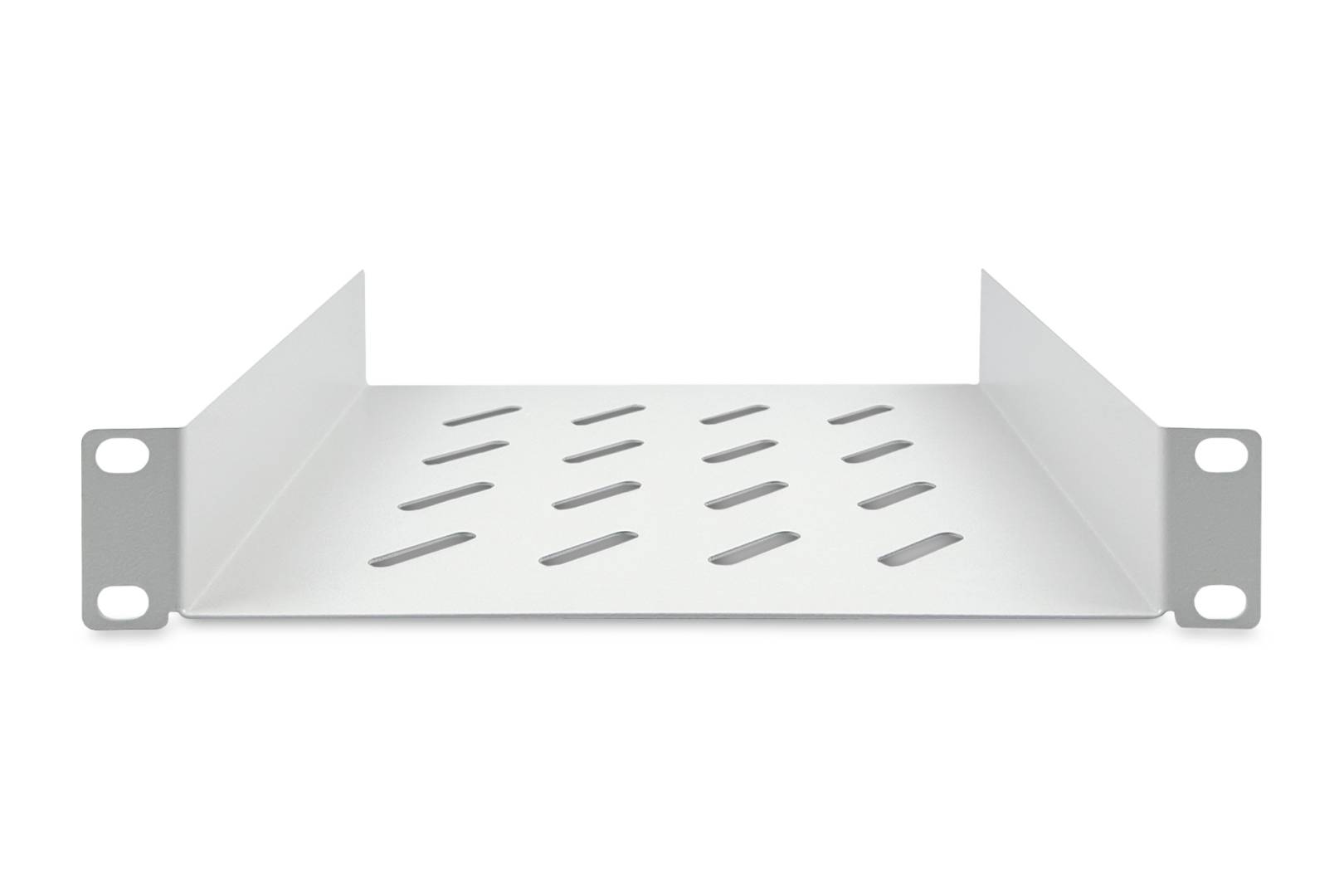

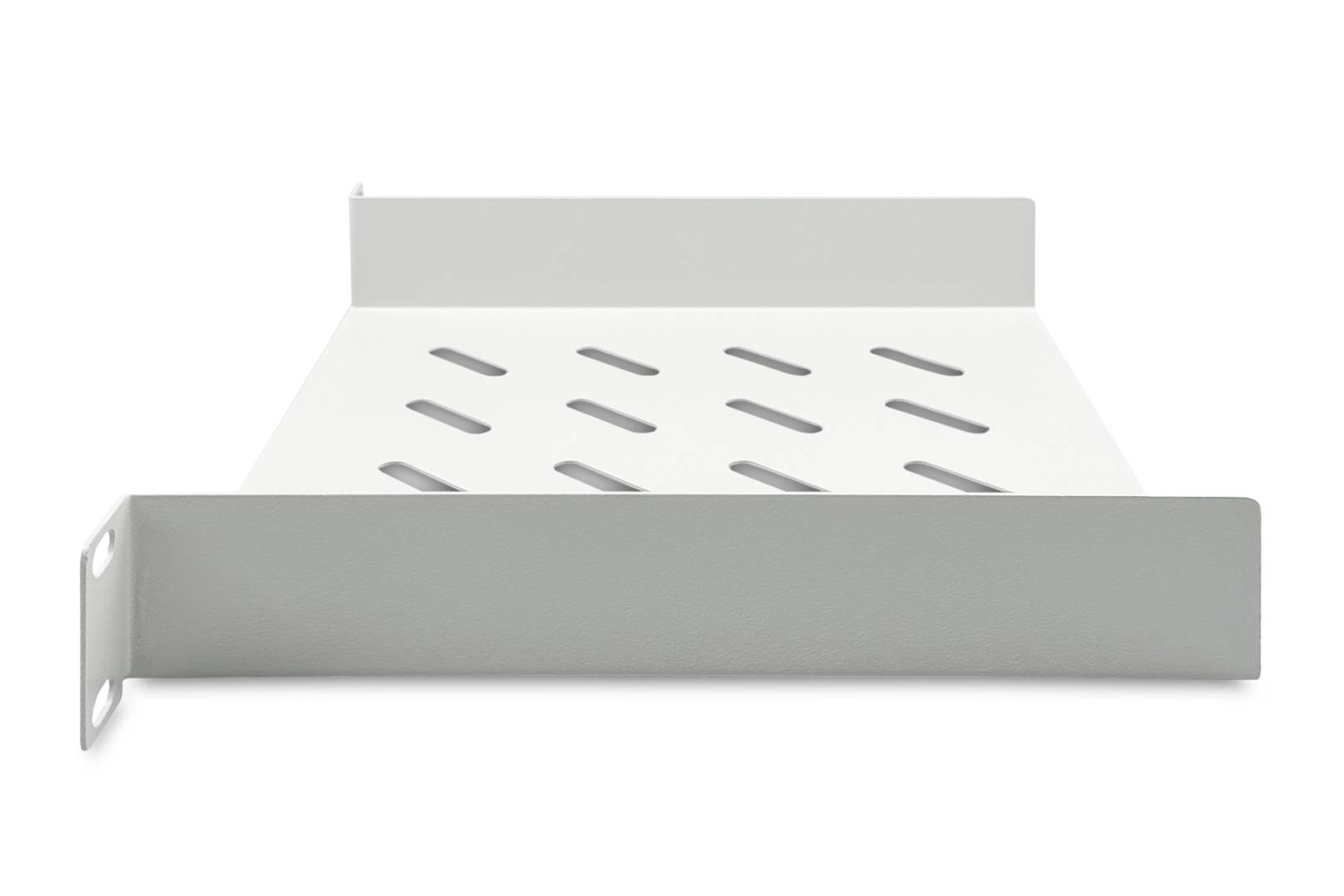

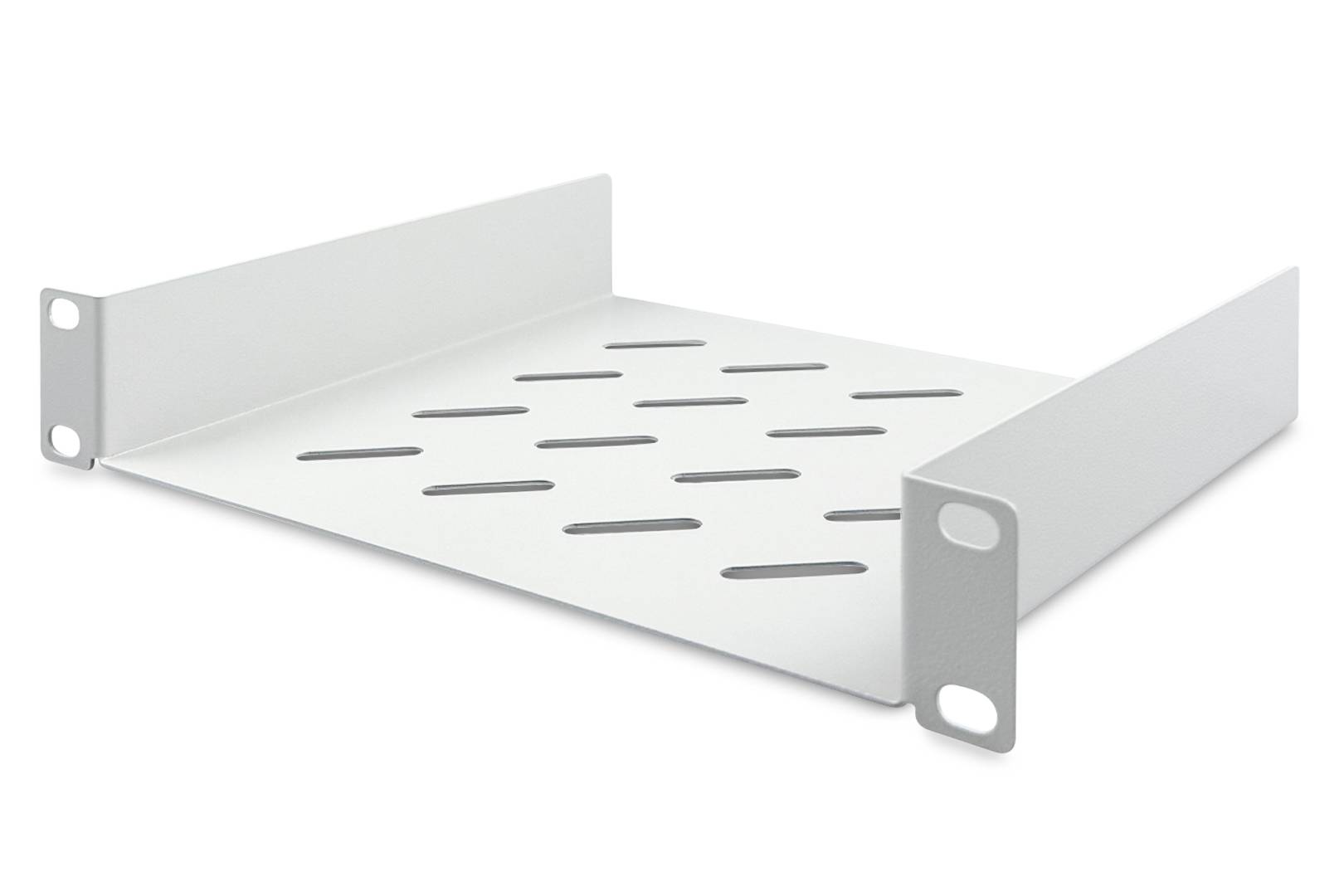

DIGITUS DN-10-TRAY-2 — 10" 1U Fixed Shelf, 200 mm Deep, Light Grey
10" · 1U25 kg max load210 x 200 mm usableFront 2-point fixing
The DIGITUS DN-10-TRAY-2 is a 1U fixed shelf for 254 mm (10") network cabinets and racks, with a 210 x 200 mm storage area and a maximum load of 25 kg. It gives non-rackable devices such as small routers, modems, mini PCs, NAS units and power supplies a stable place inside compact 10" wall cabinets used in home offices, shops and small branch sites.

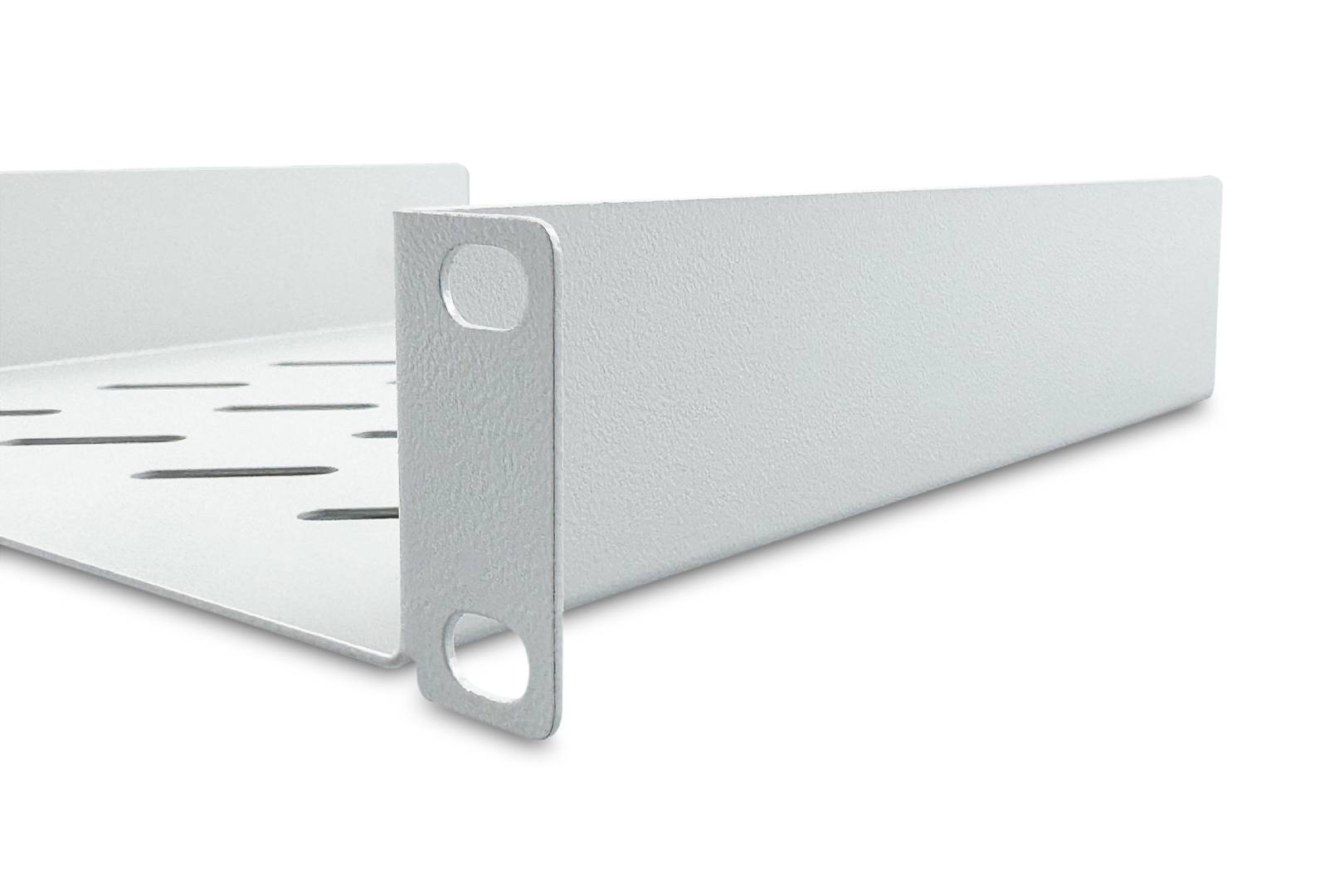

The shelf is made from perforated sheet steel in light grey RAL 7035. It is fixed at the front to the 10" profile rails with two mounting points on each side, so it works regardless of cabinet depth, and the perforations let warm air rise from the device on the shelf.
Before you order: This is the light grey (RAL 7035) version with 200 mm depth. For a black cabinet order DN-10-TRAY-2-B. DIGITUS also makes a shallower 150 mm 10" shelf (DN-10-TRAY-1 series) — do not mix them up if your cabinet is very shallow.

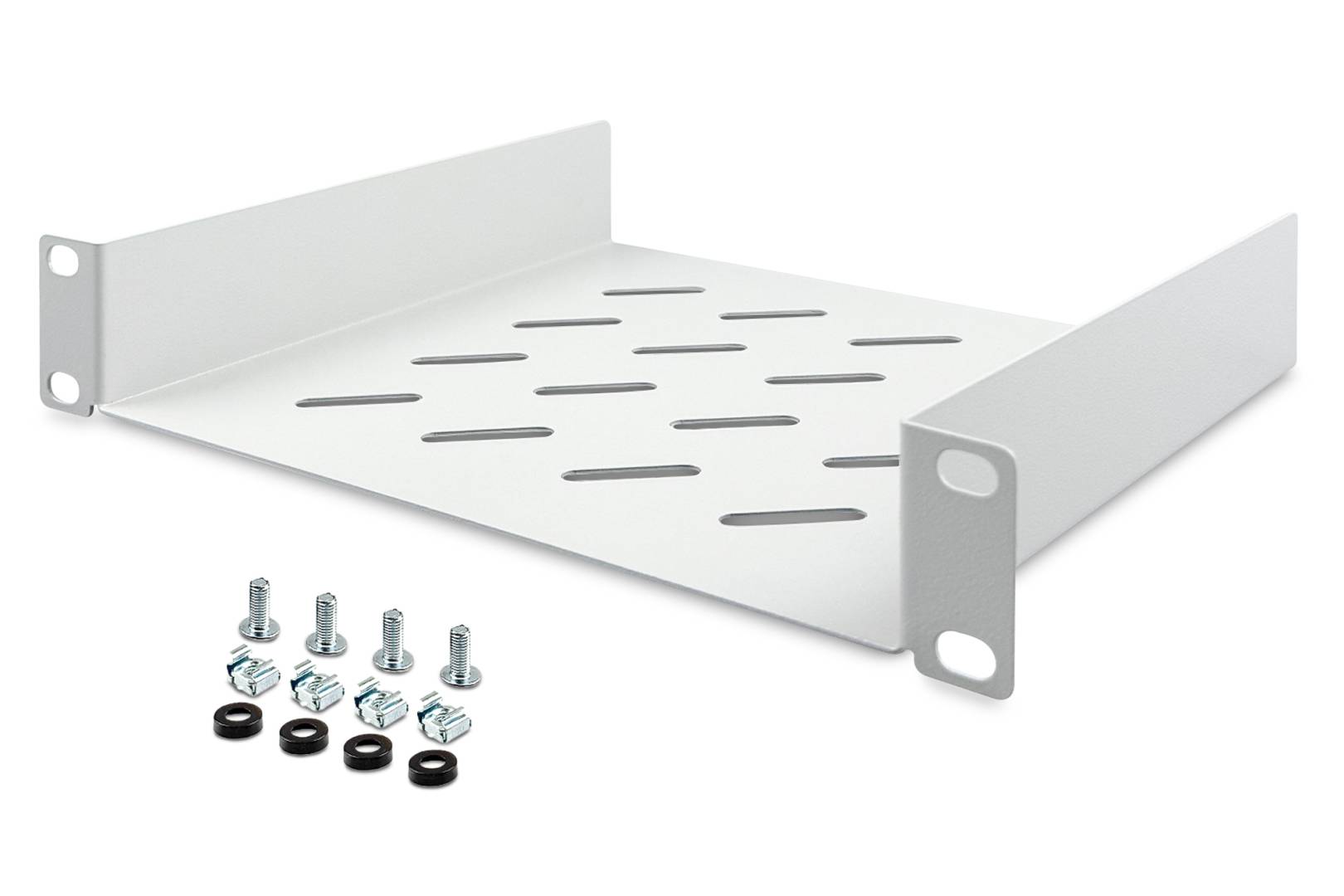

What's in the Box
- 1 x DIGITUS DN-10-TRAY-2 10" 1U fixed shelf
- Installation set: screws, cage nuts and washers
What It Means in Practice
- Outside dimensions are 255 x 201 x 44 mm, so the shelf fits any 10" cabinet with at least about 210 mm usable depth behind the front rails.
- The 210 x 200 mm usable surface takes a typical small router, ISP modem, PoE injector or a compact mini PC placed flat.
- Because it is fixed at the front only, keep heavy items towards the front edge and stay within the 25 kg maximum load.
- The perforated floor helps convection cooling, which matters in closed 10" wall cabinets without fans.
What Will Not Work
- It does not fit 19" (482.6 mm) racks or cabinets: it is made for 10" profile rails only.
- It is not a sliding or telescopic shelf: devices must be reached from the front.
- It does not replace a rear support in deep, heavily loaded setups — for loads above 25 kg a 10" shelf is the wrong choice.
- It will not fit if the usable depth behind the front rails is less than about 201 mm.
Key Features
10" 1U format
Fits standard 254 mm (10") profile rails and uses one rack unit.
25 kg maximum load
Rated for up to 25 kg, enough for routers, modems, NAS units and mini PCs.
Perforated steel
Perforated sheet steel supports airflow around the device on the shelf.
Mounting set included
Screws, cage nuts and washers are in the box.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
In 10" wall cabinets, a 200 mm fixed shelf is usually the first accessory to add, because routers and modems from the ISP are rarely rackable. Match the colour to your cabinet and see the rest of our Rack Accessories for blanking panels and cable management in the same format.
✓ Buy it if you have a light grey 10" cabinet and need to place a router, modem or mini PC of up to 25 kg.
✕ Skip it if you have a 19" rack, a cabinet with less than about 210 mm usable depth, or a heavier device.
→ Also consider DN-10-TRAY-2-B in black, or a 19" cantilever shelf for full-width racks.
Not sure it fits your setup? Send us the model of your 10" cabinet and the device you want to place and we will check depth and load before you order.
Features - Digitus - DN-10-TRAY-2
Colour
grey
More Details
Product Code
04:366884
EAN Code
4016032474265
Manufacturer
Digitus
