DIGITUS DN-10110 Gigabit Ethernet PCI Network Card · 1x RJ45 10/100/1000 Mbps · 32-bit PCI · RTL8169SC · Low-Profile Bracket
Brand:
Digitus
DIGITUS DN-10110 Gigabit Ethernet PCI Network Card · 1x RJ45 10/100/1000 Mbps · 32-bit PCI · RTL8169SC · Low-Profile Bracket
€22.18 inc. VAT
DN-10110
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
DIGITUS DN-10110 — Gigabit networking for desktops with a PCI slot
1x RJ45 Gigabit32-bit PCIRTL8169SCLow-profile bracket

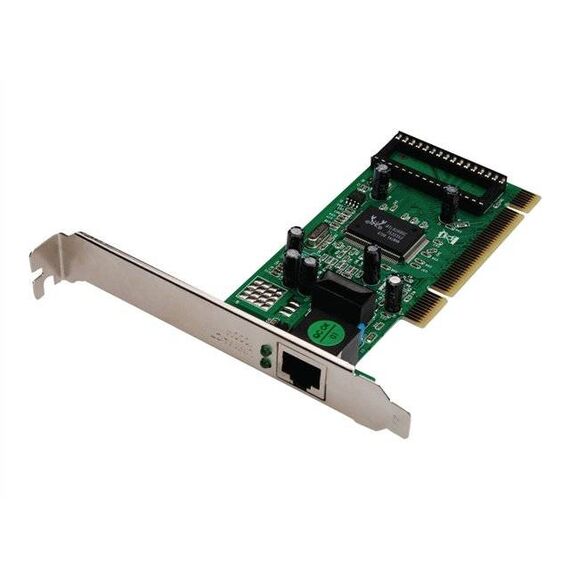

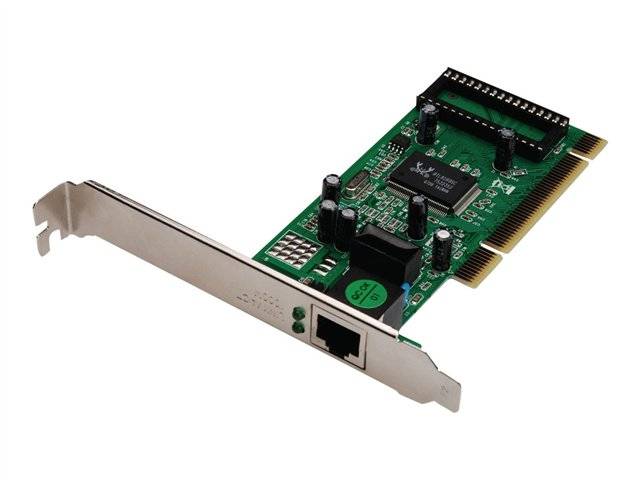

The DIGITUS DN-10110 is a conventional PCI network card with one 10/100/1000 Mbps RJ45 port, based on the Realtek RTL8169SC controller. It is designed for older desktops, point-of-sale systems and small servers that still have PCI slots and need a Gigabit connection or a replacement for a faulty onboard LAN.

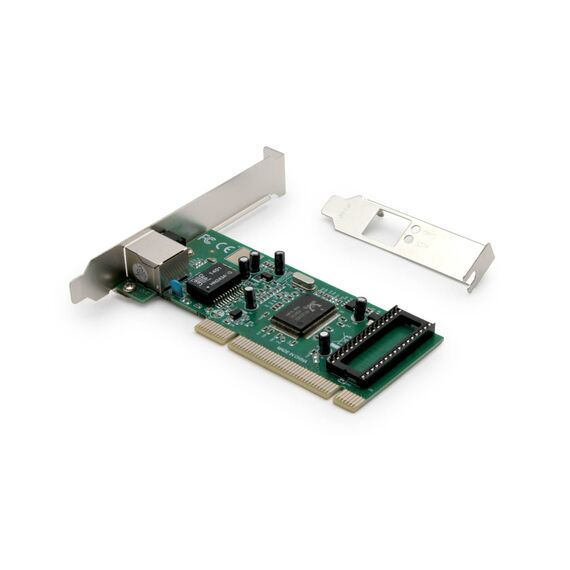

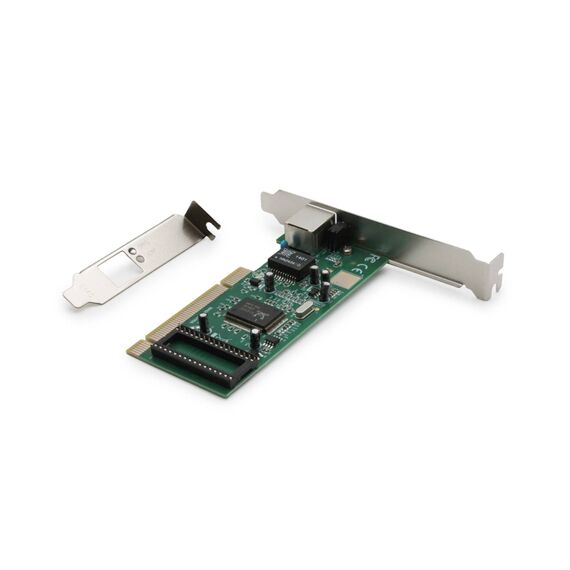

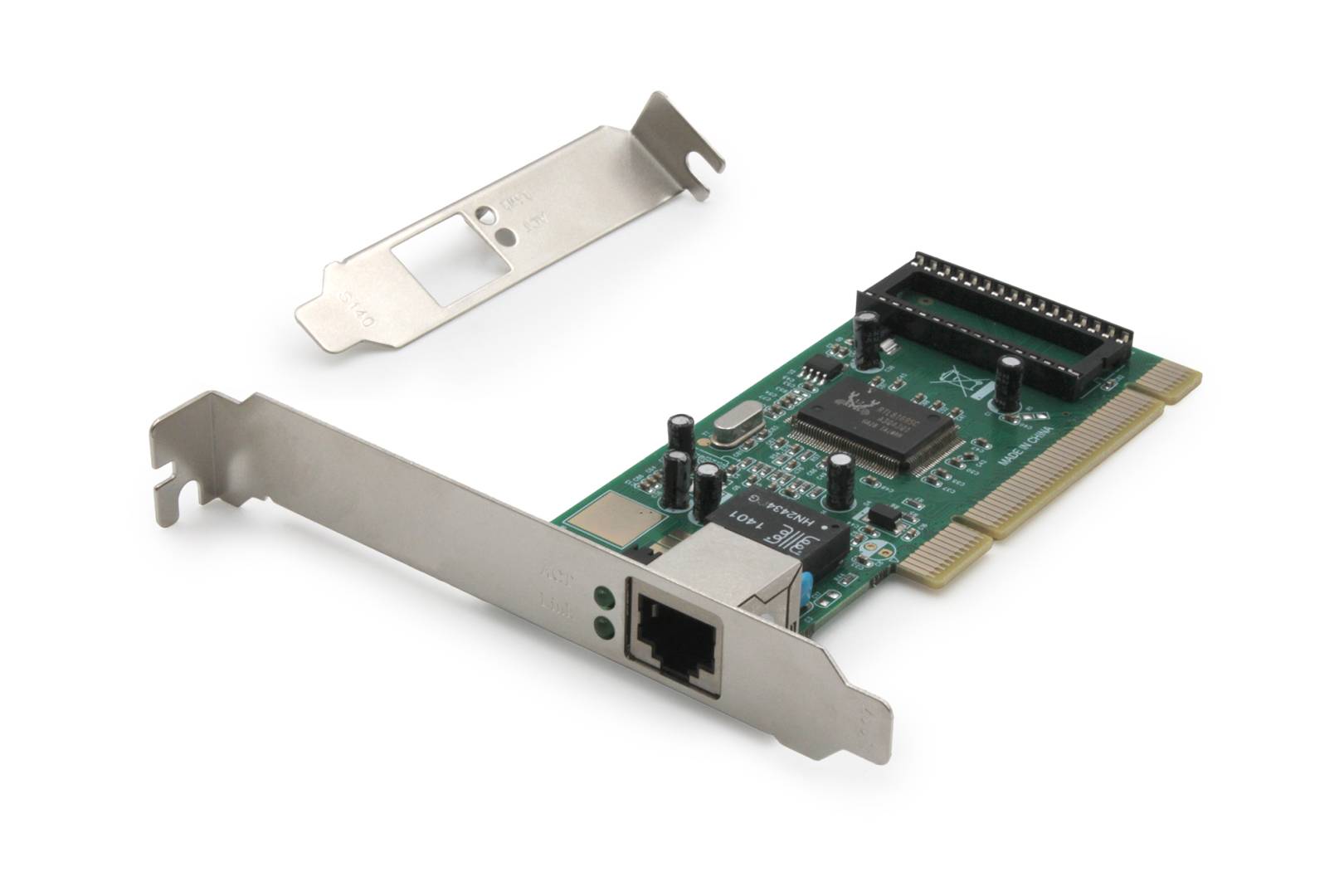

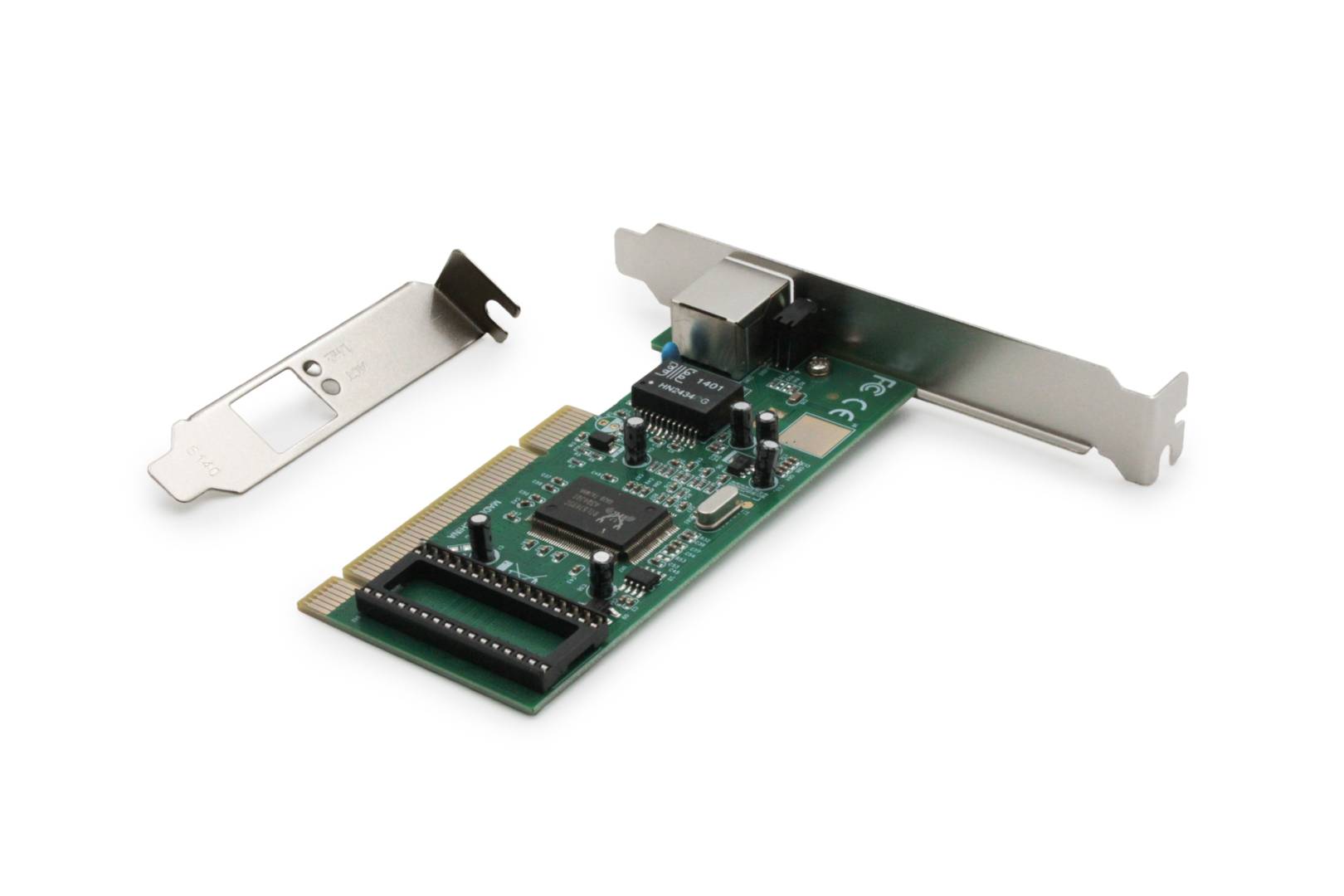

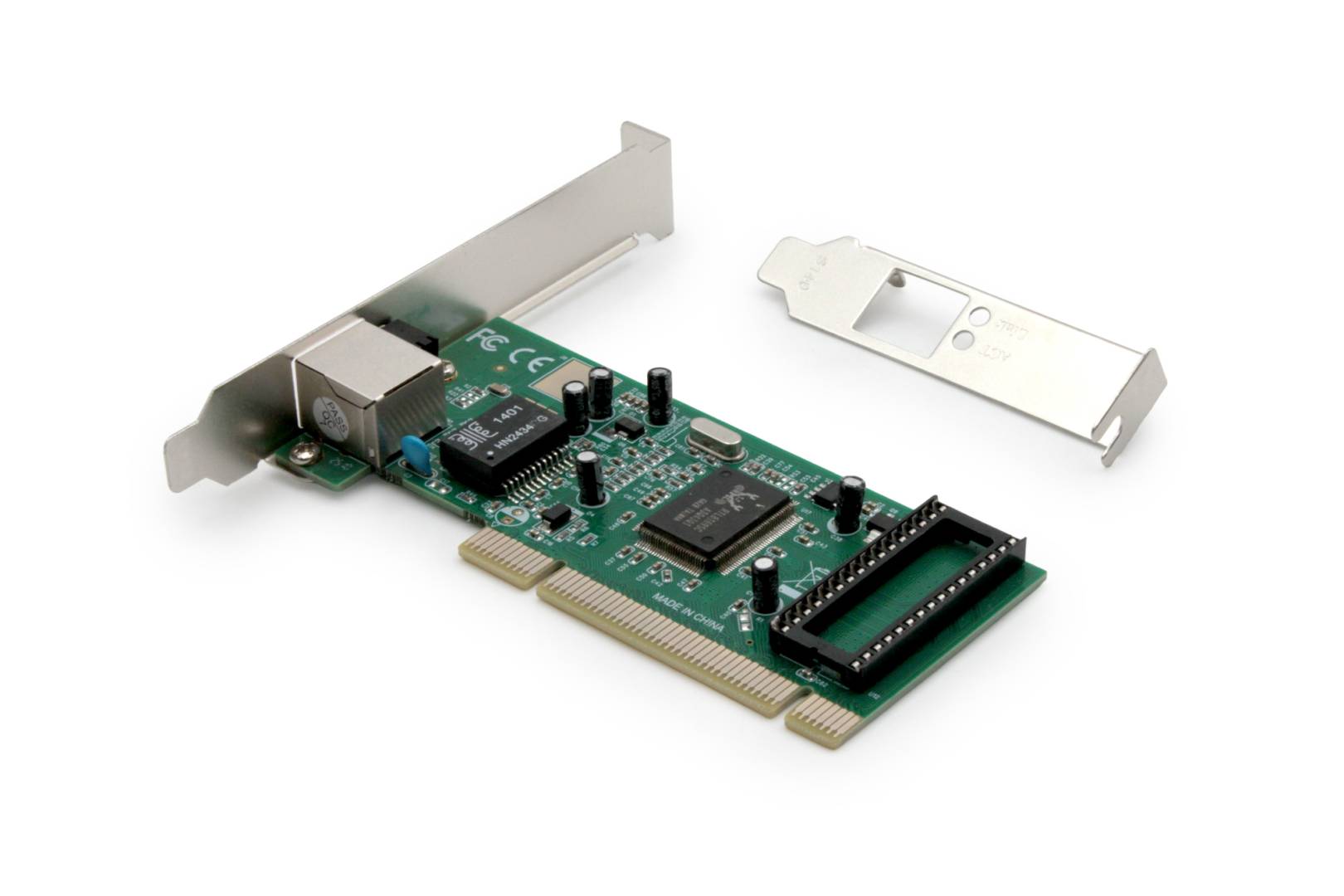

The card follows PCI 2.2 (32/64-bit slots, 33/66 MHz) and supports Wake-on-LAN, IEEE 802.1Q VLAN tagging, 802.3x flow control, automatic MDI/MDI-X crossover and ACPI power management. A low-profile bracket is included, so the card also fits slim desktop cases.
DIGITUS lists Windows 10, 8.1, 8, 7, Vista and XP, Mac OS X and Linux, and supplies a support CD plus downloadable drivers for Windows, DOS, Mac and Linux.
Before you order: This is a conventional PCI card, not PCI Express. Most motherboards from the last decade only have PCIe slots, and this card will not fit them. Send us the PC or motherboard model and we will confirm.

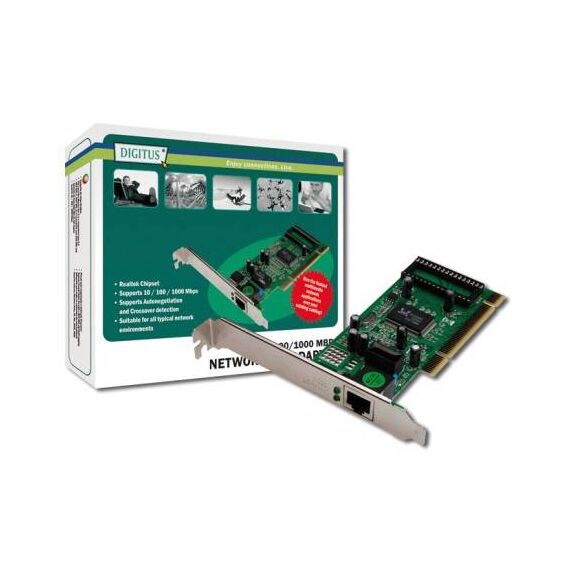

What's in the Box
- DIGITUS DN-10110 Gigabit PCI network card
- Low-profile bracket
- Quick installation guide
- Product support CD-ROM
- Network cable not included
What It Means in Practice
- Brings an older PCI-only desktop or server up to Gigabit speed.
- Replaces a failed onboard LAN without changing the motherboard.
- VLAN tagging lets the PC join a segmented, managed network.
- Wake-on-LAN supports remote power-on where the motherboard allows it.
- Drivers for DOS and Linux make it useful for legacy tools and older industrial systems.
What Will Not Work
- PCI Express slots of any size — different connector.
- Laptops and mini PCs without an internal PCI slot.
- Speeds above 1 Gbps.
- Windows 11 — not in the published OS list (up to Windows 10).
Key Features
Realtek RTL8169SC
Widely supported PCI Gigabit controller with drivers for Windows, Linux, Mac and DOS.
VLAN and flow control
IEEE 802.1Q VLAN tagging and IEEE 802.3x full-duplex flow control.
Wake-on-LAN
Remote power-on plus ACPI and PCI power management.
Boot ROM option
Optional Boot ROM function listed by DIGITUS for network boot setups.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The DN-10110 is a solid way to keep a PCI-era machine on Gigabit Ethernet, with VLAN and Wake-on-LAN included. If you are not sure your board has PCI, our PCIe network cards fit every modern desktop.
✓ Buy it if your PC has a free conventional PCI slot and runs Windows 10 or earlier, Linux or macOS.
✕ Skip it if your motherboard only has PCIe slots, or you need Windows 11 support confirmed.
→ Also consider DIGITUS DN-10130-1 — the PCIe x1 version with low-profile bracket.
Not sure which slot your PC has? Send us the model and we will confirm the right card before you order.
Features - Digitus - DN-10110
Interface
- Ethernet
More Details
Product Code
04:100329
EAN Code
4016032310778
Manufacturer
Digitus
