DIGITUS DN-19 PB-4U-SW 19 Inch Wall Mounting Patch Holder 4U Open Bracket Adjustable Depth 250-430 mm Stackable 15 kg Black

Brand:
Digitus
DIGITUS DN-19 PB-4U-SW 19" Wall Patch Holder 4U Black
DIGITUS DN-19 PB-4U-SW 19 Inch Wall Mounting Patch Holder 4U Open Bracket Adjustable Depth 250-430 mm Stackable 15 kg Black
€195.56 inc. VAT
Buy
DN-19 PB-4U-SW
€164.34
€195.56 inc. VAT
Ships from EU stock: 29 item(s)
+ −
Add to wish list Ask a question
Product Code
04:71983
EAN Code
4016032250371
Manufacturer
Digitus

Quick Specs

Rack Size
4U · 19″
Type
Open wall bracket, no door
Depth
Adjustable 250–430 mm
Max. Load
15 kg
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

DIGITUS DN-19 PB-4U-SW — 19″ Patch Holder for Wall Mounting, 4U, Black

4U · 19″Open bracketDepth 250–430 mmStackable

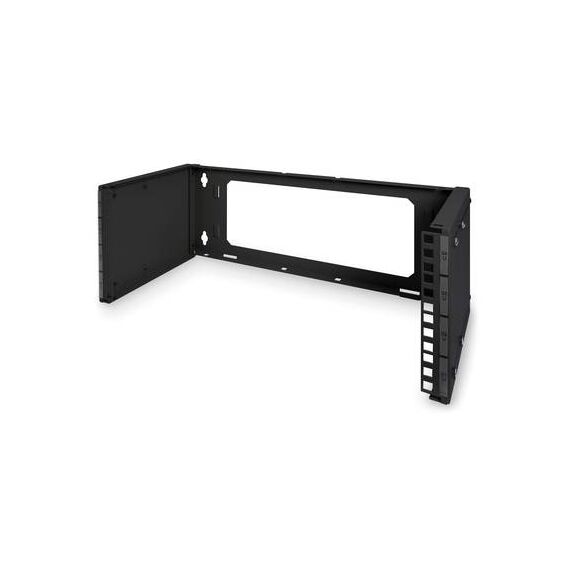

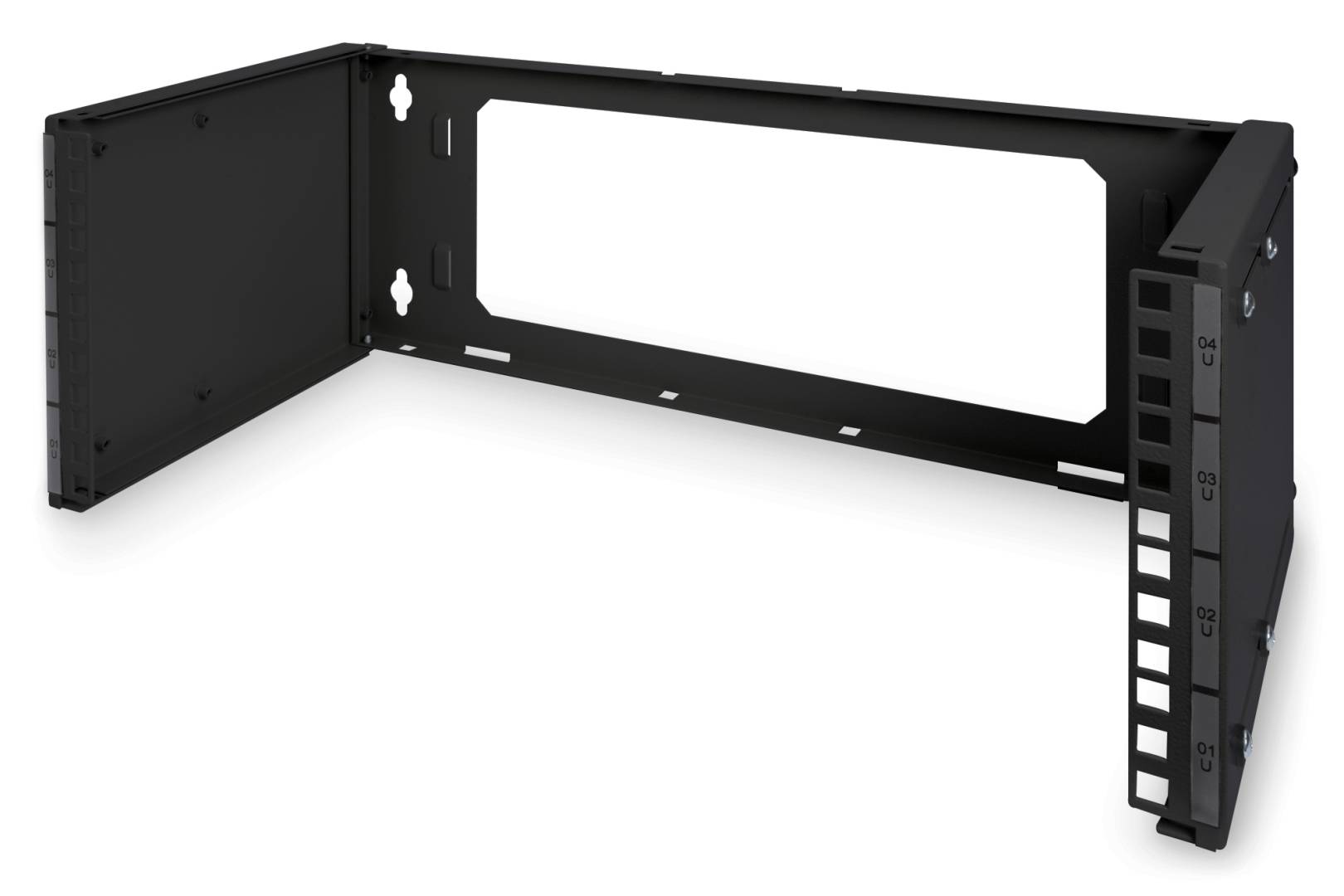

The DIGITUS DN-19 PB-4U-SW is a 4U patch holder for wall mounting: an open, black (RAL 9005) steel bracket that holds 19″ patch panels and light network equipment directly on the wall. It is not a cabinet — there is no door, no lock and no enclosure — which makes it the simplest and most compact way to terminate cabling in a technical room, a ceiling void, a comms riser or behind a counter. The depth adjusts from 250 to 430 mm to suit the equipment, a cut-out in the back lets cables come in from the wall, and four holes are provided for wall mounting. Several holders can be stacked, and DIGITUS supplies the fastening material for stacking. The bracket is 505 mm wide and 195 mm high, made of 1.1–1.5 mm powder-coated sheet steel, and carries up to 15 kg.

Compatibility — check before buying:
This is an open bracket, not a cabinet. There is no door and no lock, so the equipment is exposed: use it in a locked room, a riser or a ceiling space, and choose a wall cabinet if the location is public. Maximum load is 15 kg — fine for patch panels and a light switch, not for heavy equipment or UPS units. Wall plugs and screws are not listed; only the fastening material for stacking is included. It fits 19″ equipment only. Send us your equipment list and we check it.

Best For

✓ Patch panels in a technical room
✓ Comms risers and ceiling voids
✓ Behind counters and desks
✓ Light switches next to a patch panel
✓ Low-cost cable termination
✓ Stacking several holders

Key Features


Open 4U bracket
Holds 19″ patch panels and light devices on the wall, with easy access from the front and sides.

Adjustable depth

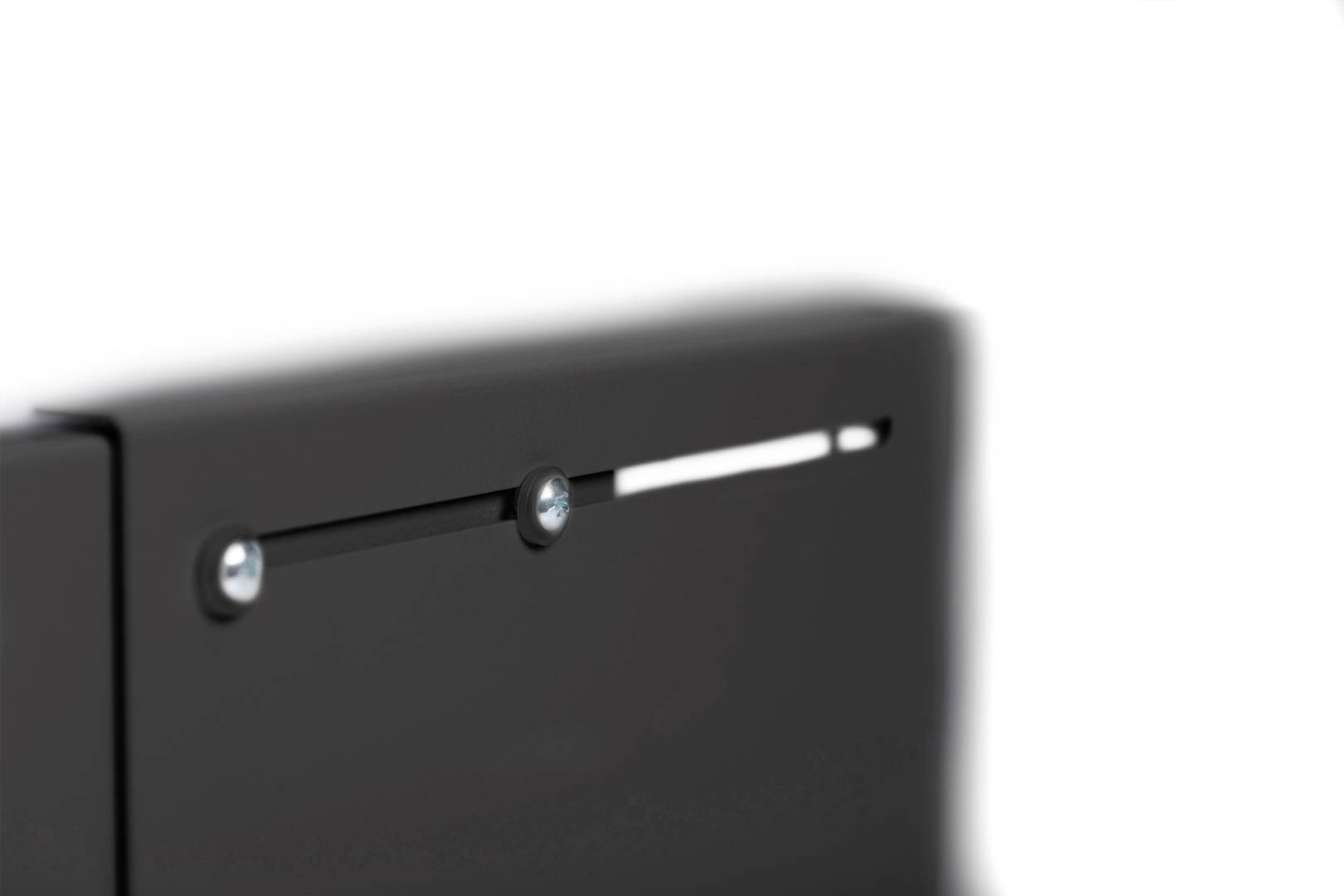

Depth adjusts from 250 to 430 mm to suit the equipment you mount.

Stackable

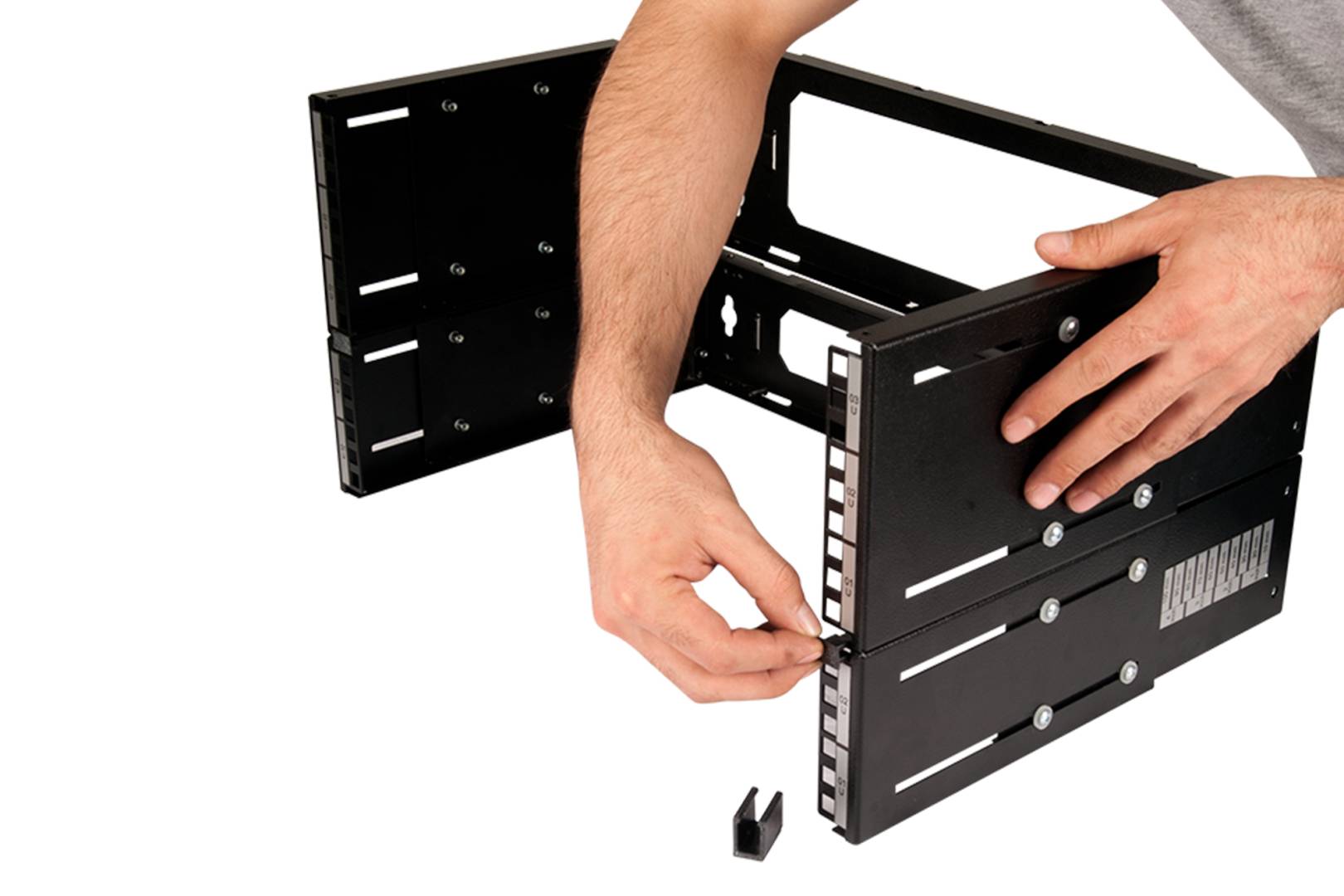

Several holders can be stacked; the fastening material for stacking is included.

Cable cut-out
A cut-out in the back lets cabling come straight out of the wall.

Technical Specifications

Identification
Brand DIGITUS
Product DIGITUS patch holder for wall mounting, 483 mm (19″), 4U, black
Part Number DN-19 PB-4U-SW
EAN / GTIN 4016032250371
Colour Black (RAL 9005)
Dimensions & Capacity
Rack Size 4U, 19″ (483 mm)
Width 505 mm
Height 195 mm
Depth Adjustable, 250–430 mm
Max. Load 15 kg
Construction
Type Open patch holder, no door
Material Sheet steel 1.1–1.5 mm, powder-coated
Colour Black (RAL 9005)
Protection Class None (open design)
Mounting
Installation Wall mounting, 4 mounting holes
Cable Entry Cut-out in the back
Stacking Stackable
In the Box
Included Patch holder, fastening material for stacking
Not Included Wall plugs and wall screws (not listed), cage nuts and equipment screws, patch panels
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term DIGITUS does not publish a warranty term for this product on its product page or data sheet. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Does it have a door or lock?
No. It is an open bracket. For a lockable enclosure choose a wall cabinet such as the DIGITUS SOHO Pro DN-49201.
What can I mount?
19″ patch panels, cable managers and light devices, up to 15 kg in total, within 4U.
Can I stack two holders?
Yes. DIGITUS designs it to stack and includes the fastening material for stacking.
Are wall fixings included?
No wall plugs or screws are listed. Choose fixings for your wall type; we can add them to your order.
Singular Expert Insight
We suggest the DN-19 PB-4U-SW when you only need to terminate cabling on a patch panel in a room that is already locked or out of reach — it costs far less than a cabinet and takes very little space. For public or shared areas, pick a lockable wall cabinet instead. Every order comes with Singular’s local support in Cyprus. See our patch panels and network switches, or browse all racks and cabinets.

Buyer’s Guide

Buy it if

You need a simple 4U 19″ bracket on the wall for patch panels in a secure room.

Skip it if

You need a door, a lock or more than 15 kg of load.

Also consider

DIGITUS SOHO Pro DN-49201, a lockable 4U 19″ wall cabinet.
