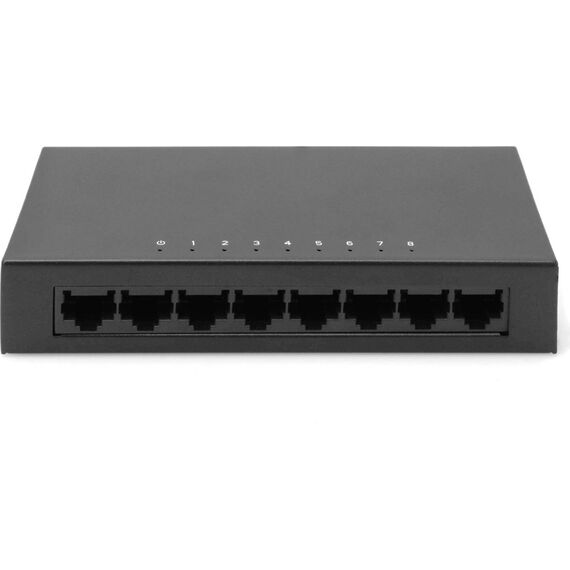

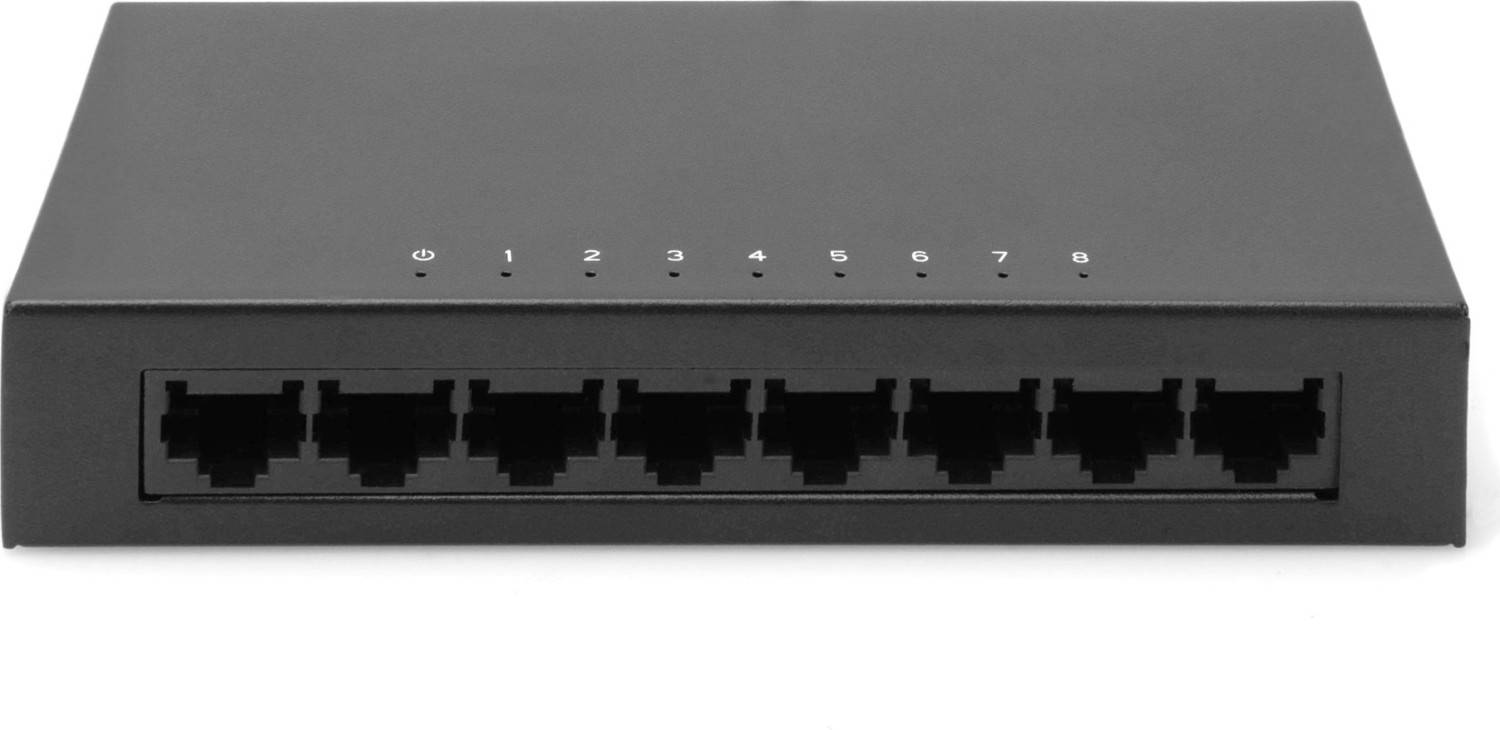

DIGITUS DN-80069 / Switch / unmanaged / 8 x 10/100 / desktop, wall-mountable | DN-80069

Product Features

· Number of ports: 8 x 10/100 Mbps
· Network standards: IEEE 802.3i, IEEE 802.3u, IEEE802.3x, IEEE802.3az
· Auto-negotiation: Auto MDI/MDIX
· IEEE802.3x full-duplex flow control
· Transfer method: Store-and-forward
· Forwarding capacity: 745 Kpps
· LED indicators: 10/100Mbps link
· Jumbo frames: 1552 Byte
· Buffer memory: 448 kbit
· MAC addresses: 1K
· Fanless design
· Operating voltage: 5 V DC / 500 mA
· Power consumption: 1,4 W max.
· Power supply Power supply: 100 - 240 V AC, 50/60 Hz,
· Plug type power supply: safety plug type-C
· Plug type device side: DC plug 5.5 mm/2.1 mm
· Operating temperature: 0°C to 40°C
· Operating humidity: 10% - 90% RH (non-condensing)
· Storage temperature: -40°C to 70°C
· Fanless design (air flow cooling)
· Dimensions: W 140 x D 67 x H 26 mm
· Weight: 635 g

Special Features

· 8 x RJ45 ports 10/100 Mbps
· All ports support 10/100 Mbps bandwidth
· Network standards: IEEE 802.3i, IEEE 802.3u, IEEE802.3x, IEEE802.3az
· Full-duplex flow control IEEE802.3x
· Store and forward mode operates
· Auto-negotiation / Auto-MDI/MDI-X
· No configuration necessary
· LED indicators for monitoring power, link/activity

Product Specification

Device Type	Switch - 8 ports - unmanaged
Enclosure Type	Desktop, wall-mountable
Subtype	Fast Ethernet
Ports	8 x 10/100
Performance	Forwarding capacity: 745 Kpps ¦ Buffer memory: 448 kbit
MAC Address Table Size	1K entries
Jumbo Frame Support	1552 bytes
Features	Auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, full duplex mode, fanless, metal housing
Compliant Standards	IEEE 802.3u, IEEE 802.3i, IEEE 802.3x, IEEE 802.3az
Status Indicators	Power, link/activity
Expansion / Connectivity	Expansion / Connectivity
Interfaces	8 x RJ-45
Power	Power
Voltage Required	DC 5 V
Power Consumption Operational	1.4 Watt
Dimensions & Weight	Dimensions & Weight
Width	14 cm
Depth	6.7 cm
Height	2.6 cm
Weight	635 g
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	10 - 90% RH (non-condensing)
Min Storage Temperature	-40 °C
Max Storage Temperature	70 °C
