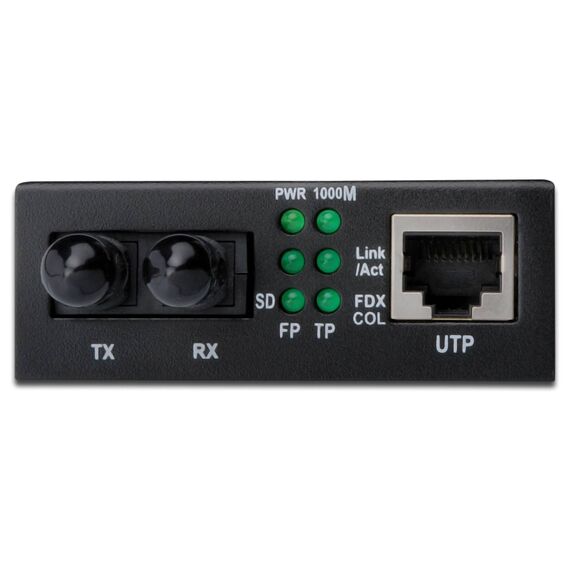

DIGITUS Gigabit Media Converter RJ45 to ST Multimode, 1000Base-SX 850 nm, up to 0.5 km, LFP, with Power Adapter
Brand:
Digitus
DIGITUS Gigabit Media Converter RJ45 to ST Multimode, 1000Base-SX 850 nm, up to 0.5 km, LFP, with Power Adapter
€96.77 inc. VAT
DN-82110-1
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
DIGITUS Gigabit Media Converter — RJ45 to ST Multimode (1000Base-SX)
1000Base-SX · 850 nmRJ45 10/100/1000ST duplex · up to 0.5 kmPower adapter included

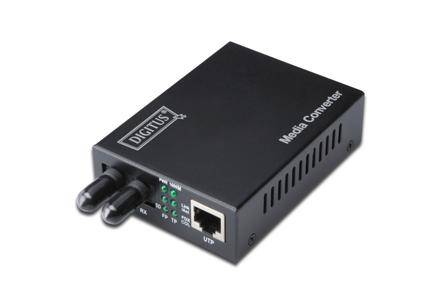

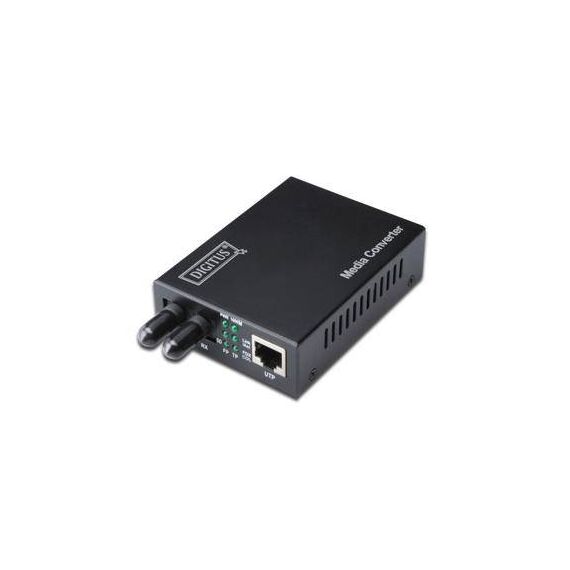

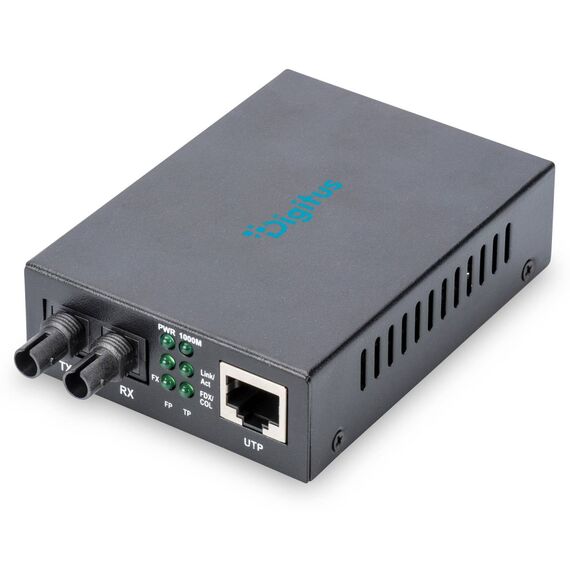

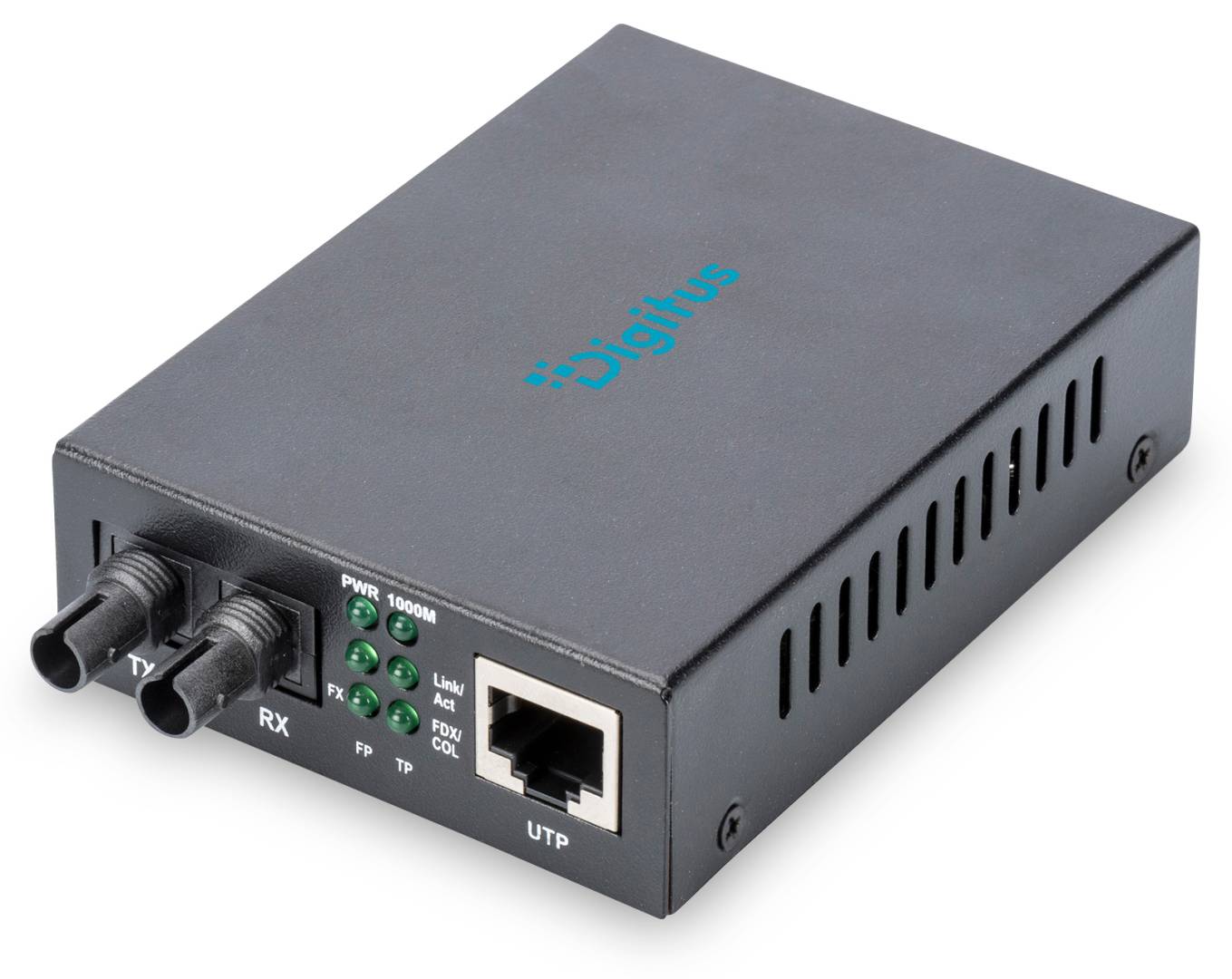

The DIGITUS DN-82110-1 is a standalone Gigabit media converter that links a 10/100/1000 Mbps copper RJ45 device to a duplex multimode fibre run with ST connectors, at 850 nm over distances of up to 0.5 km. It is meant for buildings and campuses that still have ST-terminated multimode fibre in the walls and need to bring a switch, router or single device onto that fibre without replacing patch panels.
You use converters in pairs or against existing fibre gear: on one side the RJ45 port takes a normal network cable from your switch or PC; on the other side the two ST connectors (transmit and receive) go to the fibre pair. The far end must be another 1000Base-SX device on 850 nm multimode — a second DN-82110-1, a converter with SC connectors via the right patch cord, or a switch with a 1000Base-SX SFP module.
Before you order: This is a multimode, 850 nm, ST unit. It will not link over single-mode (yellow) fibre, and it will not talk to 1000Base-LX (1310 nm) equipment. Check the connector type in your patch panel — ST is the round bayonet type; if your panel is SC or LC you need a hybrid patch cord or the SC version of this converter.
What's in the Box
- 1 × DIGITUS DN-82110-1 Gigabit media converter (RJ45 / ST)

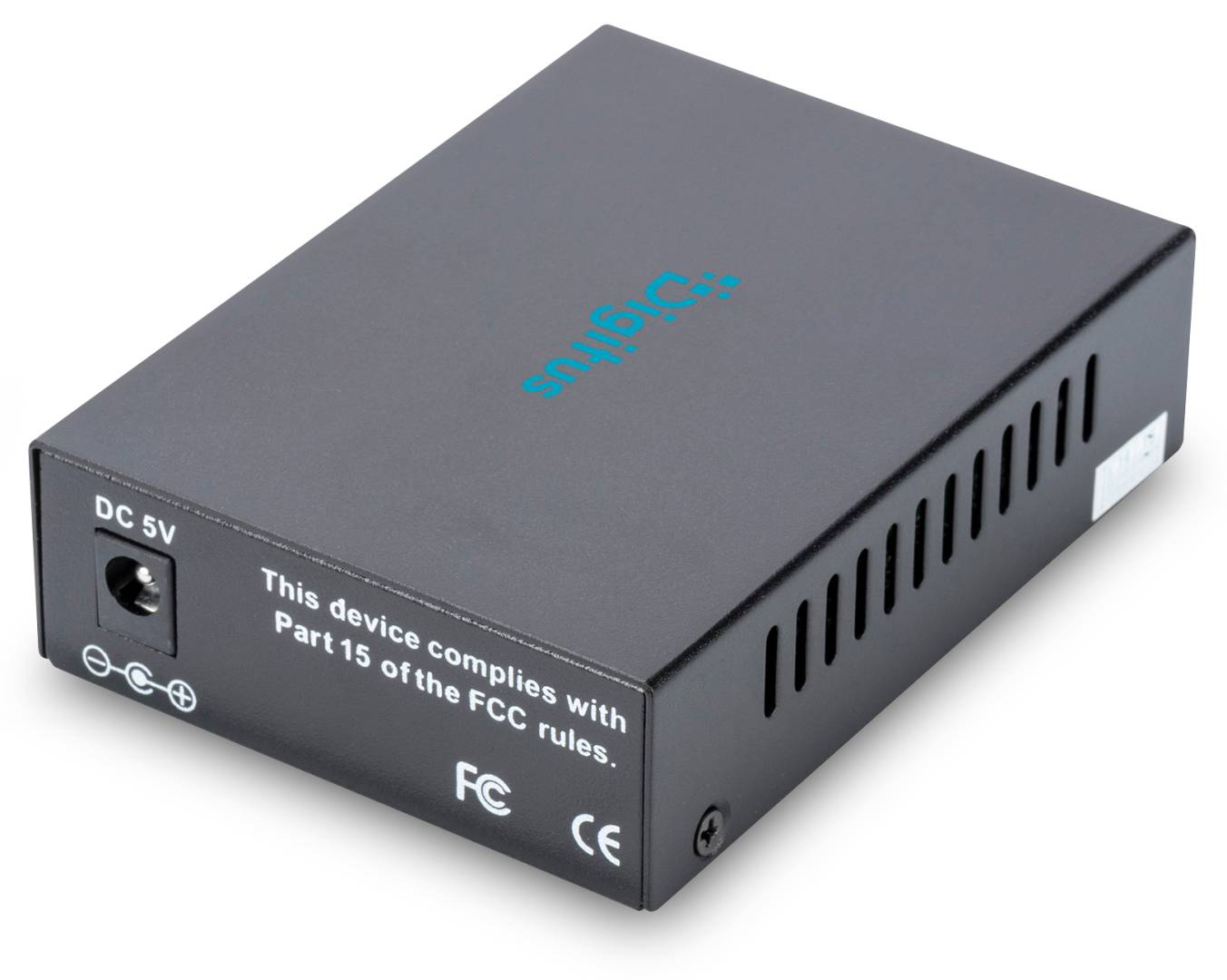

- 1 × external power adapter (5 V DC)
- 1 × quick installation guide
- No fibre patch cords or network cables are included
What It Means in Practice
- Typical job: connect two buildings or floors that are already linked with orange/aqua multimode fibre on ST panels, using one converter at each end.
- Copper side auto-negotiates 10, 100 or 1000 Mbps and auto MDI/MDI-X, so any normal patch cable works — straight or crossover.
- Link Fault Pass-through (LFP) can be enabled by DIP switch: when the fibre or copper link fails, the converter drops the other side too, so your switch or monitoring system sees the outage instead of a dead link that still looks "up".
- The 0.5 km figure is the published maximum for multimode; older 62.5/125 µm (OM1) fibre usually reaches less than 50/125 µm (OM2 or better) at Gigabit speed.
- Compact standalone housing (95 × 70 × 26 mm) that sits on a shelf or in a network cabinet next to the patch panel; it needs a free power socket for the adapter.
What Will Not Work
- Single-mode (OS1/OS2, yellow) fibre — use a 1000Base-LX single-mode converter instead.
- Pairing with a 1310 nm or BiDi (single-fibre) converter — both ends must be 1000Base-SX, 850 nm, two fibres.
- SC or LC panels without an adapter cord — the connectors on the unit are ST.
- 10 Gigabit links — this is a 1 Gbps converter.
- Power over Ethernet — the RJ45 port does not supply or pass PoE.
Key Features
Gigabit over multimode
Converts 10/100/1000Base-T copper to 1000Base-SX at 850 nm over 50/125 or 62.5/125 µm multimode fibre, up to 0.5 km.
Link Fault Pass-through
LFP, switchable by DIP switch, mirrors a link loss to the other port so network monitoring reports real outages.
Plug and play
Auto-negotiation and auto MDI/MDI-X on the copper port, 2 MB buffer, no configuration software.
Status at a glance

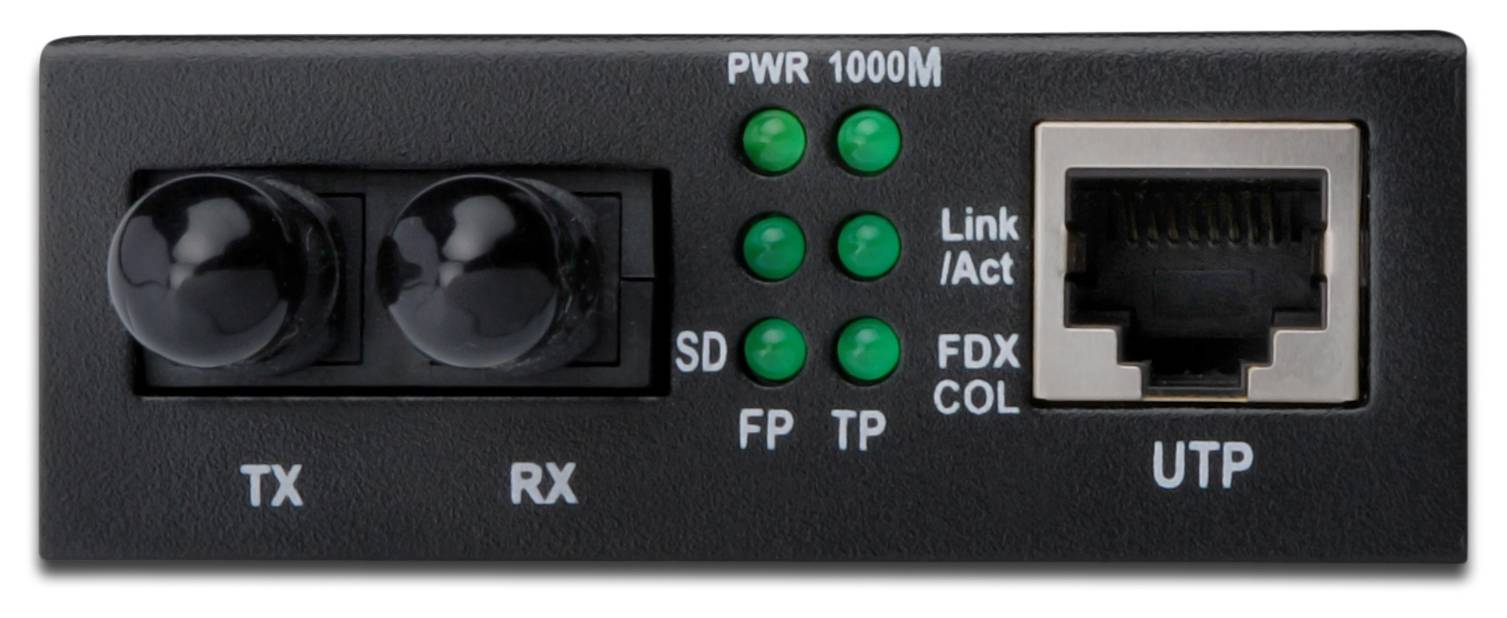

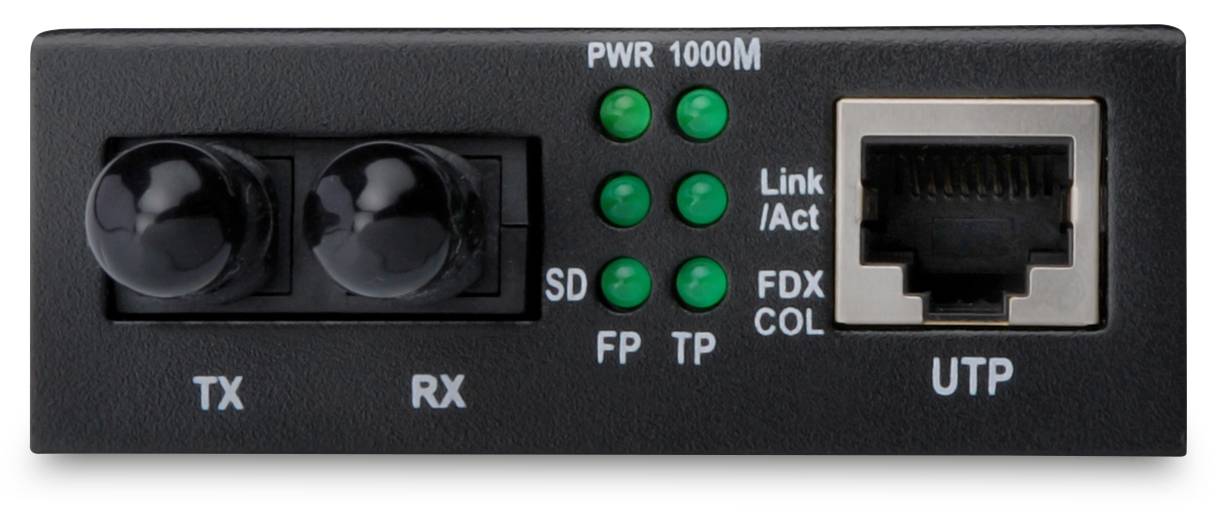

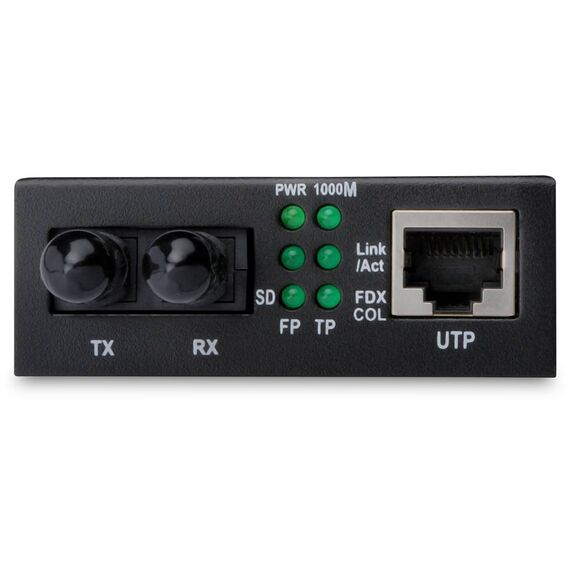

LEDs for power, link and activity help when you are tracing a fibre run during installation.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Media converters are the cheapest way to reuse old multimode fibre, and ST panels are still common in older Cyprus office buildings and hotels. If the fibre ends at a switch, a 1000Base-SX SFP module in one of our switches with SFP ports is often tidier than a second converter. Check the jacket colour first: orange or aqua means multimode and this unit fits; yellow means single-mode and it will not.
✓ Buy it if you have ST-terminated multimode fibre and need Gigabit from a switch or device that only has RJ45.
✕ Skip it if your fibre is single-mode (yellow), runs longer than 0.5 km, or your panel is SC — pick the matching single-mode or SC converter.
→ Also consider DIGITUS DN-82120-1 (same converter with SC connectors) or a switch with SFP slots and a 1000Base-SX module.
Not sure which fibre you have? Send us a photo of the patch panel and the cable print and we will tell you which converter or module fits before you order.
