DIGITUS DN-91411 Modular Patch Panel 24-Port Shielded 19 Inch 1U Unloaded Keystone Frame Black RAL 9005

Brand:
Digitus
DIGITUS DN-91411 24-Port Shielded Keystone Panel Black
DIGITUS DN-91411 Modular Patch Panel 24-Port Shielded 19 Inch 1U Unloaded Keystone Frame Black RAL 9005
€25.56 inc. VAT
Buy
DN-91411
€21.48
€25.56 inc. VAT
Ships from EU stock: 117 item(s)
+ −
Add to wish list Ask a question
Product Code
04:153030
EAN Code
4016032280798
Manufacturer
Digitus

Quick Specs

Ports
24 keystone slots
Rack
19-inch · 1U
Shielding
Shielded frame · earthing point
Modules
Not included — empty frame
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

DIGITUS DN-91411 — 24-Port Shielded Modular Patch Panel, 19-inch 1U, Black

24 keystone ports19-inch 1UShieldedModules not included

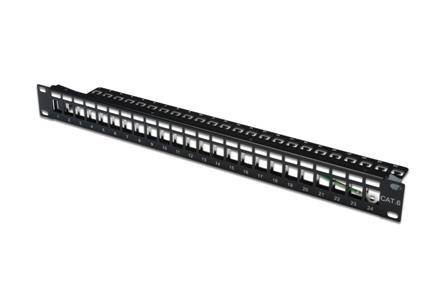

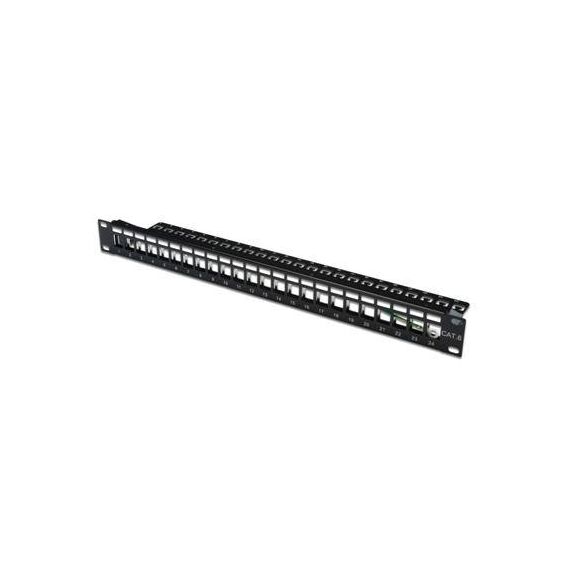

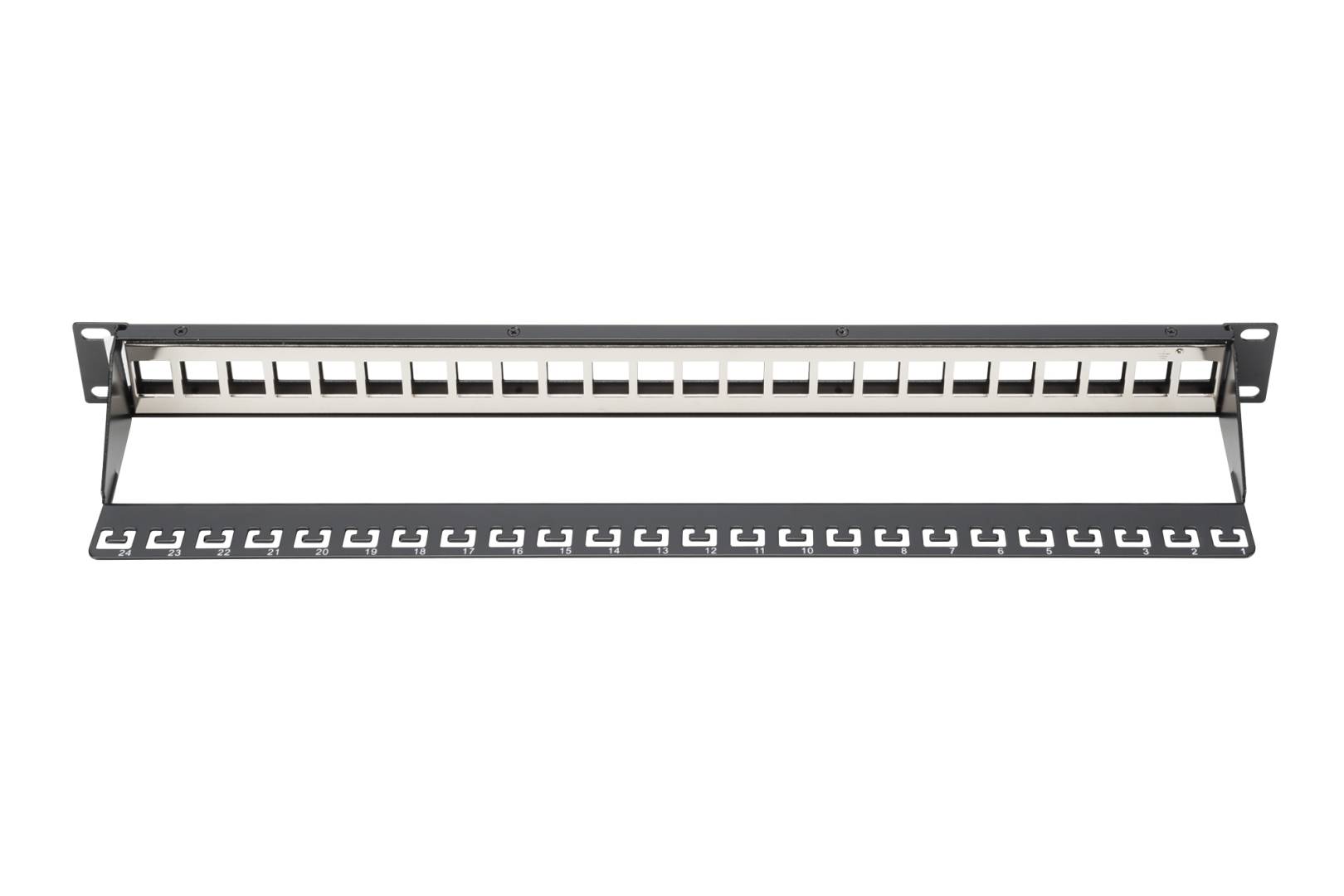

The DIGITUS DN-91411 is a shielded 24-port modular patch panel for 19-inch racks: a 1U steel frame in black RAL 9005 with one straight row of 24 keystone openings and a central earthing bar. It arrives empty: you snap in the keystone jacks or couplers you choose, so the same frame can carry Cat 6 or Cat 6A copper, shielded or unshielded, and other keystone inserts. In practice it is the tidy end point for 24 installation cables in a server room or office cabinet — each cable is terminated on its own jack, and the jacks click into the front, where your patch cords connect to the switch.

Compatibility — check before buying:
No keystone modules are included — order 24 jacks (or fewer, with blanks) separately. It is a shielded frame: for a shielded installation use shielded jacks and connect the frame to the rack earth — the DN-91411 has a central earthing connection with a galvanized steel bar. It fits 19-inch racks only, not 10-inch. Not sure which jacks or cabinet you need? Tell us the cable and cabinet model and we check it.

Best For

✓ Standard 19-inch racks and cabinets
✓ Office floor distributors and comms rooms
✓ Keystone installs in Cat 6 or Cat 6A
✓ Re-patching without re-terminating cable
✓ Mixing RJ45 with other keystone couplers
✓ Neat, labelled patch fields

Key Features


Choose your own jacks
An unloaded frame lets you fit exactly the jacks the job needs — Cat 6 or Cat 6A, shielded or unshielded, plus other keystone couplers.

Shielded with earthing
A central earthing connection with a galvanized steel bar carries the shield of shielded jacks to the rack earth.

Sturdy steel frame
1.5 mm SPCC cold-rolled steel with a black powder coat, sized for one unit of a 19-inch rack.

Replace one port at a time
A faulty or changed jack is swapped on its own, without disturbing the other 23 ports.

Technical Specifications

Identification
Brand DIGITUS
Product Modular Patch Panel, shielded, 24-port, blank, 1U, rack mount
Part Number DN-91411
EAN / GTIN 4016032280798
Colour Black RAL 9005
Panel
Ports 24 keystone openings, straight single row
Shielding Shielded, for shielded DIGITUS keystone modules
Rack Format 19-inch (483 mm), 1U
Material 1.5 mm SPCC cold-rolled steel, powder-coated
Earthing Central earthing connection with galvanized steel bar
Physical
Dimensions 482 × 44 × 9 mm (W × H × D, panel)
Weight 0.42 kg net
Operating Temperature −20 to +70 °C
Planning Your Install
What Else You Need Keystone jacks for every port you use (matching the cable category), a punch-down tool or tool-free jacks, and patch cords to the switch
Rack Space One rack unit, plus room behind the panel for the incoming installation cables
Typical Layout Switch directly above or below the panel, linked with short patch cords of 0.25–0.5 m
Labelling Number each port to match the wall outlet it serves, so faults are traced in minutes
Testing Test every link after termination; the rated category is only reached when jacks, cable and cords all match
In the Box
Included The 24-port modular patch panel
Not Included Keystone modules, patch cords and tools; DIGITUS does not list rack screws in the datasheet — use your cabinet’s cage nuts and screws
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term DIGITUS does not state a warranty term for this product on its official product page or datasheet. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Are keystone modules included?
No. The DN-91411 is an empty frame for 24 keystone modules; DIGITUS supplies it without jacks. Order 24 keystone jacks (or fewer, and blank the rest) of the category your cable needs. Tell us the cable and we put the right jacks on the same order.
Which keystone jacks fit?
DIGITUS designs it for shielded and unshielded DIGITUS keystone modules and couplers. Most standard-size keystone jacks from other brands also snap into keystone frames, but DIGITUS publishes fit only for its own; send us the jack you plan to use and we check it.
Does the frame decide Cat 6 or Cat 6A?
No. The frame only holds the modules. The link performance comes from the keystone jacks and the cable you fit, so a Cat 6A installation needs Cat 6A jacks and Cat 6A cable throughout.
DN-91411 or DN-91412?
Both are black, shielded, 24-port 19-inch frames. The DN-91411 has one straight row of openings; the DN-91412 staggers them, which DIGITUS says improves isolation between neighbouring ports. The grey version of the DN-91411 is the DN-91410.
Singular Expert Insight
We fit the DN-91411 in black cabinets where the customer wants a clean, shielded 24-port field and freedom to choose the jacks. For grey cabinets take the DN-91410; for a plastic front with a rear cable tray, the DN-91411-LF. Every order comes with Singular’s local support in Cyprus — see our network switches and network cables.

Buyer’s Guide

Buy it if

You need a shielded 24-port keystone frame for a black 19-inch rack and will fit your own jacks.

Skip it if

You want a panel with jacks already fitted, or your rack is 10-inch.

Also consider

DIGITUS DN-91412, the staggered 24-port version.
