DIGITUS DN-91612S-SL-EA Slim Cat 6A Shielded Patch Panel 12-Port 10 Inch 0.5U LSA Class EA 10GBase-T Black
Brand:
Digitus
DIGITUS DN-91612S-SL-EA Slim Cat 6A Shielded Patch Panel 12-Port 10 Inch 0.5U LSA Class EA 10GBase-T Black
€53.94 inc. VAT
DN-91612S-SL-EA
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

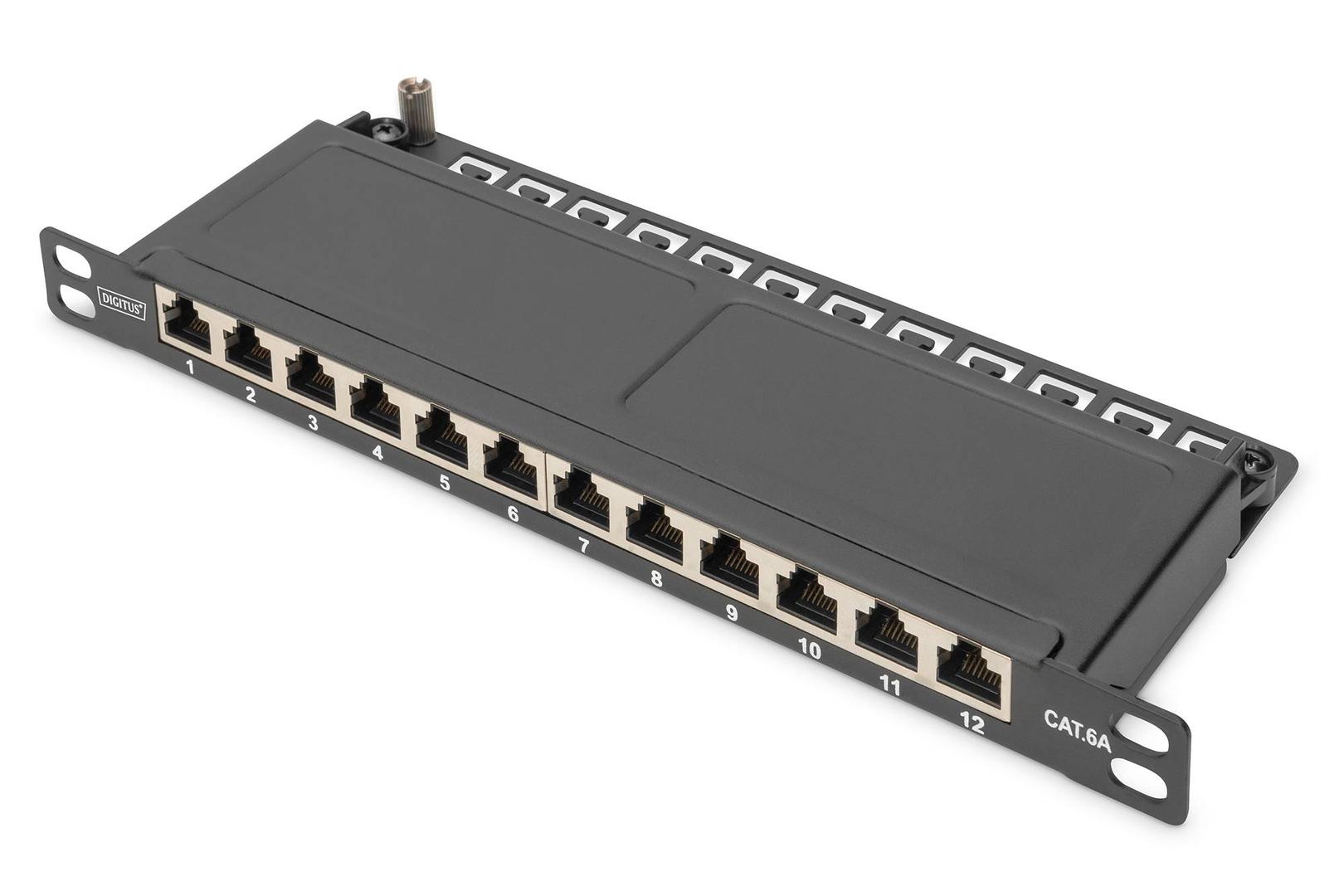

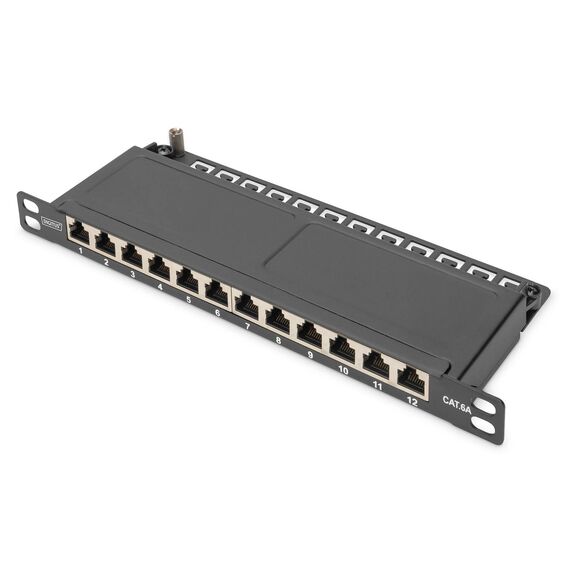

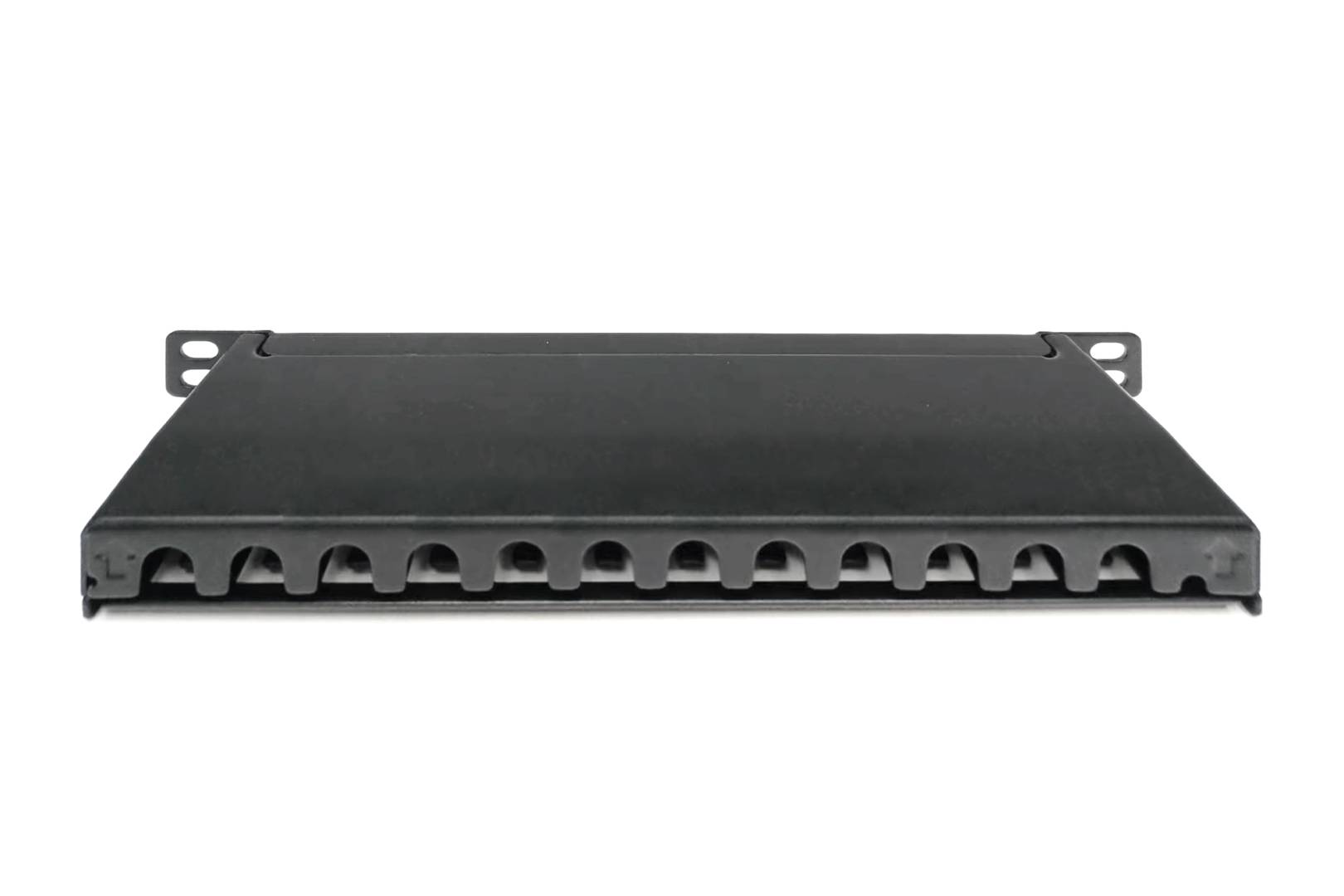

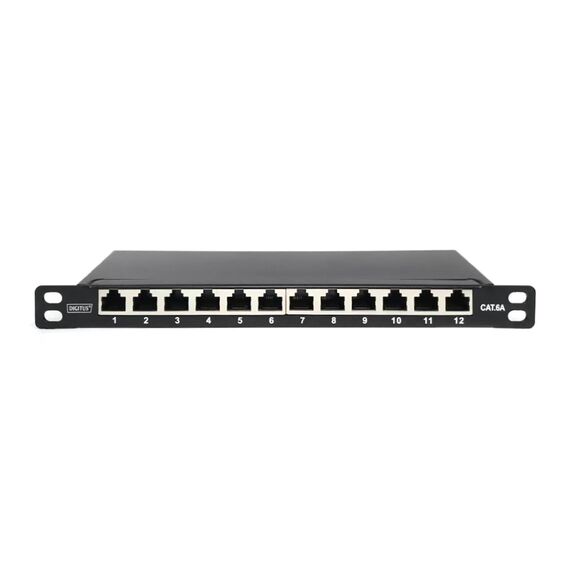

DIGITUS DN-91612S-SL-EA — 12-Port Cat 6A Shielded Slim Patch Panel, 10" 0.5U
12 portsCat 6A shielded10" · 0.5USlim design
The DIGITUS DN-91612S-SL-EA is a 12-port Cat 6A shielded 10-inch 0.5U patch panel in black (RAL 9005). It mounts in a 10-inch rack or cabinet and takes up half a rack unit (0.5U). Installation cable is punched down on the back with an LSA (Krone) punch-down tool, and the 12 RJ45 sockets on the front take ordinary patch cords, rated for 10 Gbit/s (10GBase-T). In practice it gives the cables coming from wall outlets and ceilings a fixed, labelled end point next to your switch, so that moves and changes are made with short patch cords at the panel instead of re-terminating installation cable.
Compatibility — check before buying:
This is the slim 0.5U model — two fit in 1U for 24 ports; the standard-height 1U version is DN-91612S-EA. The ports are fixed and terminated with an LSA (Krone) punch-down tool, which is not in the box. As a shielded panel it only gives its full screening with shielded cable and a grounded rack or earth point; the earthing wire is not included. It is 10-inch (254 mm) wide and will not fill a 19-inch rack without a mounting adapter. Not sure it matches your cabling? Send us the cable type and the rack or cabinet model and we check it.
Best For
✓ Small 10-inch network cabinets
✓ Offices, shops and branch sites
✓ Home networks and studios
✓ Compact cabling next to a small switch
✓ Wall-mounted mini racks
✓ Labelled, tidy outlet termination
Key Features
Punch-down termination
LSA+ strips, colour-coded T568A/B. Once the cable is terminated, every move is made with a patch cord at the front.
Cat 6A performance
Class EA, up to 500 MHz, 10GBase-T, PoE (IEEE 802.3af/at). The shielded design helps in electrically noisy rooms and with PoE-heavy cable bundles.
10-inch, 0.5U
Sized for 10-inch (254 mm) cabinets, the compact rack format for small offices, shops and home networks.
Half-height design
At 0.5U, two panels stack in one rack unit, giving 24 Cat 6A ports in 1U of a 10-inch cabinet; DIGITUS also allows wall mounting.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We suggest the DN-91612S-SL-EA where rack space is tight: two of these give 24 Cat 6A ports in a single unit of a 10-inch cabinet. Leave a few ports free for growth, since most offices add devices faster than they expect. Plan the panel with cable and patch cords of the same category, and label the ports as you terminate them. Every order comes with Singular’s local support in Cyprus. See our patch panels or the network switches and network cables that complete the link.
Buyer’s Guide
Buy it if
Your 10-inch cabinet is short of space and you need Cat 6A ports in half a unit.
Skip it if
Space is not an issue — the 1U DN-91612S-EA is easier to terminate.
Also consider
DIGITUS DN-91612S-EA, the 1U version.
Features - Digitus - DN-91612S-SL-EA
Colour
black
More Details
Product Code
04:381213
EAN Code
4016032473176
Manufacturer
Digitus
