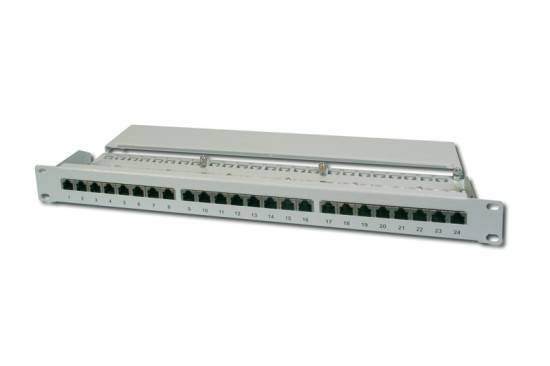

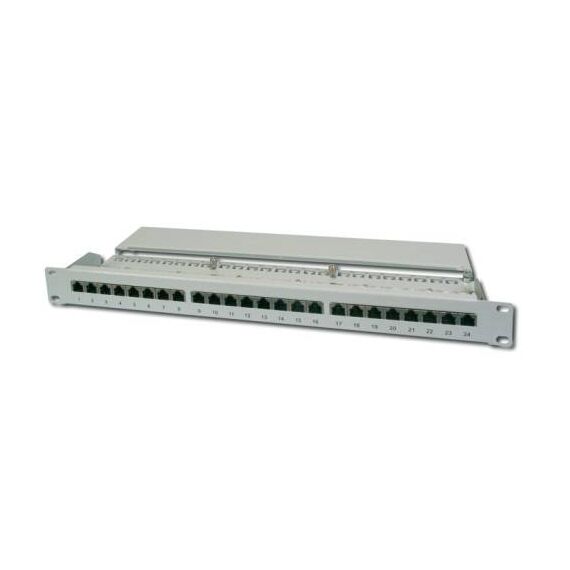

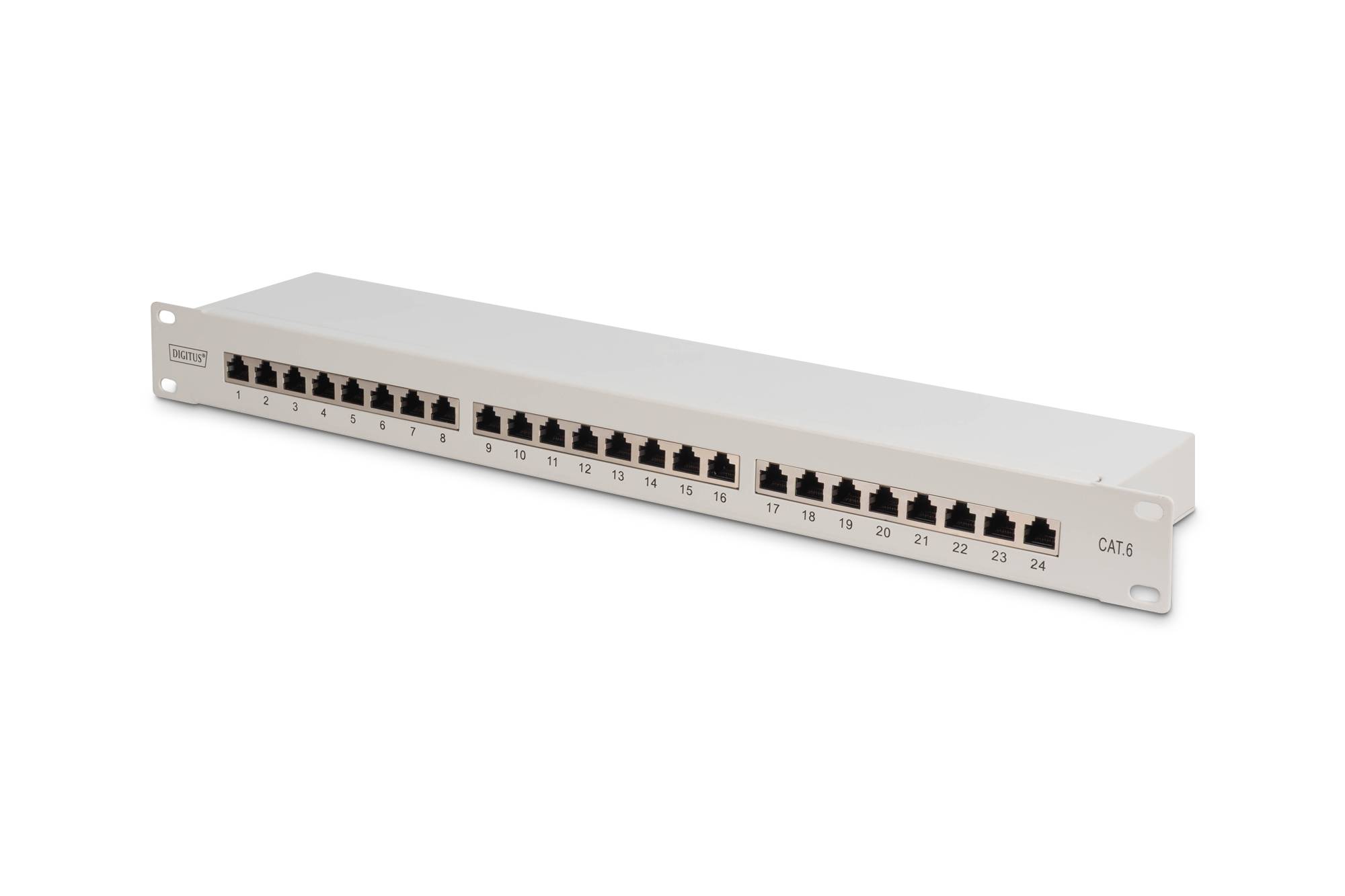

DIGITUS DN-91624S Cat 6 Shielded Patch Panel 24-Port 19 Inch 1U LSA Class E 250 MHz Light Grey RAL 7035

Brand:
Digitus
DIGITUS DN-91624S Cat 6 Shielded 24-Port 1U Patch Panel
DIGITUS DN-91624S Cat 6 Shielded Patch Panel 24-Port 19 Inch 1U LSA Class E 250 MHz Light Grey RAL 7035
€71.66 inc. VAT
Buy
DN-91624S
€60.22
€71.66 inc. VAT
Ships from EU stock: 21 item(s)
+ −
Add to wish list Ask a question
Product Code
04:63761
EAN Code
4016032241614
Manufacturer
Digitus

Quick Specs

Ports
24 × RJ45
Category
Cat 6 · shielded
Mounting
19" rack · 1U
Termination
Punch-down
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

DIGITUS DN-91624S — 24-Port Cat 6 Shielded Patch Panel, 19" 1U, Grey

24 portsCat 6 shielded19" · 1ULSA punch-down

The DIGITUS DN-91624S is a 24-port Cat 6 shielded 19-inch 1U patch panel in light grey (RAL 7035). It mounts in a 19-inch rack or cabinet and takes up 1U. Installation cable is punched down on the back with an LSA (Krone) punch-down tool, and the 24 RJ45 sockets on the front take ordinary patch cords, rated for Gigabit Ethernet (1000Base-T). In practice it gives the cables coming from wall outlets and ceilings a fixed, labelled end point next to your switch, so that moves and changes are made with short patch cords at the panel instead of re-terminating installation cable. When the network grows, you add a panel and a few patch cords rather than pulling new cable to every desk, and a clearly numbered panel makes it quick to find which outlet a fault or a new device is on.

Compatibility — check before buying:
This is the shielded, grey 1U model — the unshielded twin is DN-91624U, and the black 0.5U high-density version is DN-91624S-SL-SH. The ports are fixed and terminated with an LSA (Krone) punch-down tool, which is not in the box. As a shielded panel it only gives its full screening with shielded cable and a grounded rack or earth point; DIGITUS does not list an earthing wire in the box. It needs a standard 19-inch rack or cabinet with 1U free. Not sure it matches your cabling? Send us the cable type and the rack or cabinet model and we check it.

Best For

✓ 19-inch server and network racks
✓ Office floor distribution
✓ Structured cabling projects
✓ Patching wall outlets to switches
✓ Data centres and comms rooms
✓ Labelled, serviceable terminations

Key Features

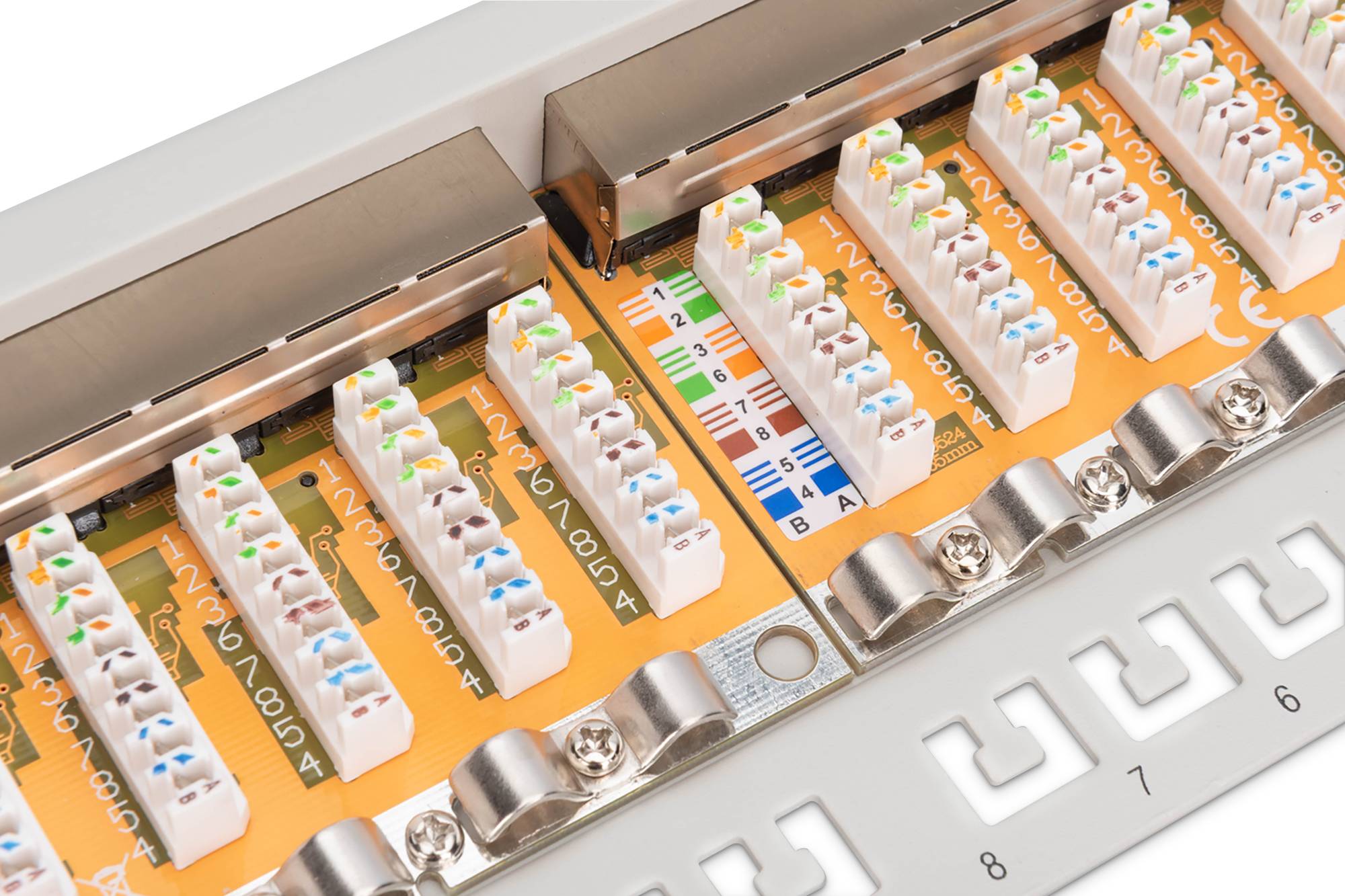

LSA termination
Colour-coded LSA strips on the back take solid and stranded wire and are wired to T568A or T568B. Once the cable is terminated, every move is made with a patch cord at the front.

Cat 6 performance
Class E, up to 250 MHz, 1GBase-T. The shielded design helps in electrically noisy rooms and with PoE-heavy cable bundles.

19-inch, 1U
Standard 19-inch width at 1U height, for any network rack or cabinet.

360° shielding
Every socket has full 360° shield coverage, so screened cabling keeps its protection right up to the patch cord.

Technical Specifications

Identification
Brand DIGITUS
Product DIGITUS CAT 6, Class E Patch Panel, shielded, 24-port, 1U, grey
Part Number DN-91624S
EAN / GTIN 4016032241614
Colour Light grey (RAL 7035)
Performance
Category Cat 6
Transmission Class E, up to 250 MHz, 1GBase-T
Shielding Shielded
Standards ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
Ports & Termination
Ports 24 × RJ45
Port Type Fixed
Termination LSA strips, colour-coded EIA/TIA 568 A and B
Wire Gauge 22–26 AWG, solid and stranded
Tool Needed LSA (Krone) punch-down tool
Mechanical
Mounting 19-inch rack mount
Height 1U
Dimensions 482 × 44 × 109 mm
Weight 1.50 kg
Material 1.5 mm galvanised cold-rolled steel; tinned phosphor-bronze contacts, 0.5 µm gold
Shielding Contact 360° shield coverage per port
Operating Temperature −20 to +70 °C
Mating Cycles >750
Planning the Installation
Cable Shielded (F/UTP, S/FTP) Cat 6 installation cable, solid core, 22 to 26 AWG, solid and stranded
Patch Cords Shielded Cat 6 or higher, so the link is not held back at the front
Rack Space 1U in a 19-inch rack; plan a cable manager above or below for tidy patching
Labelling Number each port as it is terminated and keep a simple list of which outlet goes where
In the Box
Included The patch panel (DIGITUS publishes no other box contents)
Not Included Earthing wire, punch-down tool, patch cords, screws and cage nuts
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term DIGITUS does not state a manufacturer warranty term for this part on its product page or data sheet; the ASSMANN system warranty applies only to certified cabling systems. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Do I need a special tool?
Yes. The installation cable is terminated on the back with an LSA (Krone) punch-down tool, which is not included. If you order the panel with cable, tell us and we add a suitable tool.
Will it carry 10 Gbit/s?
It is a Cat 6 panel for Gigabit Ethernet. 10GBase-T over Cat 6 only works on short runs and is not what this panel is rated for; for 10 Gbit/s choose a Cat 6A panel.
Does it fit my rack?
It fits standard 19-inch racks and cabinets and takes up 1U. Send us the rack model if you want us to check depth and free space.
Does it need to be grounded?
Yes, for the shield to work. Connect the panel to the rack or building earth. With unshielded cable the shield has no effect.
Singular Expert Insight
We suggest the DN-91624S as the standard 24-port shielded panel for grey 19-inch racks on Gigabit networks cabled with screened Cat 6. Plan the panel with cable and patch cords of the same category, and label the ports as you terminate them. Every order comes with Singular’s local support in Cyprus. See our patch panels or the network switches and network cables that complete the link.

Buyer’s Guide

Buy it if

You need 24 shielded Cat 6 ports in 1U of a grey 19-inch rack.

Skip it if

Your cabling is unshielded (DN-91624U) or you plan 10 Gbit/s links.

Also consider

DIGITUS DN-91624S-SL-SH, 24 shielded ports in only 0.5U.
