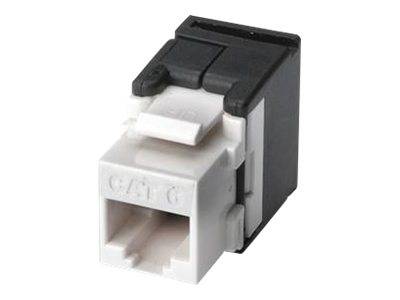

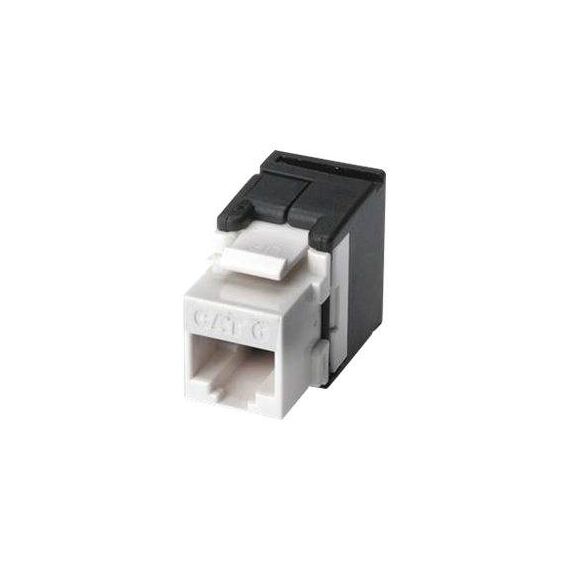

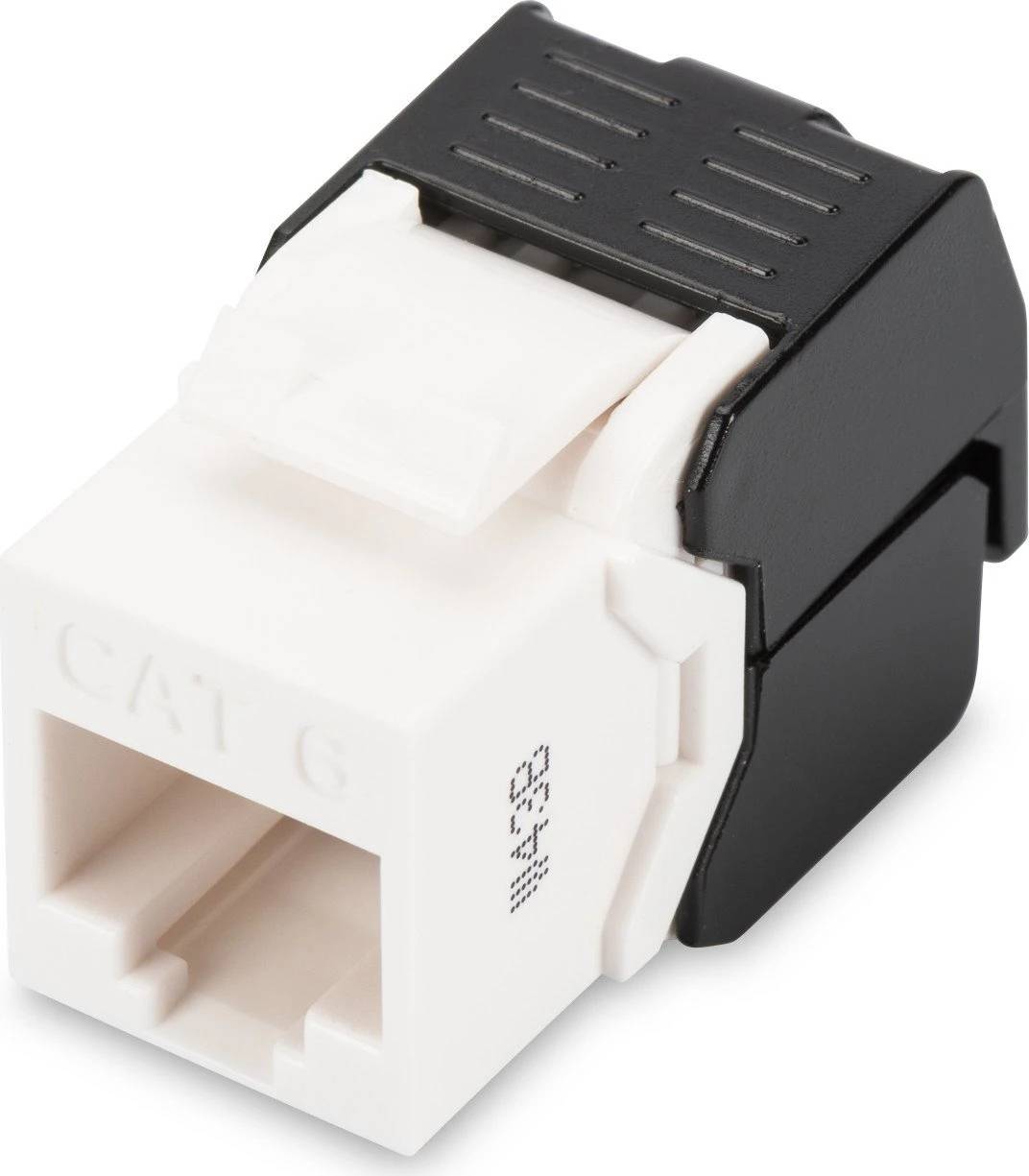

Digitus Cat6 Keystone Module, Unshielded, RJ45 to LSA, Tool-Free, 250 MHz, 1GBase-T
Brand:
Digitus
Digitus Cat6 Keystone Module, Unshielded, RJ45 to LSA, Tool-Free, 250 MHz, 1GBase-T
€4.37 inc. VAT
DN-93603
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Digitus Cat6 Keystone Module — Unshielded, Tool-Free, 1GBase-T
Cat6 Class E250 MHzUnshieldedTool-free LSA
The Digitus DN-93603 is a unshielded Cat6 keystone jack that terminates an installation cable on a tool-free LSA block and gives an RJ45 socket up to 250 MHz (1GBase-T), for installers fitting patch panels, wall outlets and surface boxes.

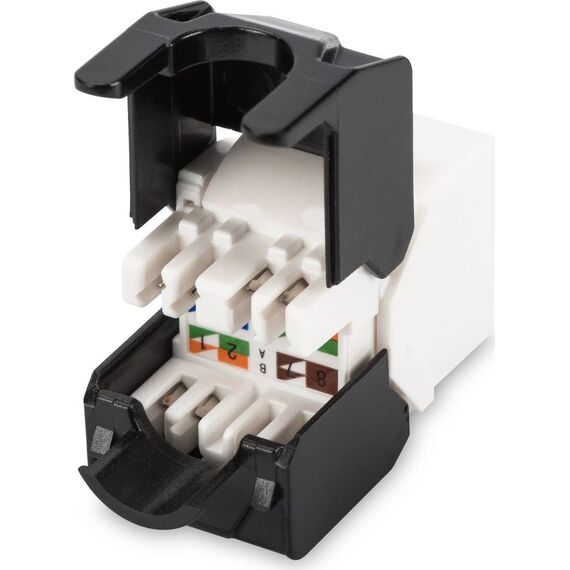

You lay the cable wires into the colour-coded T568A or T568B contacts, close the lid, and the jack is terminated — no punch-down tool needed. It is unshielded (UTP), made for Cat6 U/UTP installation cable, and comes with a cable tie for strain relief.
Before you order: This is a single UNSHIELDED Cat6 jack. For shielded cable or 10 Gigabit runs choose a shielded or Cat6A keystone; for bulk jobs Digitus also sells it in packs (DN-93603-8, -12, -24) — this item is ONE module.
What's in the Box
- 1 × DIGITUS Cat6 keystone module, unshielded (DN-93603)
- 1 × cable tie
What It Means in Practice
- Tool-free termination: wires are pressed into the LSA contacts by closing the module, which saves time on site and gives repeatable results.
- Accepts 22–26 AWG solid and stranded conductors, so it suits both installation cable and thinner patch-type cable.
- Up to 24 modules fit in a 1U 19" keystone patch panel.
- Gigabit Ethernet (1GBase-T) on a Cat6 U/UTP permanent link.
What Will Not Work
- Not rated for 10GBase-T — for 10 Gigabit use a Cat6A keystone such as DN-93606.
- No shield contact — not for F/UTP or S/FTP cable.
- PoE rating is not published by Digitus for this module; for PoE++ installations DN-93606 states 802.3bt.
- Digitus lists shielded keystones for its DN-93801-1 / DN-93811 wall plates — ask us before combining.
Key Features
Cat6 up to 250 MHz
Gigabit Ethernet with headroom for typical office runs.
Tool-free LSA
Quick latches terminate the wires without a punch tool.
Cable tie included
Secures the cable to the module for strain relief.
Re-terminable
More than 200 termination cycles and over 750 mating cycles.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
For Gigabit office points on Cat6 U/UTP cable, a tool-free Cat6 jack is the cost-effective choice; step up to Cat6A only where 10 Gigabit or high-power PoE is planned. Pair it with matching network cables of the same category so the whole channel performs.
✓ Buy it if You terminate Cat6 U/UTP cable for Gigabit desks, printers or cameras.
✕ Skip it if You need 10GBase-T, a shielded channel, or a multi-pack — choose DN-93606, a shielded module, or DN-93603-24.
→ Also consider DN-93606 Cat6A UTP keystone, Digitus keystone wall outlets and patch panels.
Not sure the jack fits your panel or wall plate? Send us the model and we will check it before you order.
Features - Digitus - DN-93603
More Details
Product Code
04:227417
EAN Code
4016032259398
Manufacturer
Digitus
