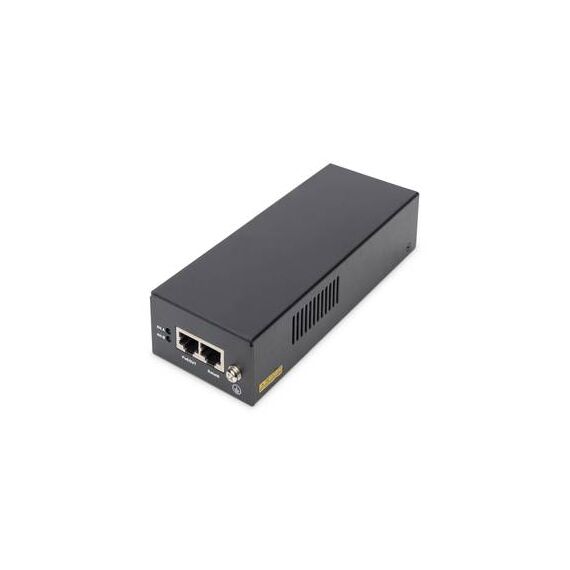

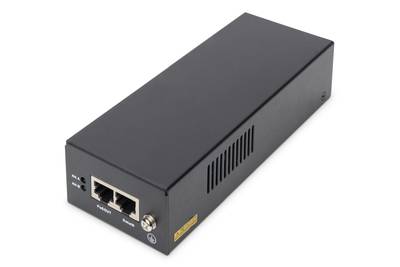

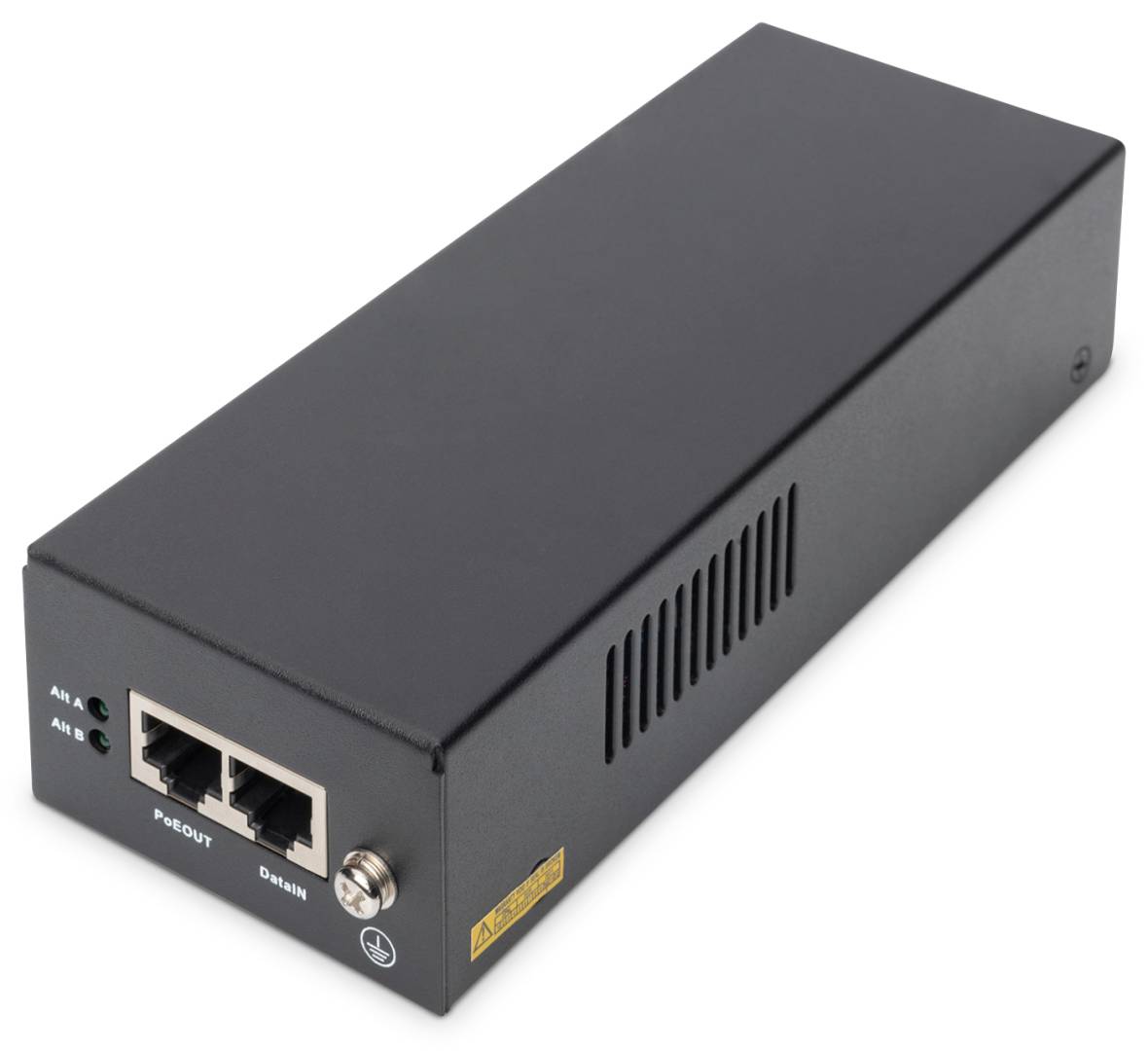

DIGITUS Gigabit Ethernet PoE++ Injector, 802.3bt, 85 W, 1-Port Midspan with Internal Power Supply, up to 100 m

Brand:
Digitus
DIGITUS Gigabit PoE++ Injector 802.3bt 85 W
DIGITUS Gigabit Ethernet PoE++ Injector, 802.3bt, 85 W, 1-Port Midspan with Internal Power Supply, up to 100 m
€121.69 inc. VAT
Buy
DN-95109
€102.26
€121.69 inc. VAT
Ships from EU stock: 29 item(s)
+ −
Add to wish list Ask a question
Product Code
04:347338
EAN Code
4016032464495
Manufacturer
Digitus

Quick Specs

Type
1-port PoE++ midspan injector
Connectors/Interface
RJ45 data in · RJ45 data + PoE out
Key spec
Up to 85 W · 56 V DC, 4-pair
Compatibility
802.3af/at/bt devices; any switch
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

DIGITUS DN-95109 — Gigabit Ethernet PoE++ Injector, 802.3bt, 85 W

85 W PoE++802.3af/at/btGigabitInternal PSU

The DIGITUS DN-95109 is a single-port Gigabit PoE++ injector that adds up to 85 W of IEEE 802.3bt power over all four pairs to one Ethernet link, powering high-demand devices such as PTZ cameras, Wi-Fi 6E/7 access points, thin clients or LED displays from any non-PoE switch.

It is plug-and-play: switch to "Data in", device to "PoE out", mains cable into the built-in power supply. It detects the device and supplies 802.3af, at or bt power as required, at up to 100 m.

Before you order: One port only. The device you power must accept PoE (af/at/bt) — non-PoE devices are not powered. Data pass-through is Gigabit (10/100/1000).

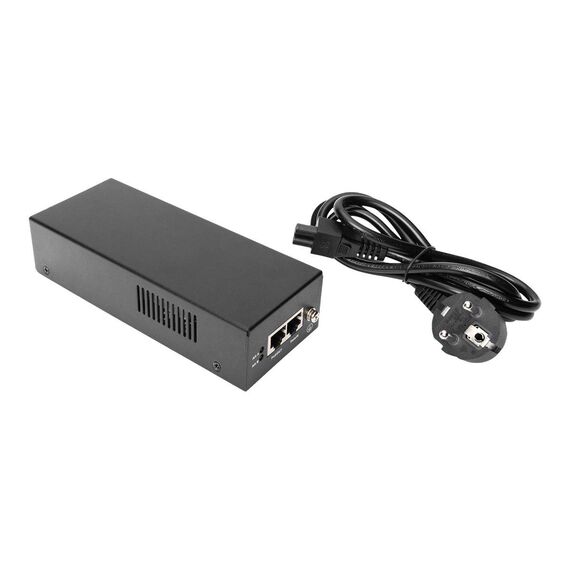

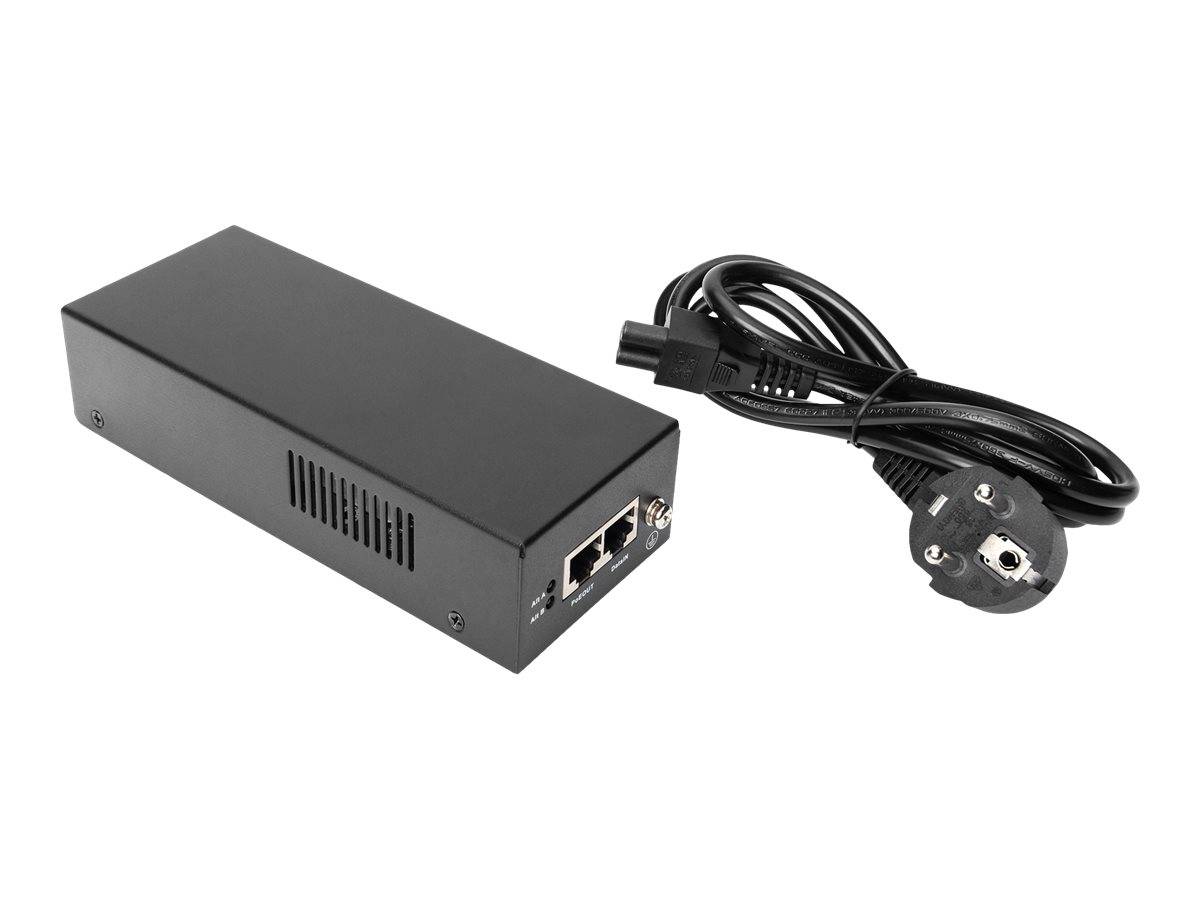

What's in the Box

  • 1x DIGITUS DN-95109 PoE++ injector
  • 1x power cable
  • 1x quick reference guide

What It Means in Practice

  • Powers one high-power PoE device up to 85 W without a PoE++ switch.
  • Automatic Mode A/B detection and 4-pair output at 56 V DC (1.5 A).
  • Over-voltage and short-circuit protection.
  • Internal 100–240 V AC supply — no external brick.
  • Indoor desktop/shelf use; 180 x 65 x 40 mm.

What Will Not Work

  • Only one device per injector.
  • No multi-gig data — Gigabit pass-through only.
  • Not for outdoor installation.
  • Does not power non-PoE devices (use a PoE splitter for those).

Key Features


85 W 802.3bt
4-pair PoE++ for the most demanding PoE devices, backward compatible with af/at.

Plug-and-play
No configuration; automatic device detection and Mode A/B.

Protection
Over-voltage and short-circuit protection on the output.

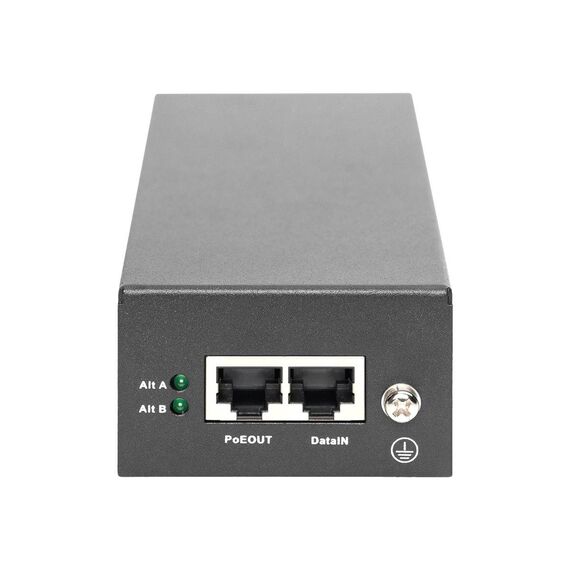

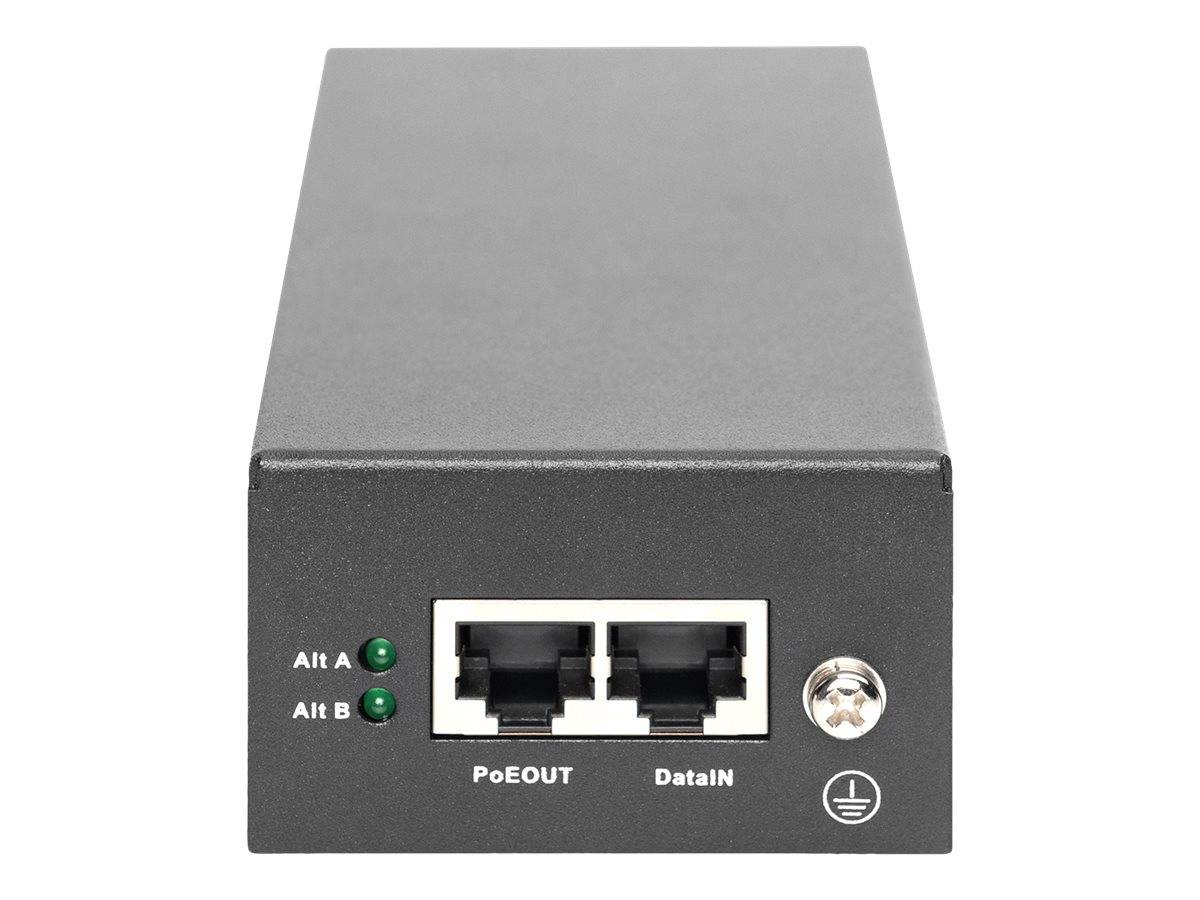

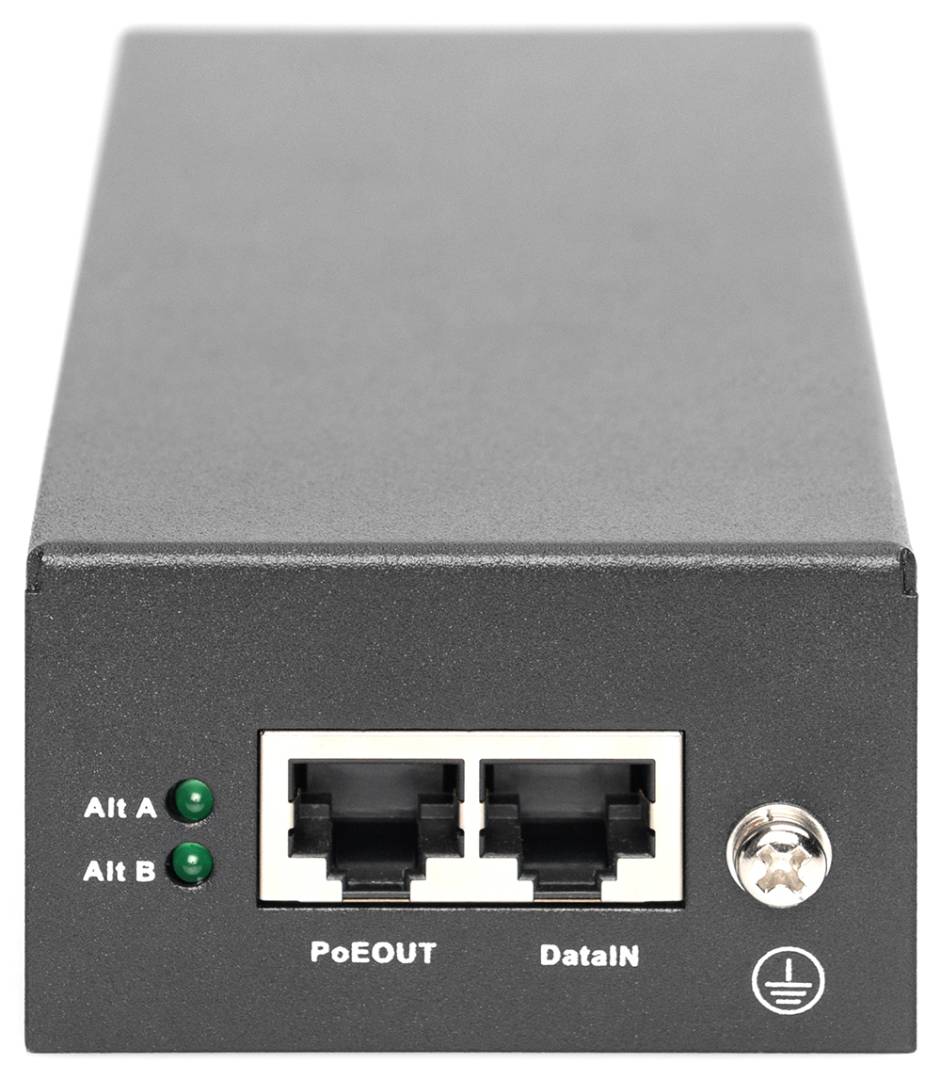

LED status
Power input and PoE output indicators.

Technical Specifications

Identification
Part Number DN-95109
EAN / GTIN 4016032464495
Brand DIGITUS
Product type 1-port PoE++ injector (midspan)
PoE & Network
Ports 1x RJ45 Data in, 1x RJ45 Data + PoE out
Standards IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3bt
Data rate 10/100/1000 Mbps
PoE output Up to 85 W, 56 V DC / 1.5 A
Pins 4/5(+), 7/8(−) and 3/6(+), 1/2(−)
Distance Up to 100 m
Power & Physical

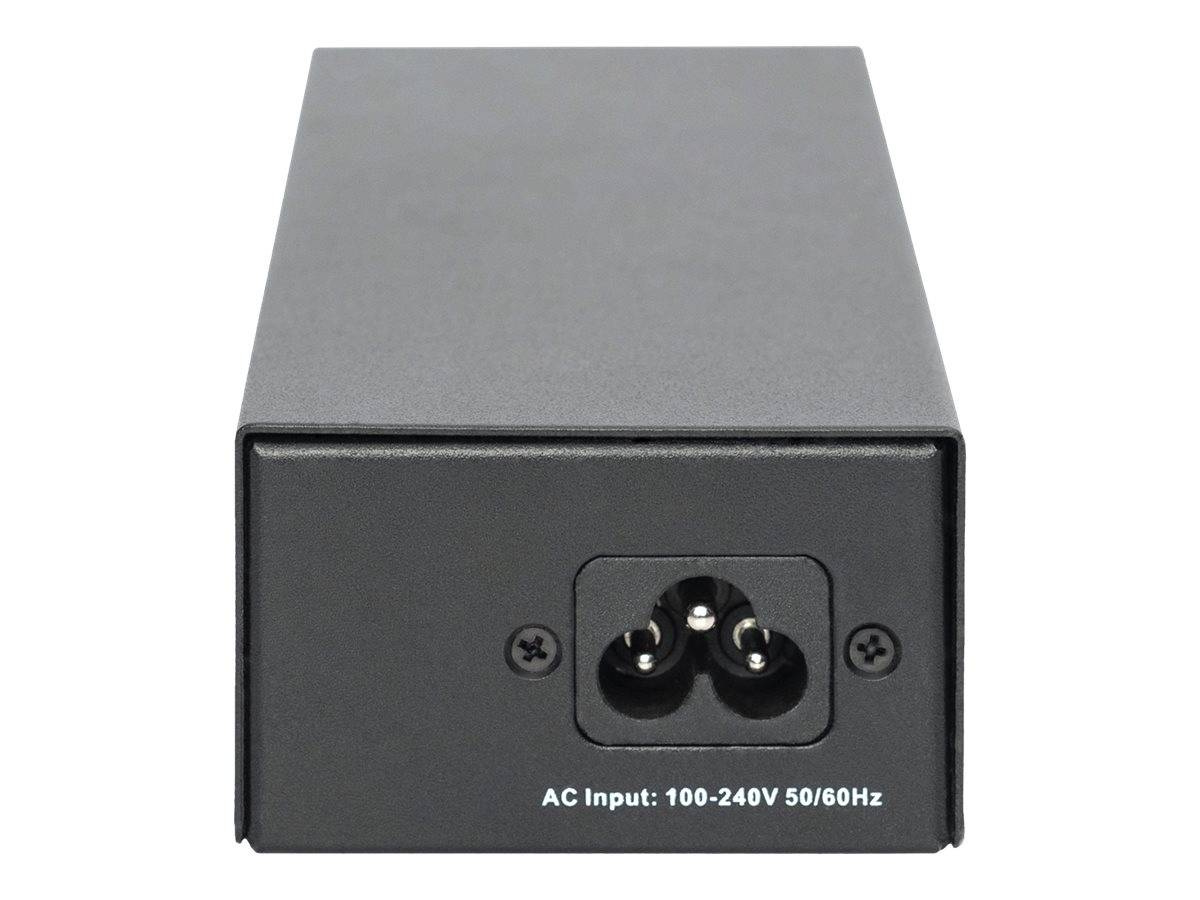

Power supply Internal, 100–240 V AC, 50/60 Hz, C6 inlet
Max. consumption 90 W
LEDs Power input, PoE output
Dimensions 180 x 65 x 40 mm
Environment
Operating temperature 0 to 40 °C
Storage temperature −10 to 70 °C
Humidity 5–95%, non-condensing
Use Indoor
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Manufacturer warranty term not published for this model — claims handled through Singular

Frequently Asked Questions

Will it power my 30 W access point?
Yes. It is backward compatible and supplies only the power the device requests.
Do I need a special cable?
A good Cat5e or better cable with all four pairs connected is needed for 4-pair 85 W operation.
Can I use it with a PoE switch?
Yes, but connect "Data in" to the switch; the injector supplies the power on the output side.
Singular Expert Insight · Buyer's Guide
The DN-95109 is the simplest way to power one 802.3bt device from a switch without PoE++. For several high-power devices, an 8-port injector or a PoE++ switch from our switches will be tidier.
✓ Buy it if you need to power a single PoE++ device up to 85 W.
✕ Skip it if you need to power many devices or install outdoors.
→ Also consider DIGITUS DN-95118 — 8-port 802.3bt injector with 250 W total.
Not sure your device needs 802.3bt? Send us the model and we will check its power class before you order.
