DIGITUS DN-95116 — 16-Port 10G Ethernet PoE+ Injector, 802.3at, 250 W, 19" 1U
16 PoE+ ports250 W totalData up to 10 Gbps19" 1U rack

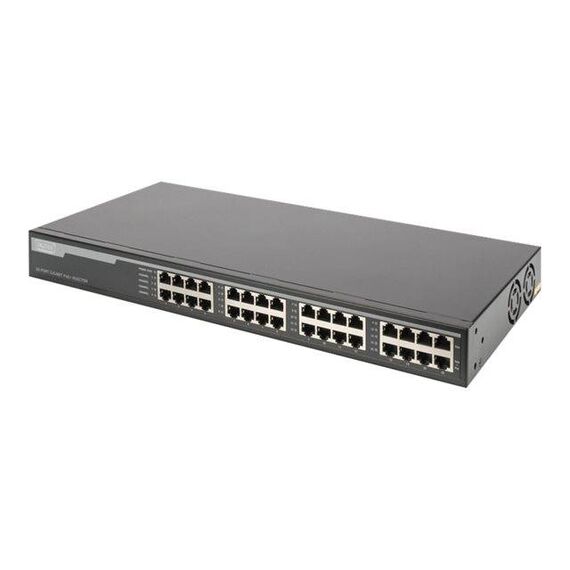

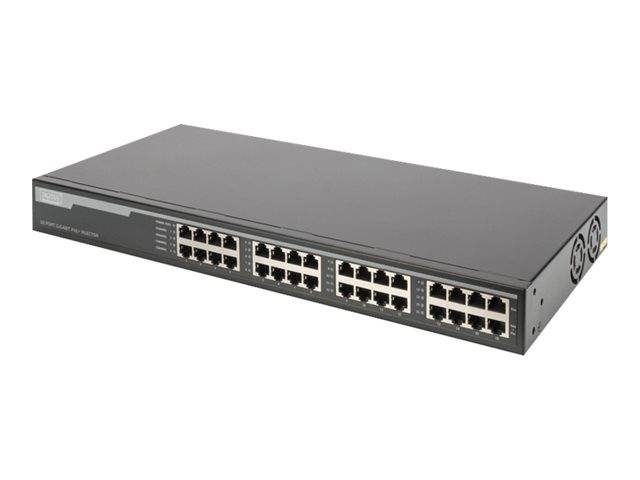

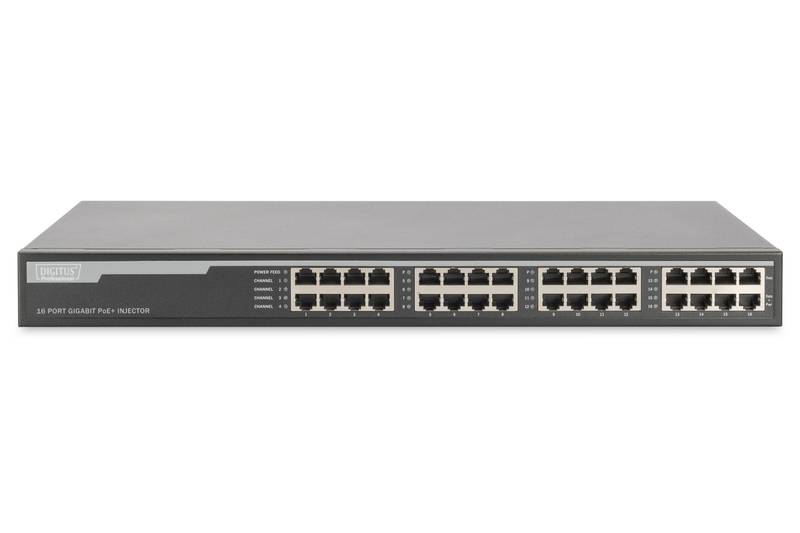

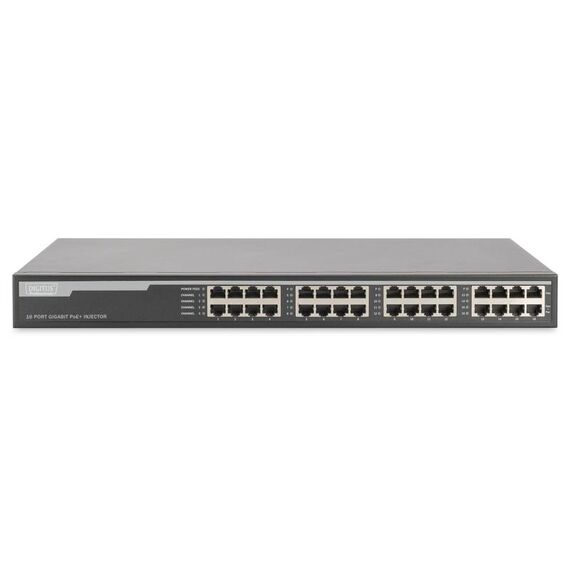

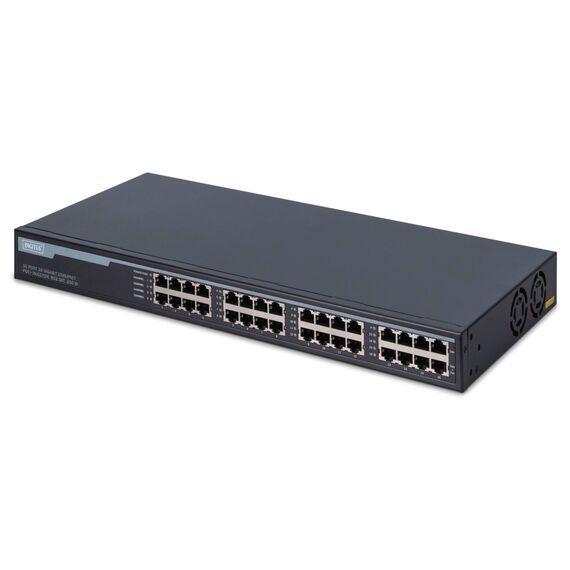

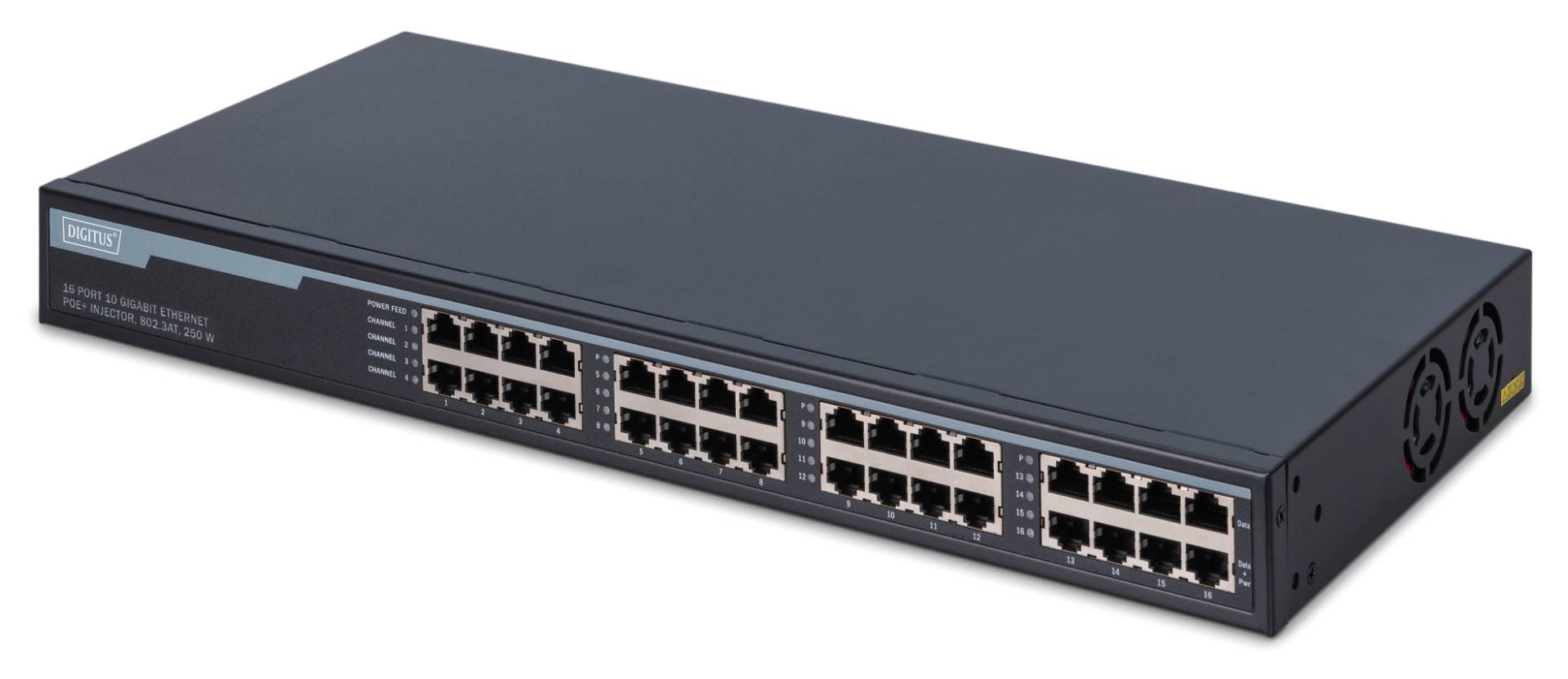

The DIGITUS DN-95116 is a 16-port PoE+ midspan injector in a 19" 1U rack housing that adds IEEE 802.3af/at power — up to 30 W per port and 250 W in total — to the links of a non-PoE switch, while passing data at 10/100/1000 Mbps, 2.5G, 5G and 10G.
Patch each switch port into a "Data in" port and connect your cameras, access points or phones to the matching "Data + Power out" port. The injector detects each device and supplies the right power automatically; the power supply is built in, so a single mains cable runs the whole unit.
Before you order: The 250 W budget is shared: 16 devices at a full 30 W would need 480 W. Plan on an average of about 15 W per port when all 16 are in use. It delivers 802.3af/at only — not 802.3bt (60/90 W) loads.
What's in the Box
- 1x DIGITUS DN-95116 PoE+ injector
- 1x mains power cord
- 2x 19" rack brackets with screws
- 4x rubber feet
- 1x quick start guide
What It Means in Practice
- Turns any 16-port non-PoE switch — including 10G multi-gig switches — into a PoE+ installation without replacing the switch.
- Each port auto-detects 802.3af (15.4 W) or 802.3at (30 W) devices; non-PoE devices on an output port simply receive data.
- Power is on pins 1/2 and 3/6; output 48–56 V DC; up to 100 m from injector to device.
- Per-port overload and short-circuit protection.
- Fits in a 19" rack (1U) or stands on a desk with the rubber feet.
What Will Not Work
- No 802.3bt (PoE++) — 60 W/90 W devices such as some PTZ cameras or Wi-Fi 7 APs will not get full power.
- Total budget is 250 W — not 30 W on all 16 ports at once.
- Not a switch: it does not route or switch data between ports.
- Indoor use only; Class A EMC equipment — not intended for home environments.
Key Features
Multi-gig pass-through
Data at 10/100/1000 Mbps, 2.5G, 5G and 10G — use it with modern multi-gig switches.
Per-port protection
Individual af/at detection, overload and short-circuit protection on every channel.
Built-in PSU

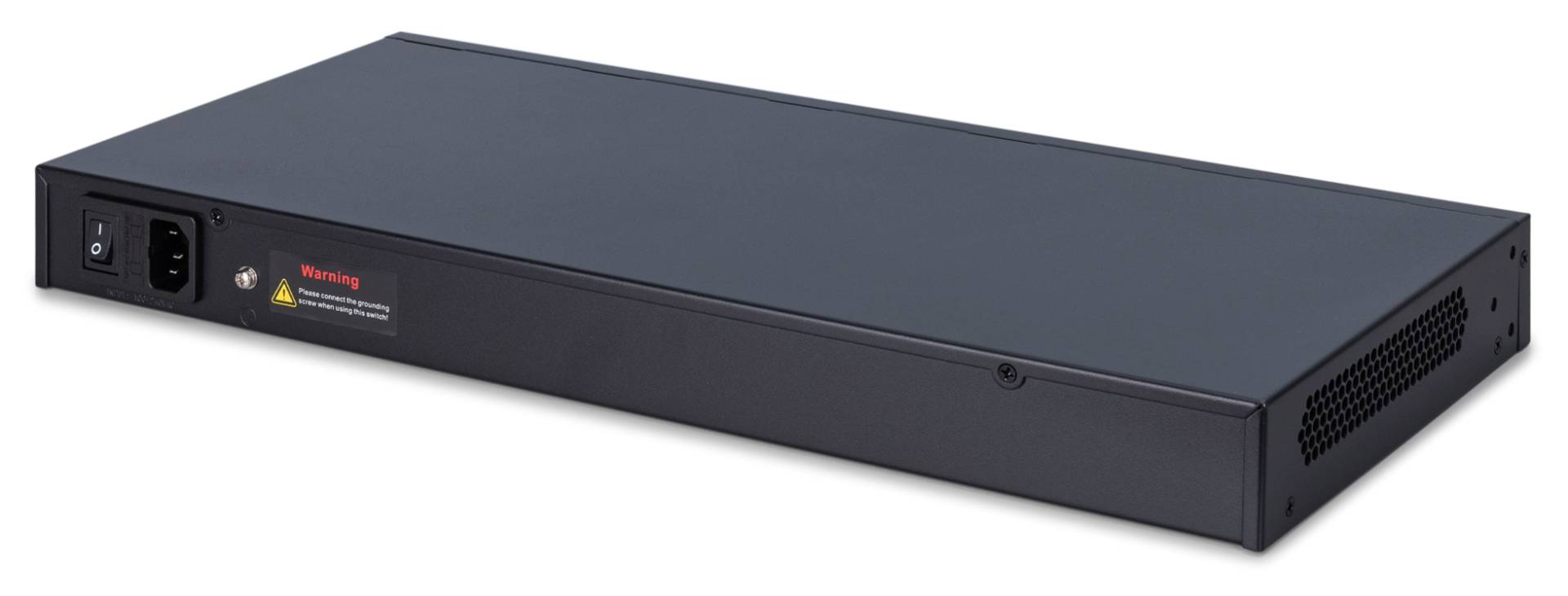

100–240 V AC internal supply, 15 W own consumption, MTBF 100,000 h.
Rack-ready
19" 1U, 440 x 200 x 45 mm, brackets included.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The DN-95116 is the clean way to add PoE+ to an existing non-PoE or multi-gig switch at rack scale, without replacing the switch. Size your devices against the 250 W budget, and if you need 802.3bt or prefer one box, look at a PoE+ switch from our switches range.
✓ Buy it if you want to keep your existing 16-port switch (even 10G) and add PoE+ for cameras, APs or phones.
✕ Skip it if you need 60/90 W PoE++ per port or more than 250 W total.
→ Also consider DIGITUS DN-95117 — the 24-port 370 W version of the same injector.
Not sure your devices fit in the 250 W budget? Send us the list of cameras/APs and we will check before you order.
