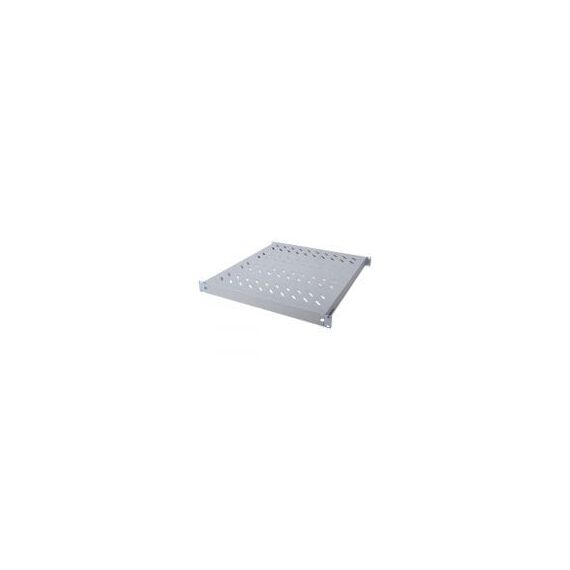

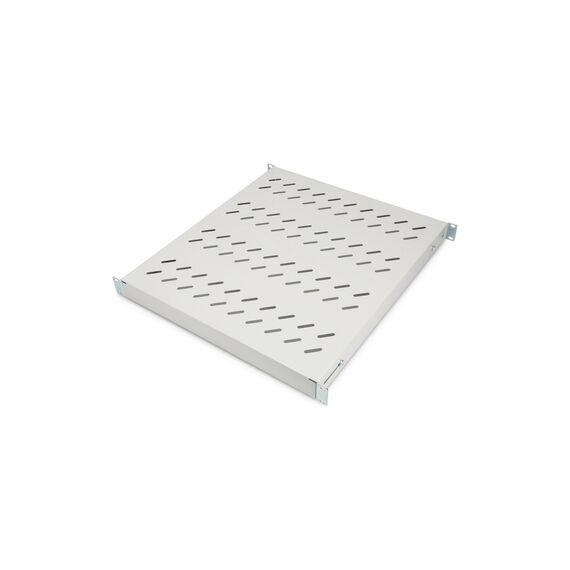

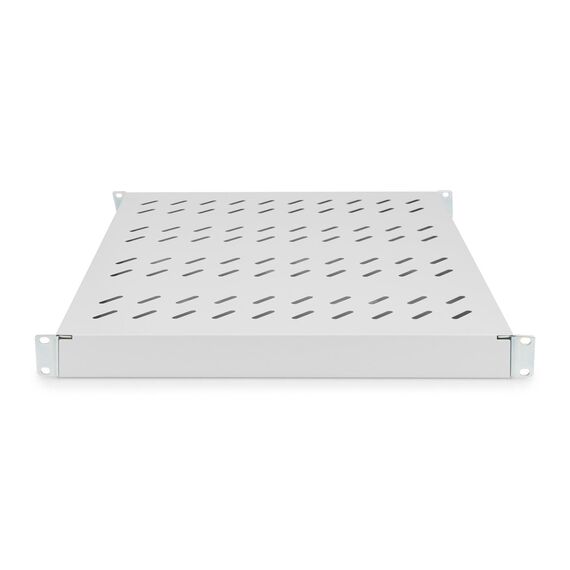

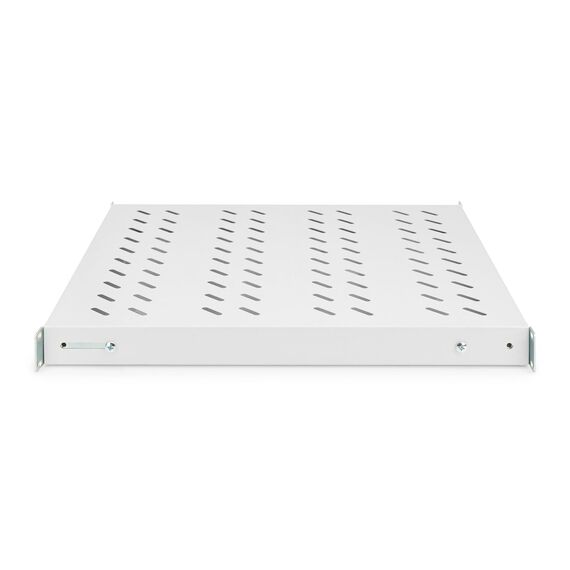

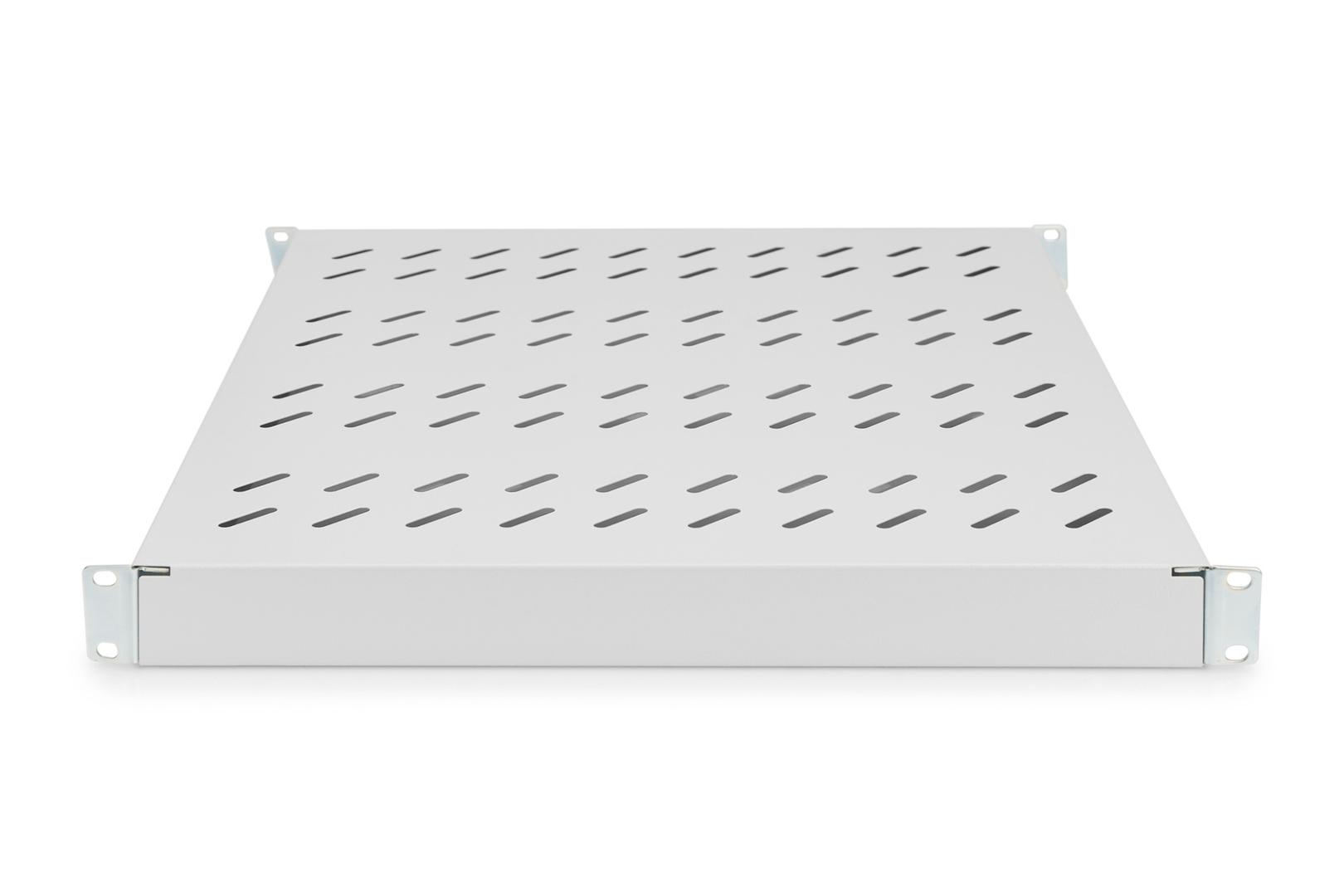

DIGITUS 1U Fixed Shelf with Variable Rails for 800 mm Deep 19-inch Racks
1U · 19-inch4-point mounting50 kg loadGrey RAL 7035

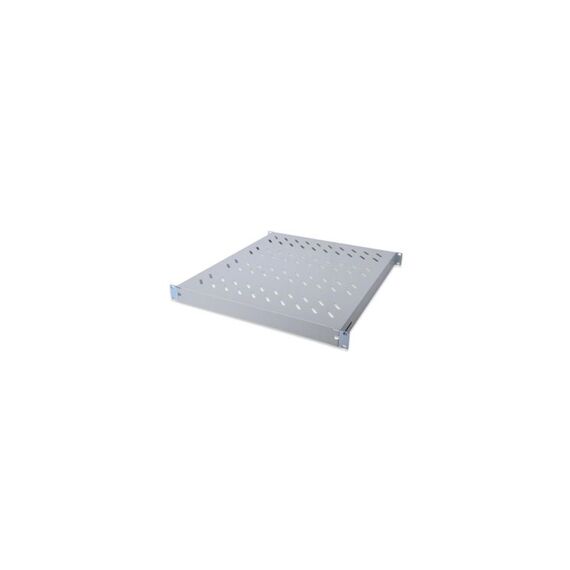

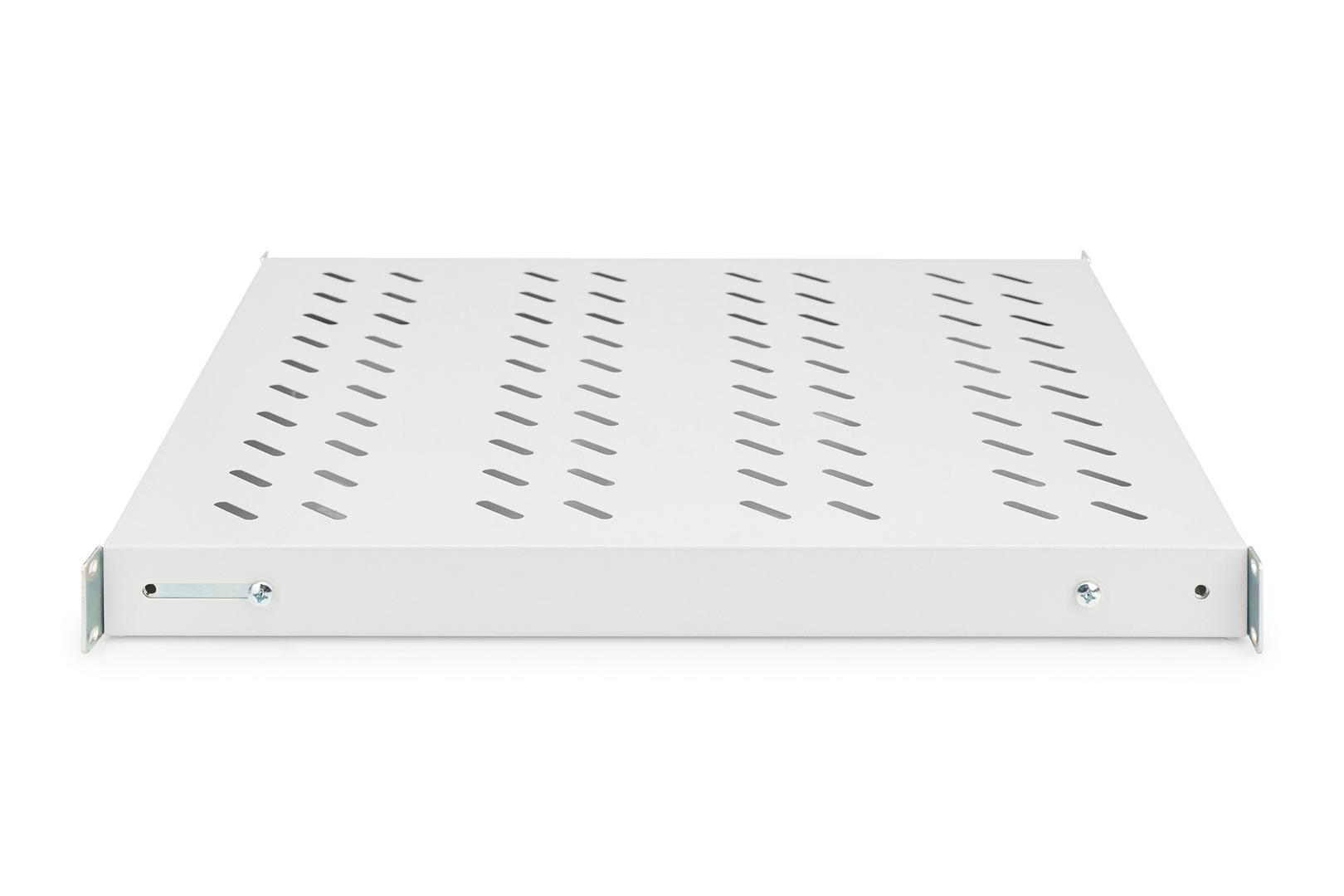

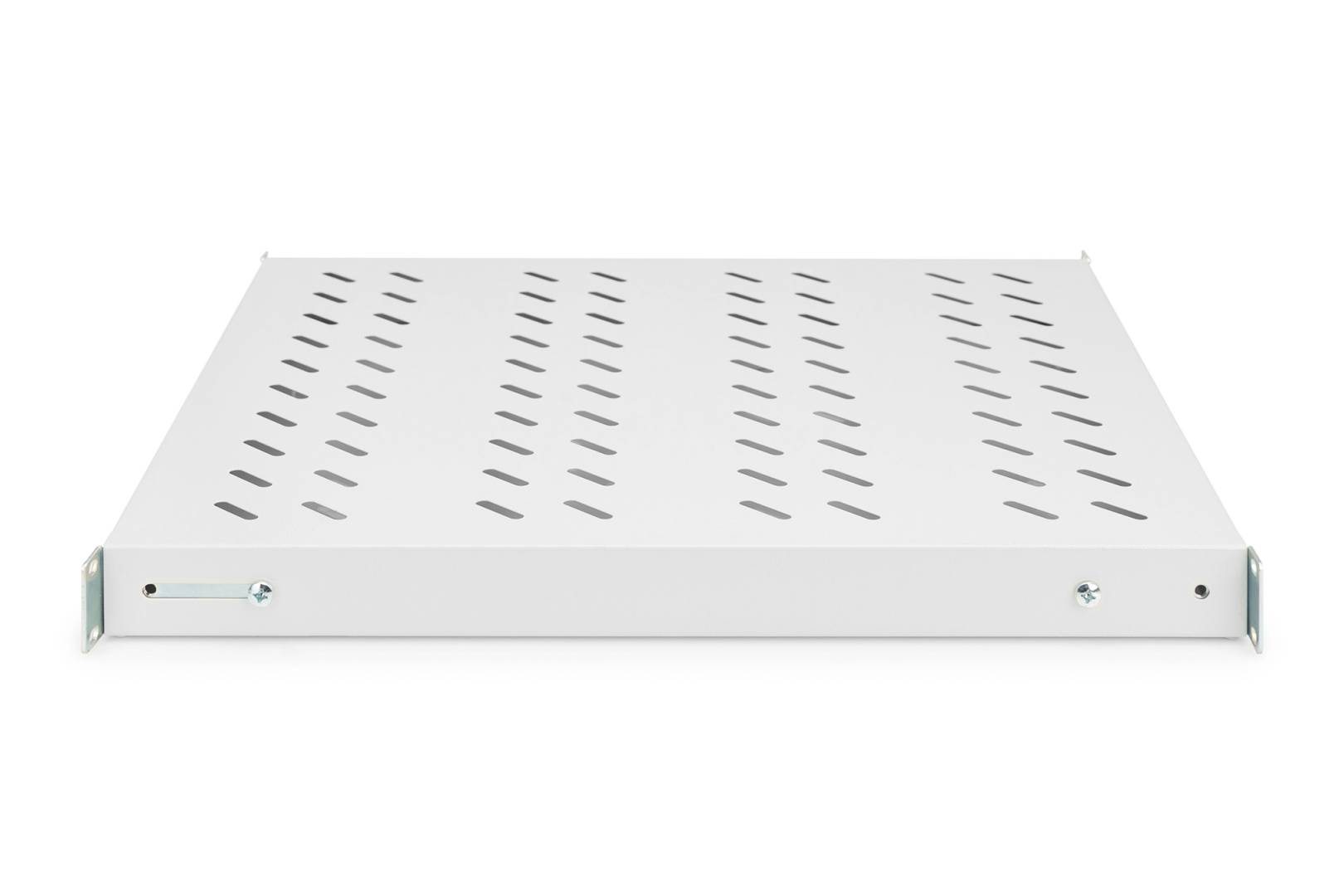

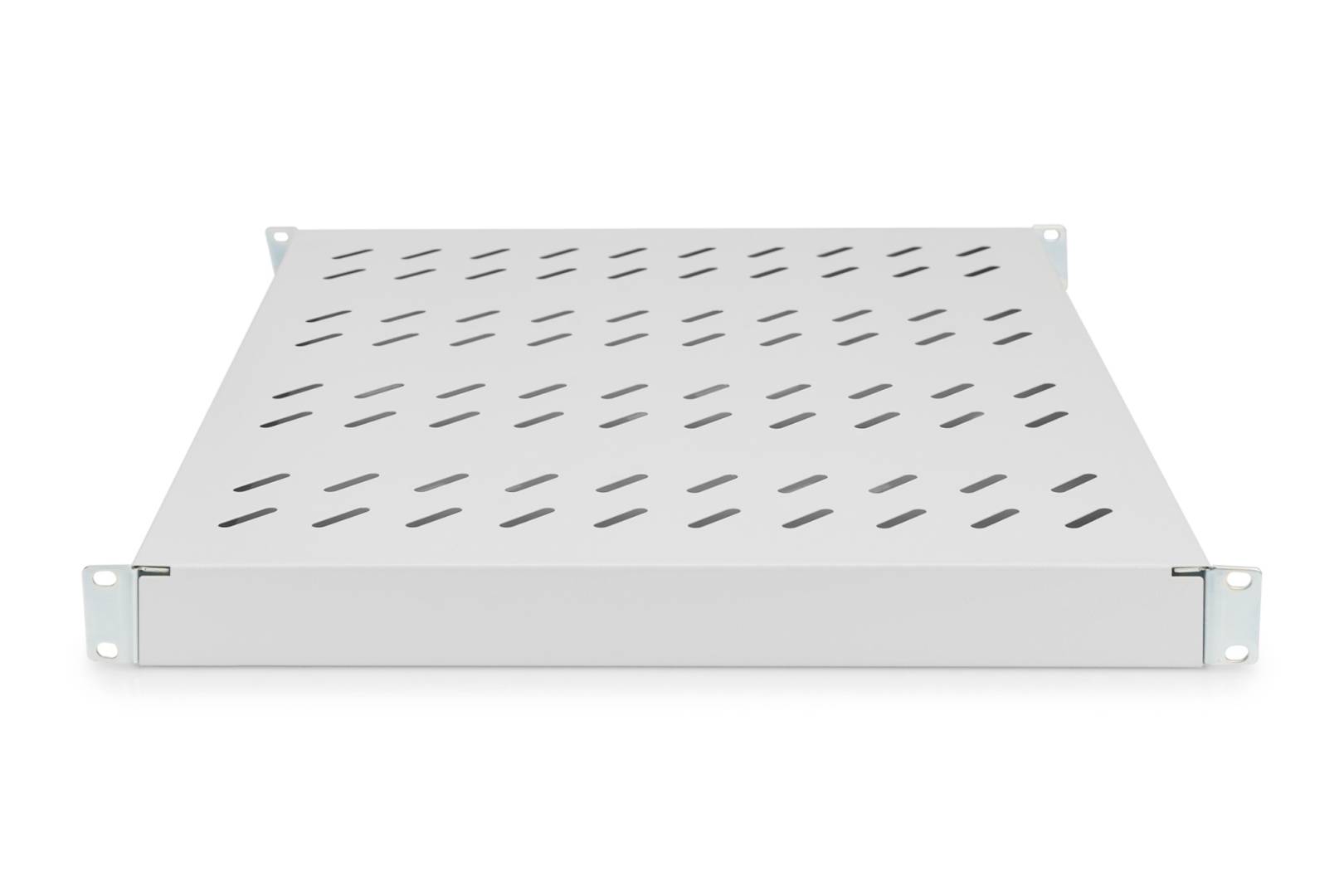

The DIGITUS DN-97646 is a 1U 19-inch fixed shelf with variable-depth side rails, rated for 50 kg and designed for 800 mm deep network and server cabinets in light grey RAL 7035. It is intended for anyone who needs to place non-rackable equipment - a NAS, a desktop router, a mini PC, a modem or a small UPS - securely inside a deeper 19-inch cabinet.

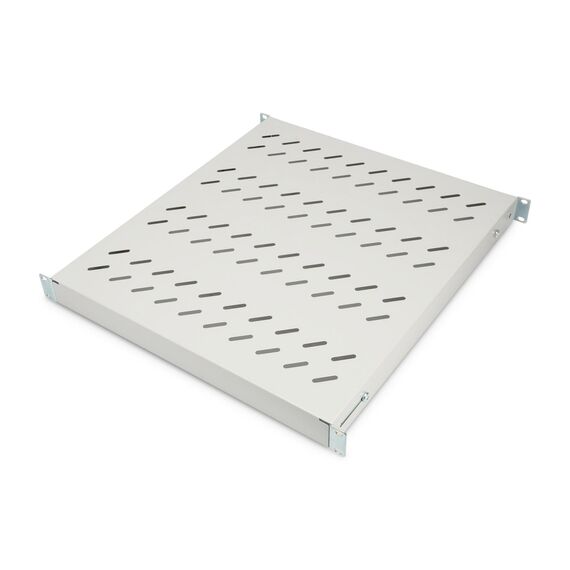

The shelf bolts to the front and rear profile rails, so the weight is carried at four points and the tray stays level. The perforated steel base lets heat from the device rise through the shelf instead of being trapped underneath.
Before you order: DIGITUS specifies this shelf for 800 mm deep cabinets, with rails that extend up to 700 mm between the front and rear uprights. For 600 mm cabinets choose DN-97644 (grey) or DN-97645 (black); if your cabinet is black, the 800 mm black version is DN-97647.

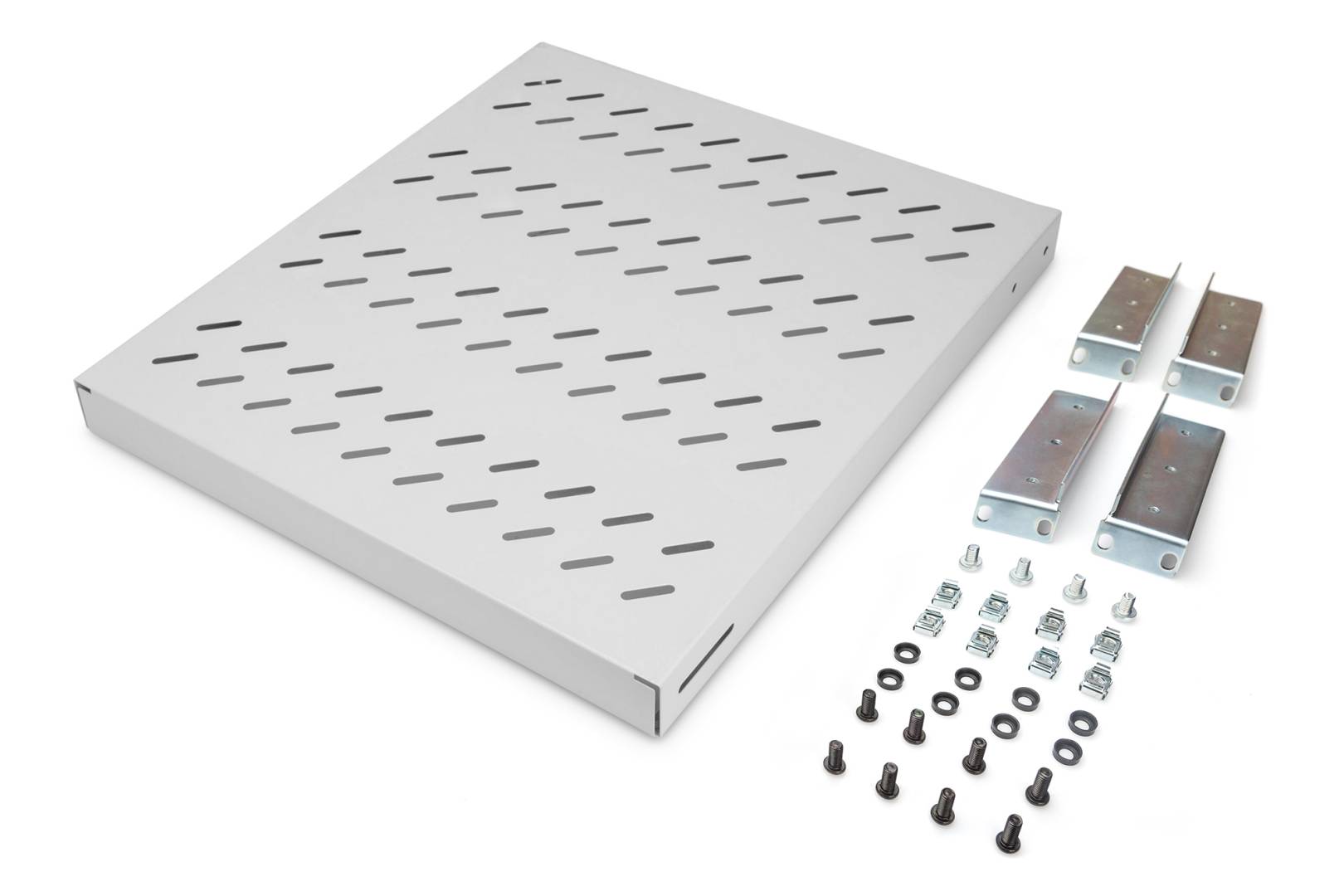

What's in the Box
- 1 x 1U 19-inch shelf with variable fastening rails, light grey RAL 7035
- Installation set with M6 screws, cage nuts and washers (quantities not published by DIGITUS)
What It Means in Practice
- Four-point fixing means a heavier device does not tip the back of the shelf down, which happens with front-only shelves in deep cabinets.
- The shelf takes 1U; the equipment on it needs its own free height, so plan the total U before installing.
- The perforated tray supports vertical airflow for routers, small switches without rack ears and mini PCs.
- The light grey finish matches grey RAL 7035 cabinets such as the DIGITUS Unique grey series.
What Will Not Work
- It will not install in a wall cabinet or open frame without rear 19-inch uprights - all four mounting points are required.
- It is not intended for 600 mm cabinets; the rails are sized for 800 mm deep enclosures.
- It is not a pull-out shelf - there are no telescopic slides.
- It is not rated above 50 kg; heavy tower UPS units belong on the cabinet floor.
Key Features

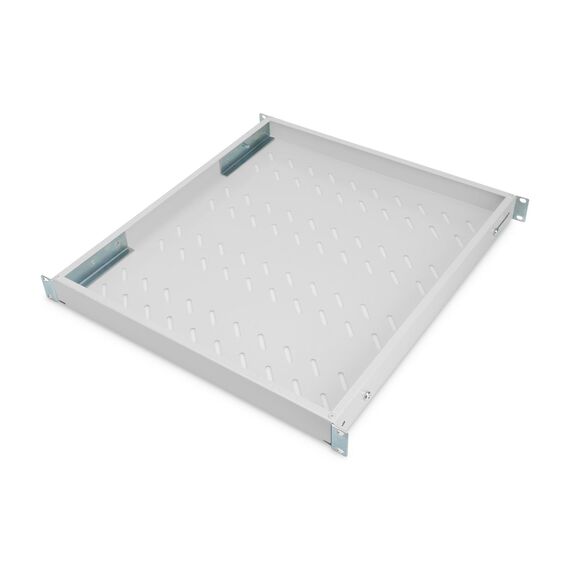

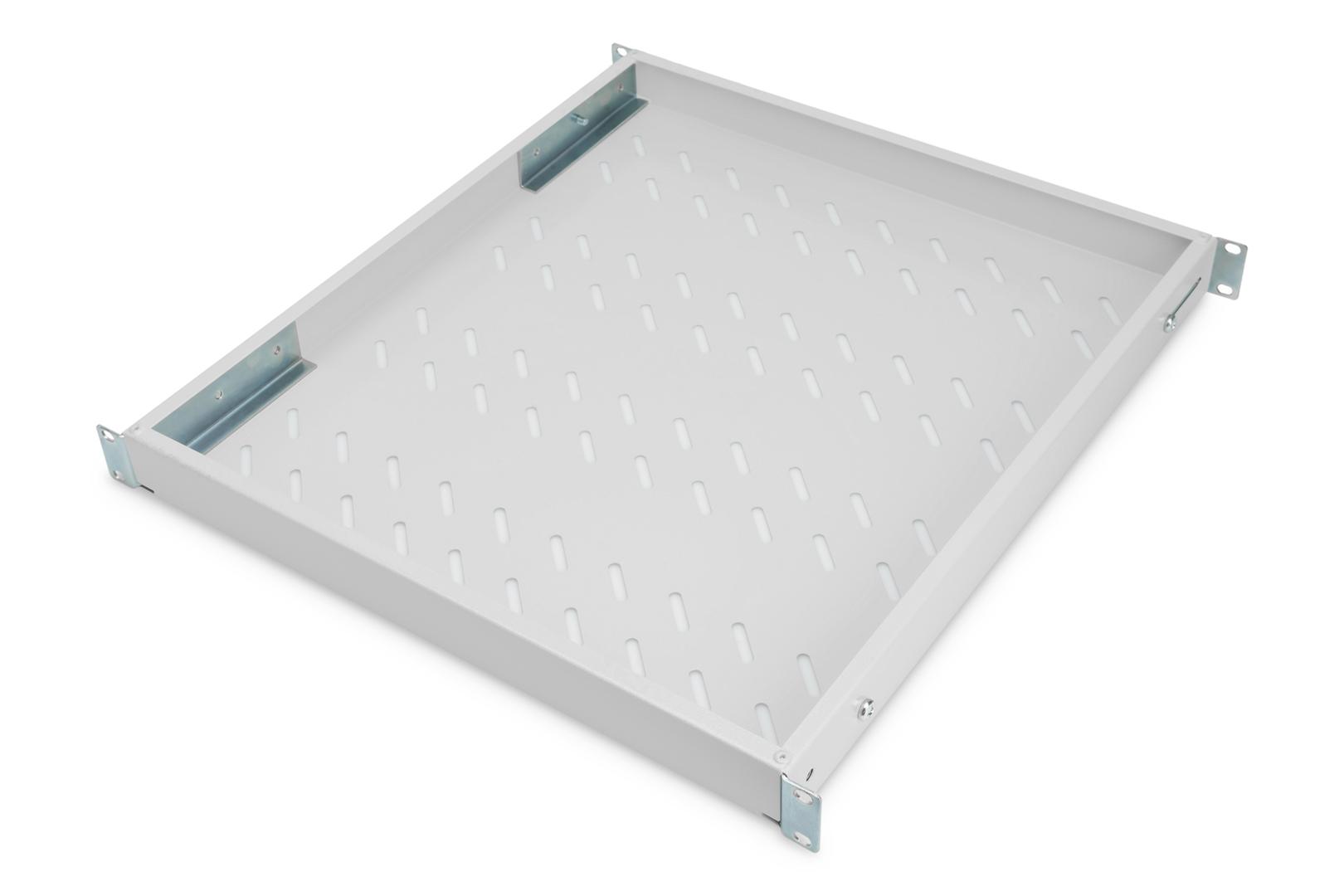

Variable rails
The side rails extend up to 700 mm to reach the rear uprights of 800 mm deep cabinets.
50 kg rating
Four-point mounting carries up to 50 kg of equipment.

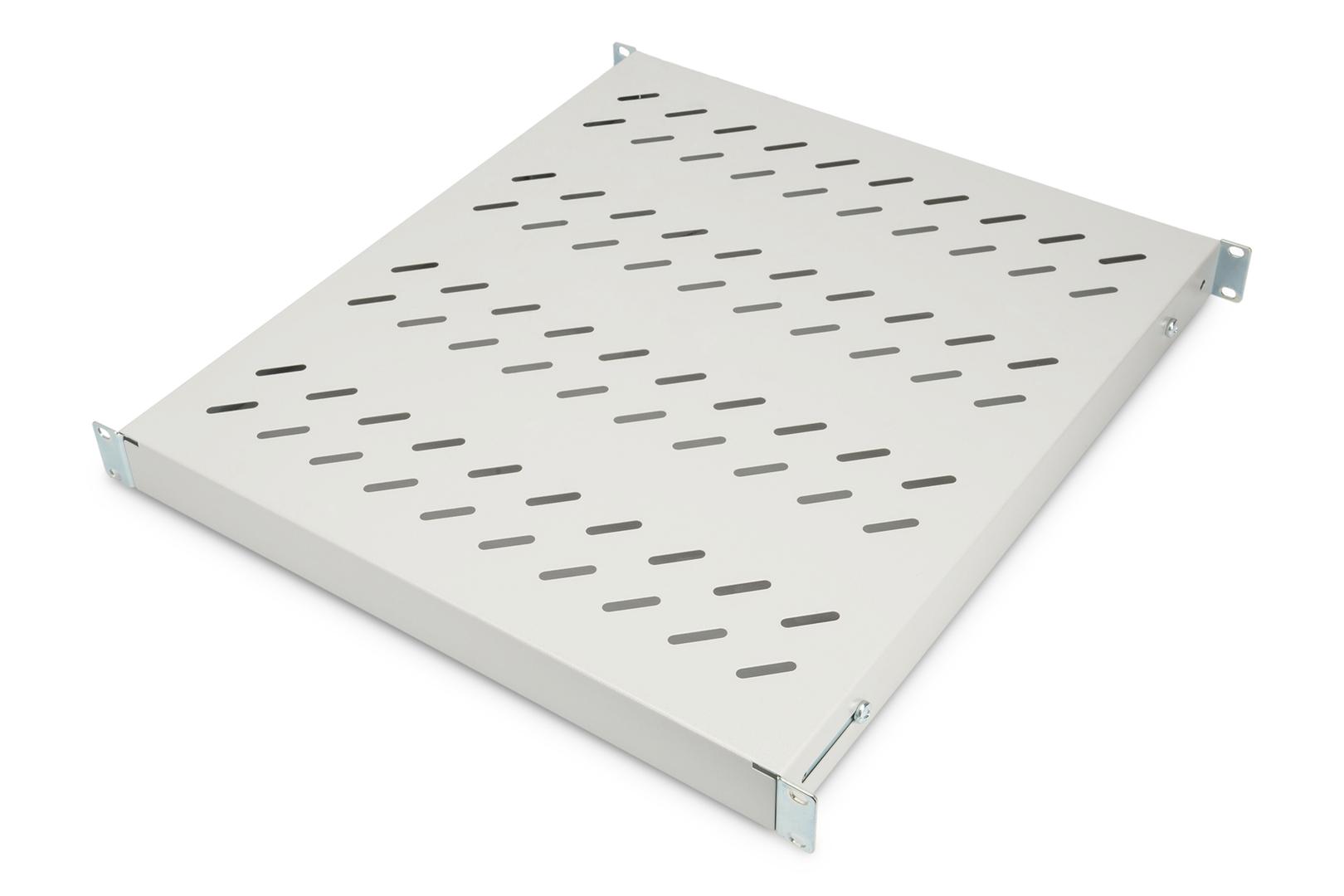

Perforated steel
The vented tray lets warm air rise away from the device.
Fixing kit included
M6 screws, cage nuts and washers are supplied.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
In an 800 mm cabinet a front-only shelf leaves the rear of the tray unsupported; this four-point shelf avoids that and carries 50 kg. Check the colour against your cabinet - grey here, black as DN-97647. Our rack accessories range covers matching blanking panels, cable managers and cage nuts.
✓ Buy it if you have an 800 mm deep grey 19-inch cabinet with front and rear uprights and need a stable shelf for non-rackable devices.
✕ Skip it if your cabinet is 600 mm deep (choose DN-97644 or DN-97645) or black (choose DN-97647).
→ Also consider DIGITUS DN-97647 in black for the same 800 mm cabinets.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Digitus - DN-97646
Colour
grey
More Details
Product Code
04:173519
EAN Code
4016032364986
Manufacturer
Digitus
