DIGITUS DN-97669 — 1U panel with steel rings and brush pass-through
1U · 19"4 steel ringsBrush stripsRAL 9005 black

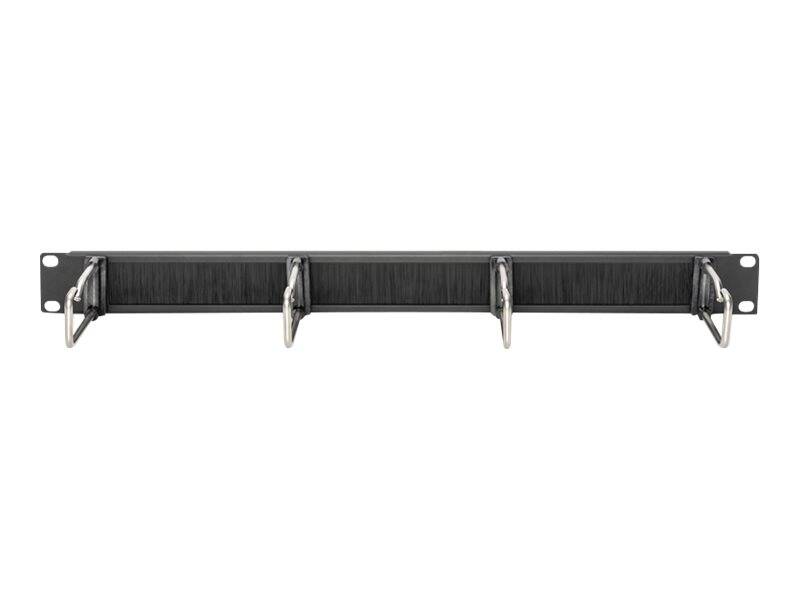

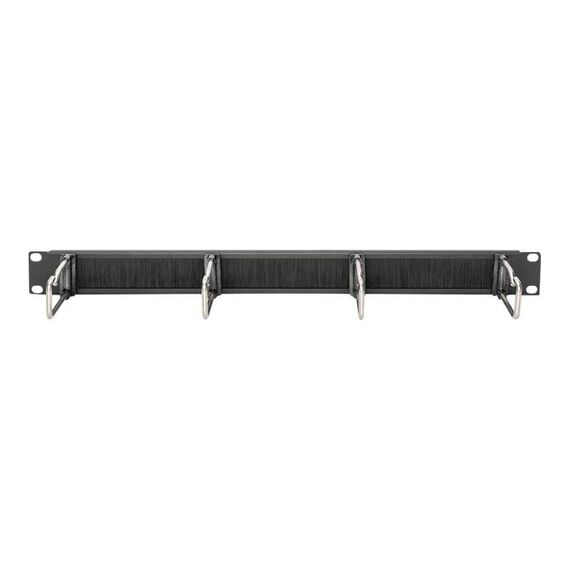

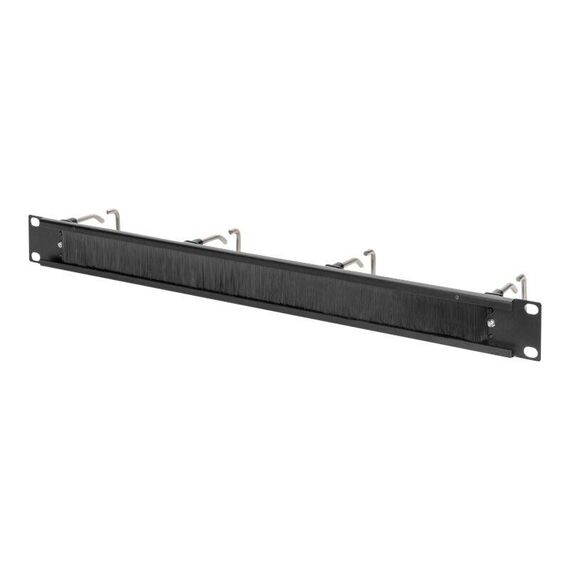

The DIGITUS DN-97669 is a 1U, 19-inch cable management panel in black RAL 9005 with four steel rings (40 x 75 mm) and a brush strip in each gap between the rings, for cabinets where some cables are routed along the front and others must pass through to the rear.

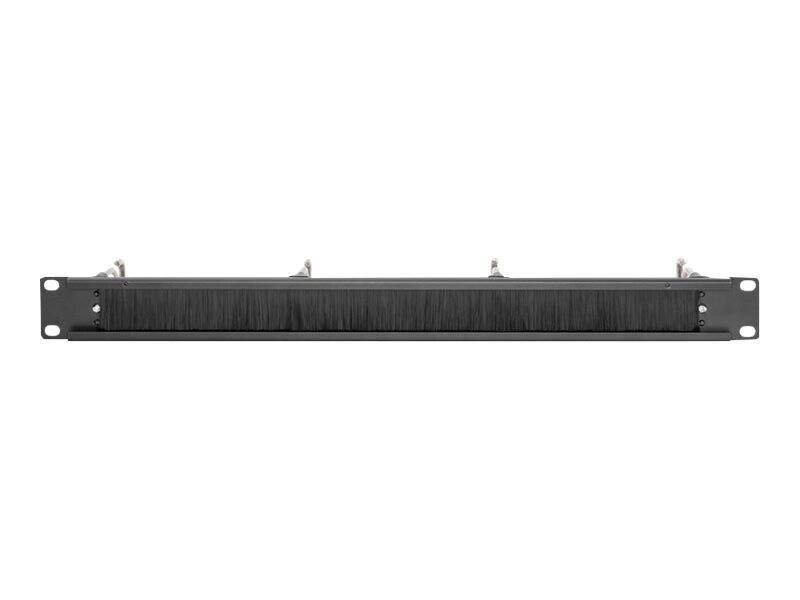

Each brush opening is 30 x 120 mm. The brushes let cables through while closing the gap around them, and the steel rings can be dismantled. A mounting set of screws, cage nuts and washers is included.
What's in the Box
- 1 × DIGITUS DN-97669 cable management panel, 4 steel rings with brush strips
- 1 × mounting set (screws, cage nuts, washers)
What It Means in Practice
- Patch cords can loop through the front rings, while uplinks or power cables drop through the brushes to the back of the cabinet.
- The brushes close around the cables, which helps keep the front-to-back airflow path in the cabinet intact.
- Steel rings stay rigid under heavy bundles and can be removed where needed.
- Black RAL 9005 matches black cabinets and most black switches.
What Will Not Work
- It does not fit 10-inch racks.
- There is no cover — front-routed cables stay visible.
- It is not an airtight seal; for strict hot/cold-aisle separation use dedicated blanking and sealing products.
- It is black; the grey RAL 7035 version is a different part number — ask us.
Key Features
Steel rings
Four rigid 40 x 75 mm rings, removable.
Brush pass-through
Brush strips of 30 x 120 mm between the rings for front-to-rear cable entry.
Mounting set included
Screws, cage nuts and washers supplied.
Powder-coated black
RAL 9005 finish for black cabinets.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
This is the panel to pick when the same rack unit has to do two jobs: guide patch cords across the front and let other cables go through to the back. In black cabinets it gives a clean, finished look. See more rack accessories.
✓ Buy it if you need front ring routing plus a brushed pass-through in a black 19-inch cabinet.
✕ Skip it if you only need horizontal routing (a plain ring panel is enough) or want cables hidden behind a cover.
→ Also consider DIGITUS DN-97666 (grey, 5 steel rings, no brush) for pure horizontal routing.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Digitus - DN-97669
Colour
black
More Details
Product Code
03:161146
EAN Code
4016032465553
Manufacturer
Digitus
