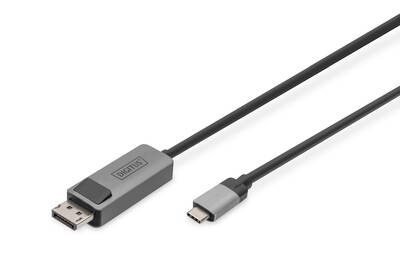

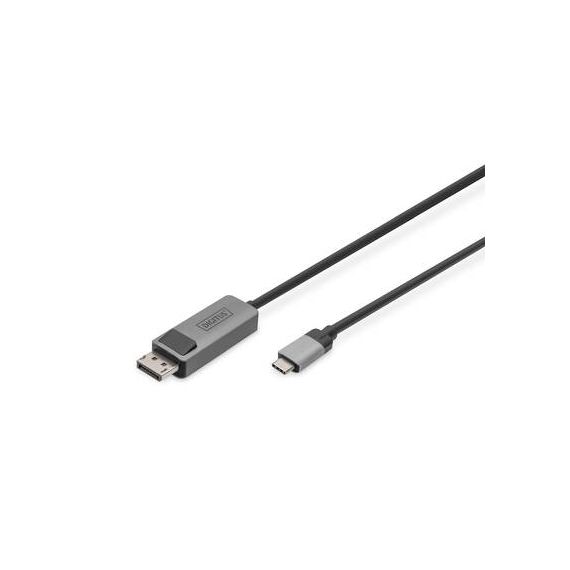

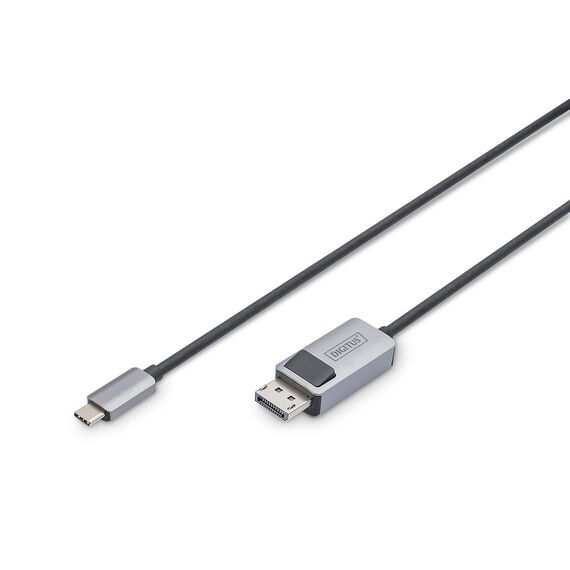

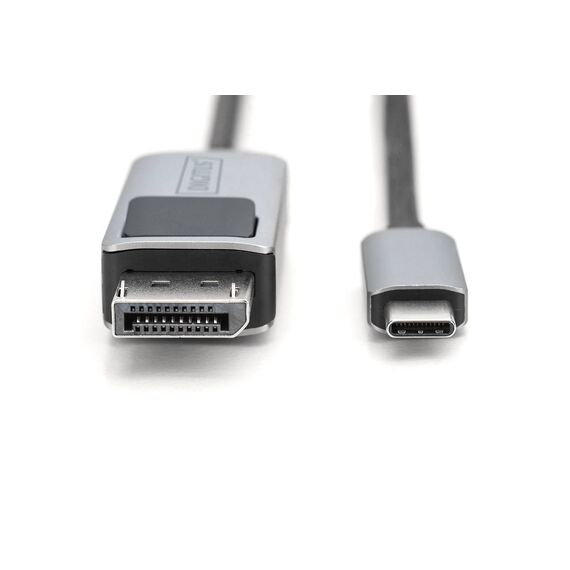

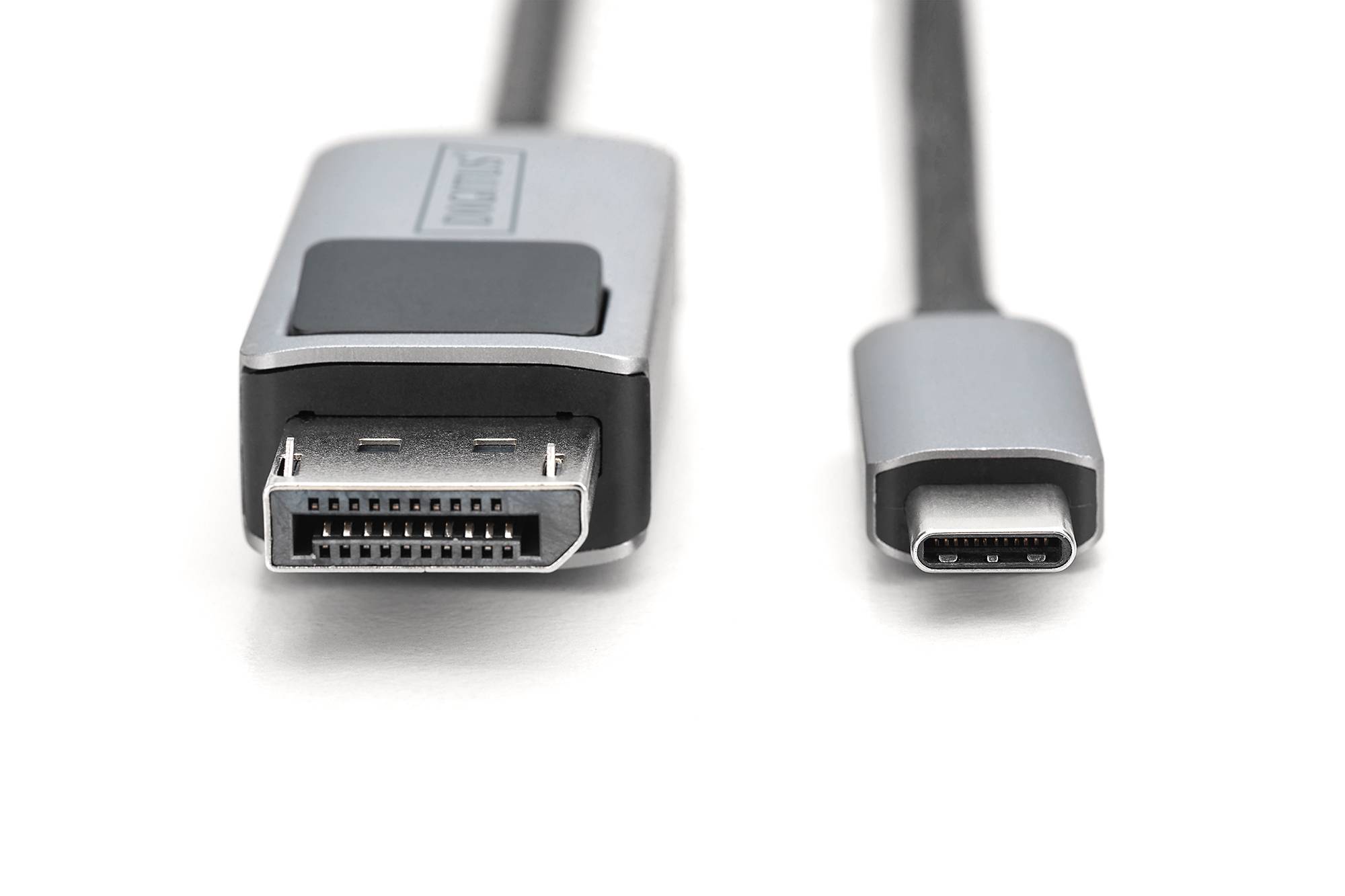

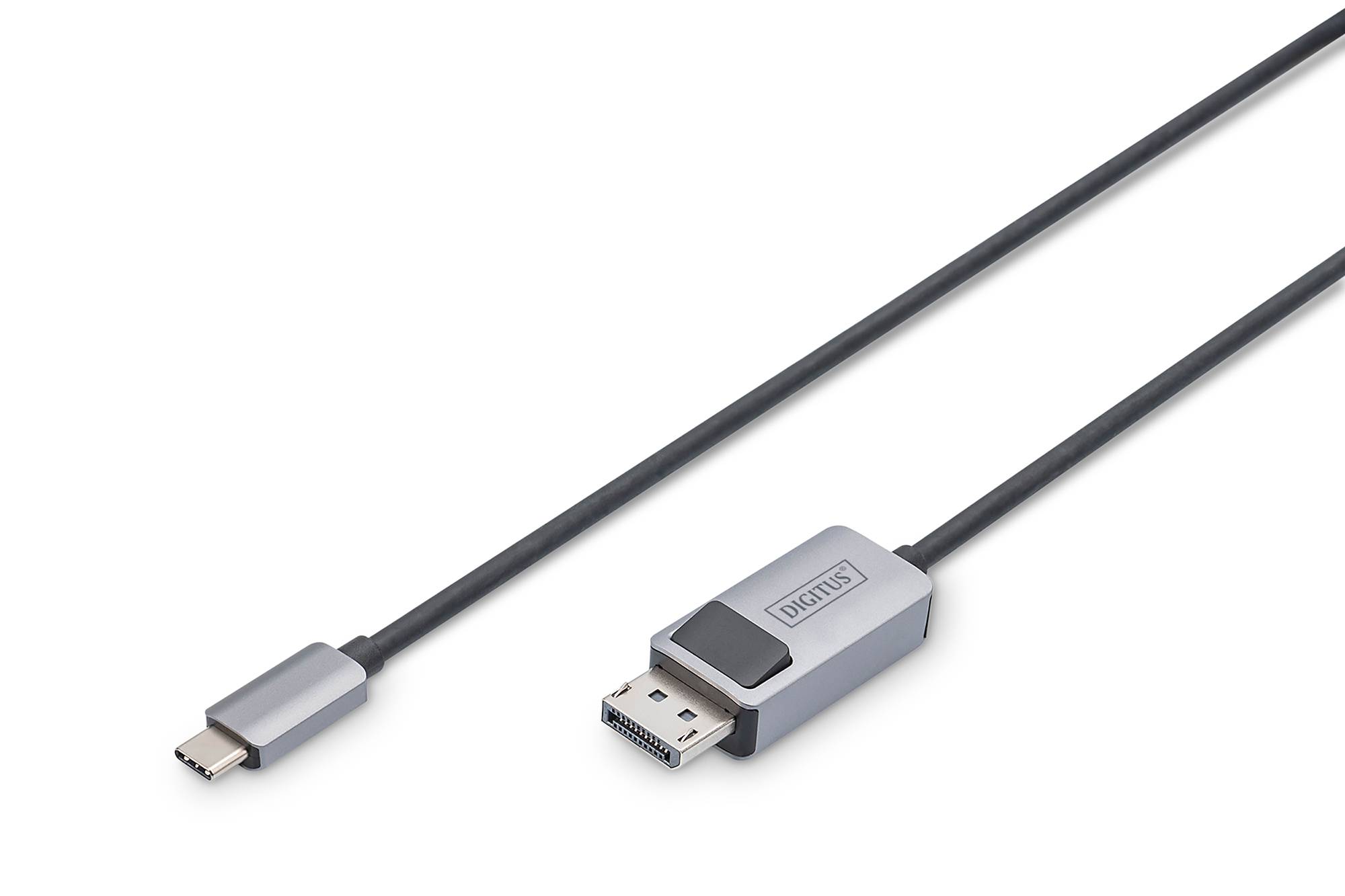

DIGITUS - Adapter cable - DisplayPort (M) to 24 pin USB-C (M) - DisplayPort 1.4 - 1 m - stranded, bi-directional, 8K30Hz (7680 x 4320) support, 2K165Hz (2560 x 1440) support, 4K144Hz support - black | DB-300334-010-S

Product Features

· Supports: Resolutions of up to 8K (7680x4320) with a display refresh rate of up to 30Hz.
· Supports: Resolutions up to 4K at 144Hz
· Supports: Resolutions up to 2K at 165Hz
· Data transmission speed: 25.92 Gbit/s
· Supports the transfer of audio and video signals
· Aluminum housing
· Ferrite filter: none
· USB-C products: yes
· Strands made of copper, foil and mesh shielding for robustness and a reliable connection
· DisplayPort standard: DP 1.4
· Supports: Multi-Stream Transport (MST)
· Manufacturers notice:
· If you connect a USB-C monitor/TV/projector to a PC equipped with DP, make sure that your USB-C display supports DisplayPort signal output.
· The video output capabilities depend on your notebooks graphic card and the connected monitor. Some screens also limit the available resolution.
· AOC - Active Optic Cable: no

Special Fetures

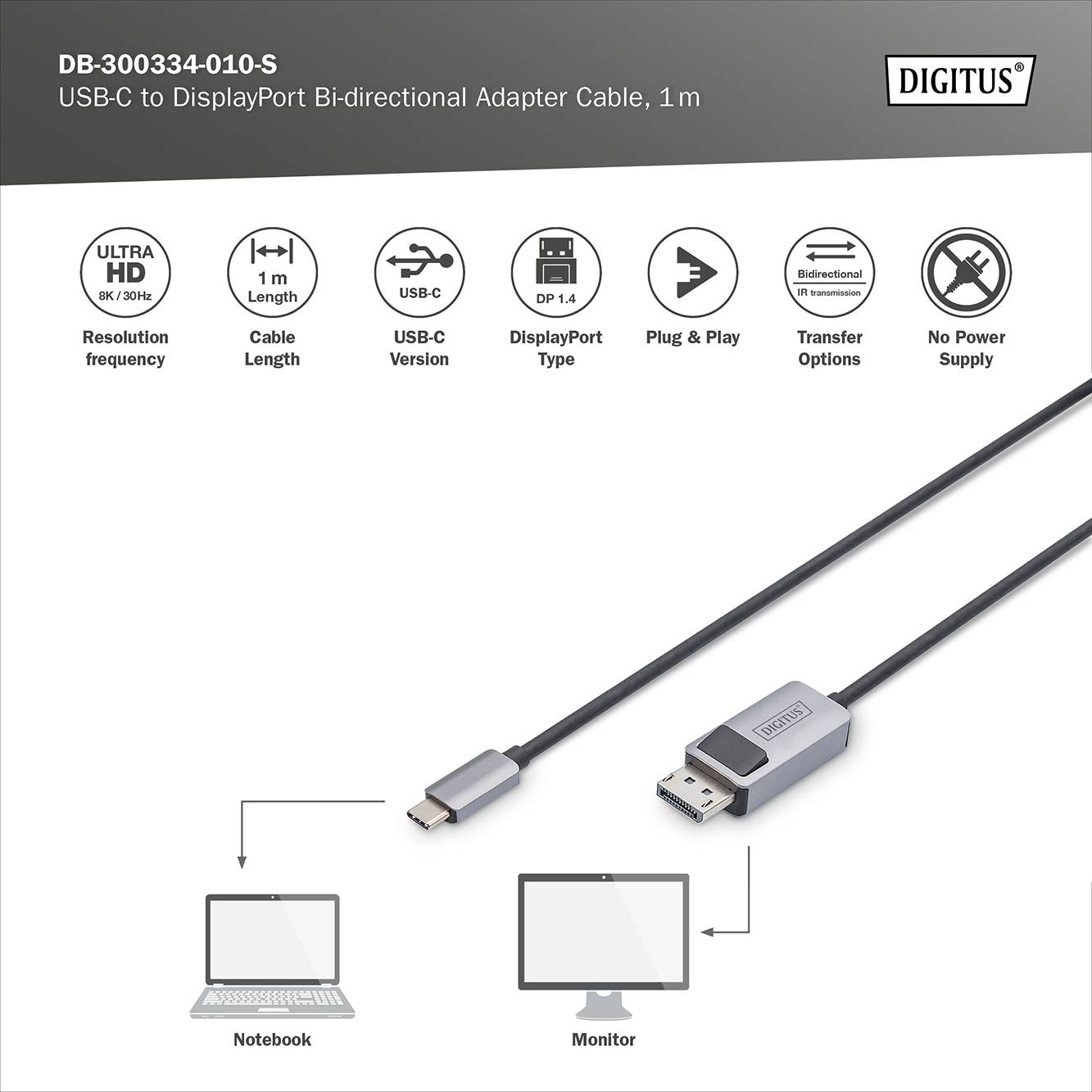

· USB Type C to DisplayPort Bi-directional Adapter Cable
· Supports transmission from USB Type-C interface to DisplayPort interface
· Supports transfer from DisplayPort interface to USB Type C interface
· Supports DP Alt-Mode
· Supports DisplayPort 1.4 version and is backwards-compatible (DP 1.3/1.2/1.1)
· Supports resolutions of up to 8K (7680x4320) with a display refresh rate of up to 30Hz.
· Avoid adapters with a Plug and Play cable adapter that does not require external power supply
· Type-C plug can be used on both sides

Product Specification

Type	Video adapter cable
Technology	Triple shielded
Shielding Material	Foil with mesh
American Wire Gauge (AWG)	34
Features	Stranded, bi-directional, 8K30Hz (7680 x 4320) support, 2K165Hz (2560 x 1440) support, 4K144Hz support, copper conductors, DisplayPort Multi-Stream Transport (MST), aluminium housing, USB bus power, audio and video signals transmission, DisplayPort Alt mode, 25.92 Gbps transfer rate
Length	1 m
Colour	Black
Width	7 cm
Depth	2 cm
Height	21.5 cm
Weight	40 g
Connectivity
Connector	20 pin DisplayPort - male
Connector (Second End)	24 pin USB-C - male
Miscellaneous
Compliant Standards	DisplayPort 1.4
Dimensions & Weight (Shipping)
Shipping Width	7.5 cm
Shipping Depth	2.3 cm
Shipping Height	23.5 cm
Shipping Weight	60 g
