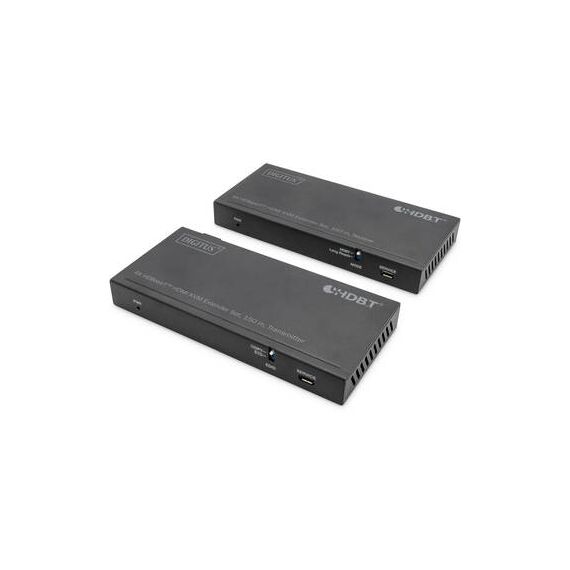

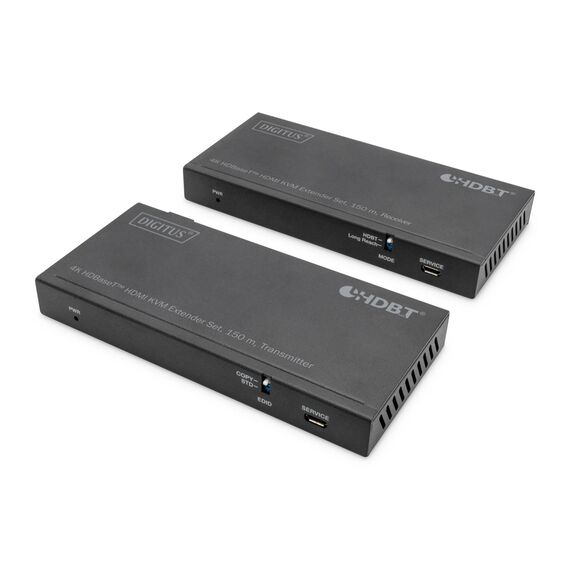

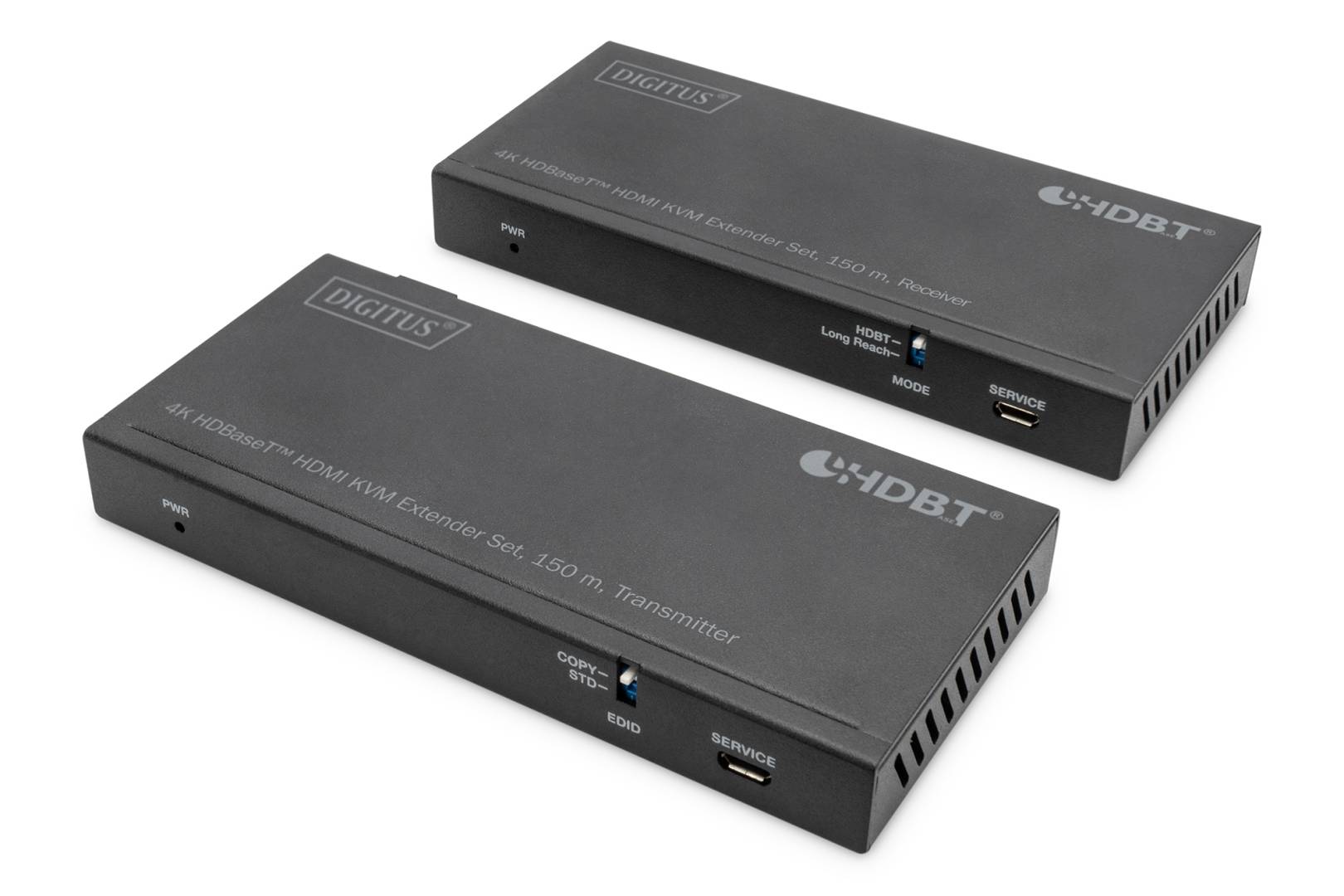

DIGITUS DS-55526 / Transmitter and receiver / KVM / audio / USB/ infrared extender / HDBaseT / over CAT 6/6a / up to 150 m | DS-55526

Product Features

· Supports HDBaseT 1.0 via CAT6A/7/8 cable up to 100 m
· Transmission distance - Full HD (1080p/60Hz): 150 m (max.)
· Transmission distance - UHD (4K/60Hz): 120 m (max.)
· Supports 4K2K/60Hz (4:4:4)
· Video bandwidth: 18 Gbps
· HDMI 2.0b / HDCP 2.2
· USB 2.0
· 2x USB 2.0 ports on receiver for connection of webcam, data carrier, mouse and keyboard, for example.
· Touch display support / Touch panel back control
· HDR, HDR10, HDR10+, DolbyVision, HLG
· PoC (Power over Cable) - Only the unit requires an external power adapter
· EDID support (2 modes) - 1: Copy - HDMI output receiver / 2: Standard - 1080p, 2 channel
· Bi-directional IR signal transmission

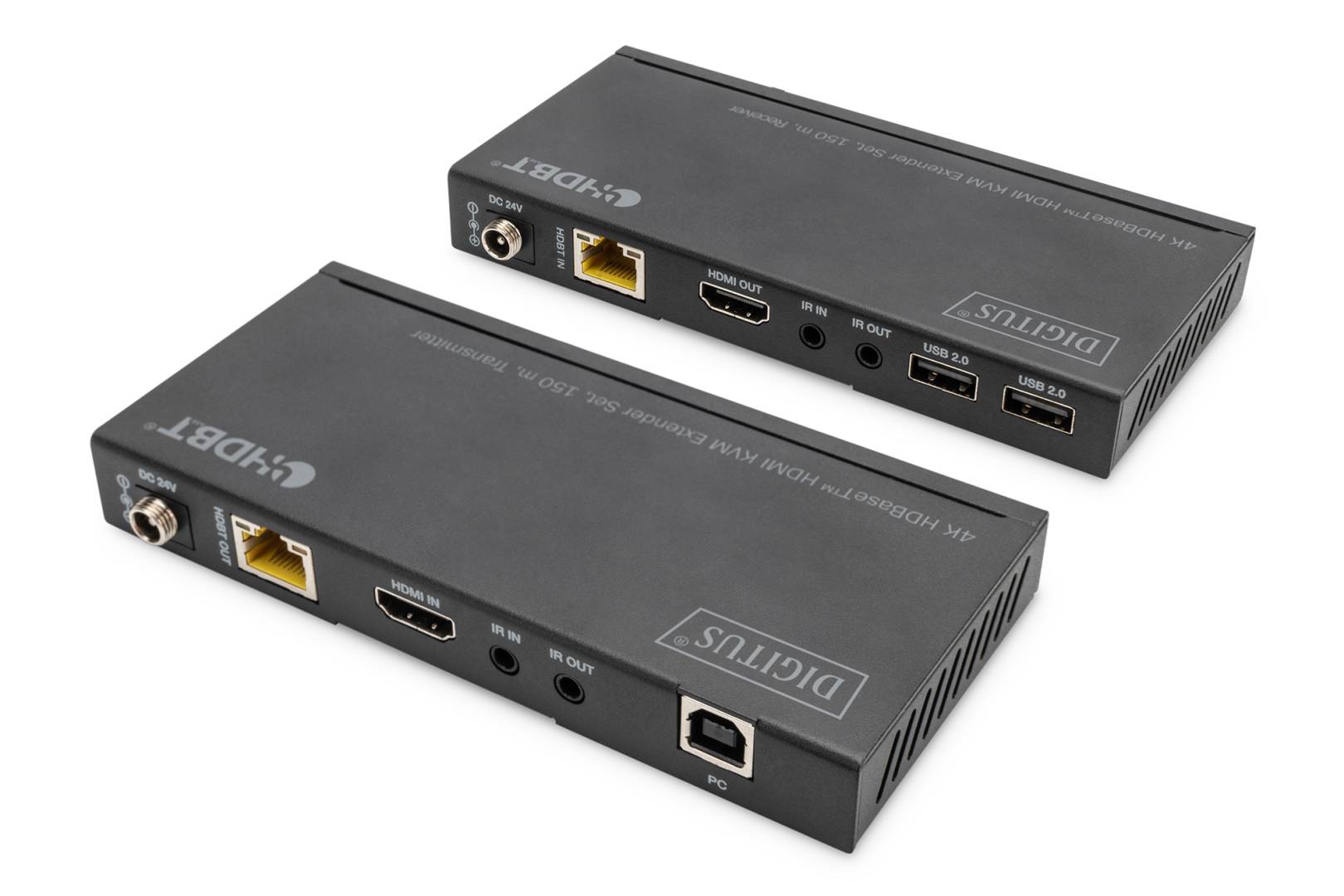

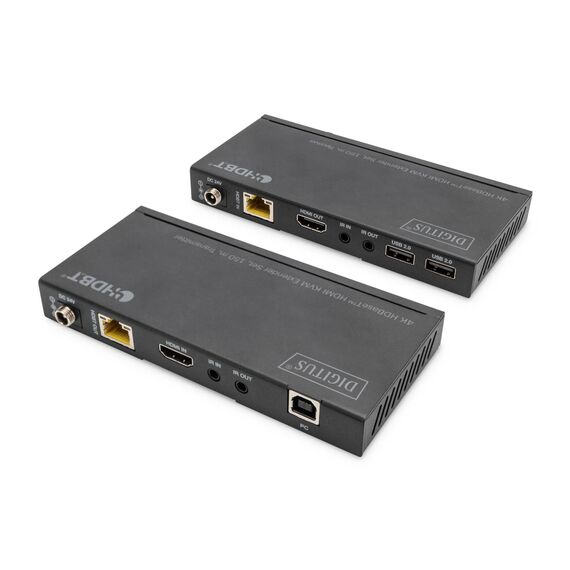

· Transmitter unit connections:
· 1x HDMI input (4K/60Hz) - Connection signal source
· 1x RJ45 (HDBaseT) output - Connection CAT transmission cable
· 1x IR input to receive remote control signals
· 1x IR output for control of the source device
· 1x USB-B (2.0) - Connection of PC (signal source) for use of KVM function
· 1x Power adapter input (DC 24V/1A), screw connector - Connection for external power adapter
· 1x Micro USB input - Service/remote maintenance update
· 1x EDID changeover switch
· Receiver unit connections:
· 1x HDMI output (4K/60Hz) - Connection output device
· 1x RJ45 input - Connection CAT transmission cable
· 1x IR input to receive remote control signals
· 1x IR output for control of the source device
· 2x USB-A (2.0) - Connection of webcam, data carrier, touch panel, mouse and keyboard, for example
· 1x Power adapter input (DC 24V/1A), screw connector - Connection for external power adapter
· 1x Micro USB input - Service/remote maintenance update
· Suitable for wall mounting
· ESD protection
· Operating temperature: 0-40°
· Power consumption: approx. 13.2W
· Housing: Metal
· Dimensions (1 unit): L 6.5 x W 14 x H 1.8 cm
· Weight: Transmitter 245 g / Receiver 249 g
· Color: black

Special Features

· Supports HDBaseT 1.0 via CAT6A/7/8 cable up to 100 m
· Transmission distance - Full HD (1080p/60Hz): 150 m (max.)
· Transmission distance - UHD (4K/60Hz): 120 m (max.)
· Supports 4K2K/60Hz (4:4:4)
· Video bandwidth: 18 Gbps
· 2x USB 2.0 ports on receiver for connection of webcam, data carrier, touch panel, mouse and keyboard, for example.
· Touch display support / Touch panel back control
· PoC (Power over Cable) - Only the unit requires an external power adapter
· EDID support (2 modes) - 1: Copy - HDMI output receiver / 2: Standard - 1080p, 2 channel
· Bi-directional IR signal transmission

Product Specification

Device Type	KVM / audio / USB/ infrared extender
Form Factor	External
Colour	Black
Networking	Networking
Connectivity Technology	Wired
Data Link Protocol	HDBaseT
Data Transfer Rate	18 Gbps
Max Resolution	4K @ 60 Hz
Max Transfer Distance	150 m
Features	Wall mountable, metal housing, HDR support, bi-directional IR, HDR10 support, Dolby Vision HDR support, HDR10+ support, Hybrid Log-Gamma (HLG) support, 4:4:4 chroma subsampling support, ESD Protector, touch screen support
Compliant Standards	USB 2.0
Expansion / Connectivity	Expansion / Connectivity
Interfaces	1 x HDMI input (transmitter) - 19 pin HDMI Type A female ¦ 1 x HDBaseT output (transmitter) - RJ-45 female ¦ 1 x IR input (transmitter) female ¦ 1 x IR output (transmitter) female ¦ 1 x USB 2.0 (transmitter) - Type B female ¦ 1 x micro-USB (transmitter) - Type B female ¦ 1 x HDMI output (receiver) - 19 pin HDMI Type A female ¦ 1 x HDBaseT (receiver input) - RJ-45 female ¦ 1 x IR input (receiver) female ¦ 1 x IR output (receiver) female ¦ 2 x USB 2.0 (receiver) - Type A female ¦ 1 x micro-USB (receiver) - Type B female
Miscellaneous	Miscellaneous
Included Accessories	Wall mounting kit
Cables Included	2 x IR cable - 1.5 m ¦ 1 x USB cable - 1.5 m
Compliant Standards	EDID compatible, HDCP 2.2
Power	Power
Power Over Ethernet (PoE)	PoC
Power Device	External power adapter
Power Consumption Operational	13.2 Watt
Dimensions & Weight	Dimensions & Weight
Dimensions (WxDxH) / Weight Details	Receiver: 14 cm x 6.5 cm x 1.8 cm / 249 g ¦ Transmitter: 14 cm x 6.5 cm x 1.8 cm / 245 g
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
