Digitus 19" Modular LCD KVM Console with 16-port VGA KVM Switch
1U rack console19" · 1366 × 76816-port VGADE keyboard + touchpad

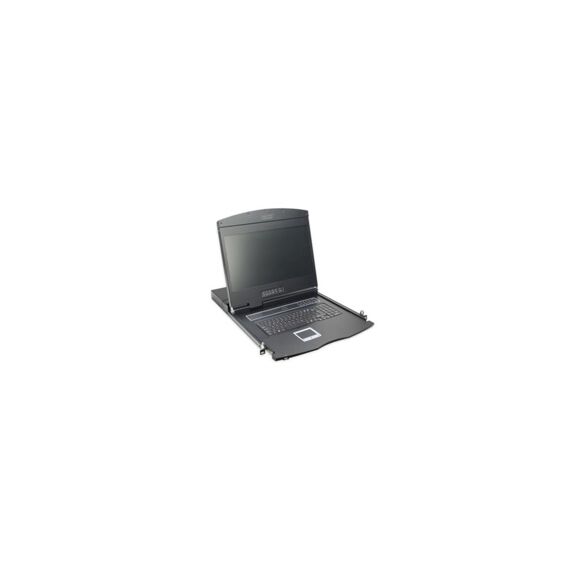

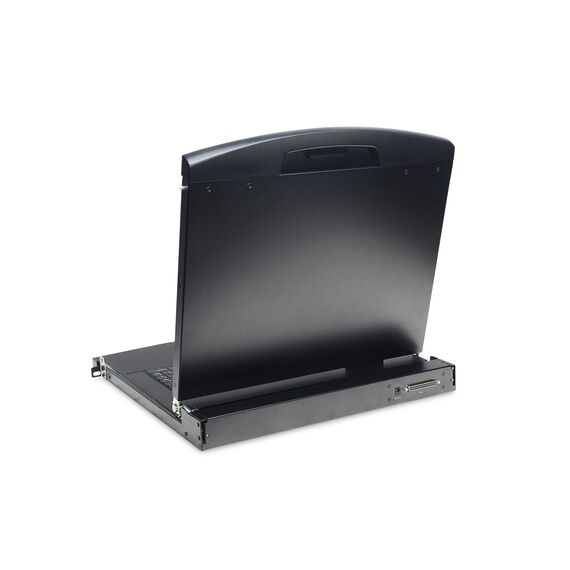

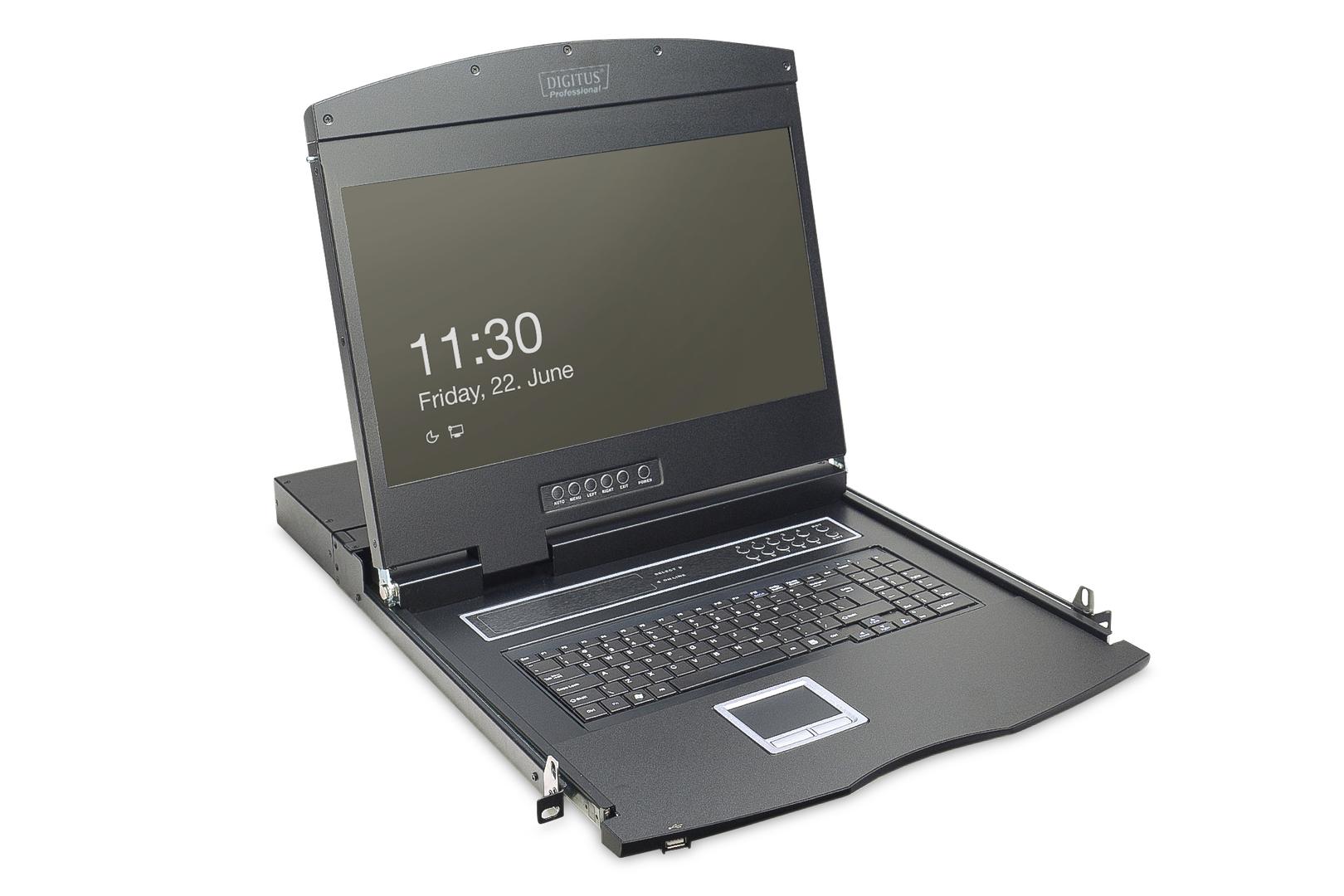

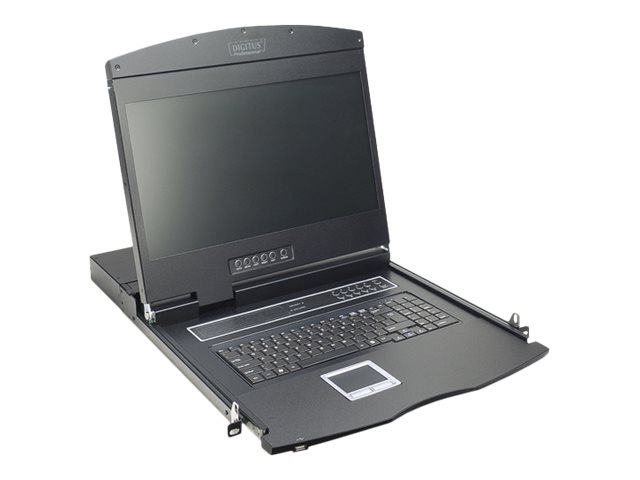

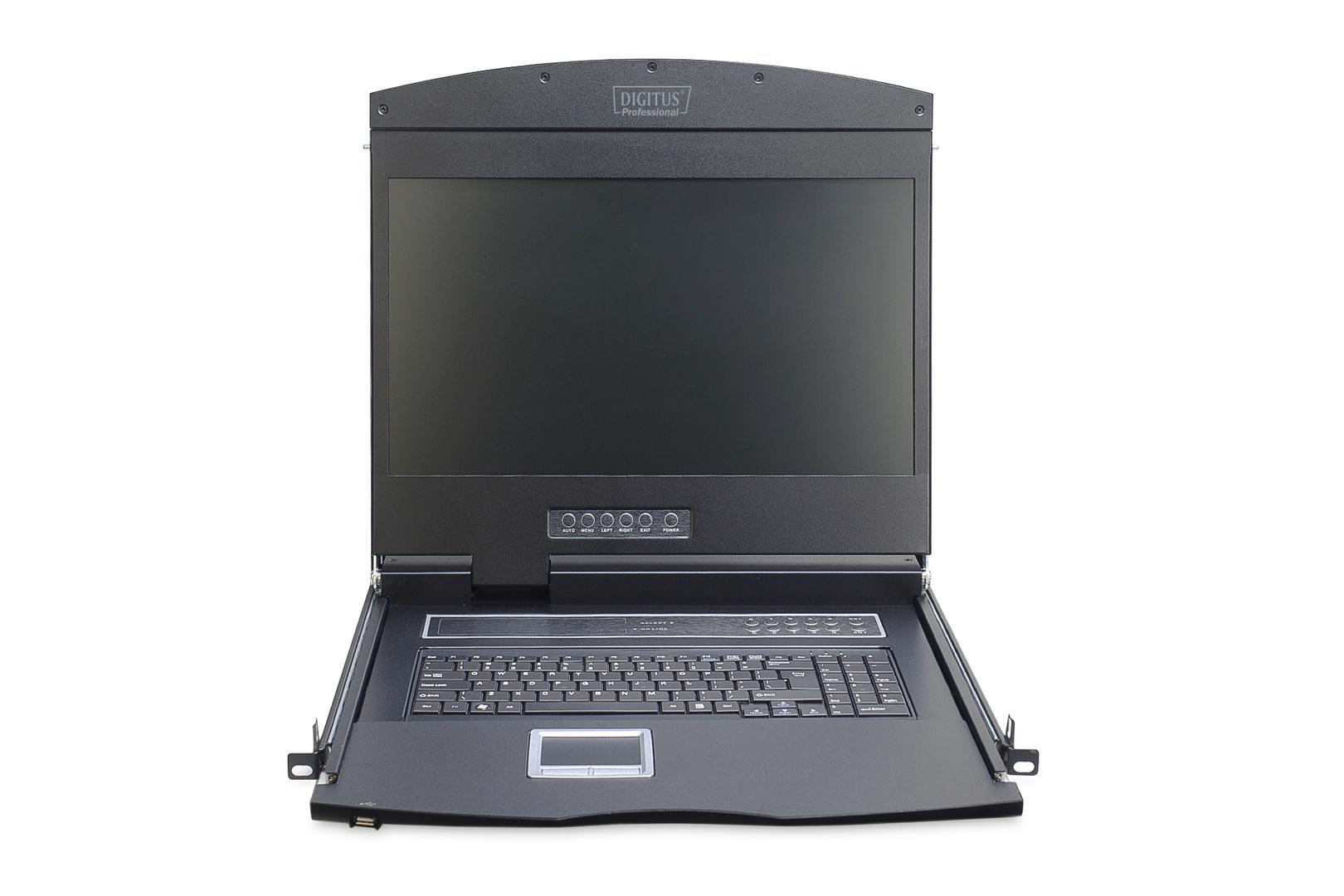

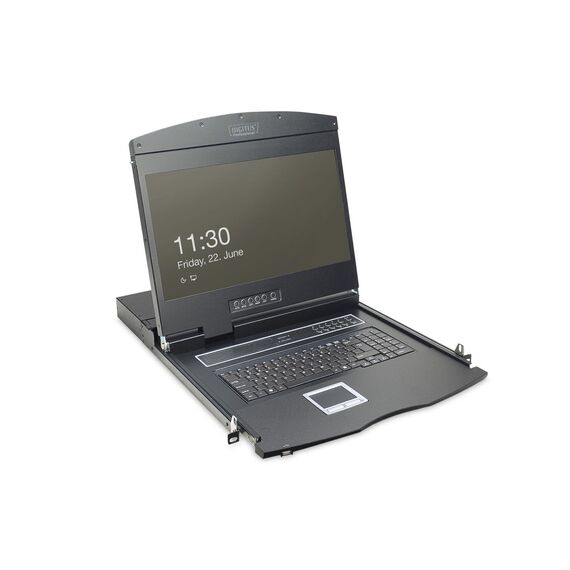

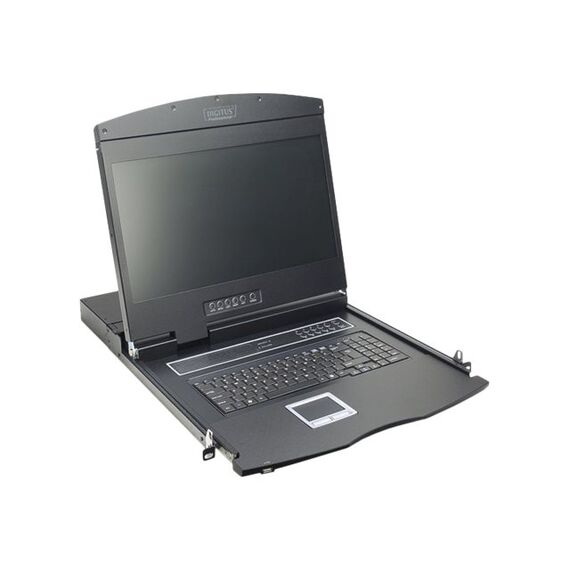

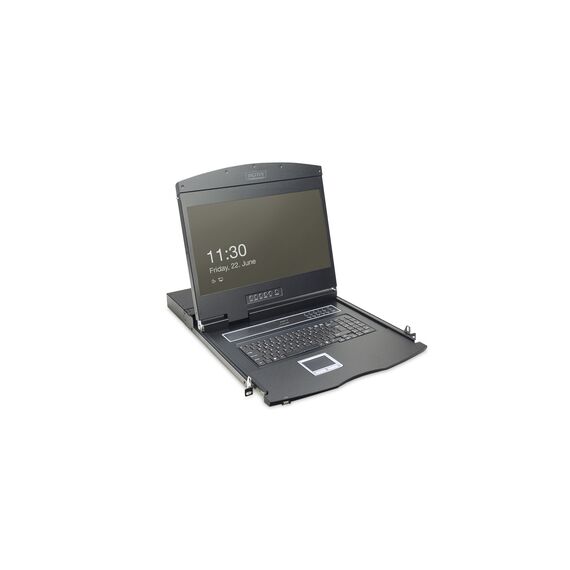

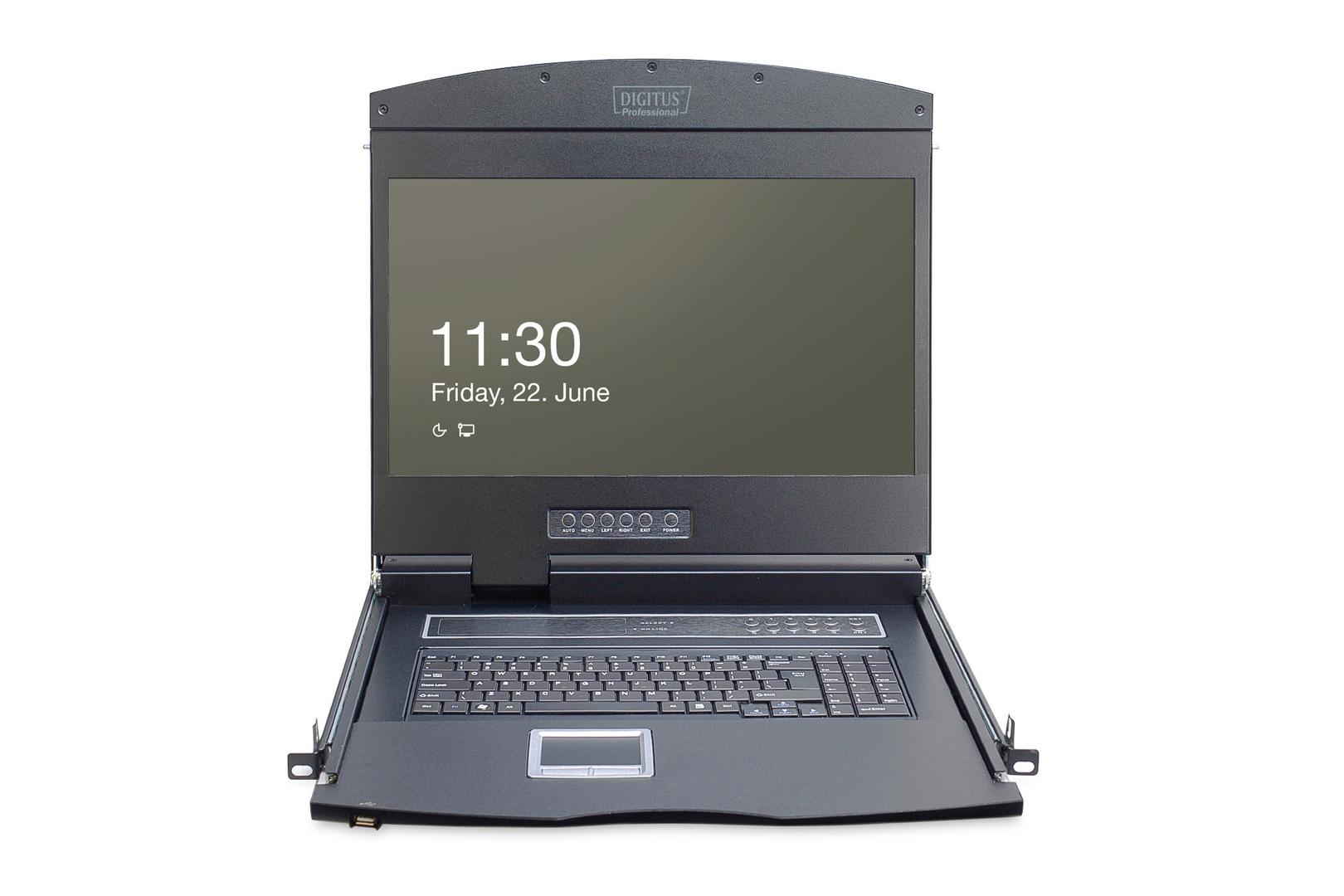

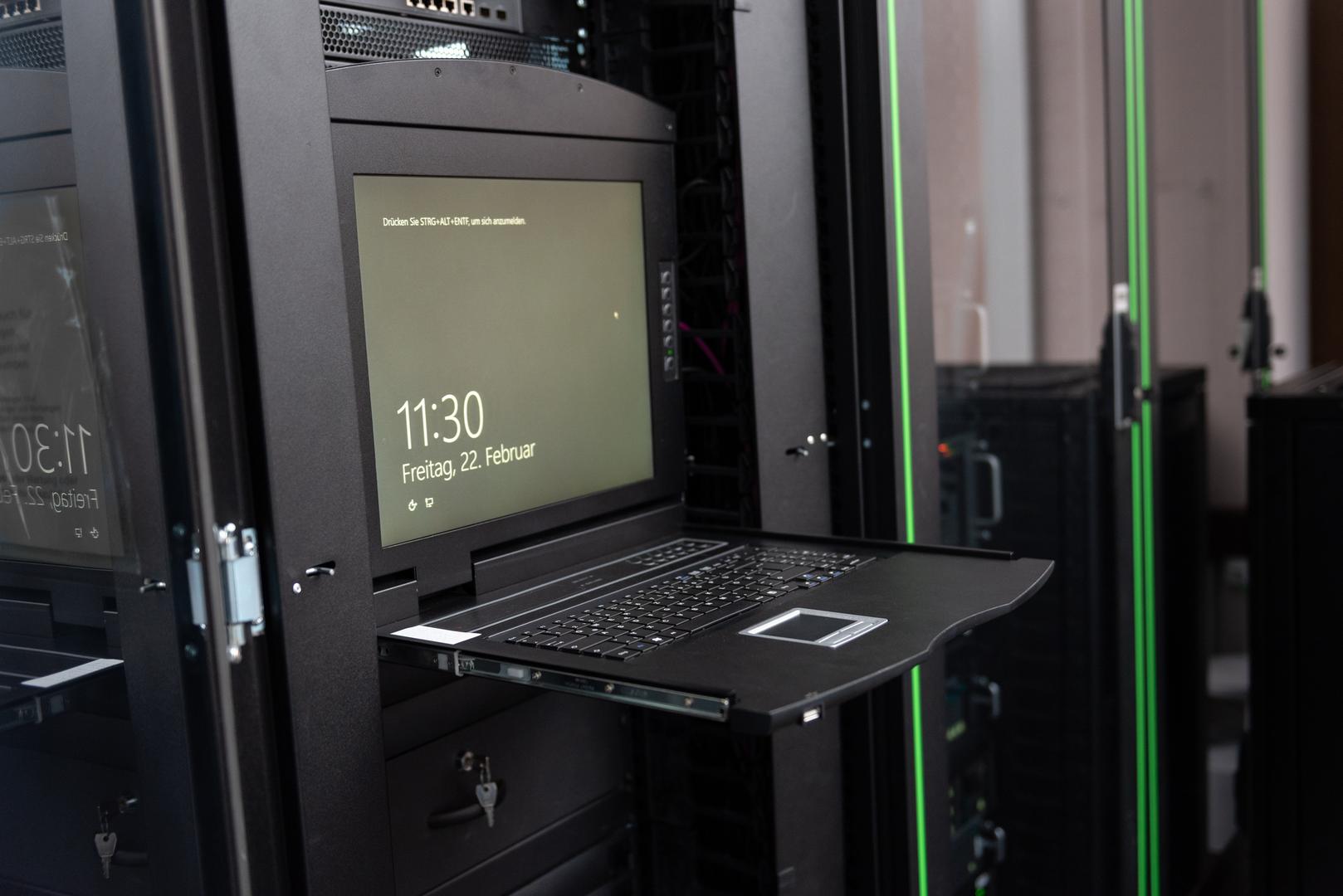

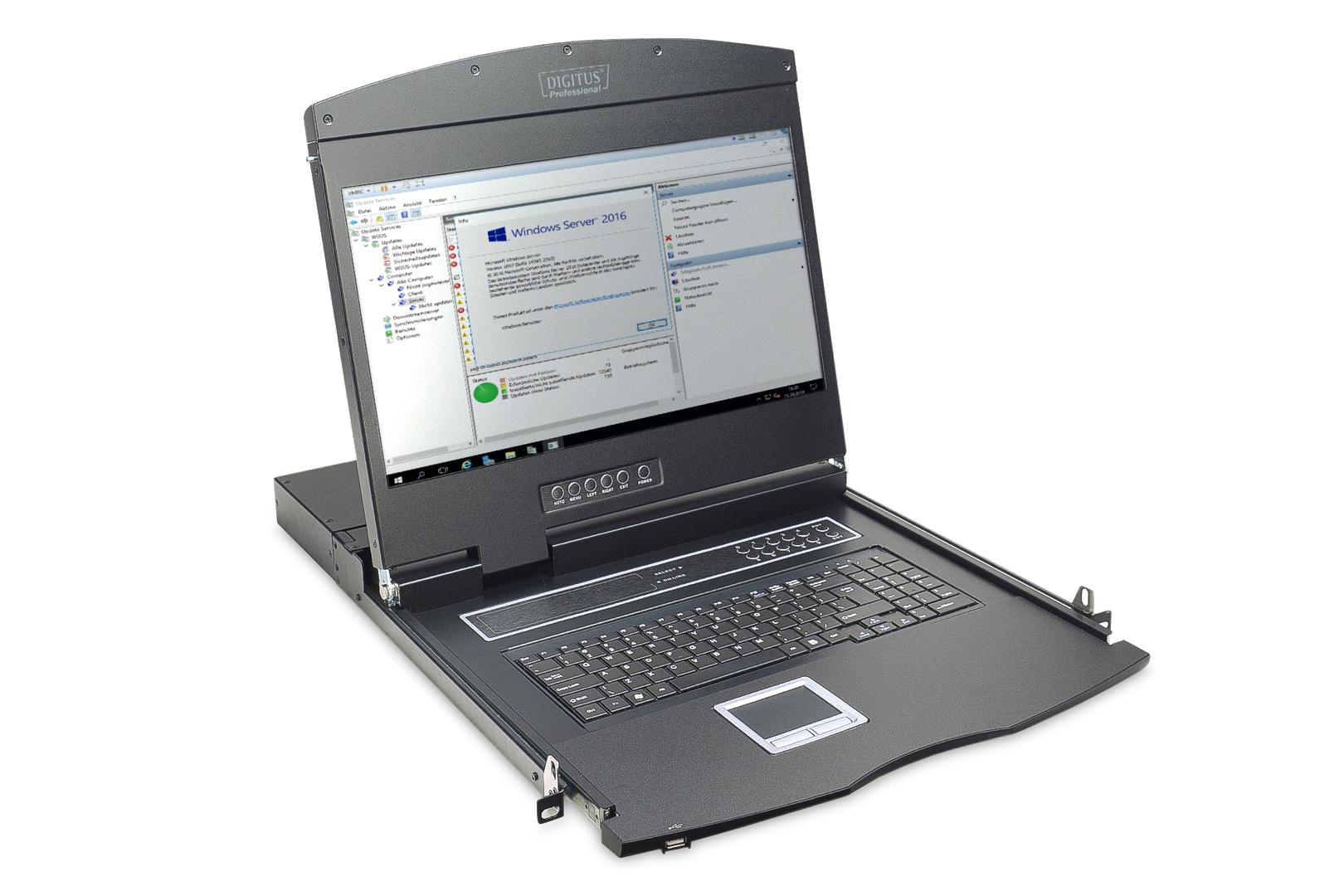

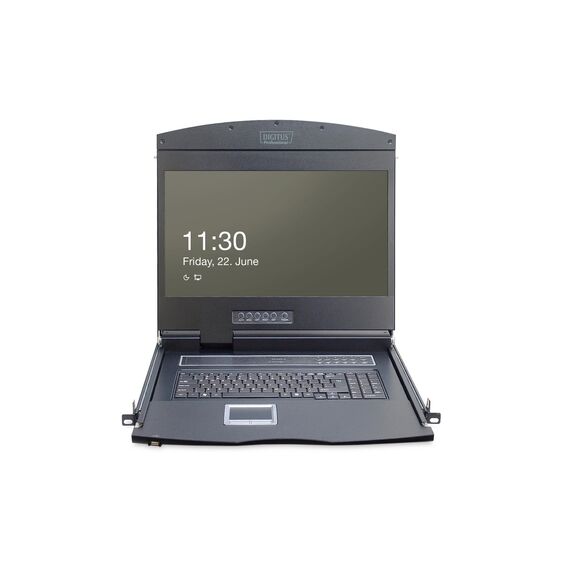

The Digitus DS-72211-3GE is a 1U pull-out LCD KVM console with a 19" TFT (1366 × 768), German keyboard, touchpad and a built-in 16-port VGA KVM switch, for server rooms that need local screen-and-keyboard access to up to 16 servers in a 19" rack.

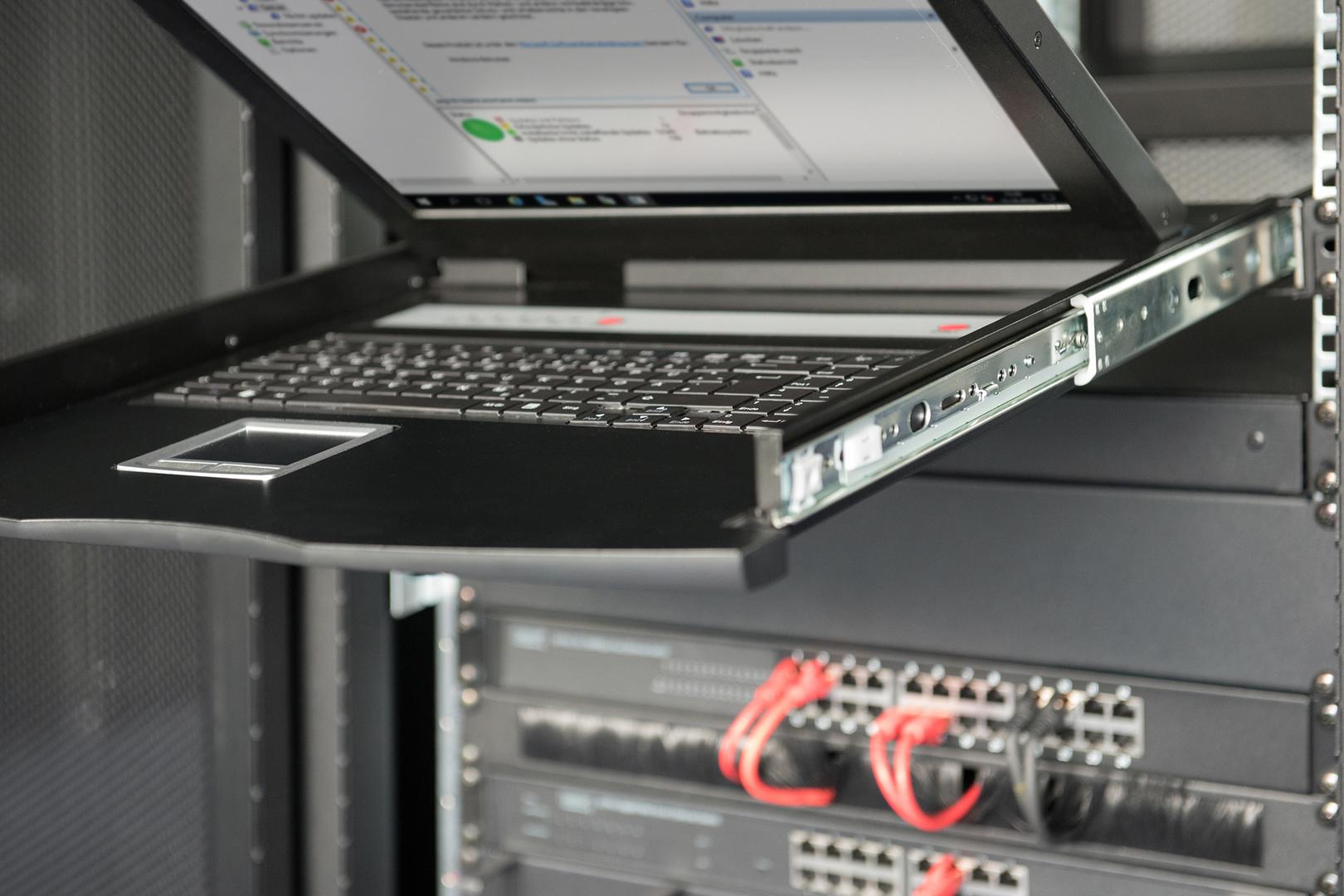

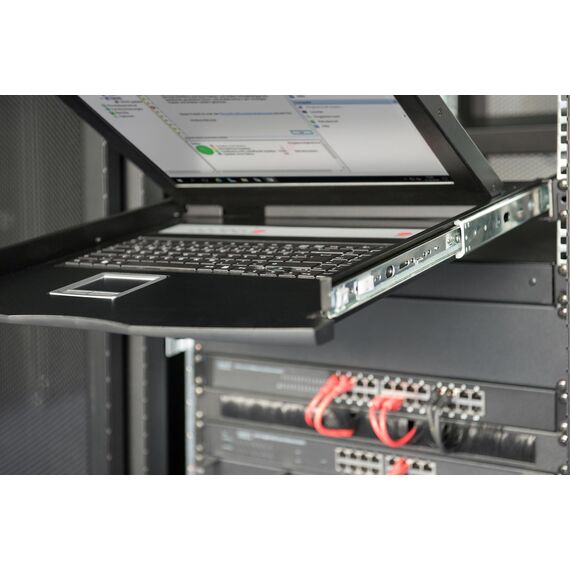

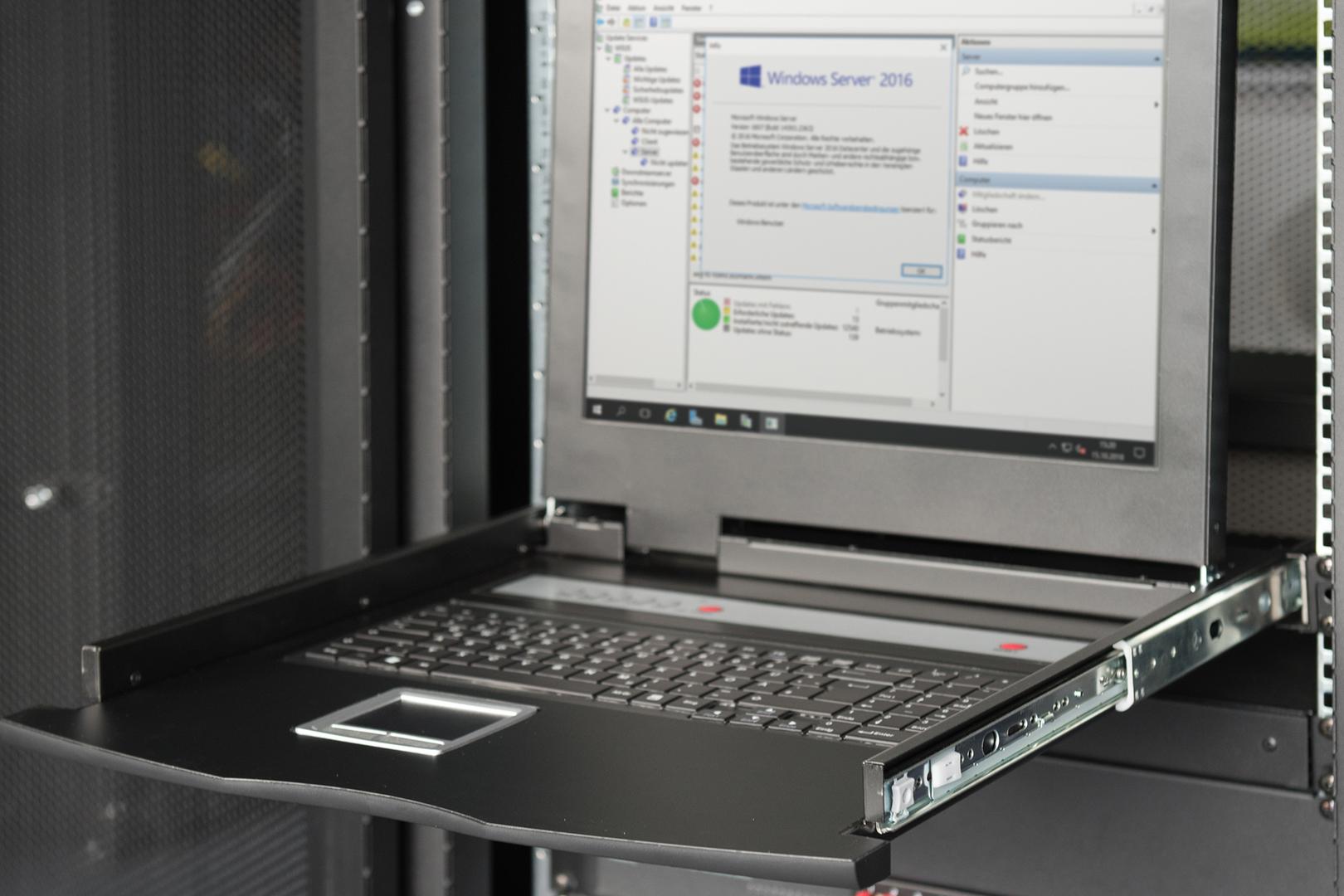

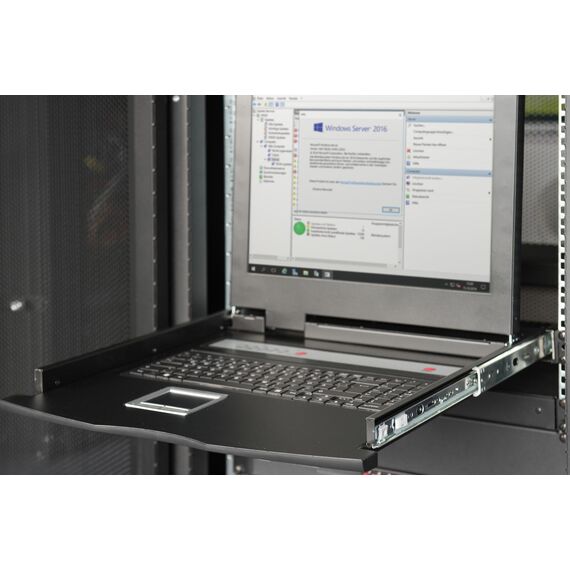

The drawer slides out, the screen tilts up to 120° and a safety lock holds it closed when stowed. The modular design lets the KVM module be swapped, and Digitus states the console saves up to 85% of rack space compared with a separate monitor, keyboard and mouse.
Before you order: The keyboard is the German (DE, QWERTZ) layout — Y and Z are swapped and special characters sit in different places. It is not a UK or US keyboard.
What's in the Box
- 1 × Digitus 19" modular LCD console (1U) with 16-port VGA KVM switch installed
- German keyboard with touchpad (integrated)
- Power supply
- Rack mounting material
- Quick start guide / user manual
- 16 × combo KVM cables (USB + VGA)
What It Means in Practice

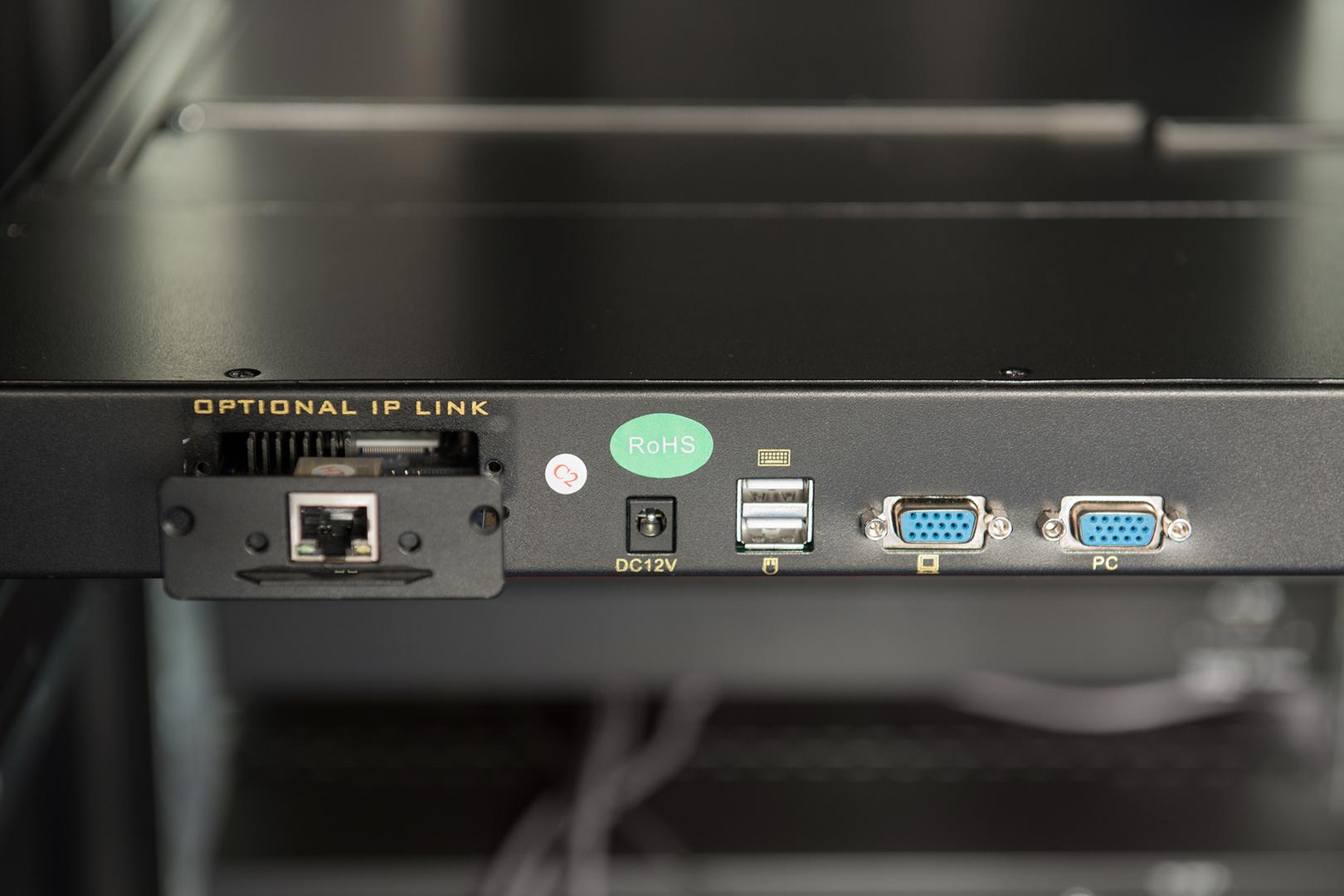

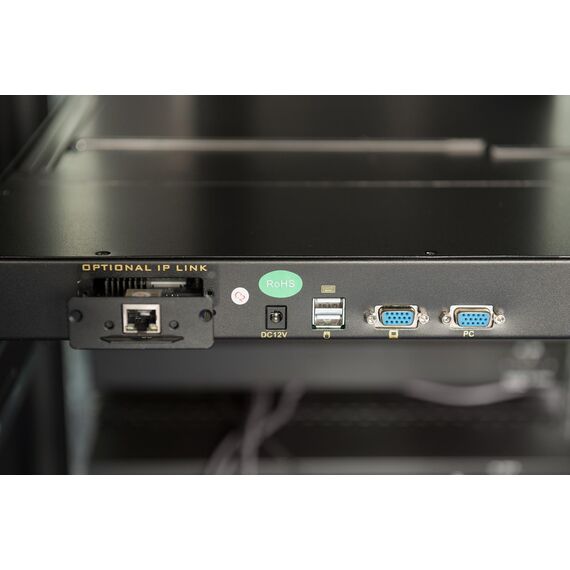

- Connection per server: VGA + USB combo KVM cable per server.
- Switch between servers from the console; the switch is cascadable when you need more ports.
- Screen: 19", 1366 × 768 at 60 Hz, 1000:1 contrast, anti-reflective break-proof glass. Set server output to 1366 × 768 for the sharpest picture.
- The unit is 69.5 cm deep, 12.54 kg, 1U high in black RAL 9005 — plan rack depth before ordering.
What Will Not Work
- UK or US keyboard users expecting their own layout — this is German QWERTZ.
- Servers with only HDMI or DisplayPort outputs without an active adapter — the KVM is VGA.
- Remote access over the network (KVM over IP) — this is a local console.
- More than 16 servers without cascading a second switch.
- Shallow wall cabinets — check usable depth for a 69.5 cm unit.
Key Features

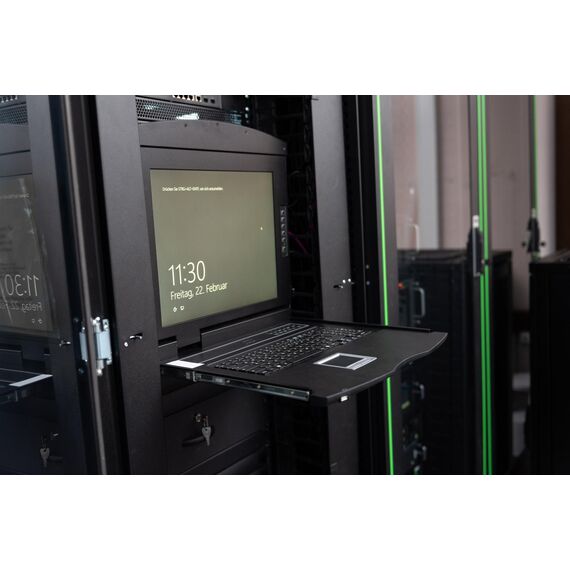

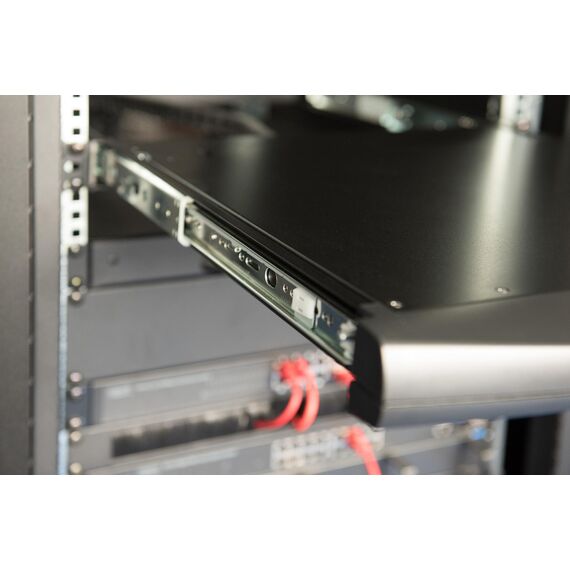

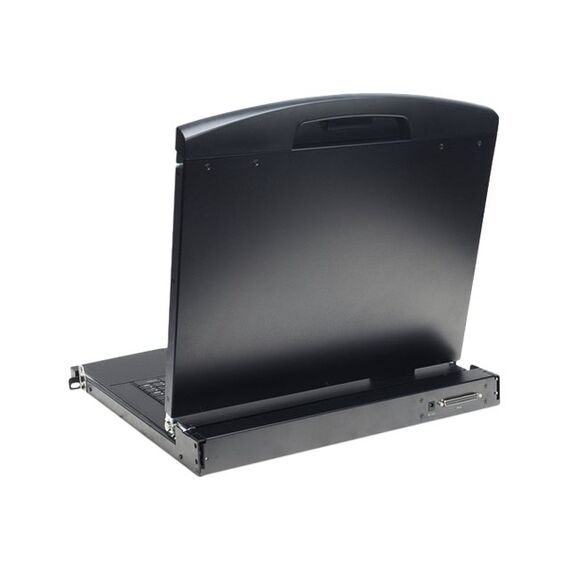

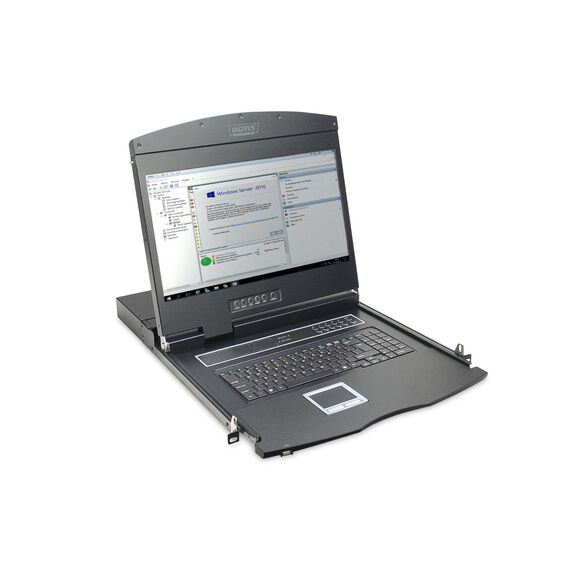

Pull-out 1U drawer

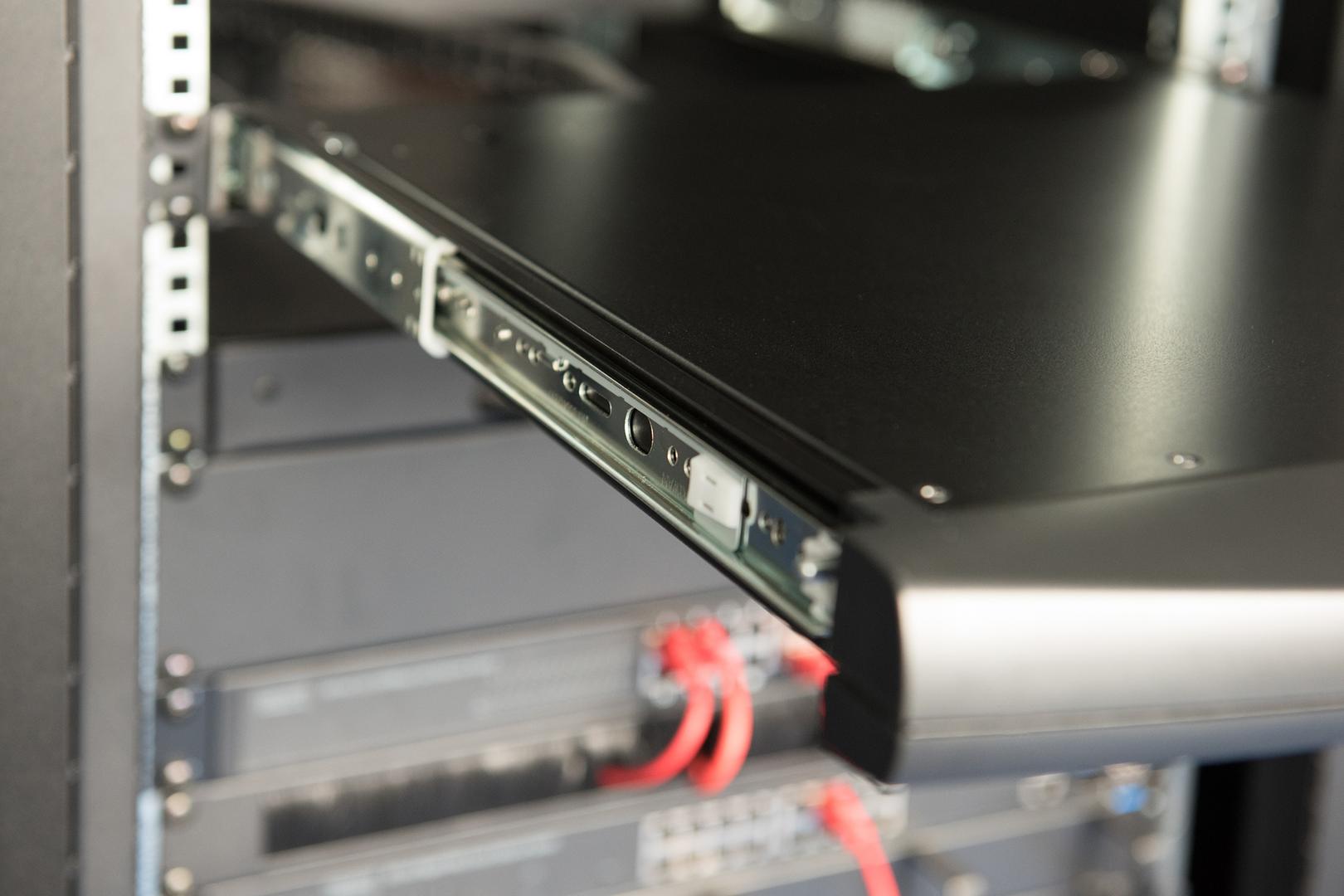

Slides out of the rack, 19" screen tilts up to 120°, safety lock when closed.

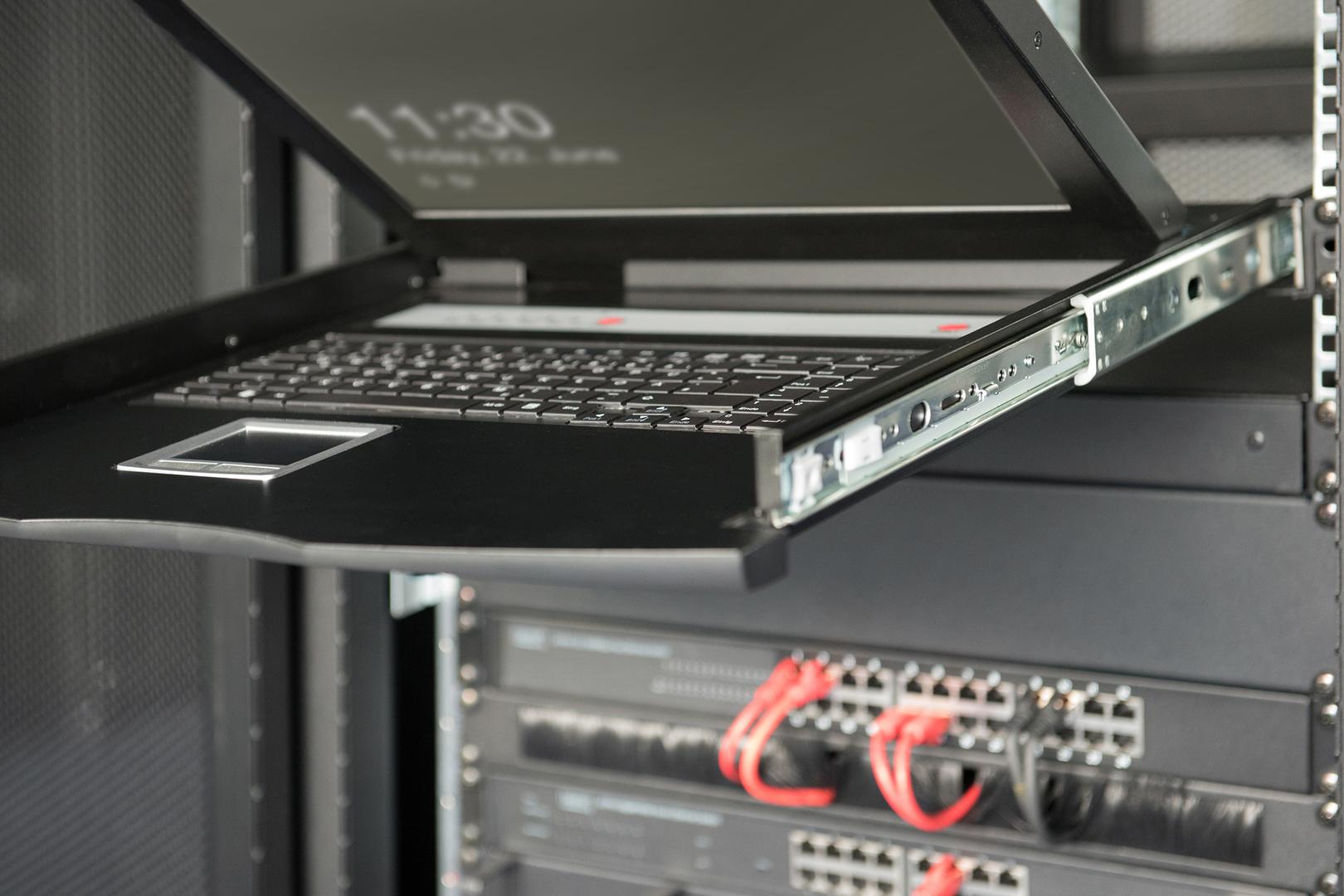

Keyboard + touchpad
Integrated German keyboard and touchpad with two buttons.

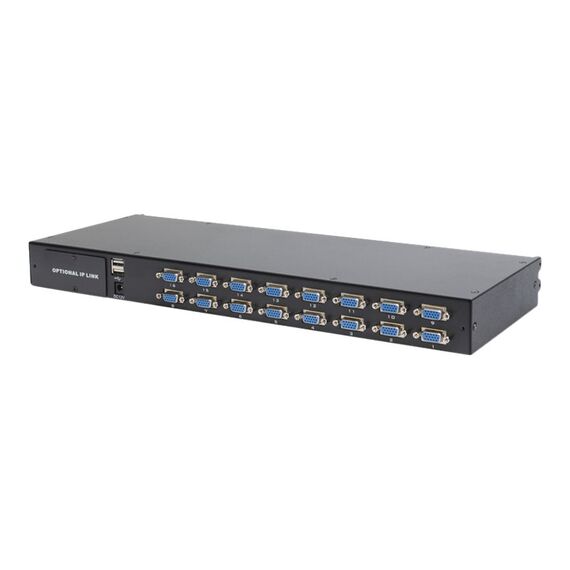

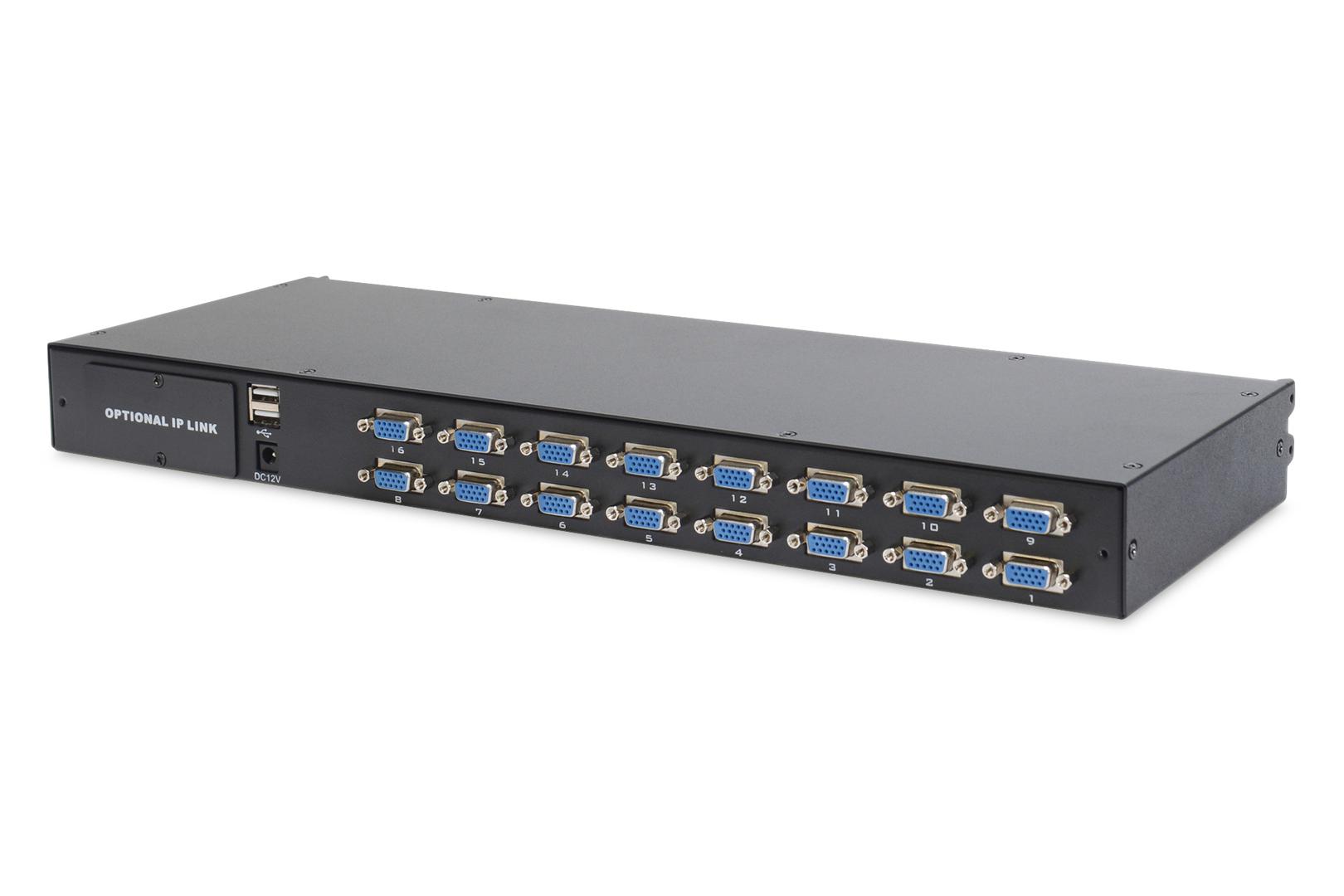

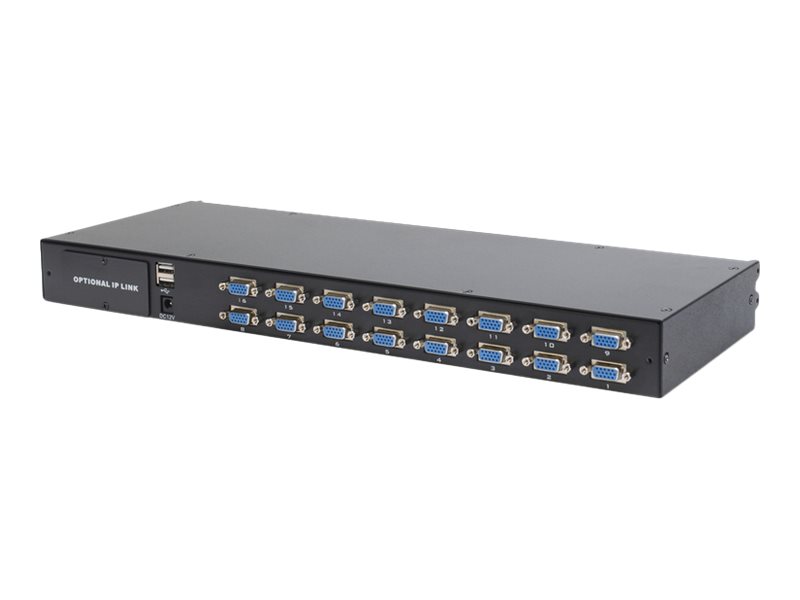

16-port VGA KVM
Built-in VGA KVM switch, cascadable.
Tough display
Anti-reflective, break-proof glass, 16.7M colours.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A 1U LCD console replaces a separate monitor, keyboard and mouse shelf and keeps the rack tidy. The key checks are the keyboard layout (German QWERTZ here), the server video output (VGA) and rack depth. Complete the installation with our rack accessories such as shelves, blanking panels and cable managers.
✓ Buy it if you need local access to up to 16 servers in a 19" rack and are fine with a German QWERTZ keyboard.
✕ Skip it if you need a UK/US keyboard, remote IP access, or your servers only output HDMI/DisplayPort.
→ Also consider the 1-port version paired with an external KVM switch, or a different port count in the same range.
Not sure it fits your rack? Send us your rack model and server video outputs and we will check compatibility before you order.
