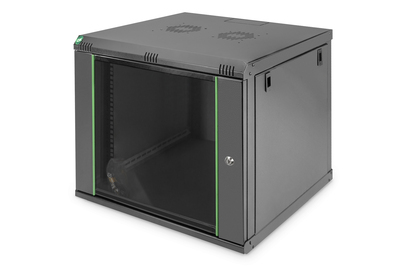

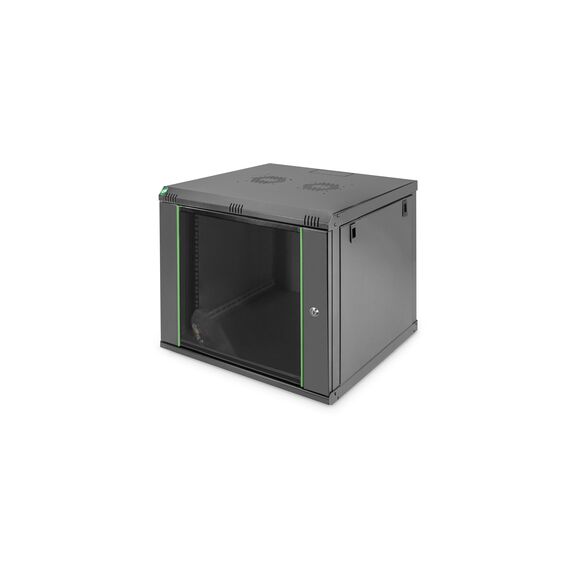

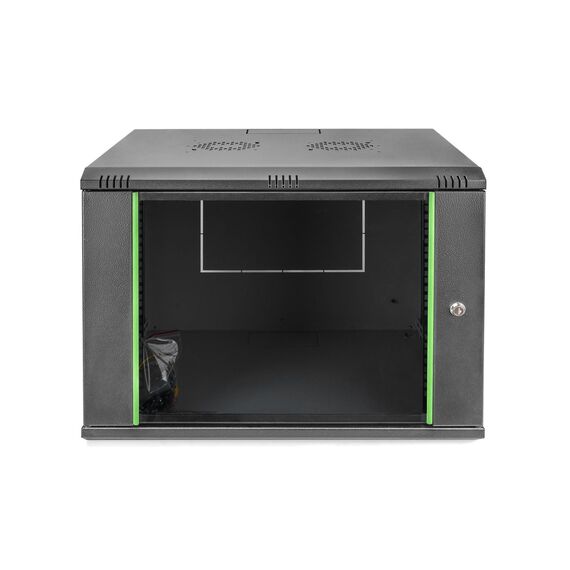

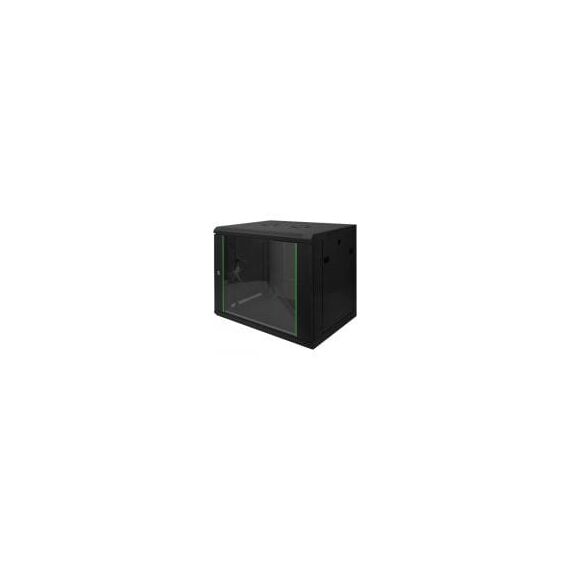

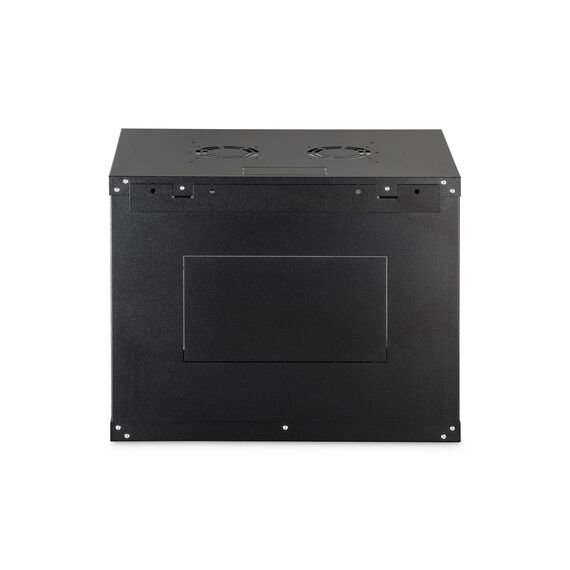

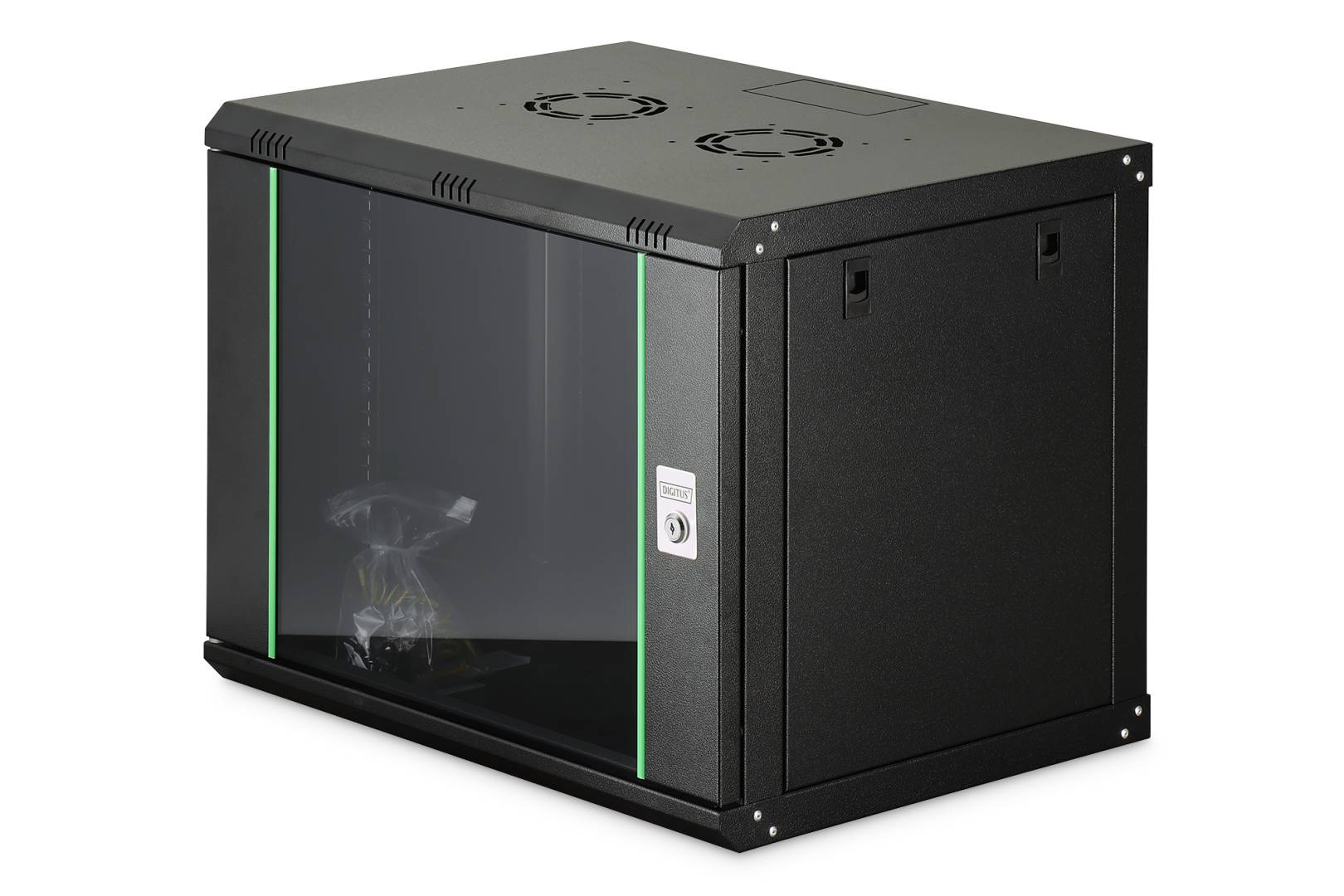

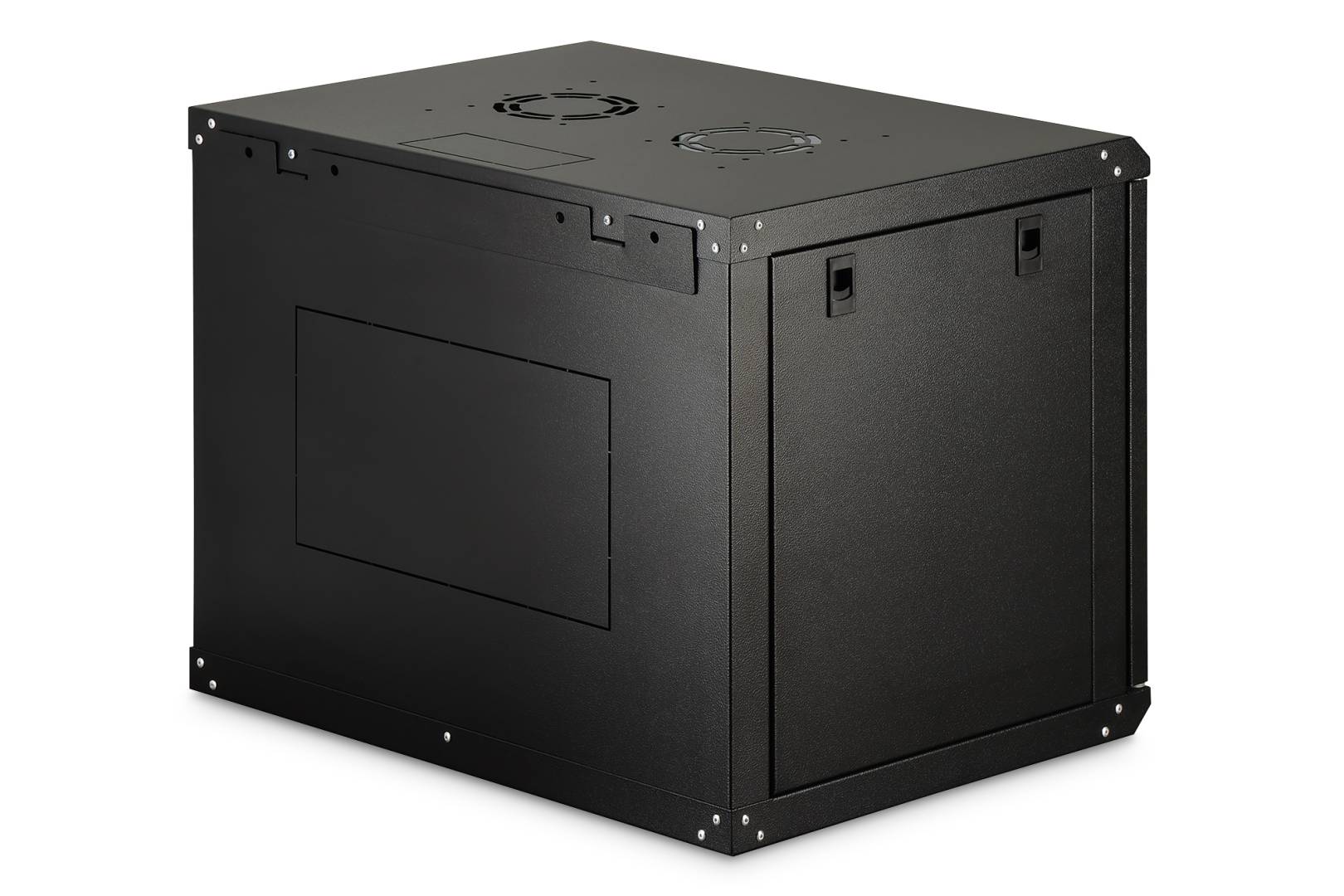

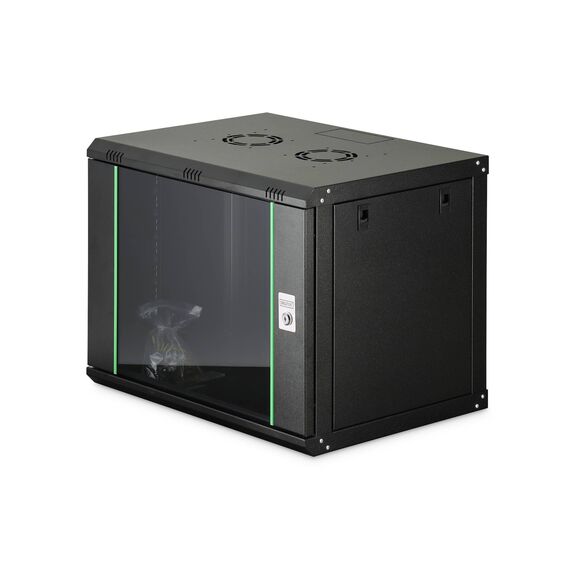

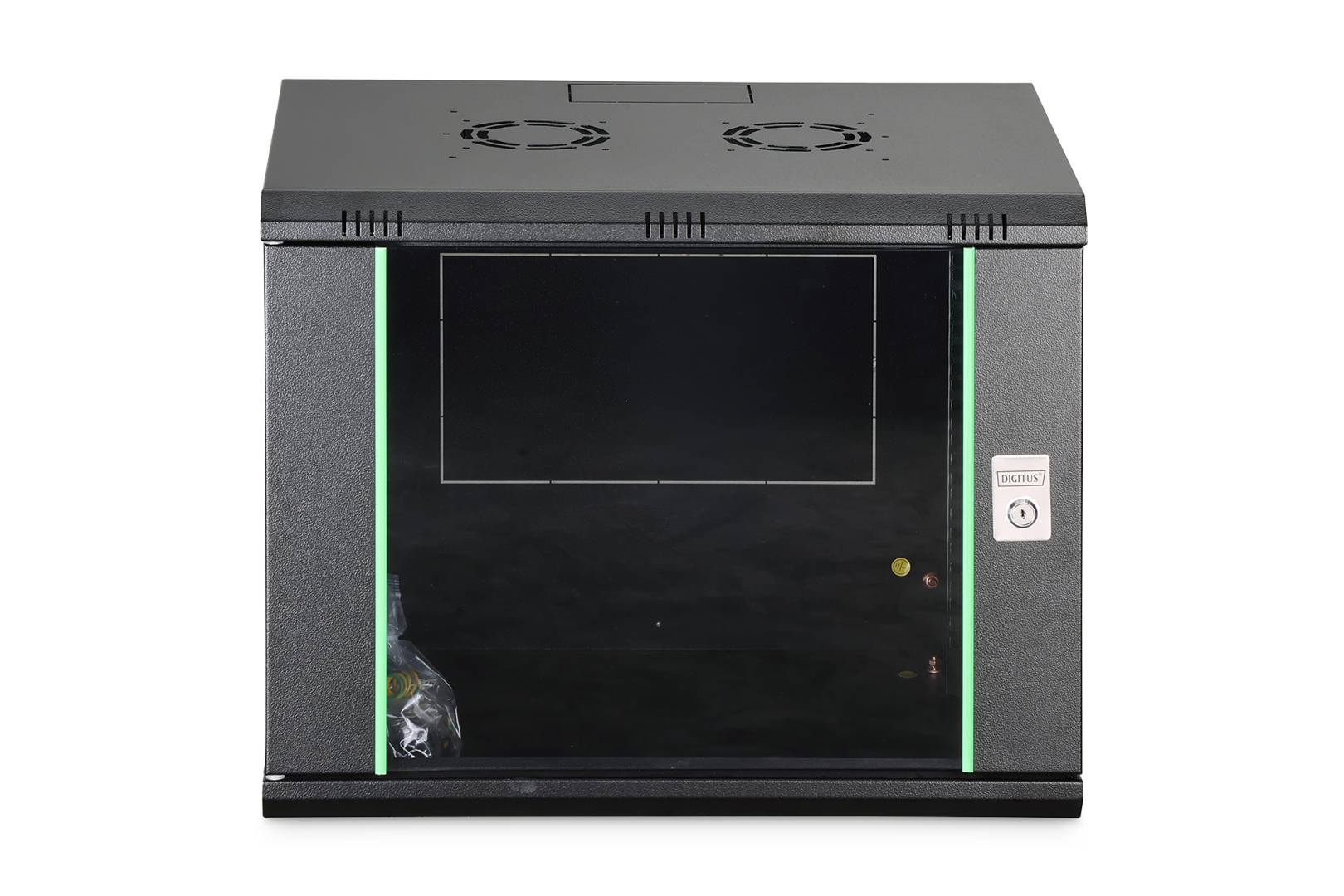

DIGITUS Dynamic Basic DN-19 09-U-EC-SW - Rack cabinet - wall mountable - black, RAL 9005 - 9U - 19" | DN-19 09-U-EC-SW
DIGITUS Dynamic Basic DN-19 09-U-EC-SW - Rack cabinet - wall mountable - black, RAL 9005 - 9U - 19" | DN-19 09-U-EC-SW
€243.02 inc. VAT
DN-19 09-U-EC-SW
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features

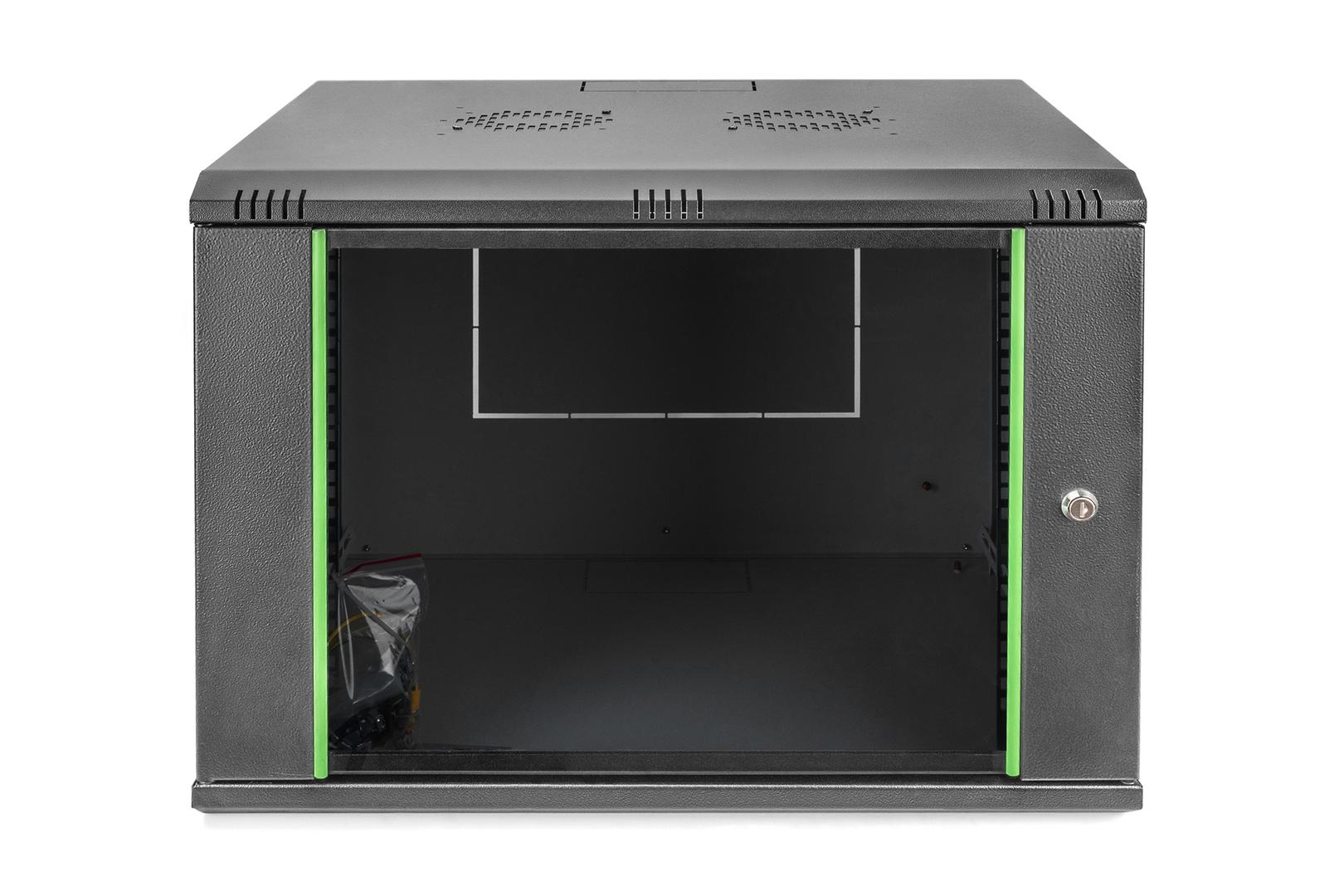

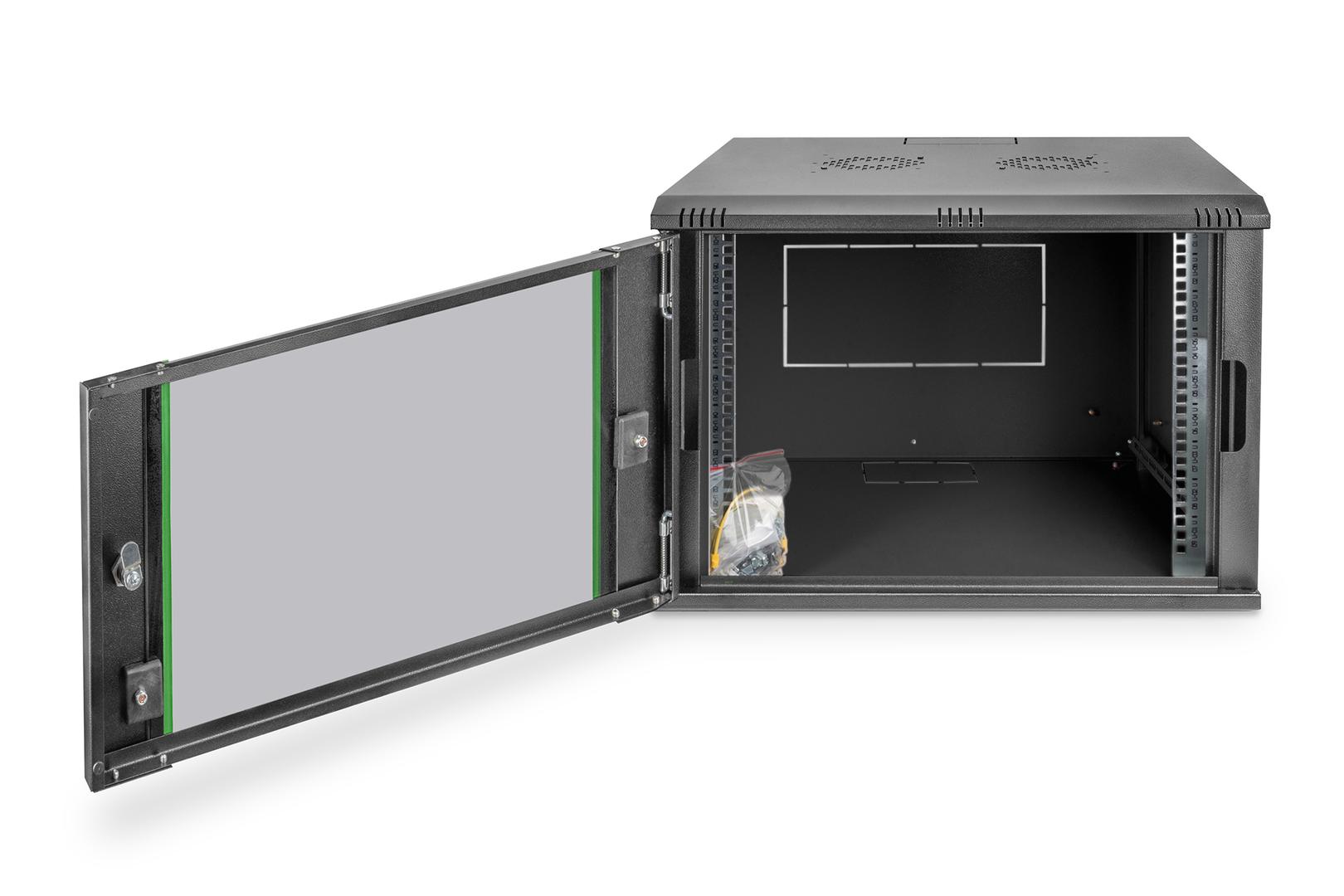

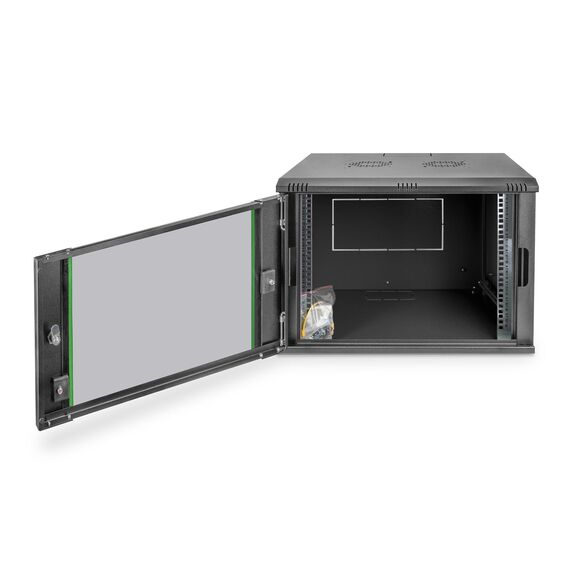

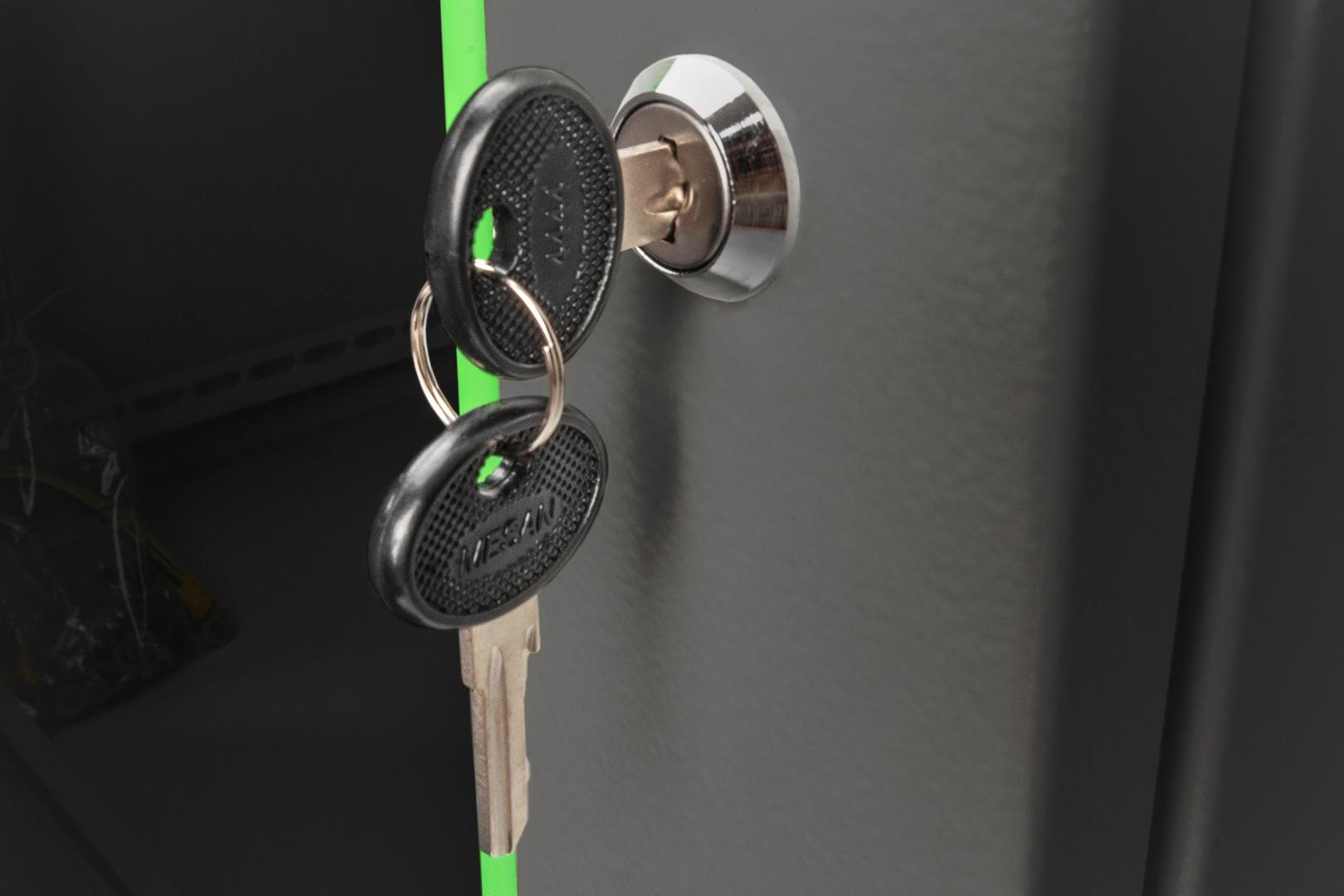

· Safety class rating IP20· Lockable safety-glass door with steel frame

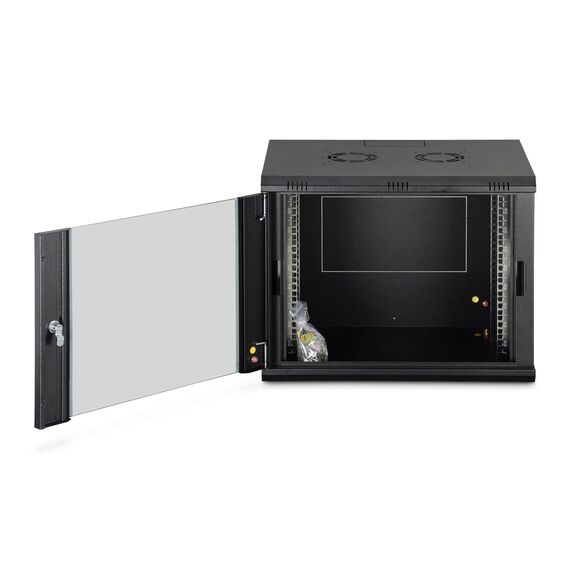

· 210° door opening angle
· 483 mm (19) profile rails mounted on the front- and rear side inside of the rack, galvanized
· 483 mm (19) profile rails mounted on the front side inside of the cabinet, galvanized

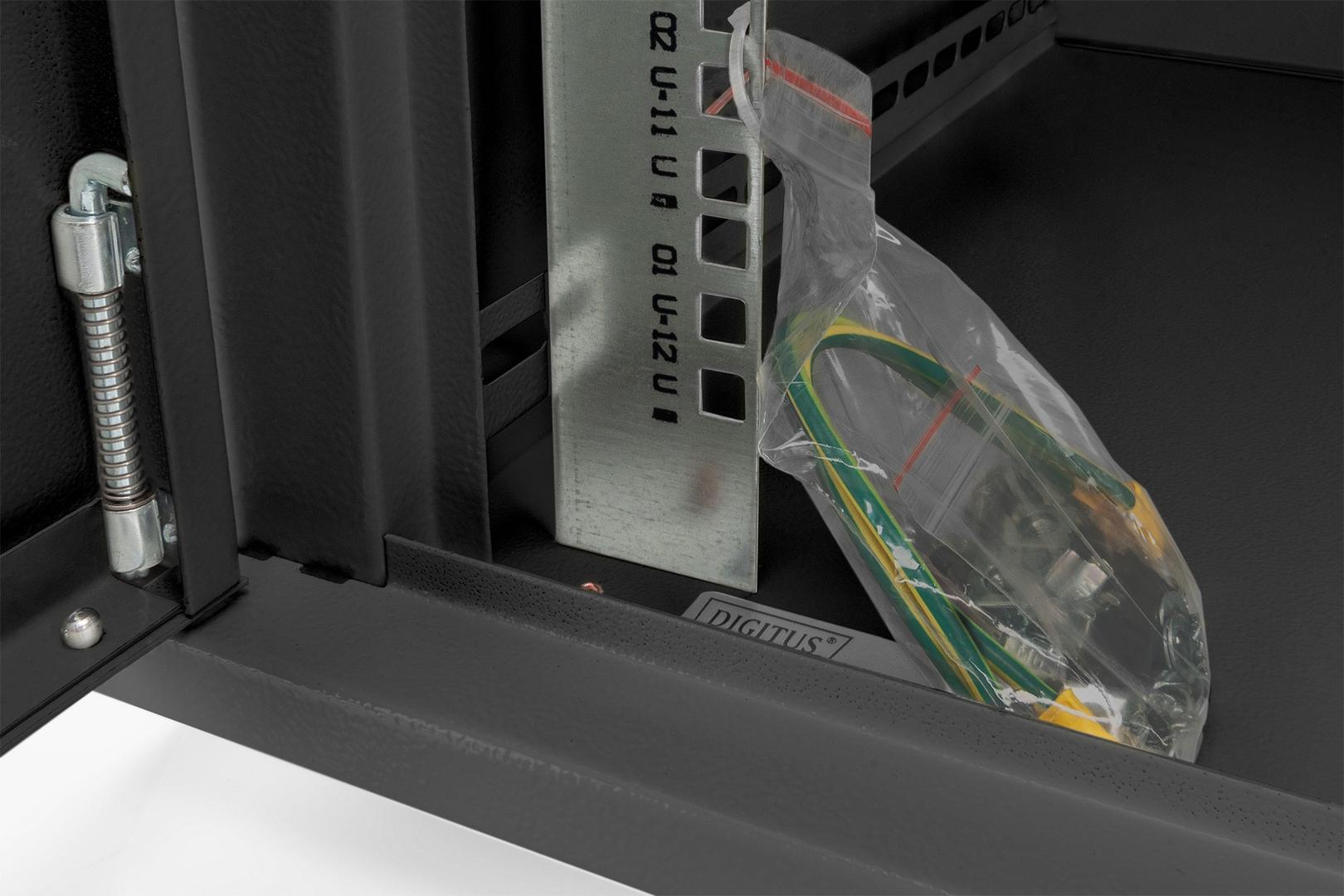

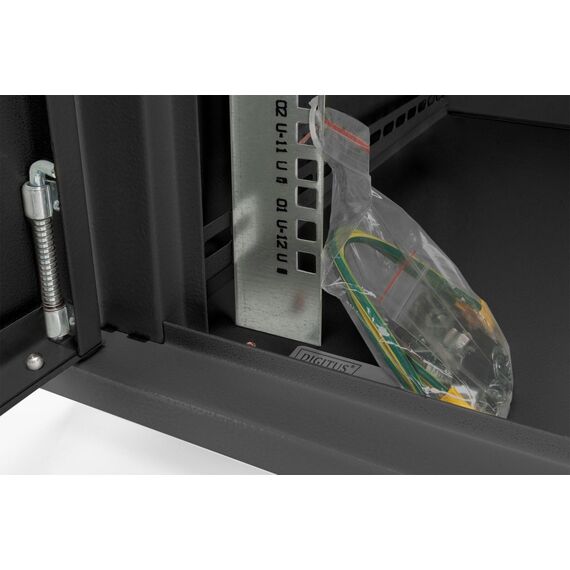

· 483 mm (19) profile rails are adjustable in depth and with height unit marking
· 0.8 - 1.2 mm strong sheet steel with high load capacity, powder coated

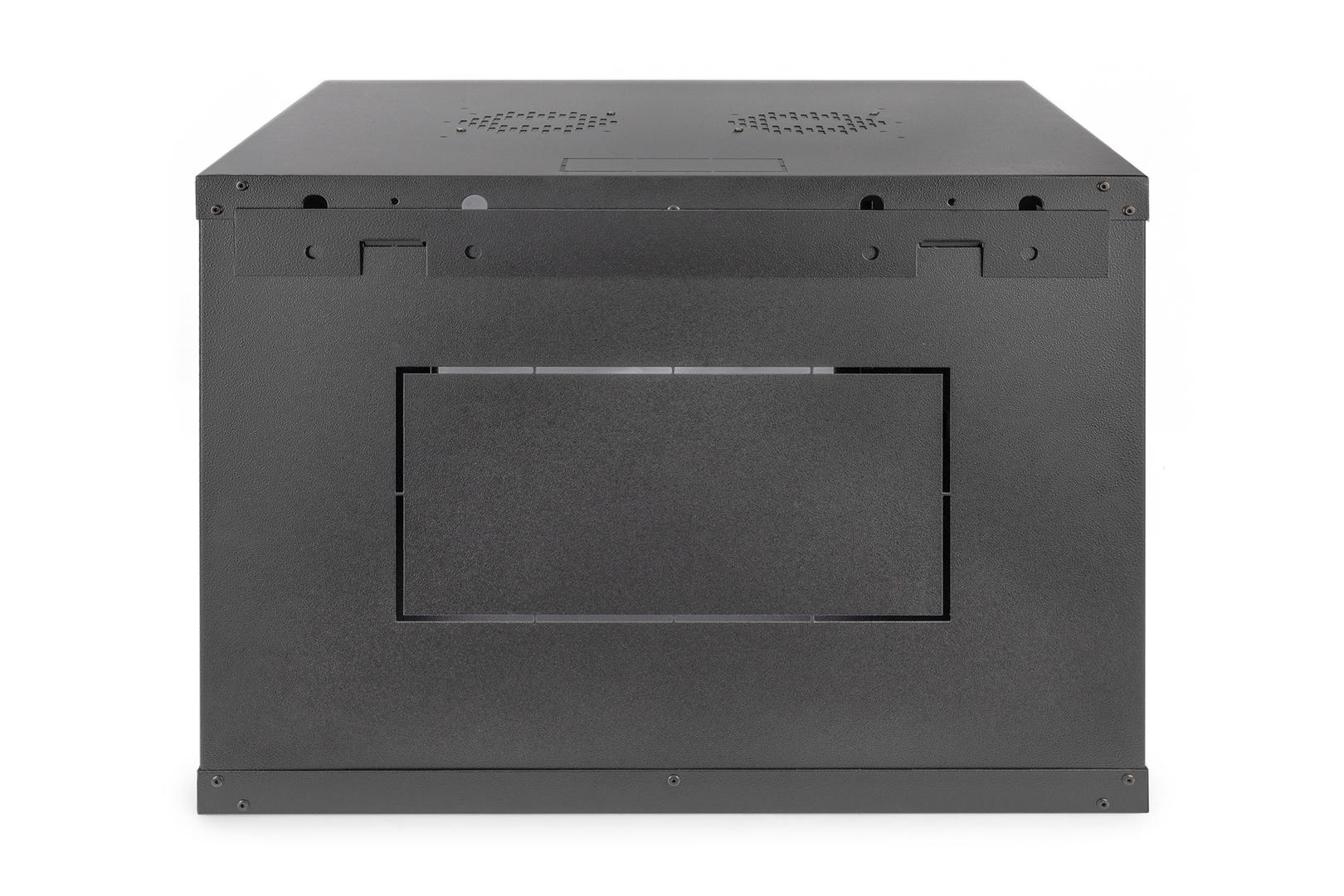

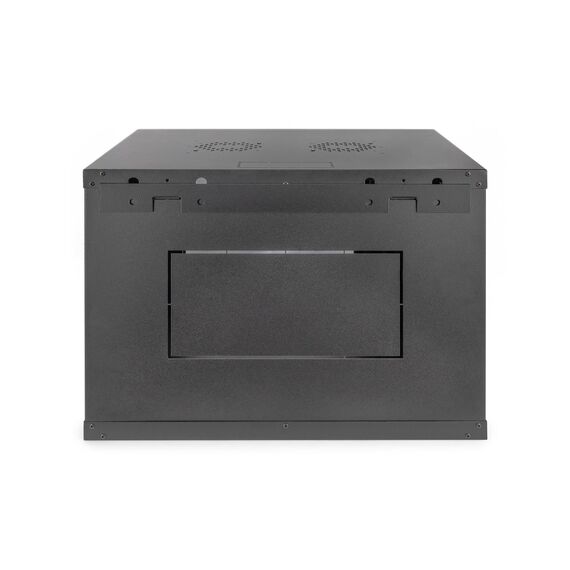

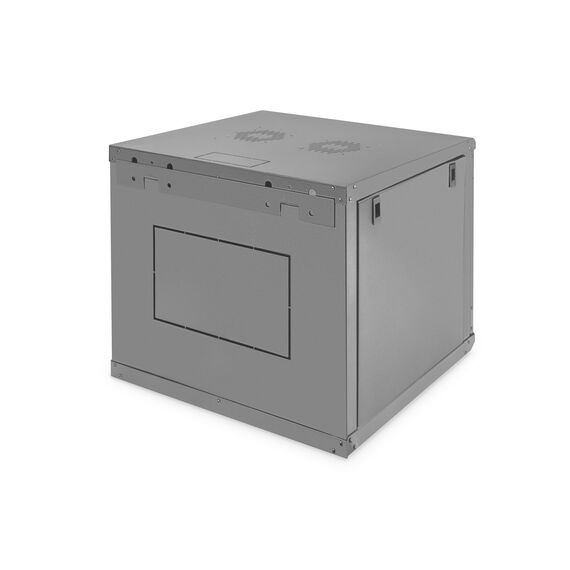

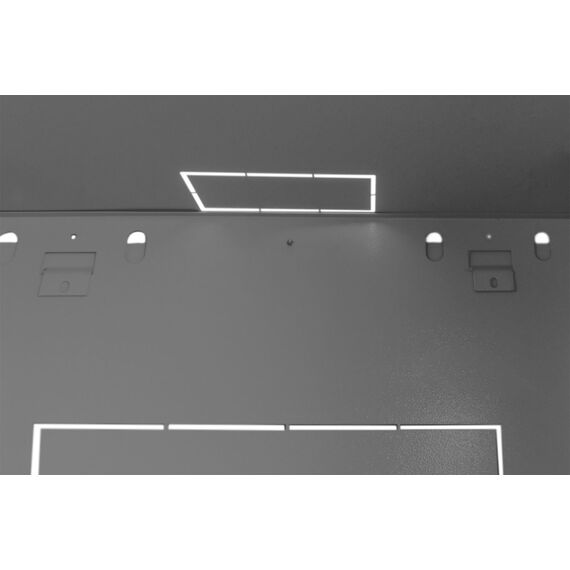

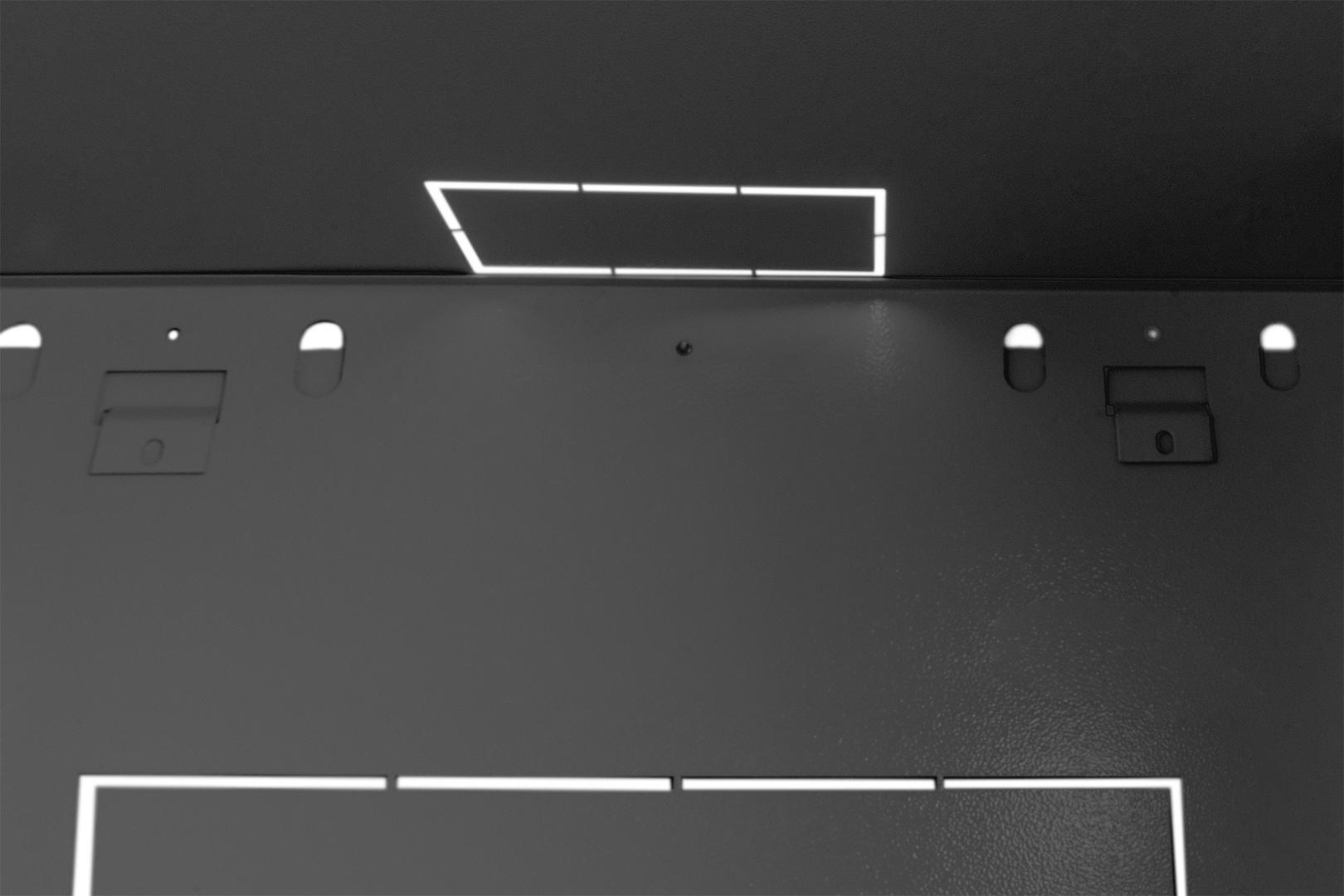

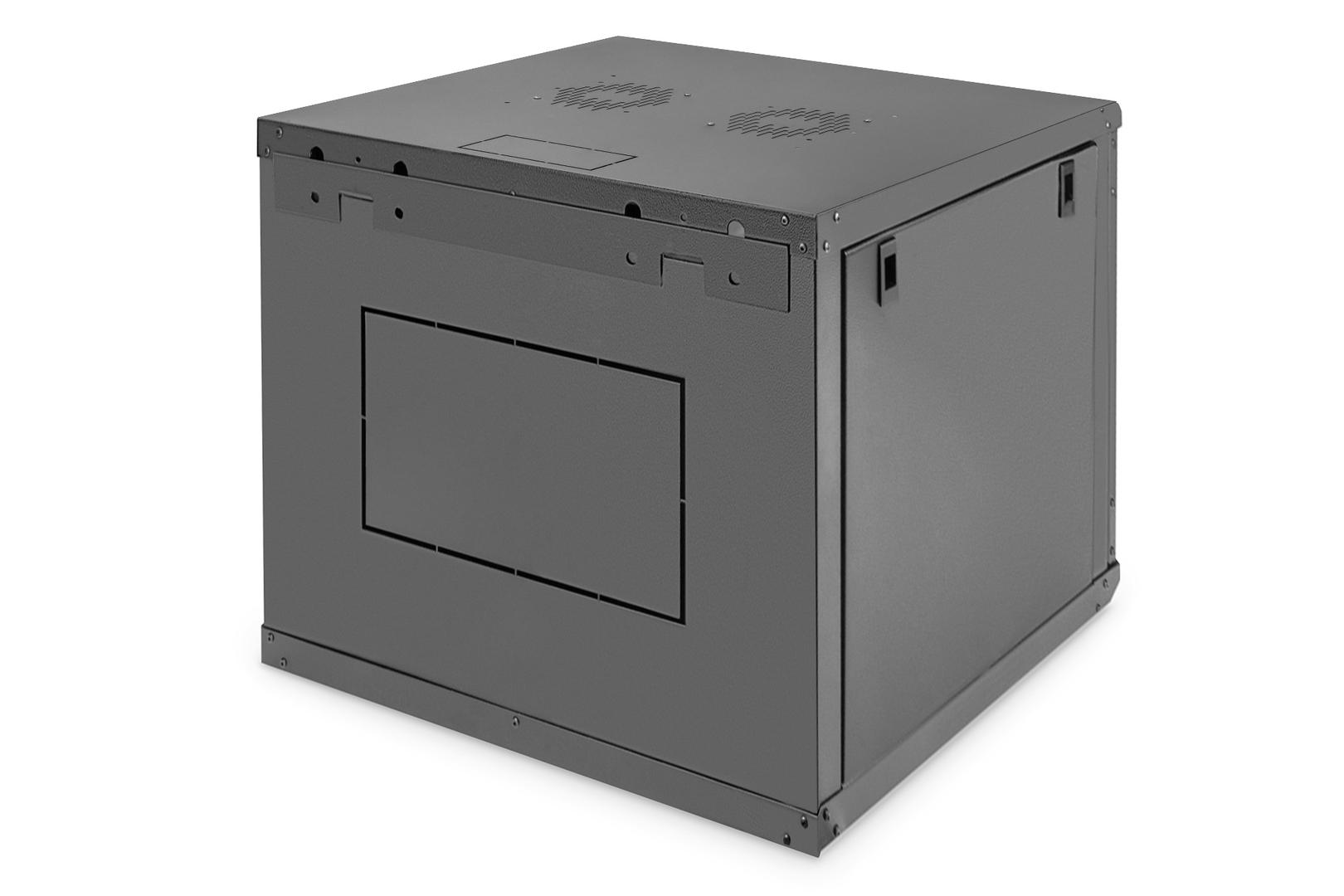

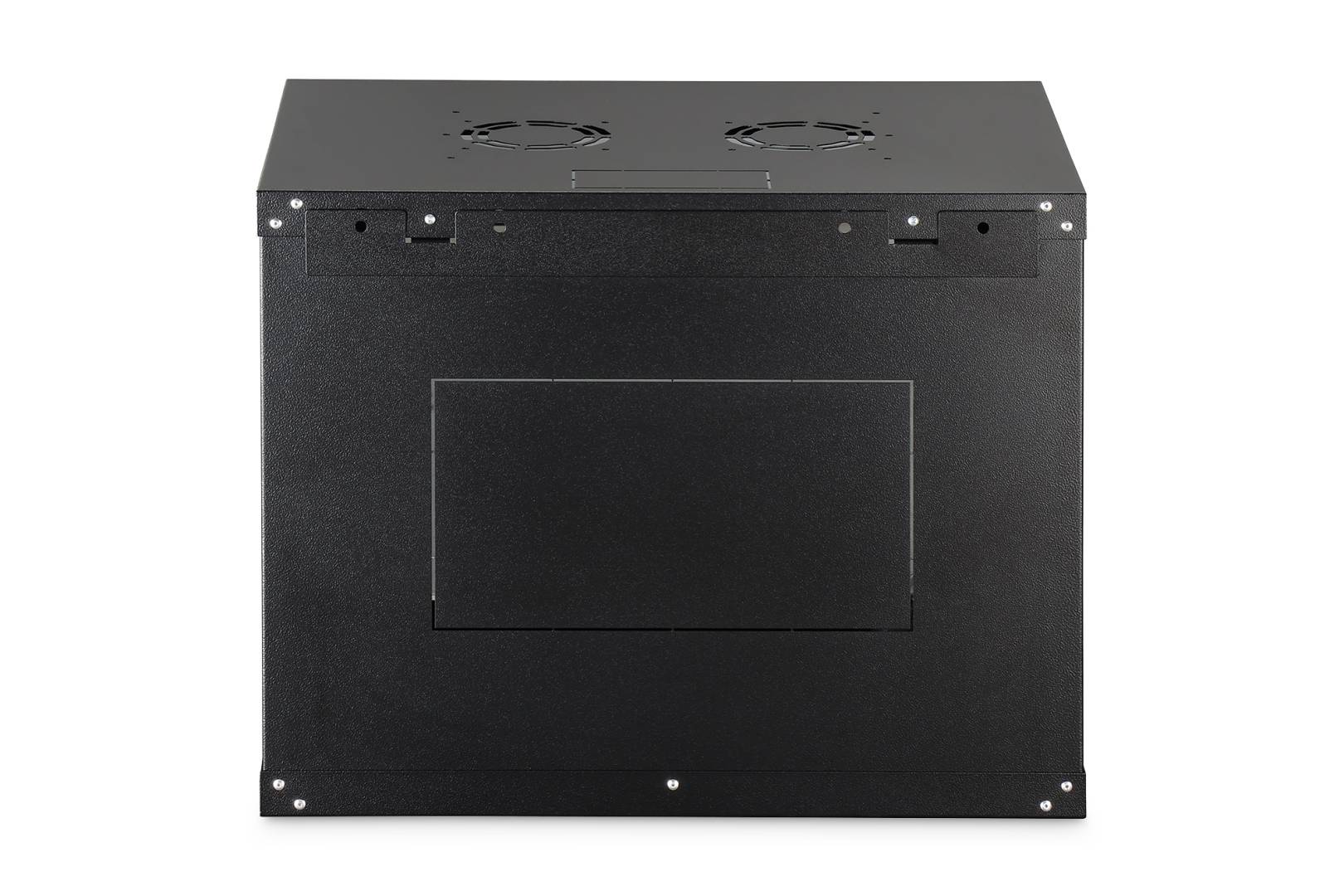

· Cable entry on the rear side, roof and base (pre-punched break-outs)
· Roof is prepared for fan units (punched out entries)

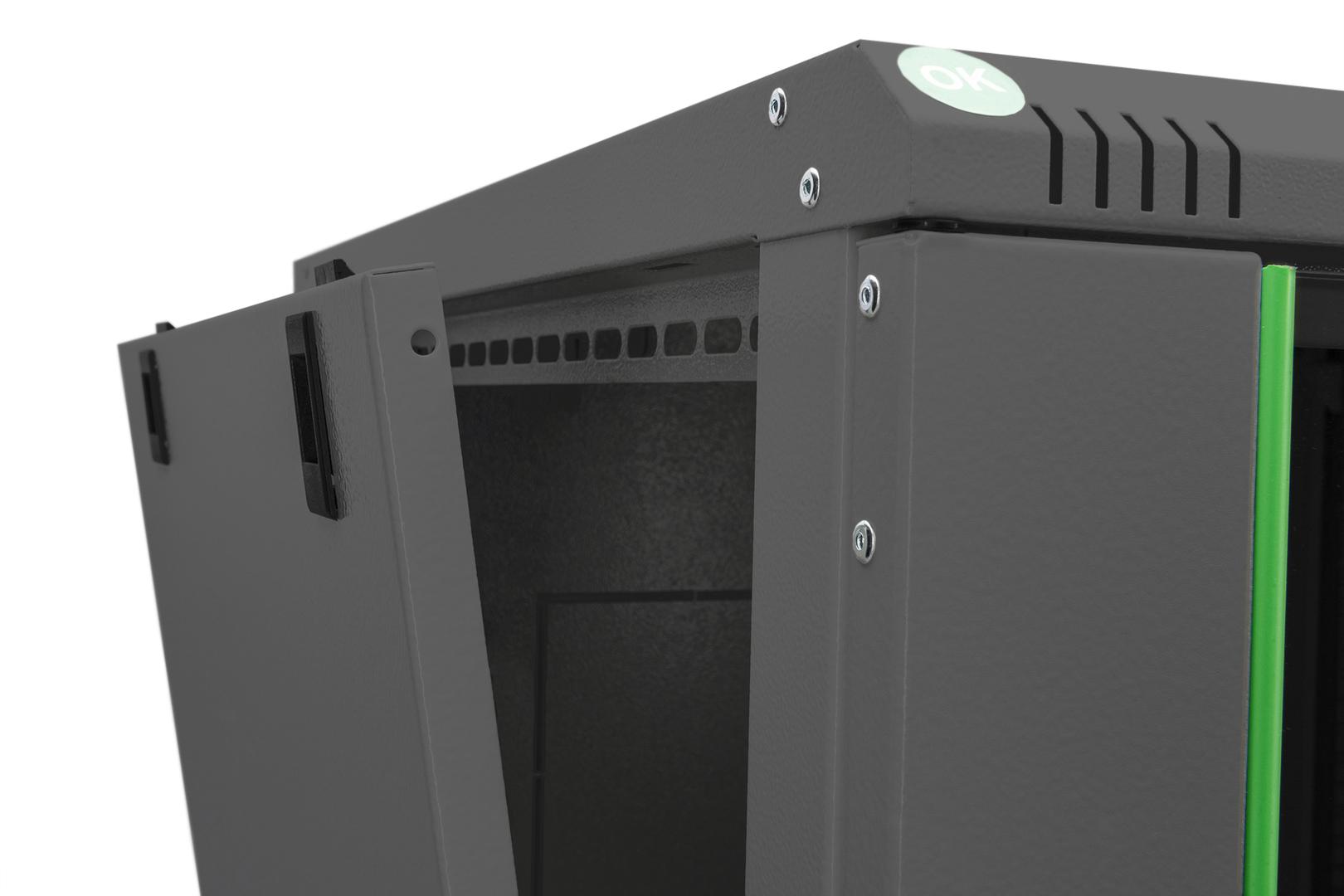

· Ventilation slots for active and passive ventilation and exhausting

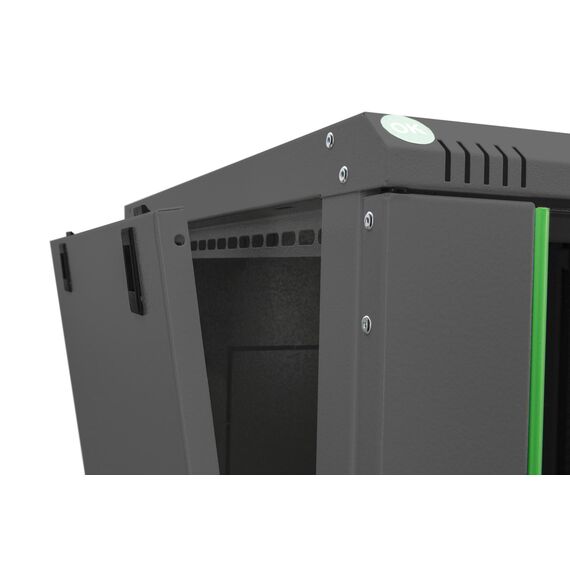

· 4 earthing points (base, side panel and front door) with protection cap
· Equipment mounting depth min.-max.: 335 -380 mm
Special Fetures
· 450 mm depth provides a space saving installation· Optimized air ventilation and exhaustion

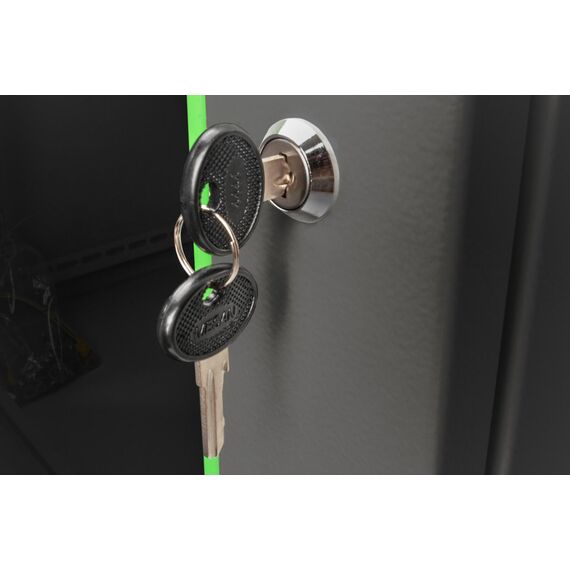

· Lockable safety-glass door with steel frame
Product Specification
| Product Type | Rack |
| Rack Type | Cabinet |
| Placing / Mounting | Wall mountable |
| Product Material | Steel |
| Package Content | L-shaped rails |
| Rack Size | 19" |
| Height (Rack Units) | 9U |
| Width | 60 cm |
| Depth | 45 cm |
| Height | 50.5 cm |
| Shipping Dimensions (WxDxH) / Weight | 53 cm x 68 cm x 69 cm / 18 kg |
| Colour | Black, RAL 9005 |
| Finish | Powder coat |
| Miscellaneous | |
| Weight Limit | 60 kg |
| Features | Lockable front door, ventilation system, fan mount, adjustable rails, back & bottom cable entry points, glass front door, 210° opening angle, front mounting level, 4 earthing points (base, side panel and front door) with protection cap, galvanised rails |
| Compliant Standards | IP20 |
Features - Digitus - DN-19 09-U-EC-SW
More Details
Product Code
CA85823
EAN Code
4016032257813
Manufacturer
Digitus
