DIGITUS Fiber Optic Crimp Splice Protection · Mechanical Crimp Protectors 30 mm, Strip of 15 · Telecom Approval TS 0338/96
Brand:
Digitus
DIGITUS Fiber Optic Crimp Splice Protection · Mechanical Crimp Protectors 30 mm, Strip of 15 · Telecom Approval TS 0338/96
€10.91 inc. VAT
DN-CSP-015
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
DIGITUS DN-CSP-015 — Fiber Optic Crimp Splice Protection, Strip of 15
15 protectorsMechanical crimp30 mmTS 0338/96

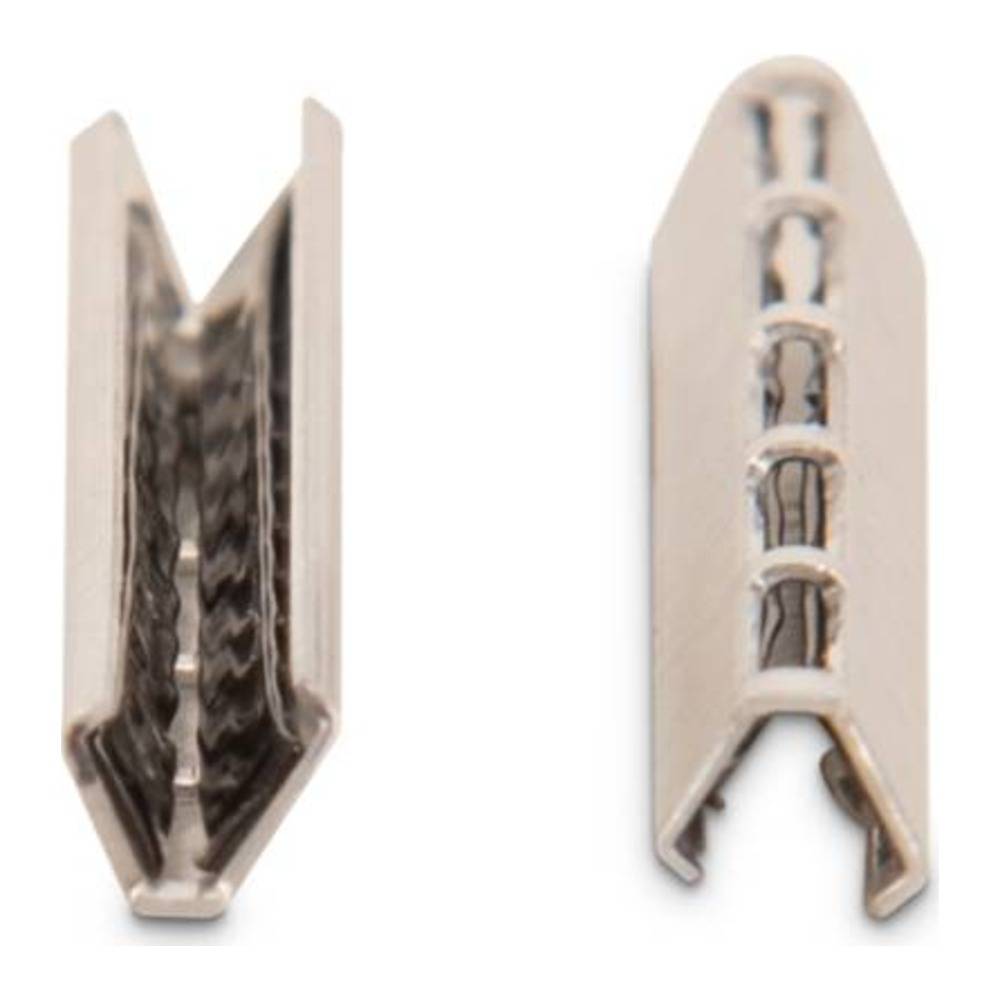

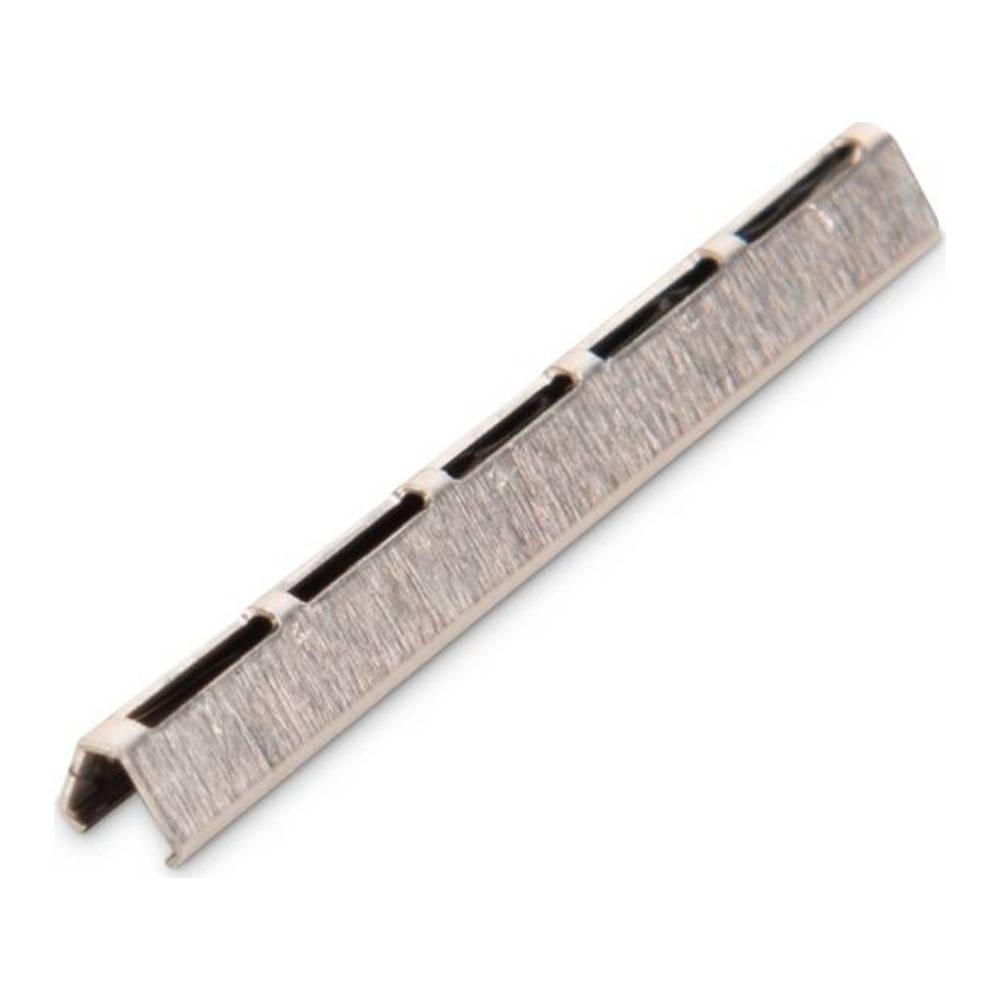

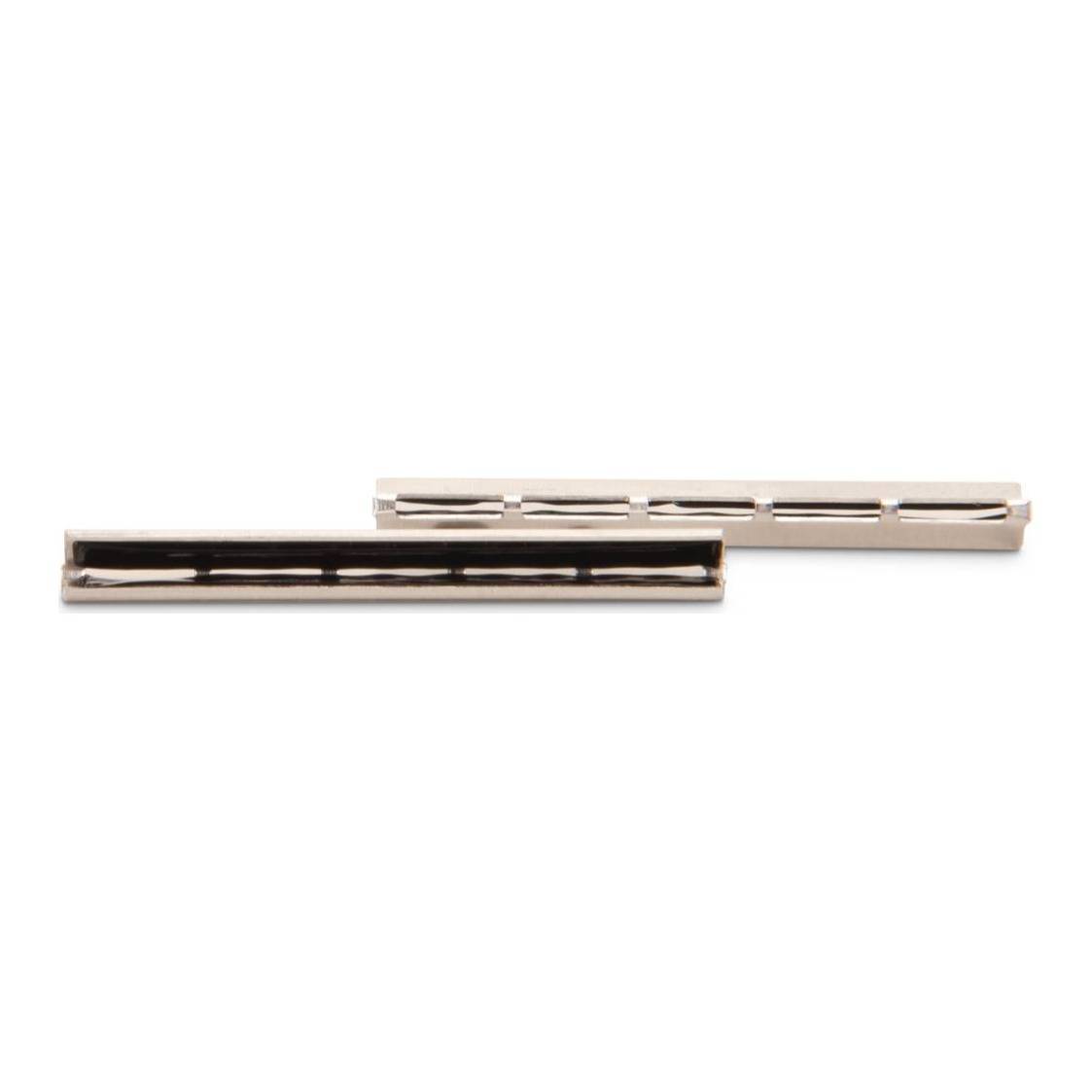

The DIGITUS DN-CSP-015 is a strip of 15 mechanical crimp splice protectors that protect optical fibers after splicing. Instead of shrinking a sleeve with heat, the protector is closed around the spliced fiber with a mechanical crimp, which is quick and needs no oven.
The protectors measure 30 × 1.2 × 3.3 mm and snap into standard splice cassettes without adding insertion loss. They resist crushing, pulling and puncturing and can be used in enclosed and open environments; DIGITUS lists telecom approval TS 0338/96.
Before you order: These are crimp protectors, not heat-shrink sleeves. Your splice cassette must have holders for crimp-type protectors — many cassettes, including the DIGITUS DN-96893/DN-96894 DIN-rail distributors, accept both types.
What's in the Box

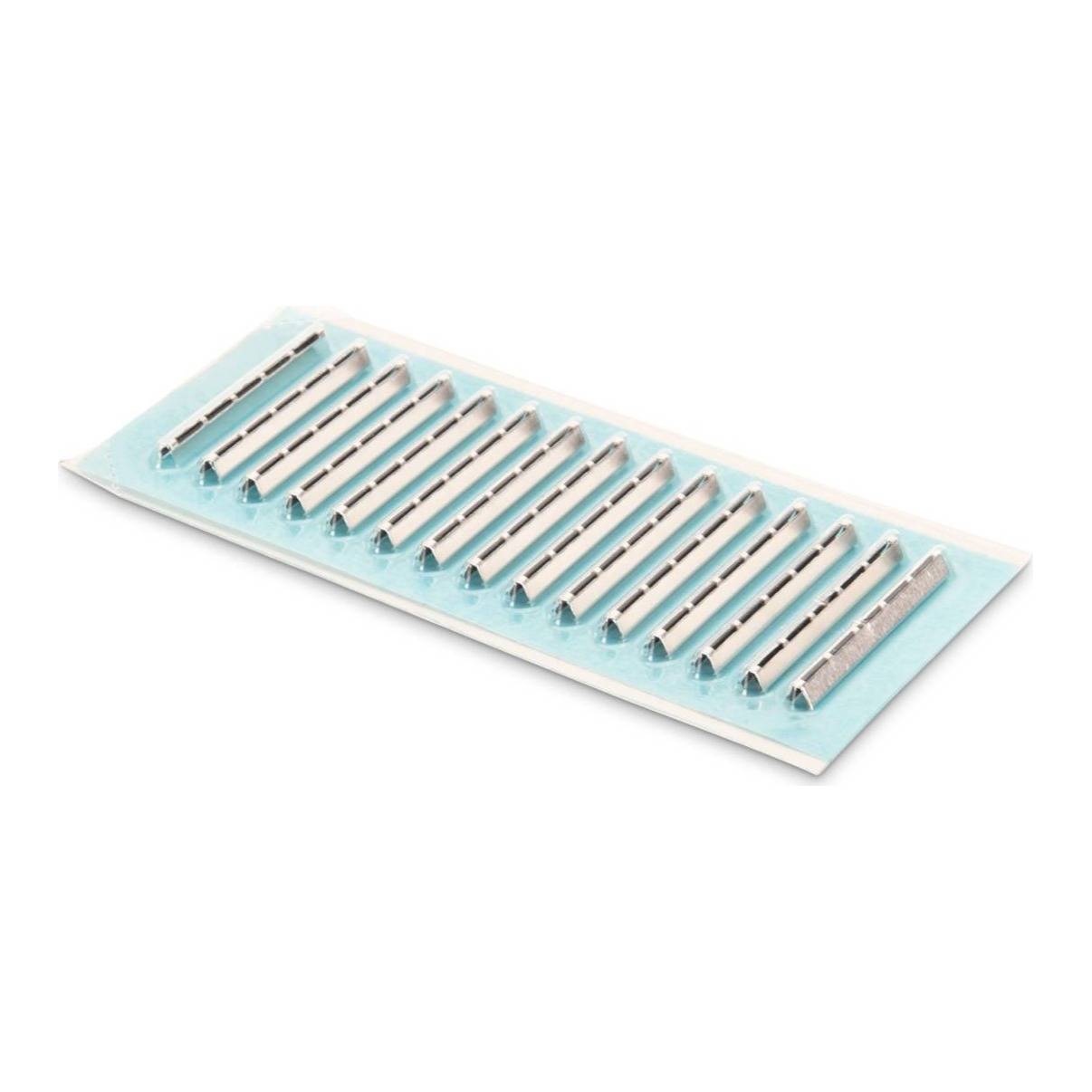

- 1 × strip of 15 DIGITUS fiber optic crimp splice protectors (DN-CSP-015)
What It Means in Practice
- One protector per splice: a strip covers 15 splices.
- No heat oven needed — useful where the splicer has no oven or power is limited.
- Before crimping the protector opens to 52°, so the spliced fiber can be laid in without threading.
- Rated for -20 to +60 °C.
What Will Not Work
- They will not replace heat-shrink sleeves in cassettes that only have heat-shrink holders.
- They do not splice the fiber — a fusion splicer is still required.
- They are not reusable once crimped.
- A crimping tool suitable for splice protectors is not included.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Crimp splice protectors are a practical alternative to heat-shrink sleeves for small jobs and field repairs. Check the holder type of your cassette first; the DIGITUS DIN-rail distributors accept both. For the rest of the link see our network cables.
✓ Buy it if you splice into cassettes with crimp-protector holders and want a fast, heat-free method.
✕ Skip it if your cassettes only accept heat-shrink sleeves.
→ Also consider Heat-shrink splice sleeves if your cassette requires them.
Tell us your splice cassette or distributor model and we will check that these protectors fit.
Features - Digitus - DN-CSP-015
More Details
Product Code
04:568875
EAN Code
4016032504955
Manufacturer
Digitus
