DIGITUS Fiber Optic LC/LC Duplex Coupler, Keystone Module, Multimode OM4, UPC, Ceramic Sleeve, Snap-in, Violet
Brand:
Digitus
DIGITUS Fiber Optic LC/LC Duplex Coupler, Keystone Module, Multimode OM4, UPC, Ceramic Sleeve, Snap-in, Violet
€4.33 inc. VAT
DN-96019-1-K
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
DIGITUS LC/LC Duplex Fiber Coupler — keystone module, Multimode OM4
Keystone snap-inLC/LC duplex · UPCMultimode OM4Violet

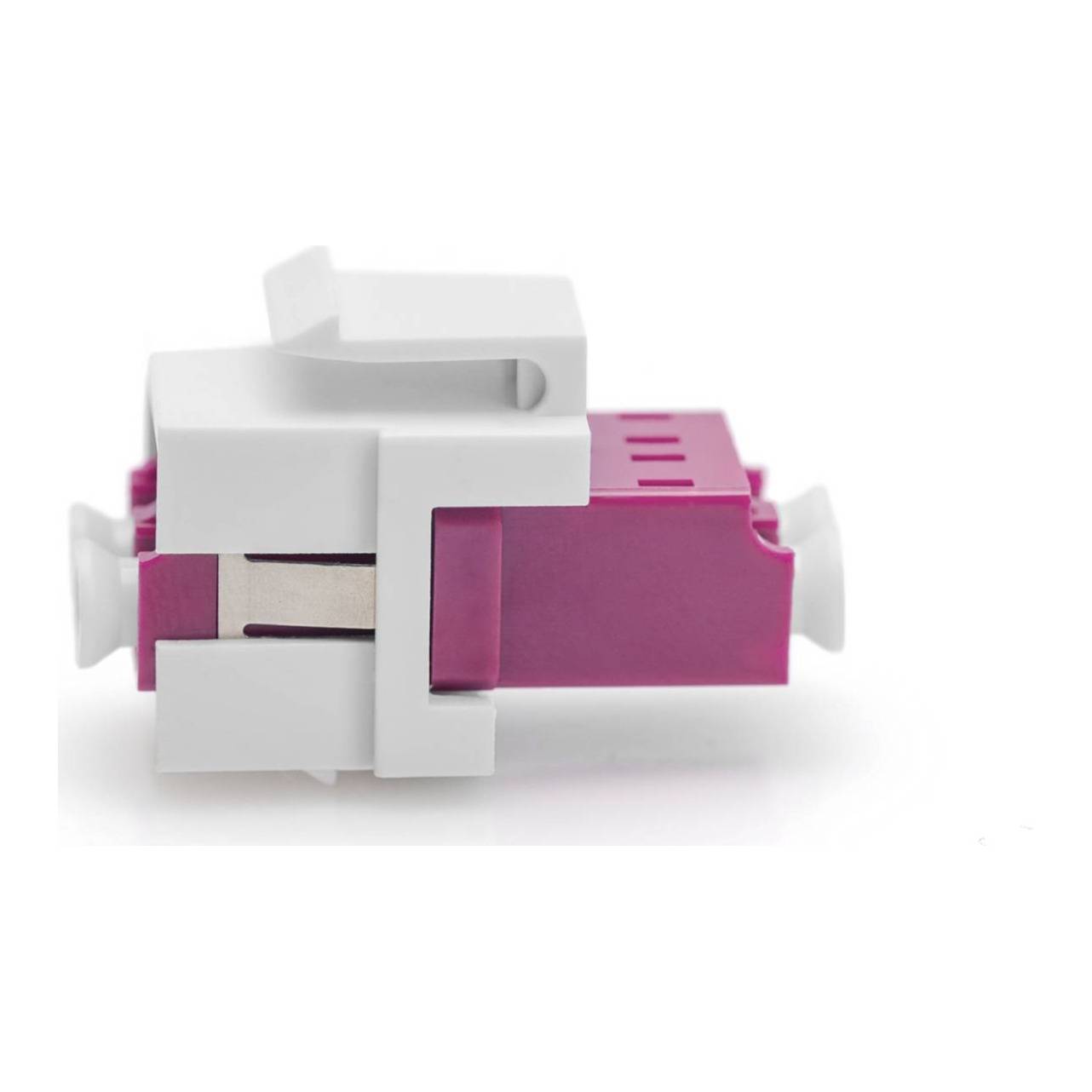

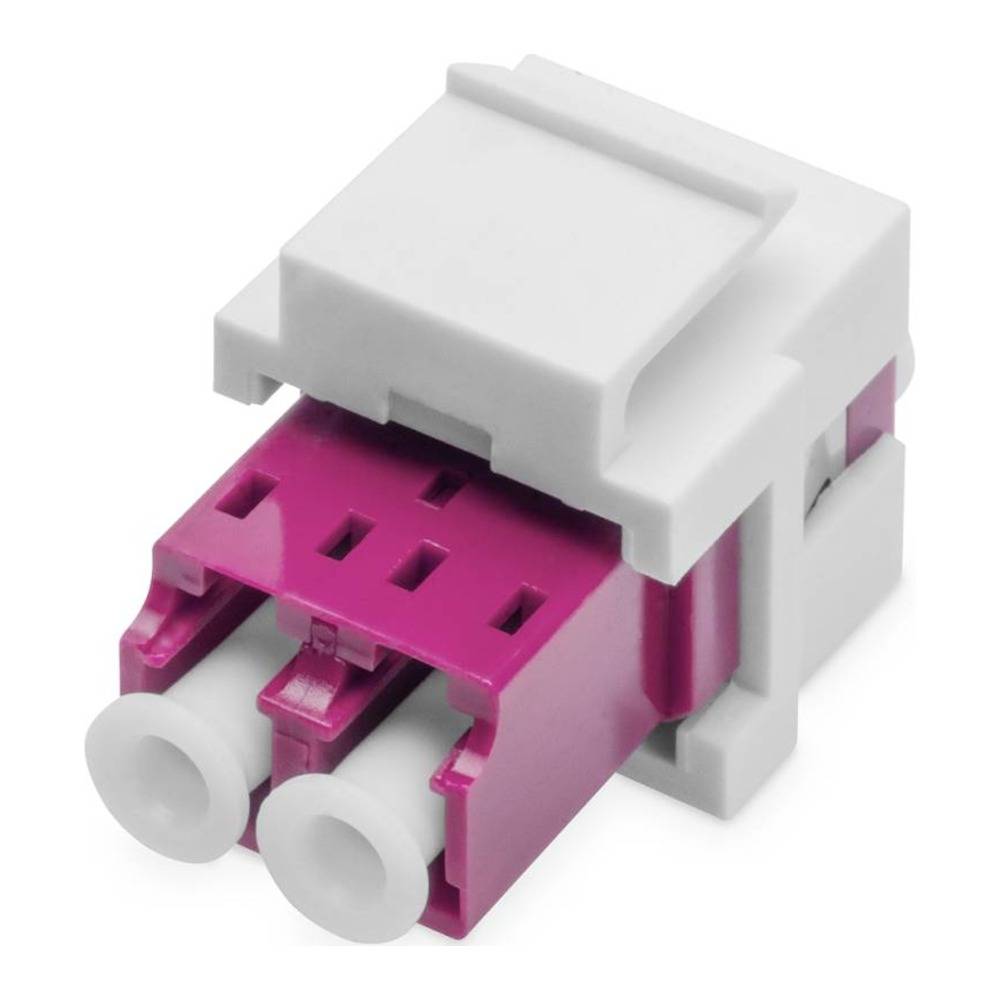

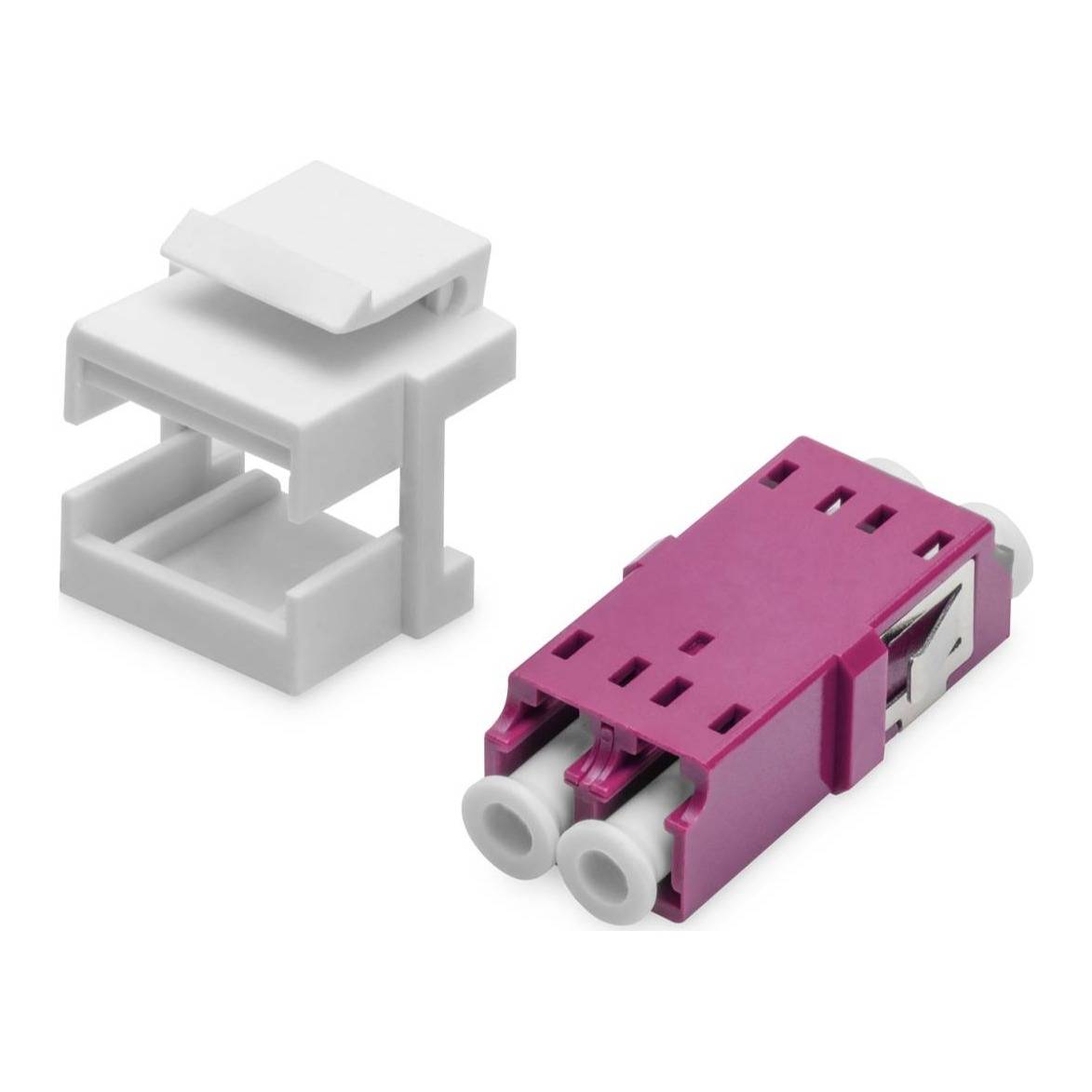

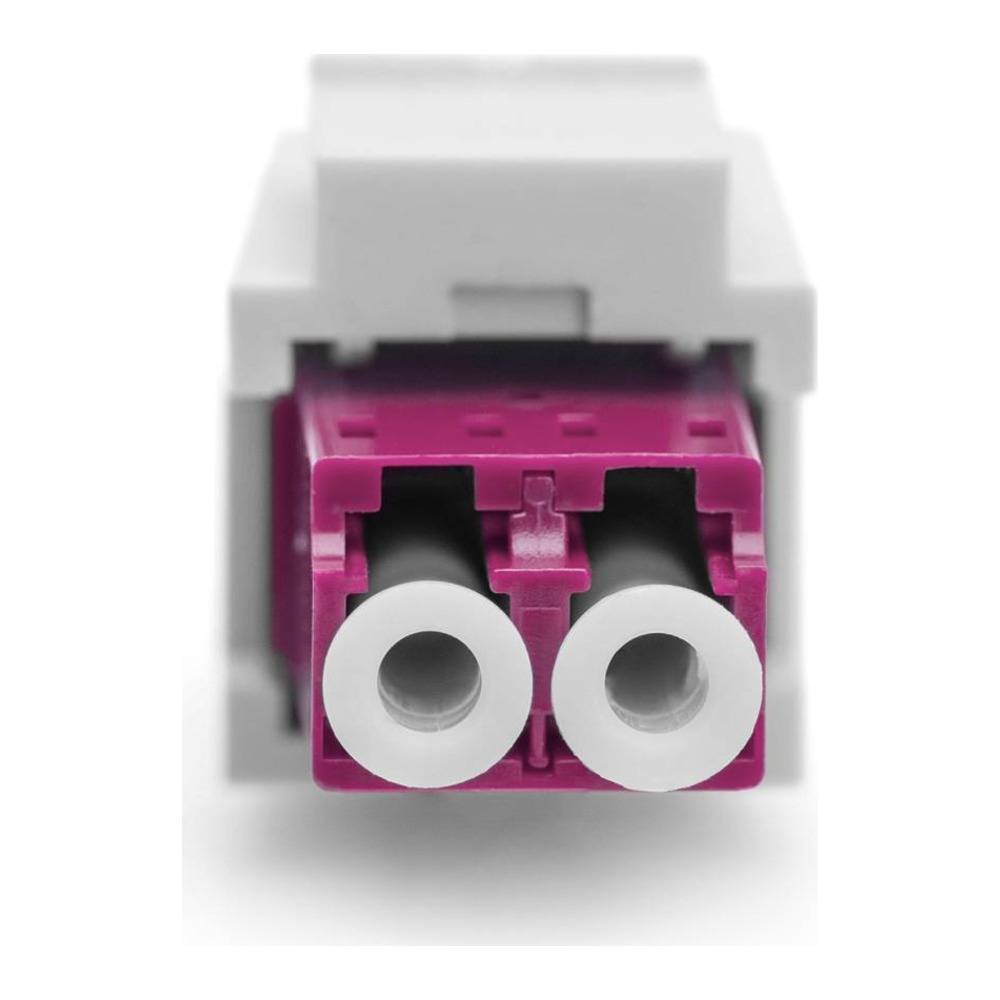

The DIGITUS DN-96019-1-K is an LC/LC duplex fiber optic coupler in keystone format for Multimode OM4 links. It joins two LC duplex patch cords and snaps into keystone patch panels and wall outlets with standard openings, so you can bring fiber into the same modular panels you already use for copper.
The coupler has a ceramic alignment sleeve and UPC polish, measures 17 × 22 × 33 mm and is colour-coded violet for OM4 multimode.
Before you order: This is the OM4 multimode version. Use OM4 (or OM3) LC UPC multimode patch cords on both sides; it is not for single-mode links.
What's in the Box
- 1x LC/LC duplex fiber coupler, keystone module, Multimode OM4
What It Means in Practice
- Lets you mix fiber and copper in one keystone panel or wall outlet instead of buying a dedicated fiber panel.
- One coupler carries one duplex link (two fibres) between two LC duplex patch cords.
- Snap-in fitting: no tools, no flange screws.
- Typical use: OM4 multimode links between a floor distributor and switches or servers in the same building.
What Will Not Work
- Single-mode (OS2) patch cords will not give a working link through a multimode coupler.
- APC (green, angled) LC connectors must not be plugged into this UPC coupler.
- SC, ST or MPO connectors will not fit — LC duplex only.
- It does not fit flanged/screw-mount fiber panels that are not built for keystone modules.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Keystone fiber couplers are the simplest way to add a couple of fiber links to an existing copper keystone panel or a desk outlet. Match the coupler to the cable: OM4 multimode here, and LC UPC patch cords on both sides. Keystone panels and other cabinet parts are in our rack accessories.
✓ Buy it if you need an OM4 multimode LC duplex pass-through in a keystone panel or outlet.
✕ Skip it if your link is single-mode, uses APC connectors, or your panel is not keystone.
→ Also consider DN-96007-1-K (LC/LC duplex single-mode keystone coupler) for single-mode links.
Not sure about your fibre type or panel? Send us the cable or panel model and we will check before you order.
Features - Digitus - DN-96019-1-K
Colour
violet
More Details
Product Code
04:458085
EAN Code
4016032489825
Manufacturer
Digitus
