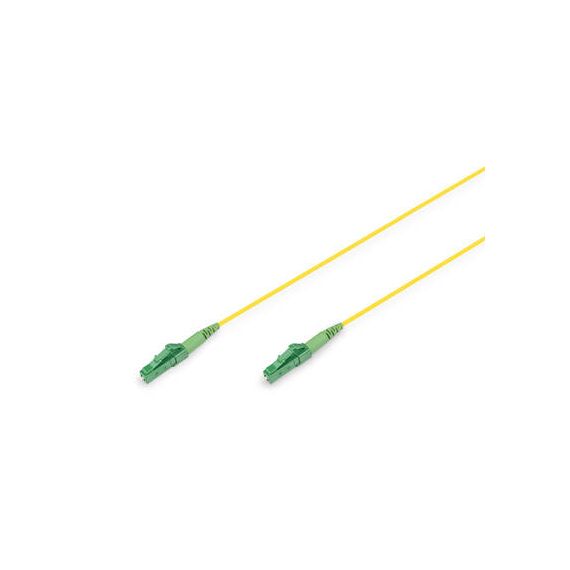

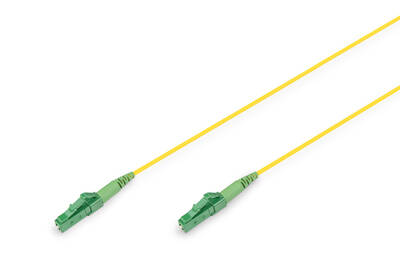

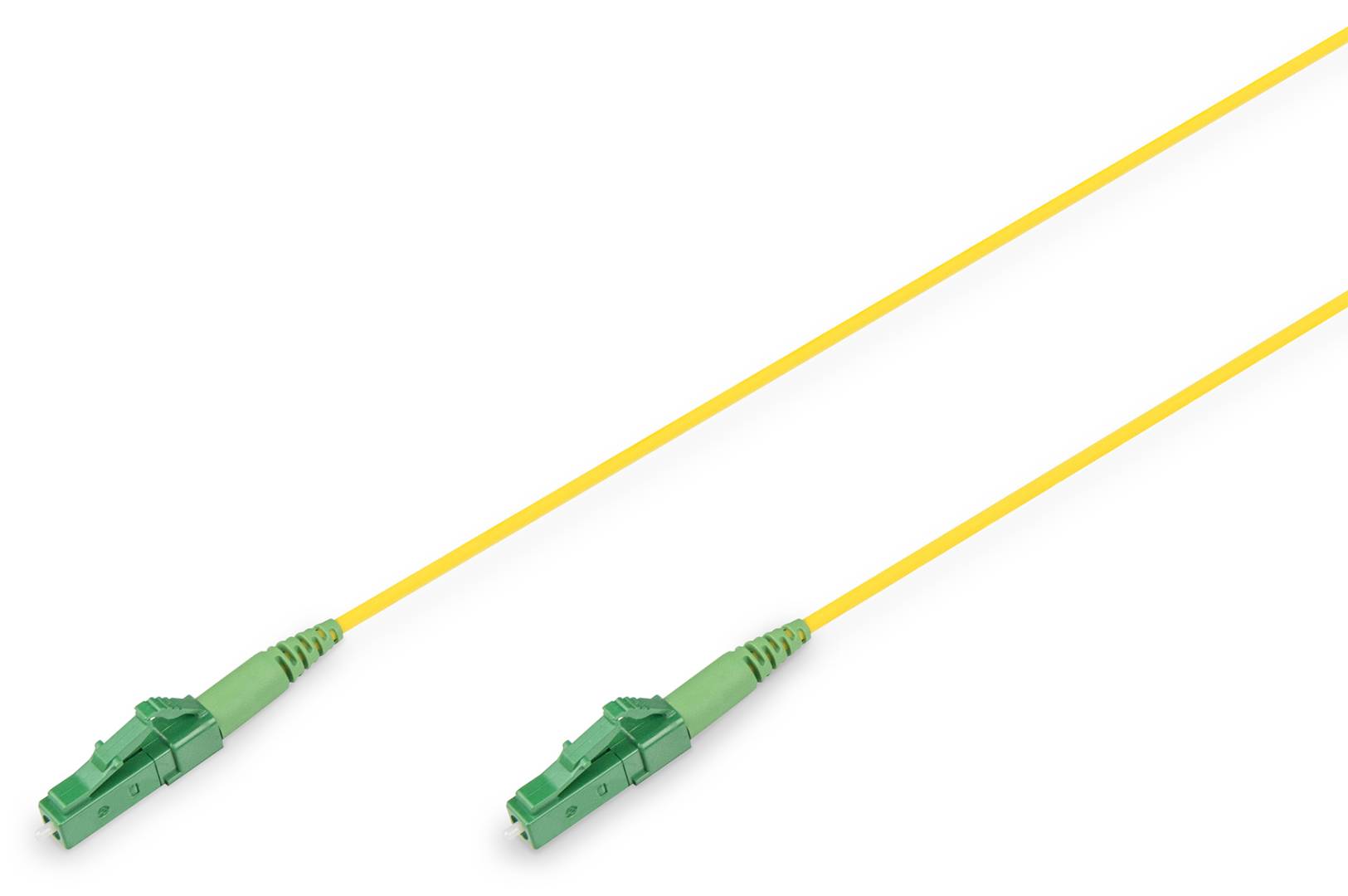

DIGITUS LC/APC–LC/APC Fibre Optic Patch Cable OS2 Singlemode 9/125 Simplex 3 m LSZH Yellow
Brand:
Digitus
DIGITUS LC/APC–LC/APC Fibre Optic Patch Cable OS2 Singlemode 9/125 Simplex 3 m LSZH Yellow
€6.43 inc. VAT
DK-2933-03-APC-SX
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
DIGITUS LC/APC to LC/APC OS2 Singlemode Fibre Patch Cable, Simplex, 3 m
OS2 SinglemodeLC/APC – LC/APCSimplex · 2.0 mm3 m
The DIGITUS DK-2933-03-APC-SX is a 3 m simplex singlemode fibre optic patch cable (OS2, 9/125 µm) with LC/APC on one end and LC/APC on the other, made for APC (angled-polish) connections such as FTTH/GPON fibre outlets, ONTs and CATV/RF-over-fibre equipment.
DIGITUS uses bend-insensitive G.657.A2 fibre (minimum bend radius 7.5 mm) in a 2.0 mm yellow LSZH jacket, with insertion loss specified at 0.3 dB at 1310 nm and a 100 N tensile rating. It is an indoor cable for wall outlets, ONTs and patch panels.
Before you order: Both ends are APC (angled polish, green connectors). APC only mates with APC: do not plug it into a UPC (blue) port or coupler — the link will fail and the end faces can be damaged. Check the port colour on your ONT, outlet or panel first.
What's in the Box
- 1 × DIGITUS LC/APC–LC/APC simplex singlemode patch cable, 3 m
What It Means in Practice
- Connect the LC/APC fibre outlet in a home or office to an ONT or fibre router with an LC/APC port.
- Patch between LC/APC panels in an FTTx distribution cabinet.
- G.657.A2 fibre accepts a bend radius down to 7.5 mm, so the 3 m cable can run along skirting, behind furniture or through tight cable trays.
- Keep the dust caps on until the moment you plug in, and never look into a connected fibre end — singlemode and multimode transmitters use invisible infrared light.
What Will Not Work
- UPC (blue) ports and couplers — APC and UPC end faces are not interchangeable.
- Duplex SFP/SFP+ modules that need two fibres — this is simplex (one fibre); you would need two cords or a duplex cable.
- Multimode equipment (OM1–OM4, SX optics) — this is singlemode OS2 only.
- SC/APC ports — both ends are LC; for SC/APC equipment you need an LC/APC–SC/APC or SC/APC–SC/APC cord.
Key Features

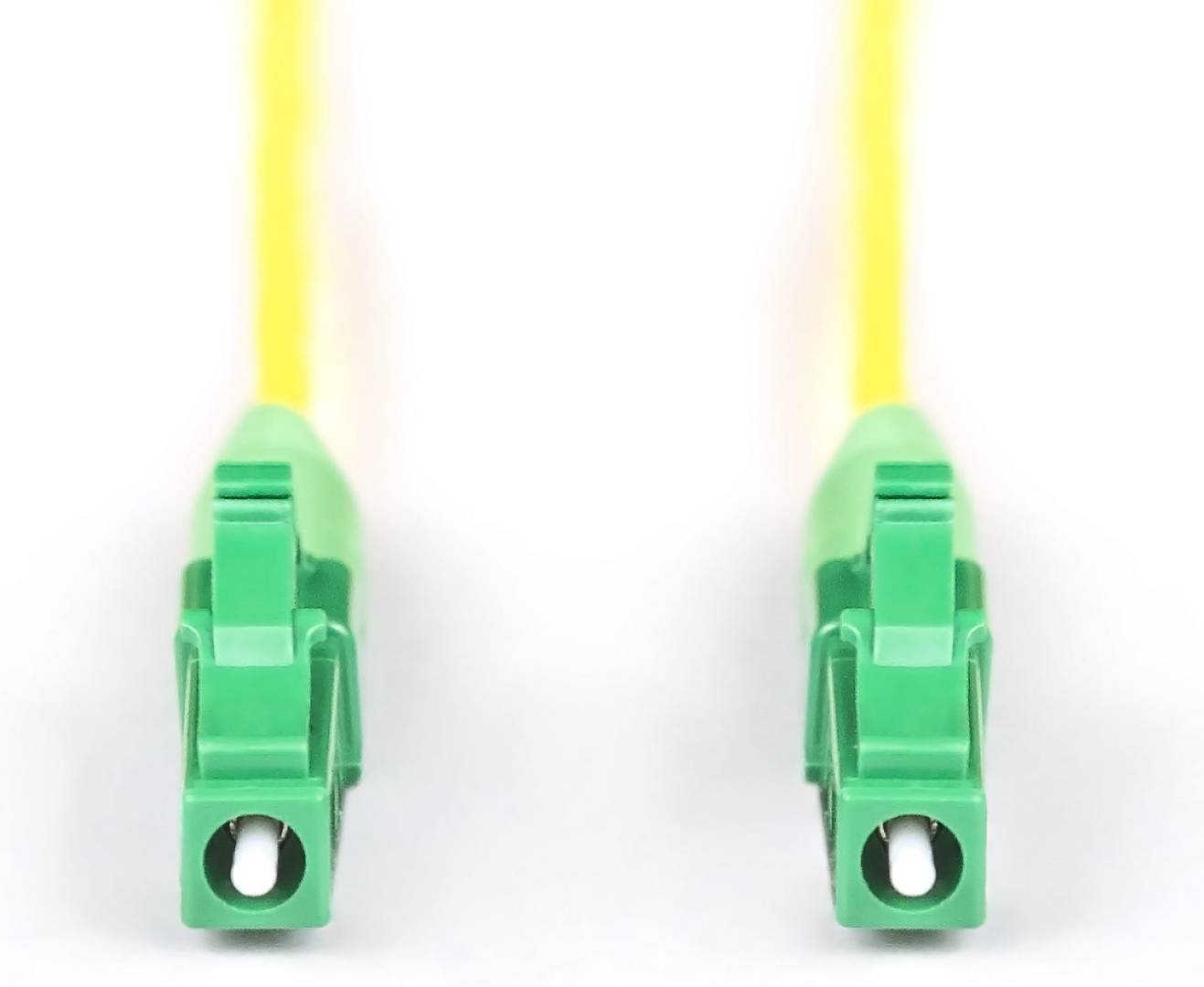

LC/APC both ends
Angled-polish connectors for FTTH/GPON and RF-over-fibre, where low back-reflection matters.
G.657.A2 fibre
Bend-insensitive OS2 9/125 µm, minimum bend radius 7.5 mm.
0.3 dB insertion loss
Specified at 1310 nm by DIGITUS.
2.0 mm LSZH
Slim halogen-free yellow jacket, 100 N tensile rating, indoor use.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
On fibre broadband the most common problem we see is not the cable but the polish: APC (green) and UPC (blue) look alike and fit the same port. This DIGITUS cord is LC/APC at both ends with bend-insensitive G.657.A2 fibre, which makes it forgiving in homes and small offices where the route is never straight. For business links between switches with SFP/SFP+ ports, use duplex UPC cords instead.
✓ Buy it if you are connecting green APC LC/APC ports — FTTH outlet to ONT, GPON or CATV equipment — over 3 m.
✕ Skip it if your ports are blue (UPC), multimode, or you need a duplex link for standard SFP modules.
→ Also consider the 1 m, 3 m and 5 m lengths of this cable (DK-2933-01/-03/-05-APC-SX).
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Digitus - DK-2933-03-APC-SX
Colour
yellow
Length
3m
More Details
Product Code
CK02439
EAN Code
4016032492832
Manufacturer
Digitus
