DIGITUS 1U Quick Lock Splice Box — empty sliding housing for your own configuration
19" · 1U slidingEmpty housingQuick lock panelsGrey RAL 7035

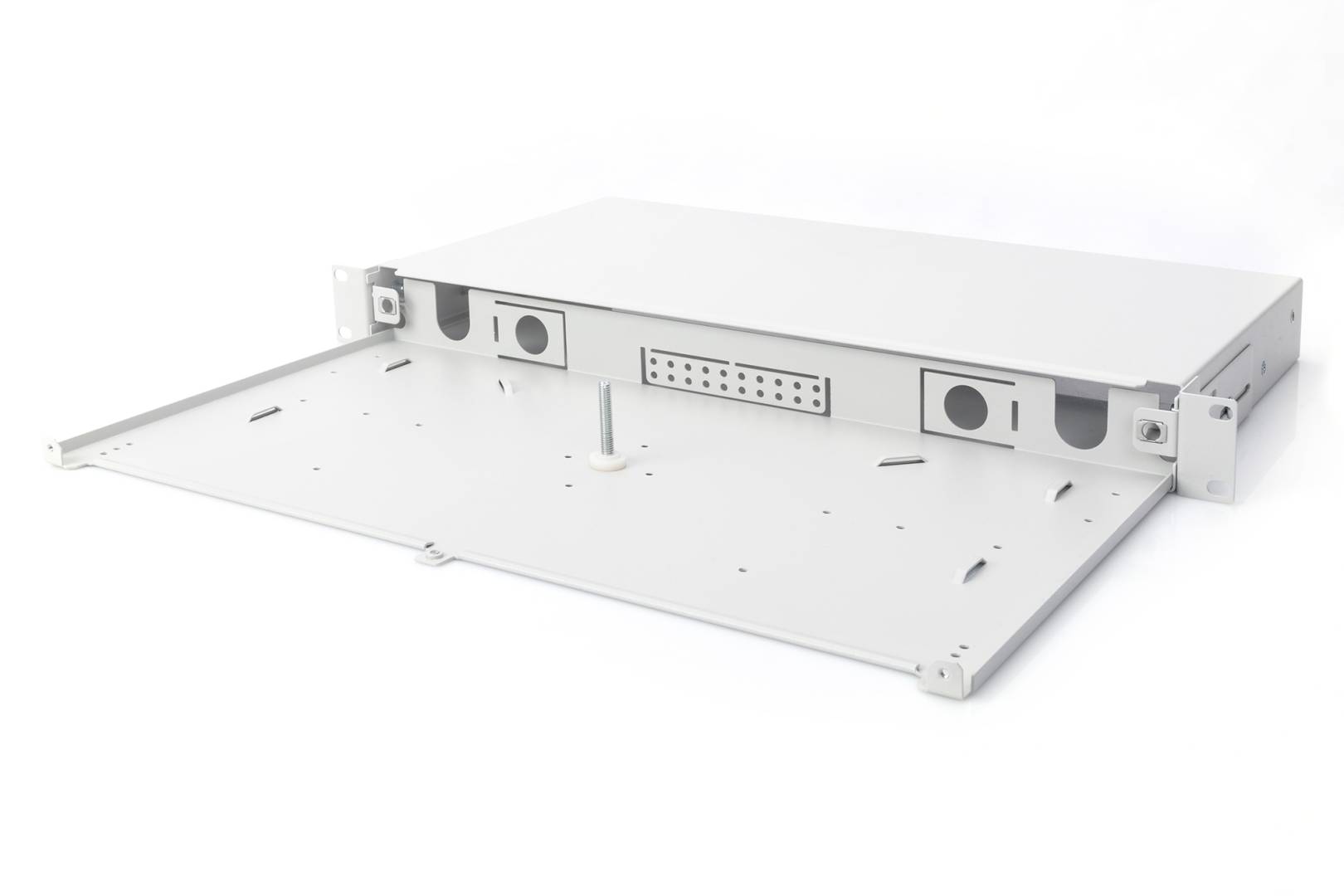

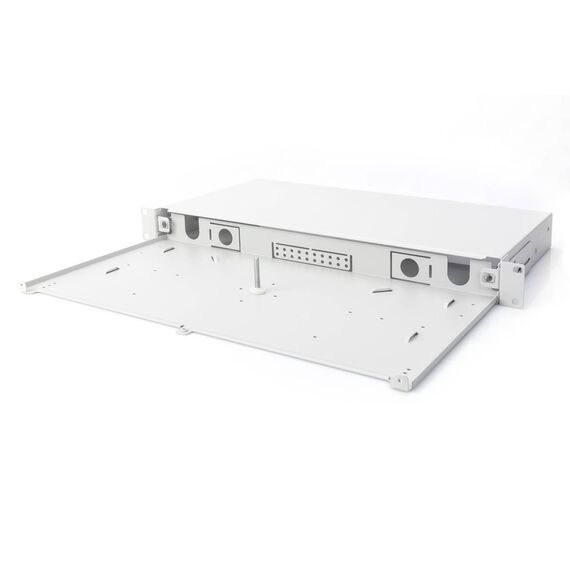

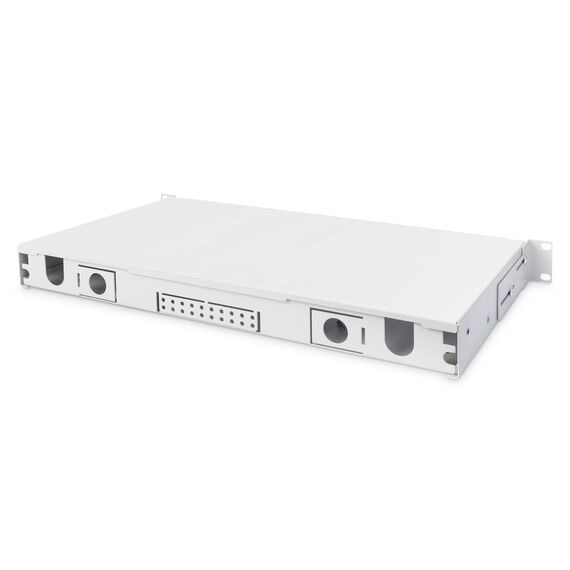

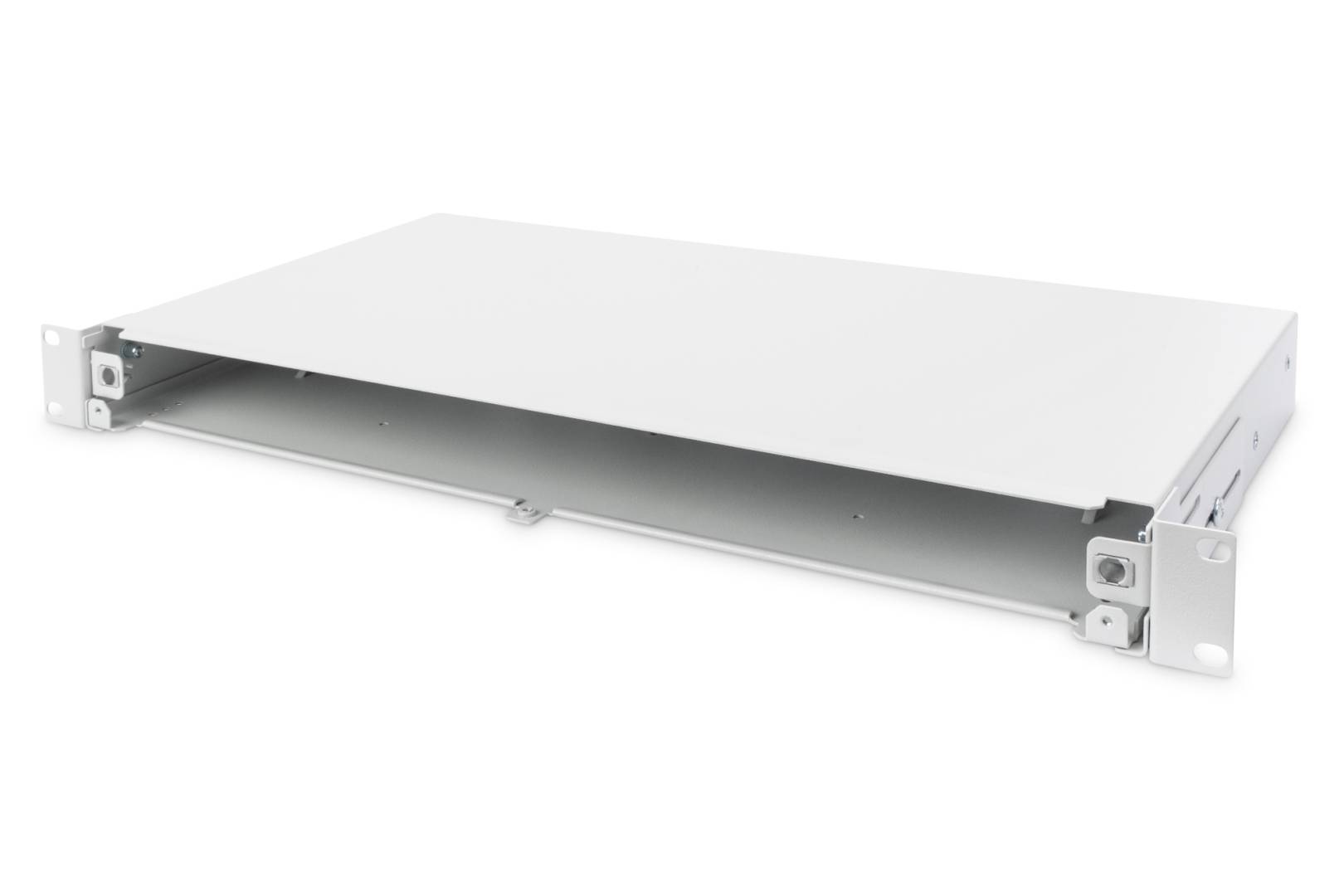

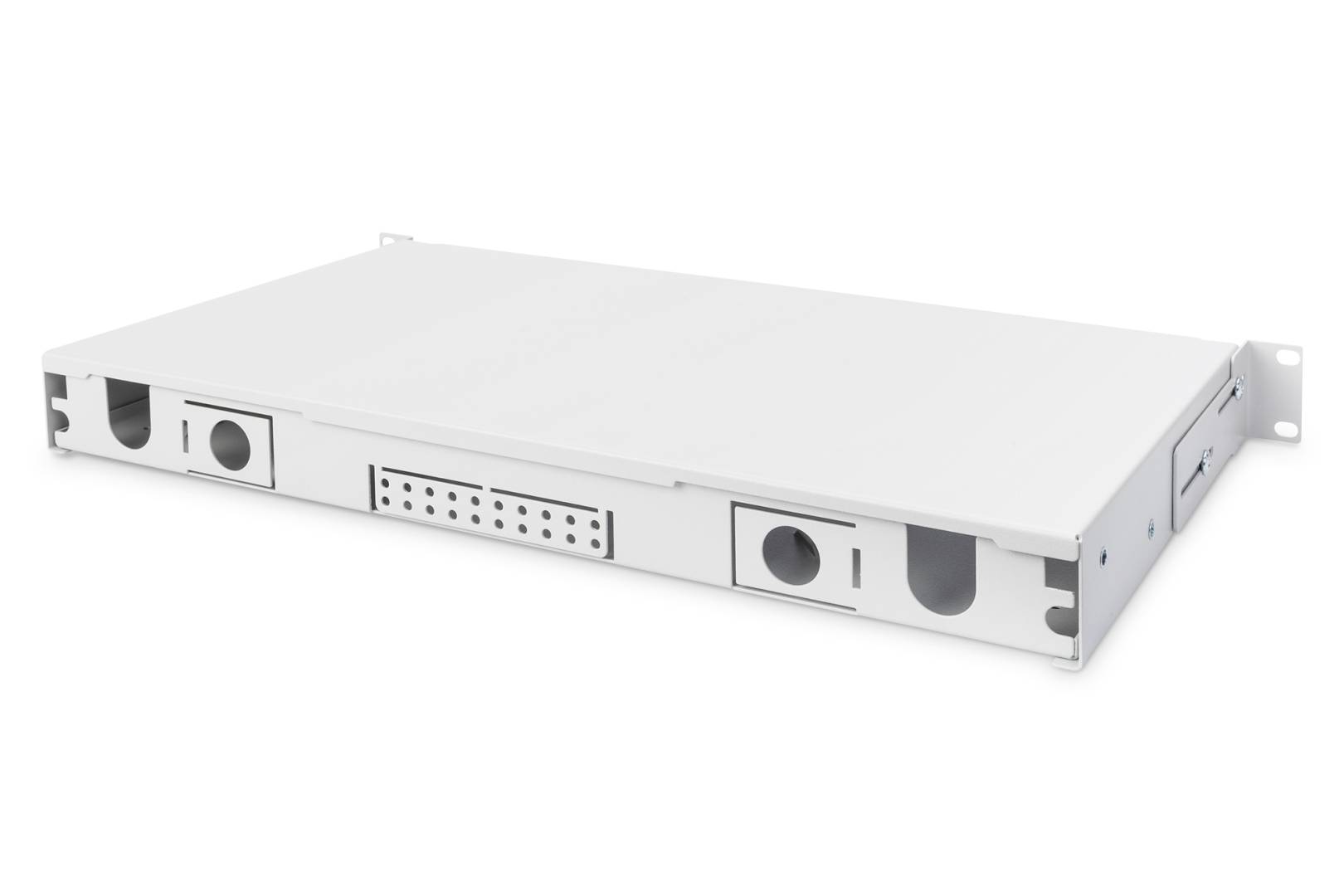

The DIGITUS DN-96200-QL is an empty 19-inch, 1U fiber optic splice box housing with a sliding tray and the DIGITUS quick lock system, supplied without front panel. It is the base for building your own splice box: you pick the front panel, couplers, pigtails and splice cassettes from the DIGITUS range to match your fibre class and connectors.
The carrier housing is 1.0 mm sheet steel, painted light grey (RAL 7035), with a holder for splice cassettes, punch-outs for fixing pigtails on the extendible base and M20/M25 cable entries. Inner dimensions are approx. 44 × 428 × 240 mm (H × W × D).
Before you order: Delivered empty: no front panel, couplers, pigtails or splice cassette. You need at least a quick lock front panel (e.g. DN-96203-QL 6x SC DX, DN-96201-QL 12x SC DX, DN-96206-QL 12x LC DX, DN-96208-QL 6x SC SX / LC DX) plus couplers and pigtails.
What's in the Box
- 1x splice box housing, 1U, quick lock, sliding, without front panel

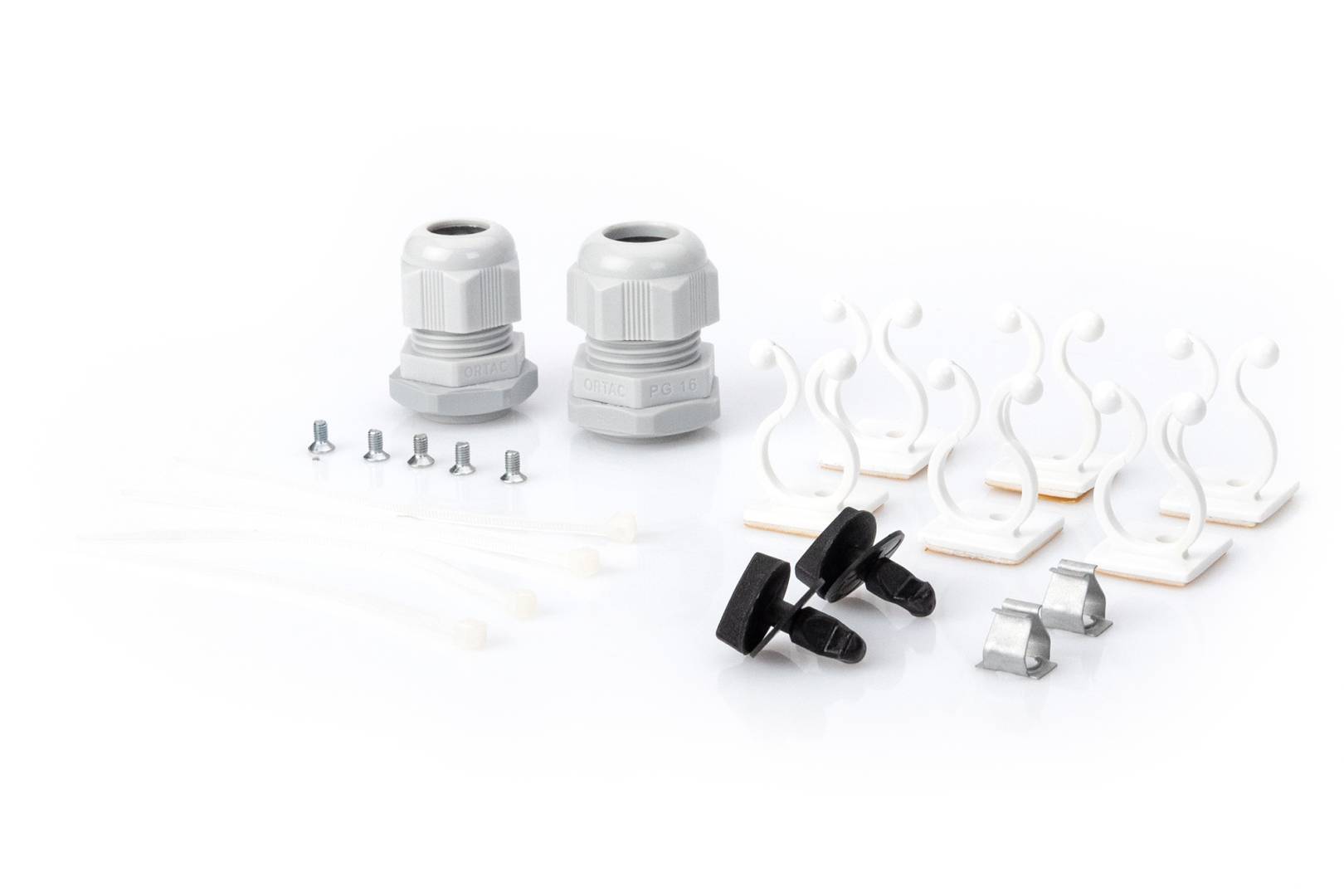

- 1x accessory bag: M20/M25 cable entries, cable ties, cable clips, locking clips, screws
What It Means in Practice
- Lets you mix and match: change from SC to LC, or multimode to single-mode, by swapping the front panel and couplers instead of the whole box.
- Sliding tray pulls forward for splicing and service while the box stays in the rack.
- The quick lock front panels snap in and out, so re-configuration does not need tools.
- For a single, fixed job a pre-equipped DIGITUS splice box is usually quicker and cheaper overall.
What Will Not Work
- It will not terminate any fibre on its own — a front panel and couplers are required.
- Front panels from non-quick-lock DIGITUS boxes or other brands will not fit.
- Not for 10-inch racks or wall mounting.
- No splice cassette, pigtails, patch cords or tools are included.
Key Features
Quick lock system
Front panels click in and out for faster assembly and changes.
Sliding chassis
Extendible base with pigtail fixing punch-outs for easy splicing.
Cable entry
M20/M25 entries with accessory bag for clean, strain-relieved cable routing.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Choose the modular route when your site standards change often or you terminate different fibre types in the same cabinet; choose a pre-equipped box when you just need to splice one cable and move on. Panels, shelves and cable managers for the cabinet are in our rack accessories.
✓ Buy it if you want a configurable 1U splice box and will pick front panel, couplers and pigtails yourself.
✕ Skip it if you need a box that is ready to splice the day it arrives.
→ Also consider DN-96208-QL front panel (6x SC SX / LC DX); a pre-equipped DIGITUS 1U splice box with couplers and pigtails fitted.
Tell us your fibre type, connector and fibre count and we will list the complete quick lock set before you order.
Features - Digitus - DN-96200-QL
Colour
grey
More Details
Product Code
03:161163
EAN Code
4016032458210
Manufacturer
Digitus
