DIGITUS FTTH Home Distribution Unit — 3x LC/APC duplex OS2, splice ready, IP54
FTTH building entry3x LC/APC duplexOS2 single-modeIP54 · lockable
The DIGITUS DN-949103 is an FTTH home distribution unit — the building entry point where the operator or installer fiber is spliced and handed over to the in-house cabling. It arrives splice ready with 3 LC/APC duplex OS2 couplers and 6 pigtails fitted, in a lockable IP54 wall housing.

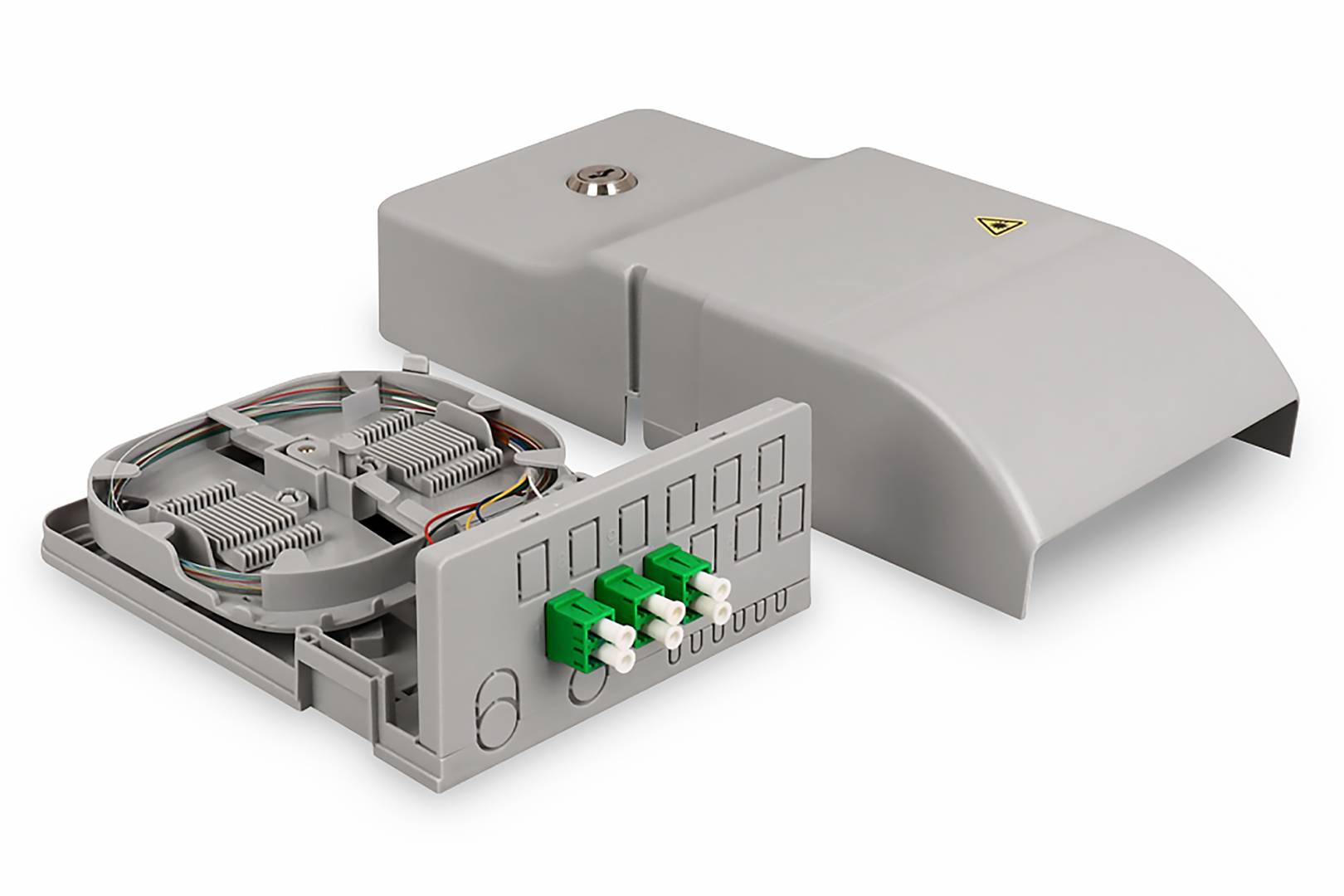

The housing has three parts: base plate, removable splice cassette (up to 12 couplings / 24 fibres) and a wall box with a lockable lid. Two inlets take 7/12 mm microducts (up to two gas blockers), there is a holder for a PLC splitter, and the fibre guide keeps bend radius under control.
Before you order: Single-mode OS2 with APC (green, angled) connectors only. In-house patch cords and the ONT side must be LC/APC single-mode; UPC or multimode cords will not give a usable link.
What's in the Box
- 1x FTTH home distribution unit with couplings, light grey
- 3x LC/APC duplex single-mode couplings (green, ceramic sleeve)
- 6x LC/APC simplex pigtails, E9/125 µm G.657A1 OS2, 1.5 m
- 1x cylinder lock with 2 keys
- 3x wall anchors with matching screws
What It Means in Practice
- This is where the incoming FTTH drop is fusion-spliced; the in-house runs to each flat or room start from the LC/APC couplers.
- Ready for up to 3 duplex hand-overs as delivered; the cassette has room for up to 24 fibres.
- IP54 protects against dust and splashing water — suitable for basements, stairwells and technical rooms.
- Optical values published: insertion loss max. 0.20 dB, return loss min. 60 dB.
What Will Not Work
- UPC (blue) or multimode connectors will not mate correctly with the APC couplers.
- It does not include the drop cable, patch cords or a splitter.
- No splicing tools are included — a fusion splicer is needed on site.
- Not a 19-inch rack product.
Key Features
Splice ready
Pigtails pre-fitted, colour-coded per IEC 60304 and stored in the cassette.
Microduct entry
Two inlets for 7/12 mm microducts, up to two gas blockers.
Secure
Cylinder lock with two keys.
Splitter-ready
Holder for a PLC splitter.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
In an FTTH building, the entry point decides how clean every later connection will be: APC end to end, short and well-routed pigtails, and a lockable box the tenants cannot open. On the active side, pair it with suitable routers.
✓ Buy it if you are building an FTTH entry point with single-mode APC hand-overs for up to 3 duplex links.
✕ Skip it if your link is multimode or UPC, or you need a 19-inch rack termination.
→ Also consider the DIGITUS FTTx installation kits DN-948030-2 / DN-948050-2 for pre-terminated in-home runs.
Tell us the operator hand-over type and number of flats and we will check the right entry point and cabling before you order.
Features - Digitus - DN-949103
Colour
grey
More Details
Product Code
04:439863
EAN Code
4016032487630
Manufacturer
Digitus
