DIGITUS FTTH Outdoor Fiber Distribution Box for 2 SC Simplex or 2 LC Duplex Couplers · IP65, Lockable, 2 × PG21 Entries
Brand:
Digitus
DIGITUS FTTH Outdoor Fiber Distribution Box for 2 SC Simplex or 2 LC Duplex Couplers · IP65, Lockable, 2 × PG21 Entries
€26.43 inc. VAT
DN-968912
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
DIGITUS DN-968912 — FTTH Outdoor Distribution Box for 2 SC/SX or LC/DX Couplers
IP65 outdoor2 × SC SX or LC DXKey lock2 × PG21 entries

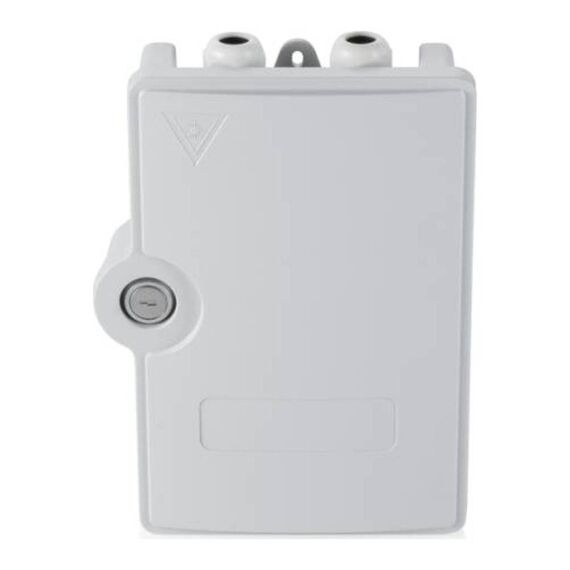

The DIGITUS DN-968912 is a small IP65 fiber distribution box for FTTH and outdoor installations, with a holder for 2 SC simplex or 2 LC duplex couplers. It is the termination point where the incoming fiber is spliced to pigtails and handed over to the subscriber or building side.
Inside are a splice-protection holder, a tray for storing spare fiber length and a coupler holder; the cover locks with a key. Two PG21 cable entries bring the feeder and drop cables in, and the IP65 rating protects the splices against dust and water jets.
Before you order: The box holds couplers but DIGITUS does not list couplers or pigtails in the scope of delivery — plan to buy 2 × SC simplex or 2 × LC duplex couplers and matching pigtails for your fiber type.

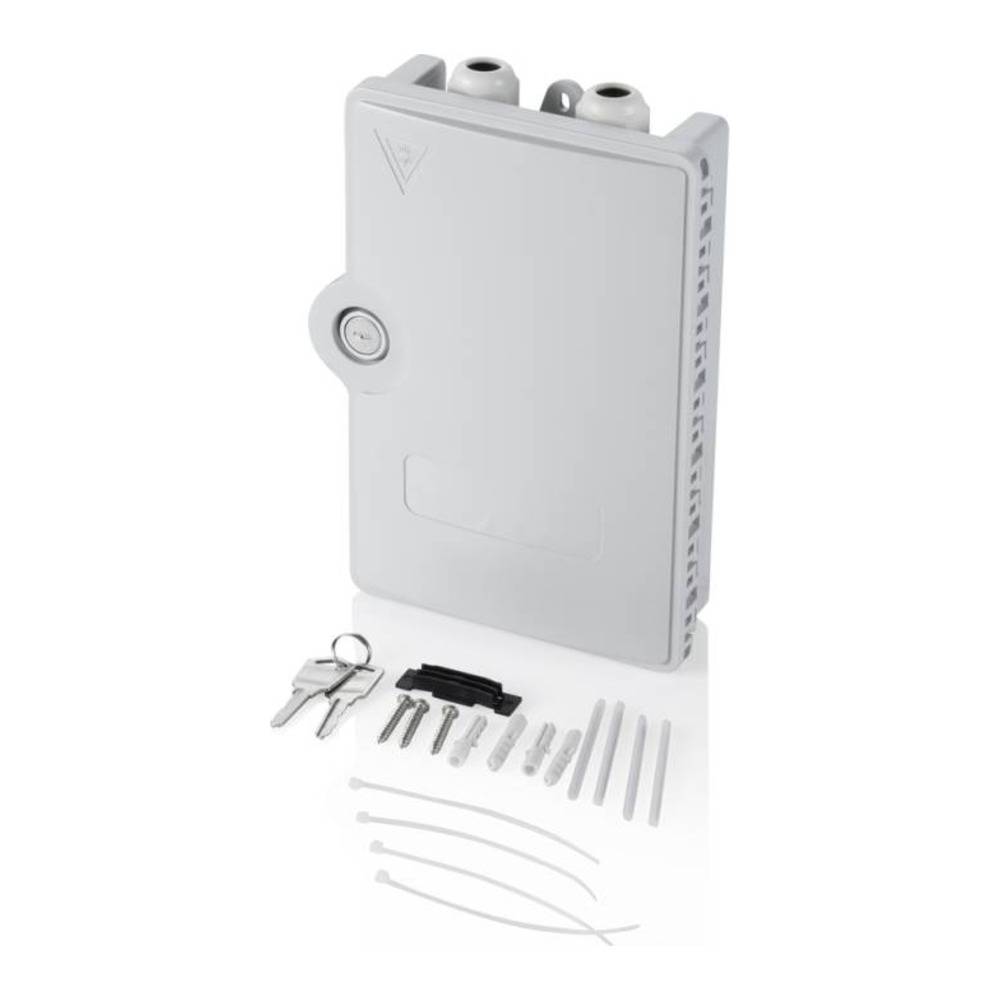

What's in the Box
- 1 × DIGITUS FTTH outdoor distribution box (DN-968912) with coupler holder, splice-protection holder, key lock, cable tray and cable entries
- Fixing material
- Splice protection
- No couplers or pigtails listed
What It Means in Practice
- Two SC simplex couplers = 2 fibers; two LC duplex couplers = 4 fibers.
- The splice holder takes 2 splices; DIGITUS also states that 4 splices are possible.
- Size 215 × 150 × 50 mm (W × H × D) — small enough for a façade, a basement wall or next to a building entry point.
- PG21 glands accept round cables; check your cable diameter fits the gland before ordering.
What Will Not Work
- It does not accept SC duplex or LC quad couplers.
- It is not a splicer — fusion splicing equipment is still required.
- DIGITUS does not publish a pole-mount kit or UV/material data for this box.
- It is not designed for higher fiber counts or as a building distribution point.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
For a single FTTH drop or a two-fiber outdoor handover, this IP65 box is the right size — no more, no less. Budget the couplers and pigtails separately and check the PG21 glands against your cable. For the indoor side, see our network cables.
✓ Buy it if you need an IP65, lockable termination point for up to 2 SC or LC couplers outdoors.
✕ Skip it if you need more than 4 fibers or an indoor rack/wall splice box.
→ Also consider DIGITUS DN-96800S-2, the indoor wall Unibox for up to 24 fibers.
Send us the cable type and diameter and your fiber specification and we will check couplers, pigtails and glands before you order.
Features - Digitus - DN-968912
More Details
Product Code
04:352576
EAN Code
4016032370994
Manufacturer
Digitus
